| Part No.： | LT3748 |
| Page： | 34 Pages |
| Size： | 1021 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2023-11-30 15:19:01 |
| DataSheet： | Download |

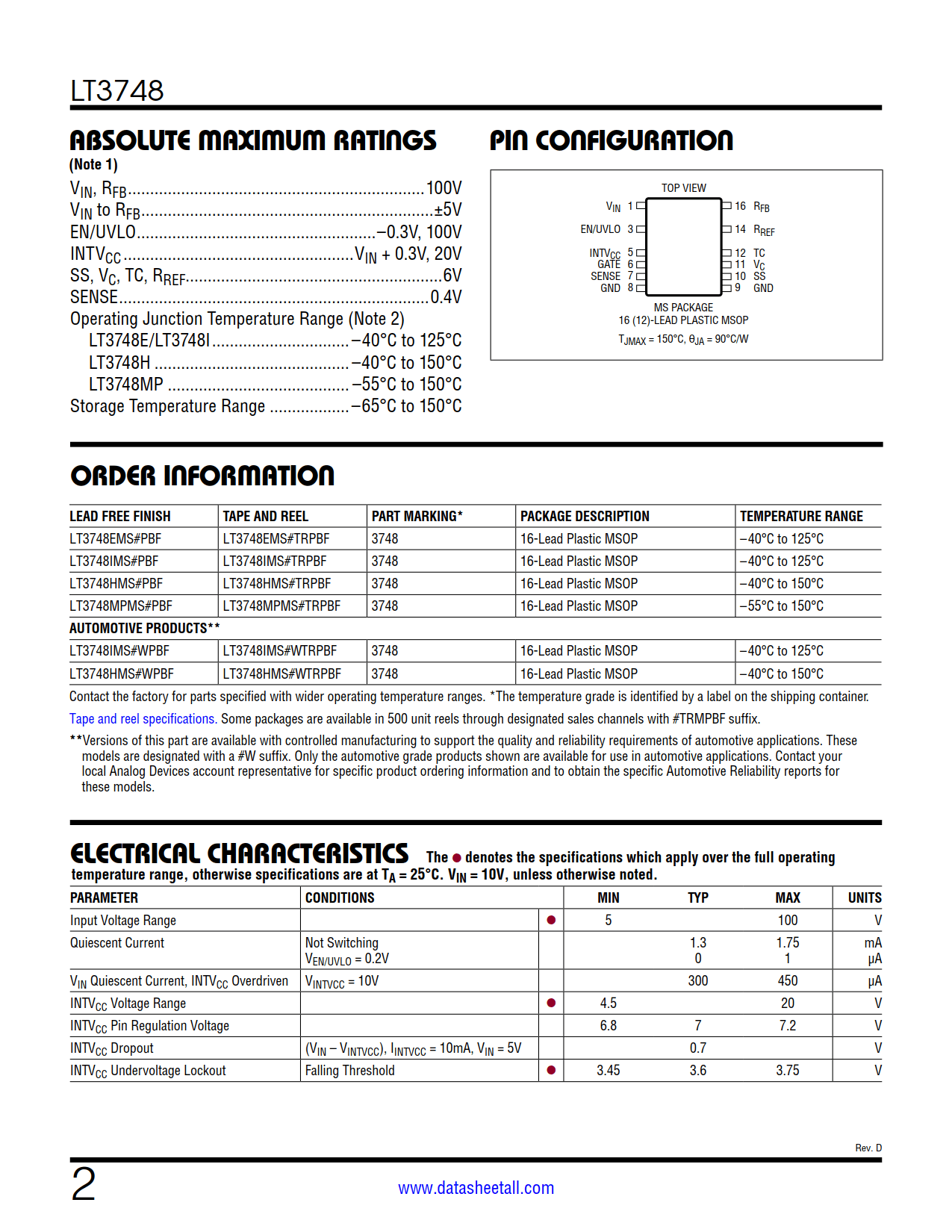

| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LT3748EMS#PBF | Tube | 37 | 3748 | 1 | 16 | -40°C ~ 125°C | 16-Lead Plastic MSOP | |
| LT3748EMS#TRPBF | Reel | 2500 | 3748 | 1 | 16 | -40°C ~ 125°C | 16-Lead Plastic MSOP | |
| LT3748EMS#TRMPBF | Reel | 500 | 3748 | 1 | 16 | -40°C ~ 125°C | 16-Lead Plastic MSOP | |
| LT3748IMS#PBF | Tube | 37 | 3748 | 1 | 16 | -40°C ~ 125°C | 16-Lead Plastic MSOP | |
| LT3748IMS#TRPBF | Reel | 2500 | 3748 | 1 | 16 | -40°C ~ 125°C | 16-Lead Plastic MSOP | |
| LT3748IMS#TRMPBF | Reel | 500 | 3748 | 1 | 16 | -40°C ~ 125°C | 16-Lead Plastic MSOP | |
| LT3748HMS#PBF | Tube | 37 | 3748 | 1 | 16 | -40°C ~ 150°C | 16-Lead Plastic MSOP | |
| LT3748HMS#TRPBF | Reel | 2500 | 3748 | 1 | 16 | -40°C ~ 150°C | 16-Lead Plastic MSOP | |
| LT3748HMS#TRMPBF | Reel | 500 | 3748 | 1 | 16 | -40°C ~ 150°C | 16-Lead Plastic MSOP | |
| LT3748MPMS#PBF | Tube | 37 | 3748 | 1 | 16 | -55°C ~ 150°C | 16-Lead Plastic MSOP | |
| LT3748MPMS#TRPBF | Reel | 2500 | 3748 | 1 | 16 | -55°C ~ 150°C | 16-Lead Plastic MSOP | |
| LT3748MPMS#TRMPBF | Reel | 500 | 3748 | 1 | 16 | -55°C ~ 150°C | 16-Lead Plastic MSOP | |
| LT3748IMS#WPBF | Tube | 37 | 3748 | 1 | 16 | -40°C ~ 125°C | 16-Lead Plastic MSOP | |
| LT3748IMS#WTRPBF | Reel | 2500 | 3748 | 1 | 16 | -40°C ~ 125°C | 16-Lead Plastic MSOP | |
| LT3748IMS#WTRMPBF | Reel | 500 | 3748 | 1 | 16 | -40°C ~ 125°C | 16-Lead Plastic MSOP | |
| LT3748HMS#WPBF | Tube | 37 | 3748 | 1 | 16 | -40°C ~ 150°C | 16-Lead Plastic MSOP | |
| LT3748HMS#WTRPBF | Reel | 2500 | 3748 | 1 | 16 | -40°C ~ 150°C | 16-Lead Plastic MSOP | |
| LT3748HMS#WTRMPBF | Reel | 500 | 3748 | 1 | 16 | -40°C ~ 150°C | 16-Lead Plastic MSOP |

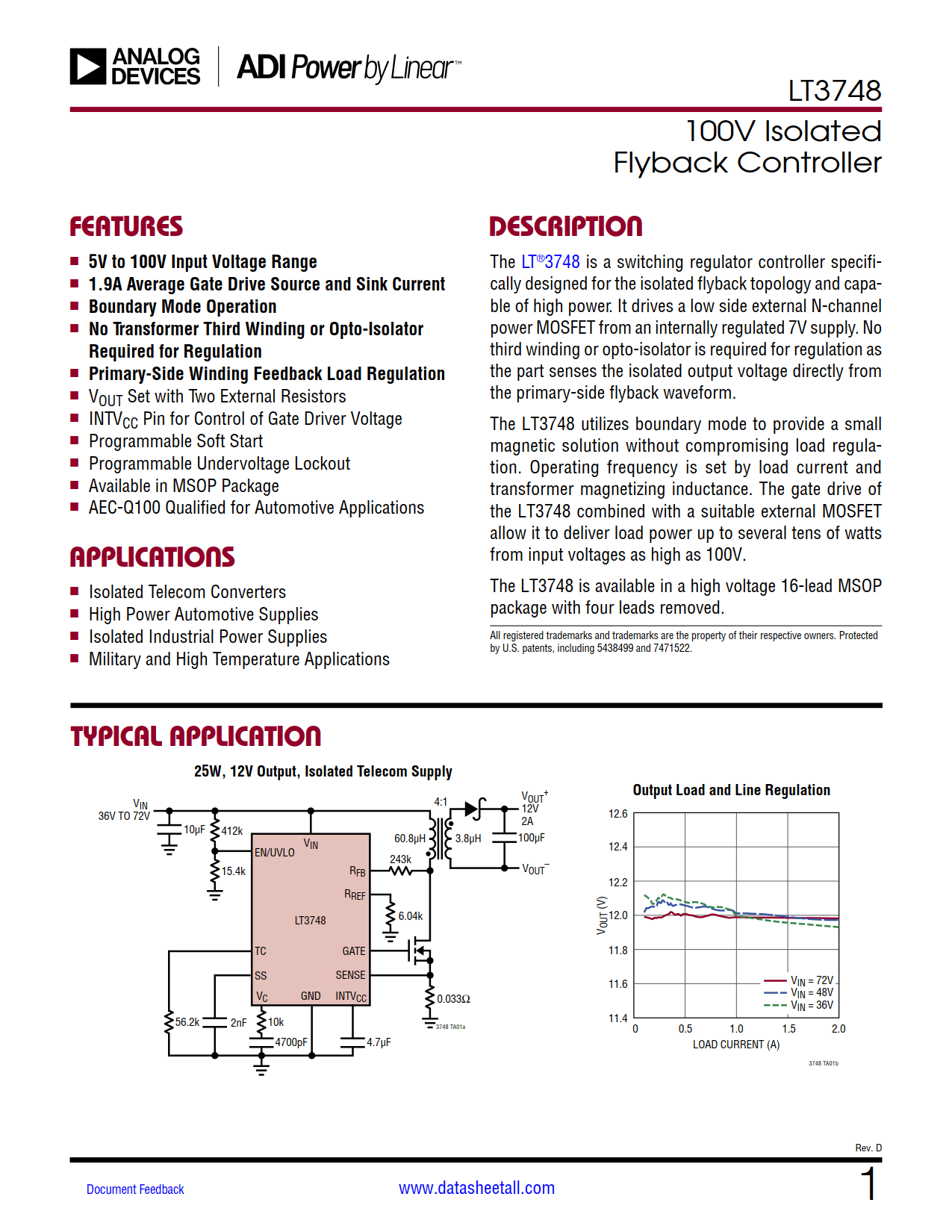

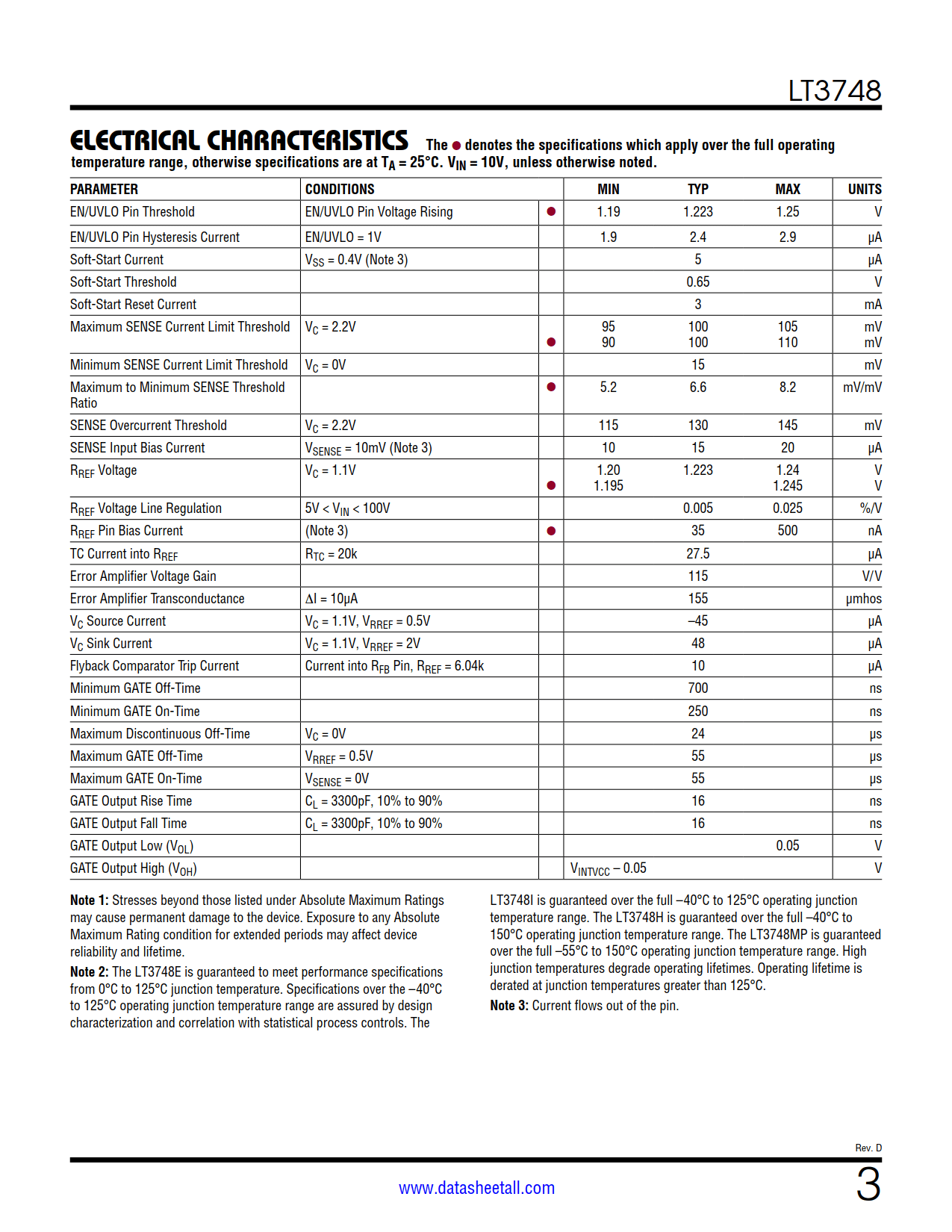

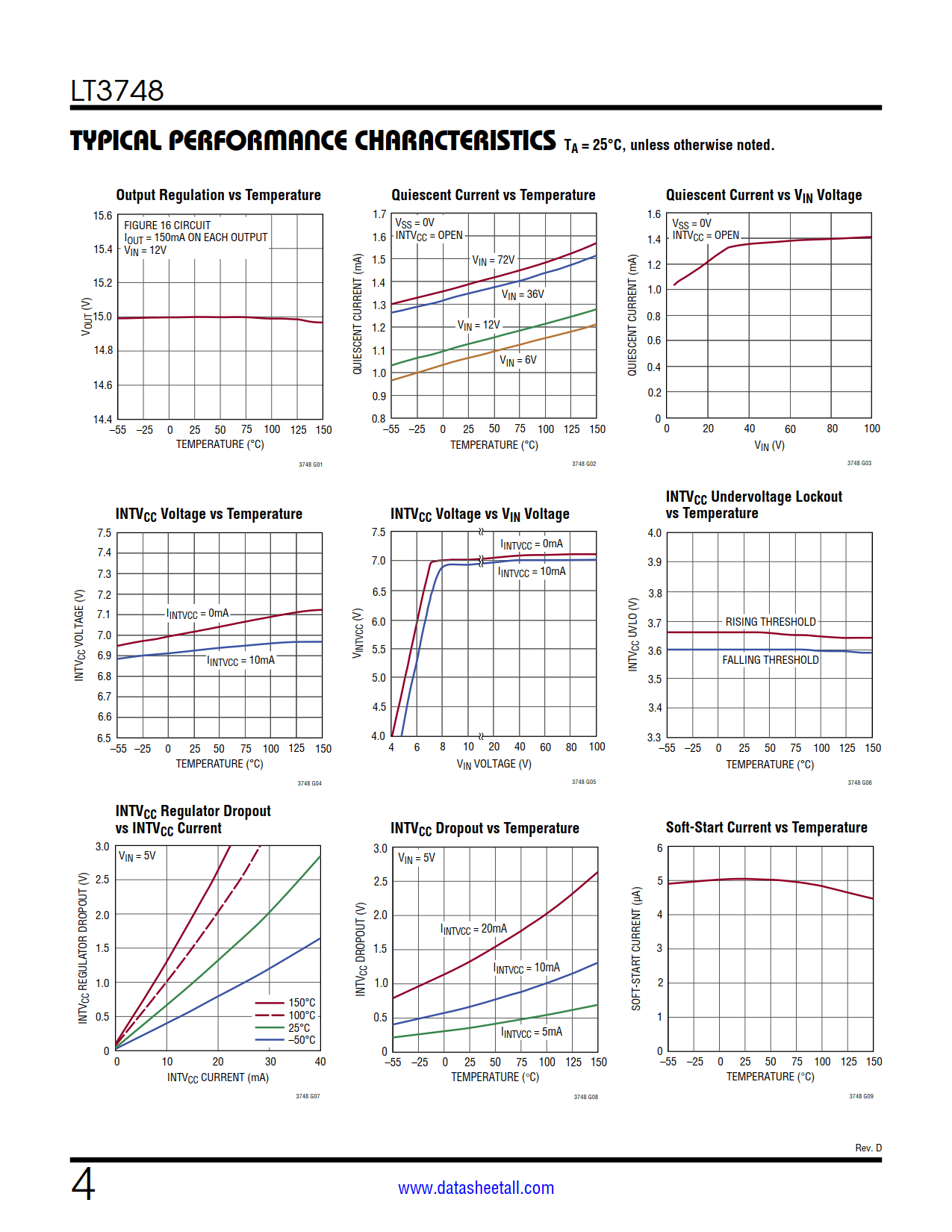

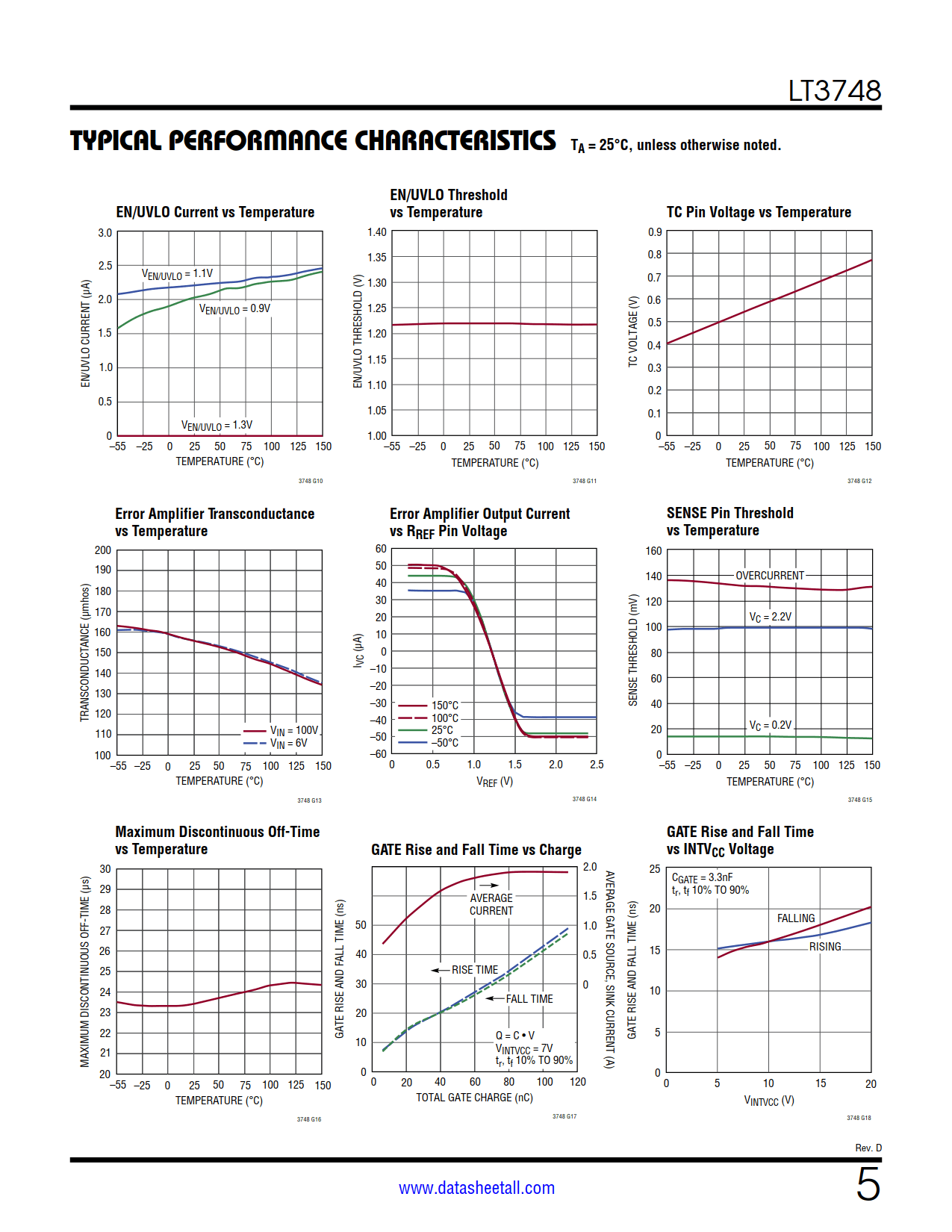

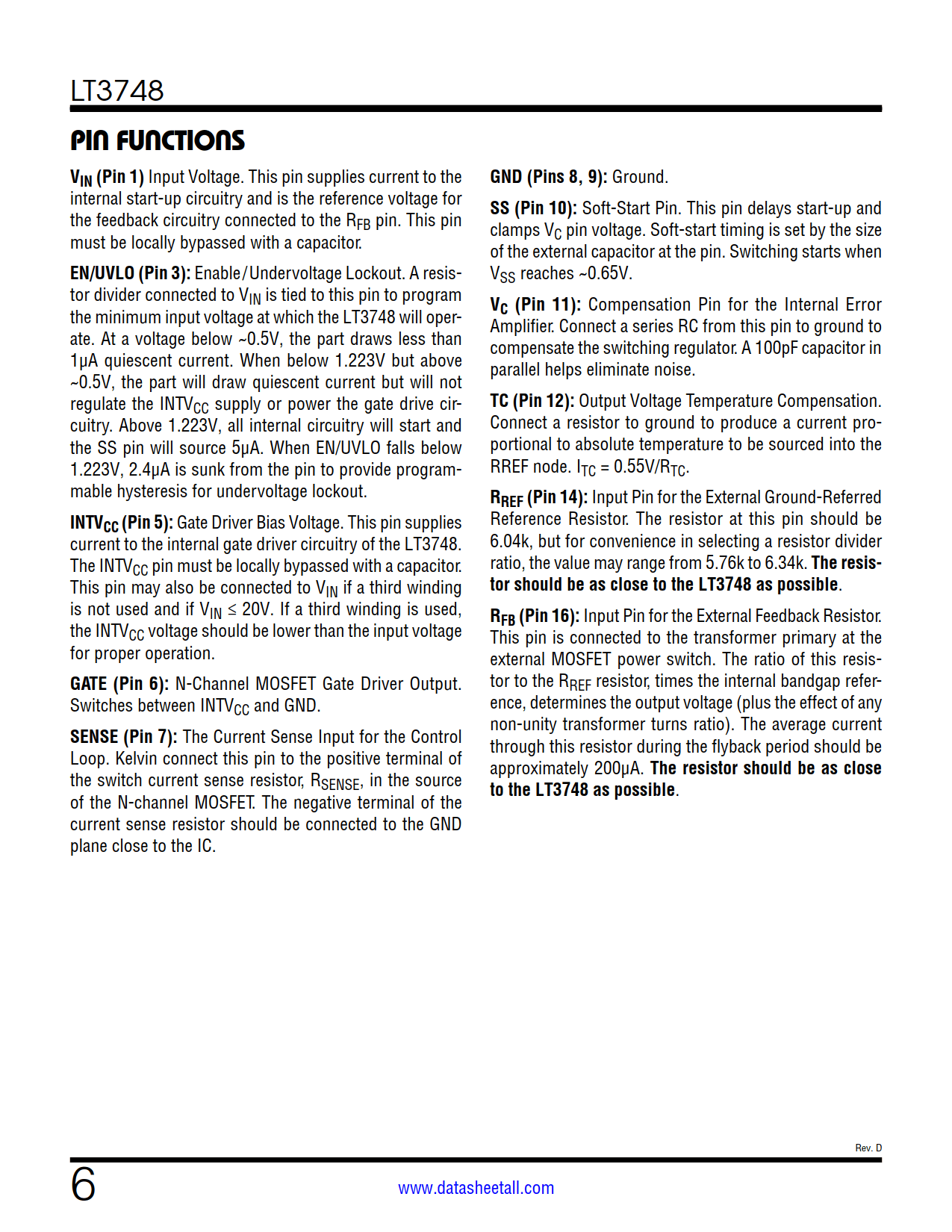

The LT3748 is a switching regulator controller specifically designed for the isolated flyback topology and capable of high power. It drives a low side external N-channel power MOSFET from an internally regulated 7V supply. No third winding or opto-isolator is required for regulation as the part senses the isolated output voltage directly from the primary-side flyback waveform.
The LT3748 utilizes boundary mode to provide a small magnetic solution without compromising load regulation. Operating frequency is set by load current and transformer magnetizing inductance. The gate drive of the LT3748 combined with a suitable external MOSFET allow it to deliver load power up to several tens of watts from input voltages as high as 100V.
The LT3748 is available in a high voltage 16-lead MSOP package with four leads removed.
