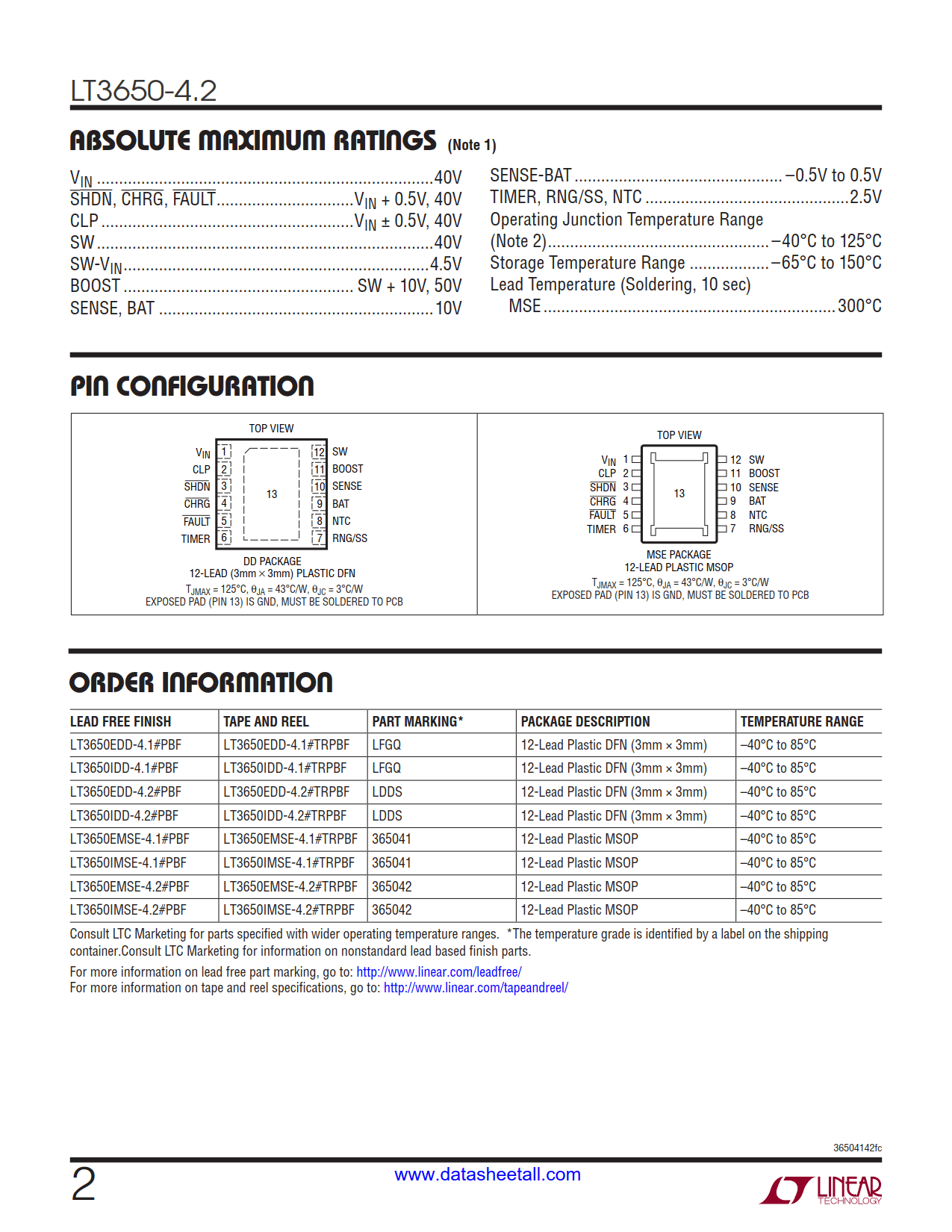

| Part No.： | LT3650-4.2 |
| Page： | 22 Pages |
| Size： | 227 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 2 |
| Update Time： | 2023-10-19 17:44:39 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LT3650EDD-4.2#PBF | Tube | 121 | LDDS | 1 | 12 | -40°C ~ 85°C | 12-Lead (3mm × 3mm) Plastic DFN | |
| LT3650EDD-4.2#TRPBF | Reel | 2500 | LDDS | 1 | 12 | -40°C ~ 85°C | 12-Lead (3mm × 3mm) Plastic DFN | |
| LT3650EDD-4.2#TRMPBF | Reel | 500 | LDDS | 1 | 12 | -40°C ~ 85°C | 12-Lead (3mm × 3mm) Plastic DFN | |
| LT3650IDD-4.2#PBF | Tube | 121 | LDDS | 1 | 12 | -40°C ~ 85°C | 12-Lead (3mm × 3mm) Plastic DFN | |
| LT3650IDD-4.2#TRPBF | Reel | 2500 | LDDS | 1 | 12 | -40°C ~ 85°C | 12-Lead (3mm × 3mm) Plastic DFN | |
| LT3650IDD-4.2#TRMPBF | Reel | 500 | LDDS | 1 | 12 | -40°C ~ 85°C | 12-Lead (3mm × 3mm) Plastic DFN | |
| LT3650EMSE-4.2#PBF | Tube | 37 | 365042 | 1 | 12 | -40°C ~ 85°C | 12-Lead Plastic MSOP | |
| LT3650EMSE-4.2#TRPBF | Reel | 2500 | 365042 | 1 | 12 | -40°C ~ 85°C | 12-Lead Plastic MSOP | |
| LT3650EMSE-4.2#TRMPBF | Reel | 500 | 365042 | 1 | 12 | -40°C ~ 85°C | 12-Lead Plastic MSOP | |
| LT3650IMSE-4.2#PBF | Tube | 37 | 365042 | 1 | 12 | -40°C ~ 85°C | 12-Lead Plastic MSOP | |
| LT3650IMSE-4.2#TRPBF | Reel | 2500 | 365042 | 1 | 12 | -40°C ~ 85°C | 12-Lead Plastic MSOP | |
| LT3650IMSE-4.2#TRMPBF | Reel | 500 | 365042 | 1 | 12 | -40°C ~ 85°C | 12-Lead Plastic MSOP |

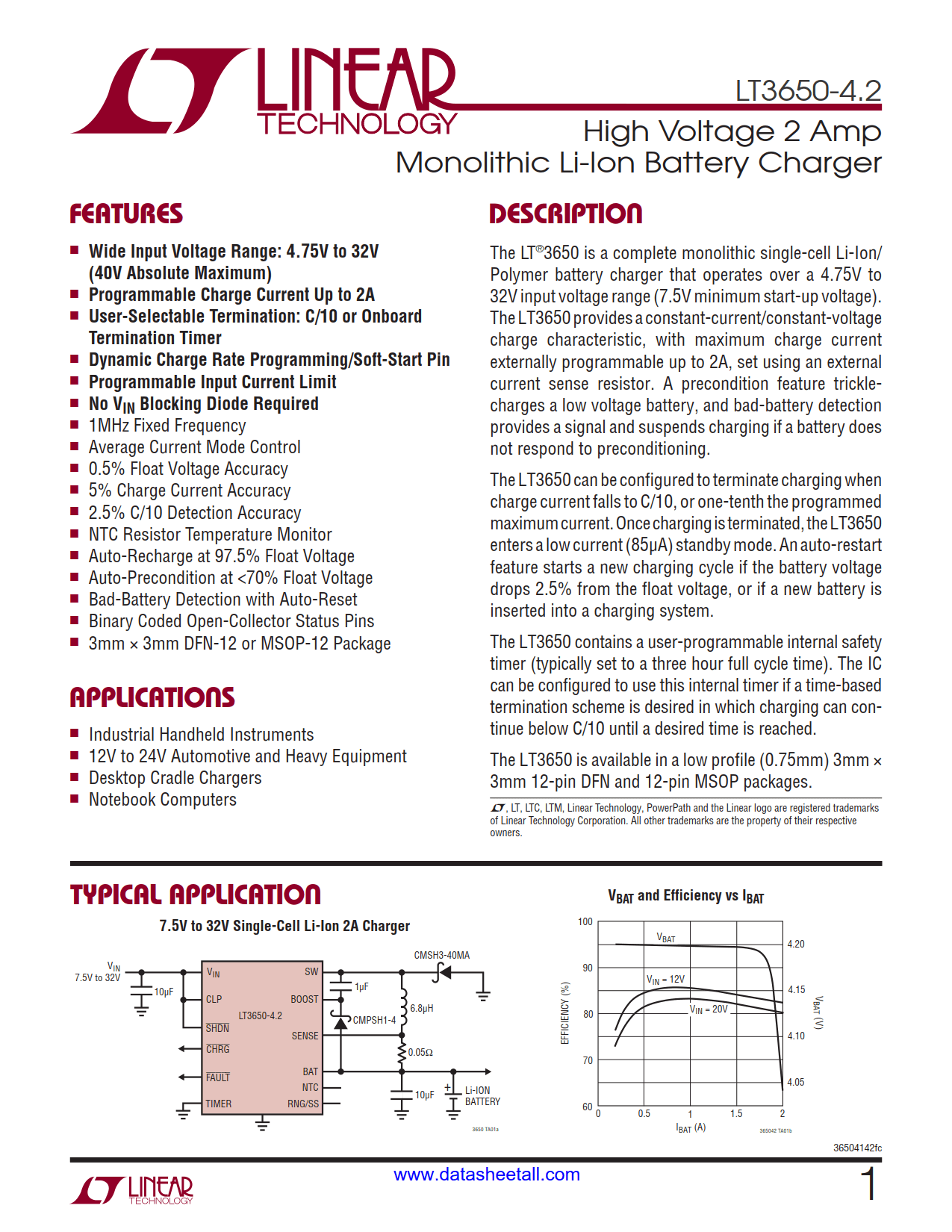

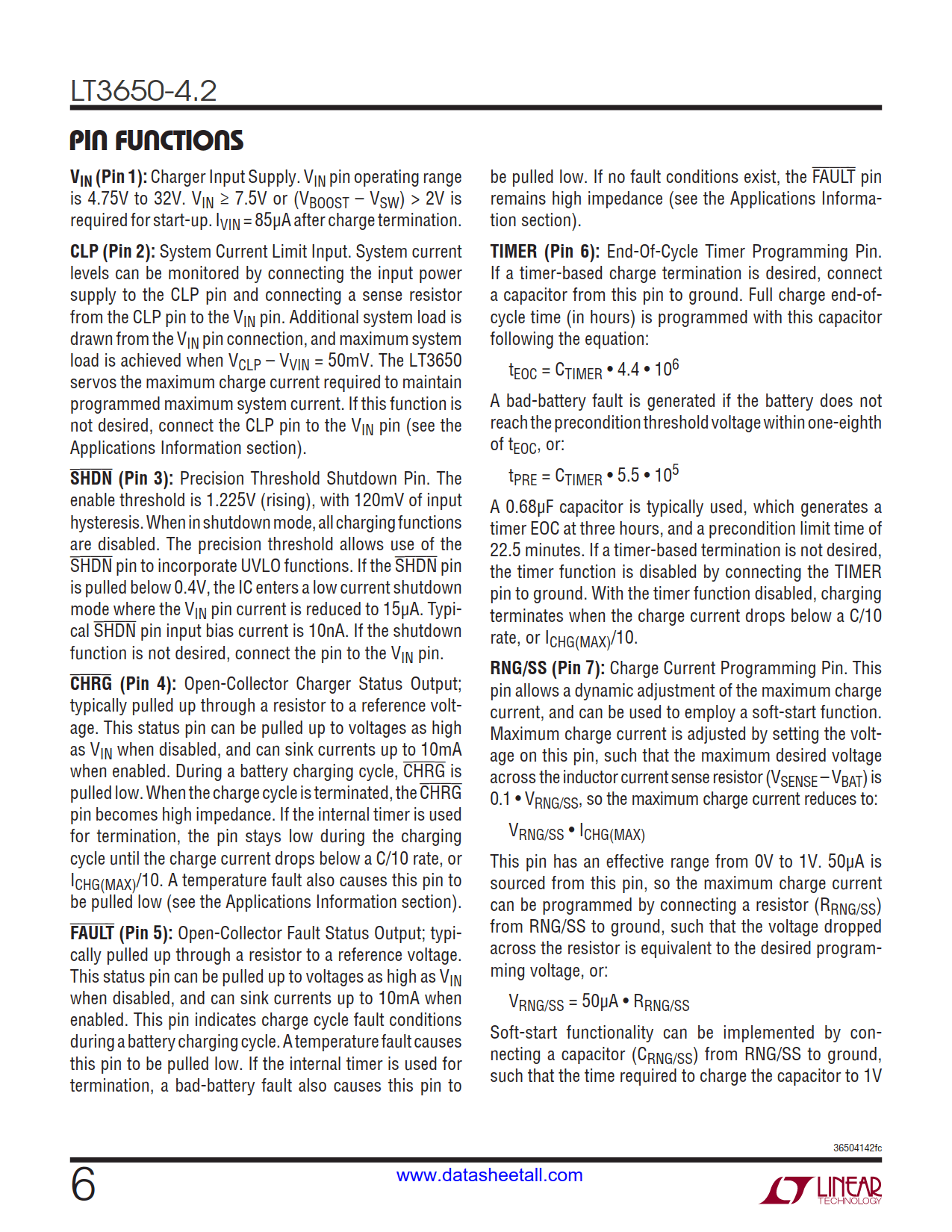

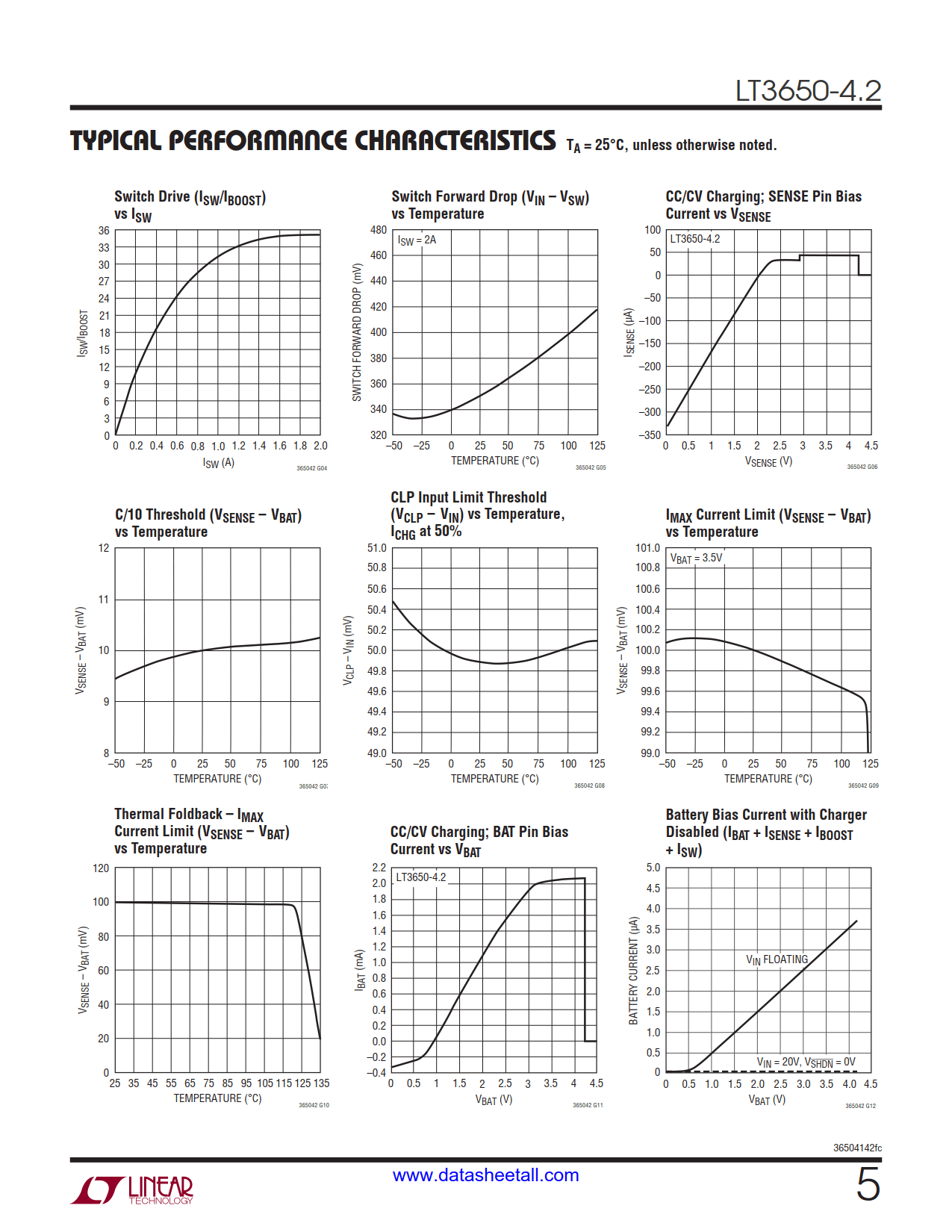

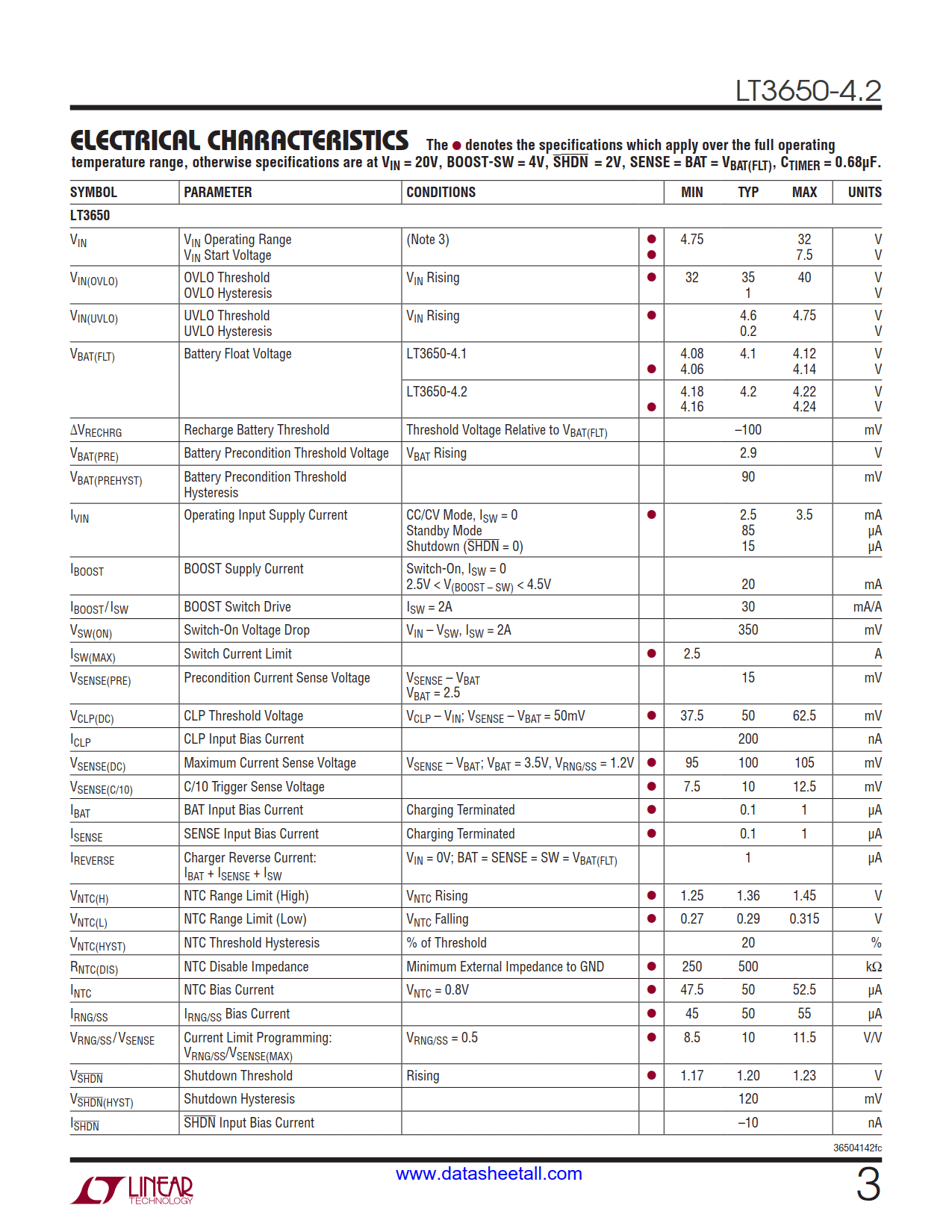

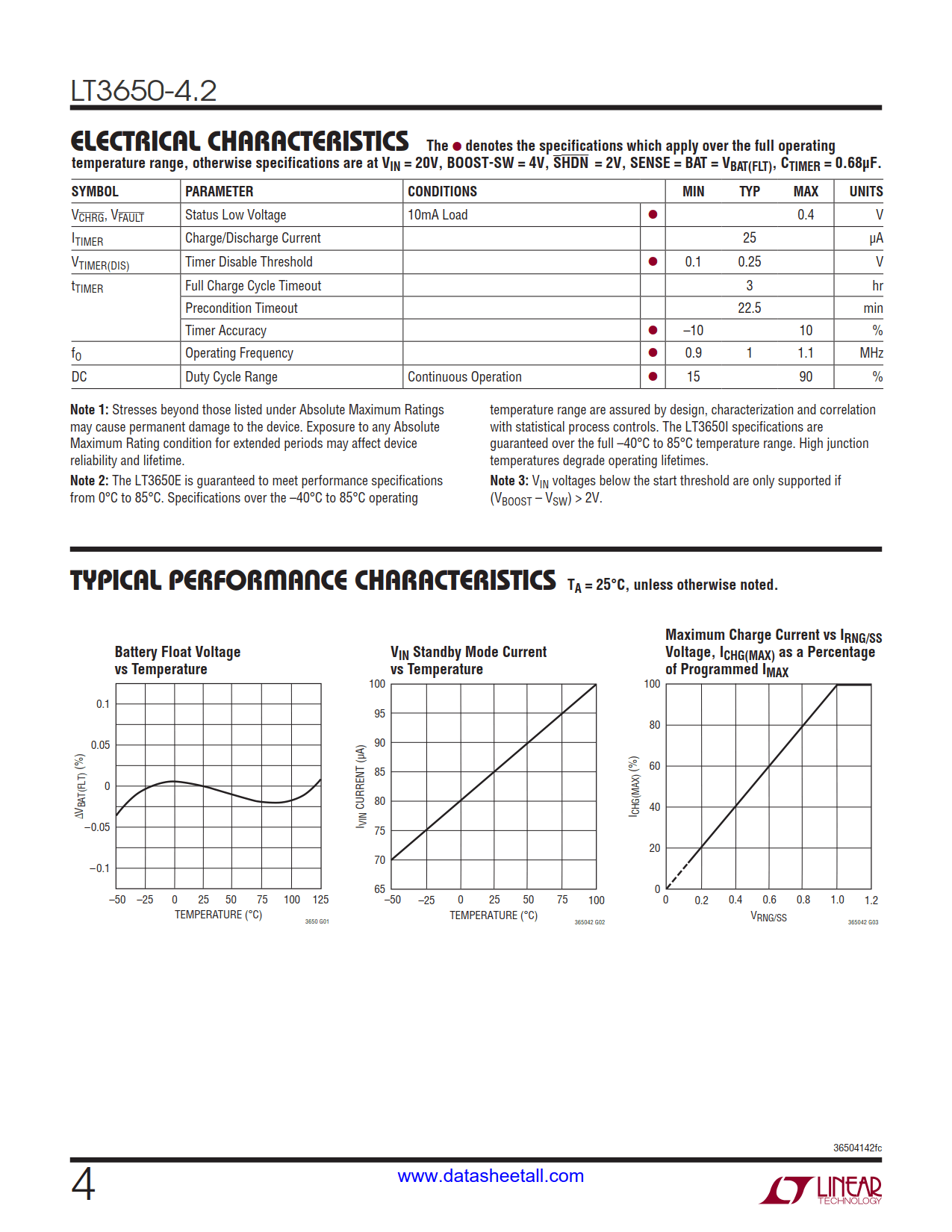

The LT3650 is a complete monolithic single-cell Li-Ion/Polymer battery charger that operates over a 4.75V to 32V input voltage range (7.5V minimum start-up voltage). The LT3650 provides a constant-current/constant-voltage charge characteristic, with maximum charge current externally programmable up to 2A, set using an external current sense resistor. A precondition feature trickle charges a low voltage battery, and bad-battery detection provides a signal and suspends charging if a battery does not respond to preconditioning.
The LT3650 can be configured to terminate charging when charge current falls to C/10, or one-tenth the programmed maximum current. Once charging is terminated, the LT3650 enters a low current (85μA) standby mode. An auto-restart feature starts a new charging cycle if the battery voltage drops 2.5% from the fl oat voltage, or if a new battery is inserted into a charging system.
The LT3650 contains a user-programmable internal safety timer (typically set to a three hour full cycle time). The IC can be configured to use this internal timer if a time-based termination scheme is desired in which charging can continue below C/10 until a desired time is reached.
The LT3650 is available in a low profile (0.75mm) 3mm × 3mm 12-pin DFN and 12-pin MSOP packages.
