LT3650-4.1 Datasheet

LT3650-4.1 Datasheet

High Voltage 2 Amp Monolithic Li-Ion Battery Charger
Part No.: LT3650-4.1
Page: 22 Pages
Size: 226 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2023-10-19 17:38:31
DataSheet: Download

LT3650-4.1 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LT3650EDD-4.1#PBF Tube 121 LFGQ 1 12 -40°C ~ 85°C 12-Lead (3mm × 3mm) Plastic DFN
LT3650EDD-4.1#TRPBF Reel 2500 LFGQ 1 12 -40°C ~ 85°C 12-Lead (3mm × 3mm) Plastic DFN
LT3650EDD-4.1#TRMPBF Reel 500 LFGQ 1 12 -40°C ~ 85°C 12-Lead (3mm × 3mm) Plastic DFN
LT3650IDD-4.1#PBF Tube 121 LFGQ 1 12 -40°C ~ 85°C 12-Lead (3mm × 3mm) Plastic DFN
LT3650IDD-4.1#TRPBF Reel 2500 LFGQ 1 12 -40°C ~ 85°C 12-Lead (3mm × 3mm) Plastic DFN
LT3650IDD-4.1#TRMPBF Reel 500 LFGQ 1 12 -40°C ~ 85°C 12-Lead (3mm × 3mm) Plastic DFN
LT3650EMSE-4.1#PBF Tube 37 365041 1 12 -40°C ~ 85°C 12-Lead Plastic MSOP
LT3650EMSE-4.1#TRPBF Reel 2500 365041 1 12 -40°C ~ 85°C 12-Lead Plastic MSOP
LT3650EMSE-4.1#TRMPBF Reel 500 365041 1 12 -40°C ~ 85°C 12-Lead Plastic MSOP
LT3650IMSE-4.1#PBF Tube 37 365041 1 12 -40°C ~ 85°C 12-Lead Plastic MSOP
LT3650IMSE-4.1#TRPBF Reel 2500 365041 1 12 -40°C ~ 85°C 12-Lead Plastic MSOP
LT3650IMSE-4.1#TRMPBF Reel 500 365041 1 12 -40°C ~ 85°C 12-Lead Plastic MSOP
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LT3650-4.1 Datasheet(PDF)

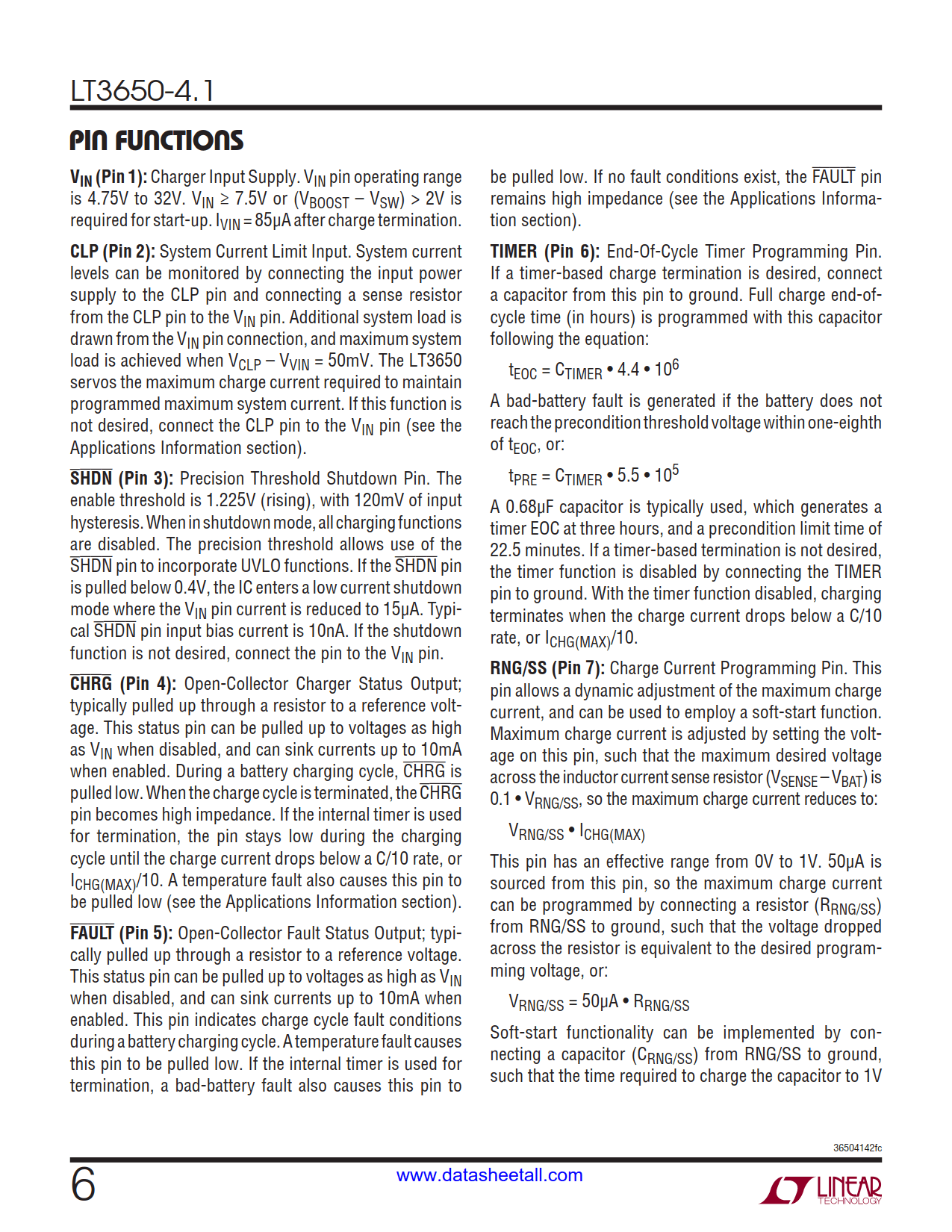

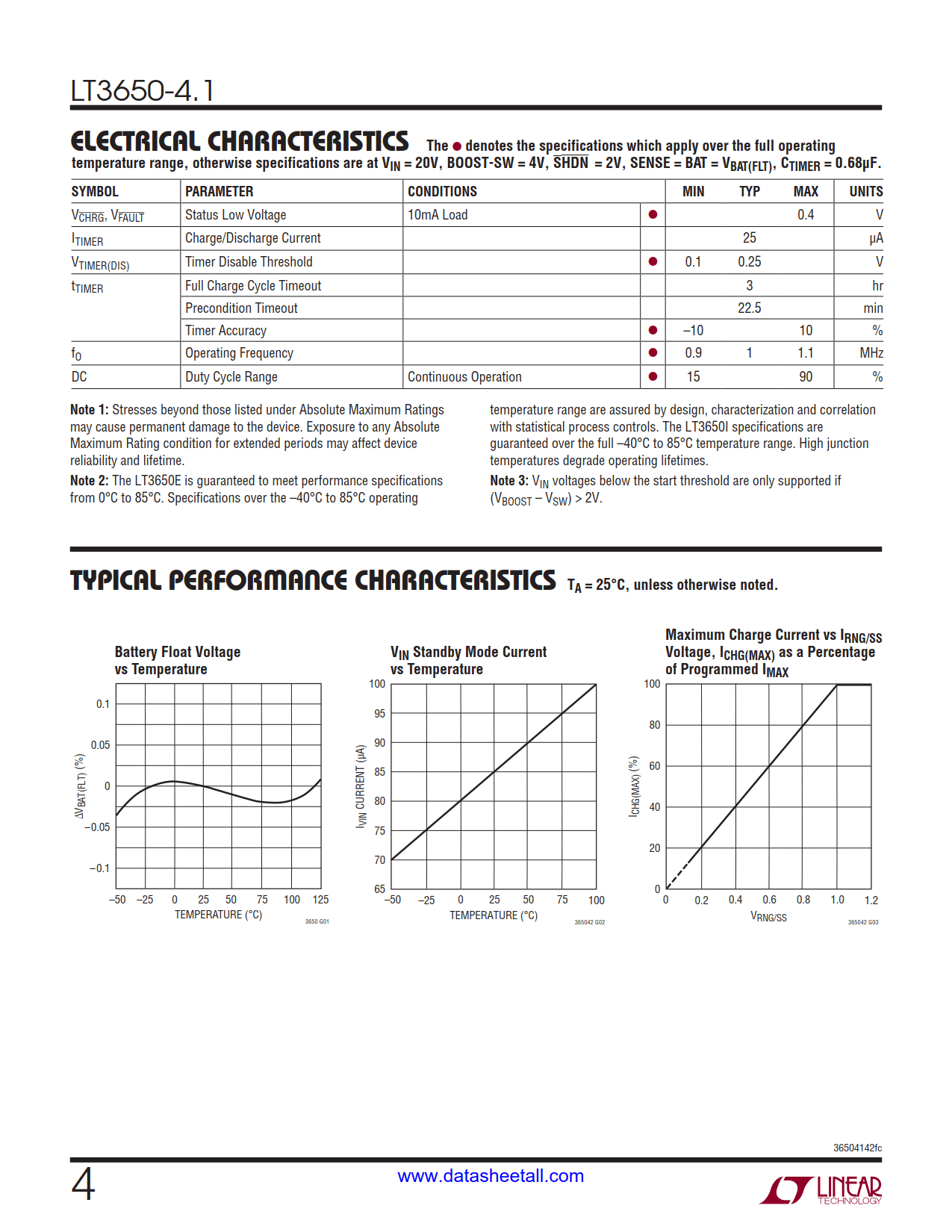

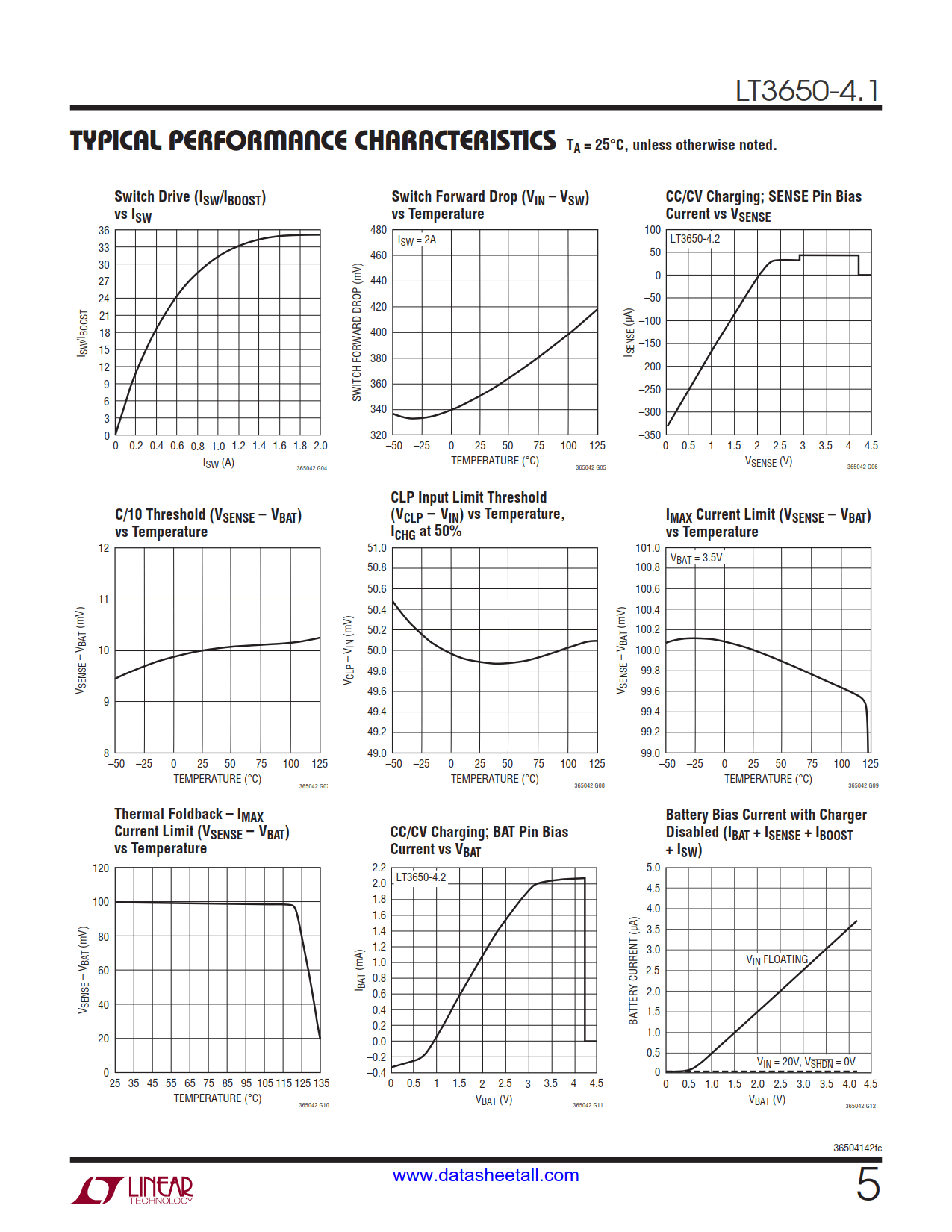

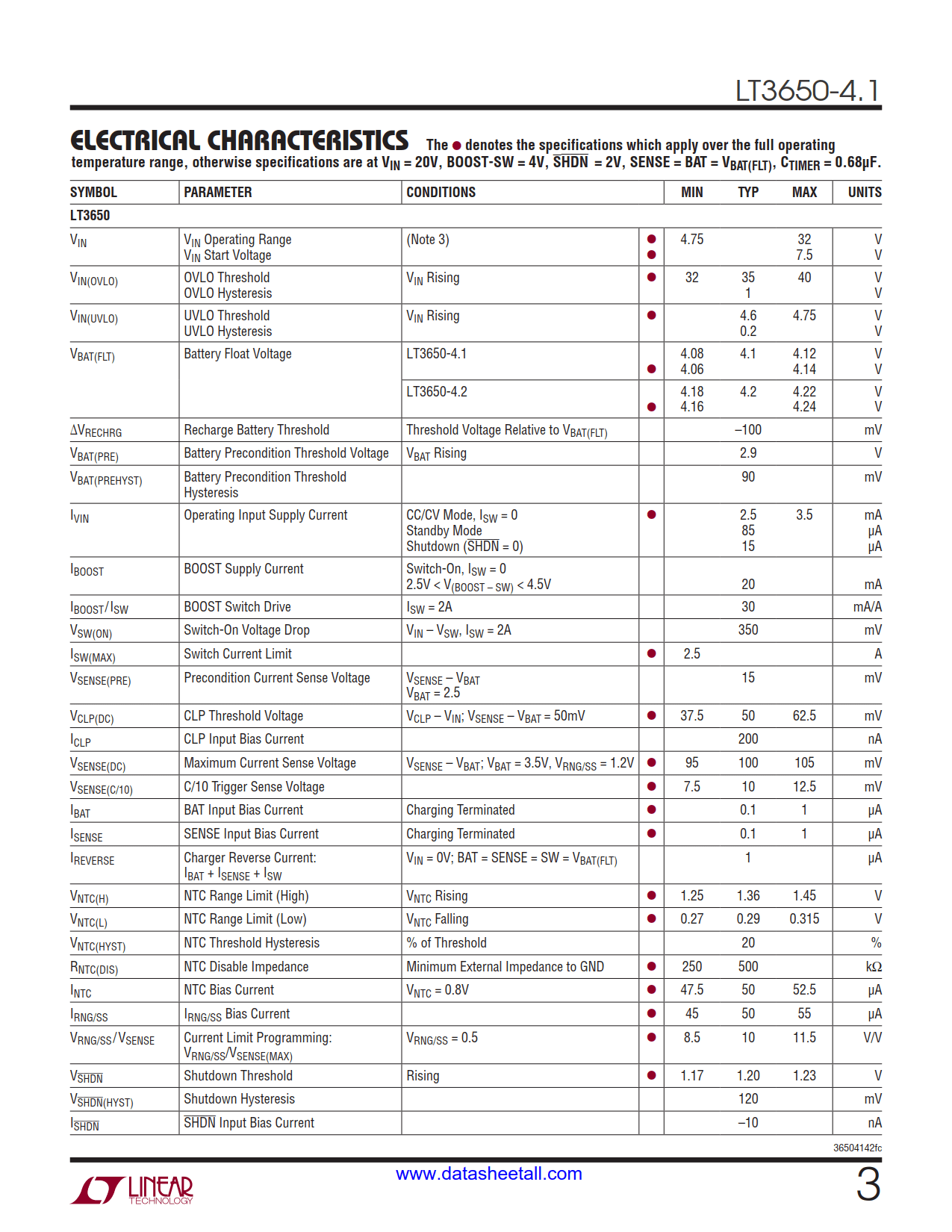

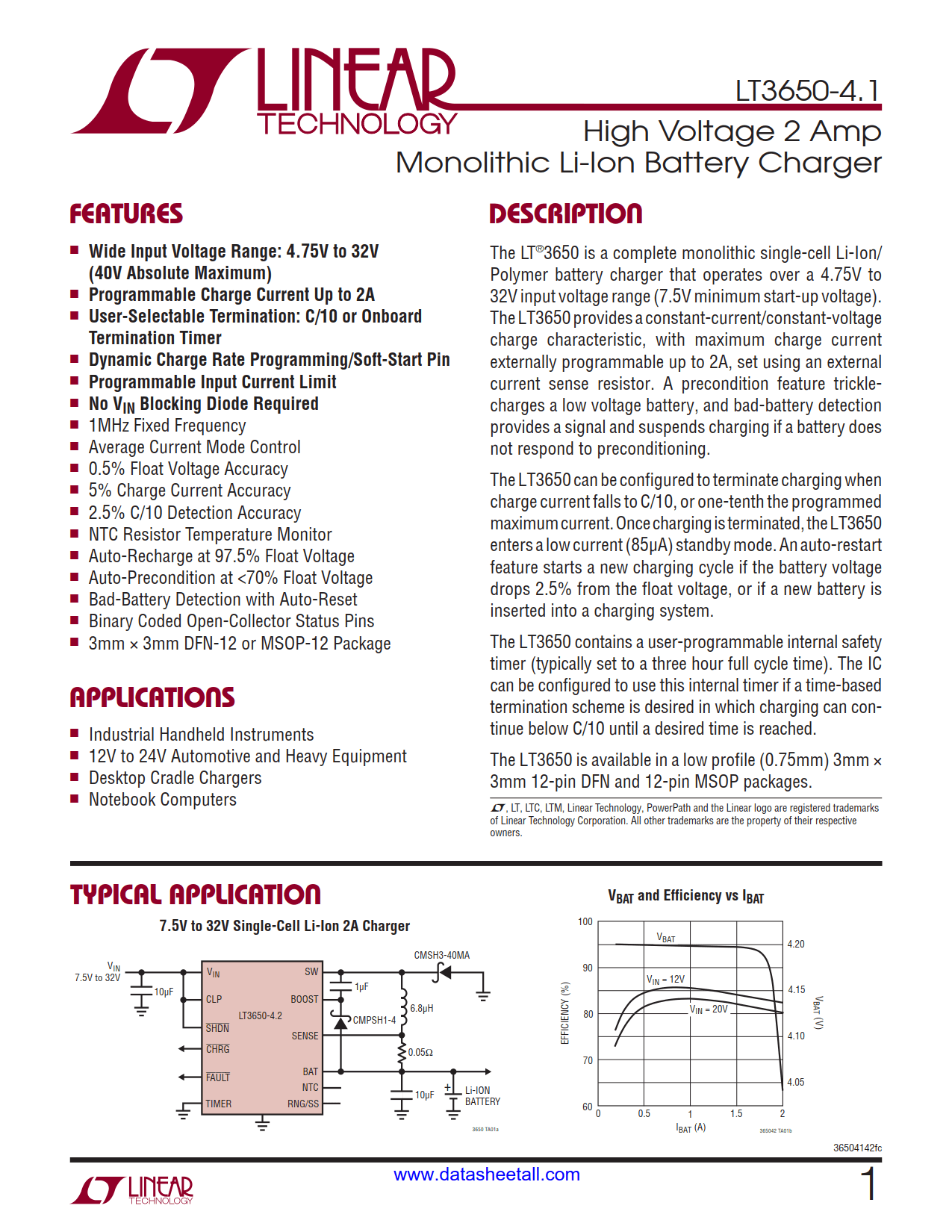

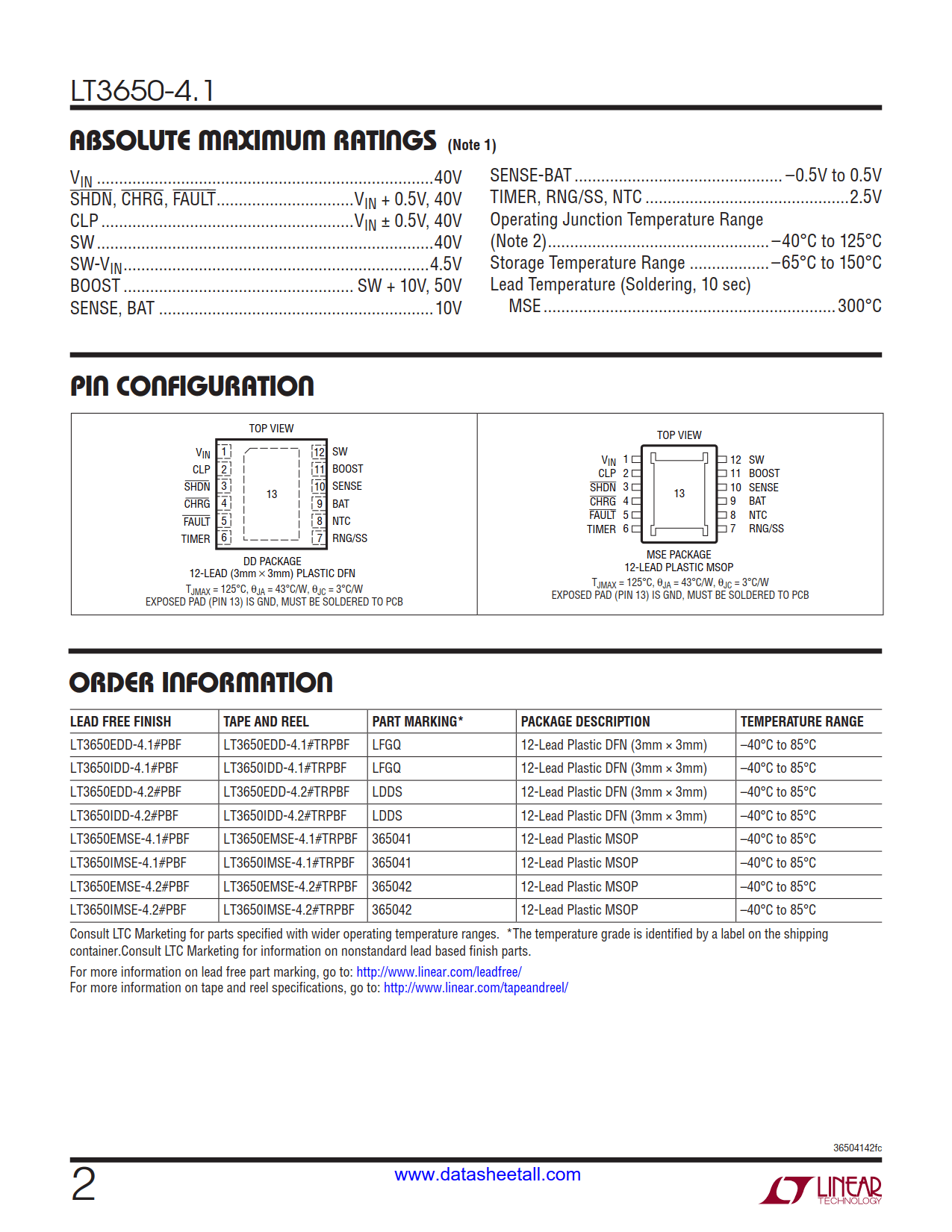

LT3650-4.1 Datasheet(Picture)

LT3650-4.1 Features

  • Wide Input Voltage Range: 4.75V to 32V (40V Absolute Maximum)
  • Programmable Charge Current Up to 2A
  • User-Selectable Termination: C/10 or Onboard Termination Timer
  • Dynamic Charge Rate Programming/Soft-Start Pin
  • Programmable Input Current Limit
  • No VIN Blocking Diode Required
  • 1MHz Fixed Frequency
  • Average Current Mode Control
  • 0.5% Float Voltage Accuracy
  • 5% Charge Current Accuracy
  • 2.5% C/10 Detection Accuracy
  • NTC Resistor Temperature Monitor
  • Auto-Recharge at 97.5% Float Voltage
  • Auto-Precondition at <70% Float Voltage
  • Bad Battery Detection with Auto-Reset
  • Binary Coded Open-Collector Status Pins
  • 3mm × 3mm DFN-12 or MSOP-12 Package

LT3650-4.1 Applications

  • Industrial Handheld Instruments
  • 12V to 24V Automotive and Heavy Equipment
  • Desktop Cradle Chargers
  • Notebook Computers

LT3650-4.1 Description

The LT3650 is a complete monolithic single-cell Li-Ion/Polymer battery charger that operates over a 4.75V to 32V input voltage range (7.5V minimum start-up voltage). The LT3650 provides a constant-current/constant-voltage charge characteristic, with maximum charge current externally programmable up to 2A, set using an external current sense resistor. A precondition feature trickle charges a low voltage battery, and bad-battery detection provides a signal and suspends charging if a battery does not respond to preconditioning.

The LT3650 can be configured to terminate charging when charge current falls to C/10, or one-tenth the programmed maximum current. Once charging is terminated, the LT3650 enters a low current (85μA) standby mode. An auto-restart feature starts a new charging cycle if the battery voltage drops 2.5% from the fl oat voltage, or if a new battery is inserted into a charging system.

The LT3650 contains a user-programmable internal safety timer (typically set to a three hour full cycle time). The IC can be configured to use this internal timer if a time-based termination scheme is desired in which charging can continue below C/10 until a desired time is reached.

The LT3650 is available in a low profile (0.75mm) 3mm × 3mm 12-pin DFN and 12-pin MSOP packages.
