LT3502A Datasheet

LT3502A Datasheet

2.2MHz, 500mA Step-Down Regulators in 2mm × 2mm DFN and MS10
Part No.: LT3502A
Page: 24 Pages
Size: 491 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2023-11-30 17:32:56
DataSheet: Download

LT3502A Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LT3502AEDC#PBF Tube   LCLT 1 8 -40°C ~ 125°C 8-Lead 2mm × 2mm Plastic DFN
LT3502AEDC#TRPBF Reel 2500 LCLT 1 8 -40°C ~ 125°C 8-Lead 2mm × 2mm Plastic DFN
LT3502AEDC#TRMPBF Reel 500 LCLT 1 8 -40°C ~ 125°C 8-Lead 2mm × 2mm Plastic DFN
LT3502AIDC#PBF Tube   LCLT 1 8 -40°C ~ 125°C 8-Lead 2mm × 2mm Plastic DFN
LT3502AIDC#TRPBF Reel 2500 LCLT 1 8 -40°C ~ 125°C 8-Lead 2mm × 2mm Plastic DFN
LT3502AIDC#TRMPBF Reel 500 LCLT 1 8 -40°C ~ 125°C 8-Lead 2mm × 2mm Plastic DFN
LT3502AEMS#PBF Tube 50 LTDTS 1 10 -40°C ~ 125°C 10-Lead Plastic MSOP
LT3502AEMS#TRPBF Reel 2500 LTDTS 1 10 -40°C ~ 125°C 10-Lead Plastic MSOP
LT3502AEMS#TRMPBF Reel 500 LTDTS 1 10 -40°C ~ 125°C 10-Lead Plastic MSOP
LT3502AIMS#PBF Tube 50 LTDTS 1 10 -40°C ~ 125°C 10-Lead Plastic MSOP
LT3502AIMS#TRPBF Reel 2500 LTDTS 1 10 -40°C ~ 125°C 10-Lead Plastic MSOP
LT3502AIMS#TRMPBF Reel 500 LTDTS 1 10 -40°C ~ 125°C 10-Lead Plastic MSOP
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LT3502A Datasheet(PDF)

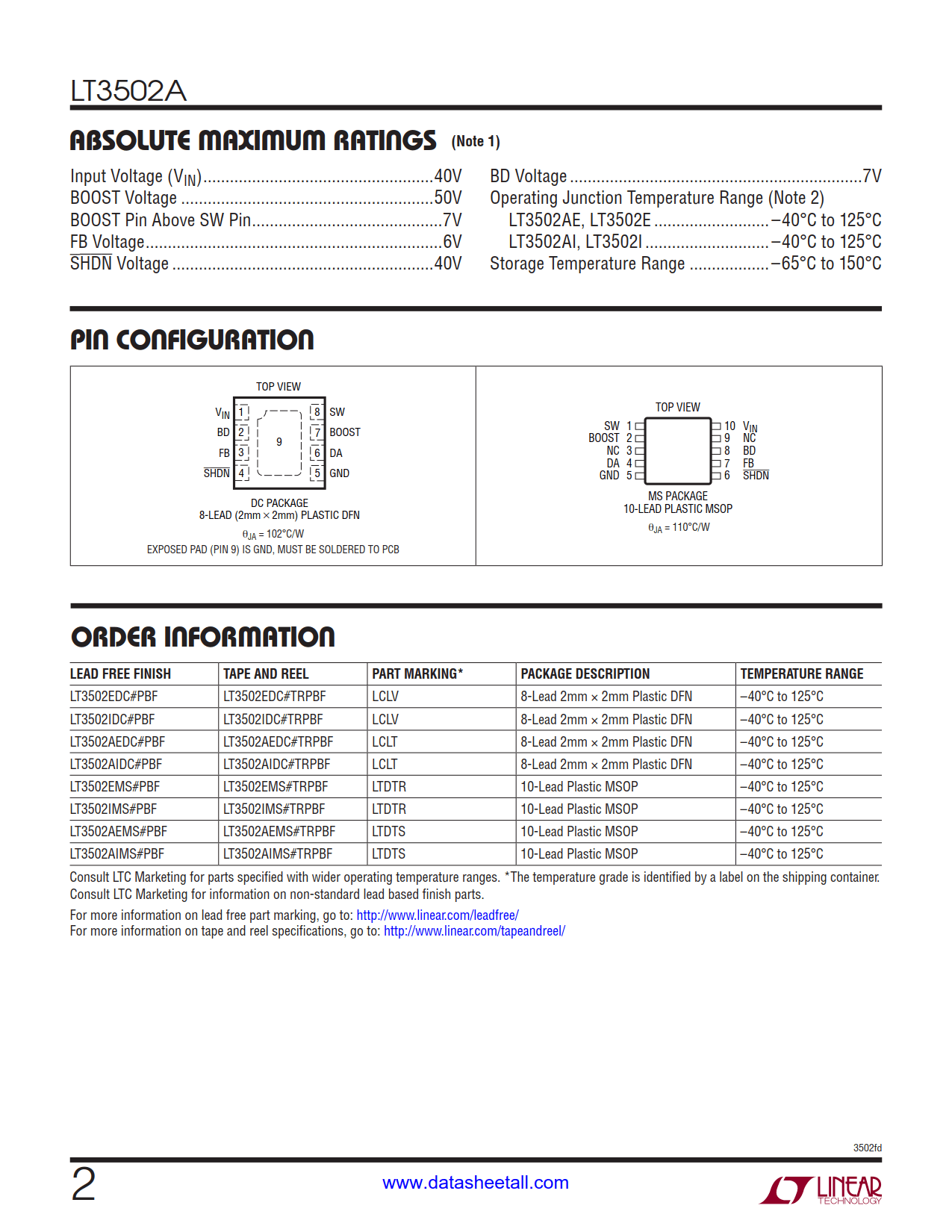

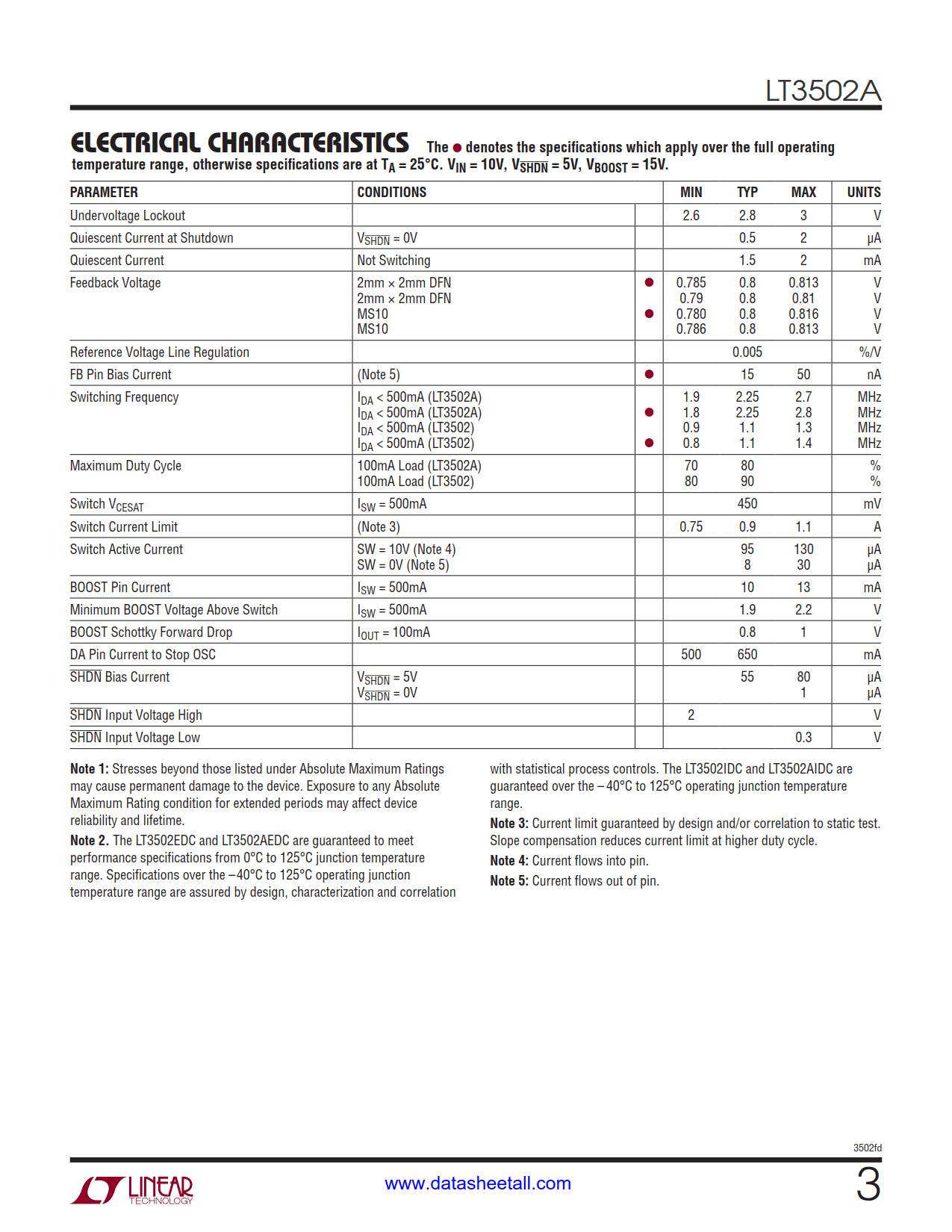

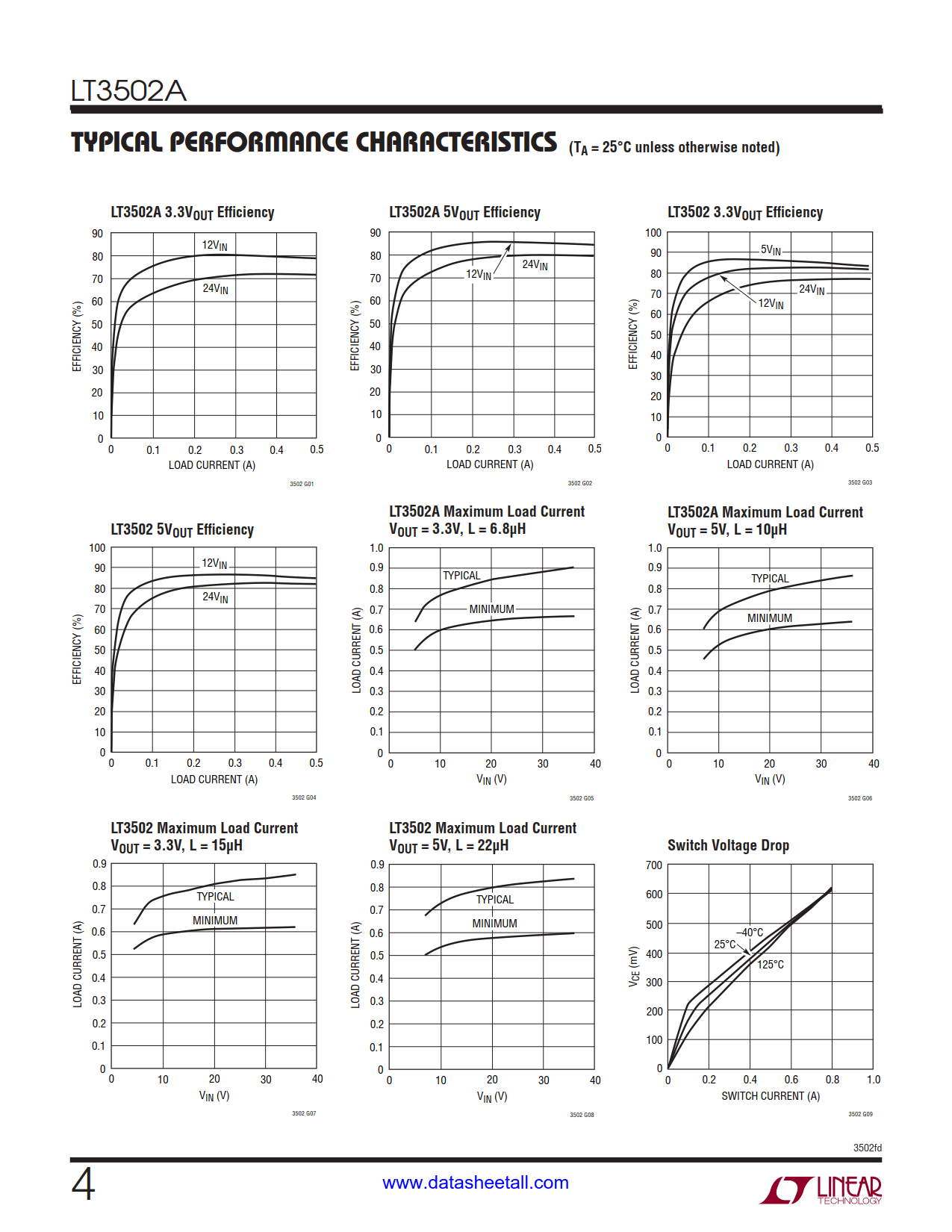

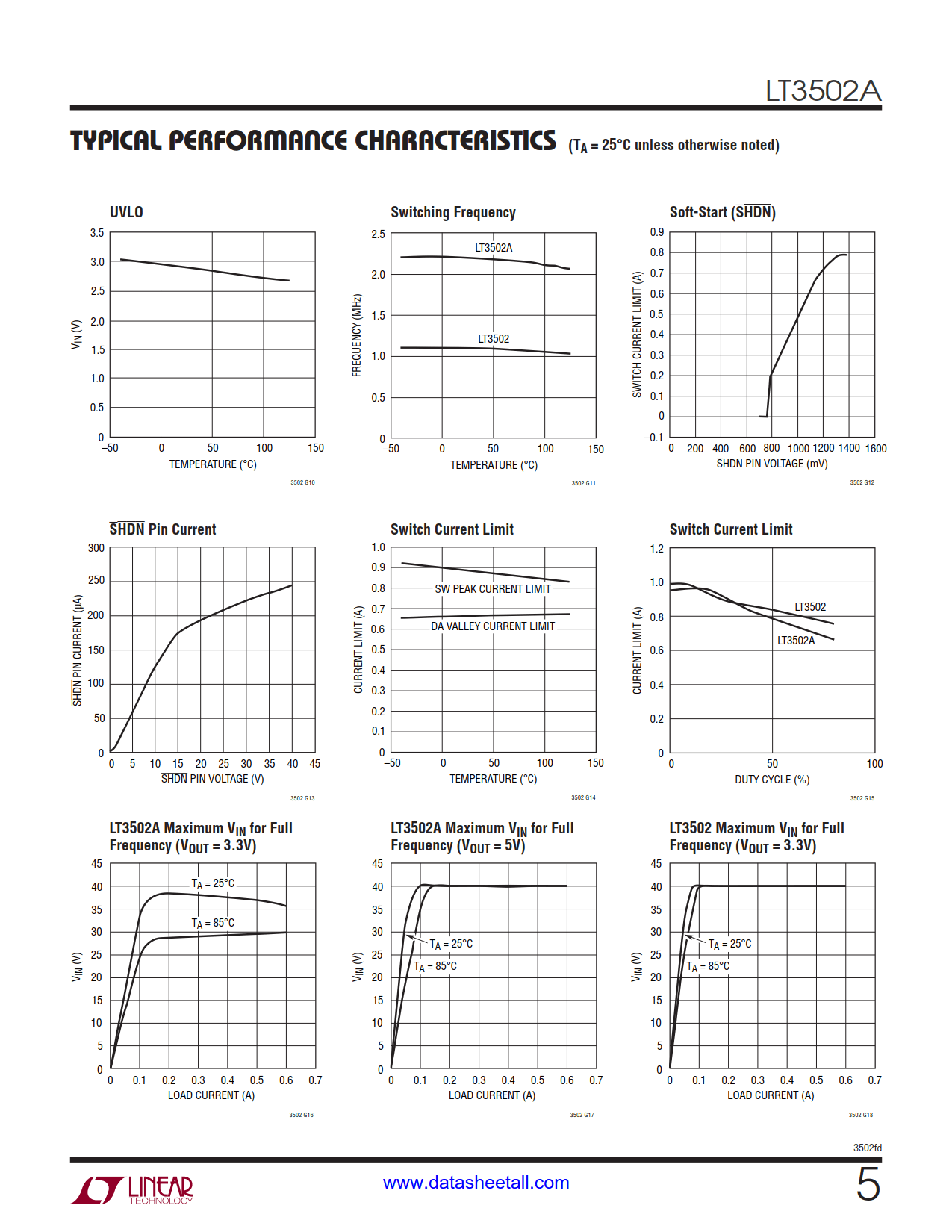

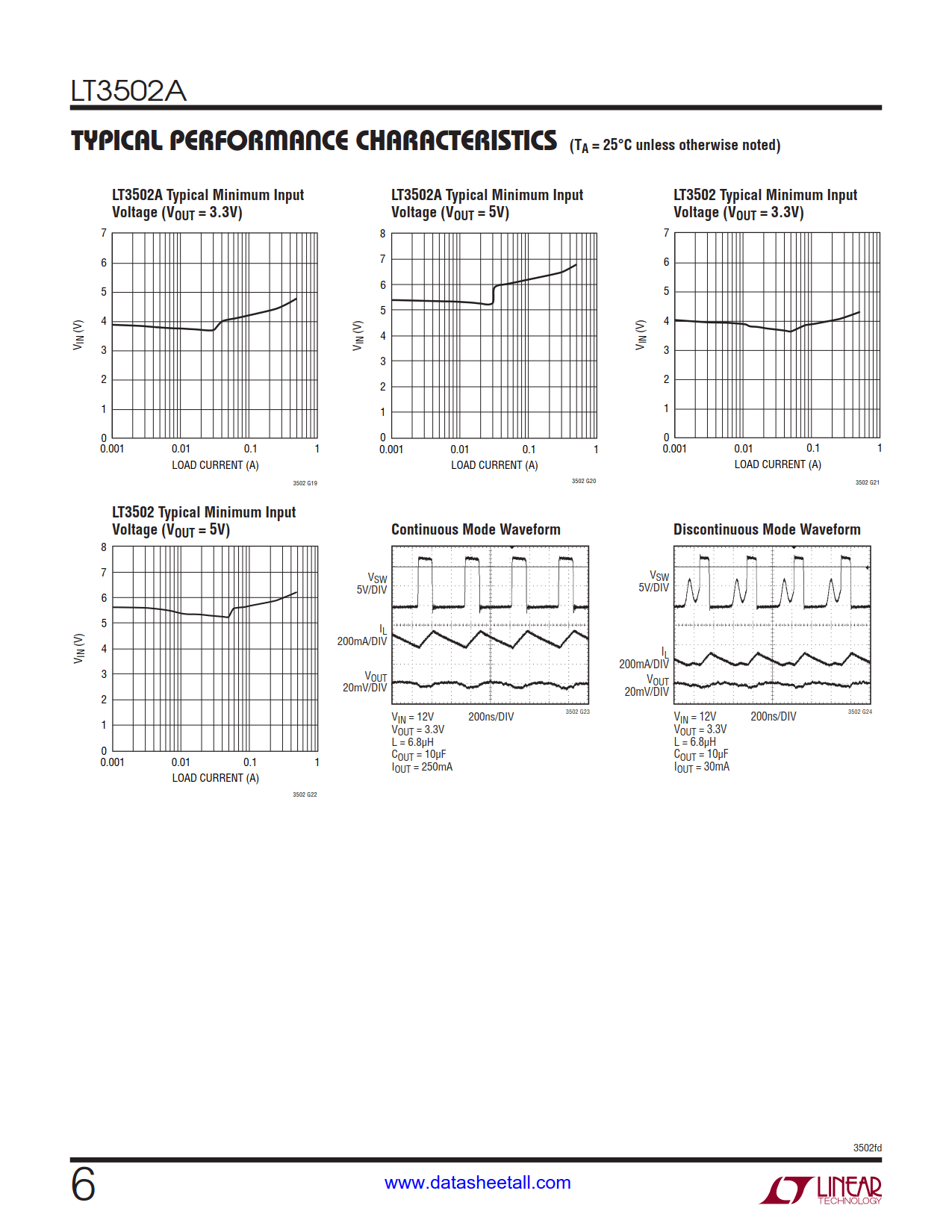

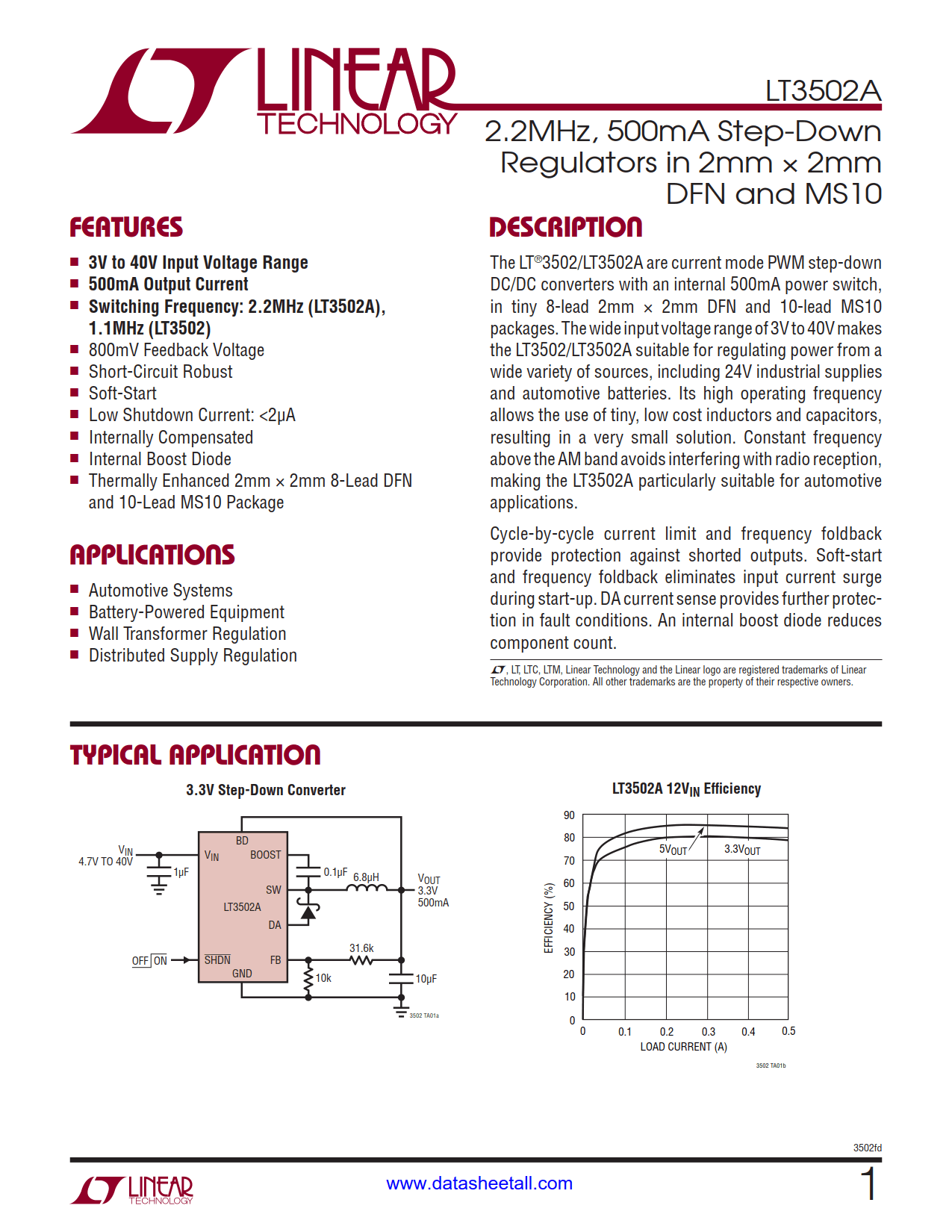

LT3502A Datasheet(Picture)

LT3502A Features

  • 3V to 40V Input Voltage Range
  • 500mA Output Current
  • Switching Frequency: 2.2MHz (LT3502A)
  • 800mV Feedback Voltage
  • Short-Circuit Robust
  • Soft-Start
  • Low Shutdown Current: <2μA
  • Internally Compensated
  • Internal Boost Diode
  • Thermally Enhanced 2mm × 2mm 8-Lead DFN and 10-Lead MS10 Package

LT3502A Applications

  • Automotive Systems
  • Battery-Powered Equipment
  • Wall Transformer Regulation
  • Distributed Supply Regulation

LT3502A Description

The LT3502A are current mode PWM step-down DC/DC converters with an internal 500mA power switch, in tiny 8-lead 2mm × 2mm DFN and 10-lead MS10 packages. The wide input voltage range of 3V to 40V makes the LT3502A suitable for regulating power from a wide variety of sources, including 24V industrial supplies and automotive batteries. Its high operating frequency allows the use of tiny, low cost inductors and capacitors, resulting in a very small solution. Constant frequency above the AM band avoids interfering with radio reception, making the LT3502A particularly suitable for automotive applications.

Cycle-by-cycle current limit and frequency foldback provide protection against shorted outputs. Soft-start and frequency foldback eliminates input current surge during start-up. DA current sense provides further protection in fault conditions. An internal boost diode reduces component count.
