LT3483A Datasheet

LT3483A Datasheet

Inverting Micropower DC/DC Converters with Schottky
Part No.: LT3483A
Page: 12 Pages
Size: 818 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-01-11 17:42:54
DataSheet: Download

LT3483A Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LT3483AEDC#PBF Tube   LFXD 1 8 -40°C ~ 85°C 8-Lead (2mm x 2mm) Plastic DFN
LT3483AEDC#TRPBF Reel 2500 LFXD 1 8 -40°C ~ 85°C 8-Lead (2mm x 2mm) Plastic DFN
LT3483AEDC#TRMPBF Reel 500 LFXD 1 8 -40°C ~ 85°C 8-Lead (2mm x 2mm) Plastic DFN
LT3483AIDC#PBF Tube   LFXD 1 8 -40°C ~ 125°C 8-Lead (2mm x 2mm) Plastic DFN
LT3483AIDC#TRPBF Reel 2500 LFXD 1 8 -40°C ~ 125°C 8-Lead (2mm x 2mm) Plastic DFN
LT3483AIDC#TRMPBF Reel 500 LFXD 1 8 -40°C ~ 125°C 8-Lead (2mm x 2mm) Plastic DFN
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LT3483A Datasheet(PDF)

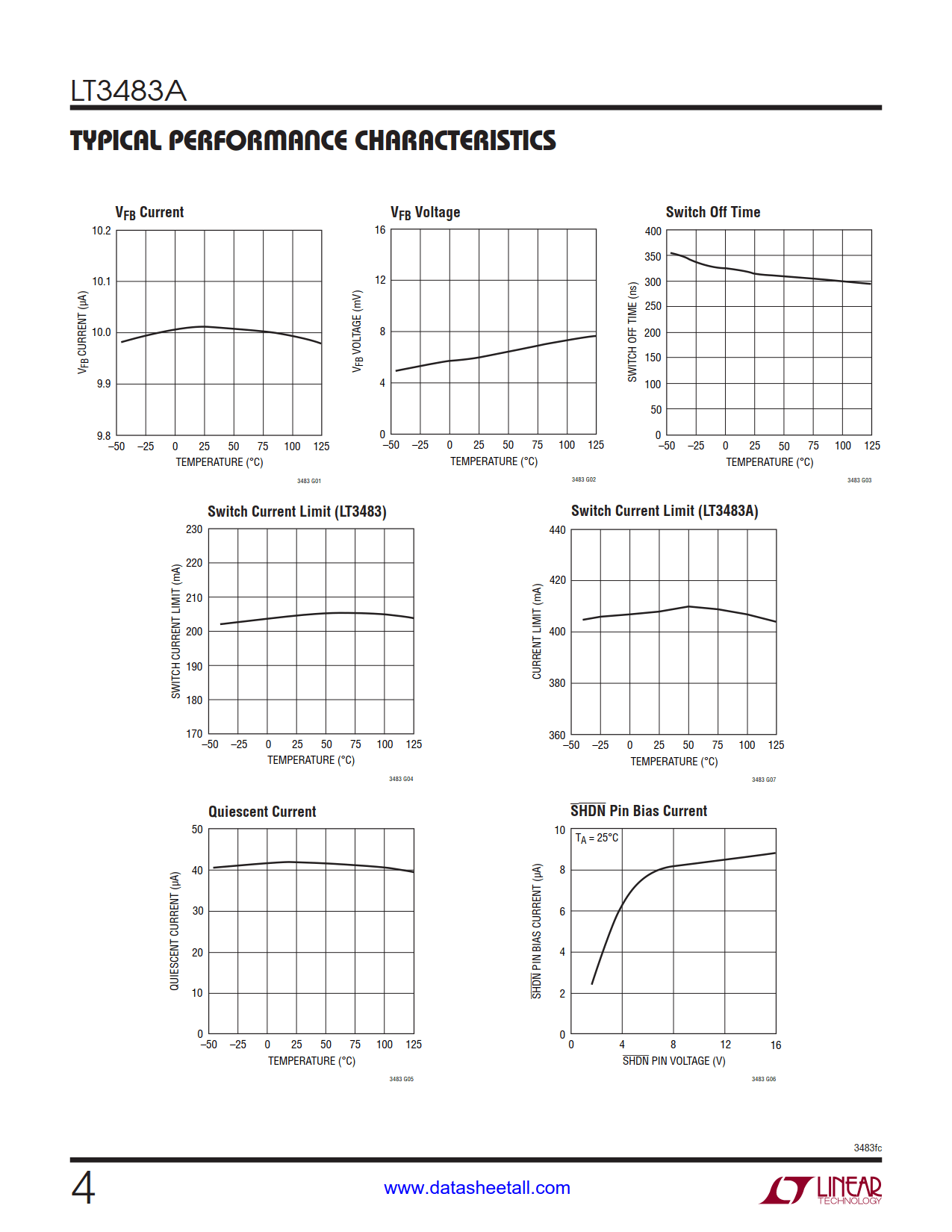

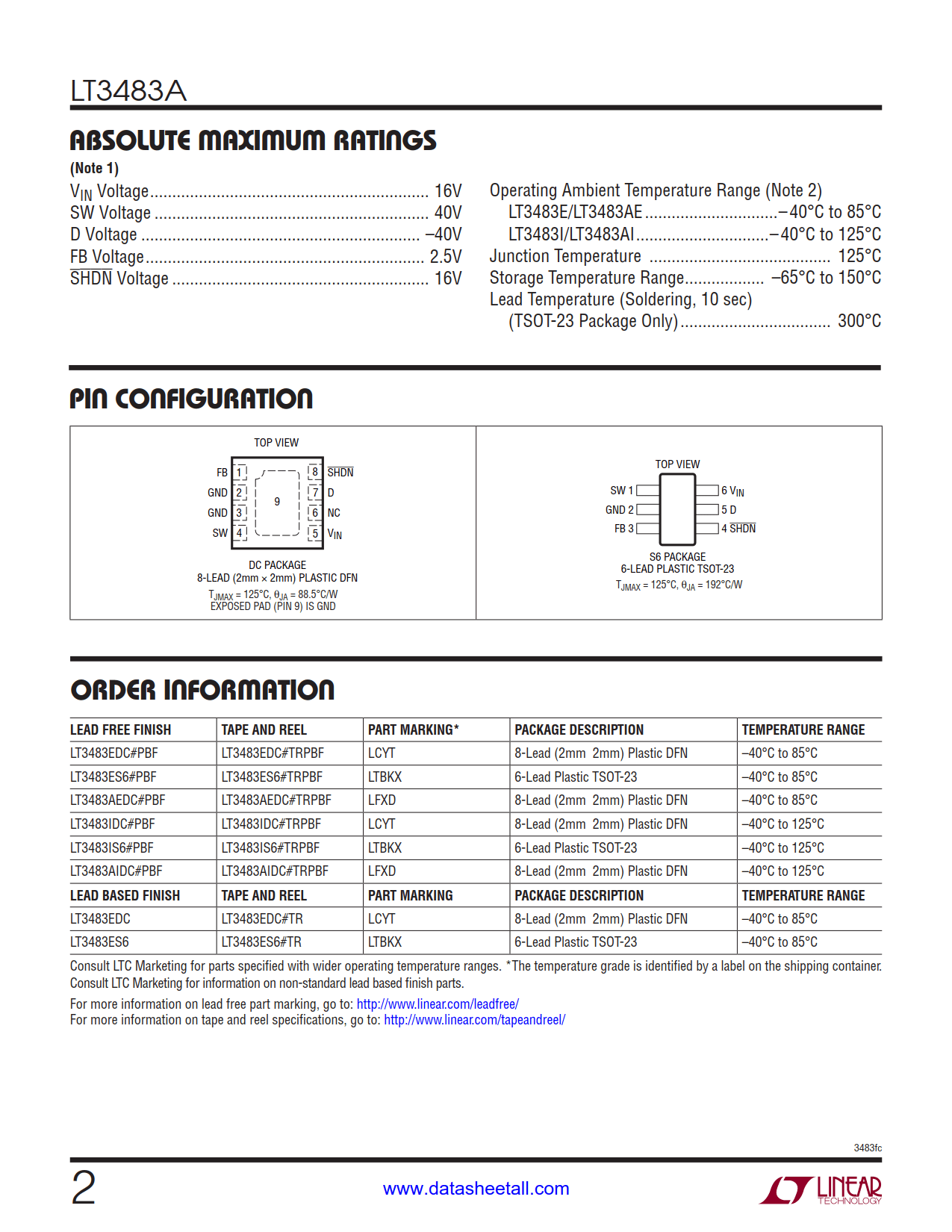

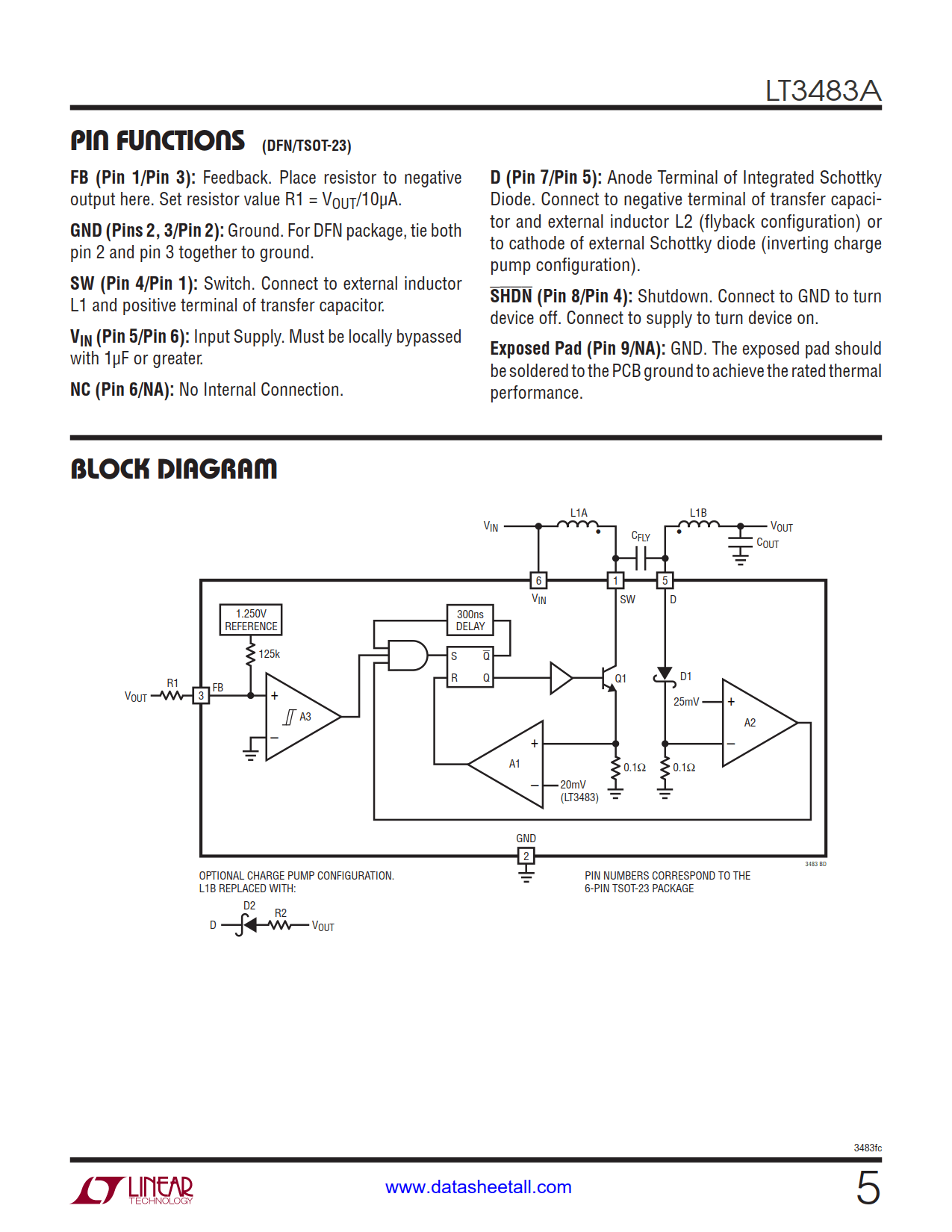

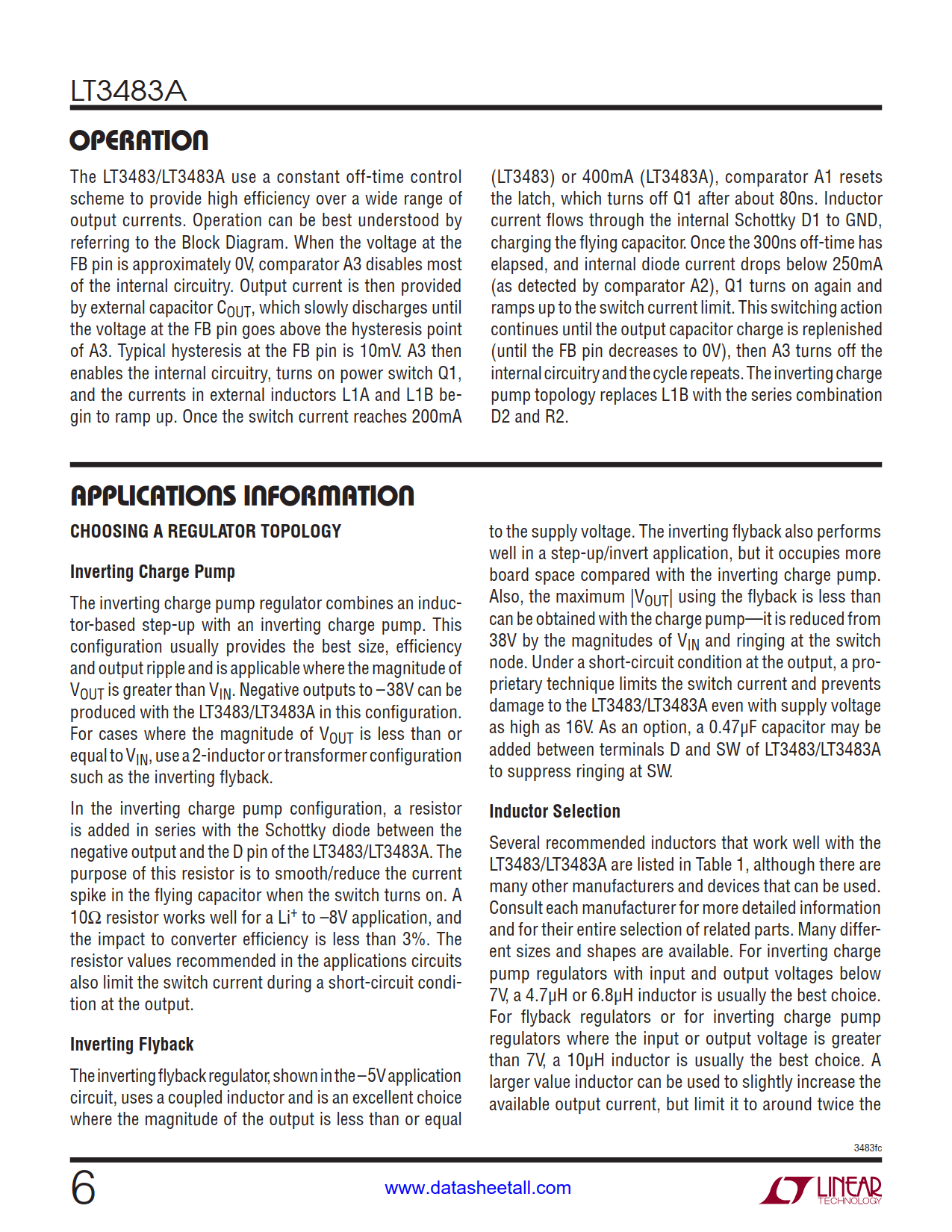

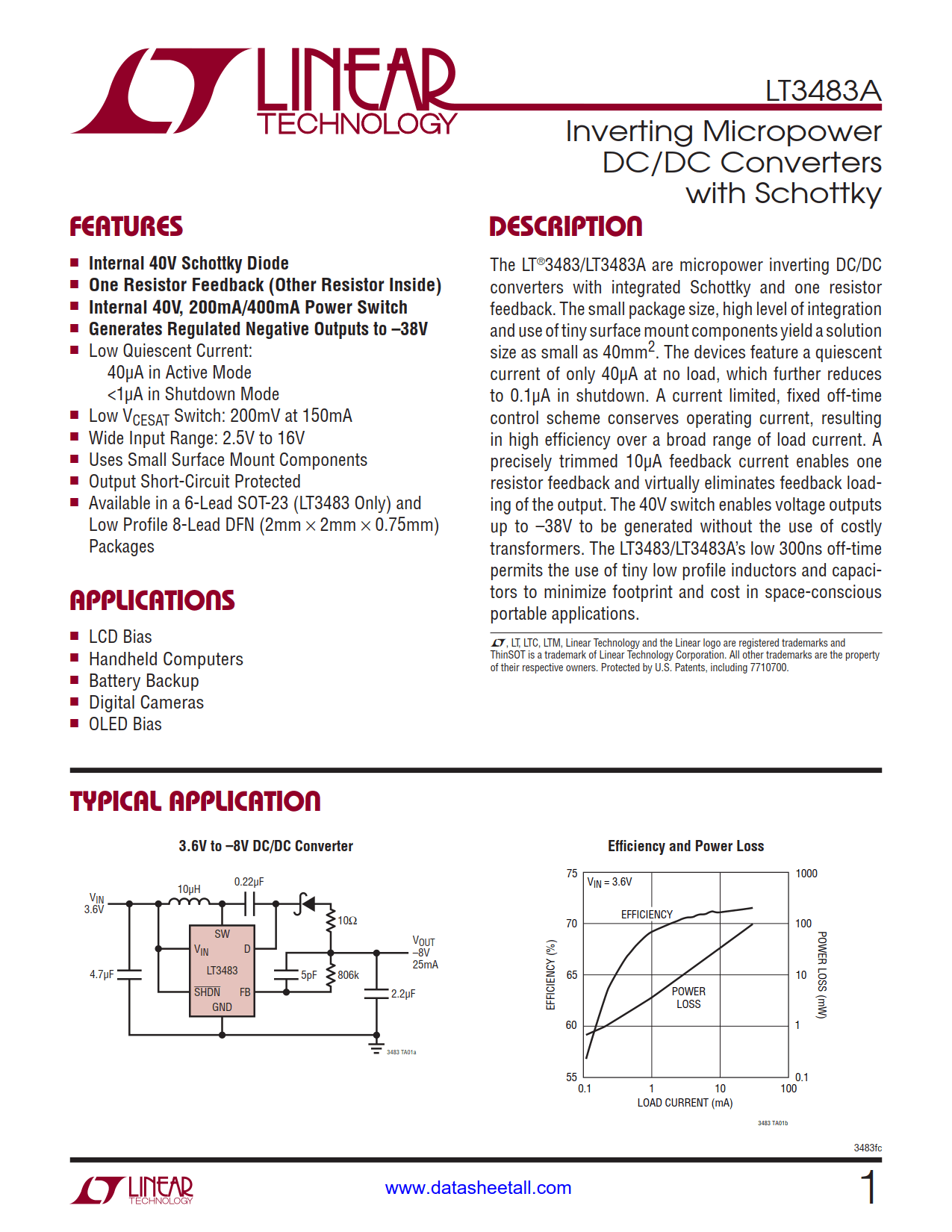

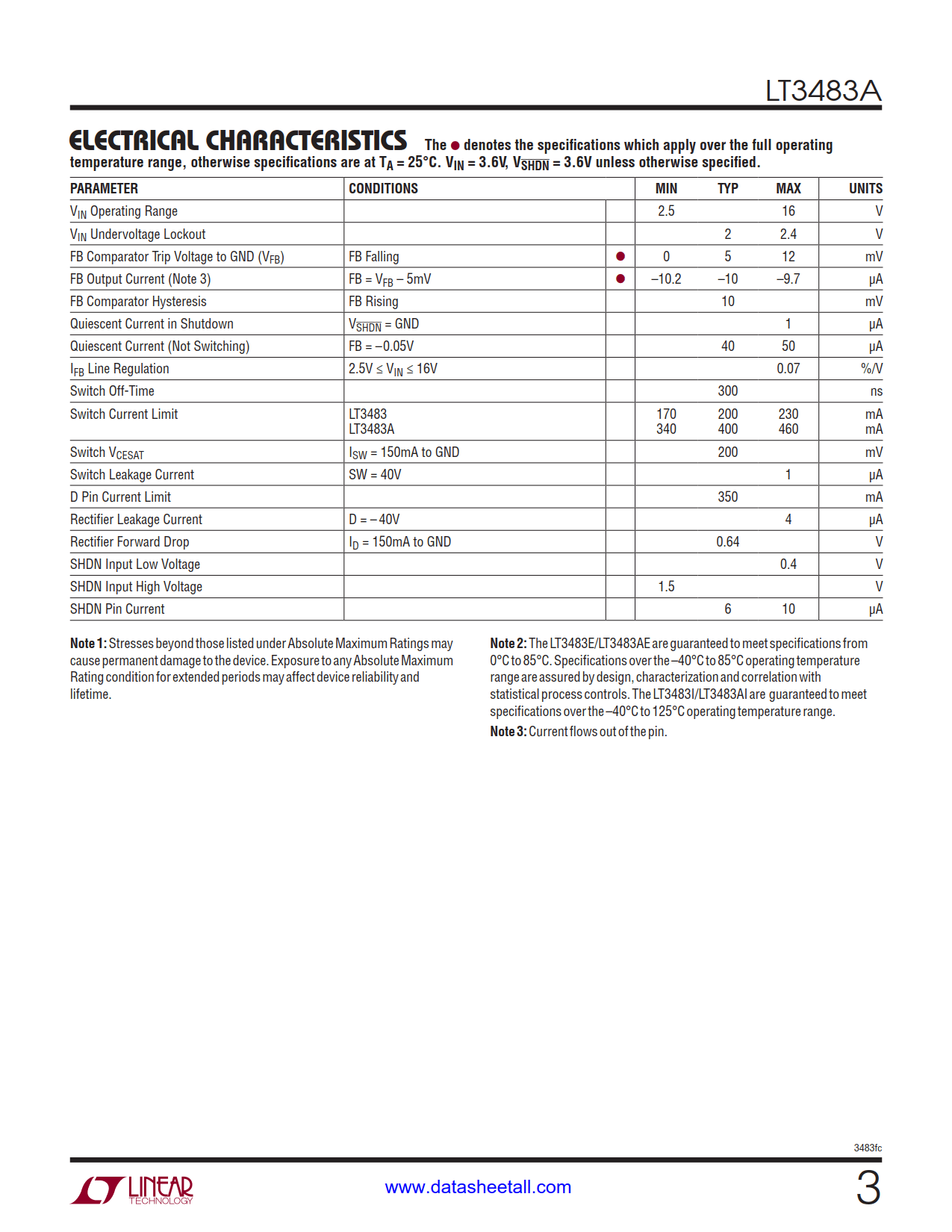

LT3483A Datasheet(Picture)

LT3483A Features

  • Internal 40V Schottky Diode
  • One Resistor Feedback (Other Resistor Inside)
  • Internal 40V, 200mA/400mA Power Switch
  • Generates Regulated Negative Outputs to –38V
  • Low Quiescent Current:
    • 40μA in Active Mode
    • <1μA in Shutdown Mode
  • Low VCESAT Switch: 200mV at 150mA
  • Wide Input Range: 2.5V to 16V
  • Uses Small Surface Mount Components
  • Output Short-Circuit Protected
  • Available in a  8-Lead DFN (2mm × 2mm × 0.75mm) Packages

LT3483A Applications

  • LCD Bias
  • Handheld Computers
  • Battery Backup
  • Digital Cameras
  • OLED Bias

LT3483A Description

The LT3483A are micropower inverting DC/DC converters with integrated Schottky and one resistor feedback. The small package size, high level of integration and use of tiny surface mount components yield a solution size as small as 40mm2. The devices feature a quiescent current of only 40μA at no load, which further reduces to 0.1μA in shutdown. A current limited, fixed off-time control scheme conserves operating current, resulting in high efficiency over a broad range of load current. A precisely trimmed 10μA feedback current enables one resistor feedback and virtually eliminates feedback loading of the output. The 40V switch enables voltage outputs up to –38V to be generated without the use of costly transformers.

The LT3483A’s low 300ns off-time permits the use of tiny low profile inductors and capacitors to minimize footprint and cost in space-conscious portable applications.

LT3483A Datasheet Related Parts
