LT3483 Datasheet

LT3483 Datasheet

Inverting Micropower DC/DC Converters with Schottky
Part No.: LT3483
Page: 12 Pages
Size: 818 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-01-11 17:16:56
DataSheet: Download

LT3483 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LT3483EDC#PBF Tube   LCYT 1 8 -40°C ~ 85°C 8-Lead (2mm 2mm) Plastic DFN
LT3483EDC#TRPBF Reel 2500 LCYT 1 8 -40°C ~ 85°C 8-Lead (2mm 2mm) Plastic DFN
LT3483EDC#TRMPBF Reel 500 LCYT 1 8 -40°C ~ 85°C 8-Lead (2mm 2mm) Plastic DFN
LT3483ES6#PBF Tube   LTBKX 1 6 -40°C ~ 85°C 6-Lead Plastic TSOT-23
LT3483ES6#TRPBF Reel 2500 LTBKX 1 6 -40°C ~ 85°C 6-Lead Plastic TSOT-23
LT3483ES6#TRMPBF Reel 500 LTBKX 1 6 -40°C ~ 85°C 6-Lead Plastic TSOT-23
LT3483IDC#PBF Tube   LCYT 1 8 -40°C ~ 125°C 8-Lead (2mm 2mm) Plastic DFN
LT3483IDC#TRPBF Reel 2500 LCYT 1 8 -40°C ~ 125°C 8-Lead (2mm 2mm) Plastic DFN
LT3483IDC#TRMPBF Reel 500 LCYT 1 8 -40°C ~ 125°C 8-Lead (2mm 2mm) Plastic DFN
LT3483IS6#PBF Tube   LTBKX 1 6 -40°C ~ 125°C 6-Lead Plastic TSOT-23
LT3483IS6#TRPBF Reel 2500 LTBKX 1 6 -40°C ~ 125°C 6-Lead Plastic TSOT-23
LT3483IS6#TRMPBF Reel 500 LTBKX 1 6 -40°C ~ 125°C 6-Lead Plastic TSOT-23
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LT3483 Datasheet(PDF)

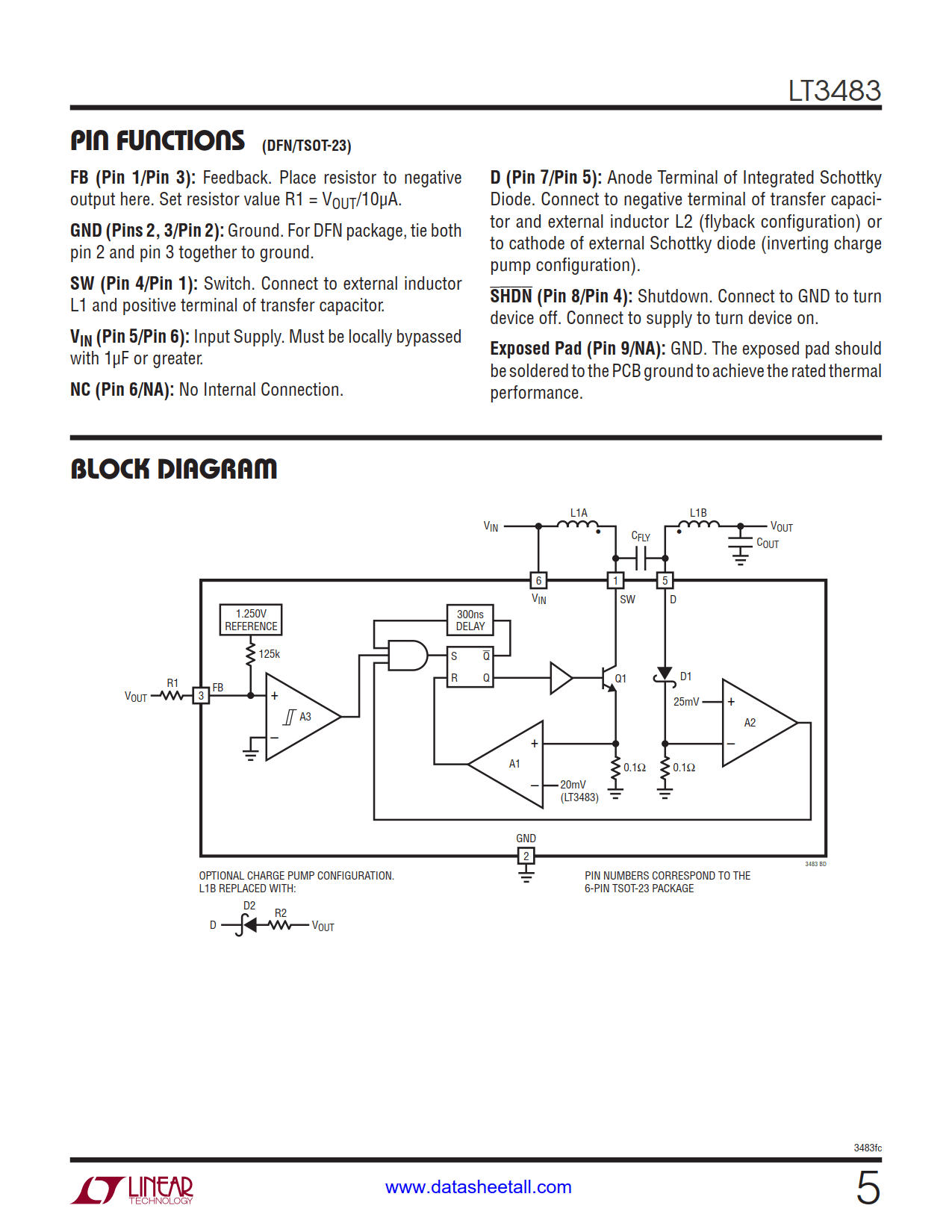

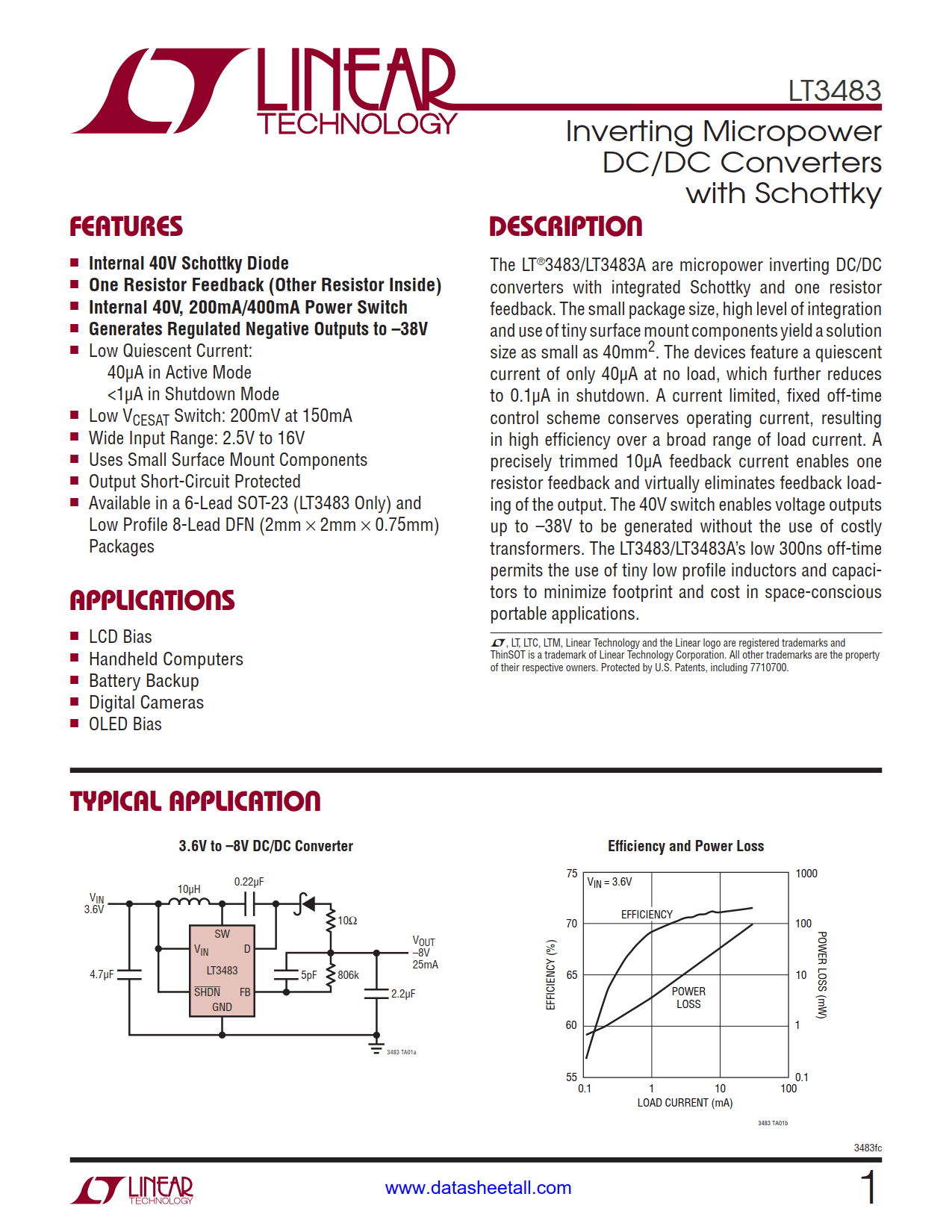

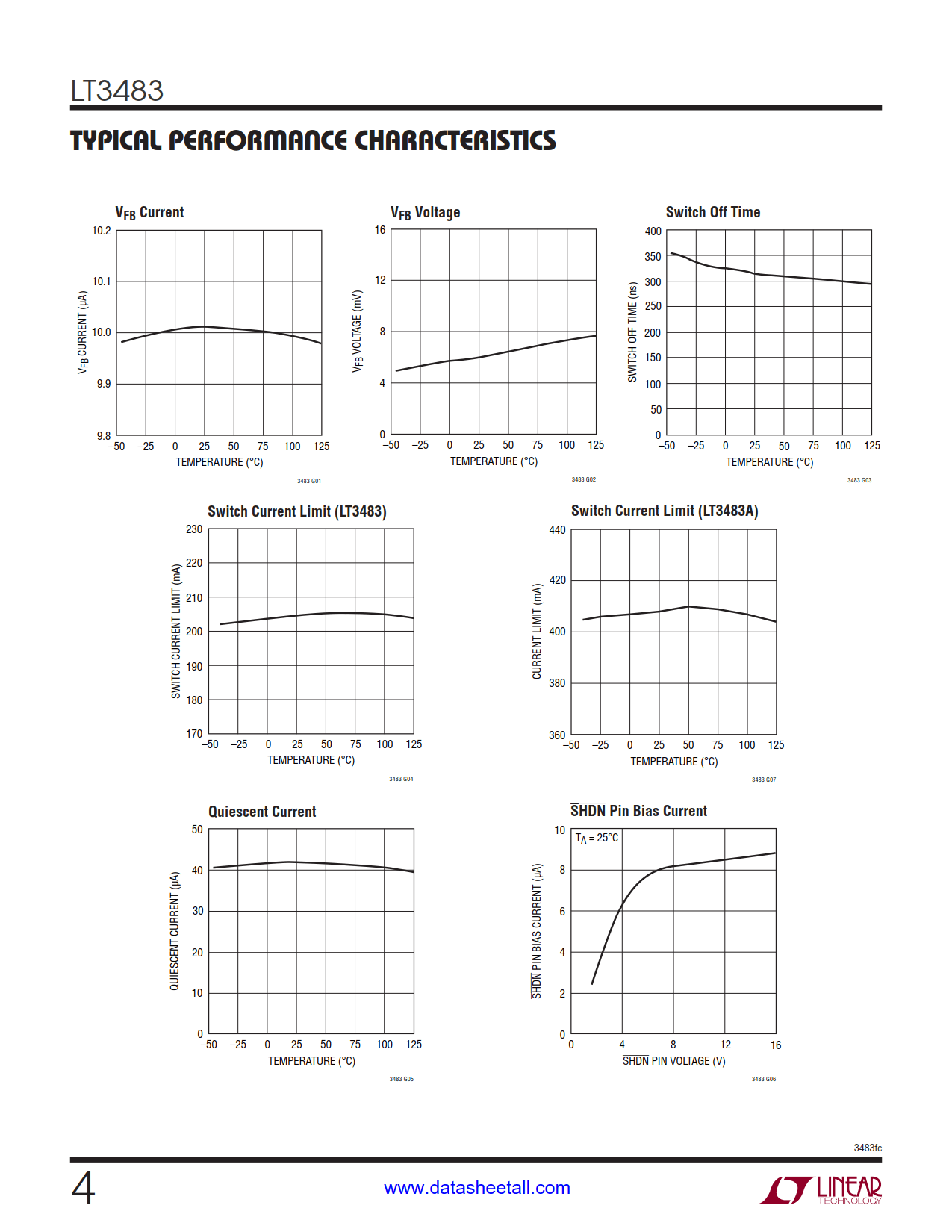

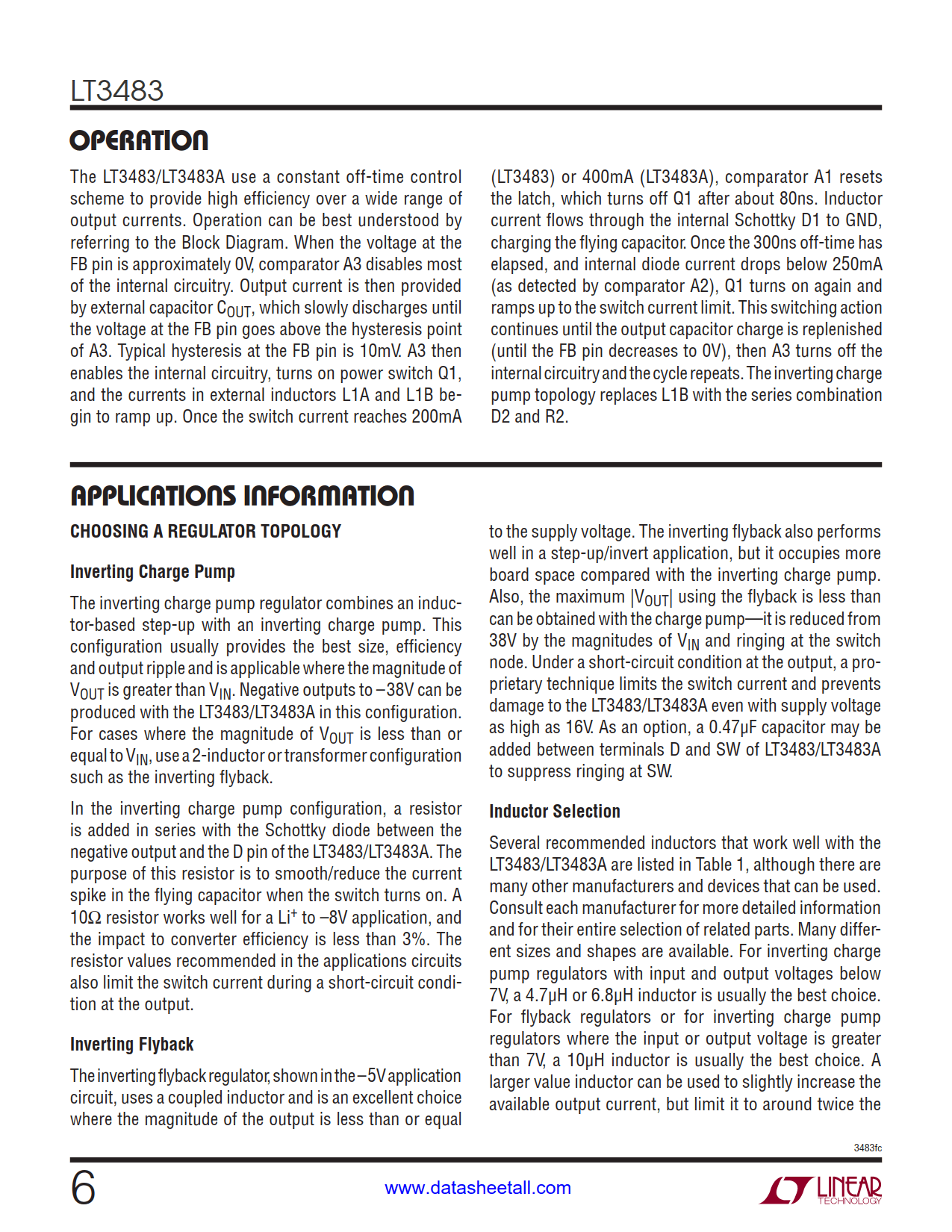

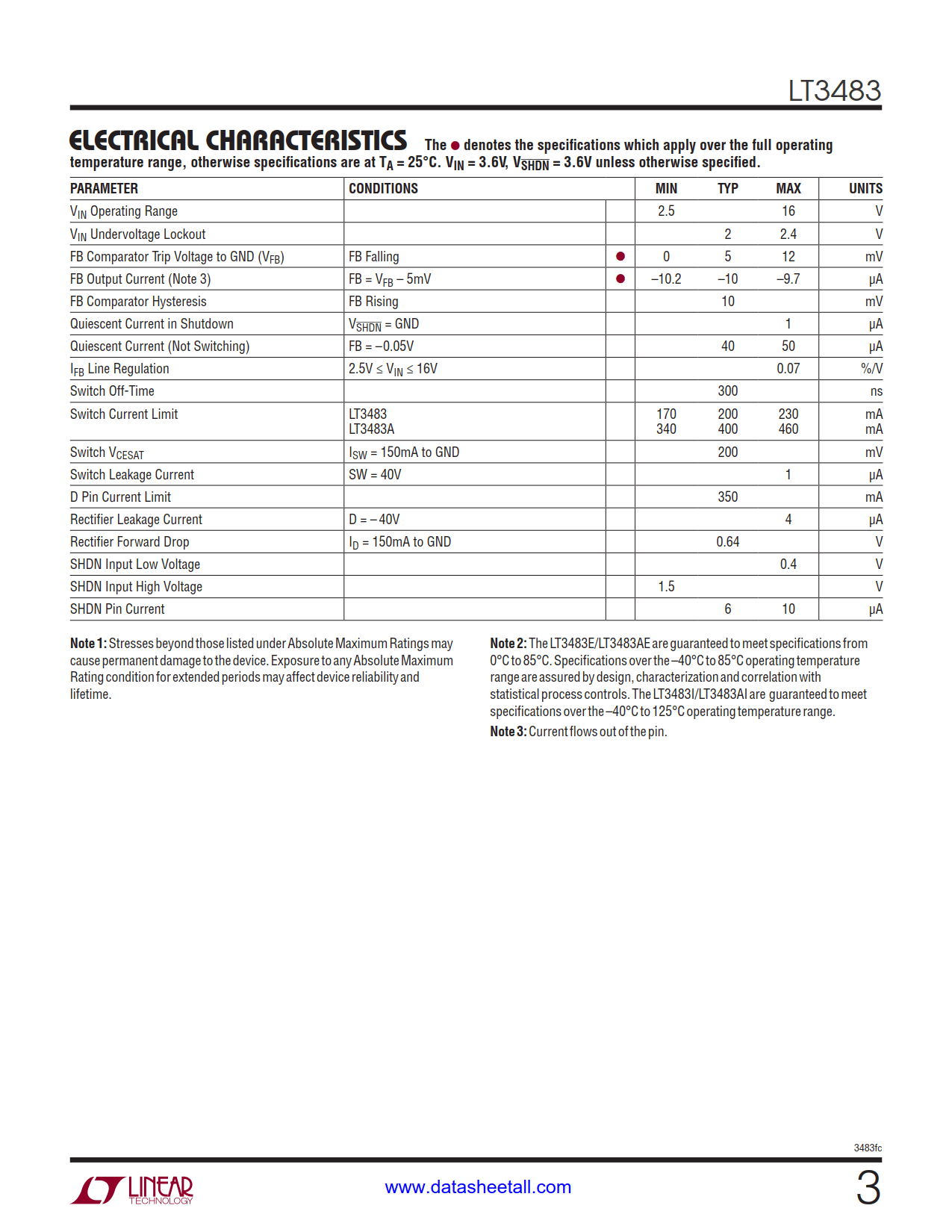

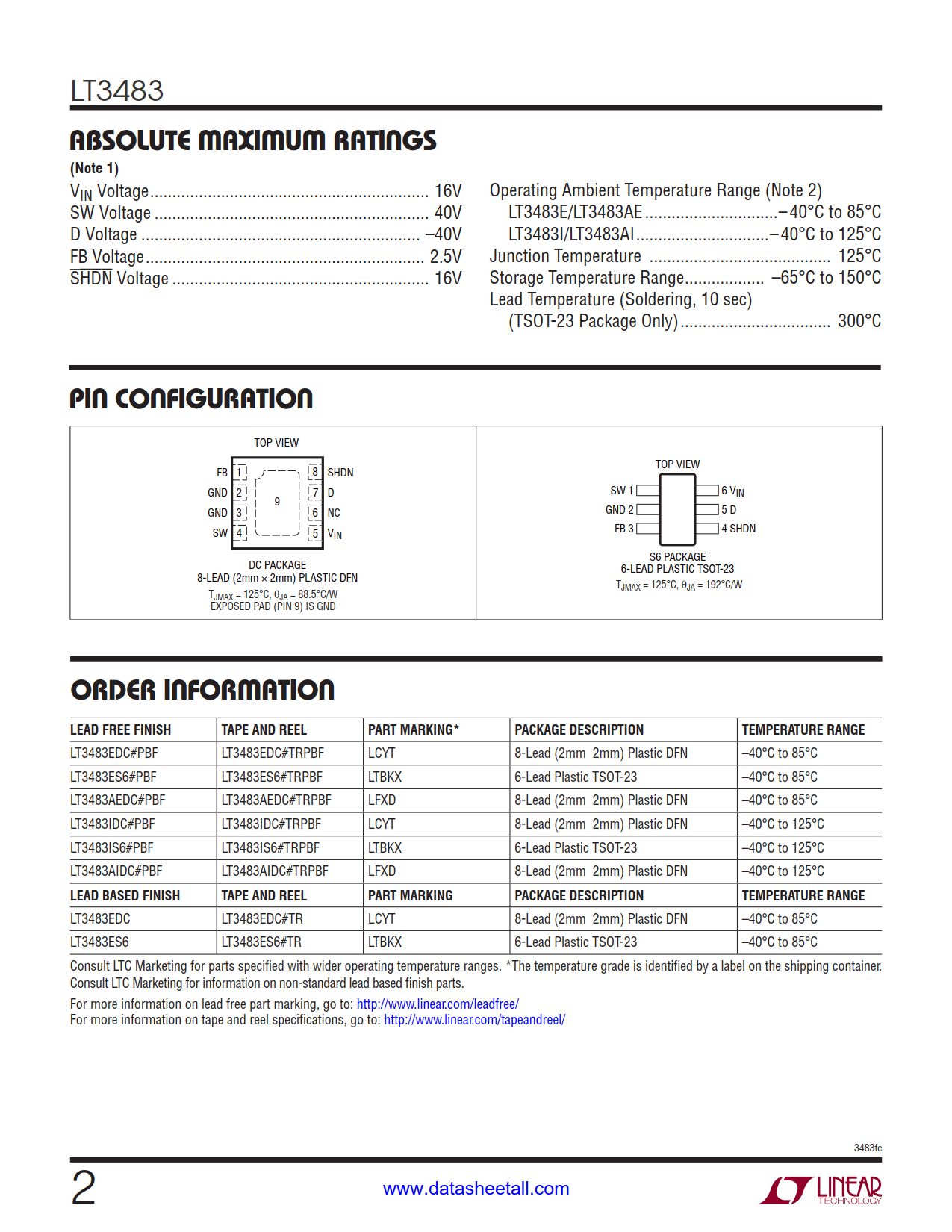

LT3483 Datasheet(Picture)

LT3483 Features

  • Internal 40V Schottky Diode
  • One Resistor Feedback (Other Resistor Inside)
  • Internal 40V, 200mA/400mA Power Switch
  • Generates Regulated Negative Outputs to –38V
  • Low Quiescent Current:
    • 40μA in Active Mode
    • <1μA in Shutdown Mode
  • Low VCESAT Switch: 200mV at 150mA
  • Wide Input Range: 2.5V to 16V
  • Uses Small Surface Mount Components
  • Output Short-Circuit Protected
  • Available in a 6-Lead SOT-23 (LT3483 Only) and Low Profile 8-Lead DFN (2mm × 2mm × 0.75mm) Packages

LT3483 Applications

  • LCD Bias
  • Handheld Computers
  • Battery Backup
  • Digital Cameras
  • OLED Bias

LT3483 Description

The LT3483 are micropower inverting DC/DC converters with integrated Schottky and one resistor feedback. The small package size, high level of integration and use of tiny surface mount components yield a solution size as small as 40mm2. The devices feature a quiescent current of only 40μA at no load, which further reduces to 0.1μA in shutdown. A current limited, fixed off-time control scheme conserves operating current, resulting in high efficiency over a broad range of load current. A precisely trimmed 10μA feedback current enables one resistor feedback and virtually eliminates feedback loading of the output. The 40V switch enables voltage outputs up to –38V to be generated without the use of costly transformers.

The LT3483’s low 300ns off-time permits the use of tiny low profile inductors and capacitors to minimize footprint and cost in space-conscious portable applications.
