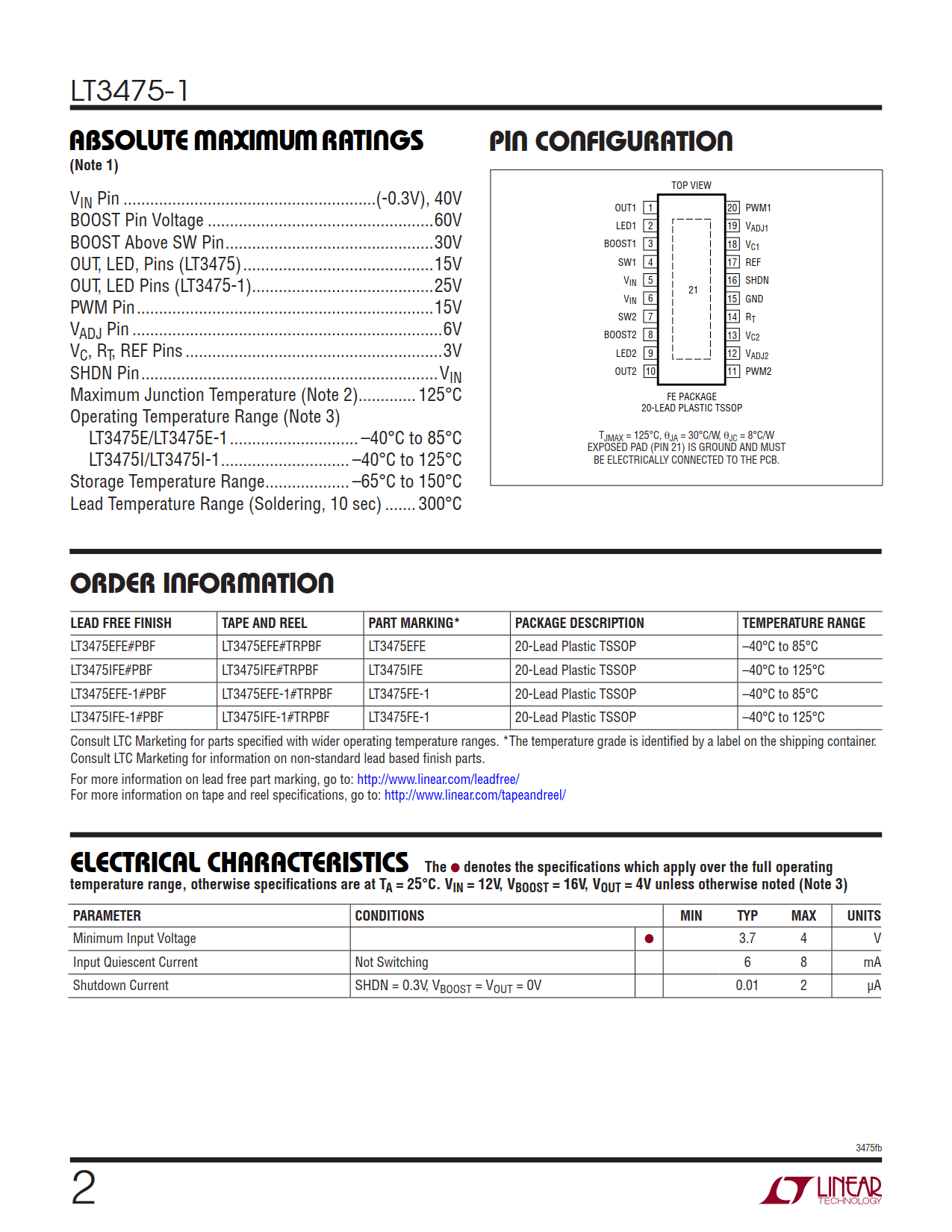

| Part No.： | LT3475-1 |
| Page： | 20 Pages |
| Size： | 226 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2023-12-18 11:52:38 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LT3475EFE-1#PBF | Tube | 74 | LT3475EFE-1 | 1 | 20 | -40°C ~ 85°C | 20-Lead Plastic TSSOP | |
| LT3475EFE-1#TRPBF | Reel | 2500 | LT3475EFE-1 | 1 | 20 | -40°C ~ 85°C | 20-Lead Plastic TSSOP | |
| LT3475EFE-1#TRMPBF | Reel | 500 | LT3475EFE-1 | 1 | 20 | -40°C ~ 85°C | 20-Lead Plastic TSSOP | |
| LT3475IFE-1#PBF | Tube | 74 | LT3475EFE-1 | 1 | 20 | -40°C ~ 125°C | 20-Lead Plastic TSSOP | |
| LT3475IFE-1#TRPBF | Reel | 2500 | LT3475EFE-1 | 1 | 20 | -40°C ~ 125°C | 20-Lead Plastic TSSOP | |
| LT3475IFE-1#TRMPBF | Reel | 500 | LT3475EFE-1 | 1 | 20 | -40°C ~ 125°C | 20-Lead Plastic TSSOP |

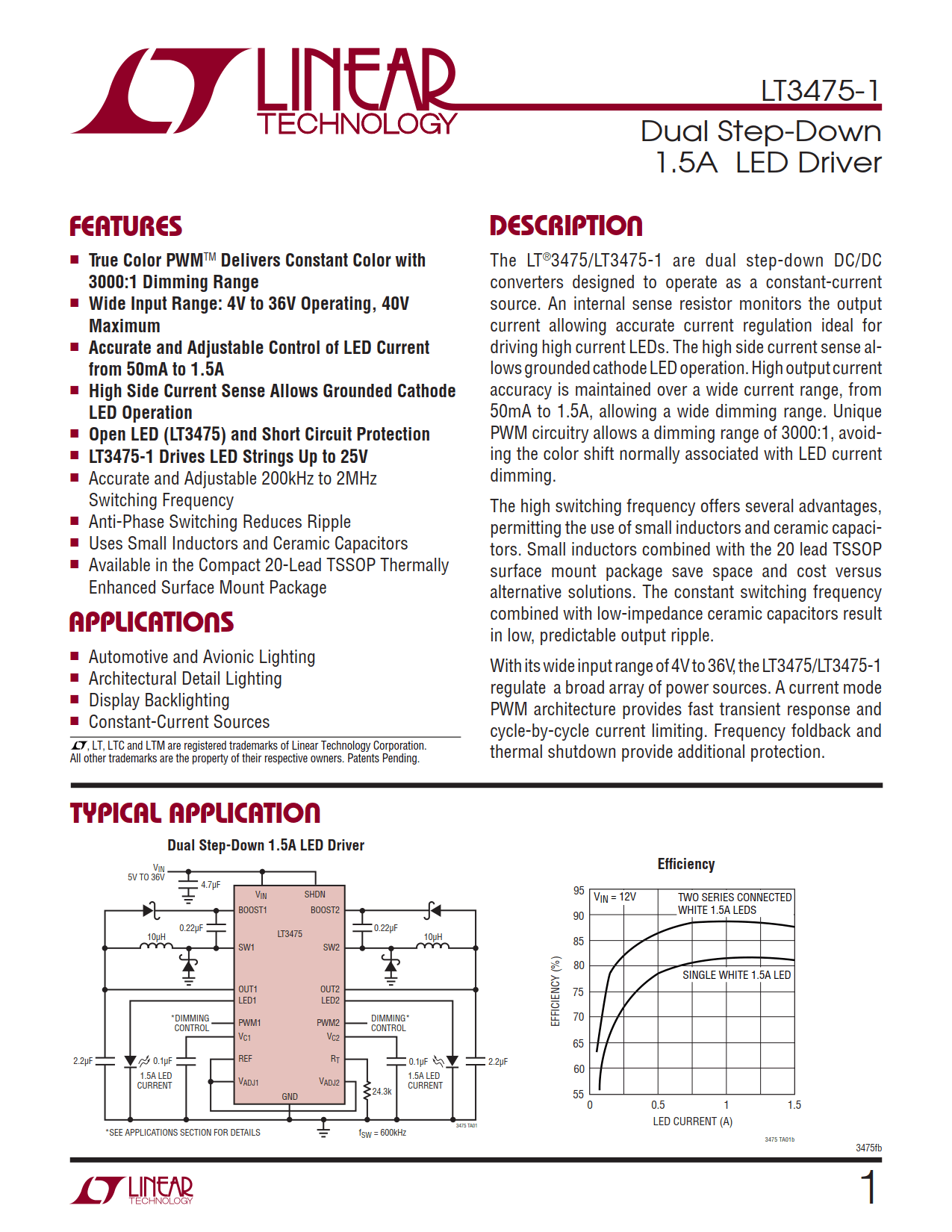

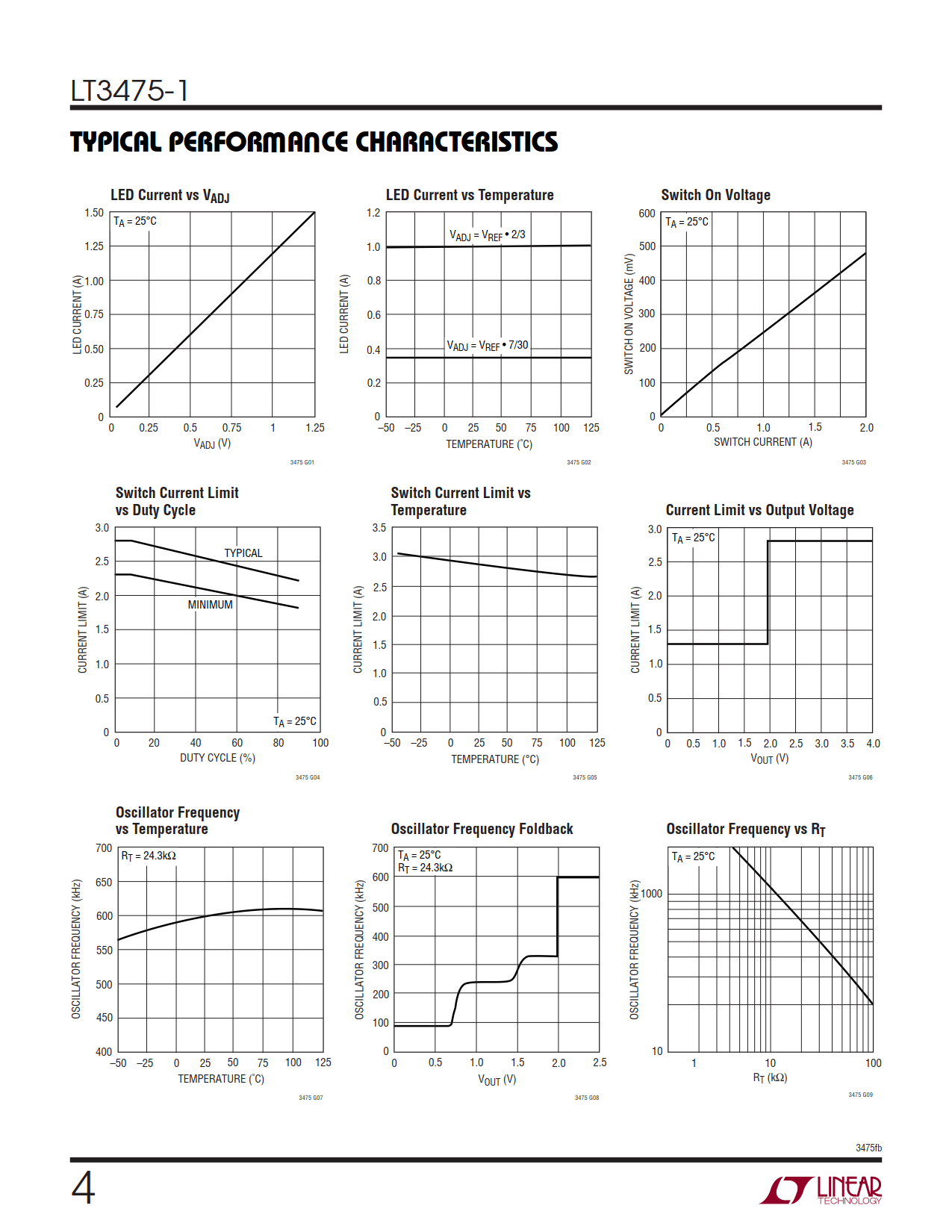

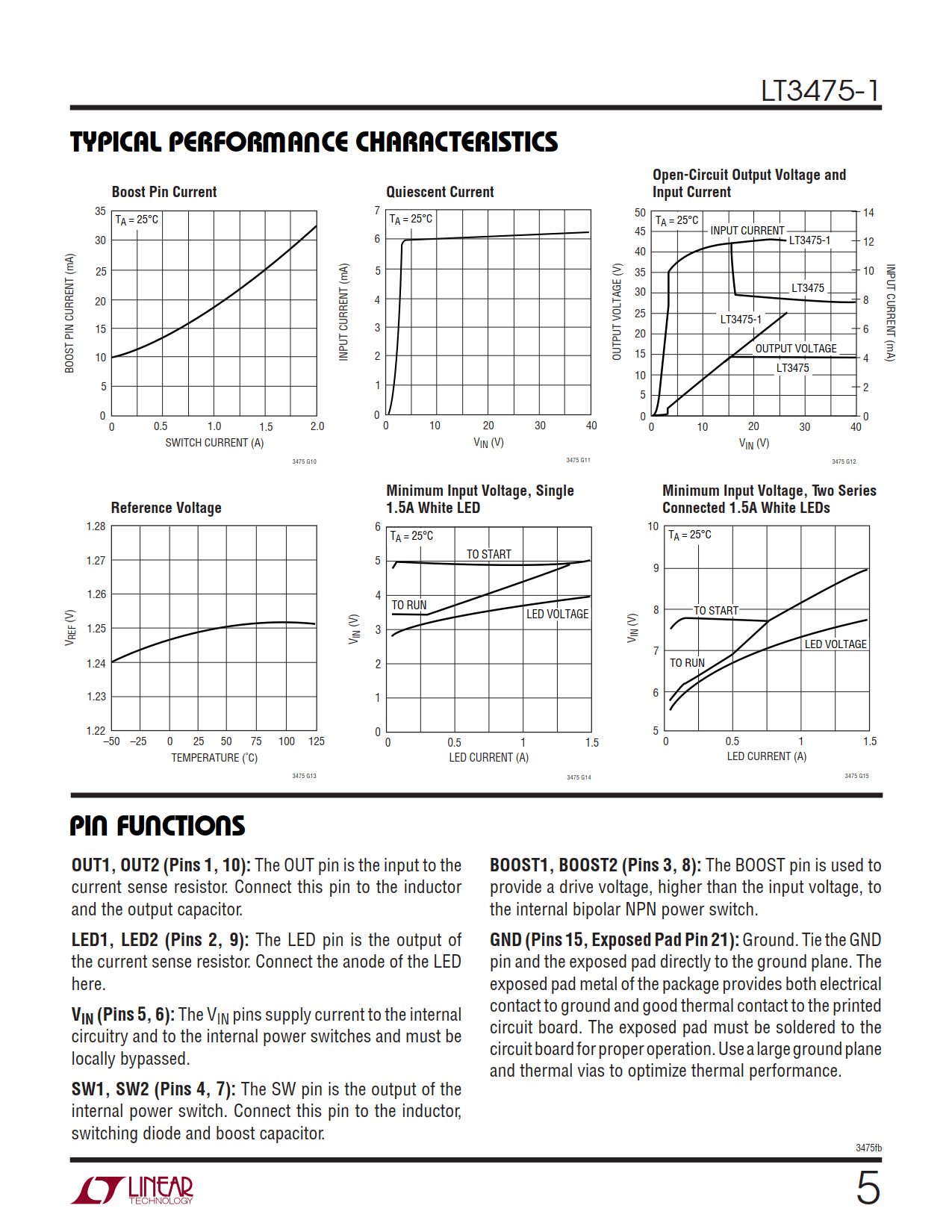

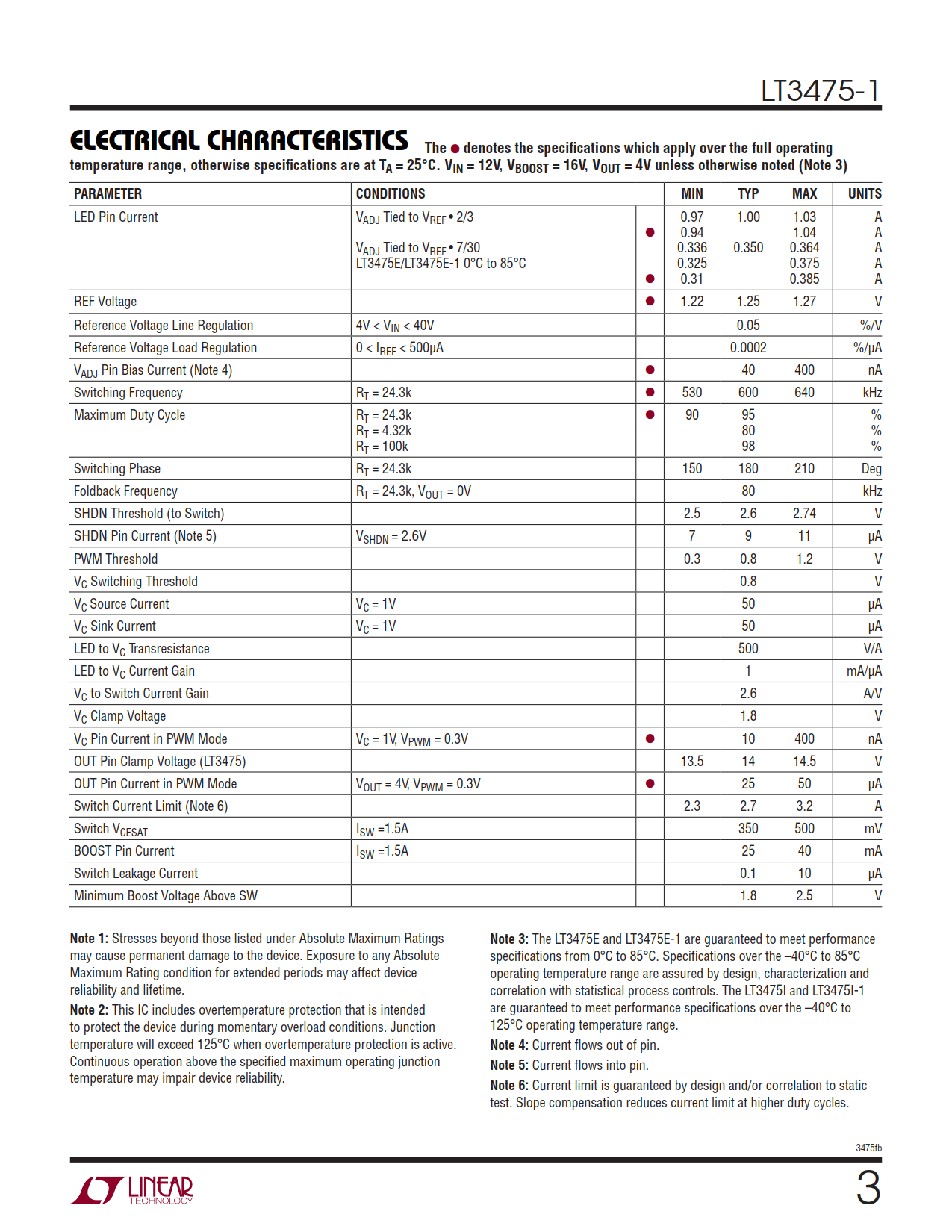

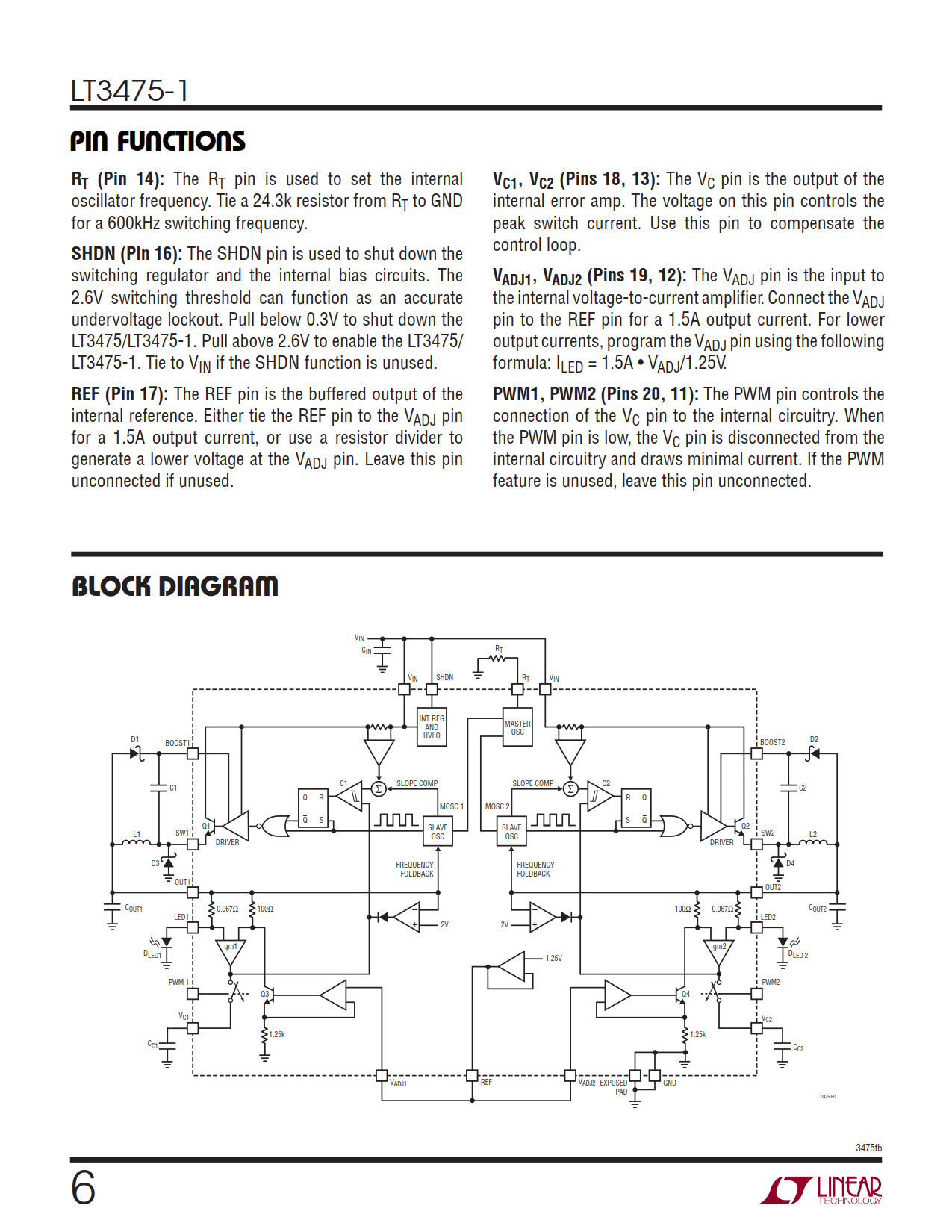

The LT3475-1 is a dual step-down DC/DC converter designed to operate as a constant-current source. An internal sense resistor monitors the output current allowing accurate current regulation ideal for driving high current LEDs. The high side current sense allows grounded cathode LED operation. High output current accuracy is maintained over a wide current range, from 50mA to 1.5A, allowing a wide dimming range. Unique PWM circuitry allows a dimming range of 3000:1, avoiding the color shift normally associated with LED current dimming.
The high switching frequency offers several advantages, permitting the use of small inductors and ceramic capacitors. Small inductors combined with the LT3475's 20 lead TSSOP surface mount package save space and cost versus alternative solutions. The constant switching frequency combined with low-impedance ceramic capacitors result in low, predictable output ripple.
With its wide input range of 4V to 36V, the LT3475-1 regulates a broad array of power sources. A current mode PWM architecture provides fast transient response and cycle-by-cycle current limiting. Frequency foldback and thermal shutdown provide additional protection.
