Part No.: | LT3467 |
Page: | 18 Pages |
Size: | 2444 KB |
Manufacturer: | Linear Technology |
Logo: | |
Views: | 1 |
Update Time: | 2023-12-01 09:53:21 |
DataSheet: | Download |
Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |

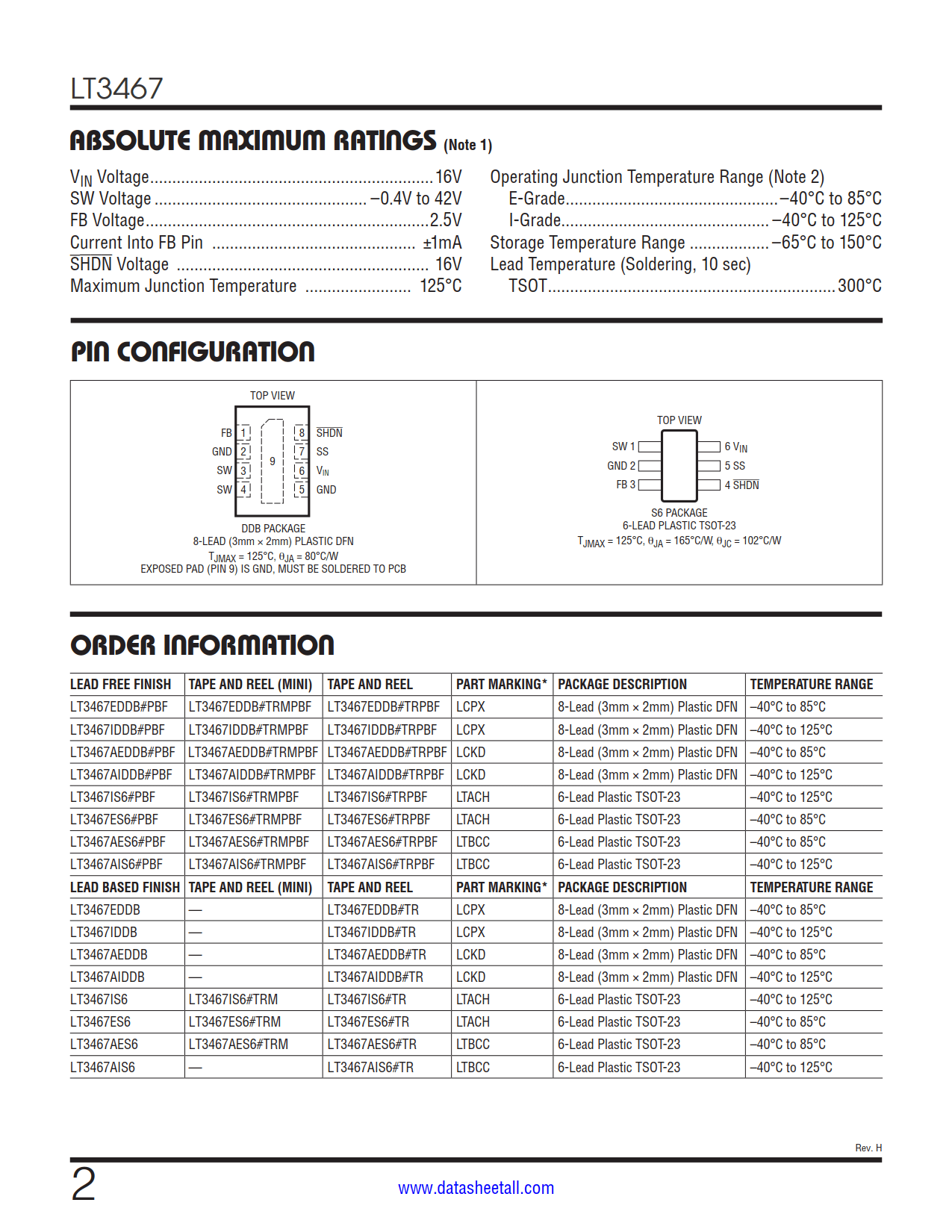

LT3467EDDB#PBF | Tube | LCPX | 1 | 8 | -40°C ~ 85°C | 8-Lead (3mm × 2mm) Plastic DFN | ||
LT3467EDDB#TRPBF | Reel | 2500 | LCPX | 1 | 8 | -40°C ~ 85°C | 8-Lead (3mm × 2mm) Plastic DFN | |
LT3467EDDB#TRMPBF | Reel | 500 | LCPX | 1 | 8 | -40°C ~ 85°C | 8-Lead (3mm × 2mm) Plastic DFN | |
LT3467IDDB#PBF | Tube | LCPX | 1 | 8 | -40°C ~ 125°C | 8-Lead (3mm × 2mm) Plastic DFN | ||
LT3467IDDB#TRPBF | Reel | 2500 | LCPX | 1 | 8 | -40°C ~ 125°C | 8-Lead (3mm × 2mm) Plastic DFN | |
LT3467IDDB#TRMPBF | Reel | 500 | LCPX | 1 | 8 | -40°C ~ 125°C | 8-Lead (3mm × 2mm) Plastic DFN | |
LT3467IS6#PBF | Tube | LTACH | 1 | 6 | -40°C ~ 125°C | 6-Lead Plastic TSOT-23 | ||
LT3467IS6#TRPBF | Reel | 2500 | LTACH | 1 | 6 | -40°C ~ 125°C | 6-Lead Plastic TSOT-23 | |
LT3467IS6#TRMPBF | Reel | 500 | LTACH | 1 | 6 | -40°C ~ 125°C | 6-Lead Plastic TSOT-23 | |
LT3467ES6#PBF | Tube | LTACH | 1 | 6 | -40°C ~ 85°C | 6-Lead Plastic TSOT-23 | ||
LT3467ES6#TRPBF | Reel | 2500 | LTACH | 1 | 6 | -40°C ~ 85°C | 6-Lead Plastic TSOT-23 | |
LT3467ES6#TRMPBF | Reel | 500 | LTACH | 1 | 6 | -40°C ~ 85°C | 6-Lead Plastic TSOT-23 |

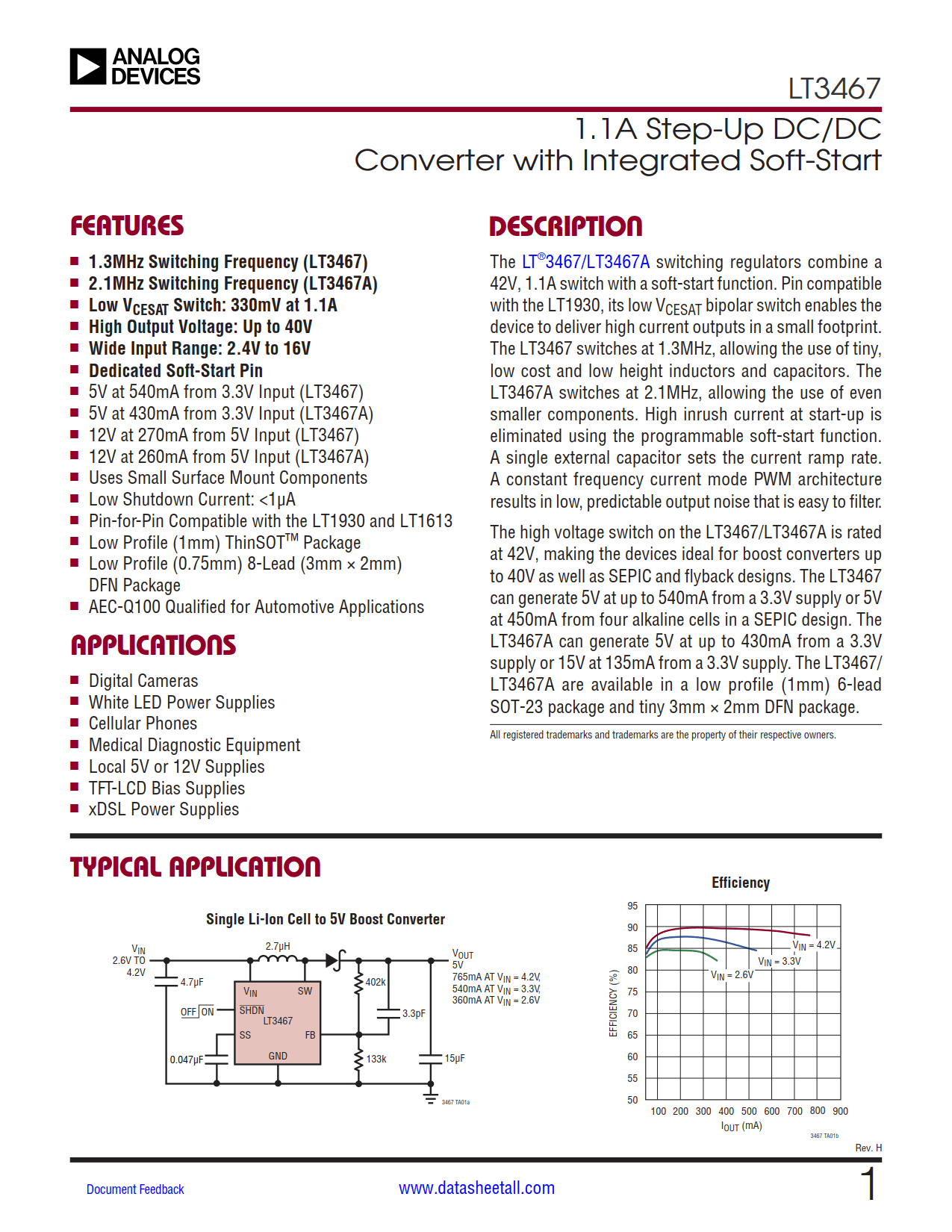

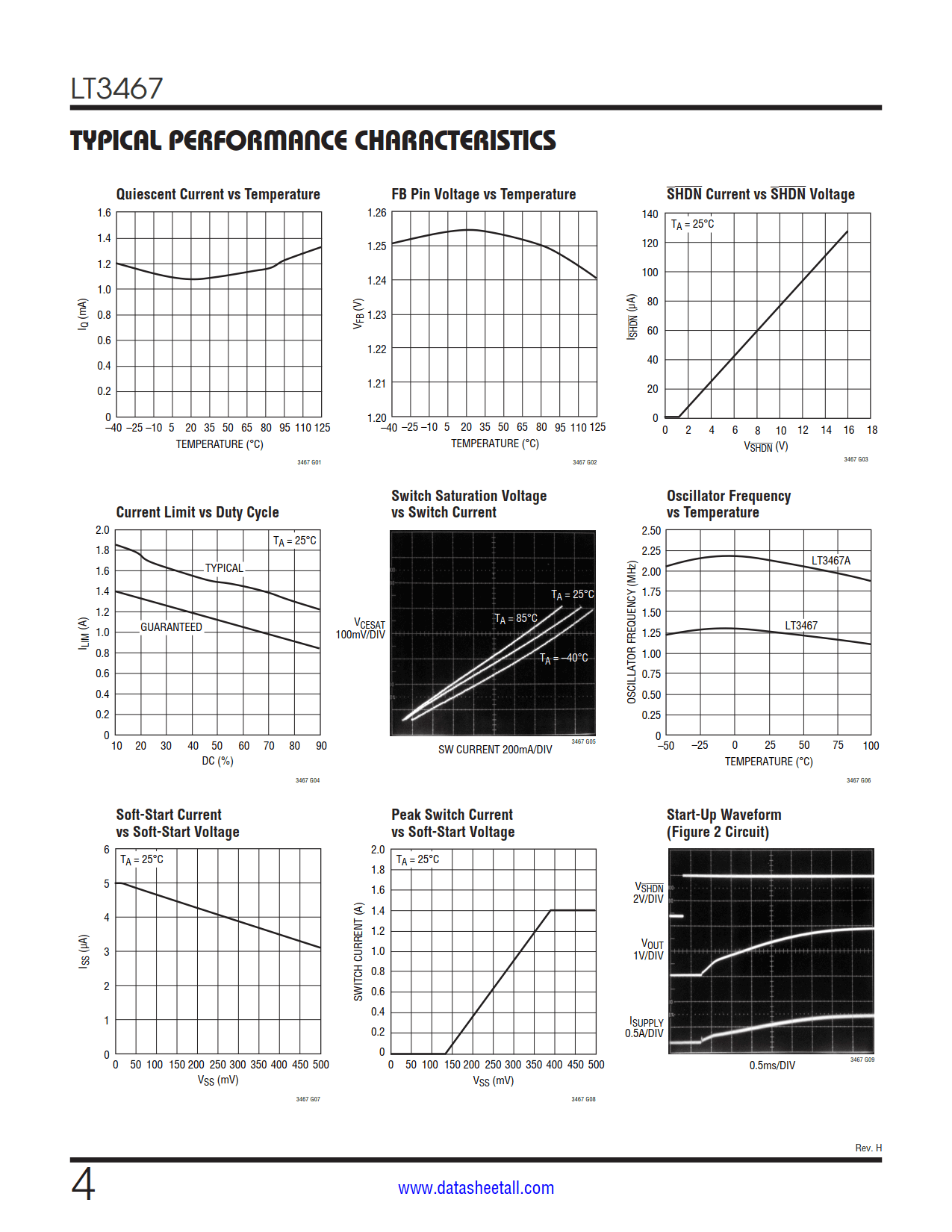

The LT3467 switching regulators combine a 42V, 1.1A switch with a soft-start function. Pin compatible with the LT1930, its low VCESAT bipolar switch enables the device to deliver high current outputs in a small footprint. The LT3467 switches at 1.3MHz, allowing the use of tiny, low cost and low height inductors and capacitors. High inrush current at start-up is eliminated using the programmable soft-start function. A single external capacitor sets the current ramp rate. A constant frequency current mode PWM architecture results in low, predictable output noise that is easy to filter.
The high voltage switch on the LT3467 is rated at 42V, making the devices ideal for boost converters up to 40V as well as SEPIC and flyback designs. The LT3467 can generate 5V at up to 540mA from a 3.3V supply or 5V at 450mA from four alkaline cells in a SEPIC design. The LT3467 are available in a low profile (1mm) 6-lead SOT-23 package and tiny 3mm × 2mm DFN package.
