| Part No.： | LT3086-EP |
| Page： | 10 Pages |
| Size： | 449 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2024-12-24 17:01:14 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LT3086FE#Z-EP | Tube | 95 | 3086FE-EP | 1 | 16 | -55°C ~ 125°C | 16-Lead Plastic TSSOP | |
| LT3086FE#TRZ-EP | Reel | 2500 | 3086FE-EP | 1 | 16 | -55°C ~ 125°C | 16-Lead Plastic TSSOP |

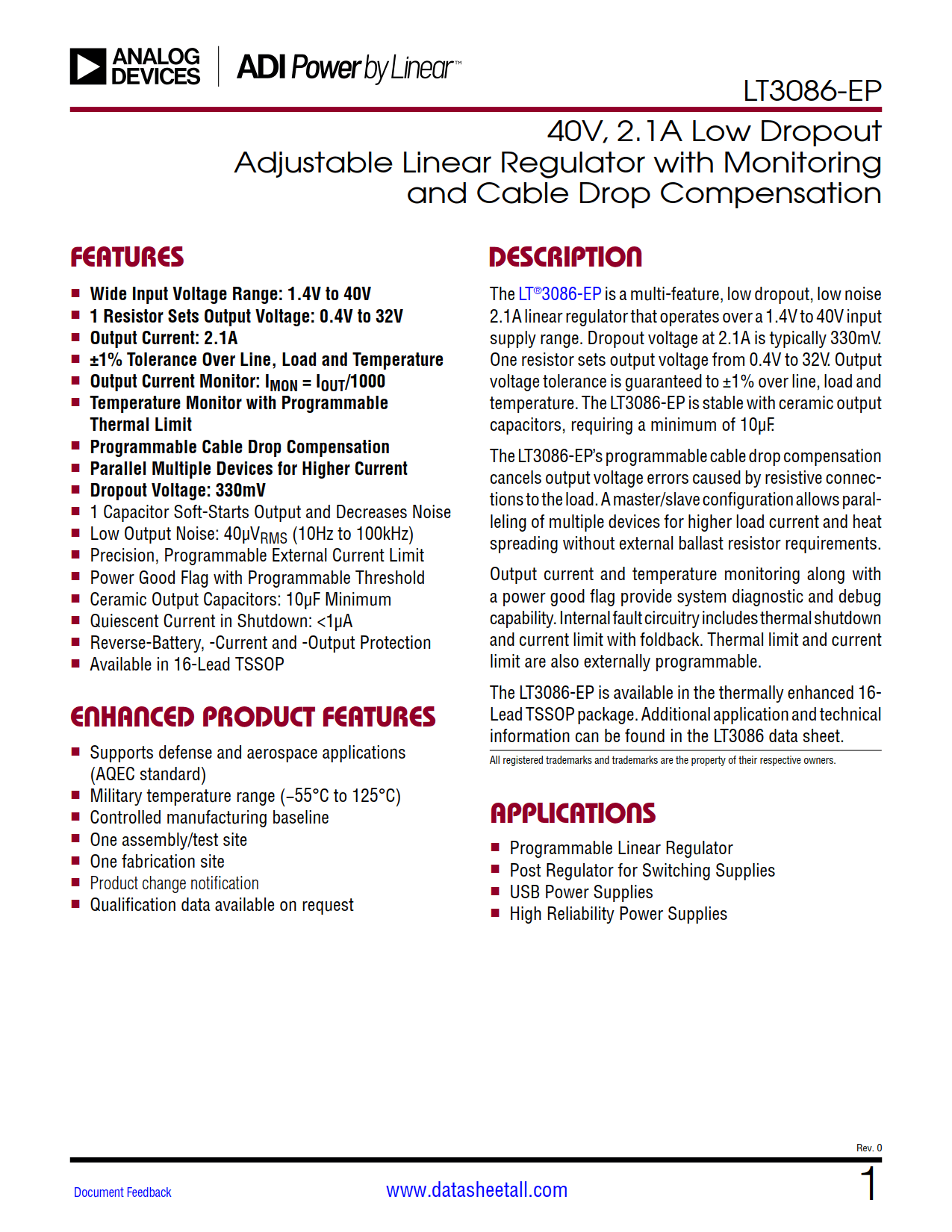

The LT®3086-EP is a multi-feature, lowdropout, lownoise 2.1A linearregulatorthat operates over a 1.4V to 40V input supply range. Dropout voltage at 2.1A is typically 330mV.One resistor sets output voltage from 0.4V to 32V. Output voltage tolerance is guaranteed to ±1% over line, load and temperature. The LT3086-EP is stable with ceramic output capacitors, requiring a minimum of 10µF.
The LT3086-EP’s programmable cable drop compensation cancels output voltage errors caused by resistive connections tothe load. Amaster/slave configuration allows paralleling of multiple devices for higher load current and heat spreading without external ballast resistor requirements.
Output current and temperature monitoring along with a power good flag provide system diagnostic and debug capability. Internal fault circuitry includes thermal shutdown and current limit with foldback. Thermal limit and current limit are also externally programmable.
The LT3086-EP is available in the thermally enhanced 16-Lead TSSOPpackage. Additional application and technical information can be found in the LT3086 data sheet.
