| Part No.： | LT3045-1 |
| Page： | 36 Pages |
| Size： | 3367 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2023-12-04 14:07:13 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LT3045EDD-1#PBF | Tube | 121 | LHBR | 1 | 12 | -40°C ~ 125°C | 12-Lead (3mm × 3mm) Plastic DFN | |
| LT3045EDD-1#TRPBF | Reel | 2500 | LHBR | 1 | 12 | -40°C ~ 125°C | 12-Lead (3mm × 3mm) Plastic DFN | |
| LT3045EDD-1#TRMPBF | Reel | 500 | LHBR | 1 | 12 | -40°C ~ 125°C | 12-Lead (3mm × 3mm) Plastic DFN | |
| LT3045IDD-1#PBF | Tube | 121 | LHBR | 1 | 12 | -40°C ~ 125°C | 12-Lead (3mm × 3mm) Plastic DFN | |
| LT3045IDD-1#TRPBF | Reel | 2500 | LHBR | 1 | 12 | -40°C ~ 125°C | 12-Lead (3mm × 3mm) Plastic DFN | |
| LT3045IDD-1#TRMPBF | Reel | 500 | LHBR | 1 | 12 | -40°C ~ 125°C | 12-Lead (3mm × 3mm) Plastic DFN | |
| LT3045EMSE-1#PBF | Tube | 37 | 30451 | 1 | 12 | -40°C ~ 125°C | 12-Lead Plastic MSOP | |
| LT3045EMSE-1#TRPBF | Reel | 2500 | 30451 | 1 | 12 | -40°C ~ 125°C | 12-Lead Plastic MSOP | |
| LT3045EMSE-1#TRMPBF | Reel | 500 | 30451 | 1 | 12 | -40°C ~ 125°C | 12-Lead Plastic MSOP | |
| LT3045IMSE-1#PBF | Tube | 37 | 30451 | 1 | 12 | -40°C ~ 125°C | 12-Lead Plastic MSOP | |
| LT3045IMSE-1#TRPBF | Reel | 2500 | 30451 | 1 | 12 | -40°C ~ 125°C | 12-Lead Plastic MSOP | |
| LT3045IMSE-1#TRMPBF | Reel | 500 | 30451 | 1 | 12 | -40°C ~ 125°C | 12-Lead Plastic MSOP |

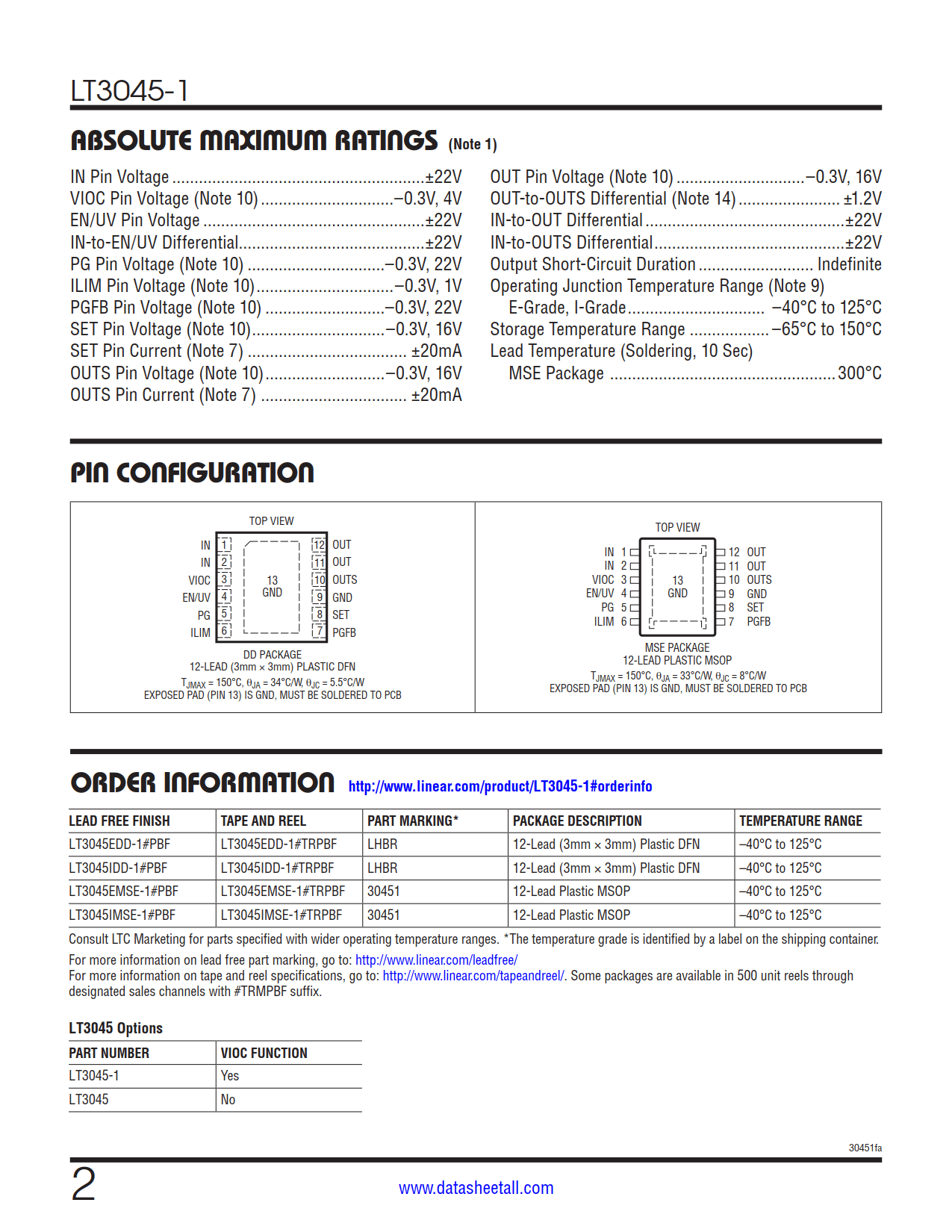

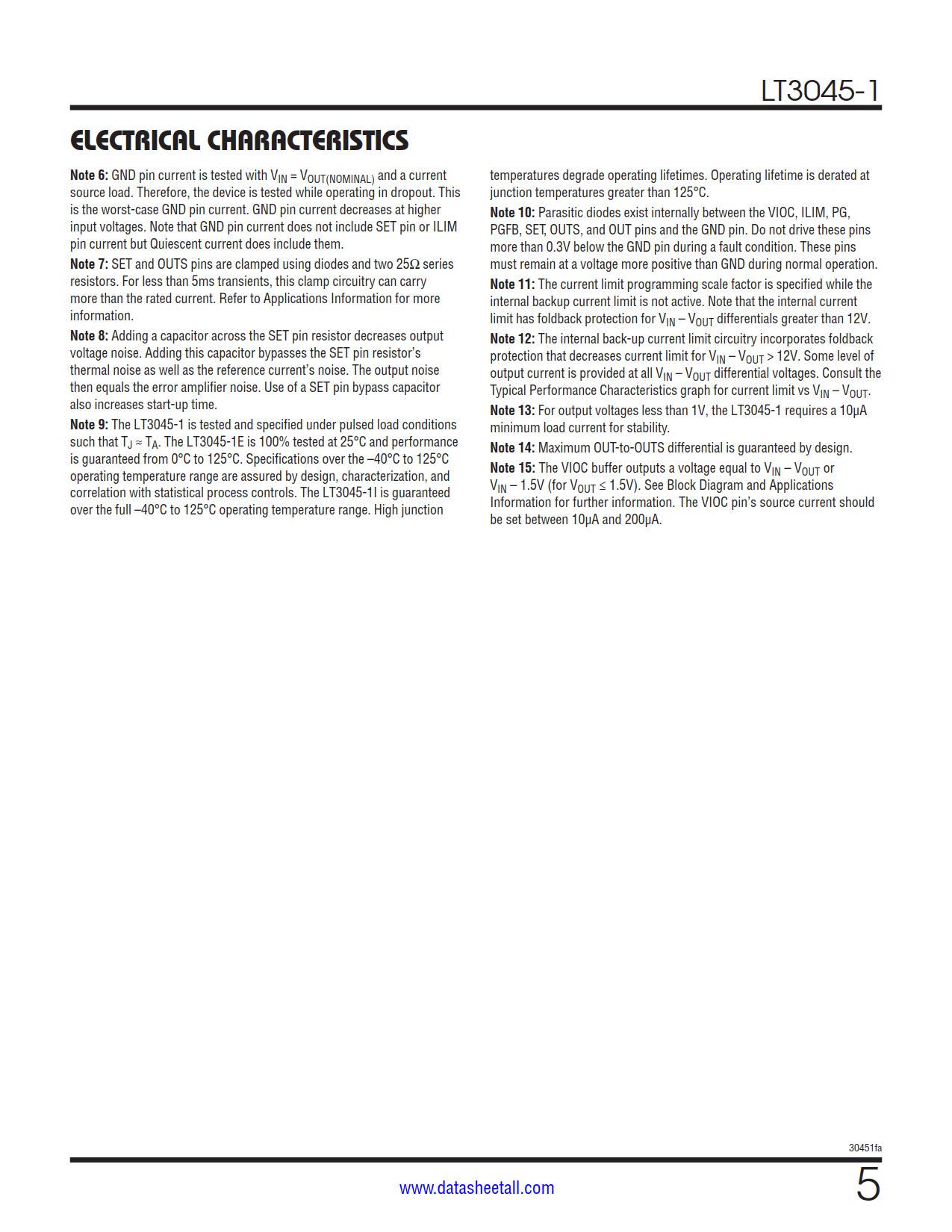

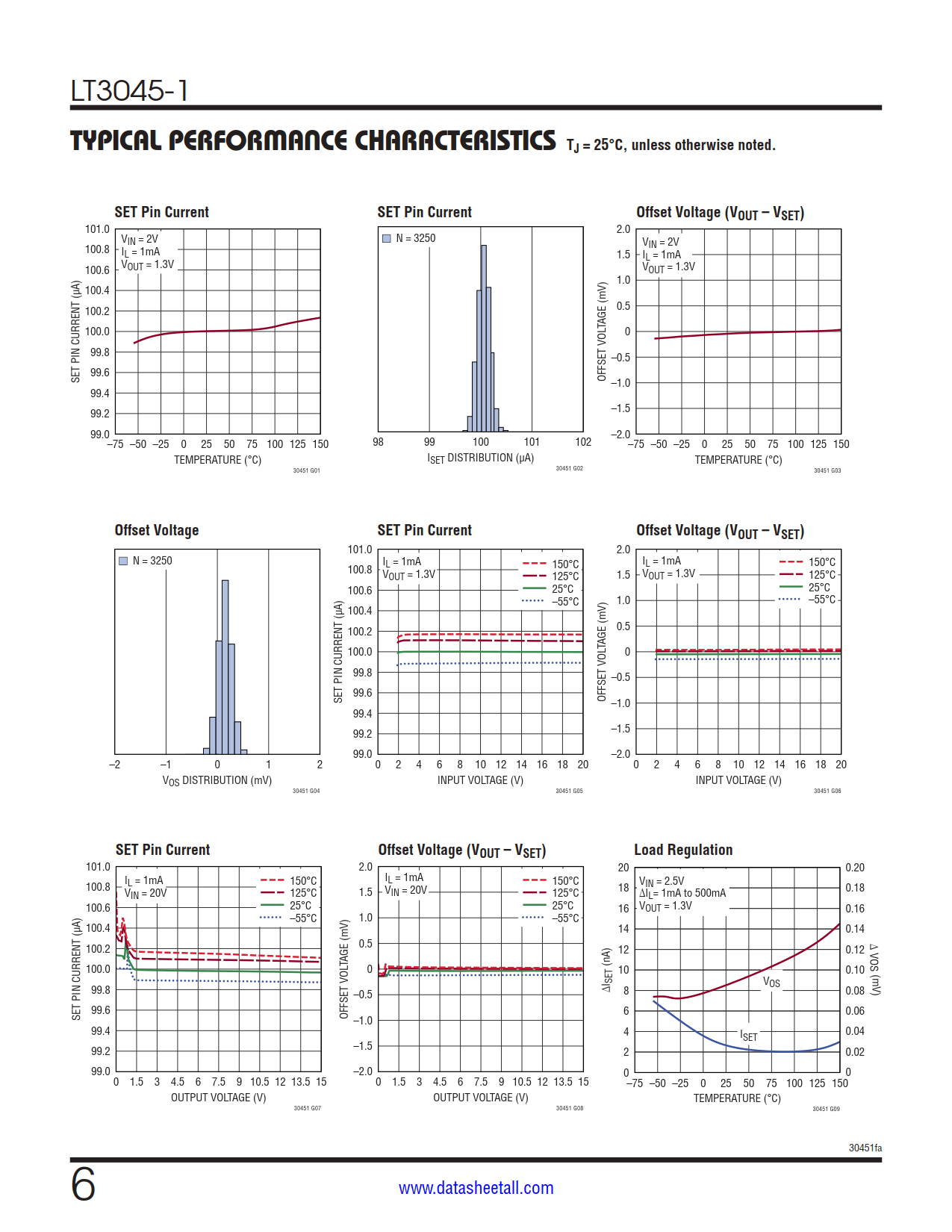

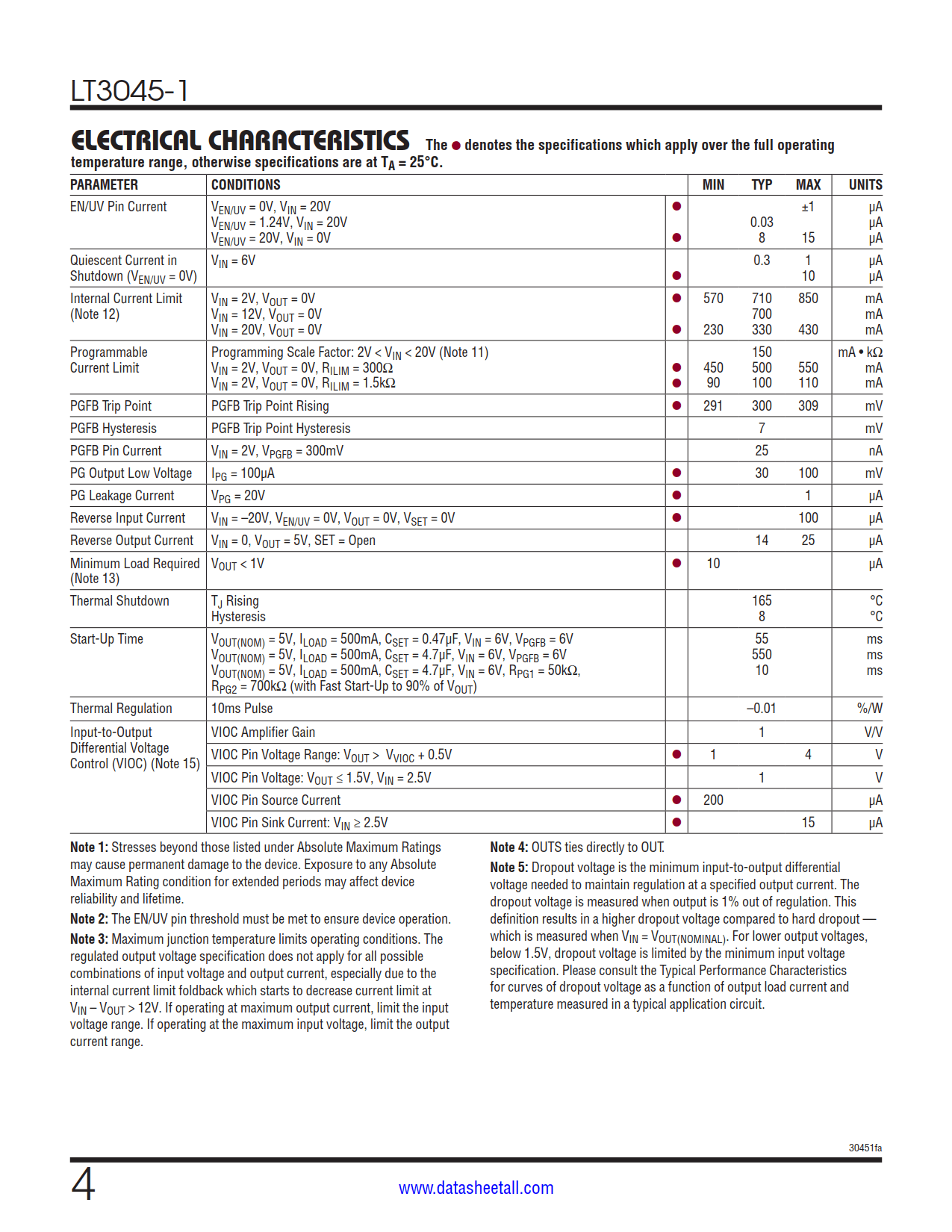

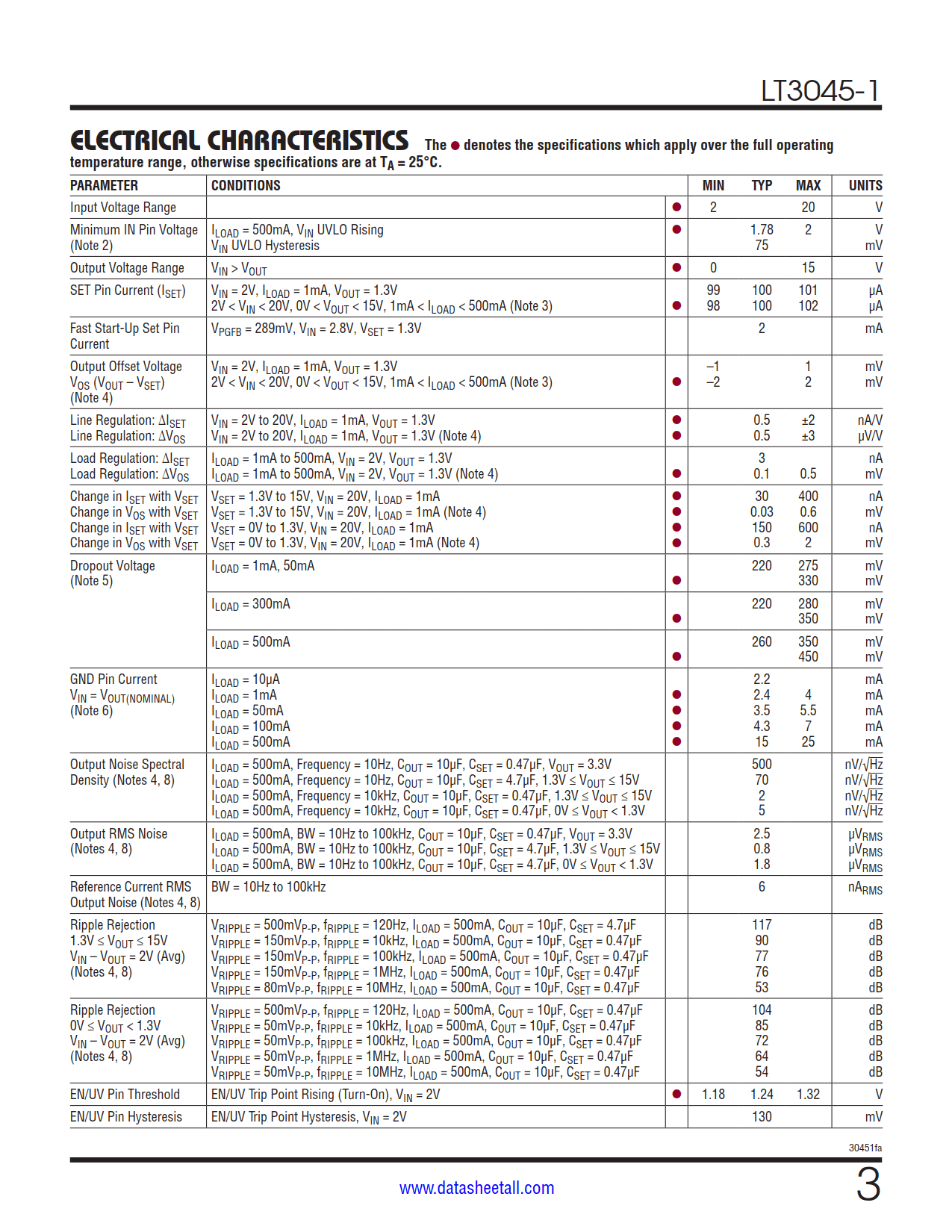

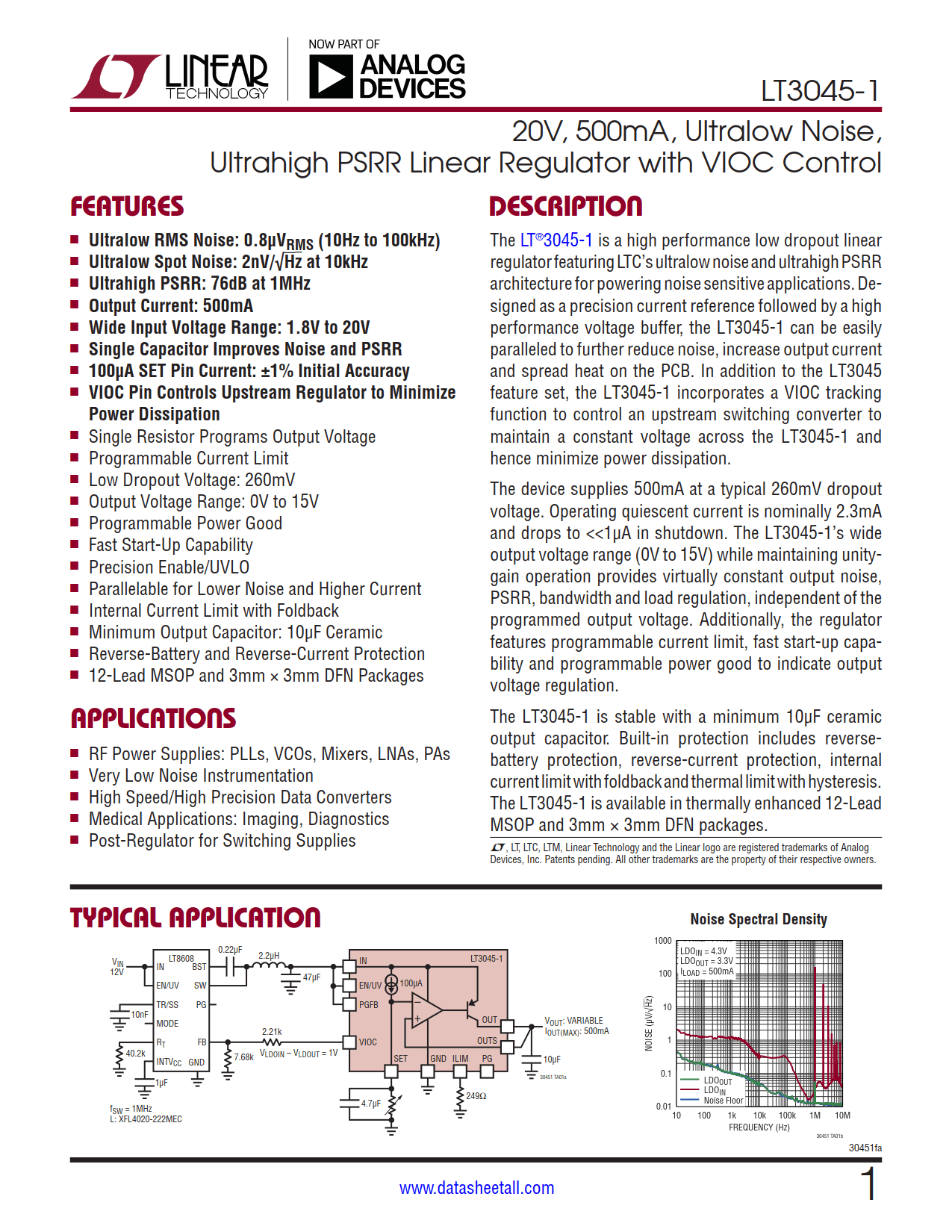

The LT3045-1 is a high performance low dropout linear regulator featuring LTC’s ultralow noise and ultrahigh PSRR architecture for powering noise sensitive applications. Designed as a precision current reference followed by a high performance voltage buffer, the LT3045-1 can be easily paralleled to further reduce noise, increase output current and spread heat on the PCB. In addition to the LT3045 feature set, the LT3045-1 incorporates a VIOC tracking function to control an upstream switching converter to maintain a constant voltage across the LT3045-1 and hence minimize power dissipation.
The device supplies 500mA at a typical 260mV dropout voltage. Operating quiescent current is nominally 2.3mA and drops to <<1μA in shutdown. The LT3045-1’s wide output voltage range (0V to 15V) while maintaining unity-gain operation provides virtually constant output noise, PSRR, bandwidth and load regulation, independent of the programmed output voltage. Additionally, the regulator features programmable current limit, fast start-up capability and programmable power good to indicate output voltage regulation.
The LT3045-1 is stable with a minimum 10μF ceramic output capacitor. Built-in protection includes reverse battery protection, reverse current protection, internal current limit with foldback and thermal limit with hysteresis. The LT3045-1 is available in thermally enhanced 12-Lead MSOP and 3mm × 3mm DFN packages.
