| Part No.： | LT3014B |
| Page： | 16 Pages |
| Size： | 207 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 0 |
| Update Time： | 2024-12-20 14:48:50 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LT3014BES5#TRPBF | Reel | 2500 | LTCHK | 1 | 5 | -40°C ~ 125°C | 5-Lead Plastic SOT-23 | |
| LT3014BES5#TRMPBF | Reel | 500 | LTCHK | 1 | 5 | -40°C ~ 125°C | 5-Lead Plastic SOT-23 | |
| LT3014BIS5#TRPBF | Reel | 2500 | LTCHK | 1 | 5 | -40°C ~ 125°C | 5-Lead Plastic SOT-23 | |
| LT3014BIS5#TRMPBF | Reel | 500 | LTCHK | 1 | 5 | -40°C ~ 125°C | 5-Lead Plastic SOT-23 | |
| LT3014BMPS5#TRPBF | Reel | 2500 | LTCHK | 1 | 5 | -55°C ~ 125°C | 5-Lead Plastic SOT-23 | |
| LT3014BMPS5#TRMPBF | Reel | 500 | LTCHK | 1 | 5 | -55°C ~ 125°C | 5-Lead Plastic SOT-23 | |
| LT3014BHVES5#TRPBF | Reel | 2500 | LTCHN | 1 | 5 | -40°C ~ 125°C | 5-Lead Plastic SOT-23 | |
| LT3014BHVES5#TRMPBF | Reel | 500 | LTCHN | 1 | 5 | -40°C ~ 125°C | 5-Lead Plastic SOT-23 | |
| LT3014BHVIS5#TRPBF | Reel | 2500 | LTCHN | 1 | 5 | -40°C ~ 125°C | 5-Lead Plastic SOT-23 | |
| LT3014BHVIS5#TRMPBF | Reel | 500 | LTCHN | 1 | 5 | -40°C ~ 125°C | 5-Lead Plastic SOT-23 | |
| LT3014BEDD#PBF | Tube | 121 | LCHM | 1 | 8 | -40°C ~ 125°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LT3014BEDD#TRPBF | Reel | 2500 | LCHM | 1 | 8 | -40°C ~ 125°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LT3014BIDD#PBF | Tube | 121 | LCHM | 1 | 8 | -40°C ~ 125°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LT3014BIDD#TRPBF | Reel | 2500 | LCHM | 1 | 8 | -40°C ~ 125°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LT3014BHVEDD#PBF | Tube | 121 | LCHP | 1 | 8 | -40°C ~ 125°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LT3014BHVEDD#TRPBF | Reel | 2500 | LCHP | 1 | 8 | -40°C ~ 125°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LT3014BHVIDD#PBF | Tube | 121 | LCHP | 1 | 8 | -40°C ~ 125°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LT3014BHVIDD#TRPBF | Reel | 2500 | LCHP | 1 | 8 | -40°C ~ 125°C | 8-Lead (3mm × 3mm) Plastic DFN |

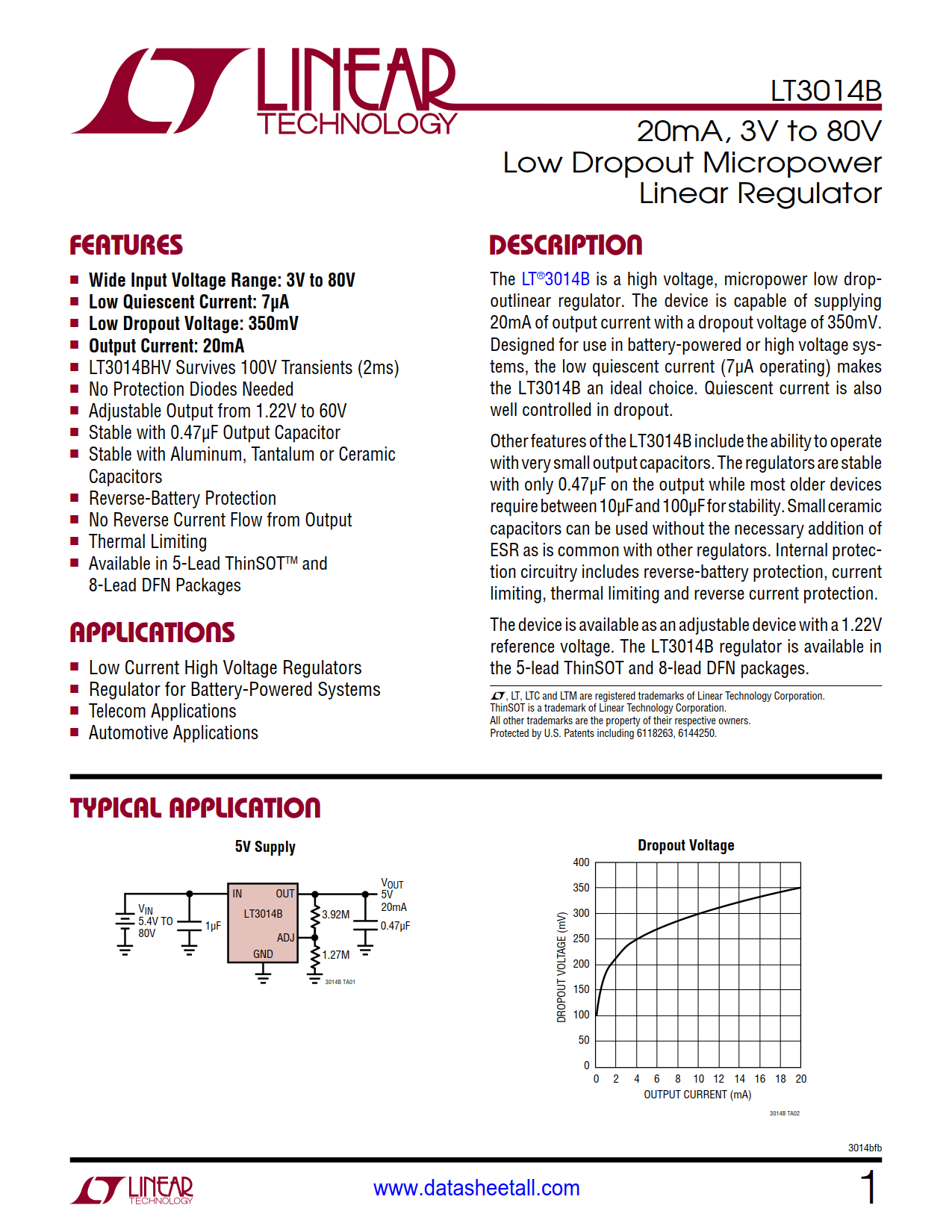

The LT3014B is a high voltage, micropower low dropout linear regulator. The device is capable of supplying 20mA of output current with a dropout voltage of 350mV. Designed for use in battery-powered or high voltage systems, the low quiescent current (7μA operating) makes the LT3014B an ideal choice. Quiescent current is also well controlled in dropout.
Other features of the LT3014B include the ability to operate with very small output capacitors. The regulators are stable with only 0.47μF on the output while most older devices require between 10μF and 100μF for stability. Small ceramic capacitors can be used without the necessary addition of ESR as is common with other regulators. Internal protection circuitry includes reverse-battery protection, current limiting, thermal limiting and reverse current protection.
The device is available as an adjustable device with a 1.22V reference voltage. The LT3014B regulator is available in the 5-lead ThinSOT and 8-lead DFN packages.
