LT1999-20 Datasheet

LT1999-20 Datasheet

High Voltage, Bidirectional Current Sense Amplifier 20V/V
Part No.: LT1999-20
Page: 28 Pages
Size: 1196 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-01-26 10:20:02
DataSheet: Download

LT1999-20 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LT1999CMS8-20#PBF Tube 50 LTFNZ 1 8 0°C ~70°C 8-Lead Plastic MSOP
LT1999CMS8-20#TRPBF Reel 2500 LTFNZ 1 8 0°C ~70°C 8-Lead Plastic MSOP
LT1999CMS8-20#TRMPBF Reel 500 LTFNZ 1 8 0°C ~70°C 8-Lead Plastic MSOP
LT1999IMS8-20#PBF Tube 50 LTFNZ 1 8 -40°C ~85°C 8-Lead Plastic MSOP
LT1999IMS8-20#TRPBF Reel 2500 LTFNZ 1 8 -40°C ~85°C 8-Lead Plastic MSOP
LT1999IMS8-20#TRMPBF Reel 500 LTFNZ 1 8 -40°C ~85°C 8-Lead Plastic MSOP
LT1999HMS8-20#PBF Tube 50 LTFNZ 1 8 -40°C ~125°C 8-Lead Plastic MSOP
LT1999HMS8-20#TRPBF Reel 2500 LTFNZ 1 8 -40°C ~125°C 8-Lead Plastic MSOP
LT1999HMS8-20#TRMPBF Reel 500 LTFNZ 1 8 -40°C ~125°C 8-Lead Plastic MSOP
LT1999MPMS8-20#PBF Tube 50 LTFQQ 1 8 -55°C ~150°C 8-Lead Plastic MSOP
LT1999MPMS8-20#TRPBF Reel 2500 LTFQQ 1 8 -55°C ~150°C 8-Lead Plastic MSOP
LT1999MPMS8-20#TRMPBF Reel 500 LTFQQ 1 8 -55°C ~150°C 8-Lead Plastic MSOP
LT1999CMS8-20F#PBF Tube 50 LTGVC 1 8 0°C ~70°C 8-Lead MSOP FMEA Pinout
LT1999CMS8-20F#TRPBF Reel 2500 LTGVC 1 8 0°C ~70°C 8-Lead MSOP FMEA Pinout
LT1999CMS8-20F#TRMPBF Reel 500 LTGVC 1 8 0°C ~70°C 8-Lead MSOP FMEA Pinout
LT1999IMS8-20F#PBF Tube 50 LTGVC 1 8 -40°C ~85°C 8-Lead MSOP FMEA Pinout
LT1999IMS8-20F#TRPBF Reel 2500 LTGVC 1 8 -40°C ~85°C 8-Lead MSOP FMEA Pinout
LT1999IMS8-20F#TRMPBF Reel 500 LTGVC 1 8 -40°C ~85°C 8-Lead MSOP FMEA Pinout
LT1999HMS8-20F#PBF Tube 50 LTGVC 1 8 -40°C ~125°C 8-Lead MSOP FMEA Pinout
LT1999HMS8-20F#TRPBF Reel 2500 LTGVC 1 8 -40°C ~125°C 8-Lead MSOP FMEA Pinout
LT1999HMS8-20F#TRMPBF Reel 500 LTGVC 1 8 -40°C ~125°C 8-Lead MSOP FMEA Pinout
LT1999MPMS8-20F#PBF Tube 50 LTGVC 1 8 -55°C ~150°C 8-Lead MSOP FMEA Pinout
LT1999MPMS8-20F#TRPBF Reel 2500 LTGVC 1 8 -55°C ~150°C 8-Lead MSOP FMEA Pinout
LT1999MPMS8-20F#TRMPBF Reel 500 LTGVC 1 8 -55°C ~150°C 8-Lead MSOP FMEA Pinout
LT1999CS8-20#PBF Tube 100 199920 1 8 0°C ~70°C 8-Lead Plastic SO
LT1999CS8-20#TRPBF Reel 2500 199920 1 8 0°C ~70°C 8-Lead Plastic SO
LT1999CS8-20#TRMPBF Reel 500 199920 1 8 0°C ~70°C 8-Lead Plastic SO
LT1999IS8-20#PBF Tube 100 199920 1 8 -40°C ~85°C 8-Lead Plastic SO
LT1999IS8-20#TRPBF Reel 2500 199920 1 8 -40°C ~85°C 8-Lead Plastic SO
LT1999IS8-20#TRMPBF Reel 500 199920 1 8 -40°C ~85°C 8-Lead Plastic SO
LT1999HS8-20#PBF Tube 100 199920 1 8 -40°C ~125°C 8-Lead Plastic SO
LT1999HS8-20#TRPBF Reel 2500 199920 1 8 -40°C ~125°C 8-Lead Plastic SO
LT1999HS8-20#TRMPBF Reel 500 199920 1 8 -40°C ~125°C 8-Lead Plastic SO
LT1999MPS8-20#PBF Tube 100 99MP20 1 8 -55°C ~150°C 8-Lead Plastic SO
LT1999MPS8-20#TRPBF Reel 2500 99MP20 1 8 -55°C ~150°C 8-Lead Plastic SO
LT1999MPS8-20#TRMPBF Reel 500 99MP20 1 8 -55°C ~150°C 8-Lead Plastic SO
LT1999HMS8-20F#WPBF Tube 50 LTGVC 1 8 -40°C ~125°C 8-Lead MSOP FMEA Pinout
LT1999HMS8-20F#WTRPBF Reel 2500 LTGVC 1 8 -40°C ~125°C 8-Lead MSOP FMEA Pinout
LT1999HMS8-20F#WTRMPBF Reel 500 LTGVC 1 8 -40°C ~125°C 8-Lead MSOP FMEA Pinout
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LT1999-20 Datasheet(PDF)

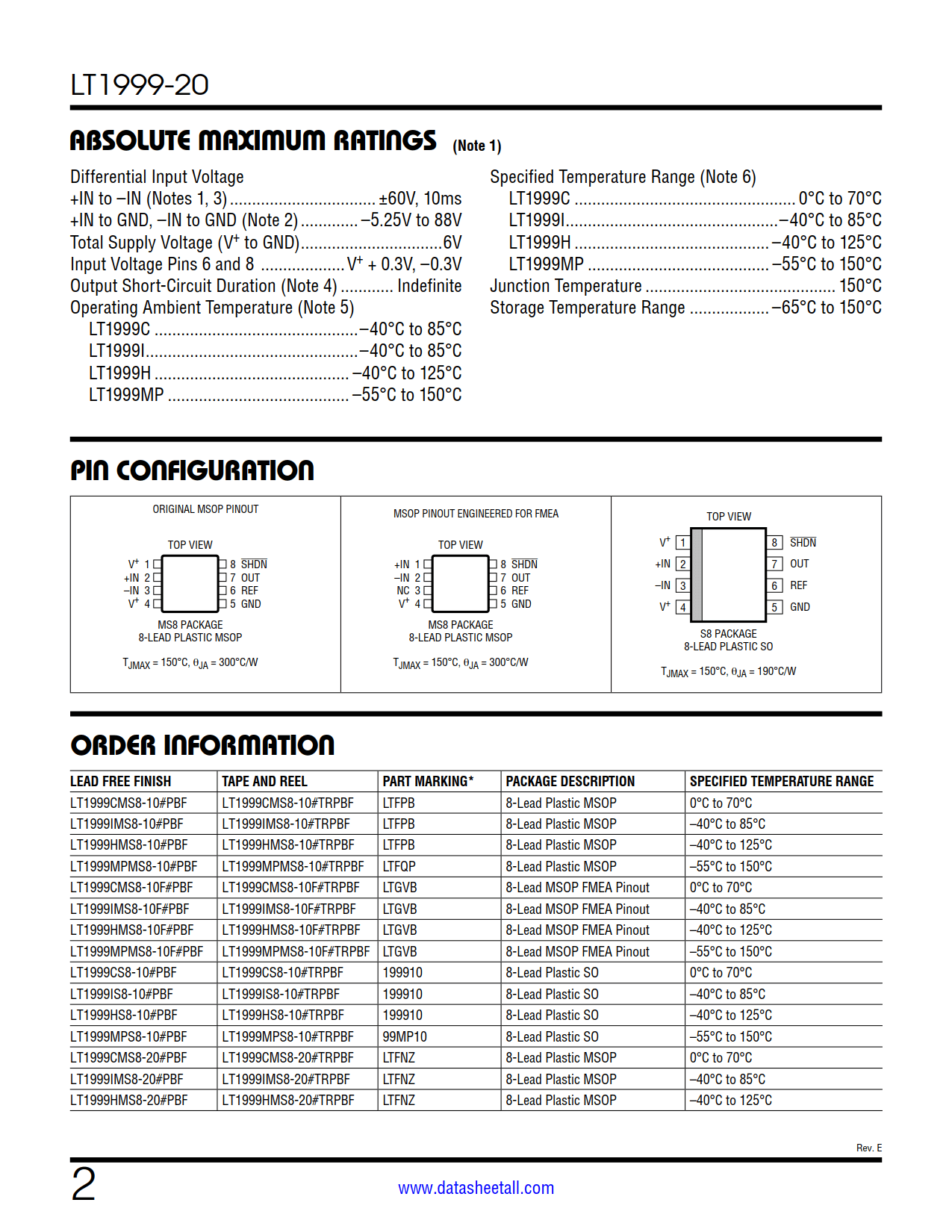

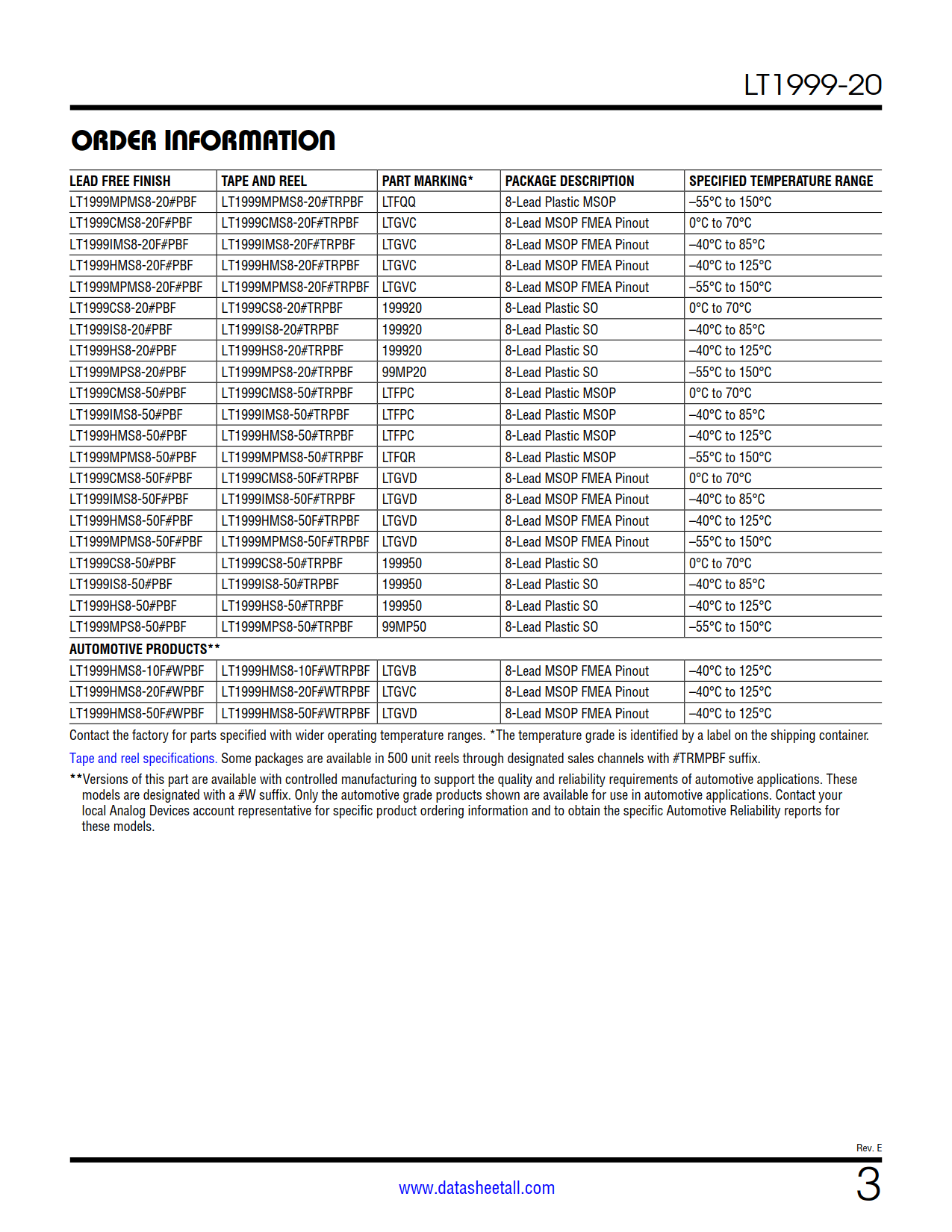

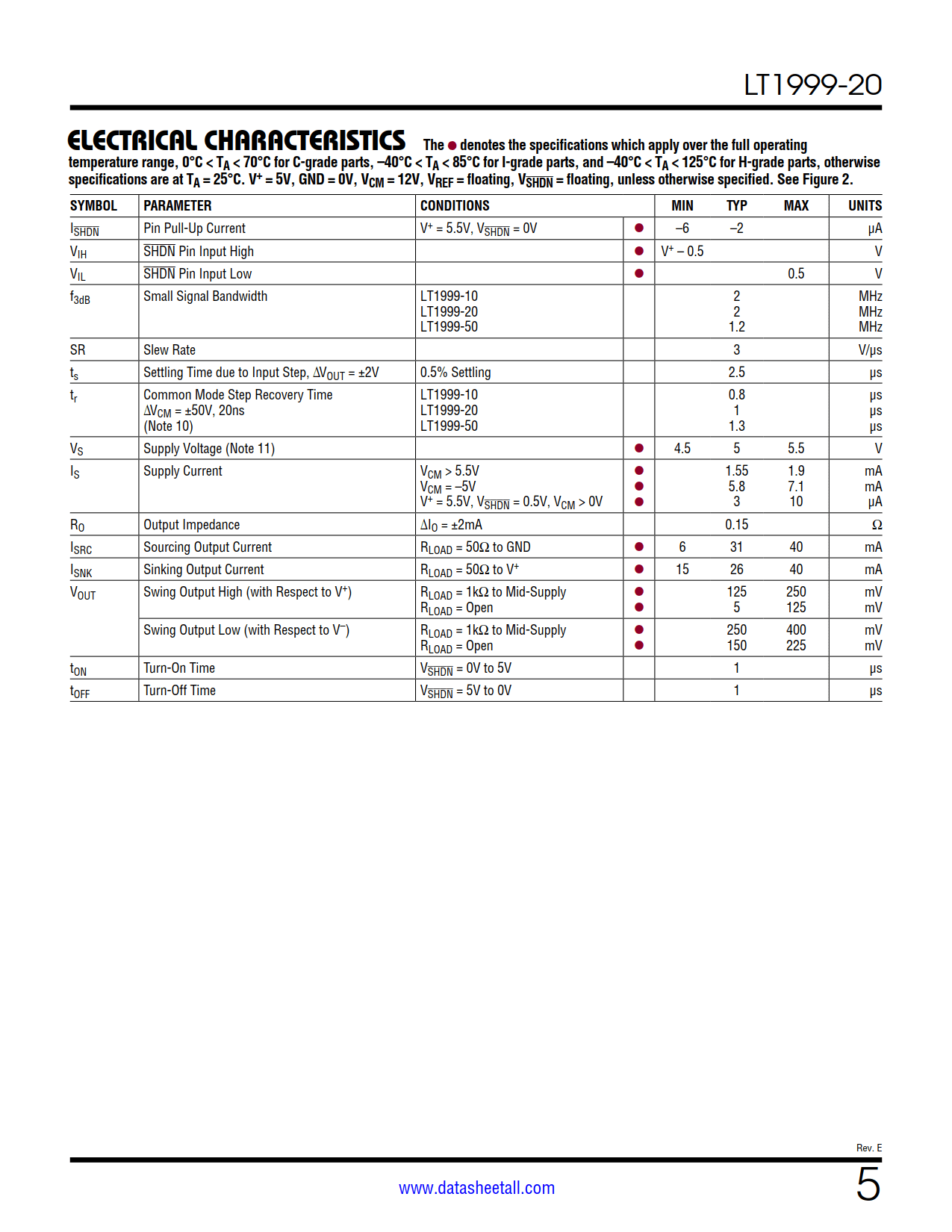

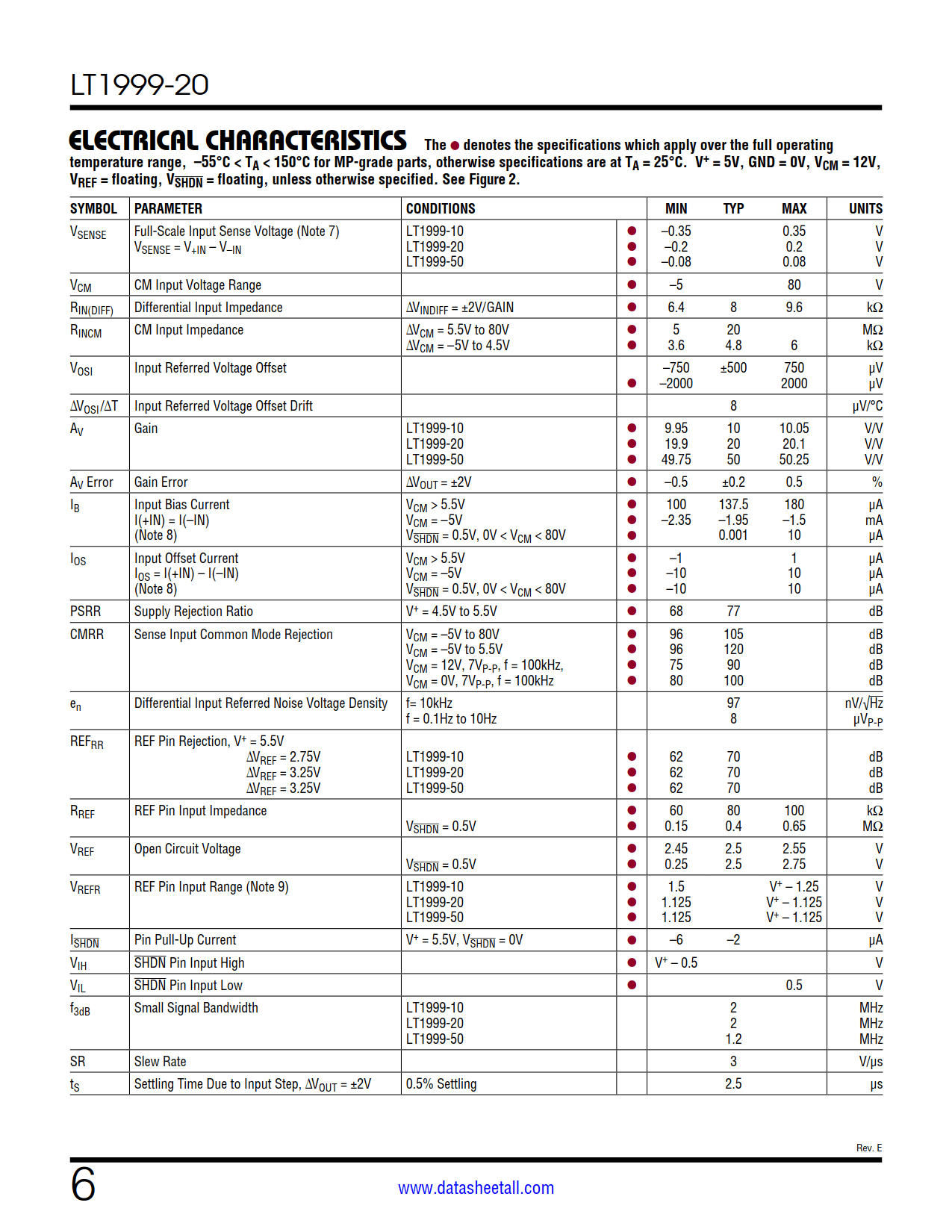

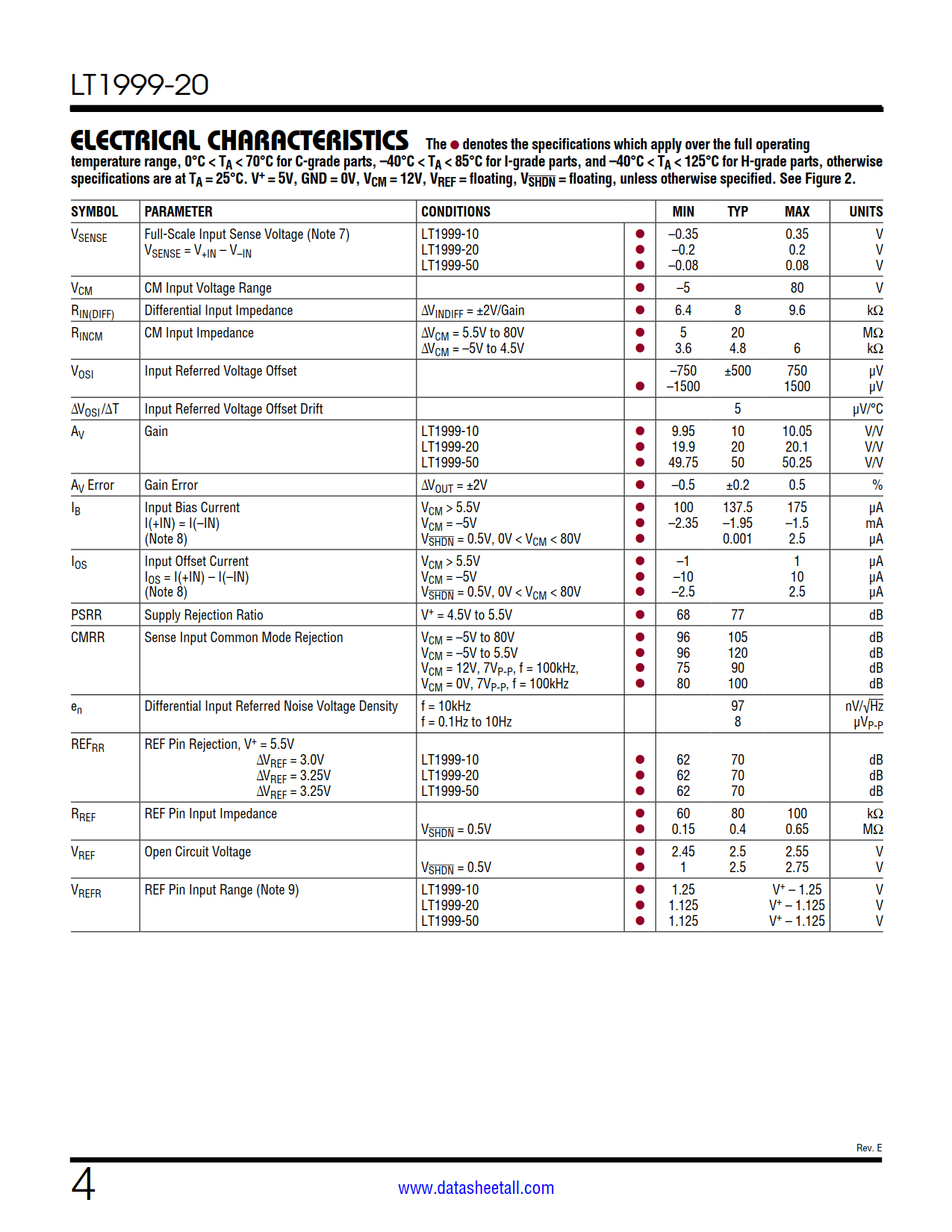

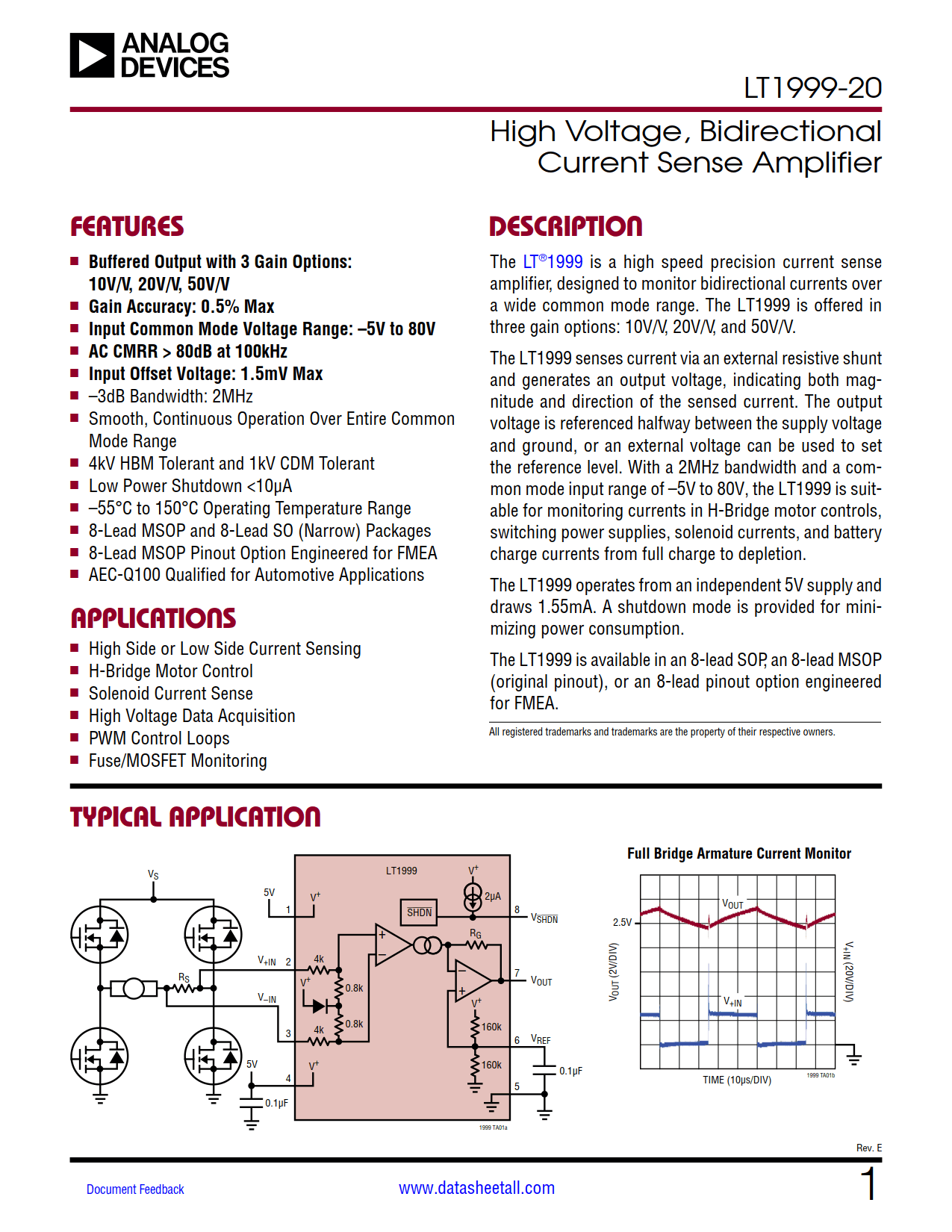

LT1999-20 Datasheet(Picture)

LT1999-20 Features

  • Buffered Output with 3 Gain Options: 20V/V
  • Gain Accuracy: 0.5% Max
  • Input Common Mode Voltage Range: –5V to 80V
  • AC CMRR > 80dB at 100kHz
  • Input Offset Voltage: 1.5mV Max
  • –3dB Bandwidth: 2MHz
  • Smooth, Continuous Operation Over Entire Common Mode Range
  • 4kV HBM Tolerant and 1kV CDM Tolerant
  • Low Power Shutdown <10µA
  • –55°C to 150°C Operating Temperature Range
  • 8-Lead MSOP and 8-Lead SO (Narrow) Packages
  • 8-Lead MSOP Pinout Option Engineered for FMEA
  • AEC-Q100 Qualified for Automotive Applications

LT1999-20 Applications

  • High Side or Low Side Current Sensing
  • H-Bridge Motor Control
  • Solenoid Current Sense
  • High Voltage Data Acquisition
  • PWM Control Loops
  • Fuse/MOSFET Monitoring

LT1999-20 Description

The LT1999-20 is a high speed precision current sense amplifier, designed to monitor bidirectional currents over a wide common mode range. The LT1999-20 is offered in three gain options: 20V/V.

The LT1999-20 senses current via an external resistive shunt and generates an output voltage, indicating both magnitude and direction of the sensed current. The output voltage is referenced halfway between the supply voltage and ground, or an external voltage can be used to set the reference level. With a 2MHz bandwidth and a common mode input range of –5V to 80V, the LT1999-20 is suitable for monitoring currents in H-Bridge motor controls, switching power supplies, solenoid currents, and battery charge currents from full charge to depletion.

The LT1999-20 operates from an independent 5V supply and draws 1.55mA. A shutdown mode is provided for minimizing power consumption.

The LT1999-20 is available in an 8-lead SOP, an 8-lead MSOP (original pinout), or an 8-lead pinout option engineered for FMEA.
