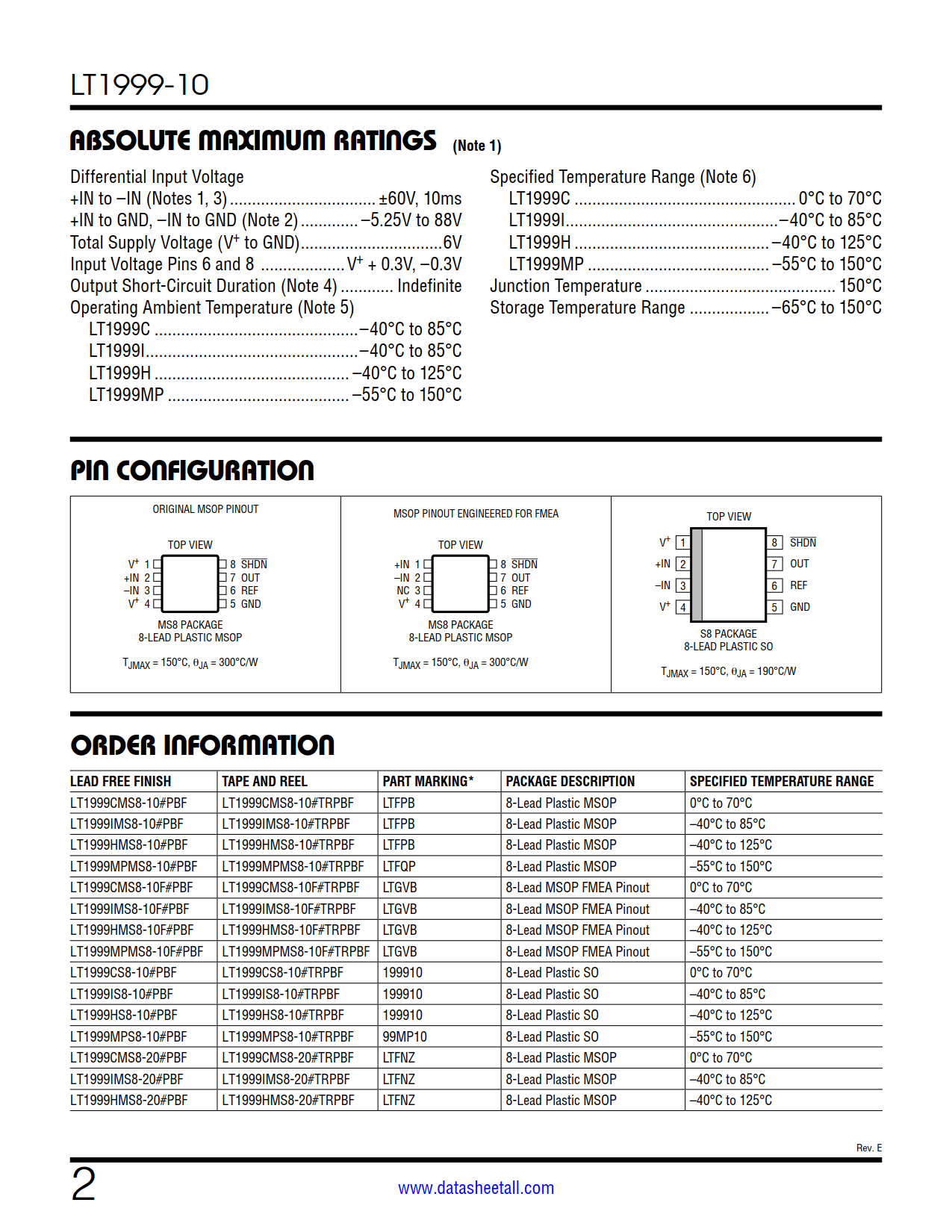

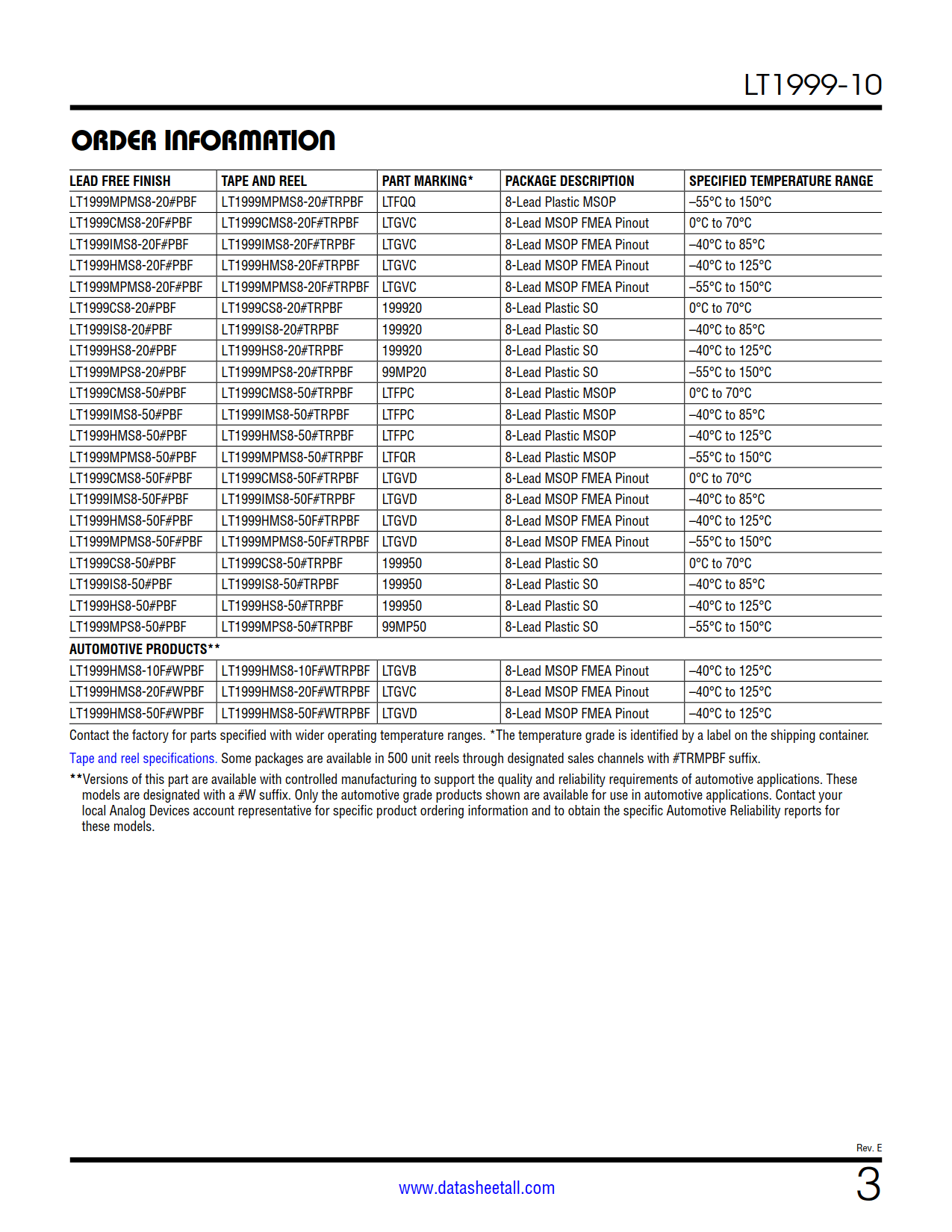

| Part No.： | LT1999-10 |
| Page： | 28 Pages |
| Size： | 1196 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2024-01-26 09:54:32 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LT1999CMS8-10#PBF | Tube | 50 | LTFPB | 1 | 8 | 0°C ~70°C | 8-Lead Plastic MSOP | |
| LT1999CMS8-10#TRPBF | Reel | 2500 | LTFPB | 1 | 8 | 0°C ~70°C | 8-Lead Plastic MSOP | |
| LT1999CMS8-10#TRMPBF | Reel | 500 | LTFPB | 1 | 8 | 0°C ~70°C | 8-Lead Plastic MSOP | |
| LT1999IMS8-10#PBF | Tube | 50 | LTFPB | 1 | 8 | -40°C ~85°C | 8-Lead Plastic MSOP | |
| LT1999IMS8-10#TRPBF | Reel | 2500 | LTFPB | 1 | 8 | -40°C ~85°C | 8-Lead Plastic MSOP | |
| LT1999IMS8-10#TRMPBF | Reel | 500 | LTFPB | 1 | 8 | -40°C ~85°C | 8-Lead Plastic MSOP | |
| LT1999HMS8-10#PBF | Tube | 50 | LTFPB | 1 | 8 | -40°C ~125°C | 8-Lead Plastic MSOP | |
| LT1999HMS8-10#TRPBF | Reel | 2500 | LTFPB | 1 | 8 | -40°C ~125°C | 8-Lead Plastic MSOP | |
| LT1999HMS8-10#TRMPBF | Reel | 500 | LTFPB | 1 | 8 | -40°C ~125°C | 8-Lead Plastic MSOP | |
| LT1999MPMS8-10#PBF | Tube | 50 | LTFQP | 1 | 8 | -55°C ~150°C | 8-Lead Plastic MSOP | |
| LT1999MPMS8-10#TRPBF | Reel | 2500 | LTFQP | 1 | 8 | -55°C ~150°C | 8-Lead Plastic MSOP | |
| LT1999MPMS8-10#TRMPBF | Reel | 500 | LTFQP | 1 | 8 | -55°C ~150°C | 8-Lead Plastic MSOP | |
| LT1999CMS8-10F#PBF | Tube | 50 | LTGVB | 1 | 8 | 0°C ~70°C | 8-Lead MSOP FMEA Pinout | |
| LT1999CMS8-10F#TRPBF | Reel | 2500 | LTGVB | 1 | 8 | 0°C ~70°C | 8-Lead MSOP FMEA Pinout | |
| LT1999CMS8-10F#TRMPBF | Reel | 500 | LTGVB | 1 | 8 | 0°C ~70°C | 8-Lead MSOP FMEA Pinout | |
| LT1999IMS8-10F#PBF | Tube | 50 | LTGVB | 1 | 8 | -40°C ~85°C | 8-Lead MSOP FMEA Pinout | |
| LT1999IMS8-10F#TRPBF | Reel | 2500 | LTGVB | 1 | 8 | -40°C ~85°C | 8-Lead MSOP FMEA Pinout | |
| LT1999IMS8-10F#TRMPBF | Reel | 500 | LTGVB | 1 | 8 | -40°C ~85°C | 8-Lead MSOP FMEA Pinout | |
| LT1999HMS8-10F#PBF | Tube | 50 | LTGVB | 1 | 8 | -40°C ~125°C | 8-Lead MSOP FMEA Pinout | |
| LT1999HMS8-10F#TRPBF | Reel | 2500 | LTGVB | 1 | 8 | -40°C ~125°C | 8-Lead MSOP FMEA Pinout | |
| LT1999HMS8-10F#TRMPBF | Reel | 500 | LTGVB | 1 | 8 | -40°C ~125°C | 8-Lead MSOP FMEA Pinout | |
| LT1999MPMS8-10F#PBF | Tube | 50 | LTGVB | 1 | 8 | -55°C ~150°C | 8-Lead MSOP FMEA Pinout | |
| LT1999MPMS8-10F#TRPBF | Reel | 2500 | LTGVB | 1 | 8 | -55°C ~150°C | 8-Lead MSOP FMEA Pinout | |
| LT1999MPMS8-10F#TRMPBF | Reel | 500 | LTGVB | 1 | 8 | -55°C ~150°C | 8-Lead MSOP FMEA Pinout | |
| LT1999CS8-10#PBF | Tube | 100 | 199910 | 1 | 8 | 0°C ~70°C | 8-Lead Plastic SO | |
| LT1999CS8-10#TRPBF | Reel | 2500 | 199910 | 1 | 8 | 0°C ~70°C | 8-Lead Plastic SO | |
| LT1999CS8-10#TRMPBF | Reel | 500 | 199910 | 1 | 8 | 0°C ~70°C | 8-Lead Plastic SO | |
| LT1999IS8-10#PBF | Tube | 100 | 199910 | 1 | 8 | -40°C ~85°C | 8-Lead Plastic SO | |
| LT1999IS8-10#TRPBF | Reel | 2500 | 199910 | 1 | 8 | -40°C ~85°C | 8-Lead Plastic SO | |
| LT1999IS8-10#TRMPBF | Reel | 500 | 199910 | 1 | 8 | -40°C ~85°C | 8-Lead Plastic SO | |
| LT1999HS8-10#PBF | Tube | 100 | 199910 | 1 | 8 | -40°C ~125°C | 8-Lead Plastic SO | |
| LT1999HS8-10#TRPBF | Reel | 2500 | 199910 | 1 | 8 | -40°C ~125°C | 8-Lead Plastic SO | |
| LT1999HS8-10#TRMPBF | Reel | 500 | 199910 | 1 | 8 | -40°C ~125°C | 8-Lead Plastic SO | |
| LT1999MPS8-10#PBF | Tube | 100 | 99MP10 | 1 | 8 | -55°C ~150°C | 8-Lead Plastic SO | |
| LT1999MPS8-10#TRPBF | Reel | 2500 | 99MP10 | 1 | 8 | -55°C ~150°C | 8-Lead Plastic SO | |
| LT1999MPS8-10#TRMPBF | Reel | 500 | 99MP10 | 1 | 8 | -55°C ~150°C | 8-Lead Plastic SO | |
| LT1999HMS8-10F#WPBF | Tube | 50 | LTGVB | 1 | 8 | -40°C ~125°C | 8-Lead MSOP FMEA Pinout | |
| LT1999HMS8-10F#WTRPBF | Reel | 2500 | LTGVB | 1 | 8 | -40°C ~125°C | 8-Lead MSOP FMEA Pinout | |
| LT1999HMS8-10F#WTRMPBF | Reel | 500 | LTGVB | 1 | 8 | -40°C ~125°C | 8-Lead MSOP FMEA Pinout |

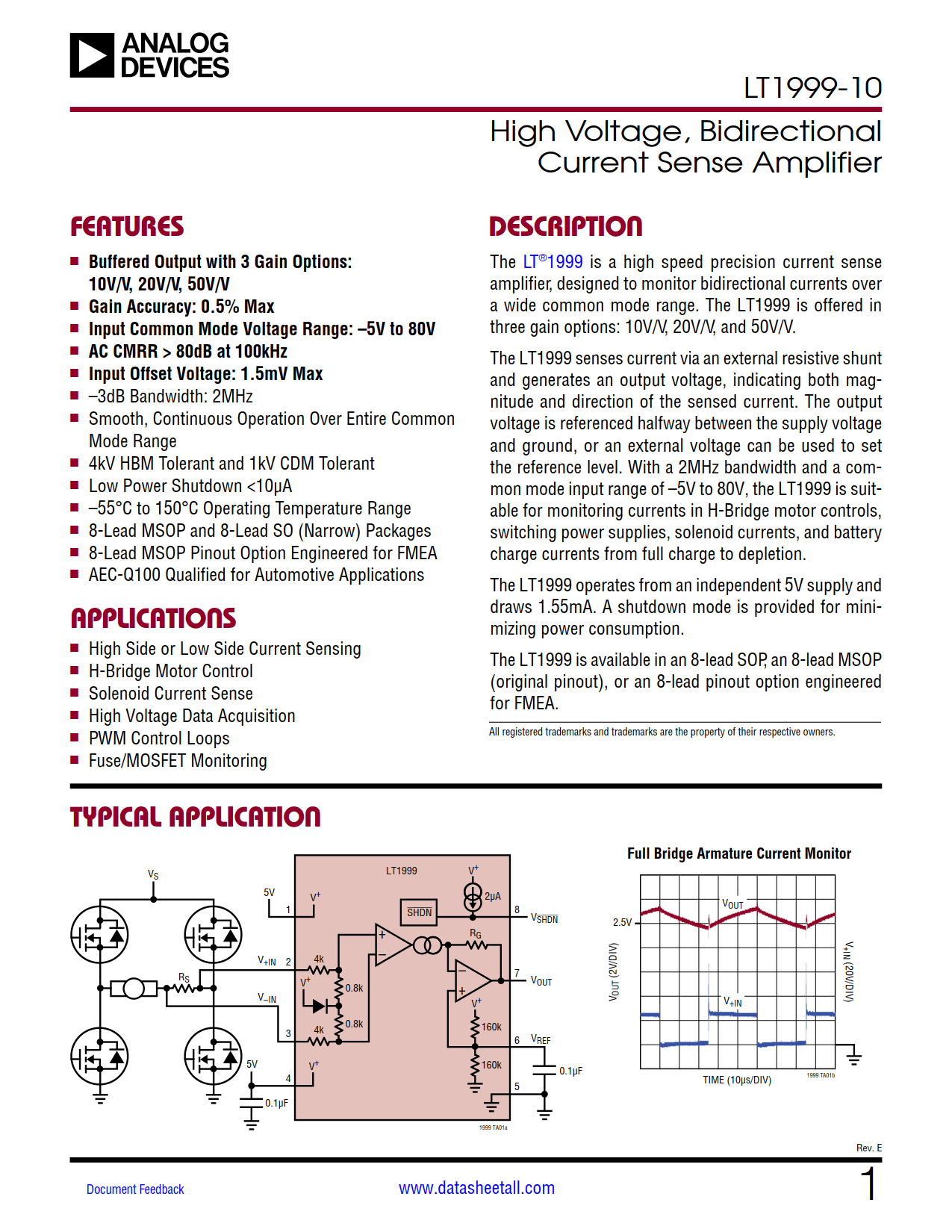

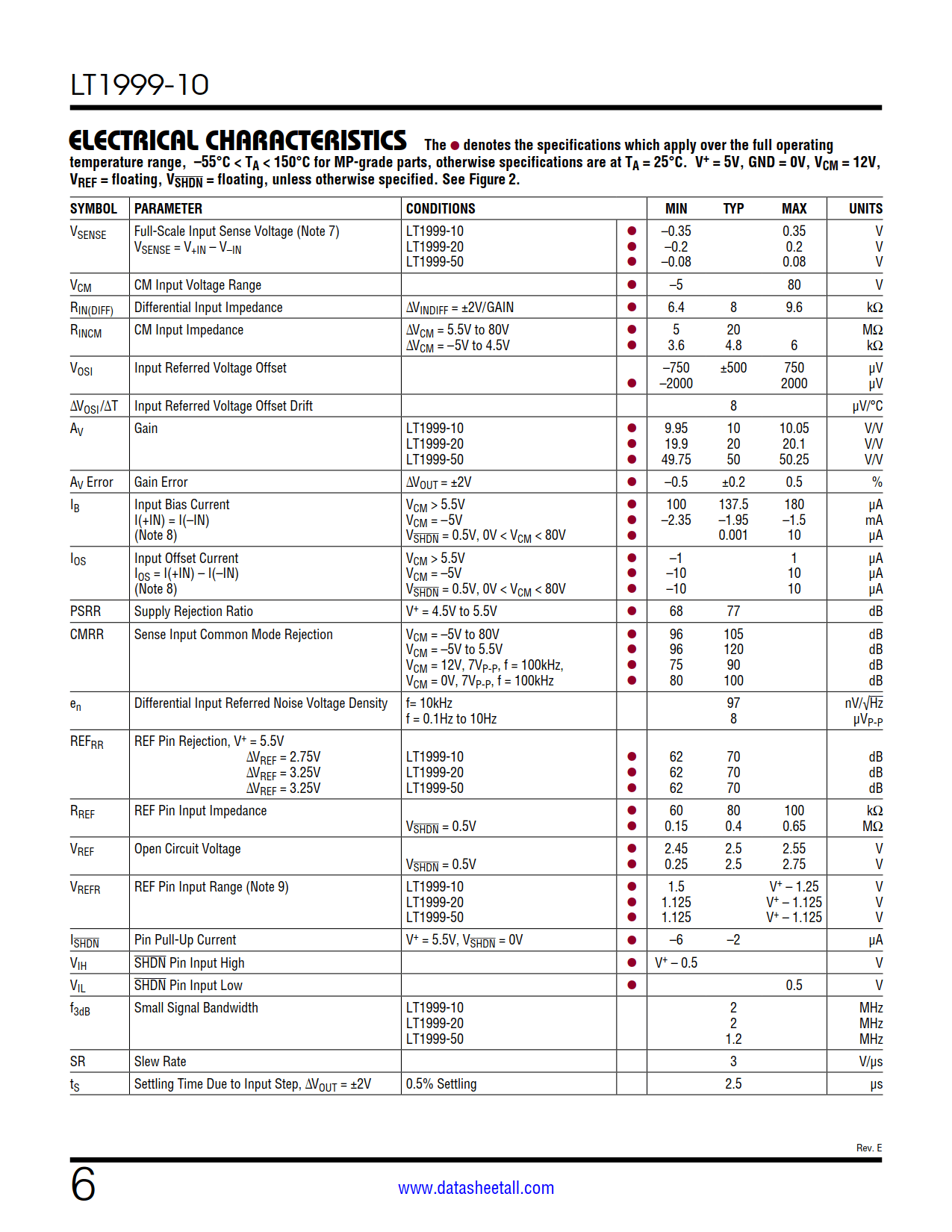

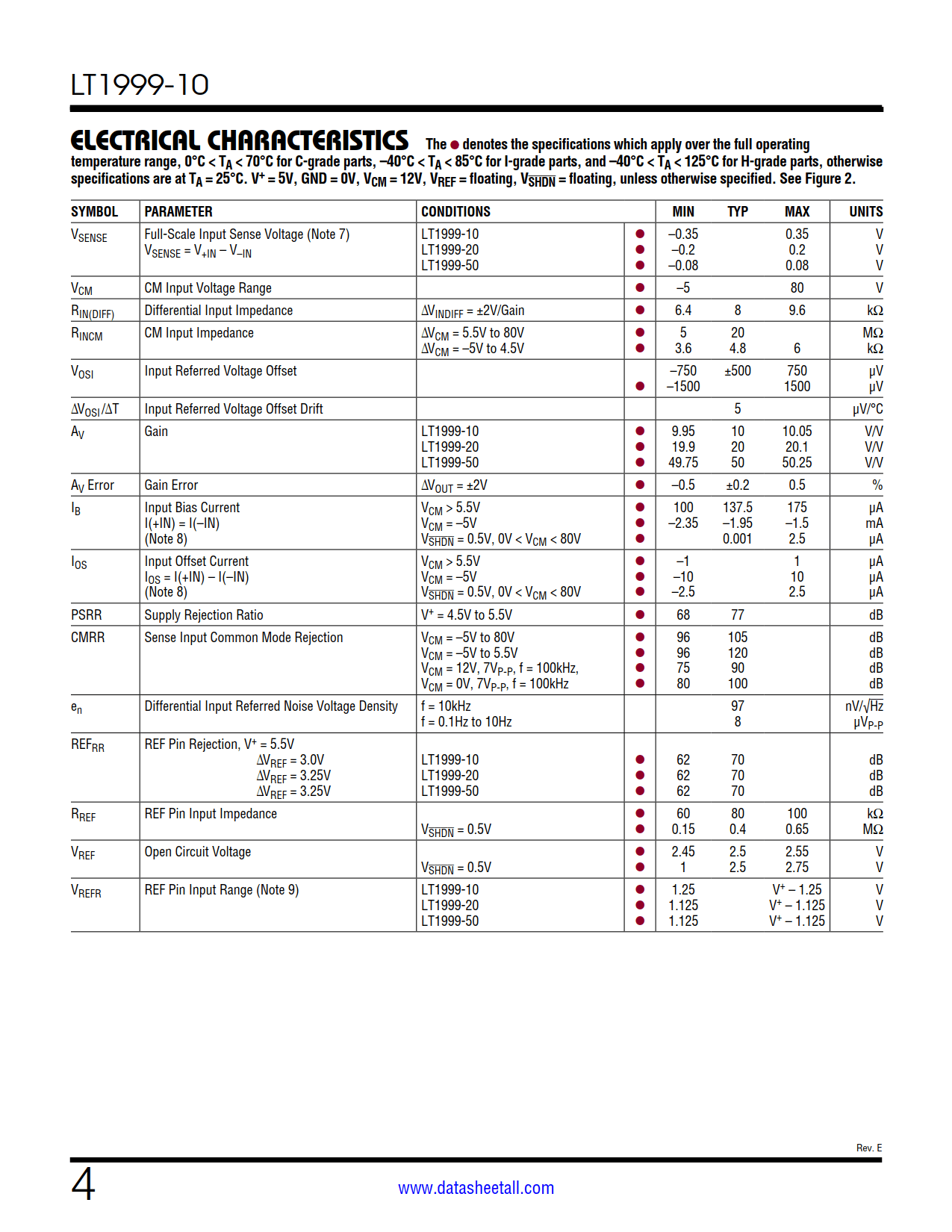

The LT1999-10 is a high speed precision current sense amplifier, designed to monitor bidirectional currents over a wide common mode range. The LT1999-10 is offered in three gain options: 10V/V.
The LT1999-10 senses current via an external resistive shunt and generates an output voltage, indicating both magnitude and direction of the sensed current. The output voltage is referenced halfway between the supply voltage and ground, or an external voltage can be used to set the reference level. With a 2MHz bandwidth and a common mode input range of –5V to 80V, the LT1999-10 is suitable for monitoring currents in H-Bridge motor controls, switching power supplies, solenoid currents, and battery charge currents from full charge to depletion.

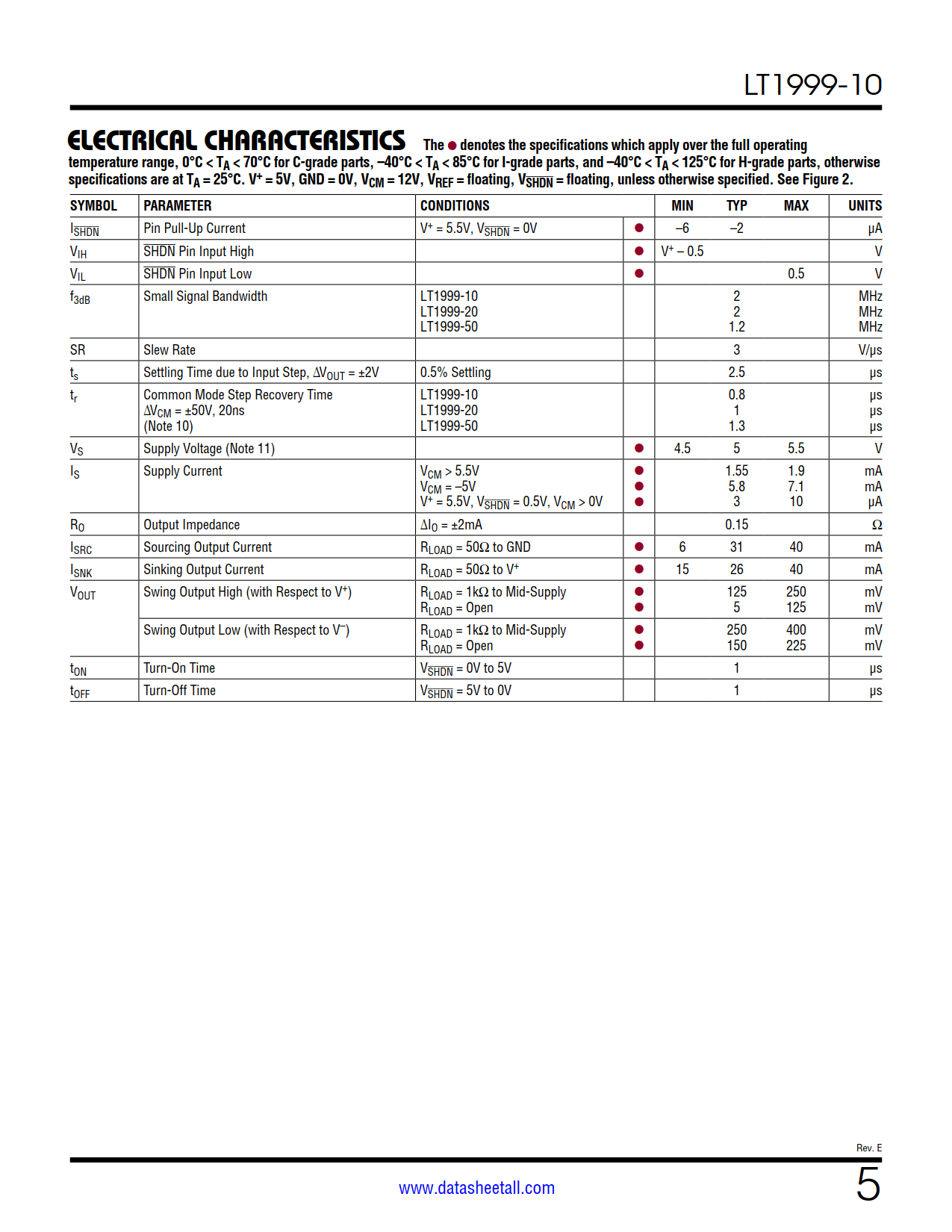

The LT1999-10 operates from an independent 5V supply and draws 1.55mA. A shutdown mode is provided for minimizing power consumption.
The LT1999-10 is available in an 8-lead SOP, an 8-lead MSOP (original pinout), or an 8-lead pinout option engineered for FMEA.
