LT1995 Datasheet

LT1995 Datasheet

32MHz, 1000V/µs Gain Selectable Amplifier
Part No.: LT1995
Page: 20 Pages
Size: 313 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-12-03 13:41:03
DataSheet: Download

LT1995 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LT1995CDD#PBF Tube 121 LBJF 1 10 0°C ~70°C 10-Lead DFN (3mm x 3mm)
LT1995CDD#TRPBF Reel 2500 LBJF 1 10 0°C ~70°C 10-Lead DFN (3mm x 3mm)
LT1995CDD#TRMPBF Reel 500 LBJF 1 10 0°C ~70°C 10-Lead DFN (3mm x 3mm)
LT1995IDD#PBF Tube 121 LBJF 1 10 -40°C ~85°C 10-Lead DFN (3mm x 3mm)
LT1995IDD#TRPBF Reel 2500 LBJF 1 10 -40°C ~85°C 10-Lead DFN (3mm x 3mm)
LT1995IDD#TRMPBF Reel 500 LBJF 1 10 -40°C ~85°C 10-Lead DFN (3mm x 3mm)
LT1995CMS#PBF Tube 50 LTBJD 1 10 0°C ~70°C 10-Lead MSOP
LT1995CMS#TRPBF Reel 2500 LTBJD 1 10 0°C ~70°C 10-Lead MSOP
LT1995CMS#TRMPBF Reel 500 LTBJD 1 10 0°C ~70°C 10-Lead MSOP
LT1995IMS#PBF Tube 50 LTBJD 1 10 -40°C ~85°C 10-Lead MSOP
LT1995IMS#TRPBF Reel 2500 LTBJD 1 10 -40°C ~85°C 10-Lead MSOP
LT1995IMS#TRMPBF Reel 500 LTBJD 1 10 -40°C ~85°C 10-Lead MSOP
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LT1995 Datasheet(PDF)

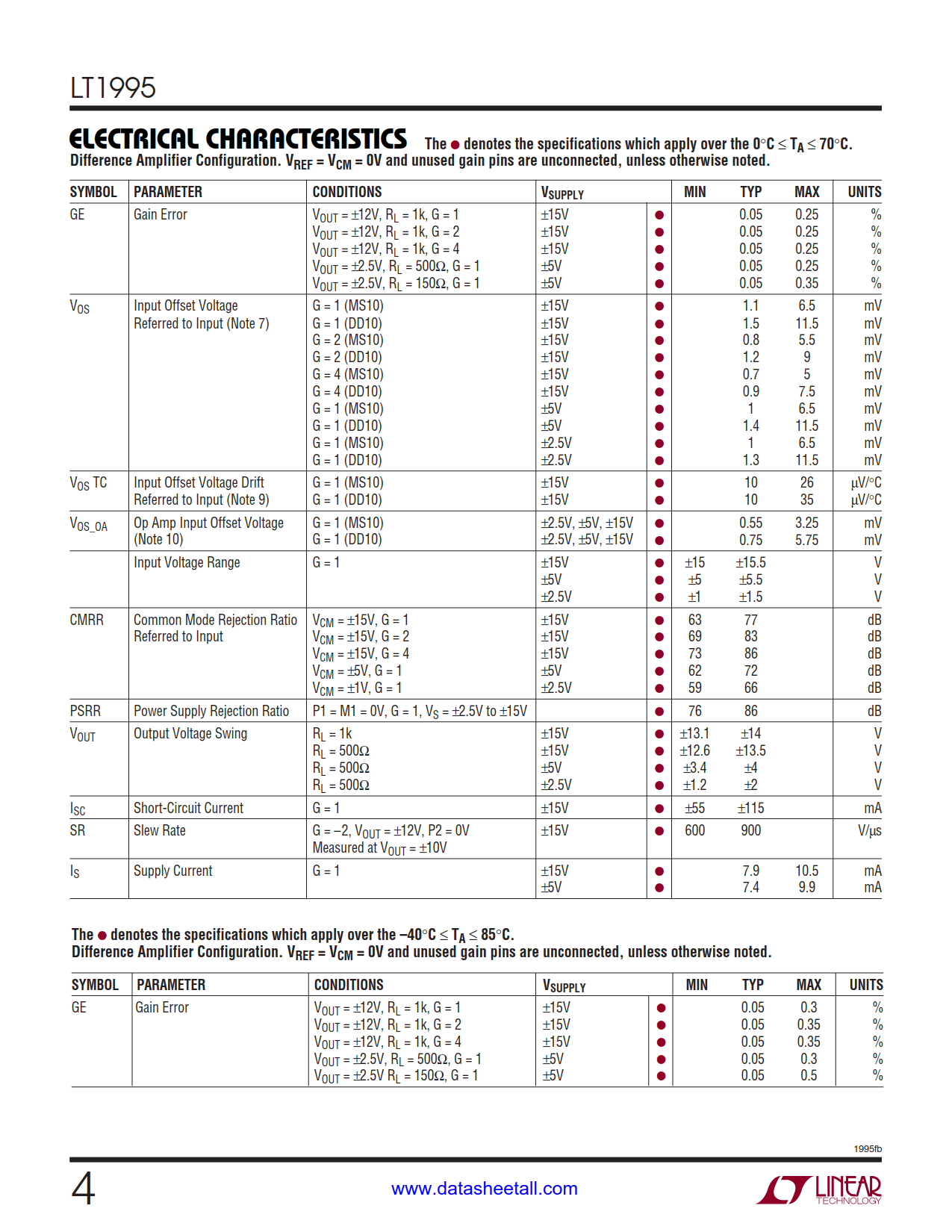

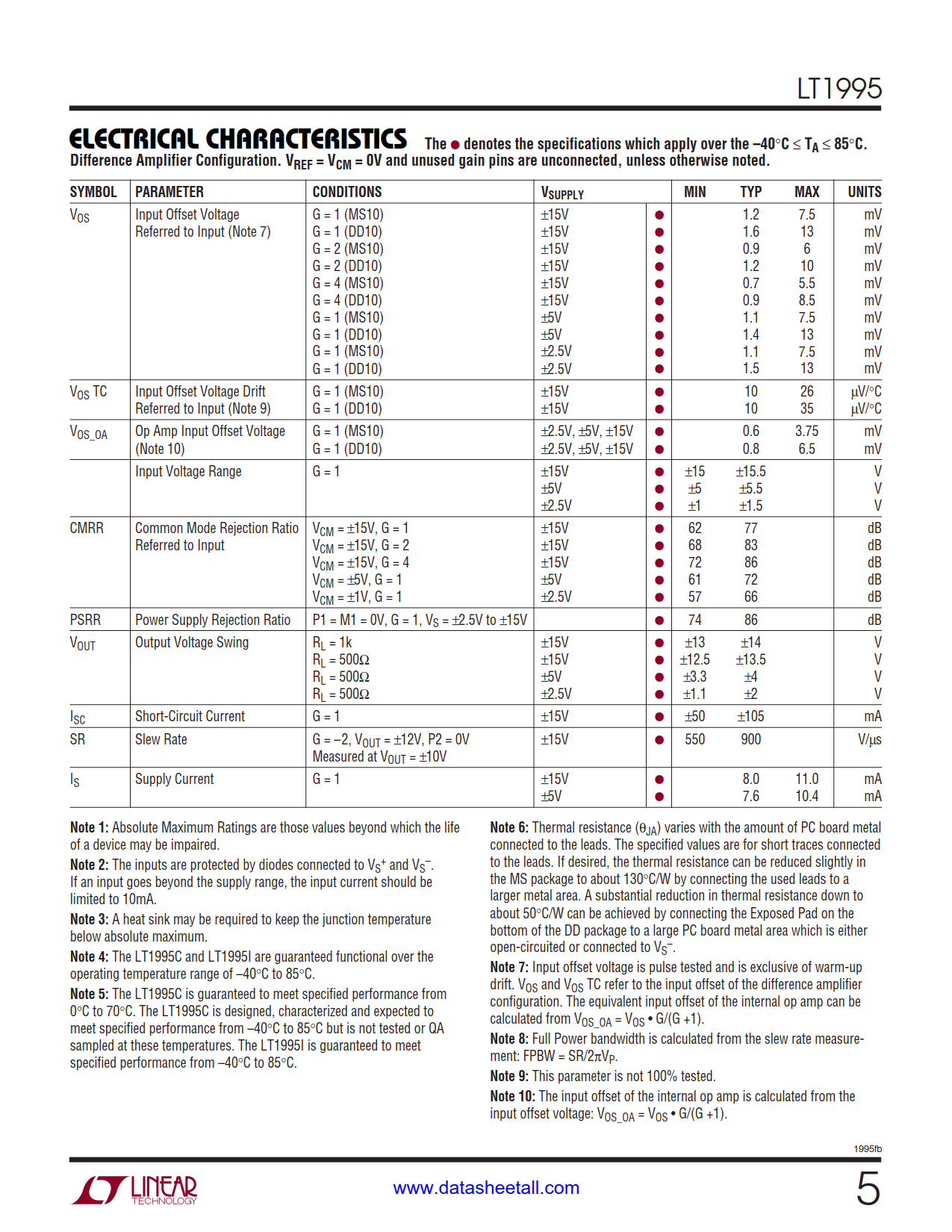

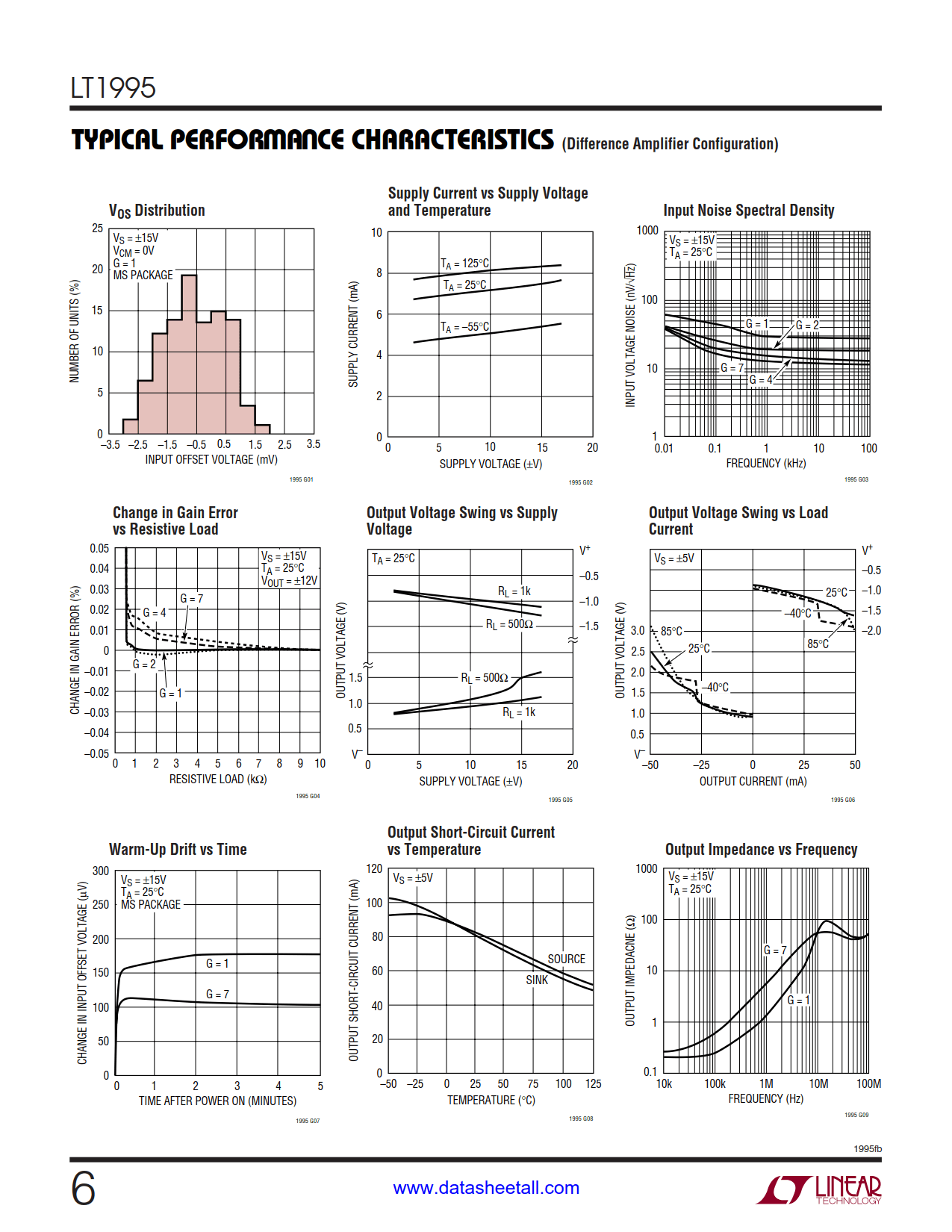

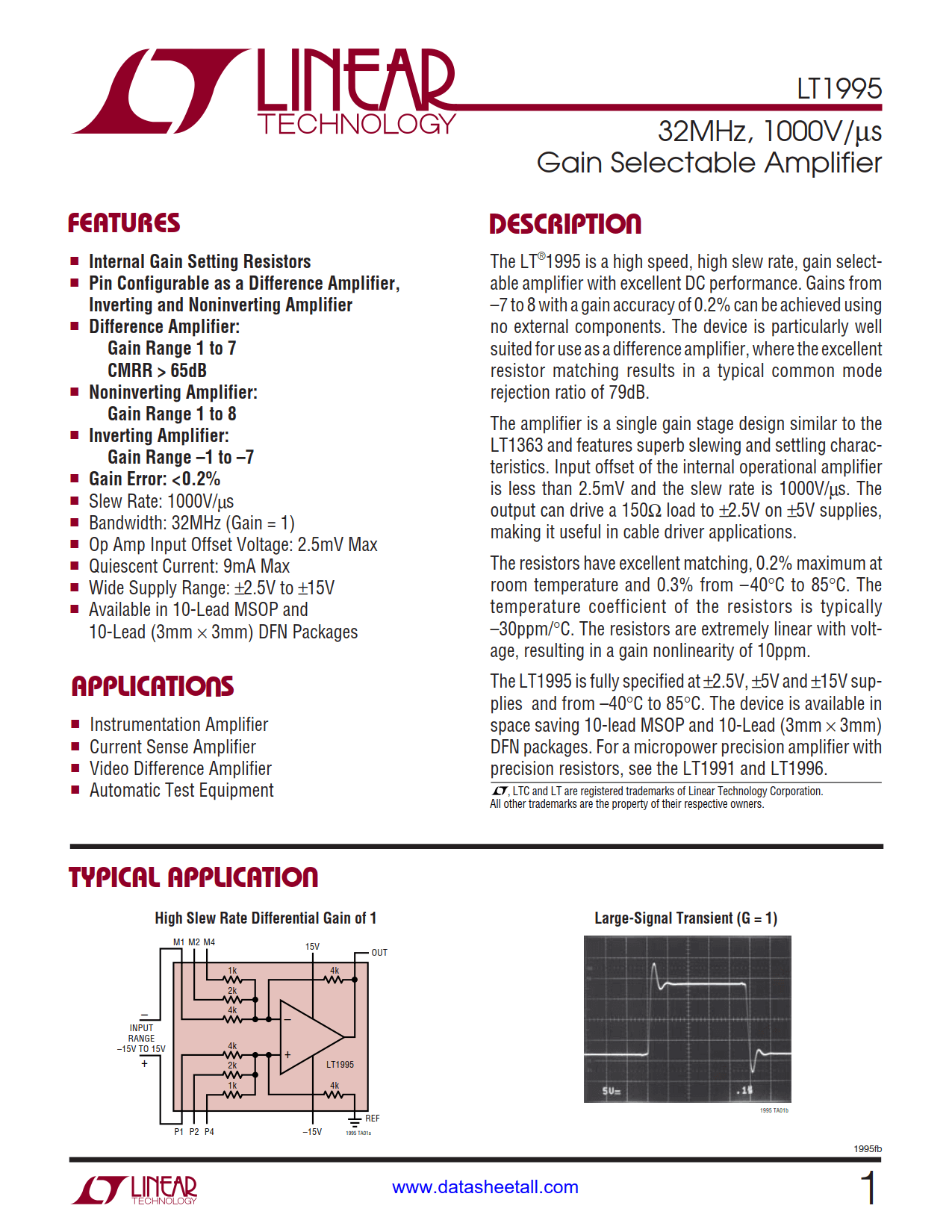

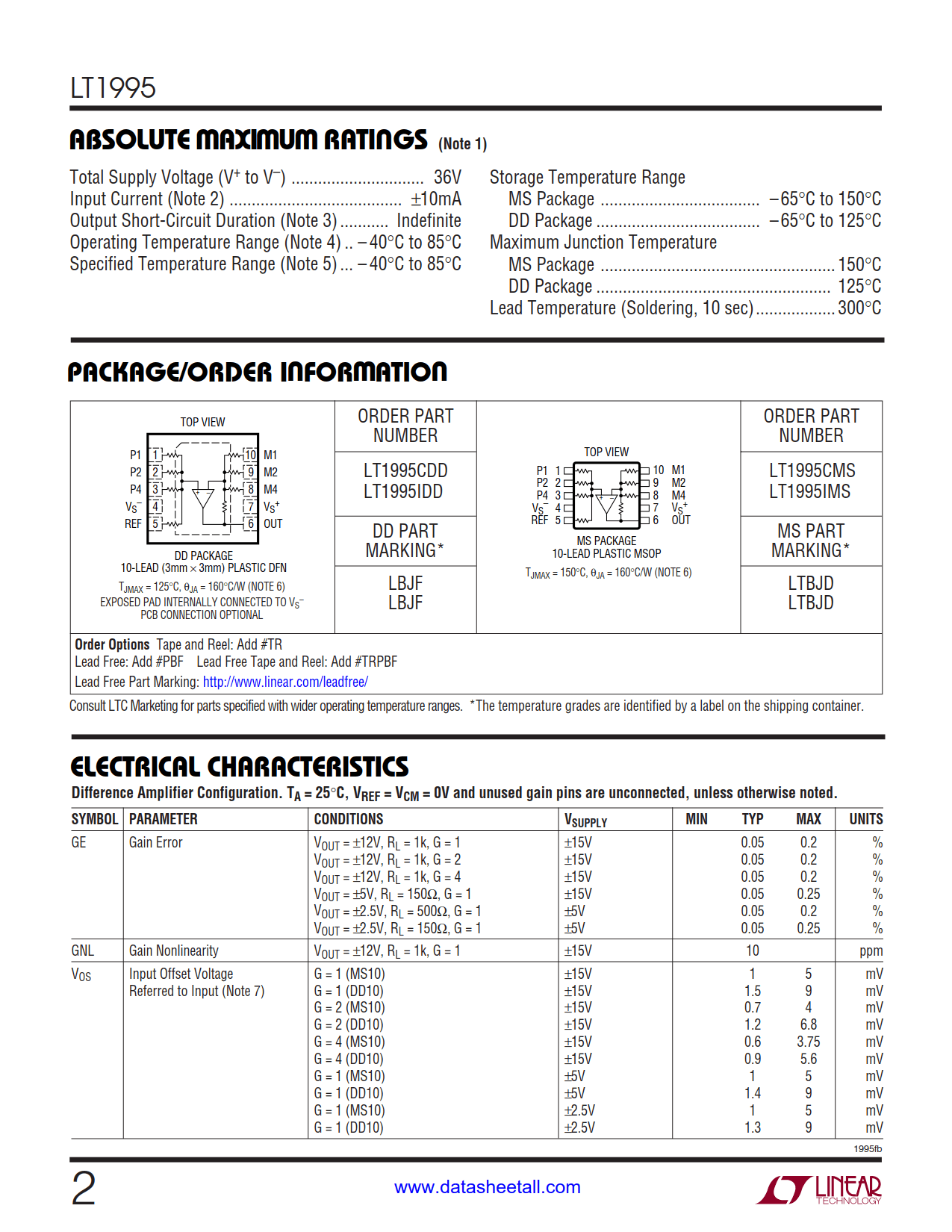

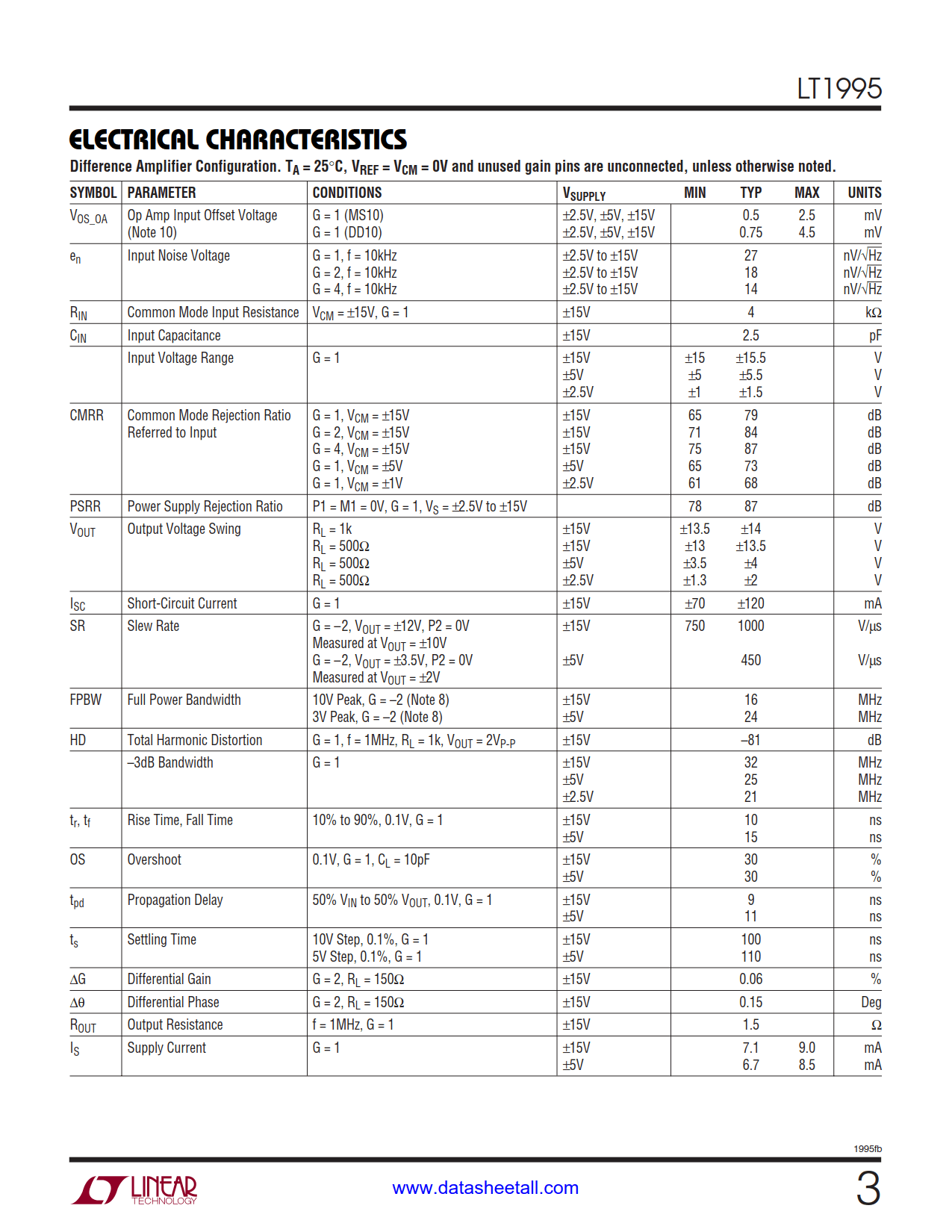

LT1995 Datasheet(Picture)

LT1995 Features

  • Internal Gain Setting Resistors
  • Pin Configurable as a Difference Amplifier, Inverting and Noninverting Amplifier
  • Difference Amplifier:
    • Gain Range 1 to 7
    • CMRR > 65dB
  • Noninverting Amplifier:
    • Gain Range 1 to 8
  • Inverting Amplifier:
    • Gain Range –1 to –7
  • Gain Error: <0.2%
  • Slew Rate: 1000V/µs
  • Bandwidth: 32MHz (Gain = 1)
  • Op Amp Input Offset Voltage: 2.5mV Max
  • Quiescent Current: 9mA Max
  • Wide Supply Range: ±2.5V to ±15V
  • Available in the 10-Lead MSOP Package and 10-Lead (3mm × 3mm) DFN Package

LT1995 Applications

  • Instrumentation Amplifier
  • Current Sense Amplifier
  • Video Difference Amplifier
  • Automatic Test Equipment

LT1995 Description

The LT1995 is a high speed, high slew rate, gain selectable amplifier with excellent DC performance. Gains from -7 to 8 with a gain accuracy of 0.2% can be achieved using no external components. The device is particularly well suited for use as a difference amplifier, where the excellent resistor matching results in a typical common mode rejection ratio of 79dB or more.

The amplifier is a single gain stage design similar to the LT1363 and features superb slewing and settling characteristics. Input offset of the internal operational amplifier is less than 2.5mV and the slew rate is 1000V/µs. The output can drive a 150Ω  load to ±2.5V on ±5V supplies, making it useful in cable driver applications.

The resistors have excellent matching, 0.2% maximum at room temperature and 0.3% from -40°C to 85°C. The temperature coefficient of the resistors is typically -30ppm/°C. The resistors are extremely linear with voltage, resulting in a gain nonlinearity of 10ppm.

The LT1995 is fully specified at ±2.5V, ±5V and ±15V supplies and from -40°C to 85°C. The device is available in space saving 10-lead MSOP and 10-Lead (3mm × 3mm) DFN packages. For a micropower precision amplifier with precision resistors, see the LT1991 and LT1996.
