LT1993-10 Datasheet

LT1993-10 Datasheet

700MHz Low Distortion, Low Noise Differential Amplifier/ADC Driver (AV = 10V/V)
Part No.: LT1993-10
Page: 20 Pages
Size: 2336 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2023-11-21 10:30:21
DataSheet: Download

LT1993-10 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LT1993CUD-10#PBF Tube 121 LBNT 1 16 0°C ~ 70°C 16-LEAD (3mm × 3mm) PLASTIC QFN
LT1993CUD-10#TRPBF Reel 2500 LBNT 1 16 0°C ~ 70°C 16-LEAD (3mm × 3mm) PLASTIC QFN
LT1993CUD-10#TRMPBF Reel 500 LBNT 1 16 0°C ~ 70°C 16-LEAD (3mm × 3mm) PLASTIC QFN
LT1993IUD-10#PBF Tube 121 LBNT 1 16 -40°C ~ 85°C 16-LEAD (3mm × 3mm) PLASTIC QFN
LT1993IUD-10#TRPBF Reel 2500 LBNT 1 16 -40°C ~ 85°C 16-LEAD (3mm × 3mm) PLASTIC QFN
LT1993IUD-10#TRMPBF Reel 500 LBNT 1 16 -40°C ~ 85°C 16-LEAD (3mm × 3mm) PLASTIC QFN
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LT1993-10 Datasheet(PDF)

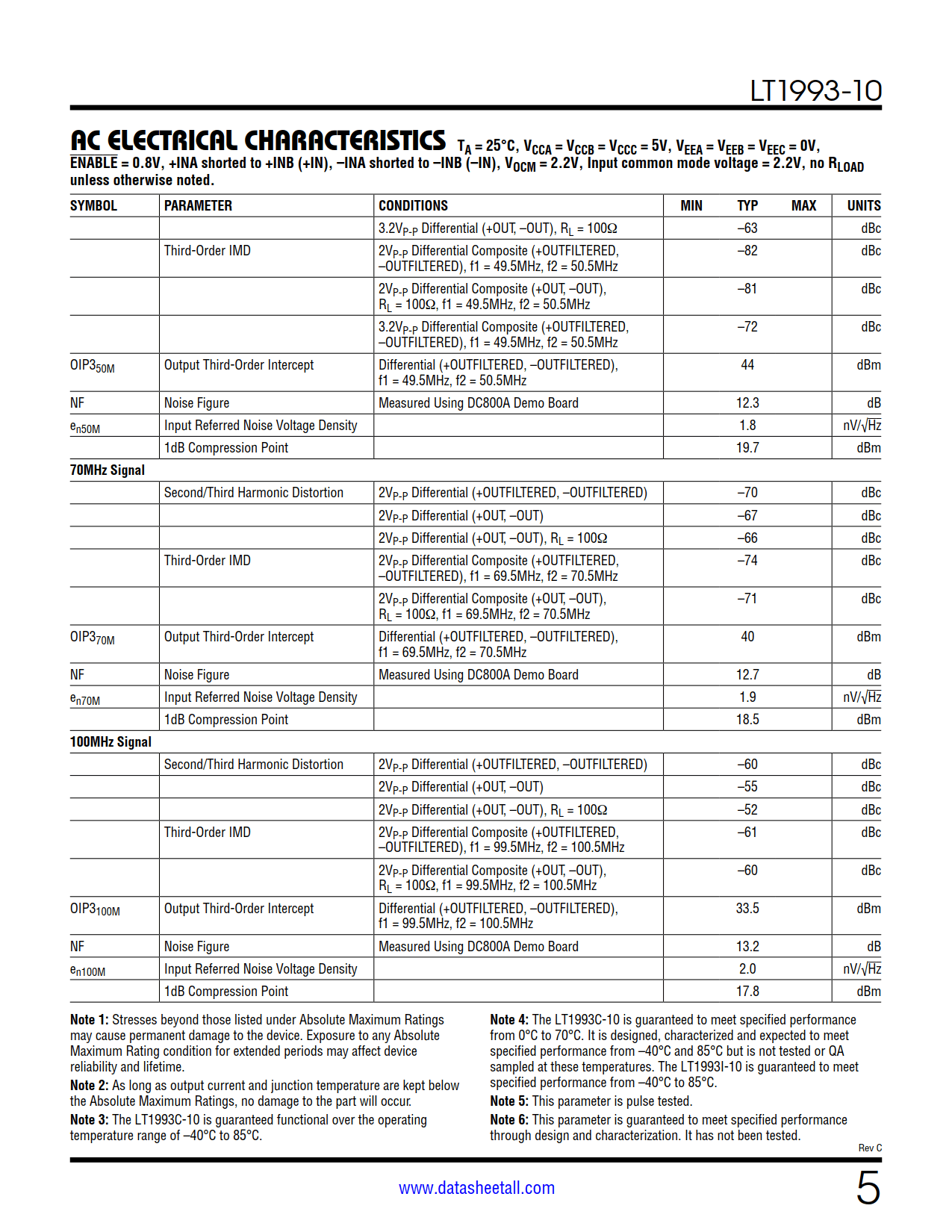

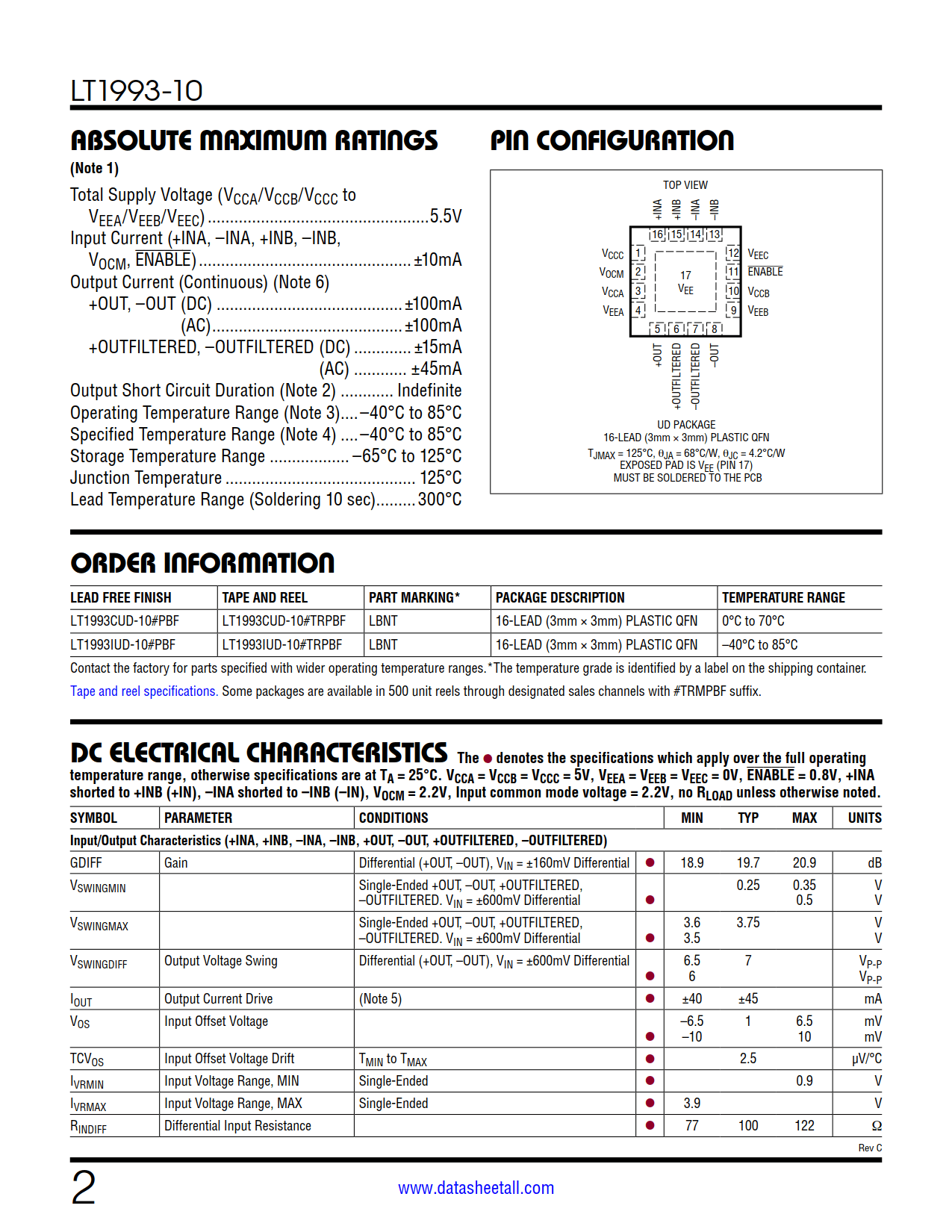

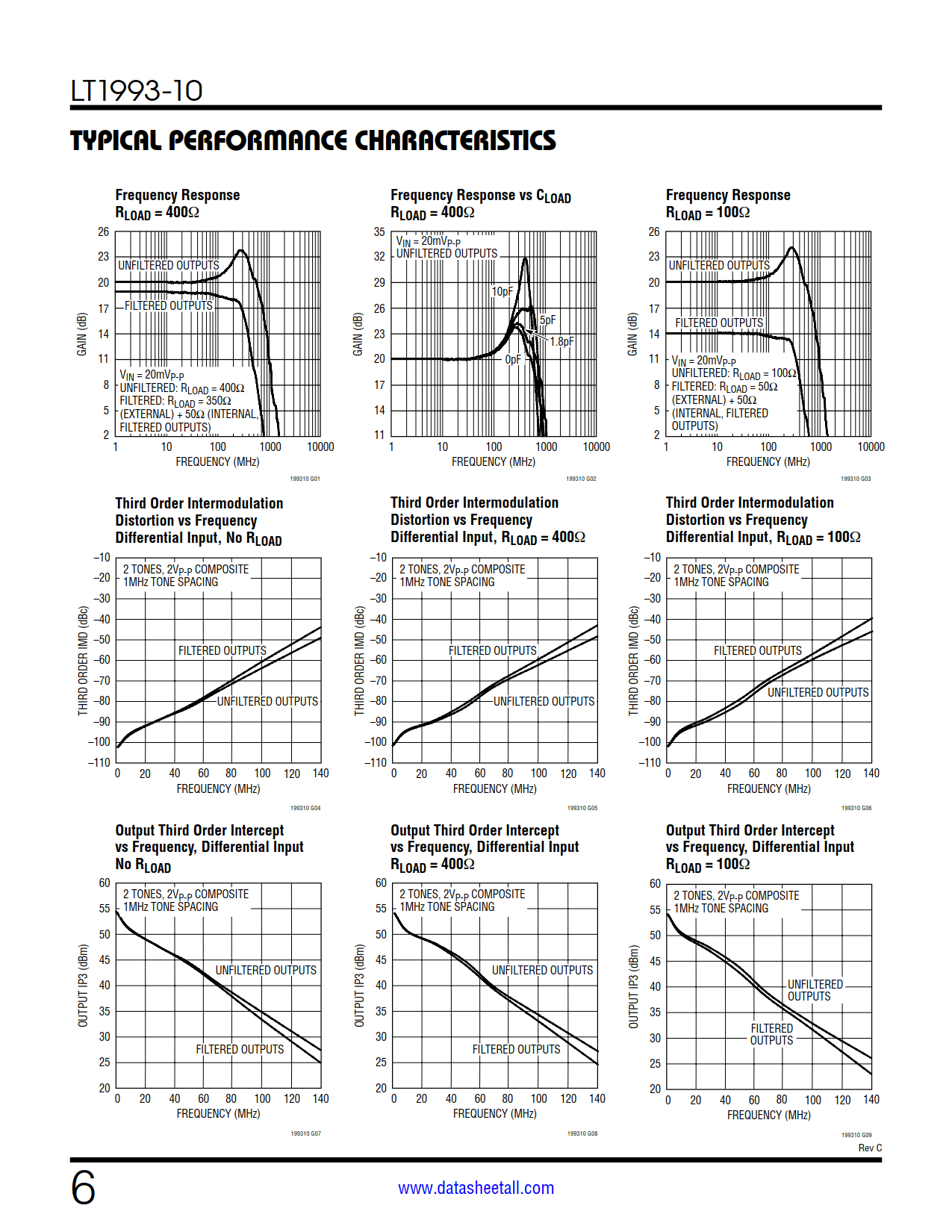

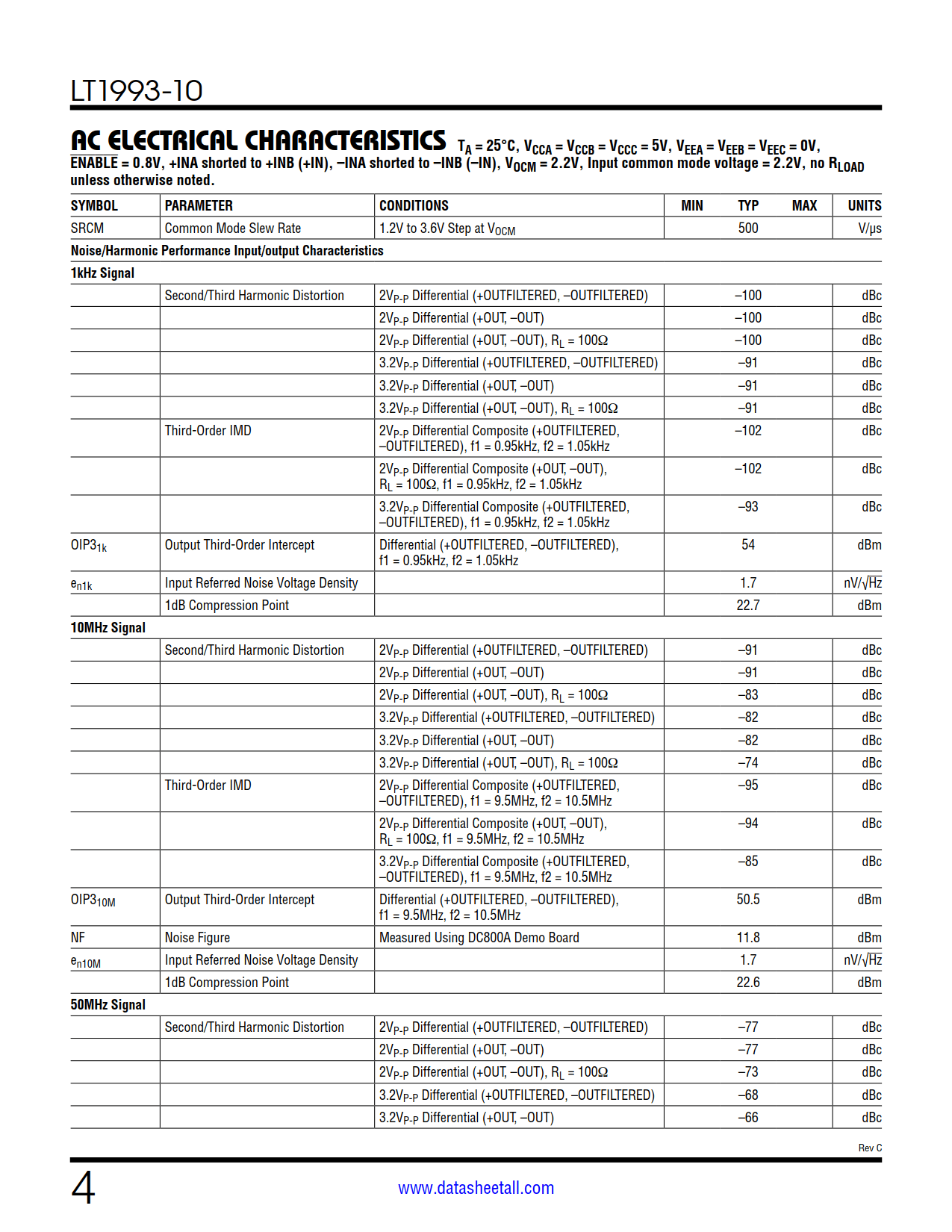

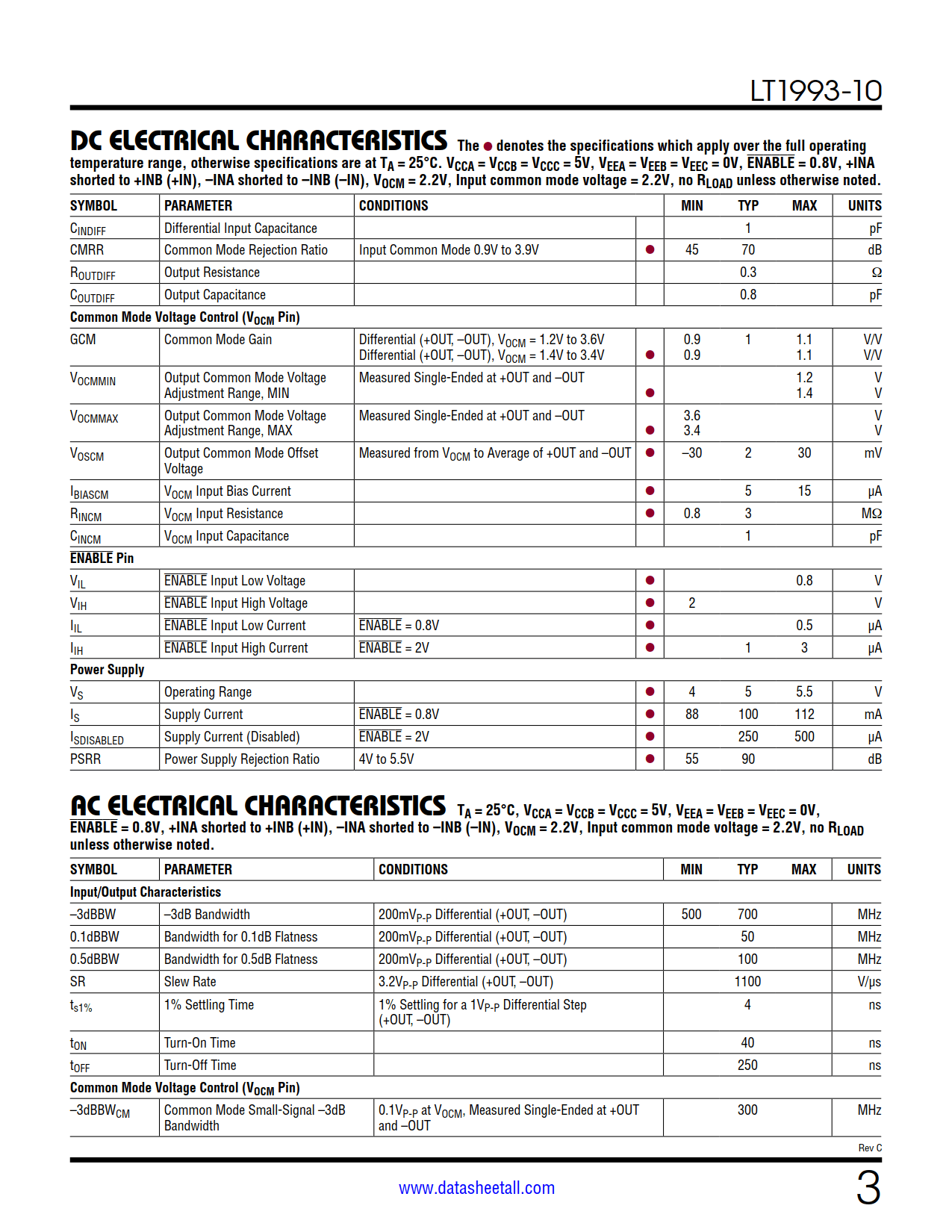

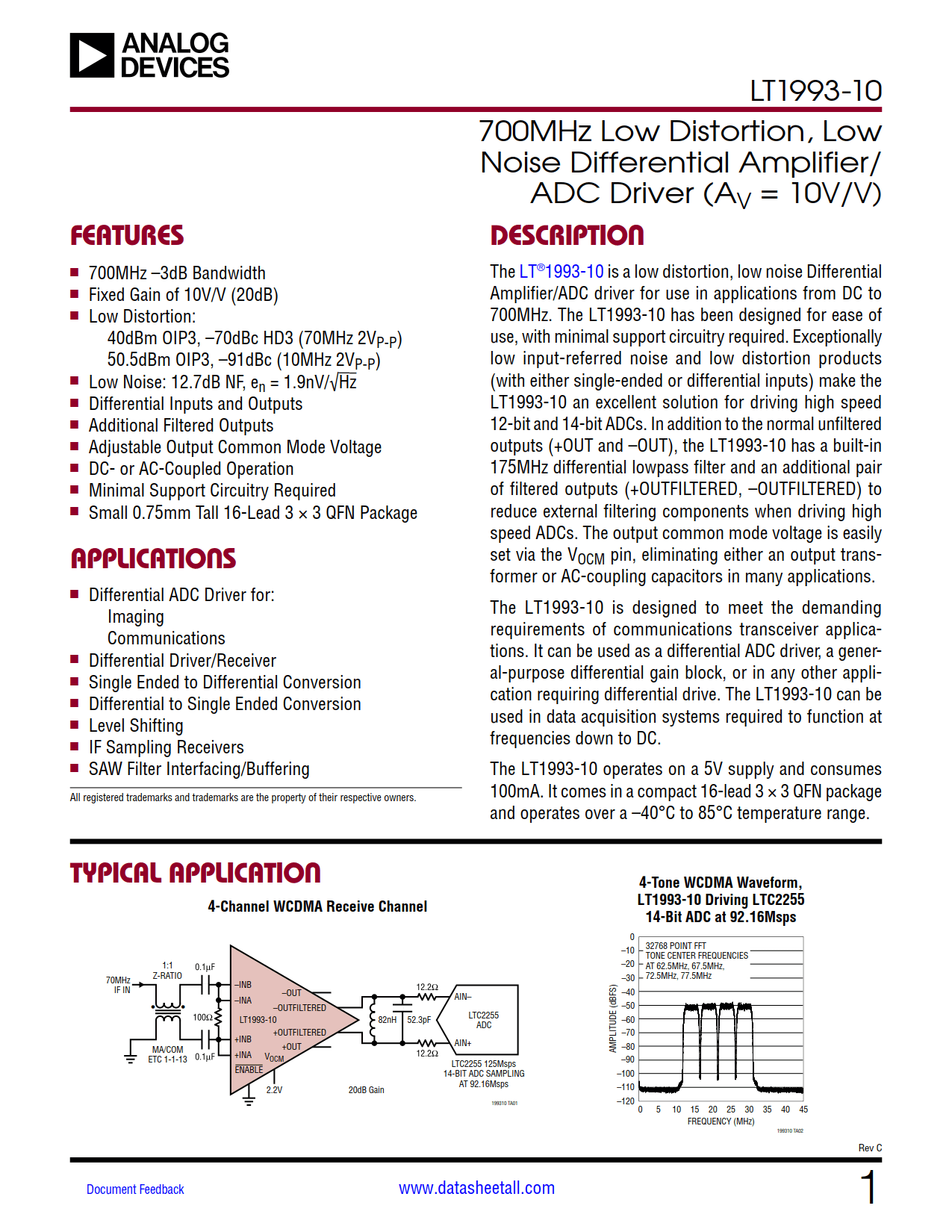

LT1993-10 Datasheet(Picture)

LT1993-10 Features

  • 700MHz −3dB Bandwidth
  • Fixed Gain of 10V/V (20dB)
  • Low Distortion:
    • 40dBm OIP3, -70dBc HD3 (70MHz 2VP-P)
    • 50.5dBm OIP3, -91dBc (10MHz 2VP-P)
  • Low Noise: 12.7dB NF, en = 1.9nV/√Hz
  • Differential Inputs and Outputs
  • Additional Filtered Outputs
  • Adjustable Output Common Mode Voltage
  • DC- or AC-Coupled Operation
  • Minimal Support Circuitry Required
  • Small 0.75mm Tall 16-Lead 3 × 3 QFN Package

LT1993-10 Applications

  • Differential ADC Driver for:
    • Imaging
    • Communications
  • Differential Driver/Receiver
  • Single Ended to Differential Conversion
  • Differential to Single Ended Conversion
  • Level Shifting
  • IF Sampling Receivers
  • SAW Filter Interfacing/Buffering

LT1993-10 Description

The LT1993-10 is a low distortion, low noise Differential Amplifier/ADC driver for use in applications from DC to 700MHz. The LT1993-10 has been designed for ease of use, with minimal support circuitry required. Exceptionally low input-referred noise and low distortion products (with either single-ended or differential inputs) make the LT1993-10 an excellent solution for driving high speed 12-bit and 14-bit ADCs. In addition to the normal unfiltered outputs (+OUT and -OUT), the LT1993-10 has a built-in 175MHz differential lowpass filter and an additional pair of filtered outputs (+OUTFILTERED, -OUTFILTERED) to reduce external filtering components when driving high speed ADCs. The output common mode voltage is easily set via the VOCM pin, eliminating either an output transformer or AC-coupling capacitors in many applications.

The LT1993-10 is designed to meet the demanding requirements of communications transceiver applications. It can be used as a differential ADC driver, a general-purpose differential gain block, or in any other application requiring differential drive. The LT1993-10 can be used in data acquisition systems required to function at frequencies down to DC.

The LT1993-10 operates on a 5V supply and consumes 100mA. It comes in a compact 16-lead 3 × 3 QFN package and operates over a -40°C to 85°C temperature range.
