Protected High Side MOSFET Driver
Part No.: LT1910
Page: 14 Pages
Size: 158 KB
Manufacturer: Linear Technology
Logo:
Views: 2
Update Time: 2024-12-04 21:49:23
DataSheet: Download

LT1910 Datasheet Applicable Part

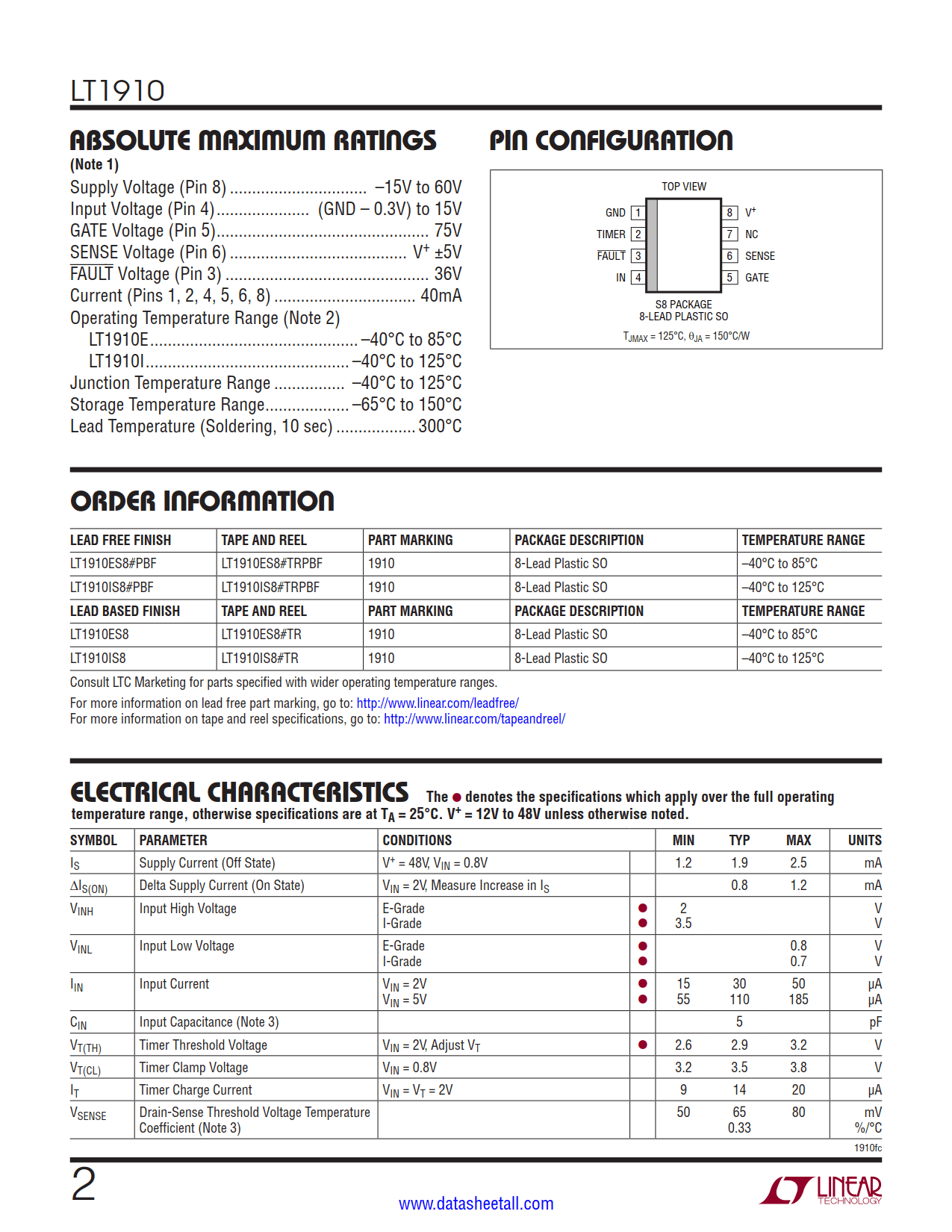

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LT1910ES8#PBF Tube 100 1910 1 8 -40°C ~ 85°C 8-Lead Plastic SO
LT1910ES8#TRPBF Reel 2500 1910 1 8 -40°C ~ 85°C 8-Lead Plastic SO
LT1910ES8#TRMPBF Reel 500 1910 1 8 -40°C ~ 85°C 8-Lead Plastic SO
LT1910IS8#PBF Tube 100 1910 1 8 -40°C ~ 125°C 8-Lead Plastic SO
LT1910IS8#TRPBF Reel 2500 1910 1 8 -40°C ~ 125°C 8-Lead Plastic SO
LT1910IS8#TRMPBF Reel 500 1910 1 8 -40°C ~ 125°C 8-Lead Plastic SO
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LT1910 Datasheet(PDF)

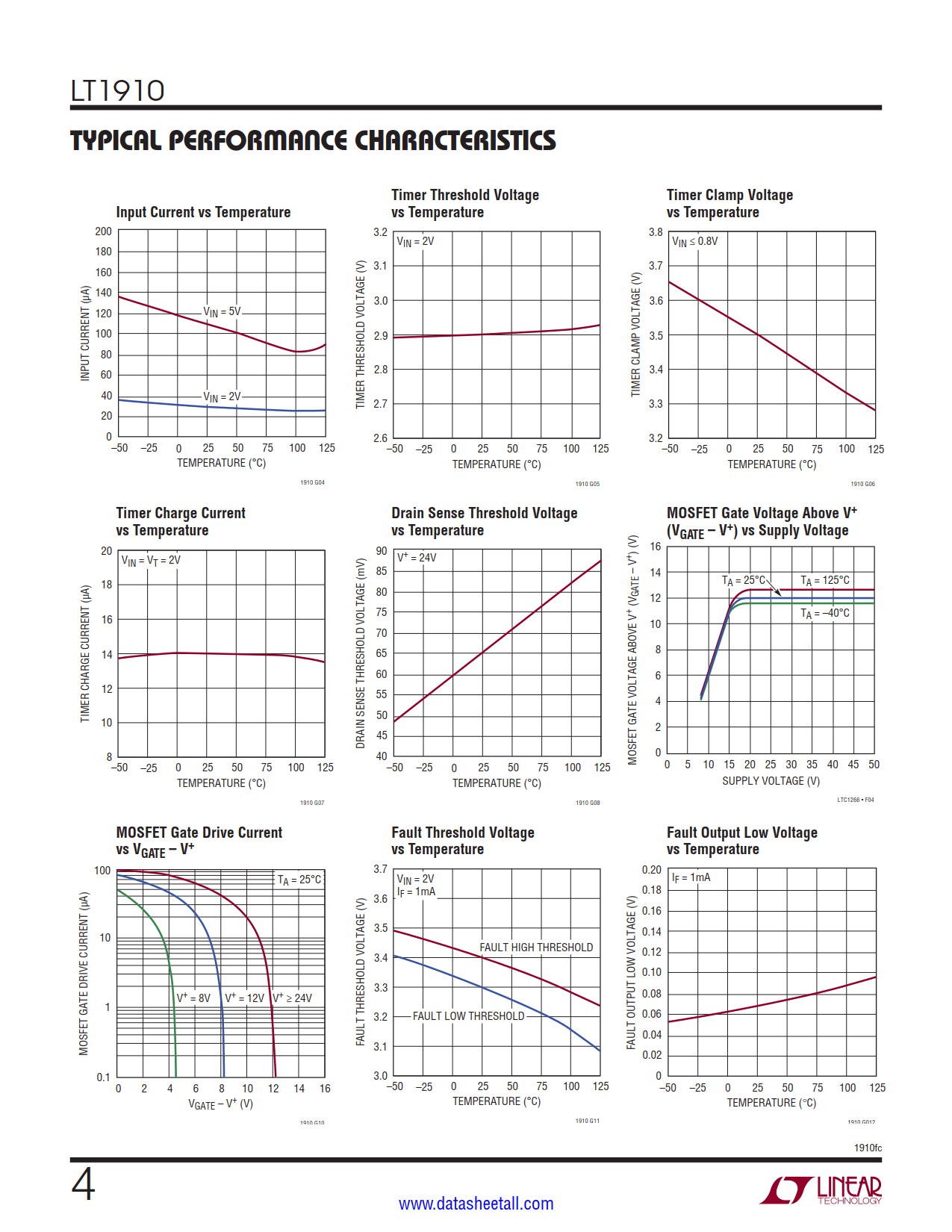

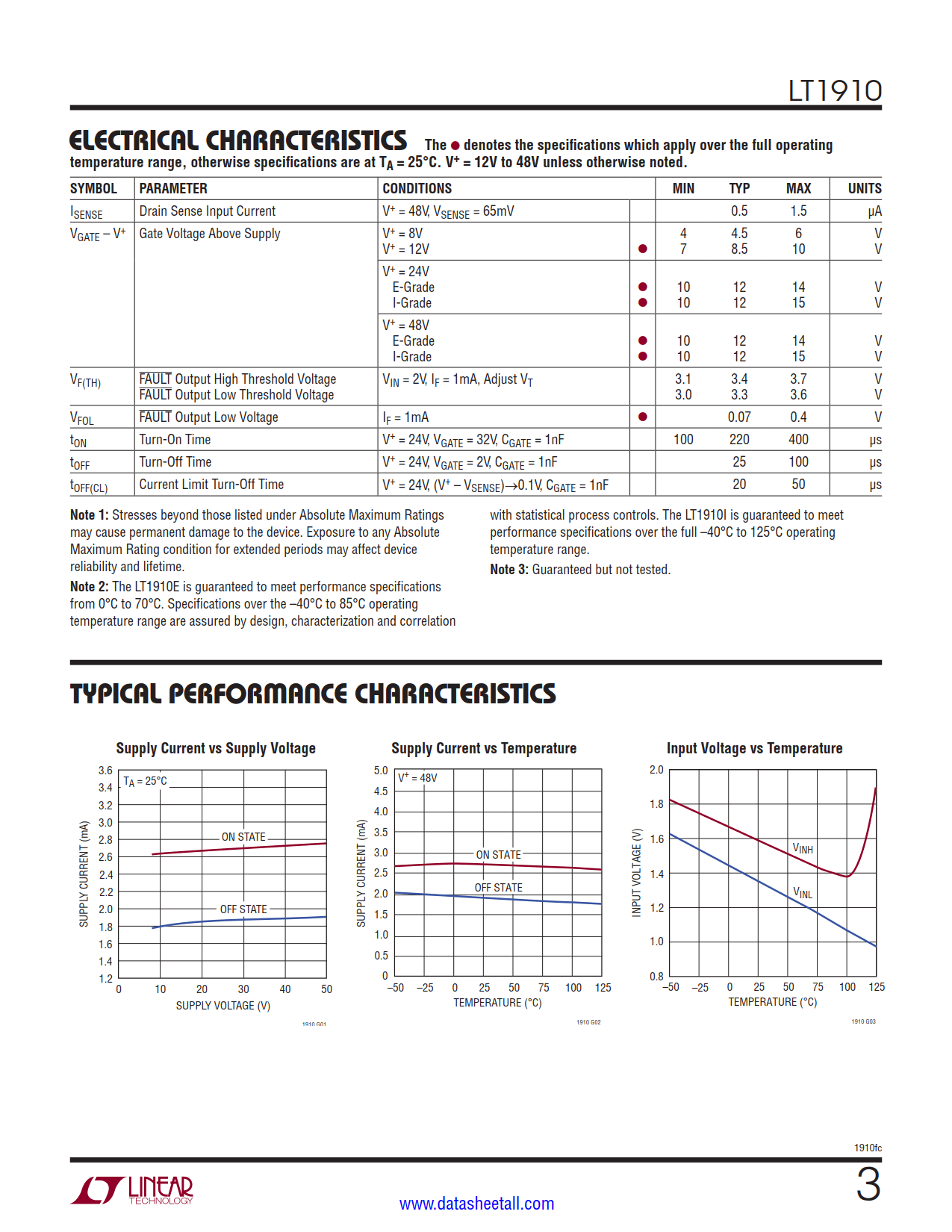

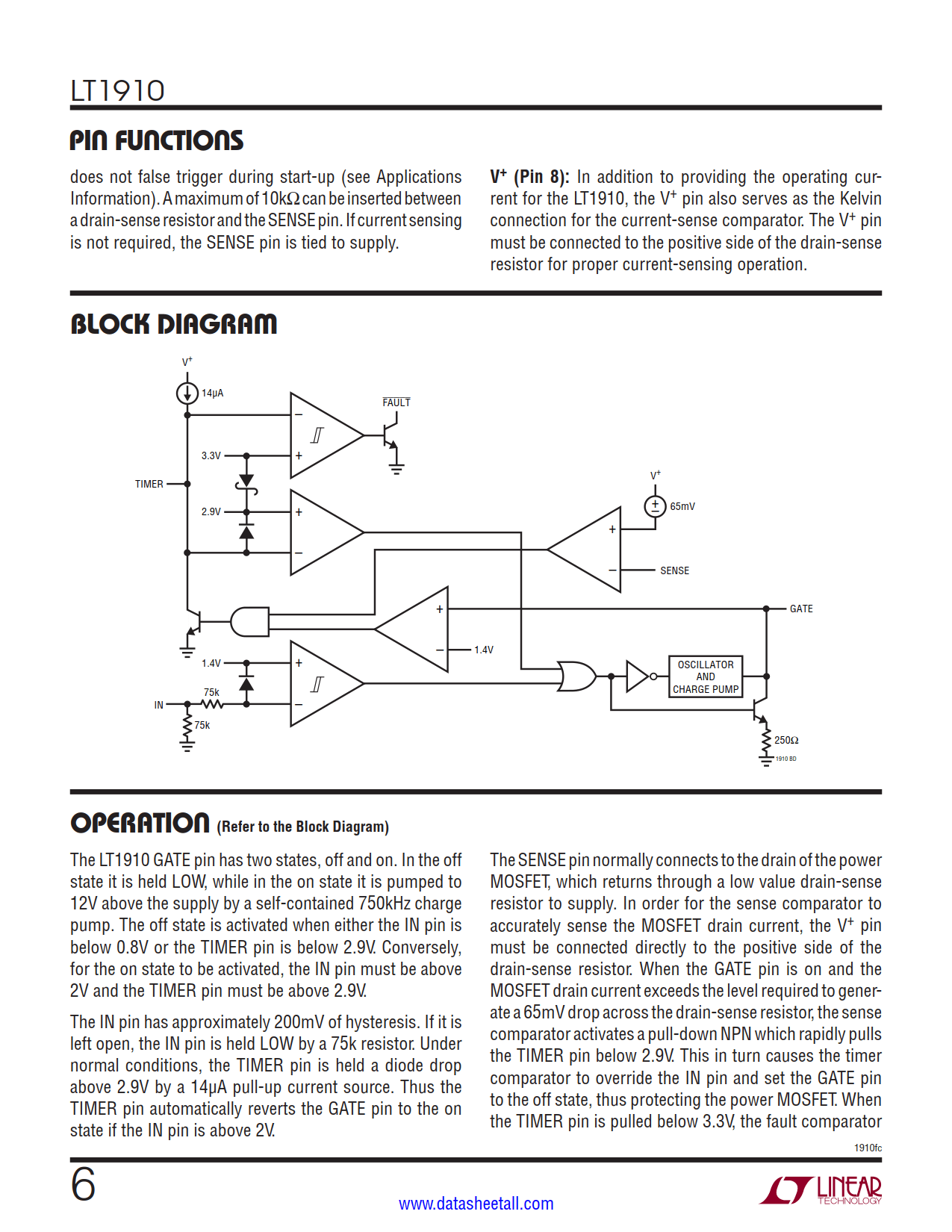

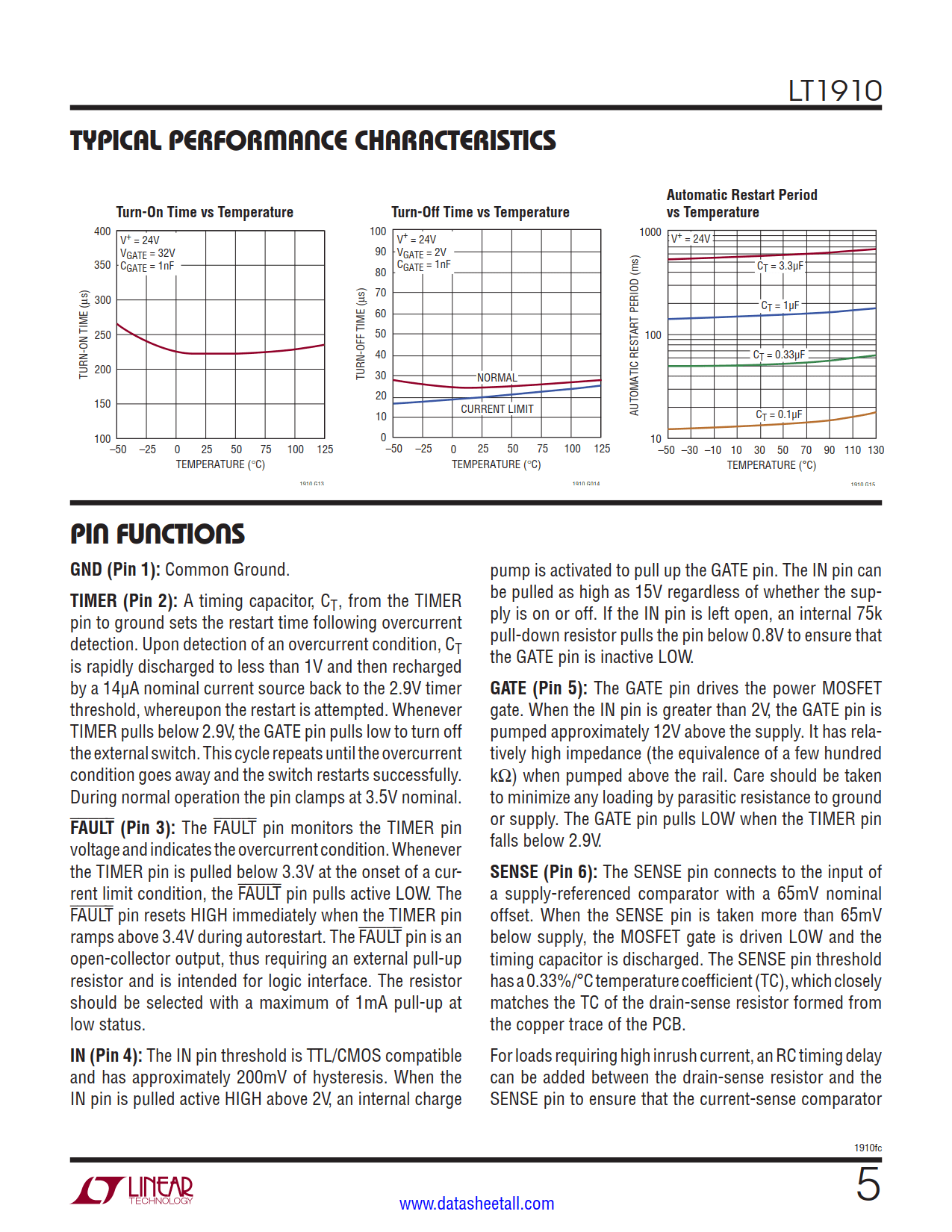

LT1910 Datasheet(Picture)

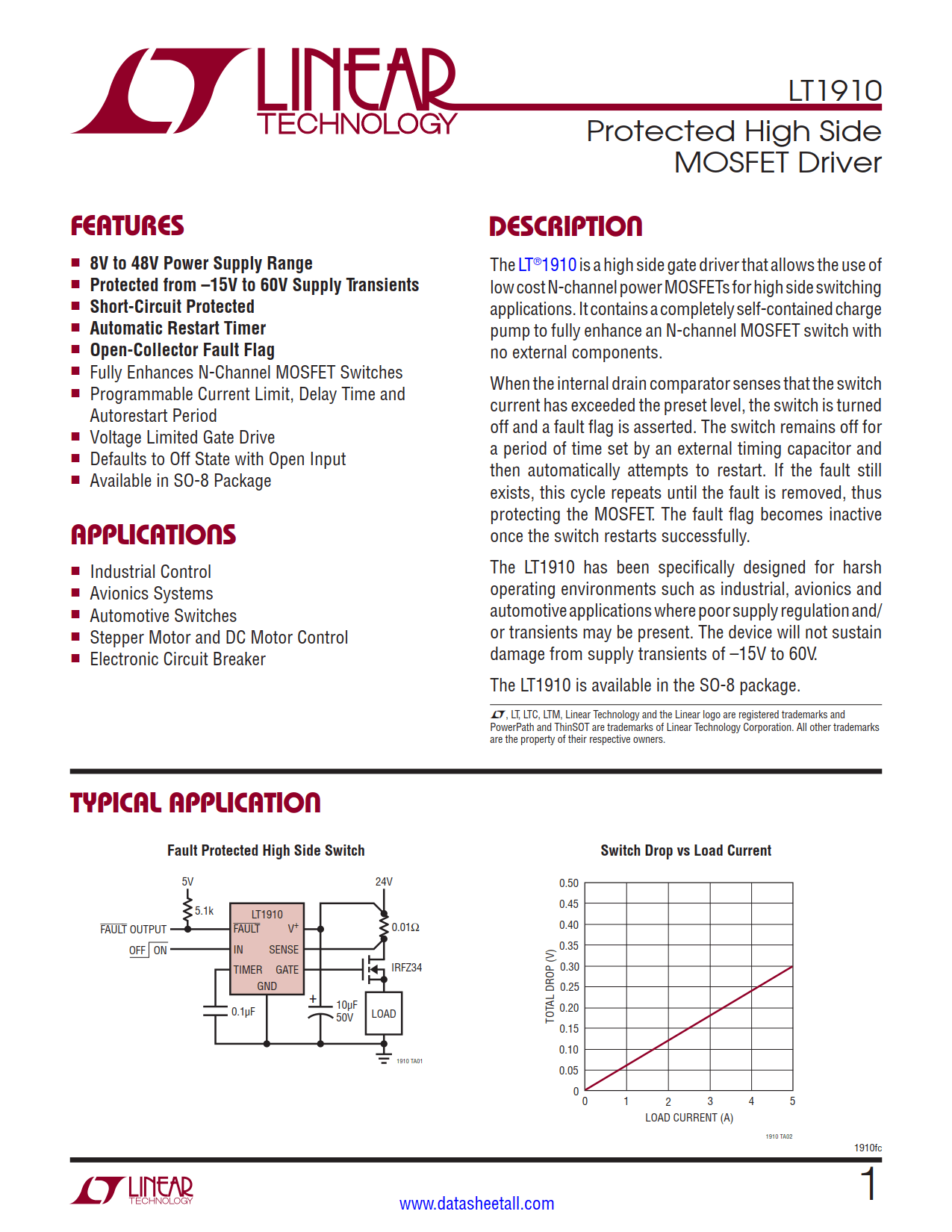

LT1910 Features

  • 8V to 48V Power Supply Range
  • Protected from –15V to 60V Supply Transients
  • Short-Circuit Protected
  • Automatic Restart Timer
  • Open-Collector Fault Flag
  • Fully Enhances N-Channel MOSFET Switches
  • Programmable Current Limit, Delay Time and Autorestart Period
  • Voltage Limited Gate Drive
  • Defaults to Off State with Open Input
  • Available in SO-8 Package

LT1910 Applications

  • Industrial Control
  • Avionics Systems
  • Automotive Switches
  • Stepper Motor and DC Motor Control
  • Electronic Circuit Breaker

LT1910 Description

The LT1910 is a high side gate driver that allows the use of low cost N-channel power MOSFETs for high side switching applications. It contains a completely self-contained charge pump to fully enhance an N-channel MOSFET switch with no external components.

When the internal drain comparator senses that the switch current has exceeded the preset level, the switch is turned off and a fault flag is asserted. The switch remains off for a period of time set by an external timing capacitor and then automatically attempts to restart. If the fault still exists, this cycle repeats until the fault is removed, thus protecting the MOSFET. The fault flag becomes inactive once the switch restarts successfully.

The LT1910 has been specifically designed for harsh operating environments such as industrial, avionics and automotive applications where poor supply regulation and/or transients may be present. The device will not sustain damage from supply transients of –15V to 60V.

The LT1910 is available in the SO-8 package.
