| Part No.： | LT1881 |
| Page： | 18 Pages |
| Size： | 321 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2023-10-23 11:00:53 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LT1881CN8#PBF | Tube | 50 | LT1881CN8 | 1 | 8 | 0°C ~ 70°C | 8-Lead PDIP | |
| LT1881CN8#TRPBF | Reel | 2500 | LT1881CN8 | 1 | 8 | 0°C ~ 70°C | 8-Lead PDIP | |
| LT1881CN8#TRMPBF | Reel | 500 | LT1881CN8 | 1 | 8 | 0°C ~ 70°C | 8-Lead PDIP | |
| LT1881IN8#PBF | Tube | 50 | LT1881IN8 | 1 | 8 | -40°C ~ 85°C | 8-Lead PDIP | |
| LT1881IN8#TRPBF | Reel | 2500 | LT1881IN8 | 1 | 8 | -40°C ~ 85°C | 8-Lead PDIP | |
| LT1881IN8#TRMPBF | Reel | 500 | LT1881IN8 | 1 | 8 | -40°C ~ 85°C | 8-Lead PDIP | |
| LT1881CS8#PBF | Tube | 100 | 1881 | 1 | 8 | 0°C ~ 70°C | 8-Lead Plastic SO | |
| LT1881CS8#TRPBF | Reel | 2500 | 1881 | 1 | 8 | 0°C ~ 70°C | 8-Lead Plastic SO | |
| LT1881CS8#TRMPBF | Reel | 500 | 1881 | 1 | 8 | 0°C ~ 70°C | 8-Lead Plastic SO | |
| LT1881IS8#PBF | Tube | 100 | 1881I | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic SO | |
| LT1881IS8#TRPBF | Reel | 2500 | 1881I | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic SO | |
| LT1881IS8#TRMPBF | Reel | 500 | 1881I | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic SO | |
| LT1881ACN8#PBF | Tube | 50 | LT1881ACN8 | 1 | 8 | 0°C ~ 70°C | 8-Lead PDIP | |
| LT1881ACN8#TRPBF | Reel | 2500 | LT1881ACN8 | 1 | 8 | 0°C ~ 70°C | 8-Lead PDIP | |
| LT1881ACN8#TRMPBF | Reel | 500 | LT1881ACN8 | 1 | 8 | 0°C ~ 70°C | 8-Lead PDIP | |
| LT1881AIN8#PBF | Tube | 50 | LT1881AIN8 | 1 | 8 | -40°C ~ 85°C | 8-Lead PDIP | |
| LT1881AIN8#TRPBF | Reel | 2500 | LT1881AIN8 | 1 | 8 | -40°C ~ 85°C | 8-Lead PDIP | |
| LT1881AIN8#TRMPBF | Reel | 500 | LT1881AIN8 | 1 | 8 | -40°C ~ 85°C | 8-Lead PDIP | |
| LT1881ACS8#PBF | Tube | 100 | 1881A | 1 | 8 | 0°C ~ 70°C | 8-Lead Plastic SO | |
| LT1881ACS8#TRPBF | Reel | 2500 | 1881A | 1 | 8 | 0°C ~ 70°C | 8-Lead Plastic SO | |
| LT1881ACS8#TRMPBF | Reel | 500 | 1881A | 1 | 8 | 0°C ~ 70°C | 8-Lead Plastic SO | |
| LT1881AIS8#PBF | Tube | 100 | 1881AI | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic SO | |
| LT1881AIS8#TRPBF | Reel | 2500 | 1881AI | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic SO | |
| LT1881AIS8#TRMPBF | Reel | 500 | 1881AI | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic SO |

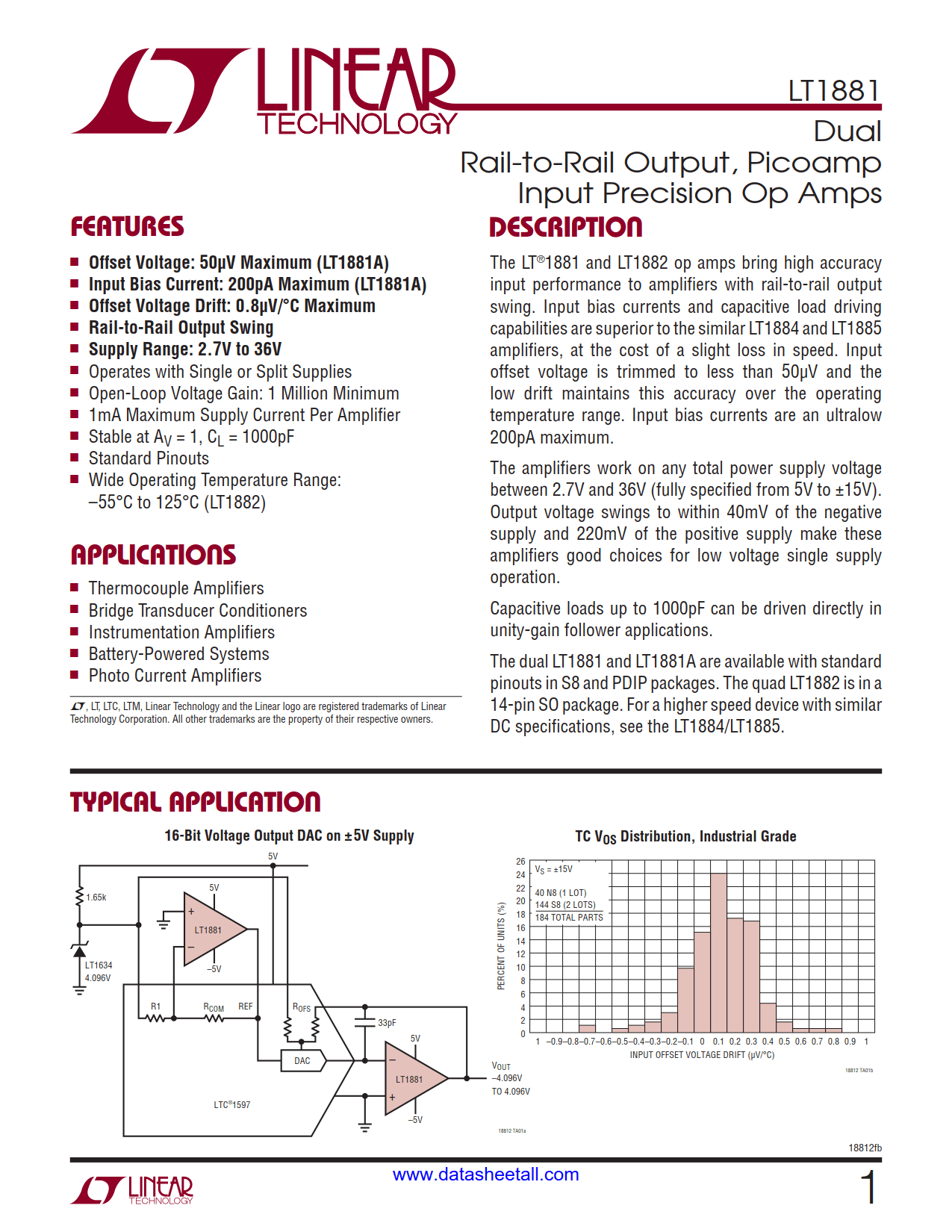

The LT1881 op amps bring high accuracy input performance to amplifiers with rail-to-rail output swing. Input bias currents and capacitive load driving capabilities are superior to the similar LT1884 and LT1885 amplifiers, at the cost of a slight loss in speed. Input offset voltage is trimmed to less than 50µV and the low drift maintains this accuracy over the operating temperature range. Input bias currents are an ultralow 200pA maximum.
The amplifiers work on any total power supply voltage between 2.7V and 36V (fully specified from 5V to ±15V). Output voltage swings to within 40mV of the negative supply and 220mV of the positive supply make these amplifiers good choices for low voltage single supply operation.
Capacitive loads up to 1000pF can be driven directly in unity-gain follower applications.
The dual LT1881 and LT1881A are available with standard pinouts in S8 and PDIP packages.
