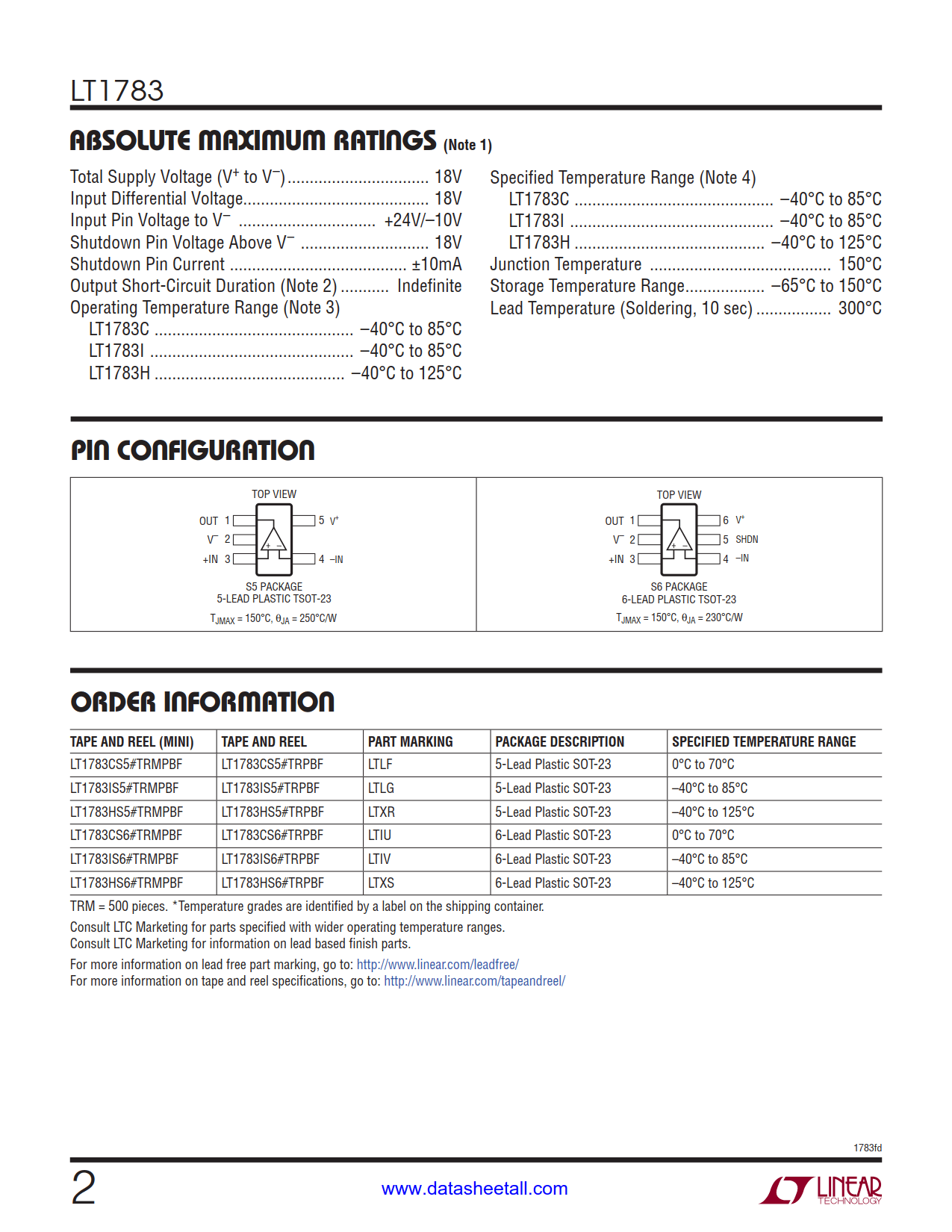

| Part No.： | LT1783 |
| Page： | 16 Pages |
| Size： | 182 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2023-12-25 11:30:56 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LT1783CS5#PBF | Tube | LTLF | 1 | 5 | 0°C ~ 70°C | 5-Lead Plastic SOT-23 | ||
| LT1783CS5#TRPBF | Reel | 2500 | LTLF | 1 | 5 | 0°C ~ 70°C | 5-Lead Plastic SOT-23 | |
| LT1783CS5#TRMPBF | Reel | 500 | LTLF | 1 | 5 | 0°C ~ 70°C | 5-Lead Plastic SOT-23 | |
| LT1783IS5#PBF | Tube | LTLG | 1 | 5 | -40°C ~ 85°C | 5-Lead Plastic SOT-23 | ||
| LT1783IS5#TRPBF | Reel | 2500 | LTLG | 1 | 5 | -40°C ~ 85°C | 5-Lead Plastic SOT-23 | |
| LT1783IS5#TRMPBF | Reel | 500 | LTLG | 1 | 5 | -40°C ~ 85°C | 5-Lead Plastic SOT-23 | |
| LT1783HS5#PBF | Tube | LTXR | 1 | 5 | -40°C ~ 125°C | 5-Lead Plastic SOT-23 | ||
| LT1783HS5#TRPBF | Reel | 2500 | LTXR | 1 | 5 | -40°C ~ 125°C | 5-Lead Plastic SOT-23 | |
| LT1783HS5#TRMPBF | Reel | 500 | LTXR | 1 | 5 | -40°C ~ 125°C | 5-Lead Plastic SOT-23 | |
| LT1783CS6#PBF | Tube | LTIU | 1 | 6 | 0°C ~ 70°C | 6-Lead Plastic SOT-23 | ||
| LT1783CS6#TRPBF | Reel | 2500 | LTIU | 1 | 6 | 0°C ~ 70°C | 6-Lead Plastic SOT-23 | |
| LT1783CS6#TRMPBF | Reel | 500 | LTIU | 1 | 6 | 0°C ~ 70°C | 6-Lead Plastic SOT-23 | |
| LT1783IS6#PBF | Tube | LTIV | 1 | 6 | -40°C ~ 85°C | 6-Lead Plastic SOT-23 | ||
| LT1783IS6#TRPBF | Reel | 2500 | LTIV | 1 | 6 | -40°C ~ 85°C | 6-Lead Plastic SOT-23 | |
| LT1783IS6#TRMPBF | Reel | 500 | LTIV | 1 | 6 | -40°C ~ 85°C | 6-Lead Plastic SOT-23 | |
| LT1783HS6#PBF | Tube | LTXS | 1 | 6 | -40°C ~ 125°C | 6-Lead Plastic SOT-23 | ||
| LT1783HS6#TRPBF | Reel | 2500 | LTXS | 1 | 6 | -40°C ~ 125°C | 6-Lead Plastic SOT-23 | |
| LT1783HS6#TRMPBF | Reel | 500 | LTXS | 1 | 6 | -40°C ~ 125°C | 6-Lead Plastic SOT-23 |

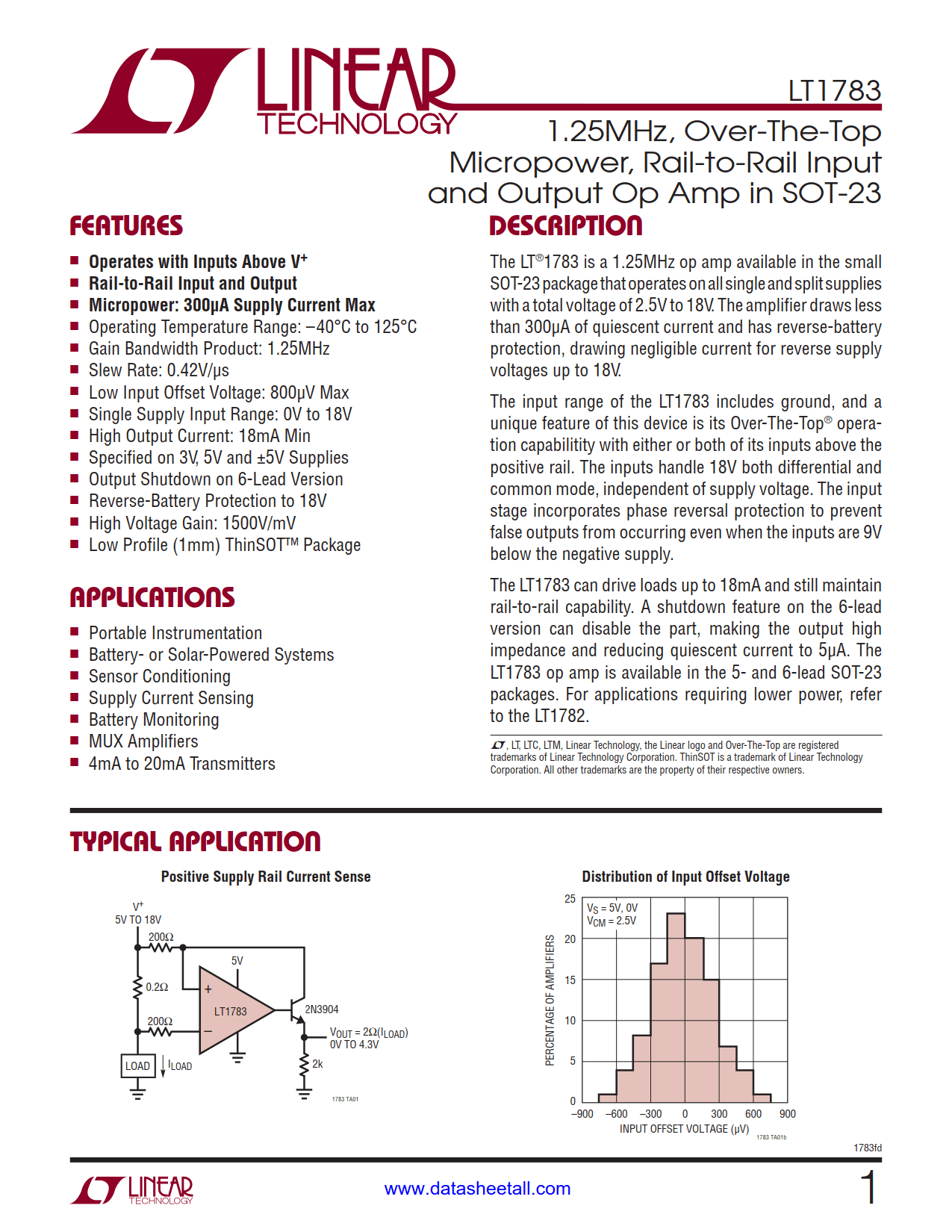

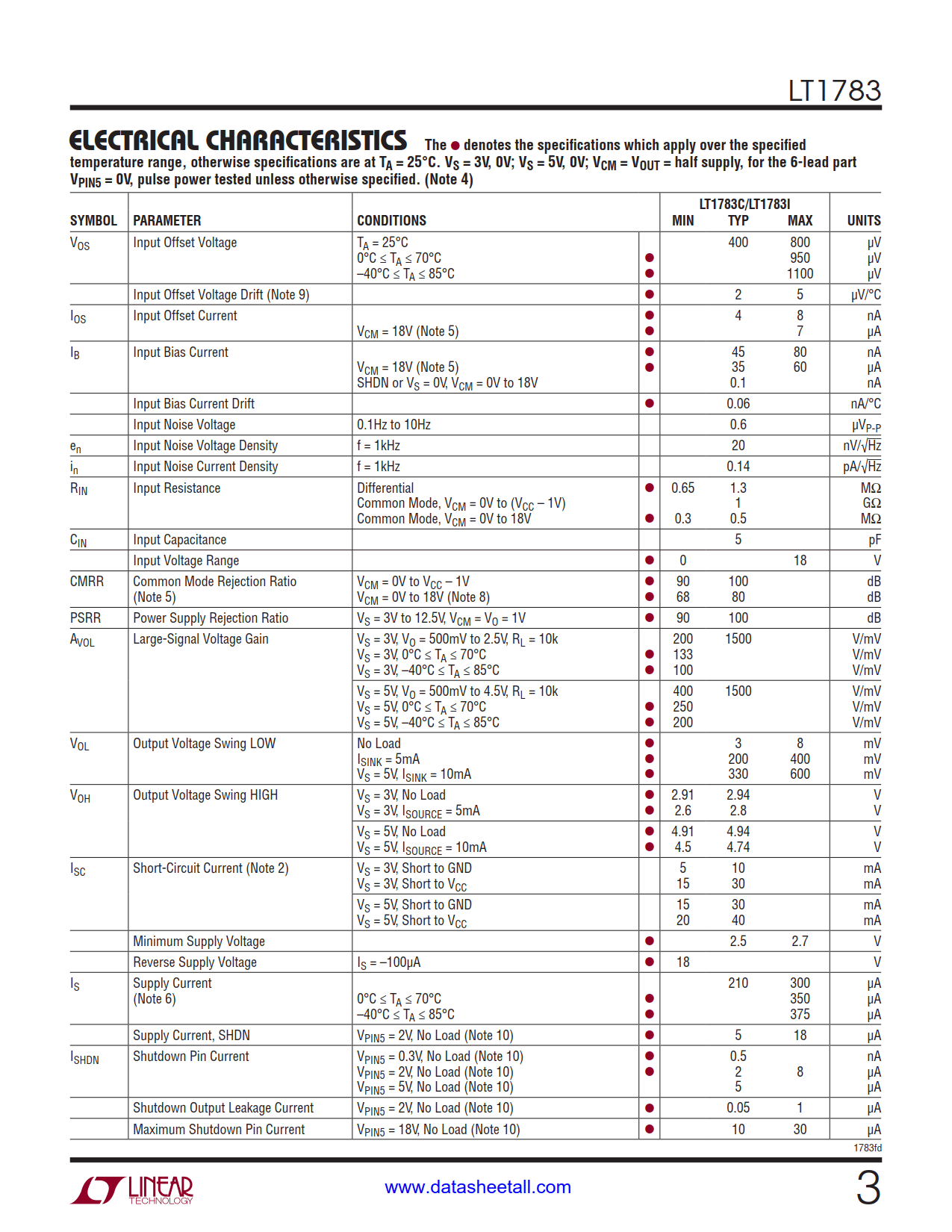

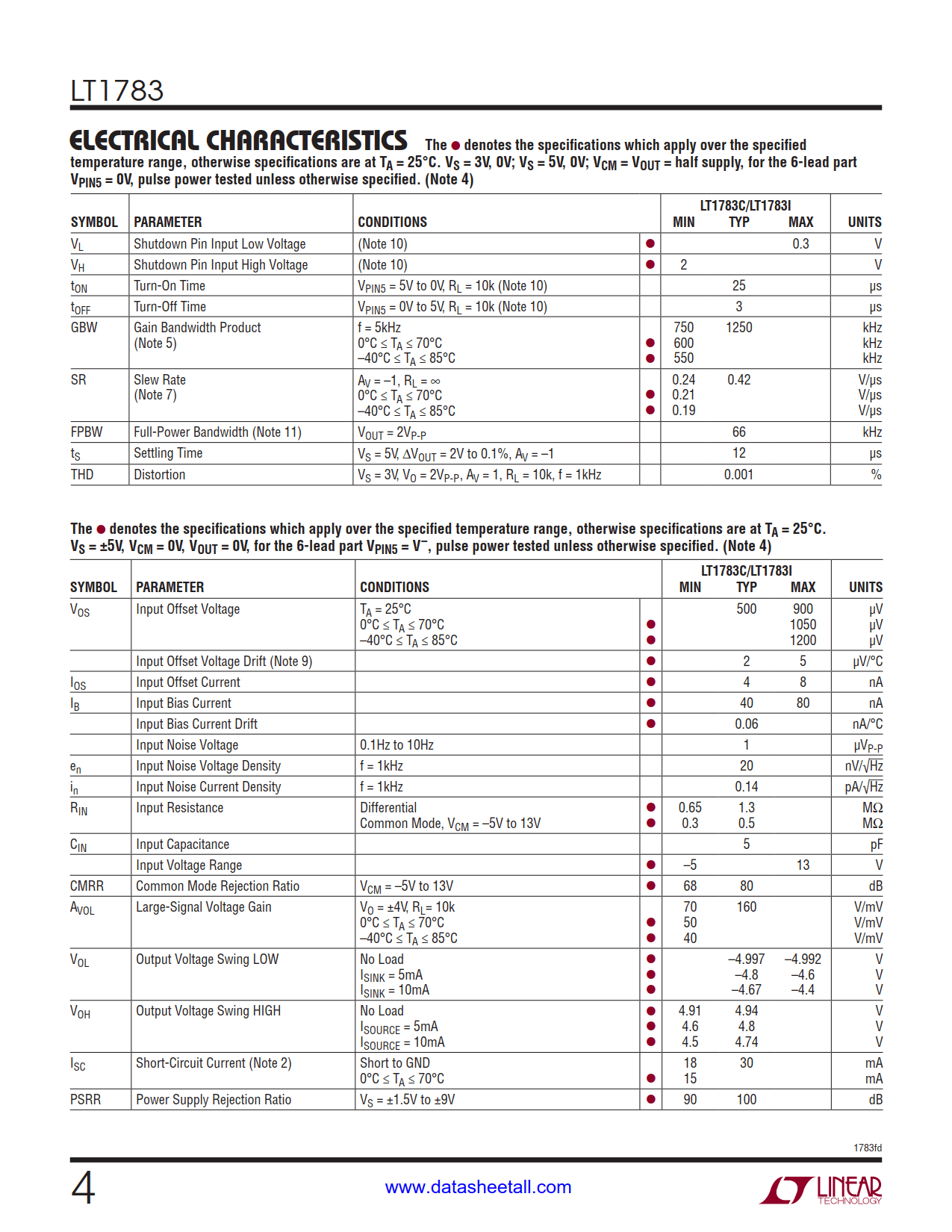

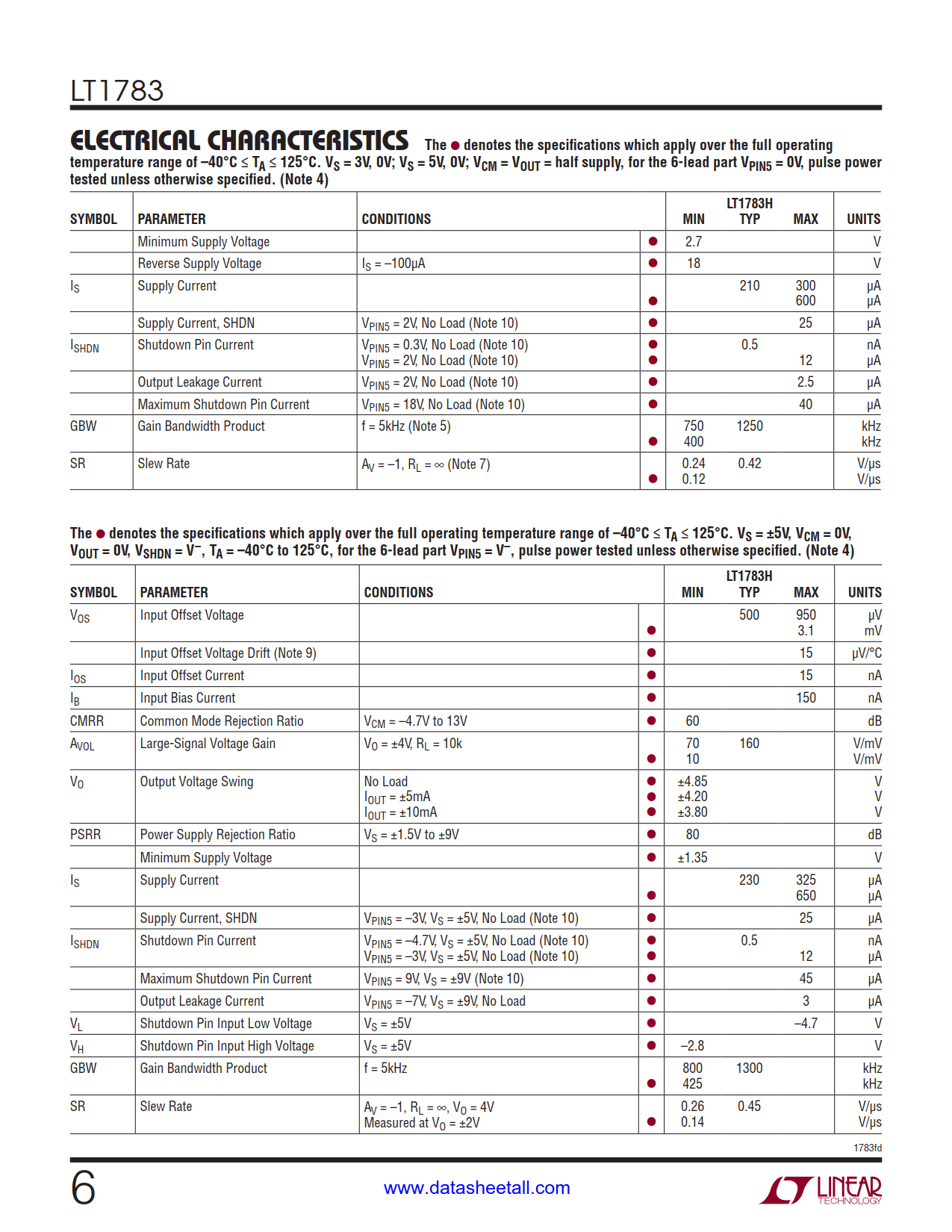

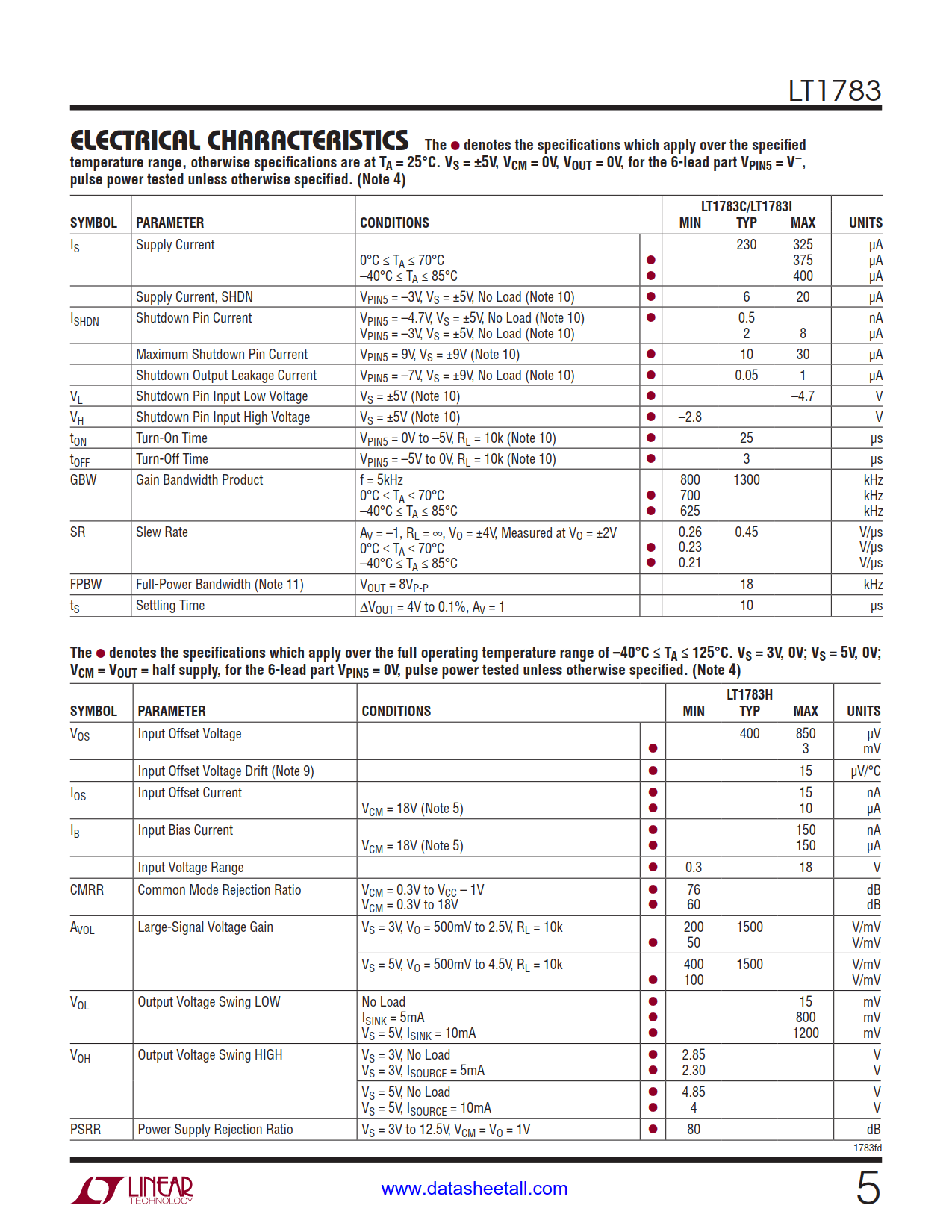

The LT1783 is a 1.25MHz op amp available in the small SOT-23 package that operates on all single and split supplies with a total voltage of 2.5V to 18V. The amplifier draws less than 300µA of quiescent current and has reverse-battery protection, drawing negligible current for reverse supply voltages up to 18V.
The input range of the LT1783 includes ground, and a unique feature of this device is its Over-The-Top® operation capabilitity with either or both of its inputs above the positive rail. The inputs handle 18V both differential and common mode, independent of supply voltage. The input stage incorporates phase reversal protection to prevent false outputs from occurring even when the inputs are 9V below the negative supply.
The LT1783 can drive loads up to 18mA and still maintain rail-to-rail capability. A shutdown feature on the 6-lead version can disable the part, making the output high impedance and reducing quiescent current to 5µA. The LT1783 op amp is available in the 5- and 6-lead SOT-23 packages. For applications requiring lower power, refer to the LT1782.
