LT1715 Datasheet

LT1715 Datasheet

4ns, 150MHz Dual Comparator with Independent Input/Output Supplies
Part No.: LT1715
Page: 20 Pages
Size: 251 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-12-03 13:49:59
DataSheet: Download

LT1715 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LT1715CMS#PBF Tube 50 LTVQ 1 10 0°C ~70°C 10-Lead Plastic MSOP
LT1715CMS#TRPBF Reel 2500 LTVQ 1 10 0°C ~70°C 10-Lead Plastic MSOP
LT1715CMS#TRMPBF Reel 500 LTVQ 1 10 0°C ~70°C 10-Lead Plastic MSOP
LT1715IMS#PBF Tube 50 LTVV 1 10 -40°C ~85°C 10-Lead Plastic MSOP
LT1715IMS#TRPBF Reel 2500 LTVV 1 10 -40°C ~85°C 10-Lead Plastic MSOP
LT1715IMS#TRMPBF Reel 500 LTVV 1 10 -40°C ~85°C 10-Lead Plastic MSOP
LT1715HMS#PBF Tube 50 LTVV 1 10 -40°C ~125°C 10-Lead Plastic MSOP
LT1715HMS#TRPBF Reel 2500 LTVV 1 10 -40°C ~125°C 10-Lead Plastic MSOP
LT1715HMS#TRMPBF Reel 500 LTVV 1 10 -40°C ~125°C 10-Lead Plastic MSOP
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LT1715 Datasheet(PDF)

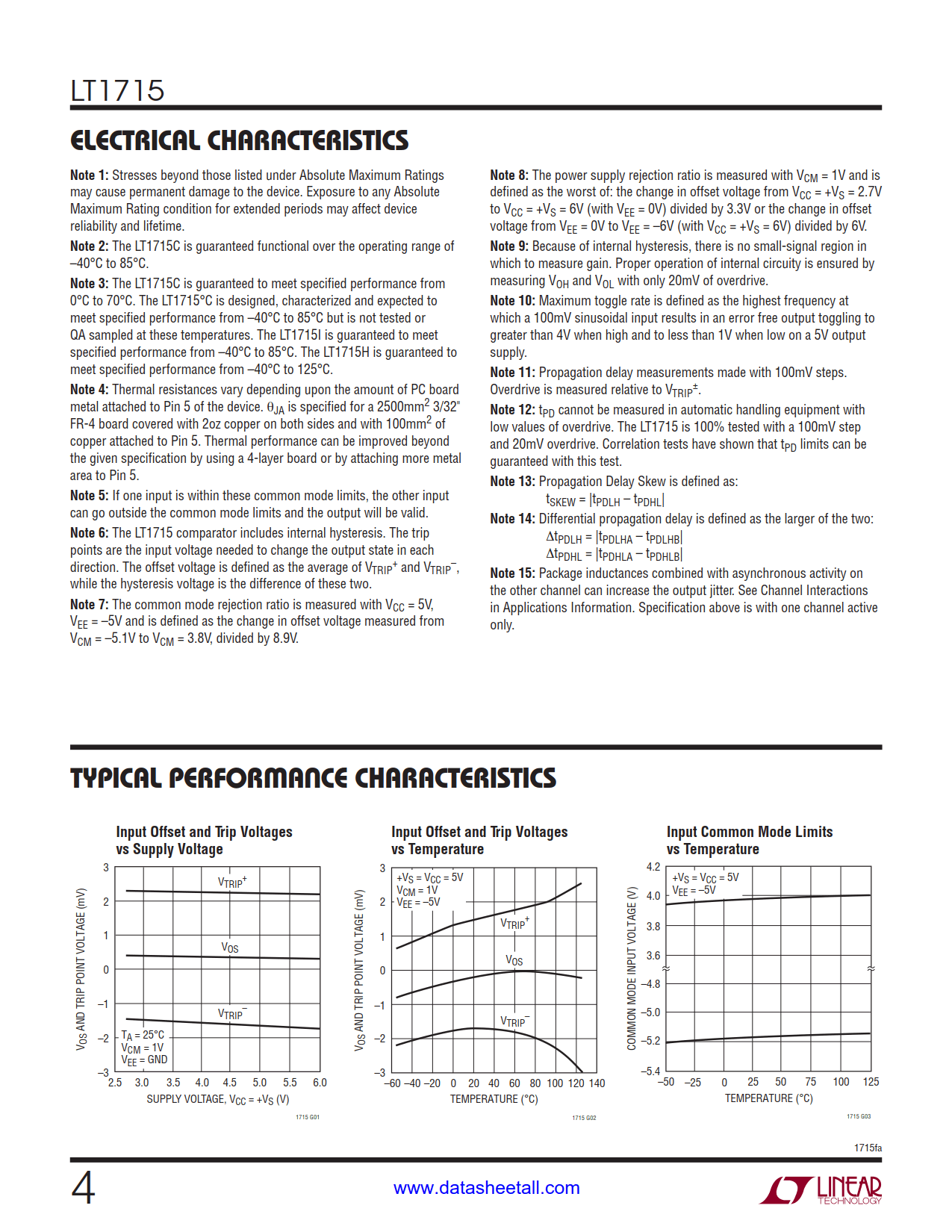

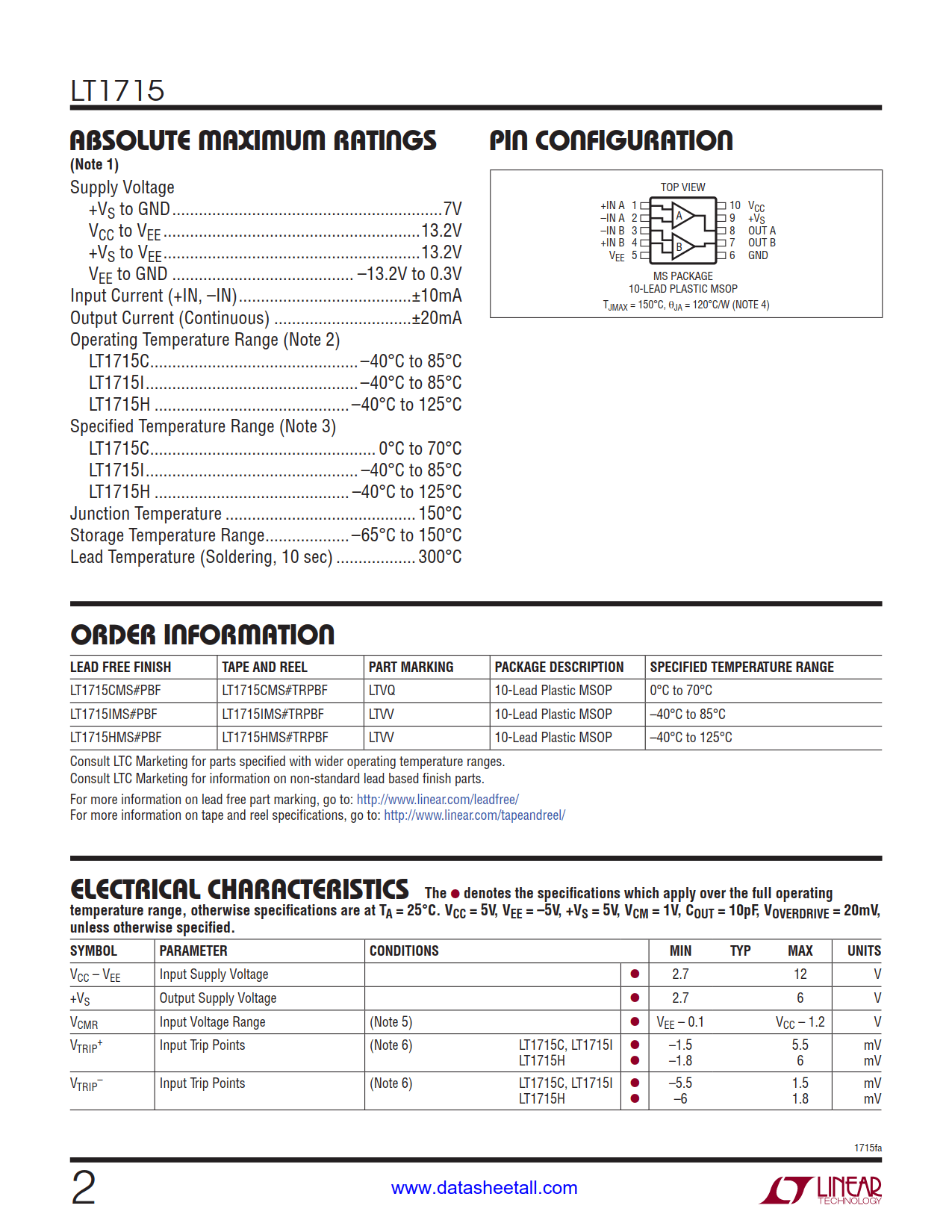

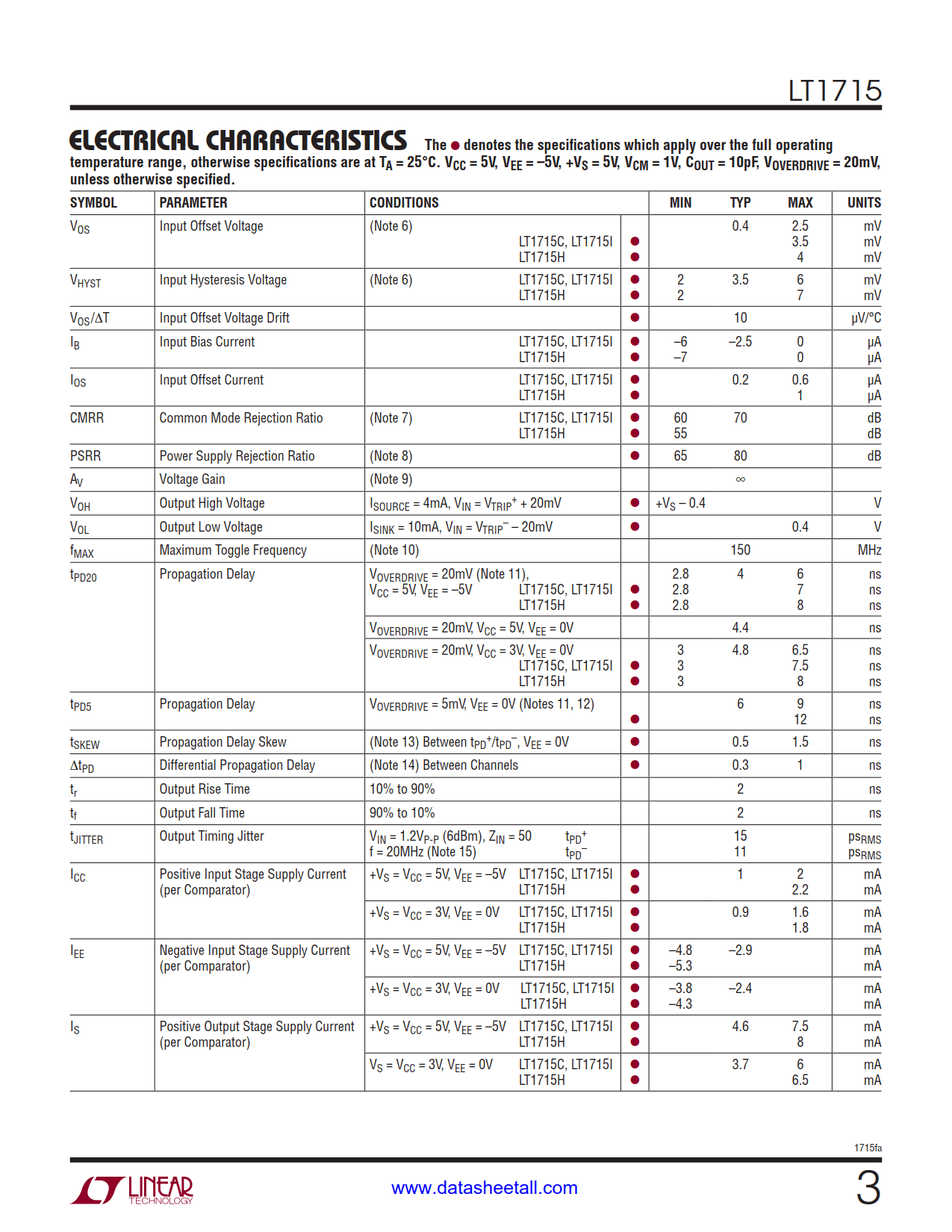

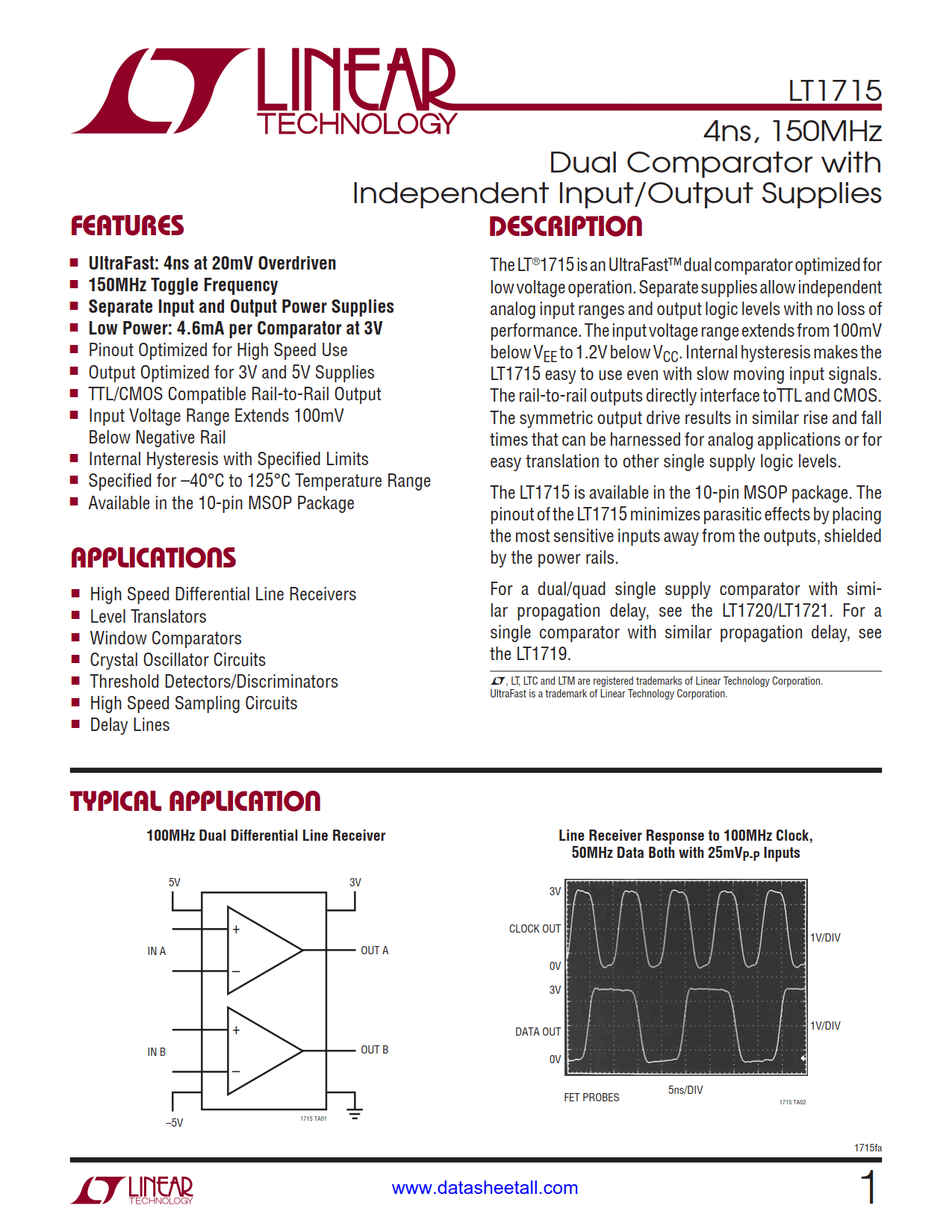

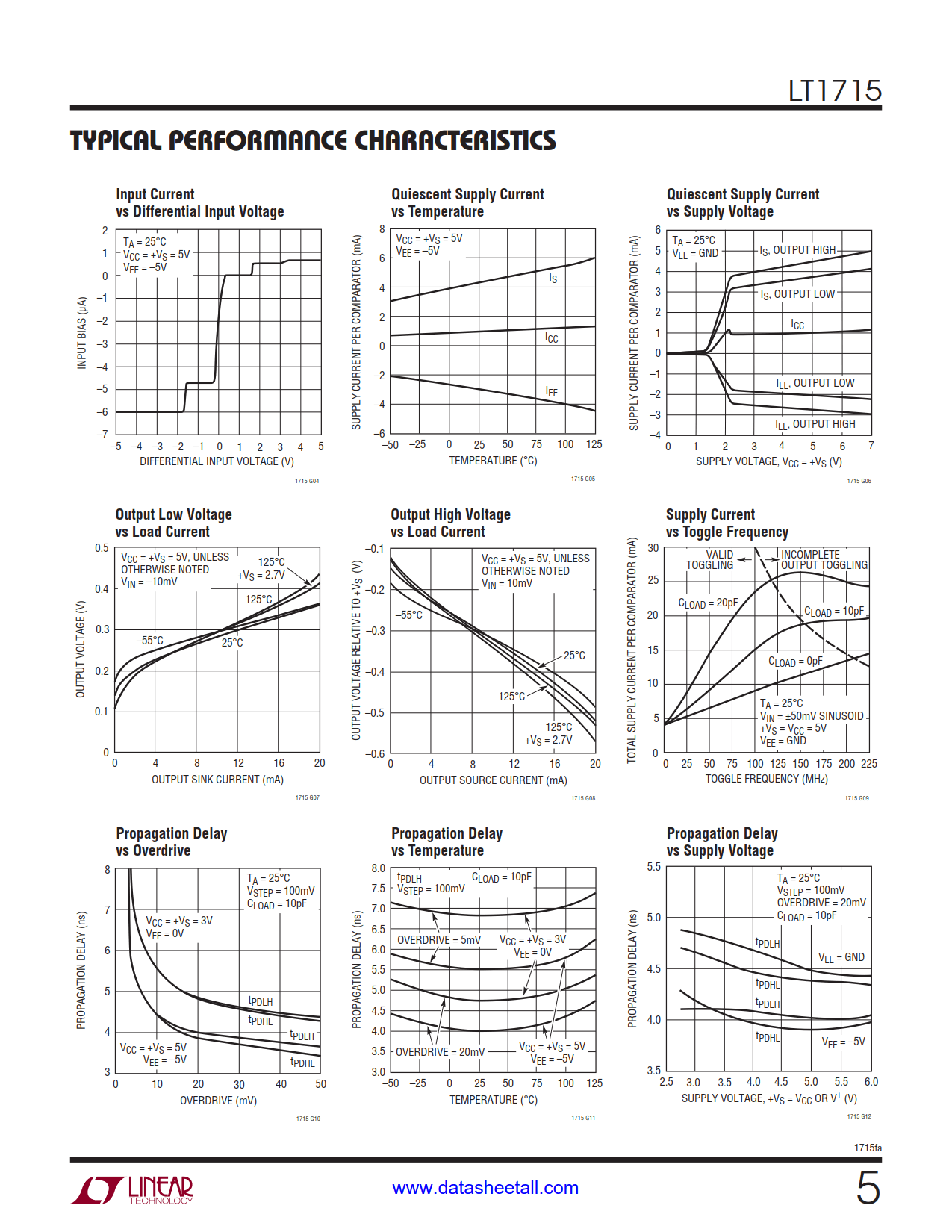

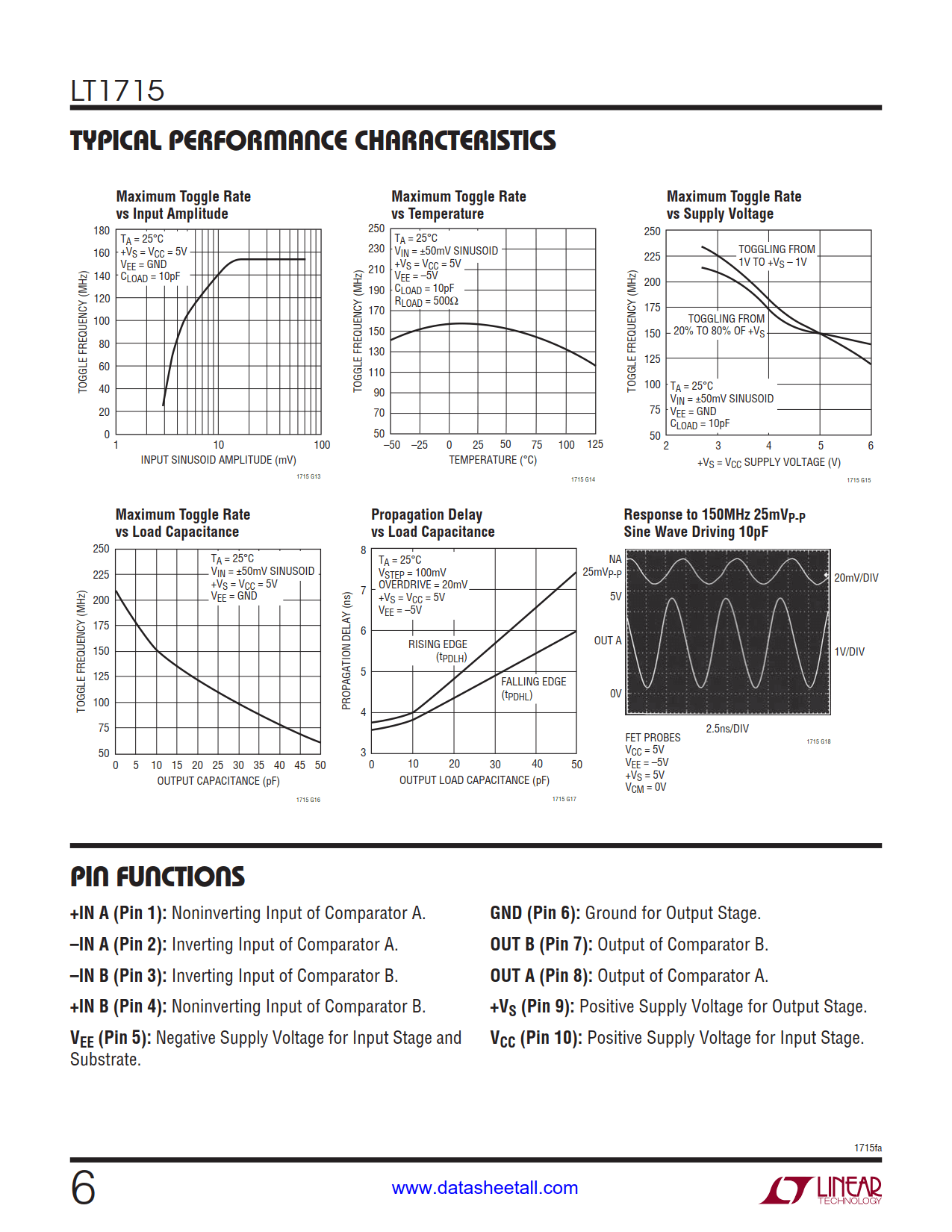

LT1715 Datasheet(Picture)

LT1715 Features

  • UltraFast: 4ns at 20mV Overdrive
  • 150MHz Toggle Frequency
  • Separate Input and Output Power Supplies
  • Low Power: 4.6mA per Comparator at 3V
  • Pinout Optimized for High Speed Use
  • Output Optimized for 3V and 5V Supplies
  • TTL/CMOS Compatible Rail-to-Rail Output
  • Input Voltage Range Extends 100mV Below Negative Rail
  • Internal Hysteresis with Specified Limits
  • Specified for –40°C to 125°C Temperature Range
  • Available in the 10-pin MSOP Package

LT1715 Applications

  • High Speed Differential Line Receivers
  • Level Translators
  • Window Comparators
  • Crystal Oscillator Circuits
  • Threshold Detectors/Discriminators
  • High Speed Sampling Circuits
  • Delay Lines

LT1715 Description

The LT1715 is an UltraFast dual comparator optimized for low voltage operation. Separate supplies allow independent analog input ranges and output logic levels with no loss of performance. The input voltage range extends from 100mV below VEE to 1.2V below VCC.Internal hysteresis makes the LT1715 easy to use even with slow moving input signals. The rail-to-rail outputs directly interface to TTL and CMOS. The symmetric output drive results in similar rise and fall times that can be harnessed for analog applications or for easy translation to other single supply logic levels.

The LT1715 is available in the 10-pin MSOP package. The pinout of the LT1715 minimizes parasitic effects by placing the most sensitive inputs away from the outputs, shielded by the power rails.

For a dual/quad single supply comparator with similar propagation delay, see the LT1720/LT1721. For a single comparator with similar propagation delay,see the LT1719.
