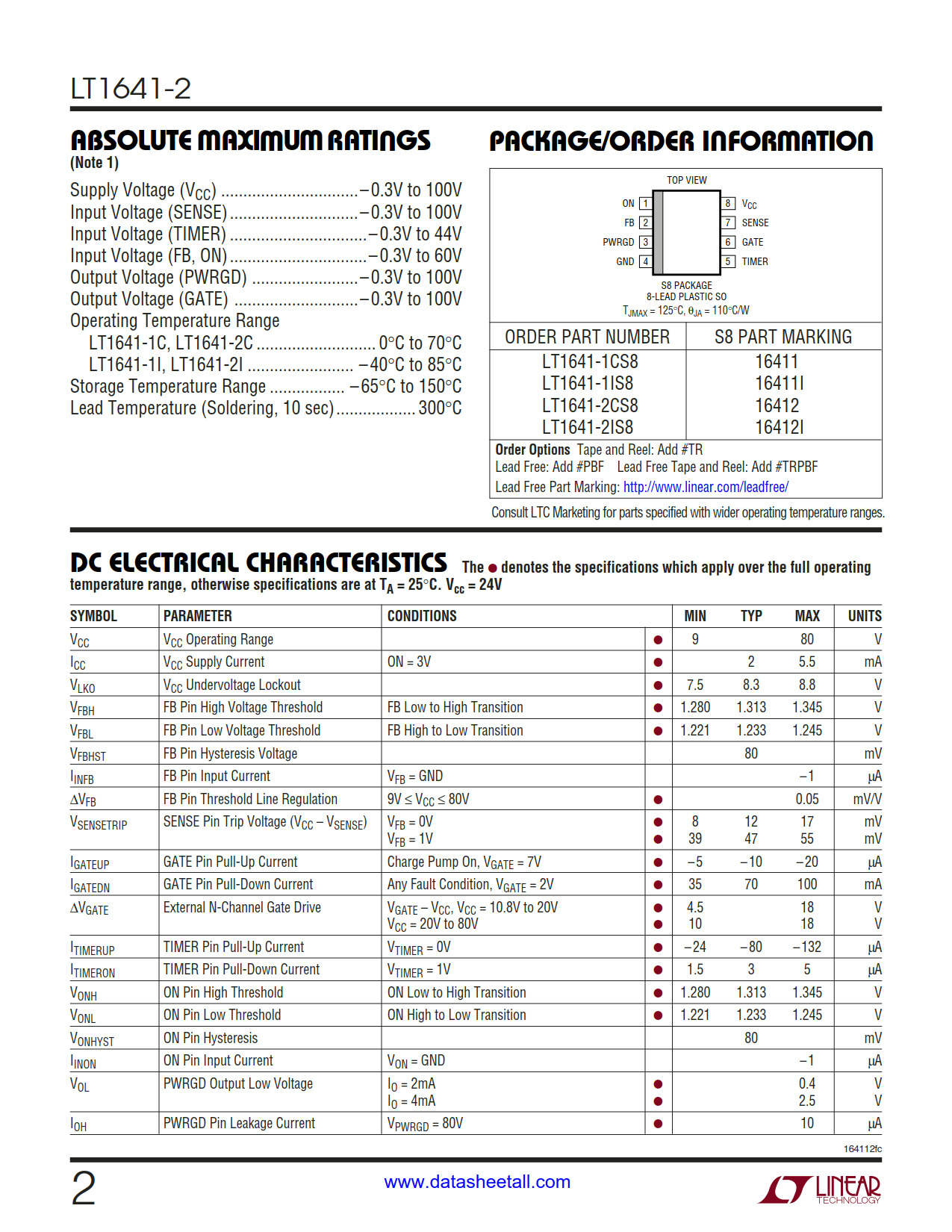

Part No.: | LT1641-2 |
Page: | 12 Pages |
Size: | 143 KB |
Manufacturer: | Linear Technology |
Logo: | |
Views: | 2 |
Update Time: | 2023-12-06 17:51:14 |
DataSheet: | Download |
Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
LT1641-2CS8#PBF | Tube | 100 | 16412 | 1 | 8 | 0°C ~ 70°C | 8-Lead SOIC | |
LT1641-2CS8#TRPBF | Reel | 2500 | 16412 | 1 | 8 | 0°C ~ 70°C | 8-Lead SOIC | |
LT1641-2CS8#TRMPBF | Reel | 500 | 16412 | 1 | 8 | 0°C ~ 70°C | 8-Lead SOIC | |
LT1641-2IS8#PBF | Tube | 100 | 16412I | 1 | 8 | -40°C ~ 85°C | 8-Lead SOIC | |
LT1641-2IS8#TRPBF | Reel | 2500 | 16412I | 1 | 8 | -40°C ~ 85°C | 8-Lead SOIC | |
LT1641-2IS8#TRMPBF | Reel | 500 | 16412I | 1 | 8 | -40°C ~ 85°C | 8-Lead SOIC |

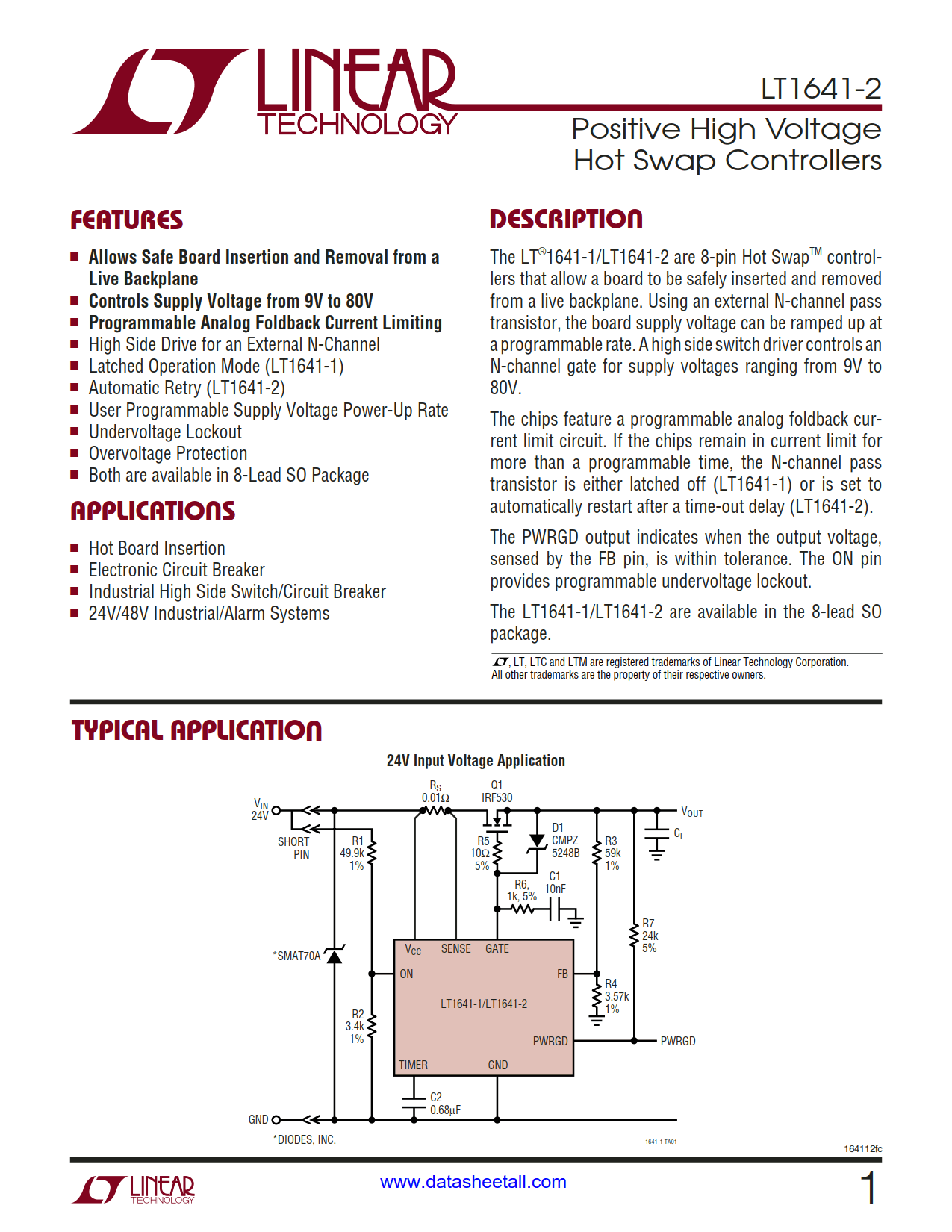

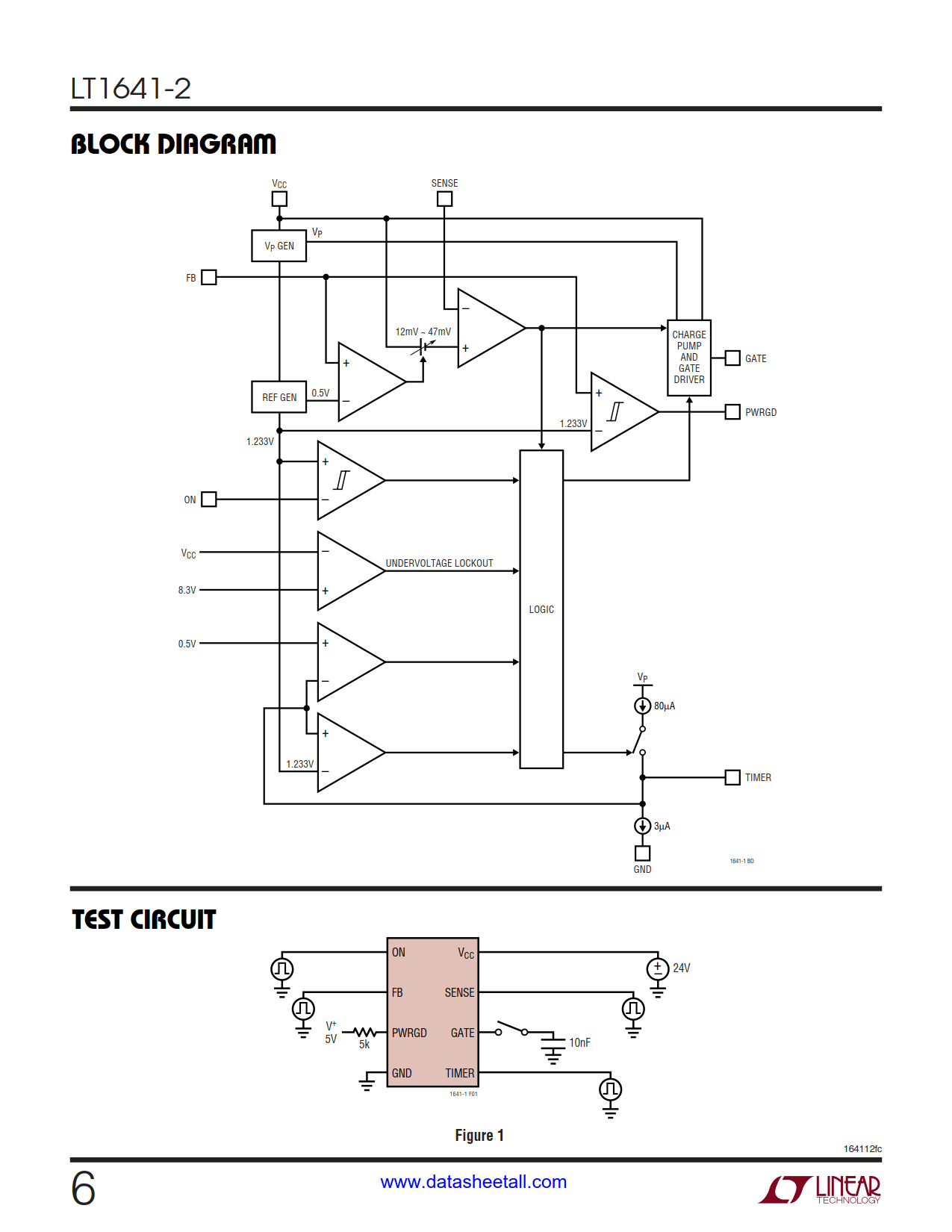

The LT1641-2 are 8-pin Hot Swap™ controllers that allow a board to be safely inserted and removed from a live backplane. Using an external N-channel pass transistor, the board supply voltage can be ramped up at a programmable rate. A high side switch driver controls an N-channel gate for supply voltages ranging from 9V to 80V.
The chips feature a programmable analog foldback current limit circuit. If the chips remain in current limit for more than a programmable time, the N-channel pass transistor is set to automatically restart after a time-out delay (LT1641-2).

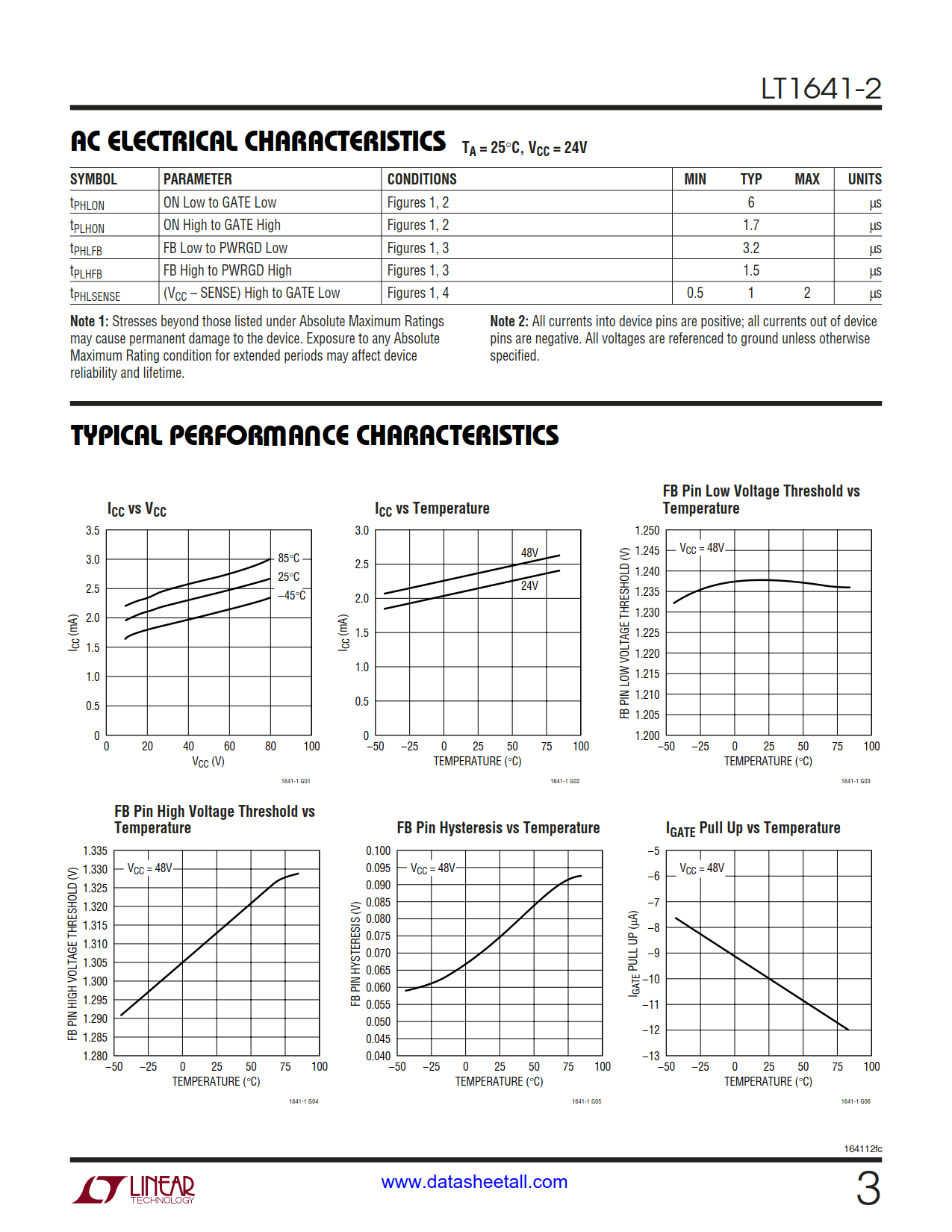

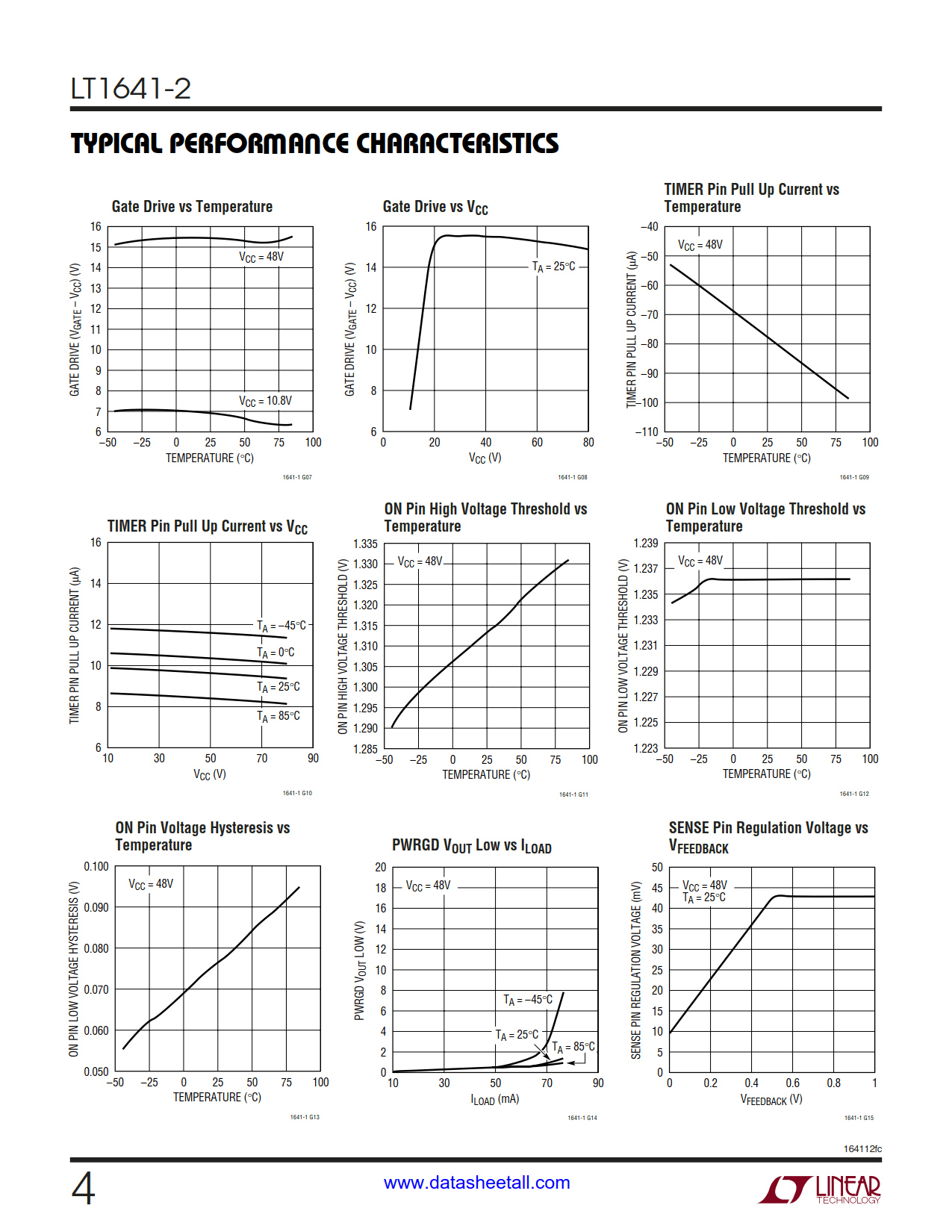

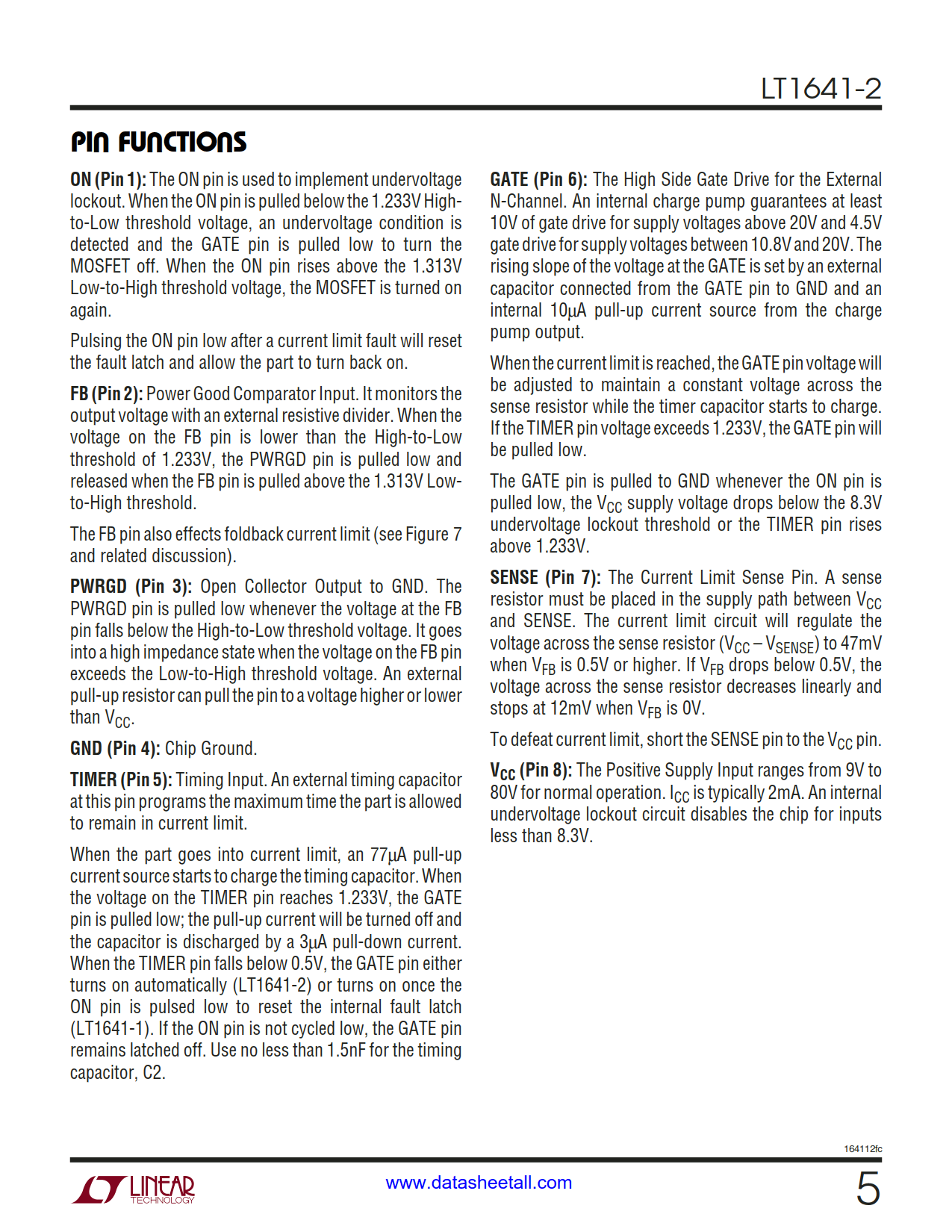

The PWRGD output indicates when the output voltage, sensed by the FB pin, is within tolerance. The ON pin provides programmable undervoltage lockout.
The LT1641-2 are available in the 8-lead SO package.
