LT1641 Datasheet

LT1641 Datasheet

Positive High Voltage Hot Swap Controller
Part No.: LT1641
Page: 12 Pages
Size: 158 KB
Manufacturer: Linear Technology
Logo:
Views: 3
Update Time: 2023-12-06 17:42:21
DataSheet: Download

LT1641 Datasheet Applicable Part

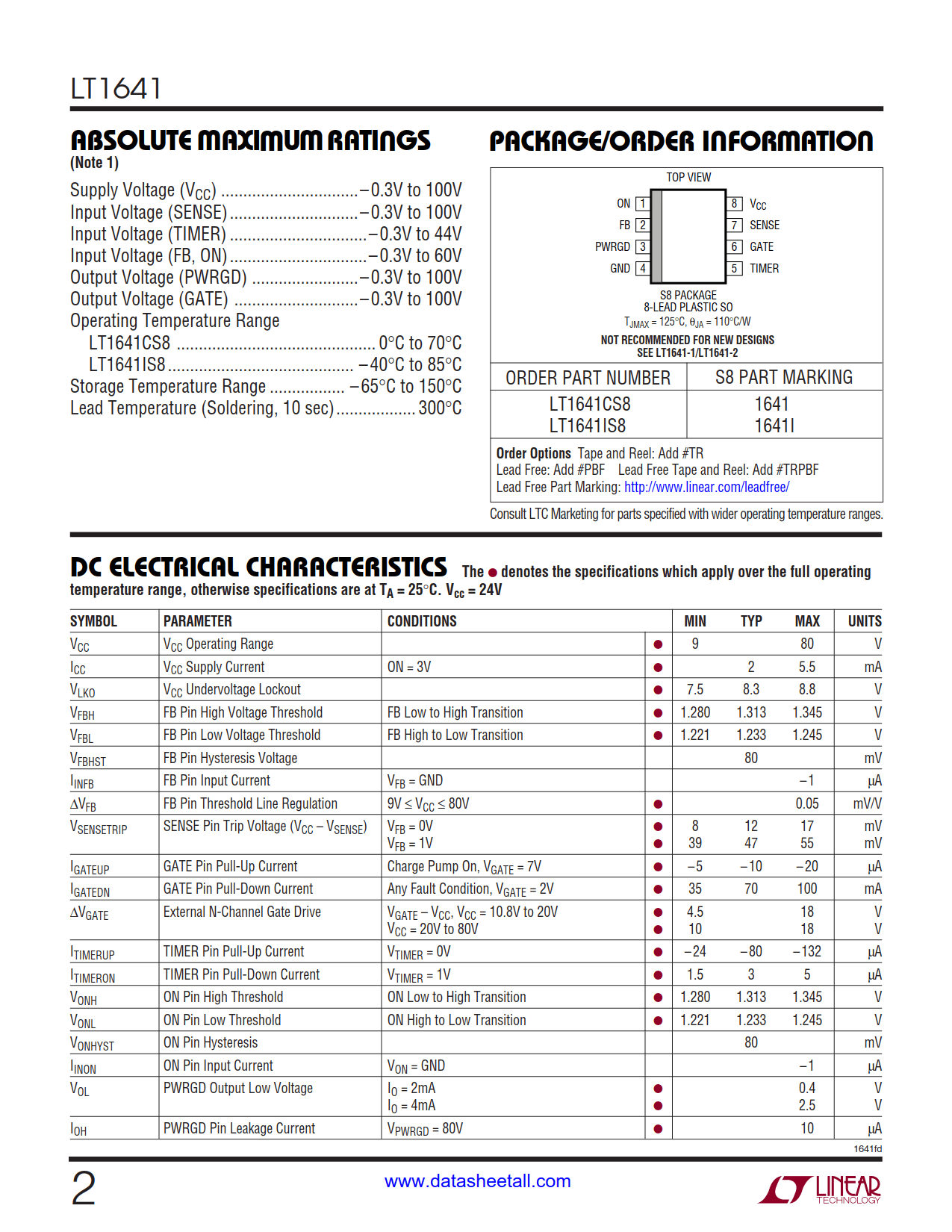

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LT1641CS8#PBF Tube 100 1641 1 8 0°C ~ 70°C 8-Lead SOIC
LT1641CS8#TRPBF Reel 2500 1641 1 8 0°C ~ 70°C 8-Lead SOIC
LT1641CS8#TRMPBF Reel 500 1641 1 8 0°C ~ 70°C 8-Lead SOIC
LT1641IS8#PBF Tube 100 1641I 1 8 -40°C ~ 85°C 8-Lead SOIC
LT1641IS8#TRPBF Reel 2500 1641I 1 8 -40°C ~ 85°C 8-Lead SOIC
LT1641IS8#TRMPBF Reel 500 1641I 1 8 -40°C ~ 85°C 8-Lead SOIC
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LT1641 Datasheet(PDF)

LT1641 Datasheet(Picture)

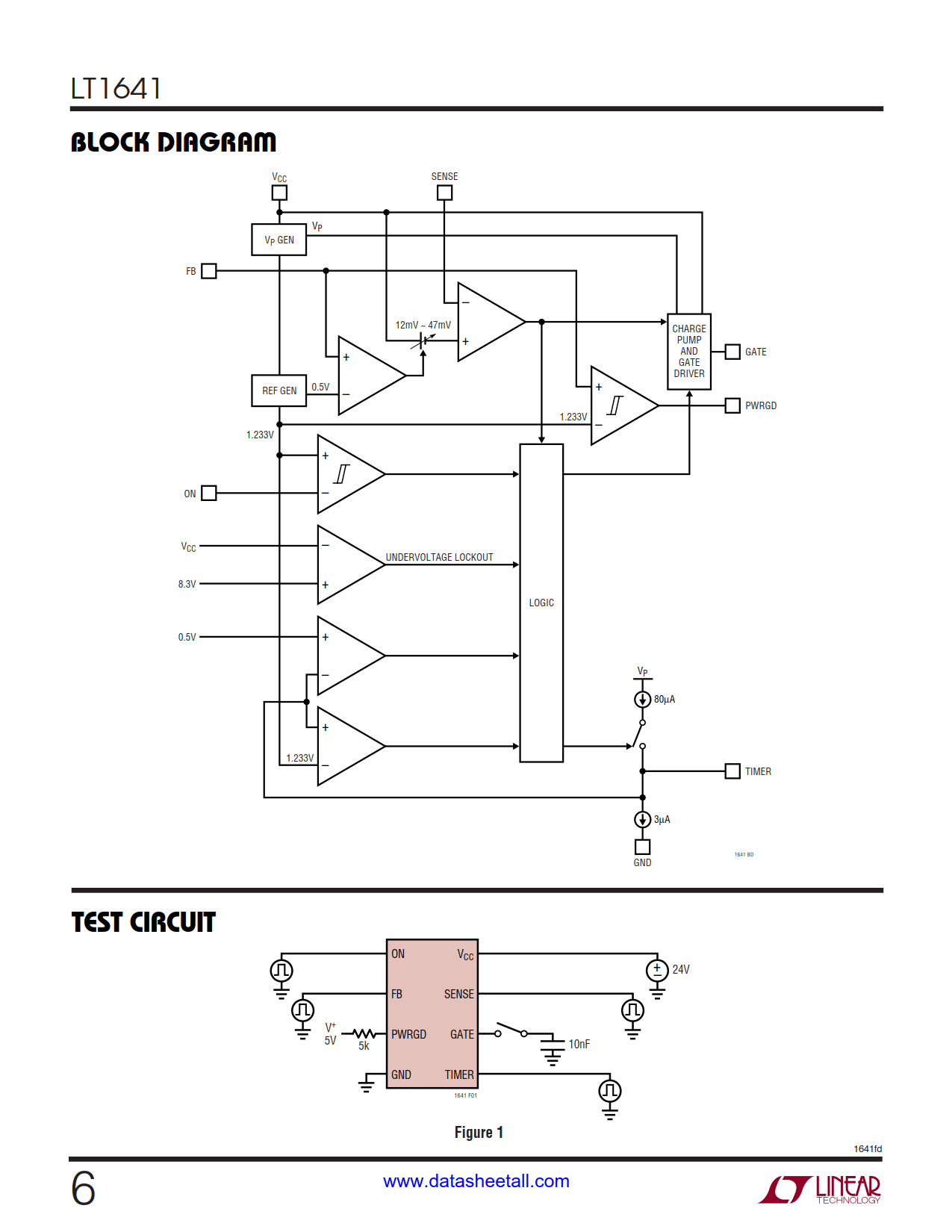

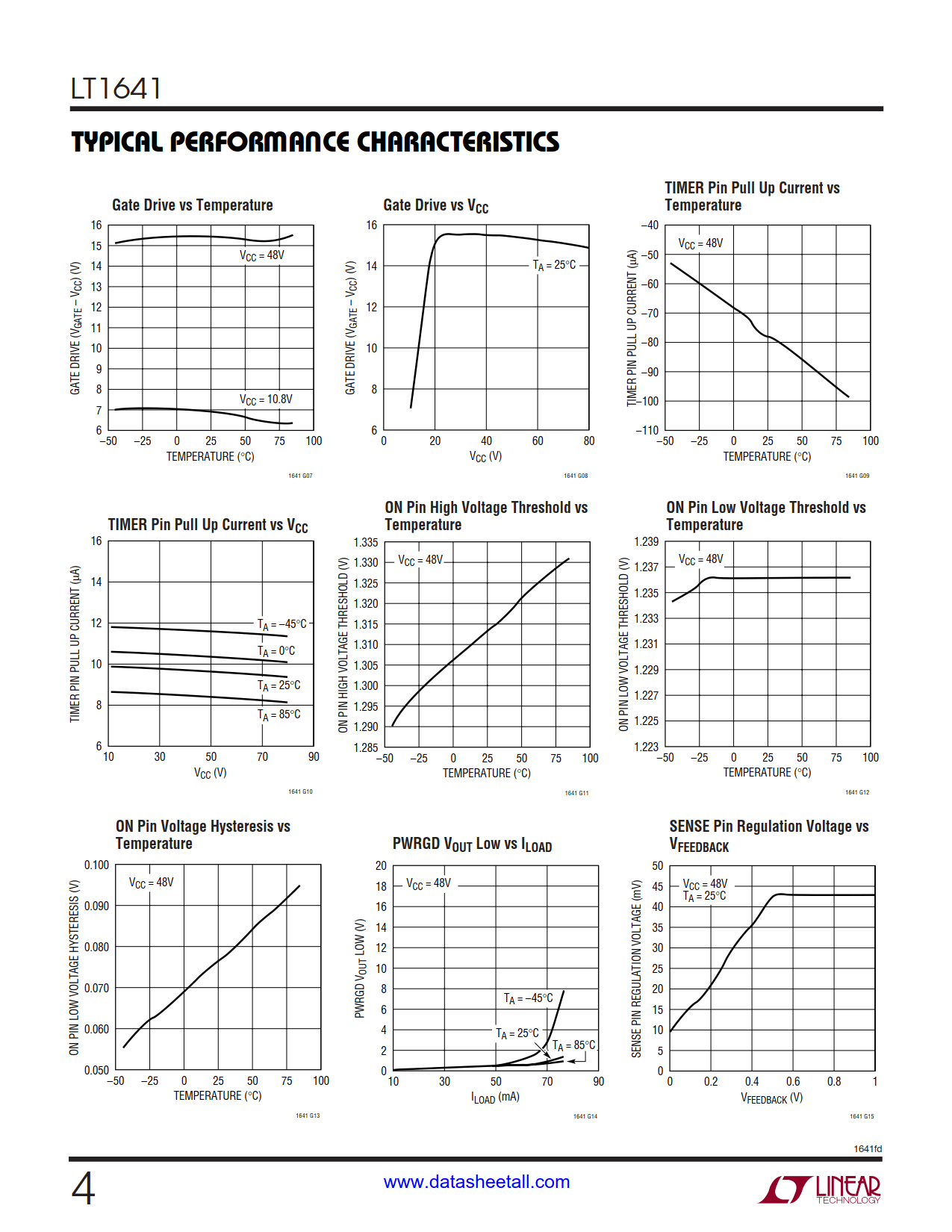

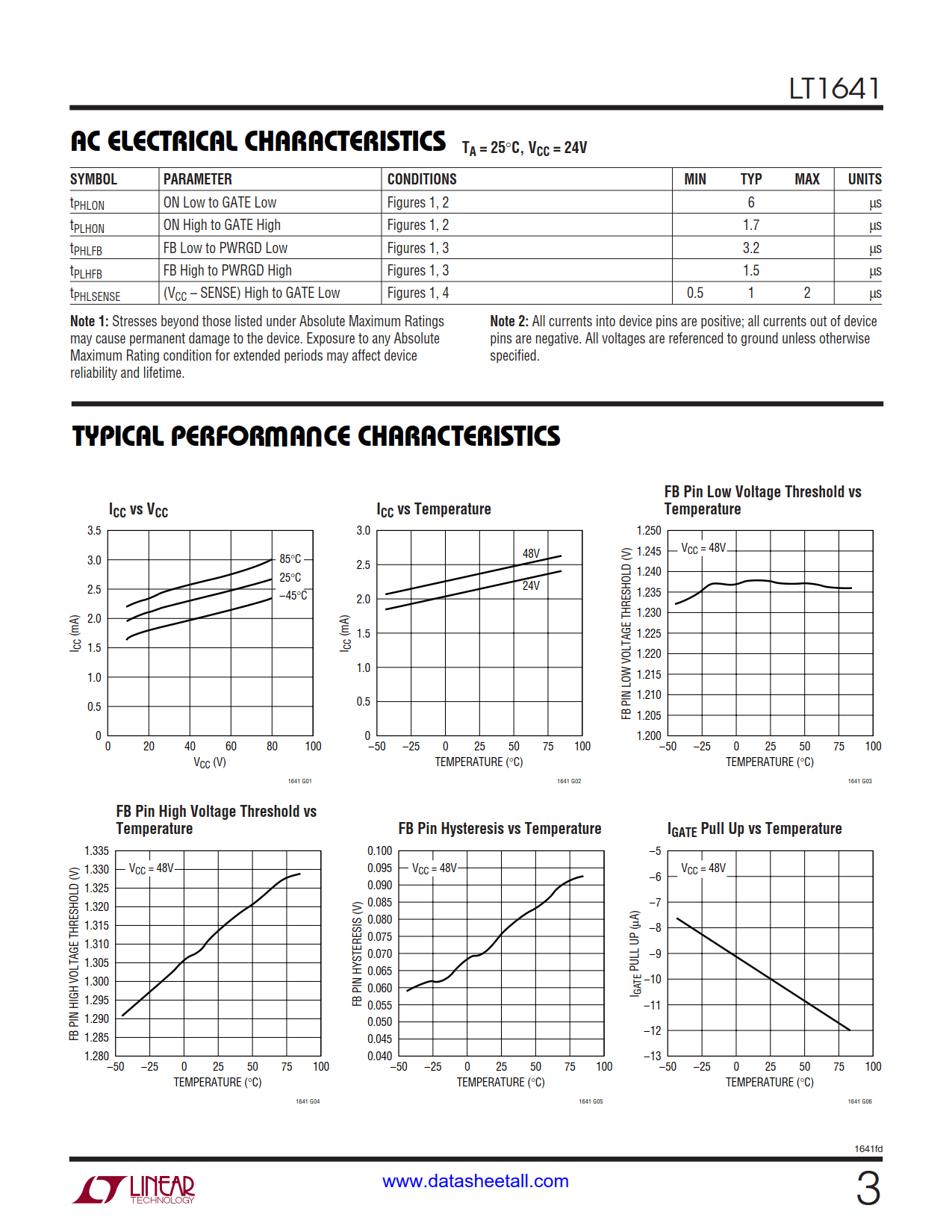

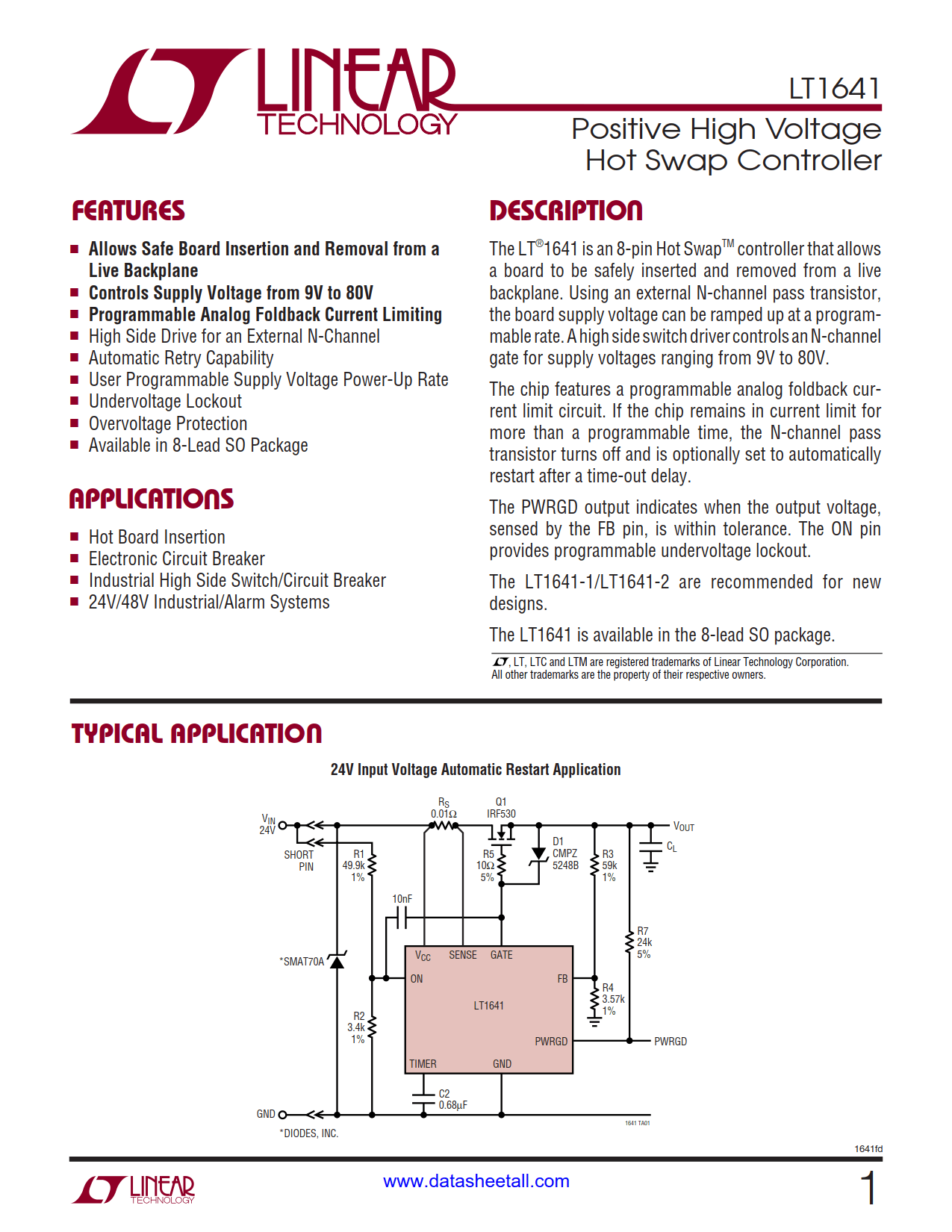

LT1641 Features

  • Allows Safe Board Insertion and Removal from a Live Backplane
  • Controls Supply Voltage from 9V to 80V
  • Programmable Analog Foldback Current Limiting
  • High Side Drive for an External N-Channel
  • Automatic Retry Capability
  • User Programmable Supply Voltage Power-Up Rate
  • Undervoltage Lockout
  • Overvoltage Protection
  • Available in 8-Lead SO Package

LT1641 Applications

  • Hot Board Insertion
  • Electronic Circuit Breaker
  • Industrial High Side Switch/Circuit Breaker
  • 24V/48V Industrial/Alarm Systems

LT1641 Description

The LT1641 is an 8-pin Hot Swap controller that allows a board to be safely inserted and removed from a live backplane. Using an external N-channel pass transistor, the board supply voltage can be ramped up at a programmable rate. A high side switch driver controls an N-channel gate for supply voltages ranging from 9V to 80V.

The chip features a programmable analog foldback current limit circuit. If the chip remains in current limit for more than a programmable time, the N-channel pass transistor turns off and is optionally set to automatically restart after a time-out delay.

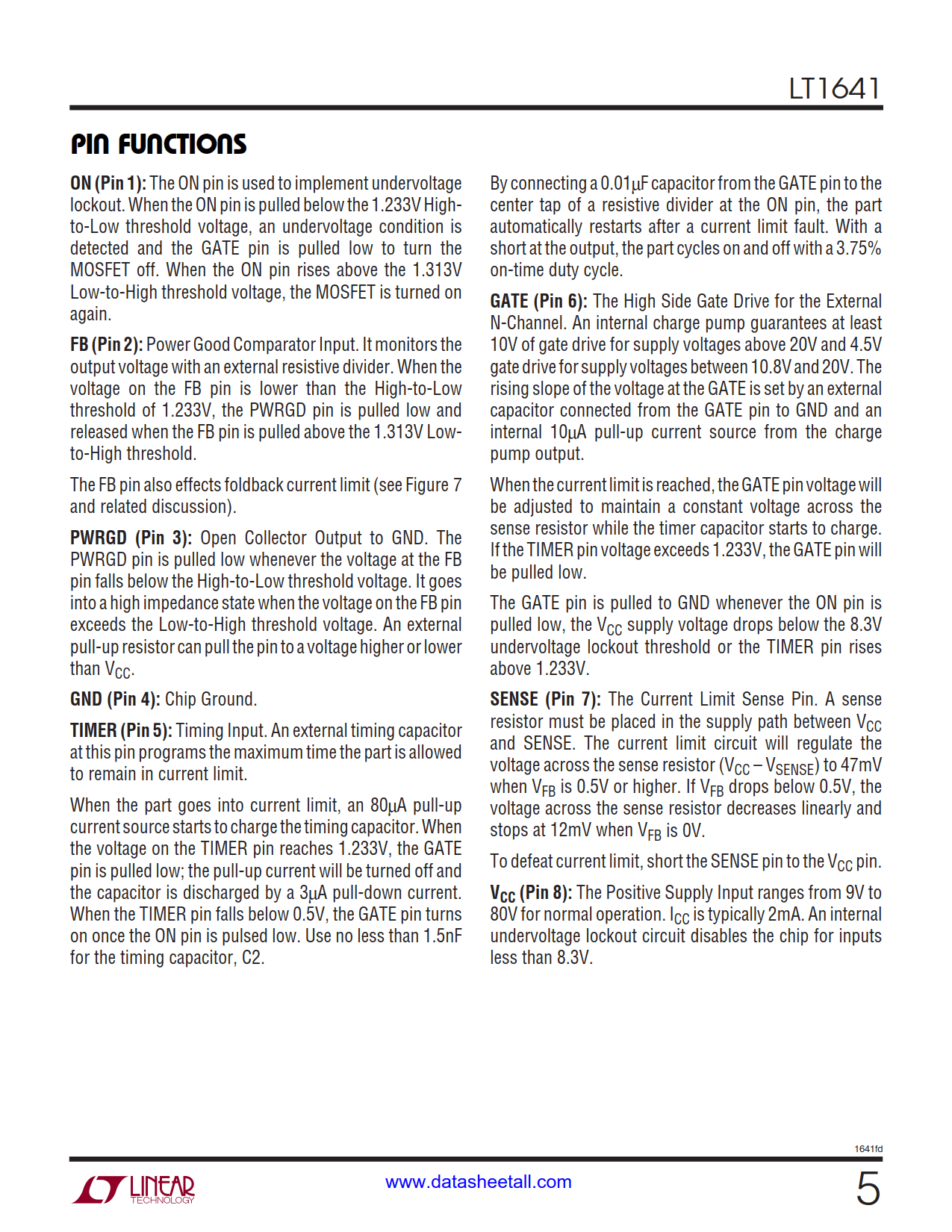

The PWRGD output indicates when the output voltage, sensed by the FB pin, is within tolerance. The ON pin provides programmable undervoltage lockout.

The LT1641 is available in the 8-lead SO package.

LT1641 Datasheet Related Parts

Part Number Description
LT1640A Negative High Voltage Hot Swap Controller
LTC1421 Dual Channel Hot Swap Controller
LTC1422 High Side Drive Hot Swap Controller in SO-8
LT1641-1 Positive High Voltage Hot Swap Controller
LT1641-2 Positive High Voltage Hot Swap Controller
LTC1642 Fault Protected Hot Swap Controller
LTC1643 PCI Hot Swap Controller
LT4250L Negative 48V Hot Swap Controller
LT4250H Negative 48V Hot Swap Controller
