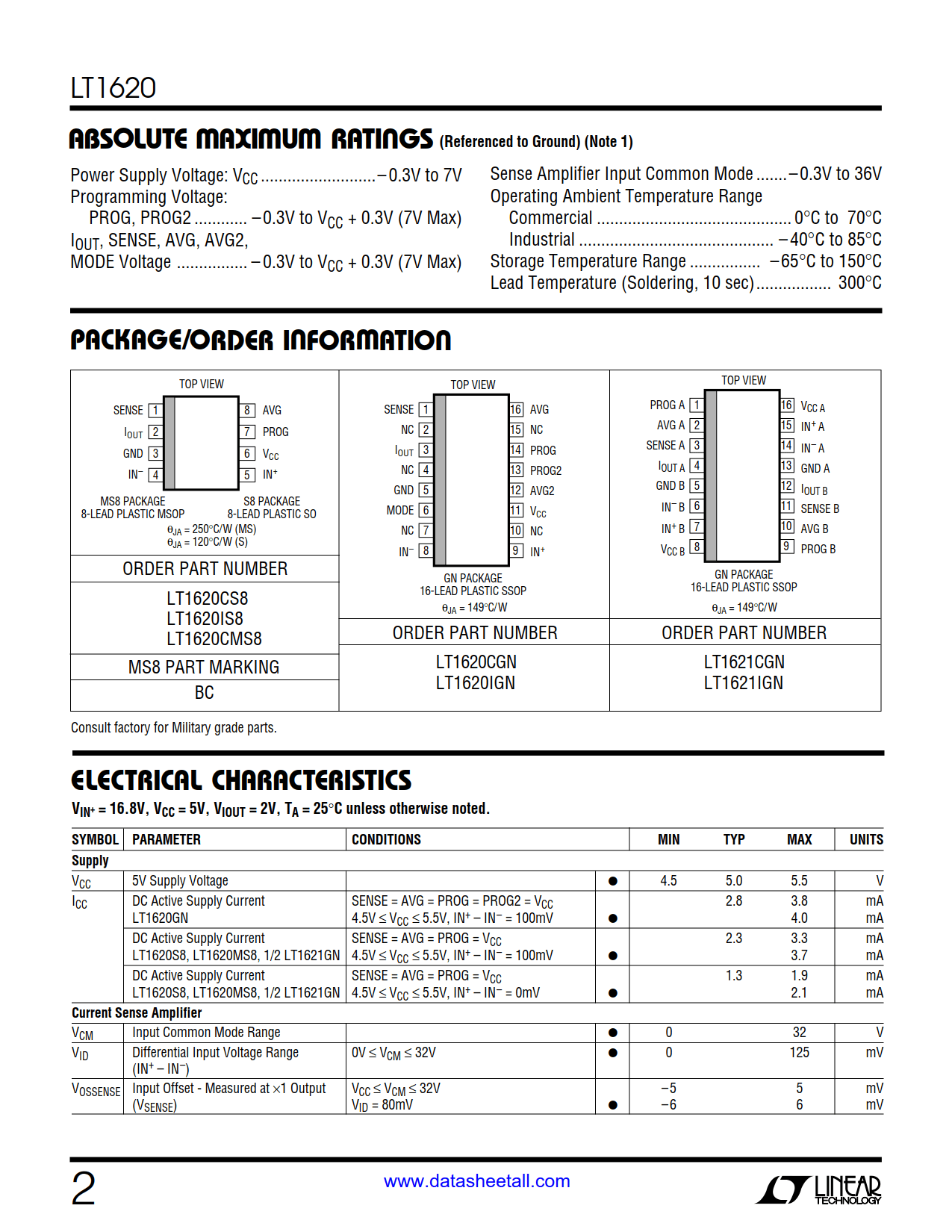

| Part No.： | LT1620 |
| Page： | 12 Pages |
| Size： | 231 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2023-12-05 14:47:57 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LT1620CGN#PBF | Tube | 100 | 1 | 16 | 0°C ~ 70°C | 16-Lead SSOP | ||
| LT1620CGN#TRPBF | Reel | 2500 | 1 | 16 | 0°C ~ 70°C | 16-Lead SSOP | ||
| LT1620CGN#TRMPBF | Reel | 500 | 1 | 16 | 0°C ~ 70°C | 16-Lead SSOP | ||
| LT1620IGN#PBF | Tube | 100 | 1 | 16 | -40°C ~ 125°C | 16-Lead SSOP | ||
| LT1620IGN#TRPBF | Reel | 2500 | 1 | 16 | -40°C ~ 125°C | 16-Lead SSOP | ||
| LT1620IGN#TRMPBF | Reel | 500 | 1 | 16 | -40°C ~ 125°C | 16-Lead SSOP | ||
| LT1620CMS8#PBF | Tube | 50 | 1 | 8 | 0°C ~ 70°C | 8-Lead MSOP | ||
| LT1620CMS8#TRPBF | Reel | 2500 | 1 | 8 | 0°C ~ 70°C | 8-Lead MSOP | ||
| LT1620CMS8#TRMPBF | Reel | 500 | 1 | 8 | 0°C ~ 70°C | 8-Lead MSOP | ||
| LT1620CS8#PBF | Tube | 100 | 1 | 8 | 0°C ~ 70°C | 8-Lead SOIC | ||
| LT1620CS8#TRPBF | Reel | 2500 | 1 | 8 | 0°C ~ 70°C | 8-Lead SOIC | ||
| LT1620CS8#TRMPBF | Reel | 500 | 1 | 8 | 0°C ~ 70°C | 8-Lead SOIC | ||
| LT1620IS8#PBF | Tube | 100 | 1 | 8 | -40°C ~ 125°C | 8-Lead SOIC | ||
| LT1620IS8#TRPBF | Reel | 2500 | 1 | 8 | -40°C ~ 125°C | 8-Lead SOIC | ||
| LT1620IS8#TRMPBF | Reel | 500 | 1 | 8 | -40°C ~ 125°C | 8-Lead SOIC |
The LT1620 simplifies the design of high performance, controlled current battery charging circuits when used in conjunction with a current mode PWM controller IC.
The LT1620 regulates average output current independent of input and output voltage variations. Output current can be easily adjusted via a programming voltage applied to the LT1620’s PROG pin.
Most current mode PWM controllers have limited output voltage range because of common mode limitations on the current sense inputs. The LT1620 overcomes this restriction by providing a level-shifted current sense signal, allowing a 0V to 32V output voltage range.
The 16-pin version of the LT1620 contains a programmable low charging current flag output. This output flag can be used to signal when a Li-Ion battery charging cycle is nearing completion.
