| Part No.： | LT1613 |
| Page： | 12 Pages |
| Size： | 276 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 3 |
| Update Time： | 2023-11-24 15:42:52 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LT1613CS5#PBF | Tube | LTED | 1 | 12 | 0°C ~ 70°C | 5-Lead TSOT-23 | ||
| LT1613CS5#TRPBF | Reel | 2500 | LTED | 1 | 12 | 0°C ~ 70°C | 5-Lead TSOT-23 | |
| LT1613CS5#TRMPBF | Reel | 500 | LTED | 1 | 12 | 0°C ~ 70°C | 5-Lead TSOT-23 |

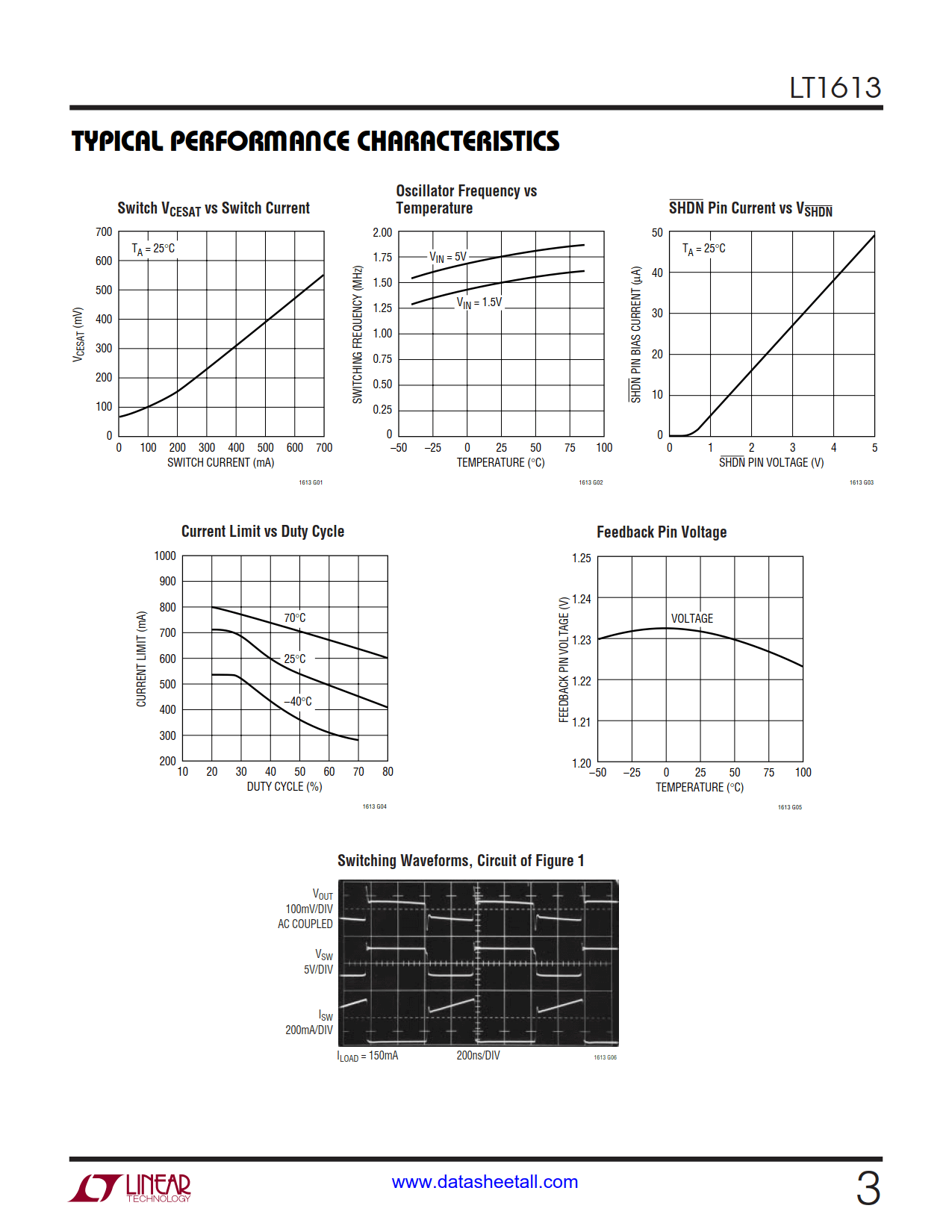

The LT1613 is the industry’s first 5-lead SOT-23 current mode DC/DC converter. Intended for small, low power applications, it operates from an input voltage as low as 1.1V and switches at 1.4MHz, allowing the use of tiny, low cost capacitors and inductors 2mm or less in height. Its small size and high switching frequency enables the complete DC/DC converter function to take up less than 0.2 square inches of PC board area. Multiple output power supplies can now use a separate regulator for each output voltage, replacing cumbersome quasi-regulated approaches using a single regulator and a custom transformer.
A constant frequency, internally compensated current mode PWM architecture results in low, predictable output noise that is easy to filter. The high voltage switch on the LT1613 is rated at 36V, making the device ideal for boost converters up to 34V as well as for Single-Ended Primary Inductance Converter (SEPIC) and flyback designs. The device can generate 5V at up to 200mA from a 3.3V supply or 5V at 175mA from four alkaline cells in a SEPIC design.
The LT1613 is available in the 5-lead SOT-23 package.
