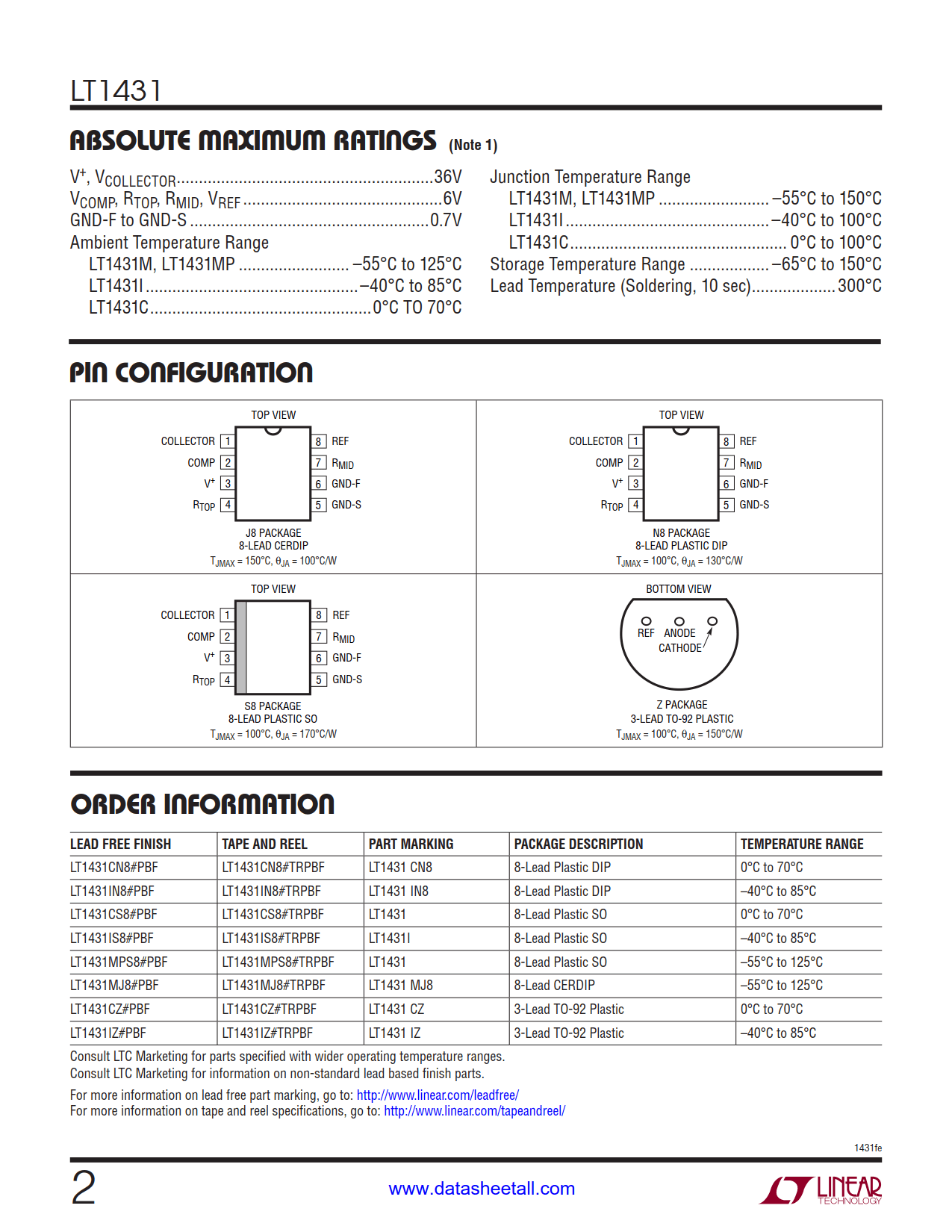

| Part No.： | LT1431 |
| Page： | 14 Pages |
| Size： | 223 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2024-12-03 13:46:05 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LT1431CN8#PBF | Tube | 50 | LT1431 CN8 | 1 | 8 | 0°C ~70°C | 8-Lead Plastic DIP | |
| LT1431CN8#TRPBF | Reel | LT1431 CN8 | 1 | 8 | 0°C ~70°C | 8-Lead Plastic DIP | ||
| LT1431CN8#TRMPBF | Reel | LT1431 CN8 | 1 | 8 | 0°C ~70°C | 8-Lead Plastic DIP | ||
| LT1431IN8#PBF | Tube | 50 | LT1431 IN8 | 1 | 8 | -40°C ~85°C | 8-Lead Plastic DIP | |
| LT1431IN8#TRPBF | Reel | LT1431 IN8 | 1 | 8 | -40°C ~85°C | 8-Lead Plastic DIP | ||
| LT1431IN8#TRMPBF | Reel | LT1431 IN8 | 1 | 8 | -40°C ~85°C | 8-Lead Plastic DIP | ||
| LT1431CS8#PBF | Tube | 100 | LT1431 | 1 | 8 | 0°C ~70°C | 8-Lead Plastic SO | |
| LT1431CS8#TRPBF | Reel | 2500 | LT1431 | 1 | 8 | 0°C ~70°C | 8-Lead Plastic SO | |
| LT1431CS8#TRMPBF | Reel | 500 | LT1431 | 1 | 8 | 0°C ~70°C | 8-Lead Plastic SO | |
| LT1431IS8#PBF | Tube | 100 | LT1431I | 1 | 8 | -40°C ~85°C | 8-Lead Plastic SO | |
| LT1431IS8#TRPBF | Reel | 2500 | LT1431I | 1 | 8 | -40°C ~85°C | 8-Lead Plastic SO | |
| LT1431IS8#TRMPBF | Reel | 500 | LT1431I | 1 | 8 | -40°C ~85°C | 8-Lead Plastic SO | |
| LT1431MPS8#PBF | Tube | 100 | LT1431 | 1 | 8 | -55°C ~125°C | 8-Lead Plastic SO | |
| LT1431MPS8#TRPBF | Reel | 2500 | LT1431 | 1 | 8 | -55°C ~125°C | 8-Lead Plastic SO | |
| LT1431MPS8#TRMPBF | Reel | 500 | LT1431 | 1 | 8 | -55°C ~125°C | 8-Lead Plastic SO | |
| LT1431MJ8#PBF | Tube | LT1431 MJ8 | 1 | 8 | -55°C ~125°C | 8-Lead CERDIP | ||
| LT1431MJ8#TRPBF | Reel | LT1431 MJ8 | 1 | 8 | -55°C ~125°C | 8-Lead CERDIP | ||
| LT1431MJ8#TRMPBF | Reel | LT1431 MJ8 | 1 | 8 | -55°C ~125°C | 8-Lead CERDIP | ||
| LT1431CZ#PBF | Bag | 100 | LT1431 CZ | 1 | 3 | 0°C ~70°C | 3-Lead TO-92 Plastic | |
| LT1431CZ#TRPBF | Reel | 2000 | LT1431 CZ | 1 | 3 | 0°C ~70°C | 3-Lead TO-92 Plastic | |
| LT1431CZ#TRMPBF | Reel | 500 | LT1431 CZ | 1 | 3 | 0°C ~70°C | 3-Lead TO-92 Plastic | |
| LT1431IZ#PBF | Bag | 100 | LT1431 IZ | 1 | 3 | -40°C ~85°C | 3-Lead TO-92 Plastic | |
| LT1431IZ#TRPBF | Reel | 2000 | LT1431 IZ | 1 | 3 | -40°C ~85°C | 3-Lead TO-92 Plastic | |
| LT1431IZ#TRMPBF | Reel | 500 | LT1431 IZ | 1 | 3 | -40°C ~85°C | 3-Lead TO-92 Plastic |

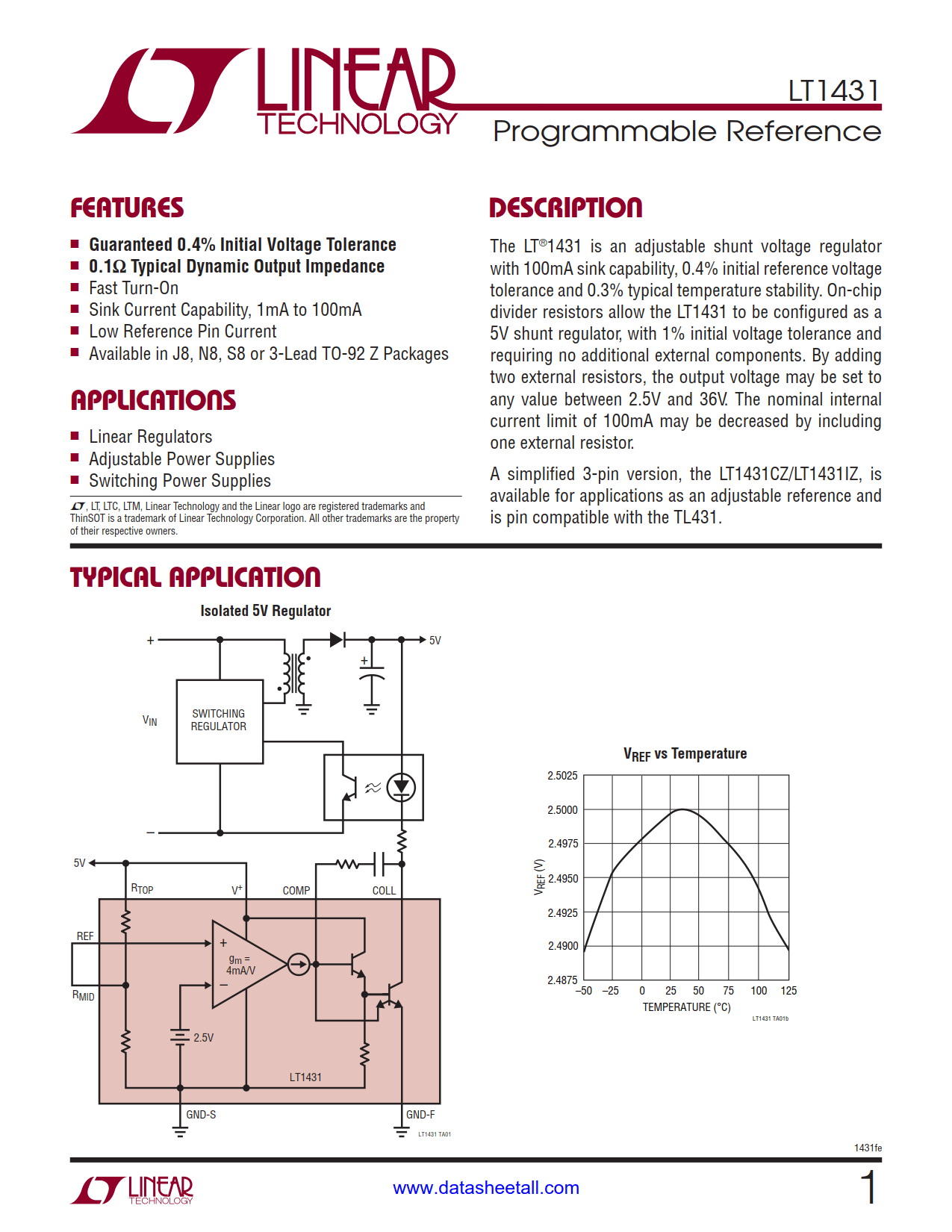

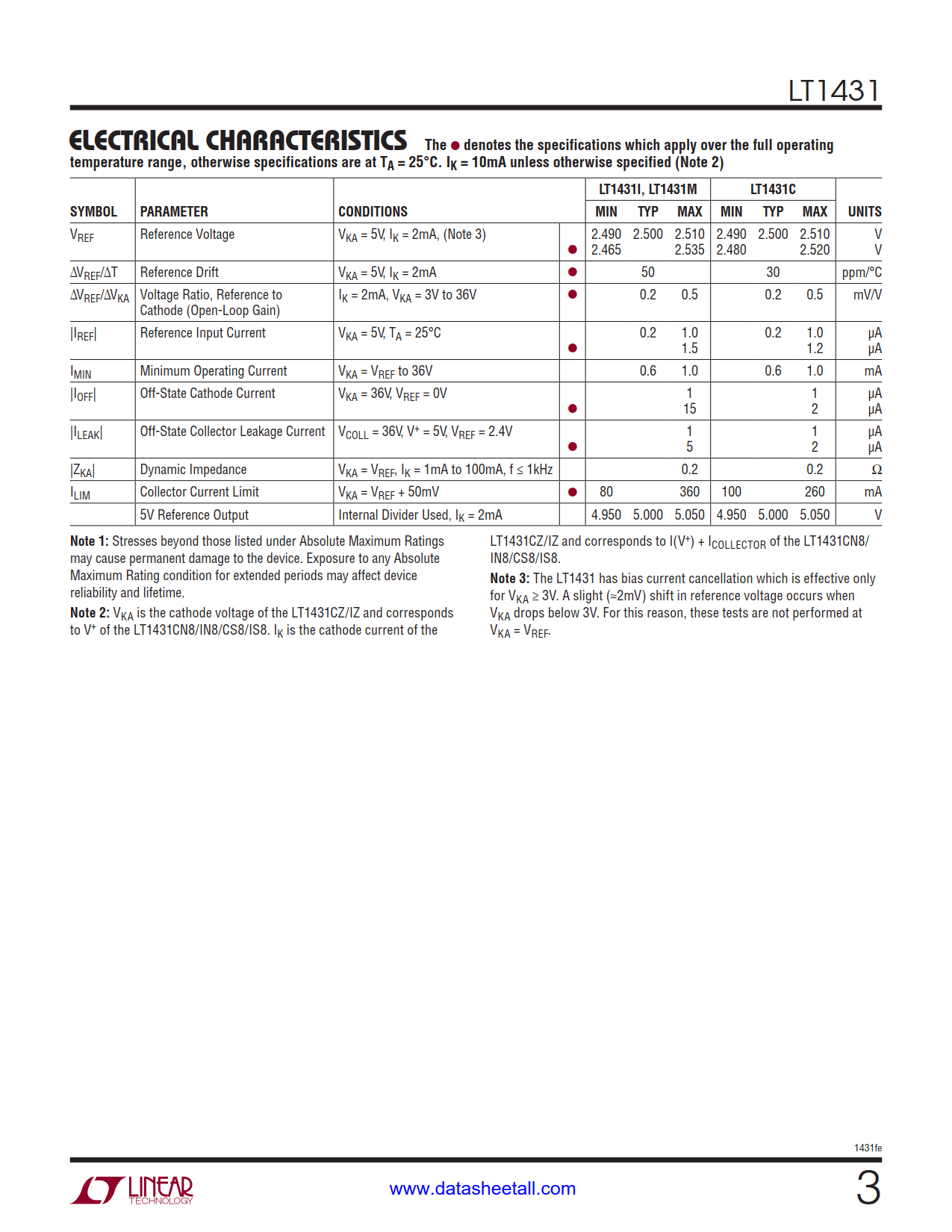

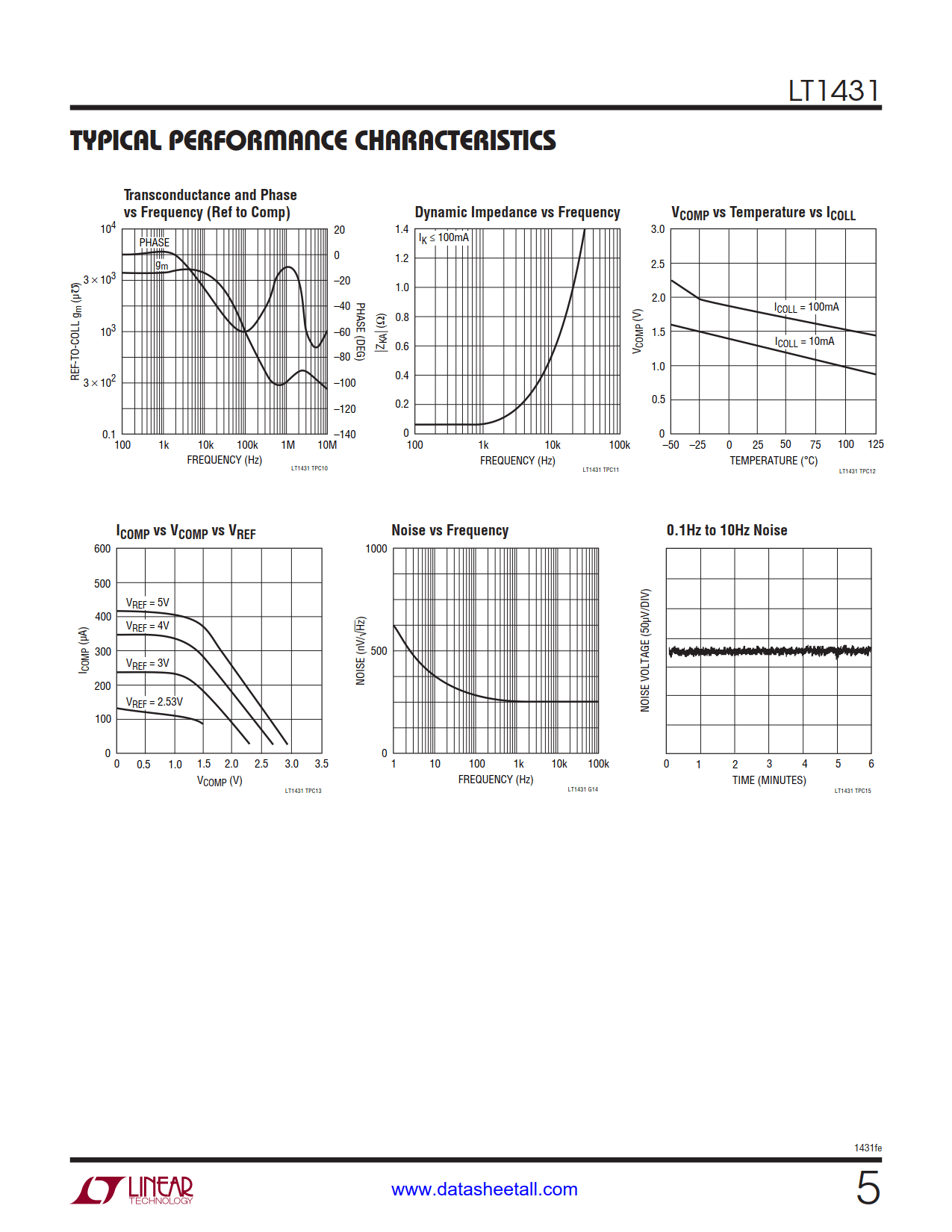

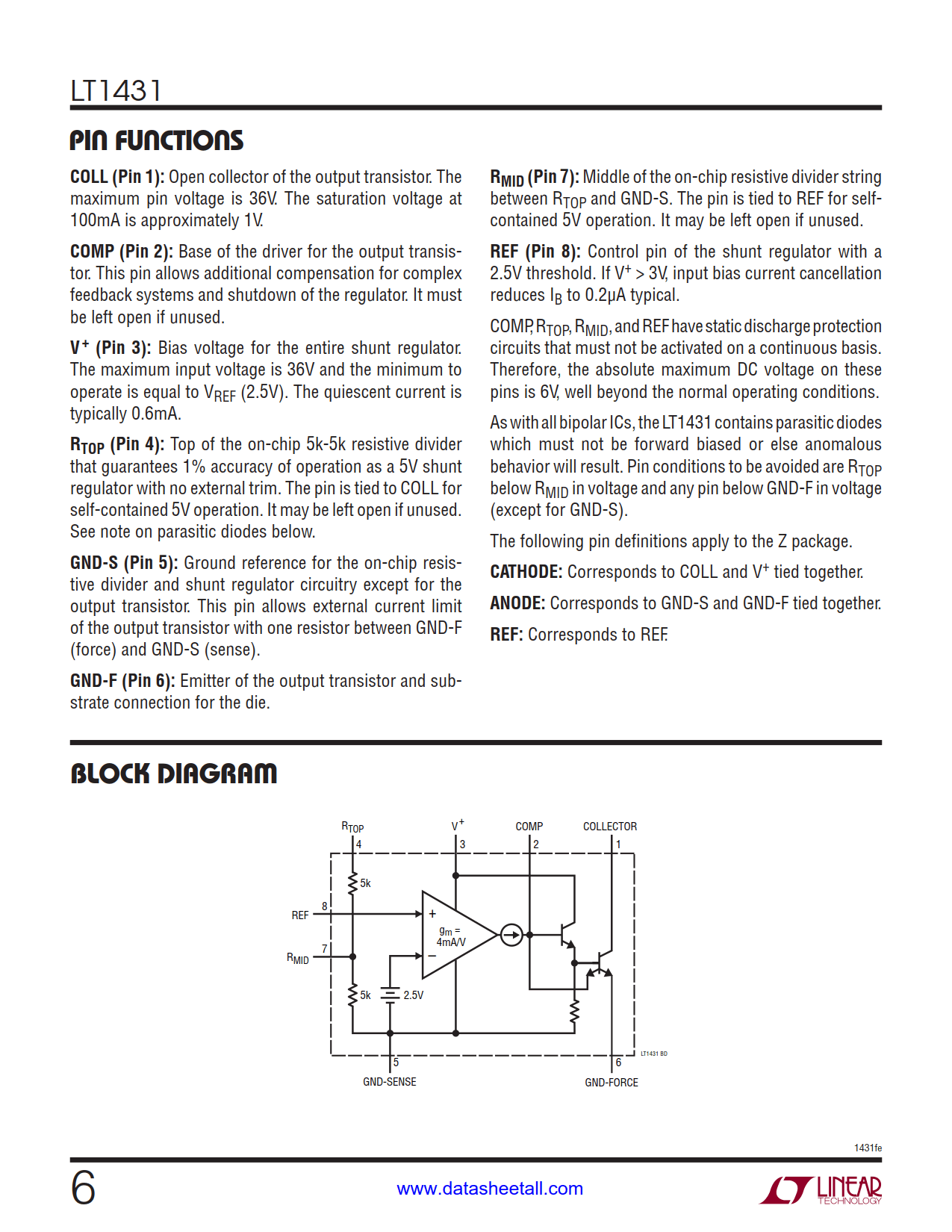

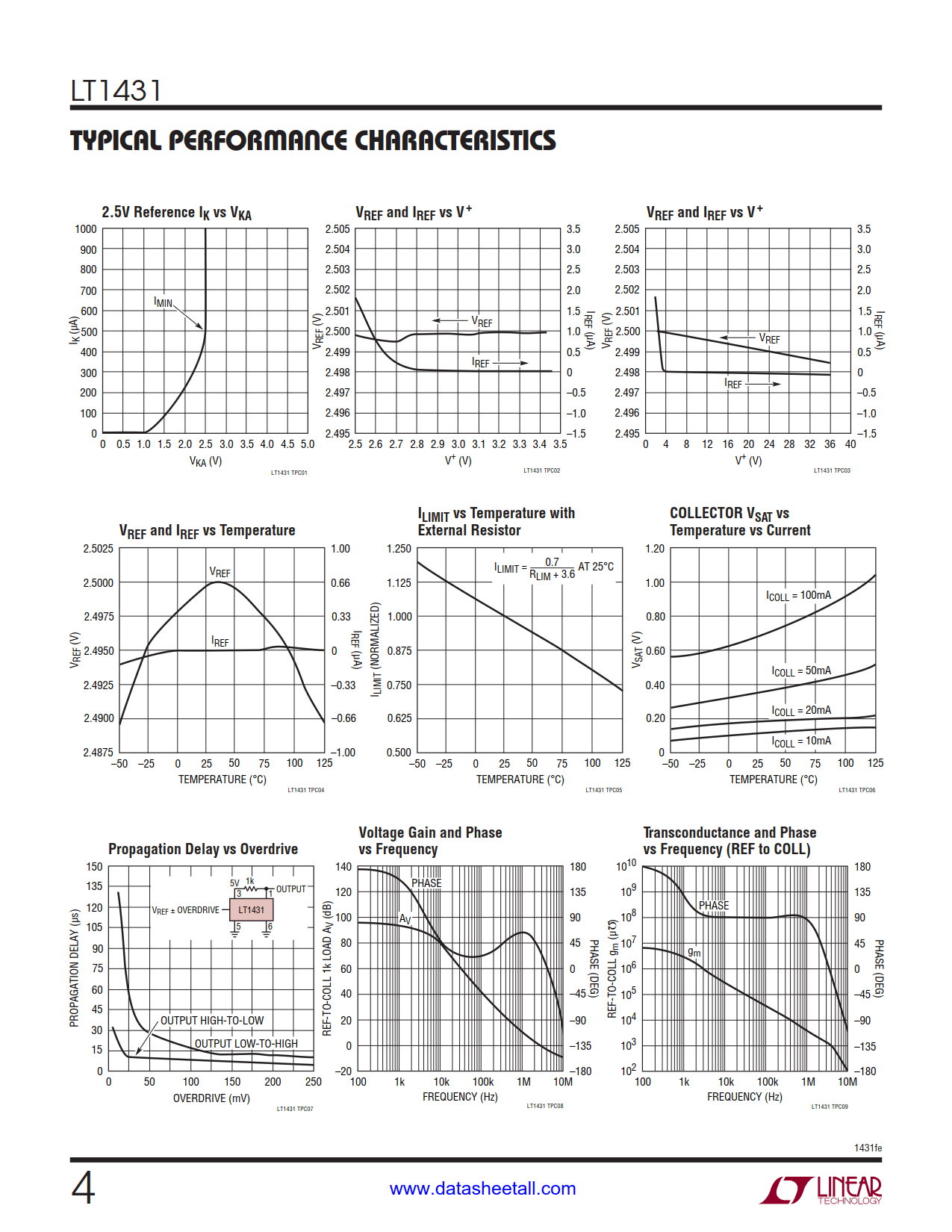

The LT1431 is an adjustable shunt voltage regulator with 100mA sink capability, 0.4% initial reference voltage tolerance and 0.3% typical temperature stability. On-chip divider resistors allow the LT1431 to be configured as a 5V shunt regulator, with 1% initial voltage tolerance and requiring no additional external components. By adding two external resistors, the output voltage may be set to any value between 2.5V and 36V. The nominal internal current limit of 100mA may be decreased by including one external resistor.
A simplified 3-pin version, the LT1431CZ/LT1431IZ, is available for applications as an adjustable reference and is pin compatible with the TL431.
