LT1397 Datasheet

LT1397 Datasheet

Quad 400MHz Current Feedback Amplifier
Part No.: LT1397
Page: 20 Pages
Size: 312 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-02-26 14:38:05
DataSheet: Download

LT1397 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LT1397CDE#PBF Tube 91 1397 1 14 0°C ~70°C 14-Lead (4mm × 3mm) Plastic DFN
LT1397CDE#TRPBF Reel 2500 1397 1 14 0°C ~70°C 14-Lead (4mm × 3mm) Plastic DFN
LT1397CDE#TRMPBF Reel 500 1397 1 14 0°C ~70°C 14-Lead (4mm × 3mm) Plastic DFN
LT1397HDE#PBF Tube 91 1397 1 14 -40°C ~125°C 14-Lead (4mm × 3mm) Plastic DFN
LT1397HDE#TRPBF Reel 2500 1397 1 14 -40°C ~125°C 14-Lead (4mm × 3mm) Plastic DFN
LT1397HDE#TRMPBF Reel 500 1397 1 14 -40°C ~125°C 14-Lead (4mm × 3mm) Plastic DFN
LT1397CGN#PBF Tube 100 1397 1 16 0°C ~70°C 16-Lead Plastic SSOP
LT1397CGN#TRPBF Reel 2500 1397 1 16 0°C ~70°C 16-Lead Plastic SSOP
LT1397CGN#TRMPBF Reel 500 1397 1 16 0°C ~70°C 16-Lead Plastic SSOP
LT1397CS#PBF Tube 55 1397CS 1 14 0°C ~70°C 14-Lead Plastic SO
LT1397CS#TRPBF Reel 2500 1397CS 1 14 0°C ~70°C 14-Lead Plastic SO
LT1397CS#TRMPBF Reel 500 1397CS 1 14 0°C ~70°C 14-Lead Plastic SO
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LT1397 Datasheet(PDF)

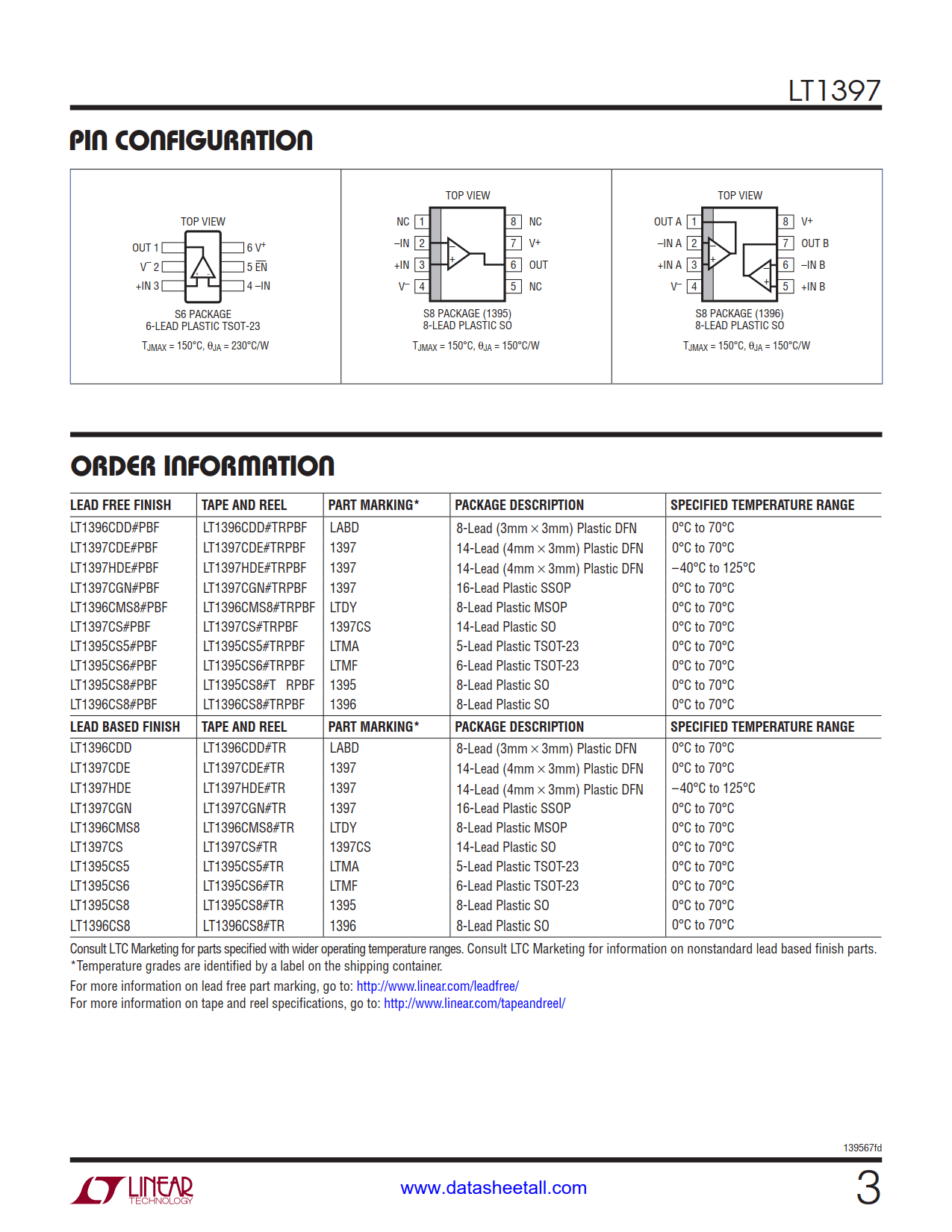

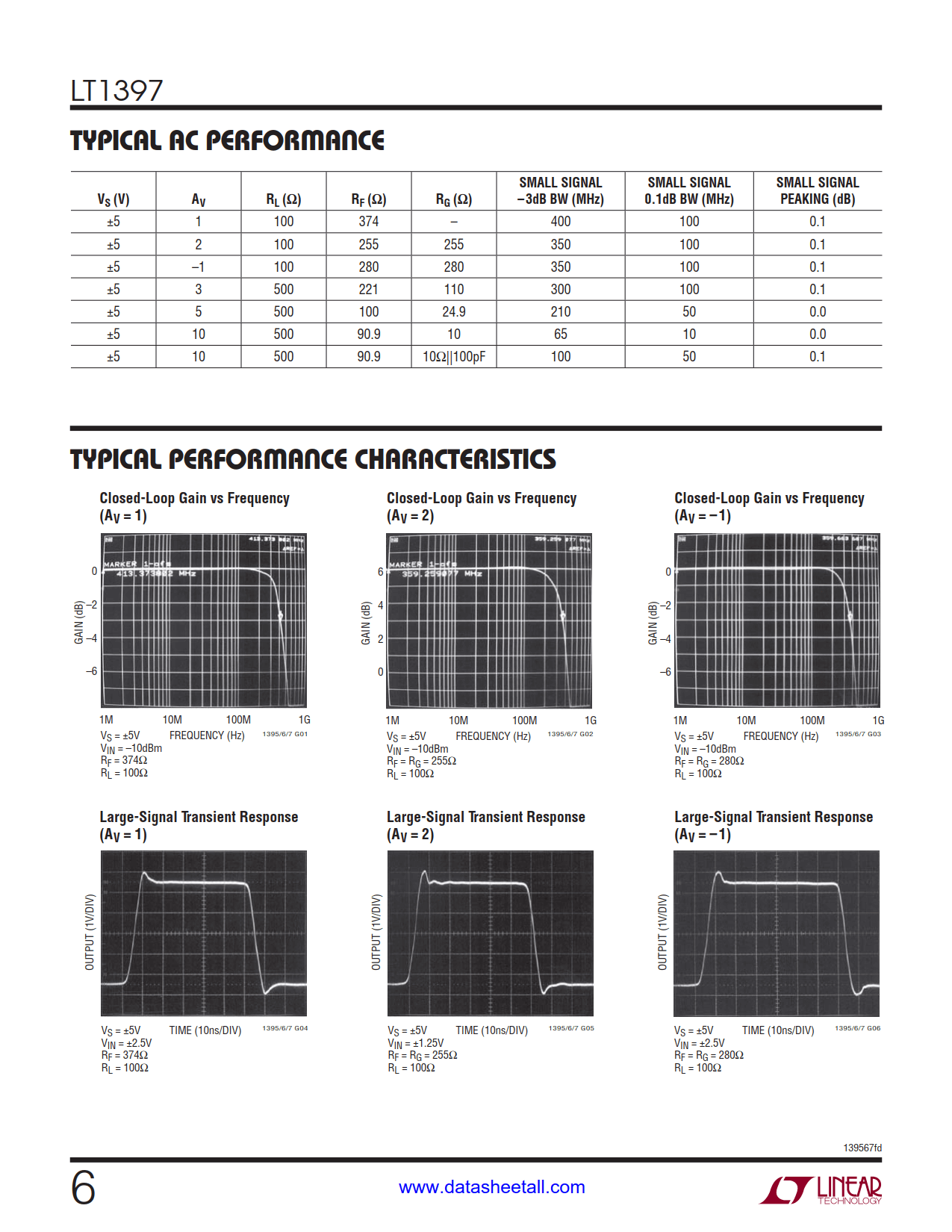

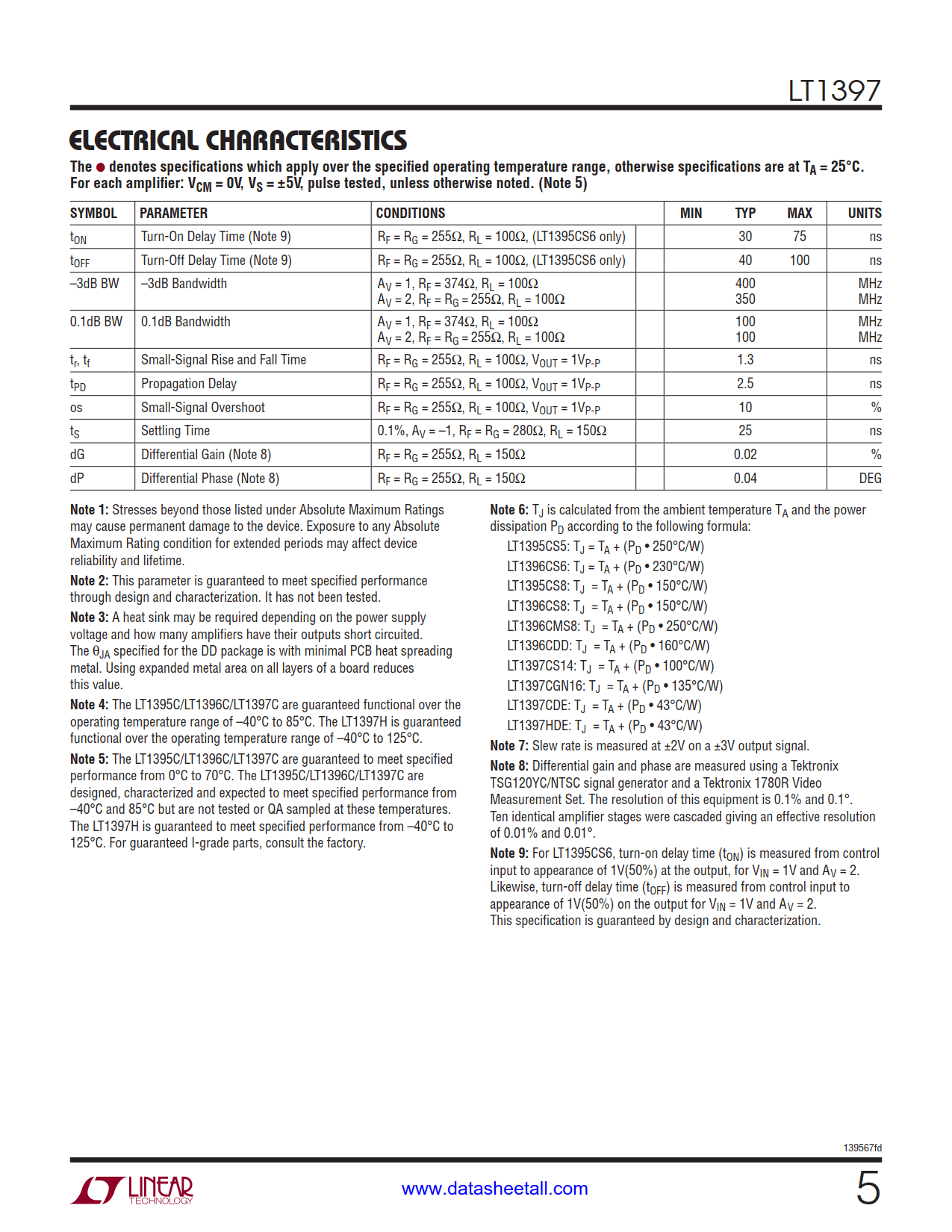

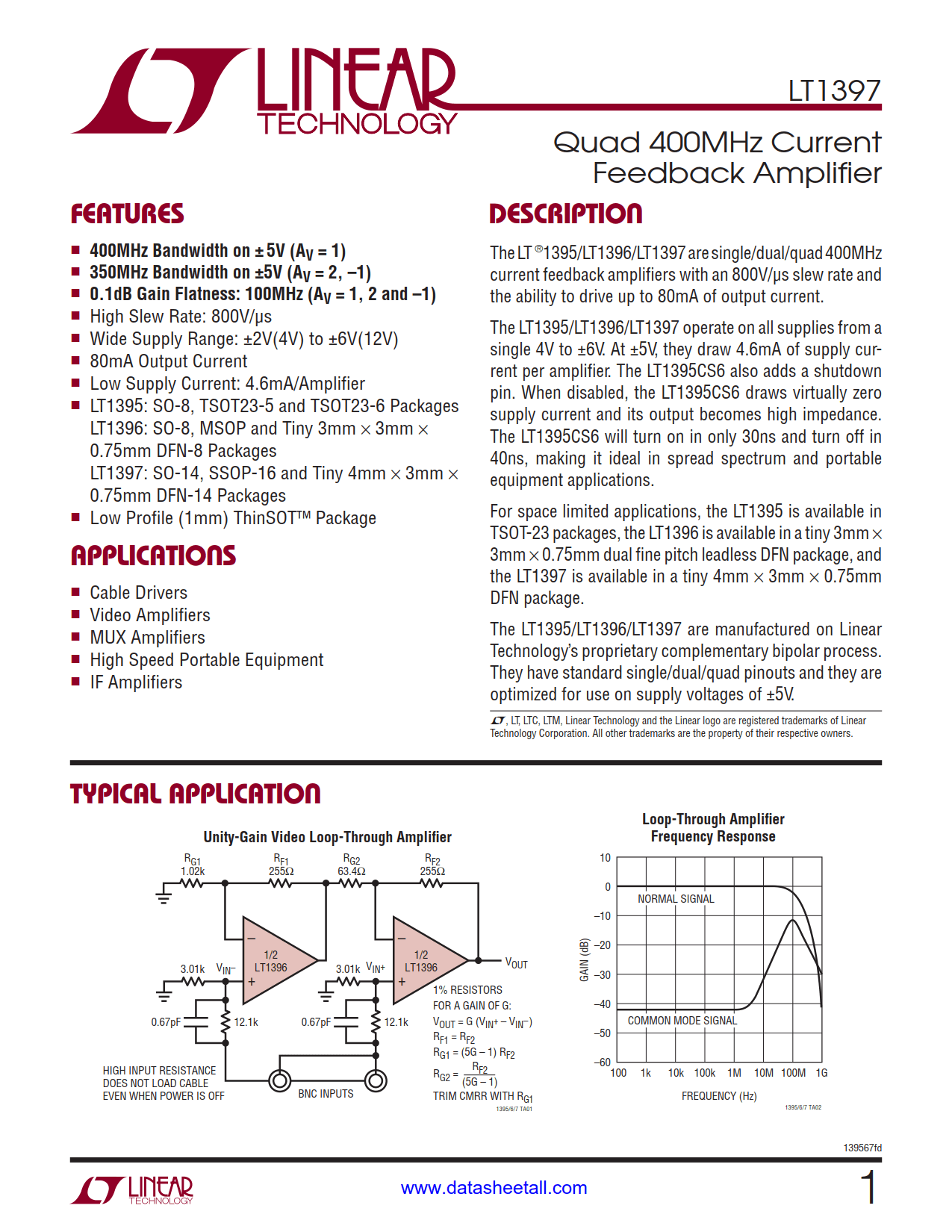

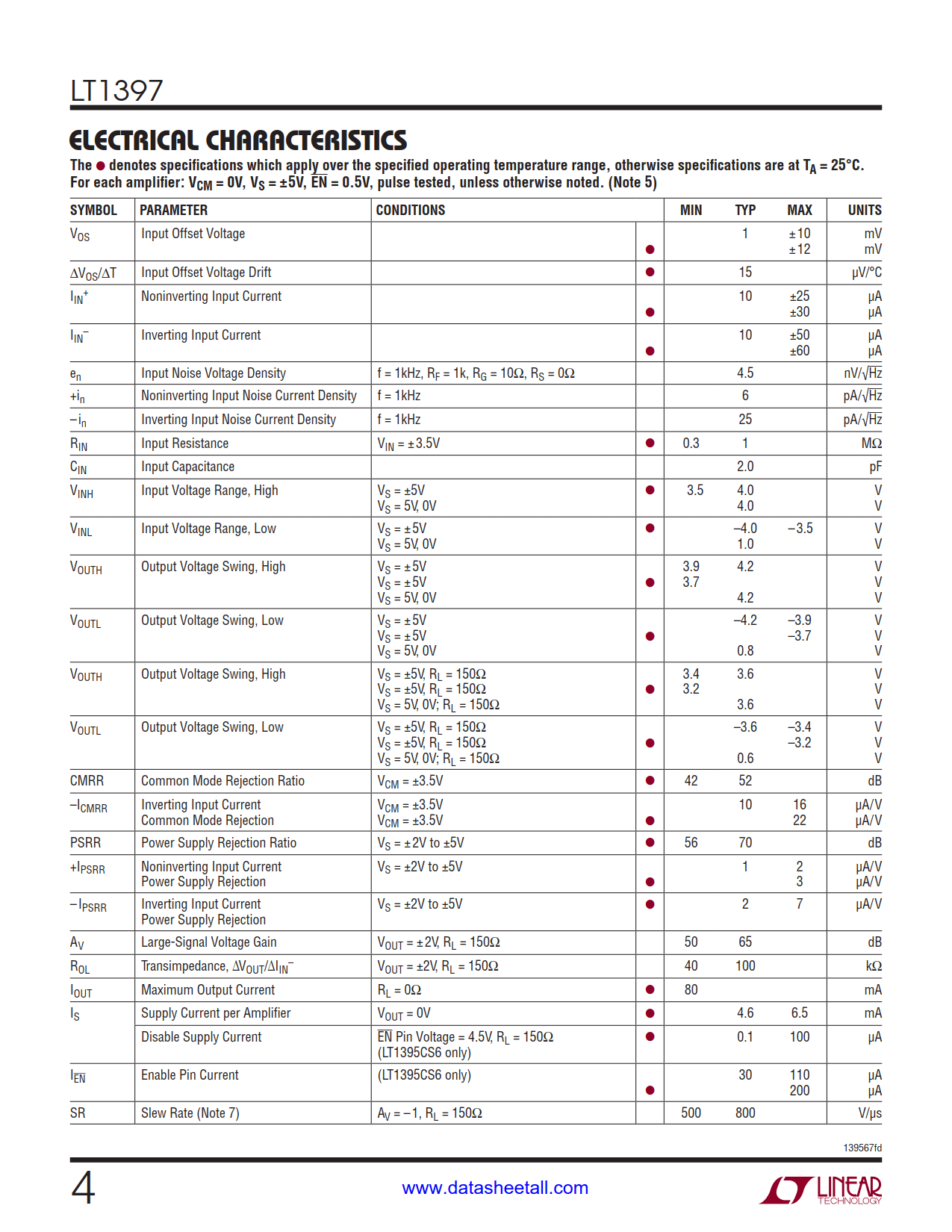

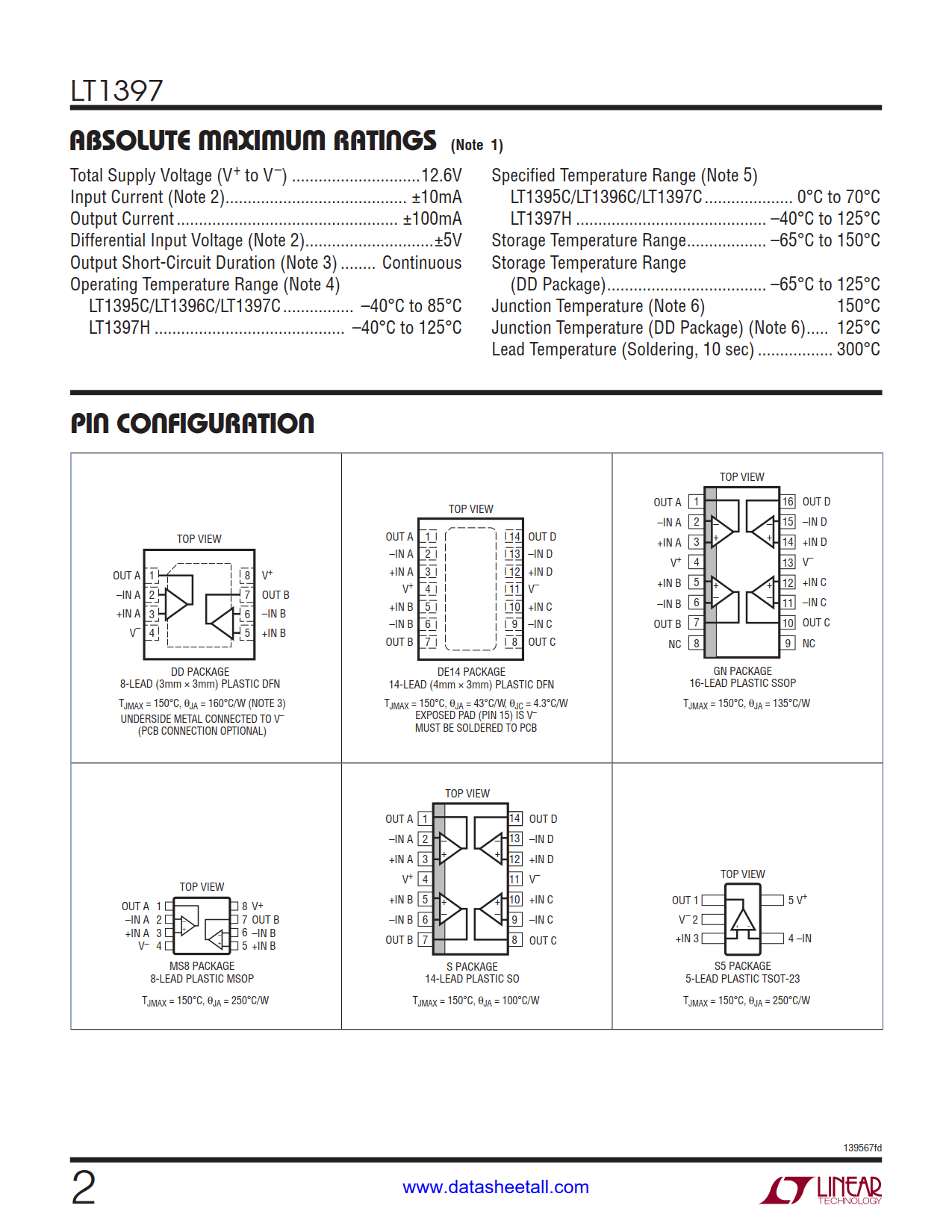

LT1397 Datasheet(Picture)

LT1397 Features

  • 400MHz Bandwidth on ±5V (AV = 1)
  • 350MHz Bandwidth on ±5V (AV = 2, –1)
  • 0.1dB Gain Flatness: 100MHz (AV = 1, 2 and –1)
  • High Slew Rate: 800V/µs
  • Wide Supply Range: ±2V(4V) to ±6V(12V)
  • 80mA Output Current
  • Low Supply Current: 4.6mA/Amplifier
  • LT1397: SO-14, SSOP-16 and Tiny 4mm × 3mm × 0.75mm DFN-14 Packages
  • Low Profile (1mm) ThinSOT Package

LT1397 Applications

  • Cable Drivers
  • Video Amplifiers
  • MUX Amplifiers
  • High Speed Portable Equipment
  • IF Amplifiers

LT1397 Description

The LT1397 are quad 400MHz current feedback amplifiers with an 800V/µs slew rate and the ability to drive up to 80mA of output current.

The LT1397 operate on all supplies from a single 4V to ±6V. At ±5V, they draw 4.6mA of supply current per amplifier.

For space limited applications, the LT1397 is available in a tiny 4mm × 3mm × 0.75mm DFN package.

The LT1397 are manufactured on our proprietary complementary bipolar process. They have standard quad pinouts and they are optimized for use on supply voltages of ±5V.
