Part No.: | LT1396 |
Page: | 20 Pages |
Size: | 312 KB |
Manufacturer: | Linear Technology |
Logo: | |
Views: | 1 |
Update Time: | 2024-02-26 14:32:15 |
DataSheet: | Download |

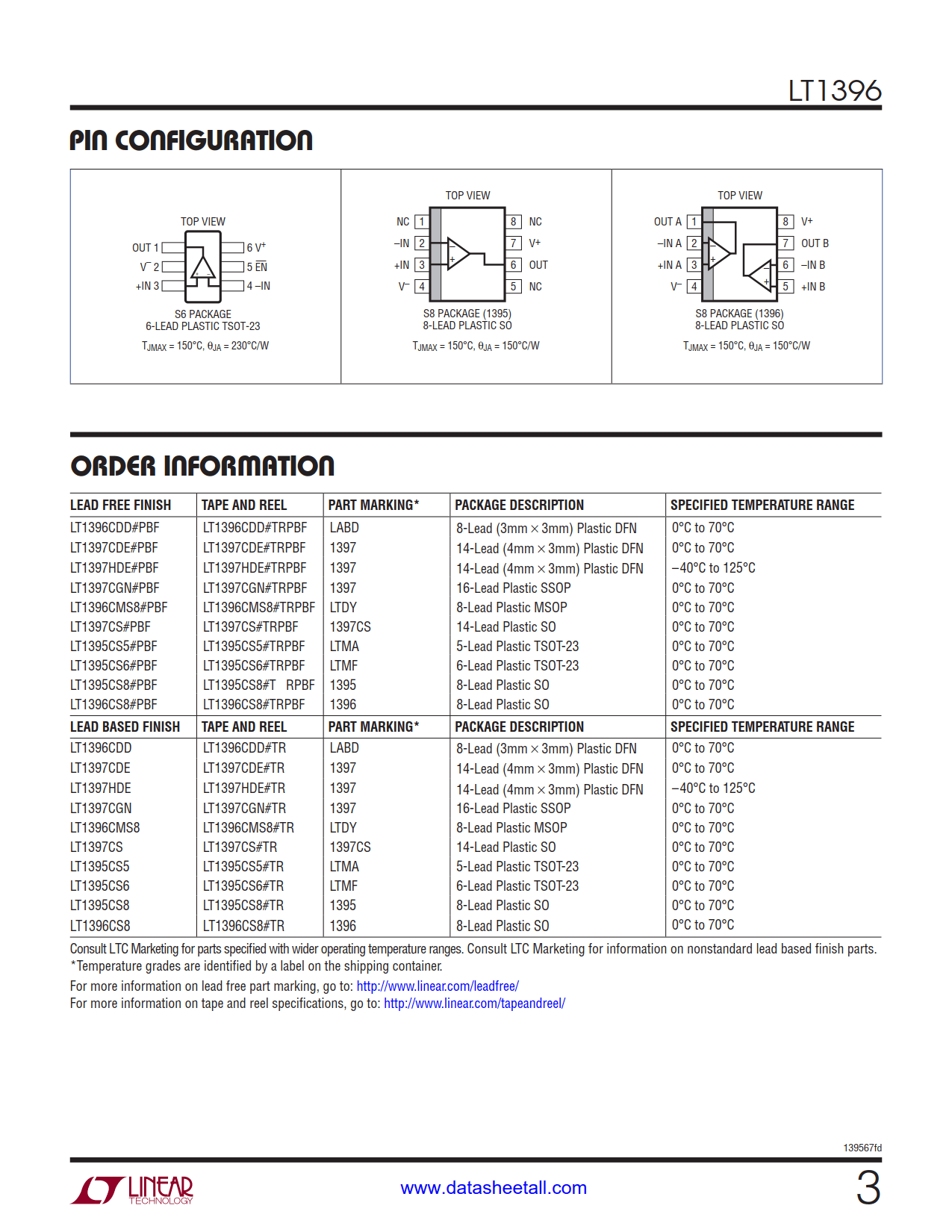

Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
LT1396CDD#PBF | Tube | 121 | LABD | 1 | 8 | 0°C ~70°C | 8-Lead (3mm × 3mm) Plastic DFN | |
LT1396CDD#TRPBF | Reel | 2500 | LABD | 1 | 8 | 0°C ~70°C | 8-Lead (3mm × 3mm) Plastic DFN | |
LT1396CDD#TRMPBF | Reel | 500 | LABD | 1 | 8 | 0°C ~70°C | 8-Lead (3mm × 3mm) Plastic DFN | |
LT1396CMS8#PBF | Tube | 50 | LTDY | 1 | 8 | 0°C ~70°C | 8-Lead Plastic MSOP | |
LT1396CMS8#TRPBF | Reel | 2500 | LTDY | 1 | 8 | 0°C ~70°C | 8-Lead Plastic MSOP | |
LT1396CMS8#TRMPBF | Reel | 500 | LTDY | 1 | 8 | 0°C ~70°C | 8-Lead Plastic MSOP | |
LT1396CS8#PBF | Tube | 100 | 1396 | 1 | 8 | 0°C ~70°C | 8-Lead Plastic SO | |
LT1396CS8#TRPBF | Reel | 2500 | 1396 | 1 | 8 | 0°C ~70°C | 8-Lead Plastic SO | |
LT1396CS8#TRMPBF | Reel | 500 | 1396 | 1 | 8 | 0°C ~70°C | 8-Lead Plastic SO |

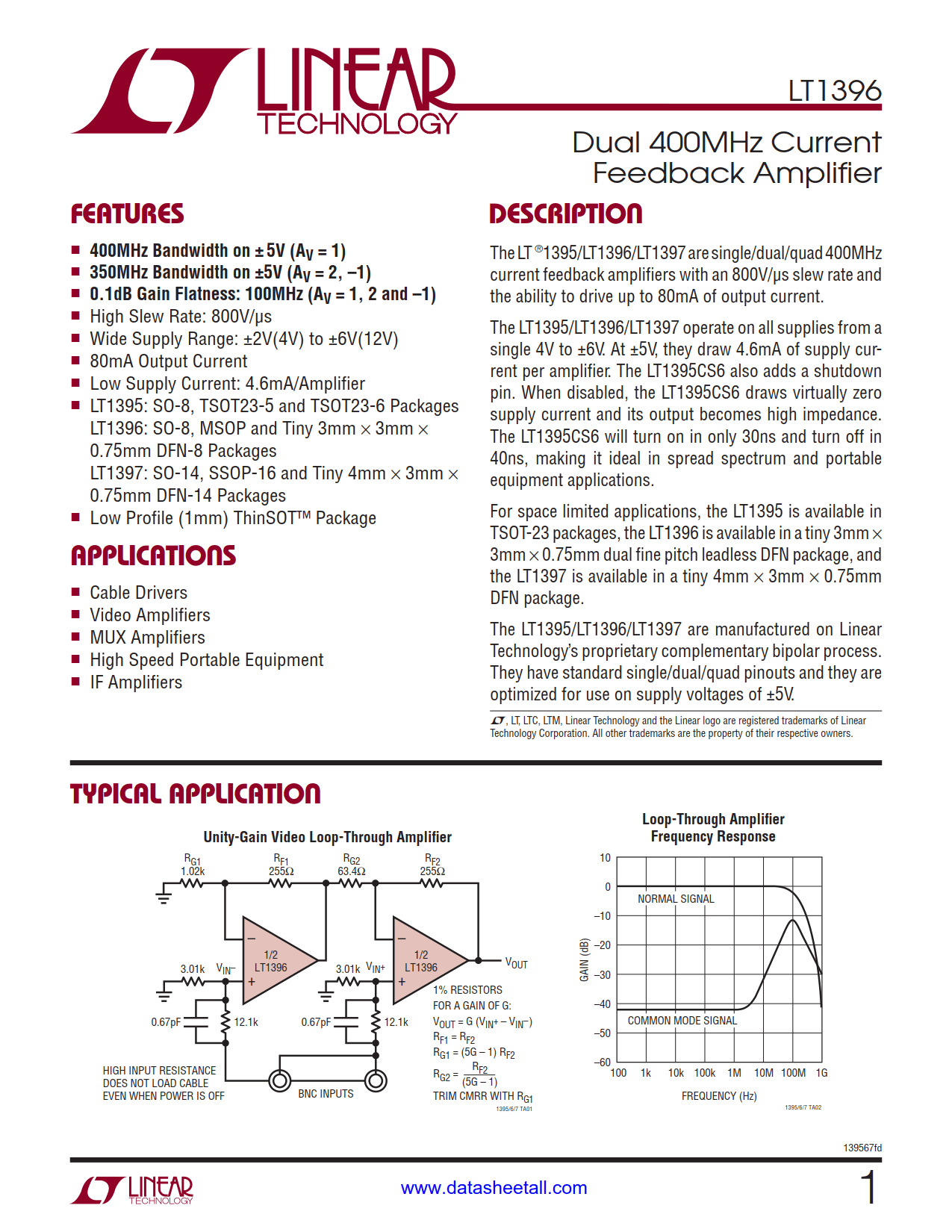

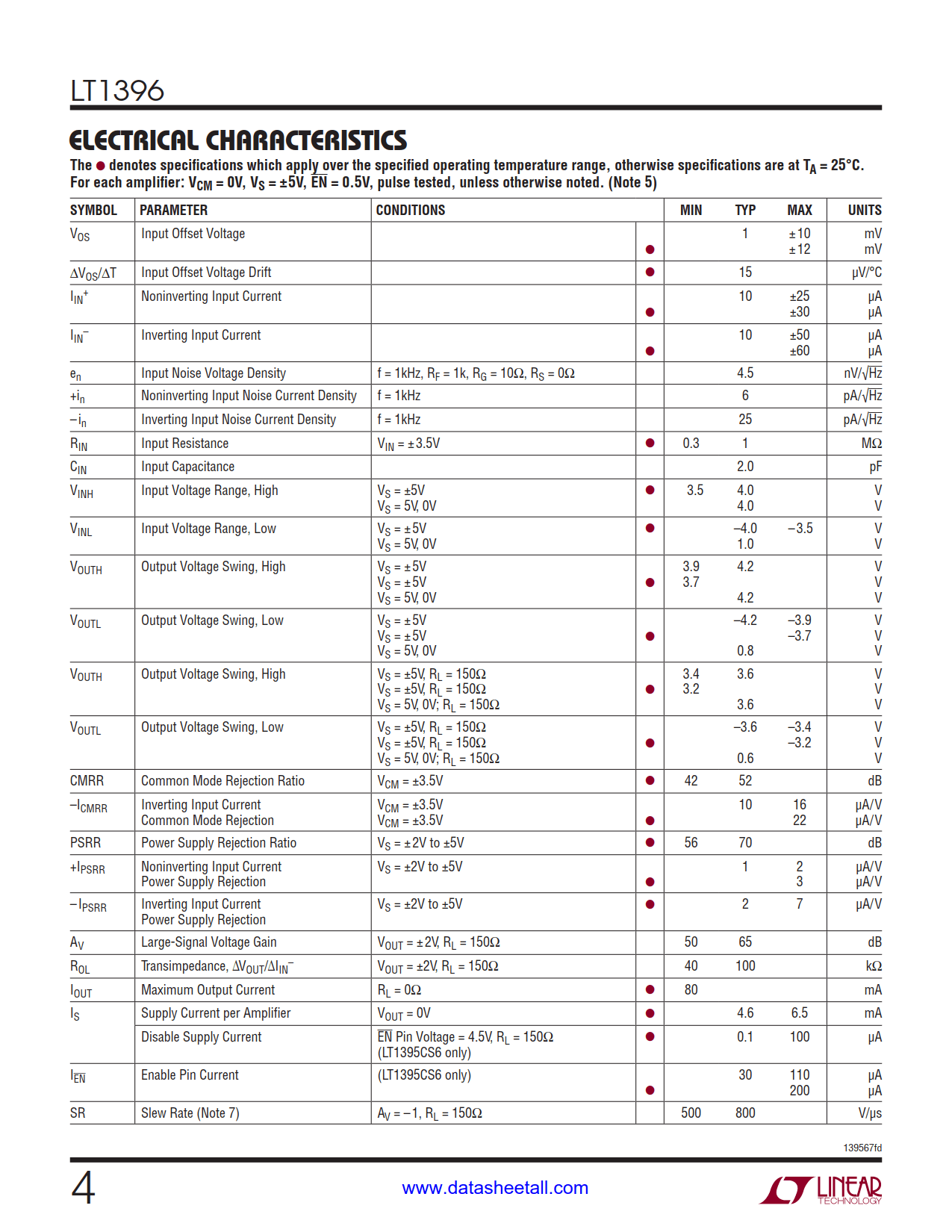

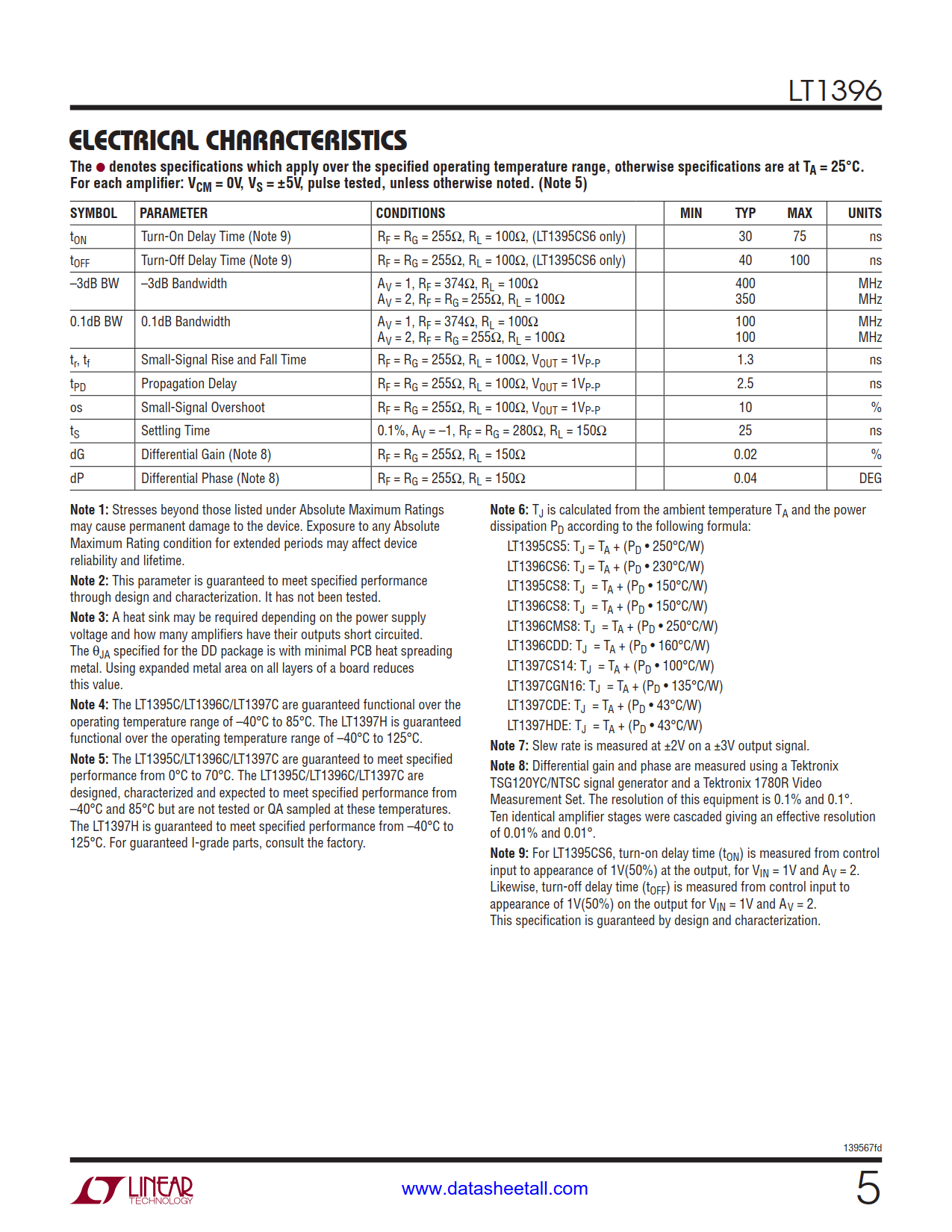

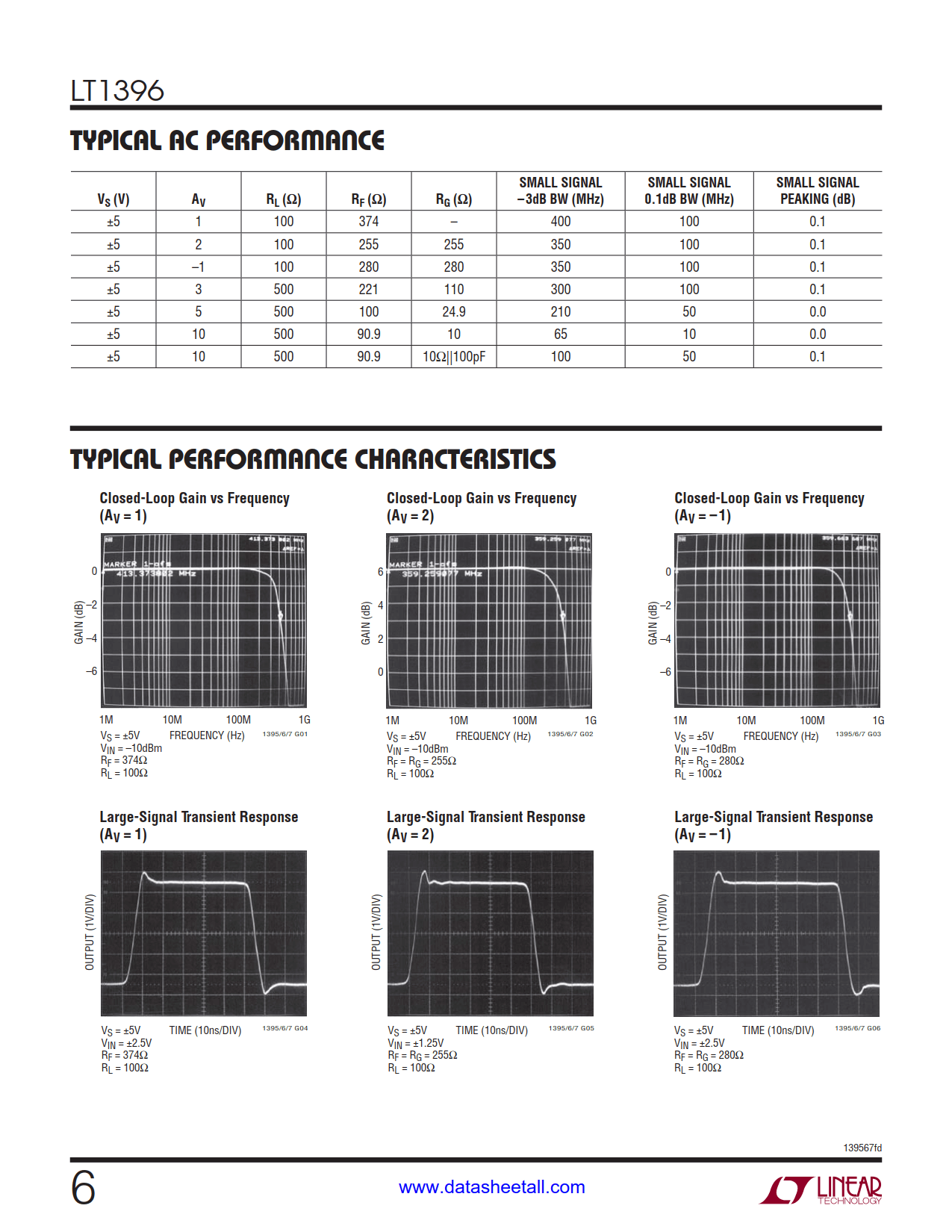

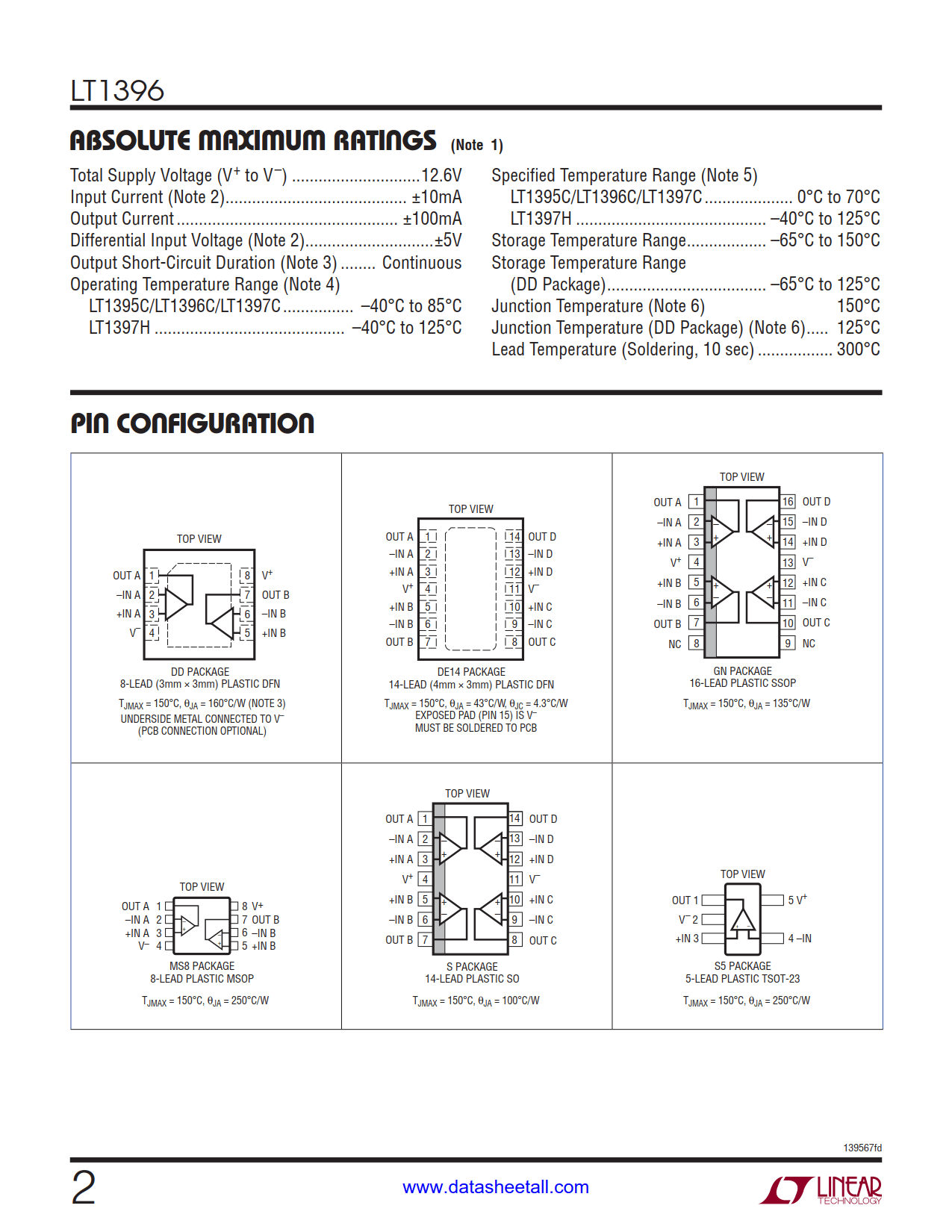

The LT1396 are dual 400MHz current feedback amplifiers with an 800V/µs slew rate and the ability to drive up to 80mA of output current.
The LT1396 operate on all supplies from a single 4V to ±6V. At ±5V, they draw 4.6mA of supply current per amplifier.
For space limited applications, the LT1396 is available in a tiny 3mm × 3mm × 0.75mm dual fine pitch leadless DFN package.
The LT1396 are manufactured on our proprietary complementary bipolar process. They have standard dual pinouts and they are optimized for use on supply voltages of ±5V.
