LT1369 Datasheet

LT1369 Datasheet

Quad Precision Rail-to-Rail Input and Output Op Amps
Part No.: LT1369
Page: 20 Pages
Size: 320 KB
Manufacturer: Linear Technology
Logo:
Views: 2
Update Time: 2024-01-03 15:37:46
DataSheet: Download

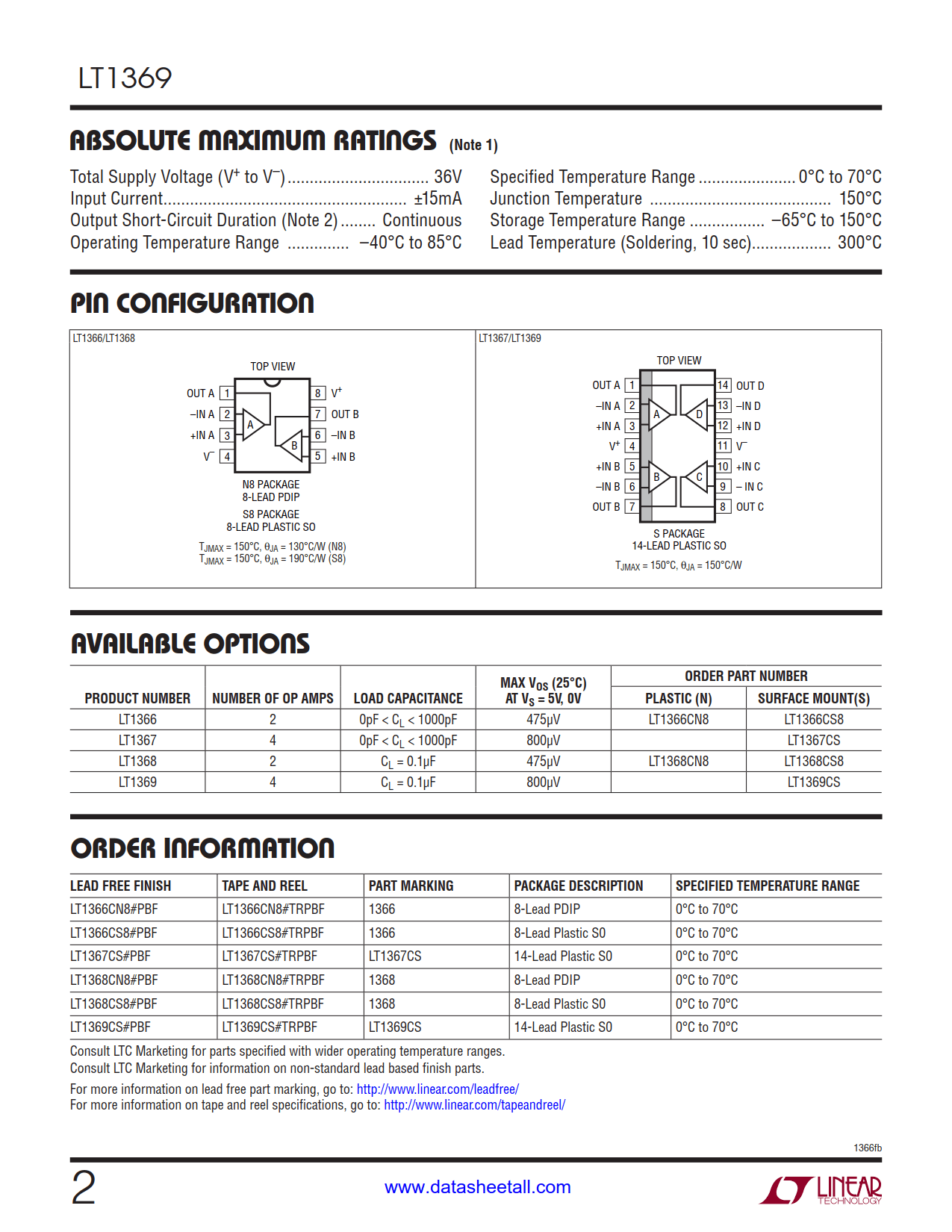

LT1369 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LT1369CS#PBF Tube 55 LT1369CS 1 14 0°C ~ 70°C 14-Lead Plastic S0
LT1369CS#TRPBF Reel 2500 LT1369CS 1 14 0°C ~ 70°C 14-Lead Plastic S0
LT1369CS#TRMPBF Reel 500 LT1369CS 1 14 0°C ~ 70°C 14-Lead Plastic S0
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LT1369 Datasheet(PDF)

LT1369 Datasheet(Picture)

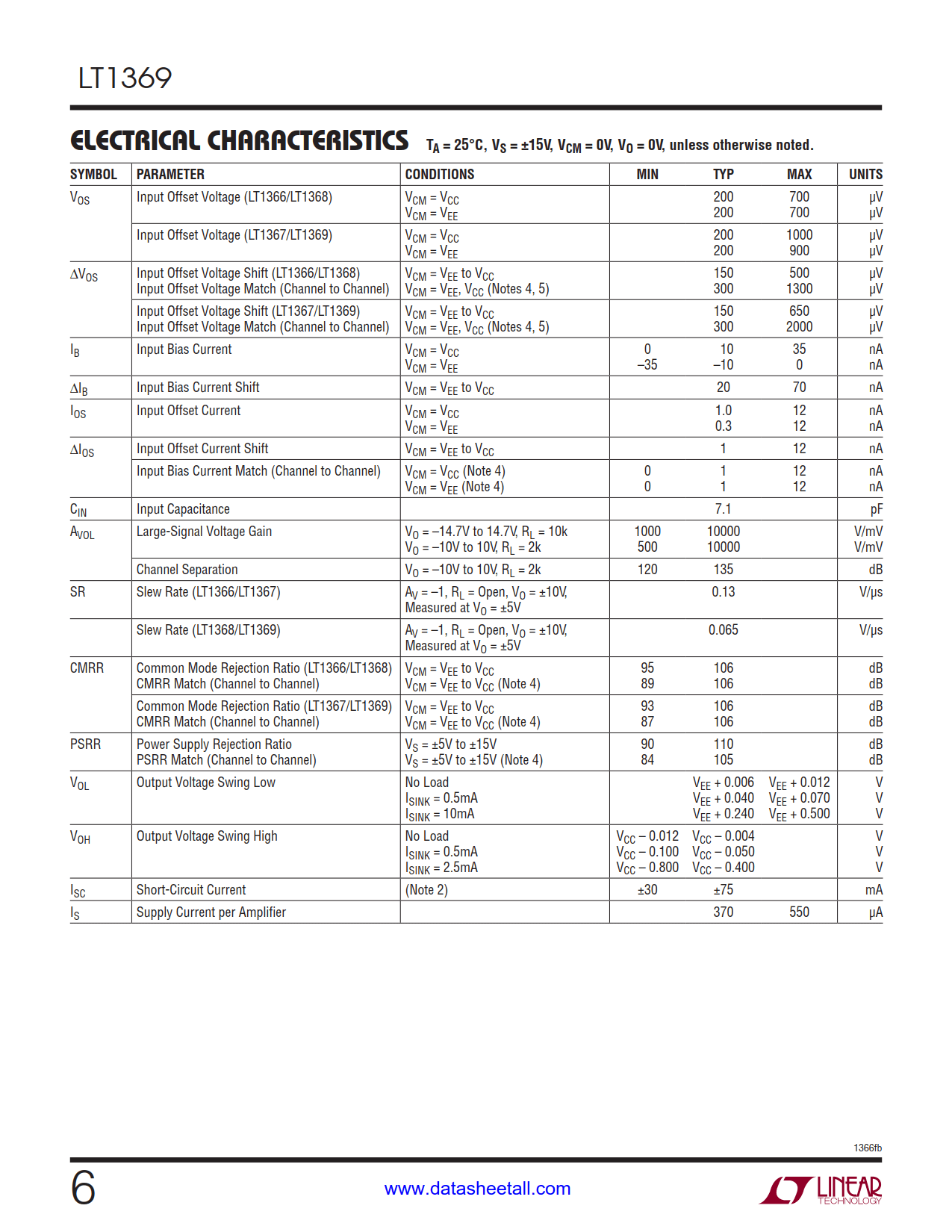

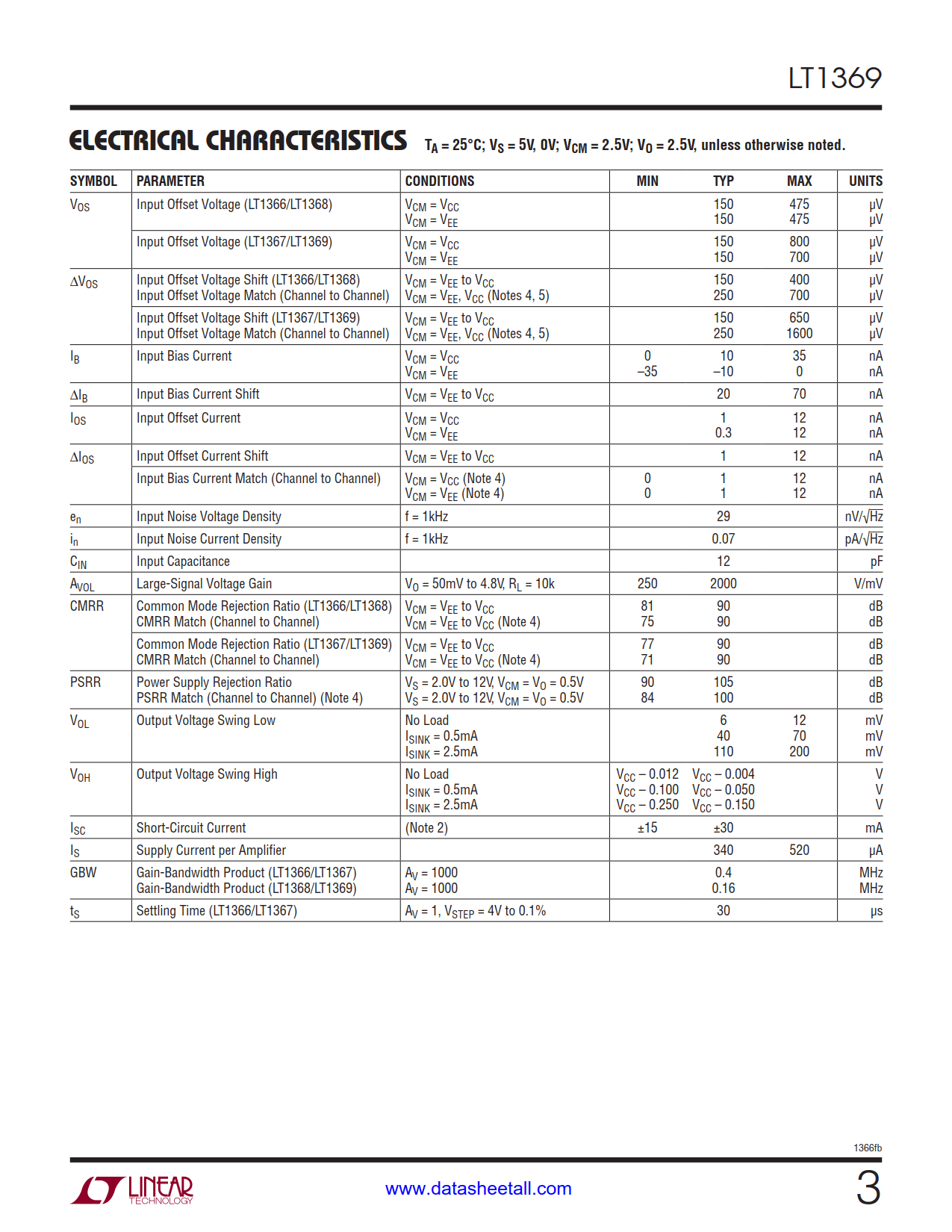

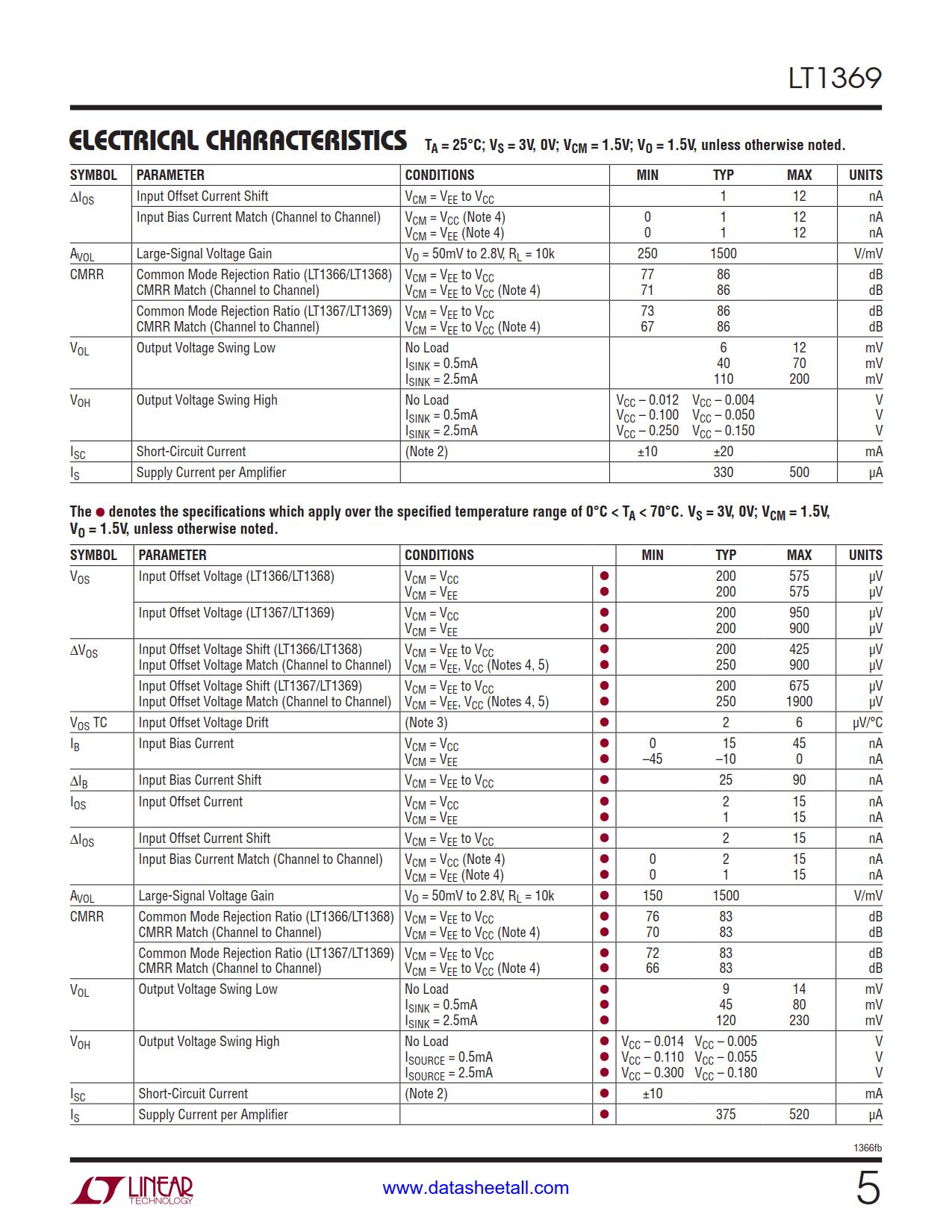

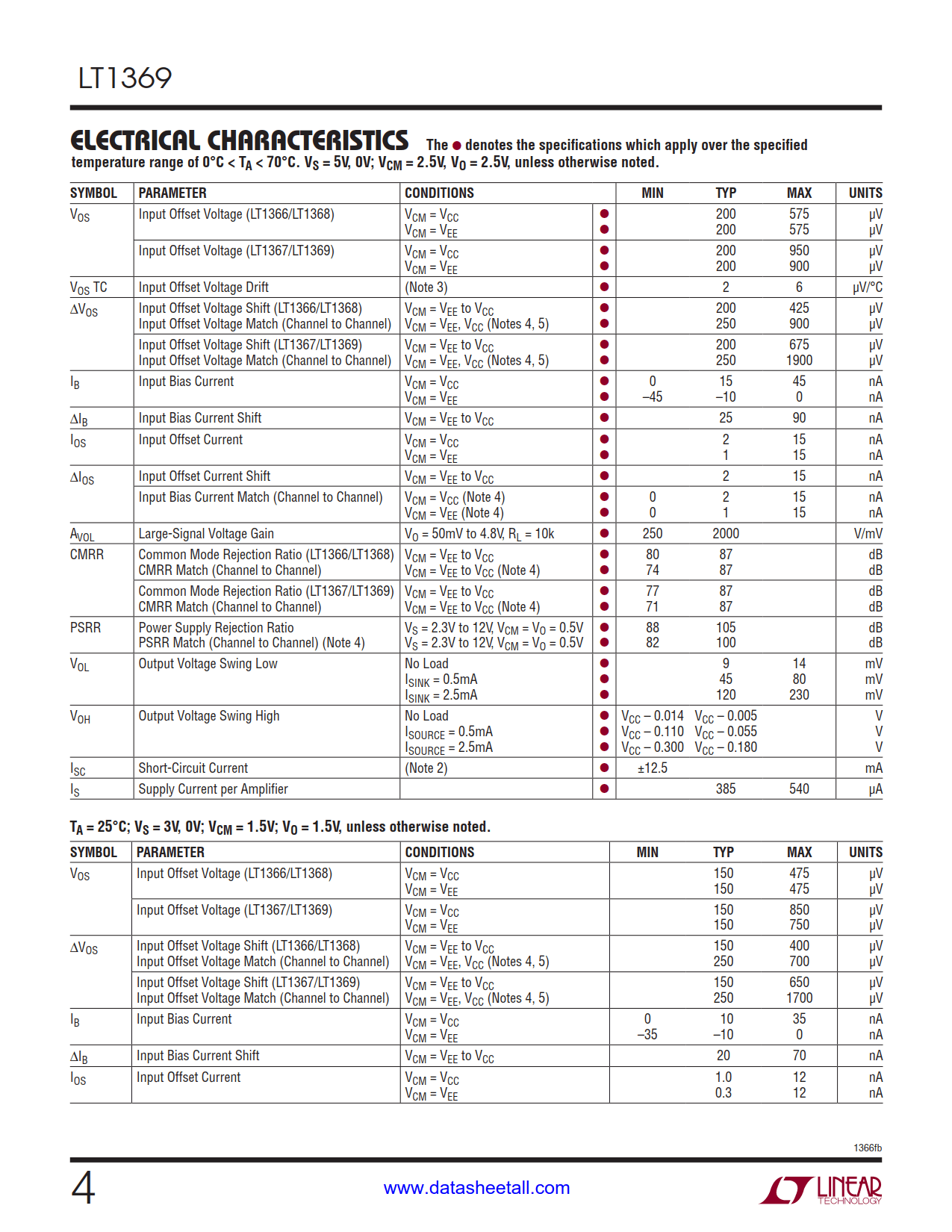

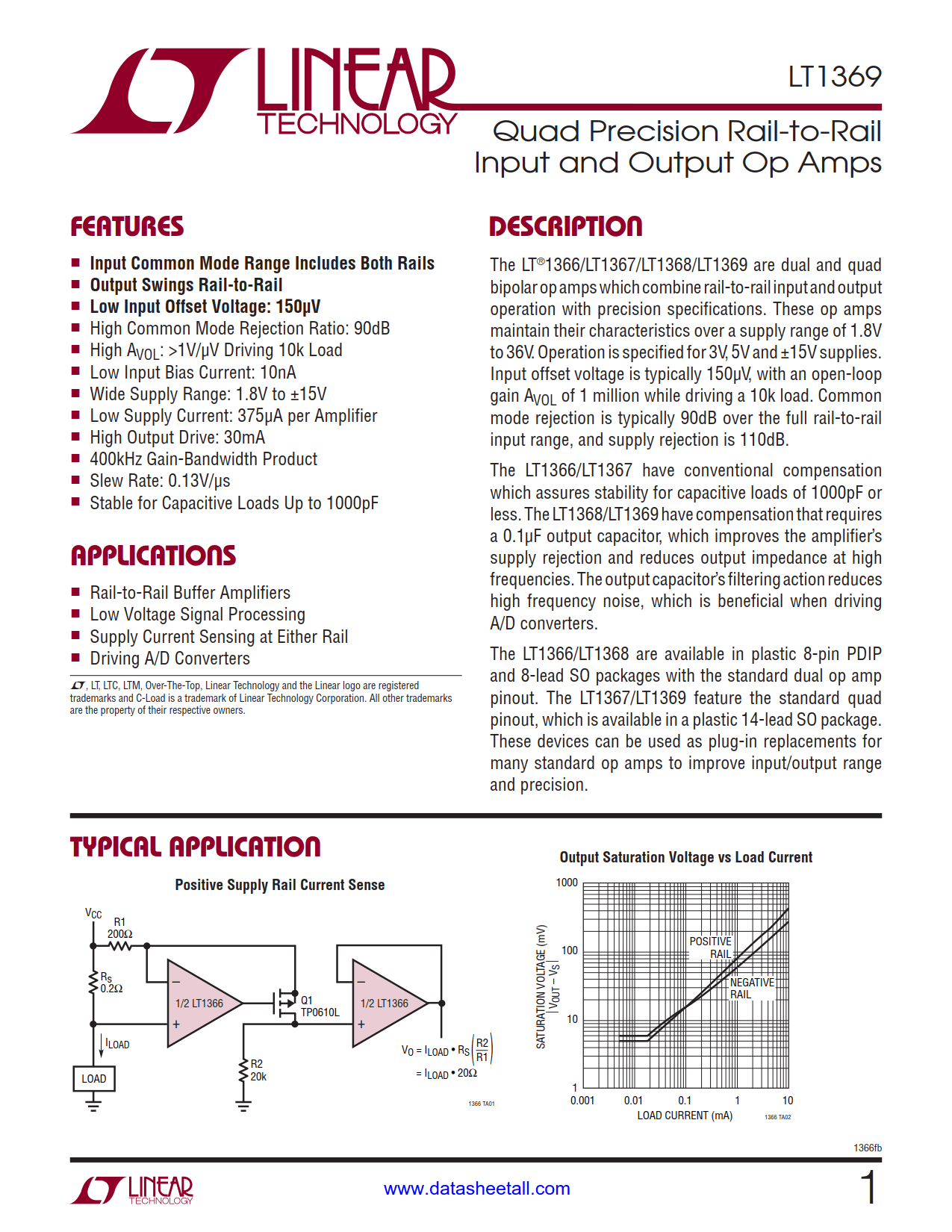

LT1369 Features

  • Input Common Mode Range Includes Both Rails
  • Output Swings Rail-to-Rail
  • Low Input Offset Voltage: 150μV
  • High Common Mode Rejection Ratio: 90dB
  • High AVOL: >1V/μV Driving 10k Load
  • Low Input Bias Current: 10nA
  • Wide Supply Range: 1.8V to ±15V
  • Low Supply Current: 375μA per Amplifier
  • High Output Drive: 30mA
  • 400kHz Gain-Bandwidth Product
  • Slew Rate: 0.13V/μs
  • Stable for Capacitive Loads Up to 1000pF

LT1369 Applications

  • Rail-to-Rail Buffer Amplifiers
  • Low Voltage Signal Processing
  • Supply Current Sensing at Either Rail
  • Driving A/D Converters

LT1369 Description

The LT1369 are dual and quad bipolar op amps which combine rail-to-rail input and output operation with precision specifications. These op amps maintain their characteristics over a supply range of 1.8V to 36V. Operation is specified for 3V, 5V and ±15V supplies. Input offset voltage is typically 150μV, with an open-loop gain AVOL of 1 million while driving a 10k load. Common mode rejection is typically 90dB over the full rail-to-rail input range, and supply rejection is 110dB.

The LT1369 have compensation that requires a 0.1μF output capacitor, which improves the amplifier’s supply rejection and reduces output impedance at high frequencies. The output capacitor’s filtering action reduces high frequency noise, which is beneficial when driving A/D converters.

The LT1369 feature the standard quad pinout, which is available in a plastic 14-lead SO package. These devices can be used as plug-in replacements for many standard op amps to improve input/output range and precision.
