LT1367 Datasheet

LT1367 Datasheet

Quad Precision Rail-to-Rail Input and Output Op Amps
Part No.: LT1367
Page: 20 Pages
Size: 320 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-01-03 15:01:18
DataSheet: Download

LT1367 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LT1367CS#PBF Tube 55 LT1367CS 1 14 0°C ~ 70°C 14-Lead Plastic S0
LT1367CS#TRPBF Reel 2500 LT1367CS 1 14 0°C ~ 70°C 14-Lead Plastic S0
LT1367CS#TRMPBF Reel 500 LT1367CS 1 14 0°C ~ 70°C 14-Lead Plastic S0
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LT1367 Datasheet(PDF)

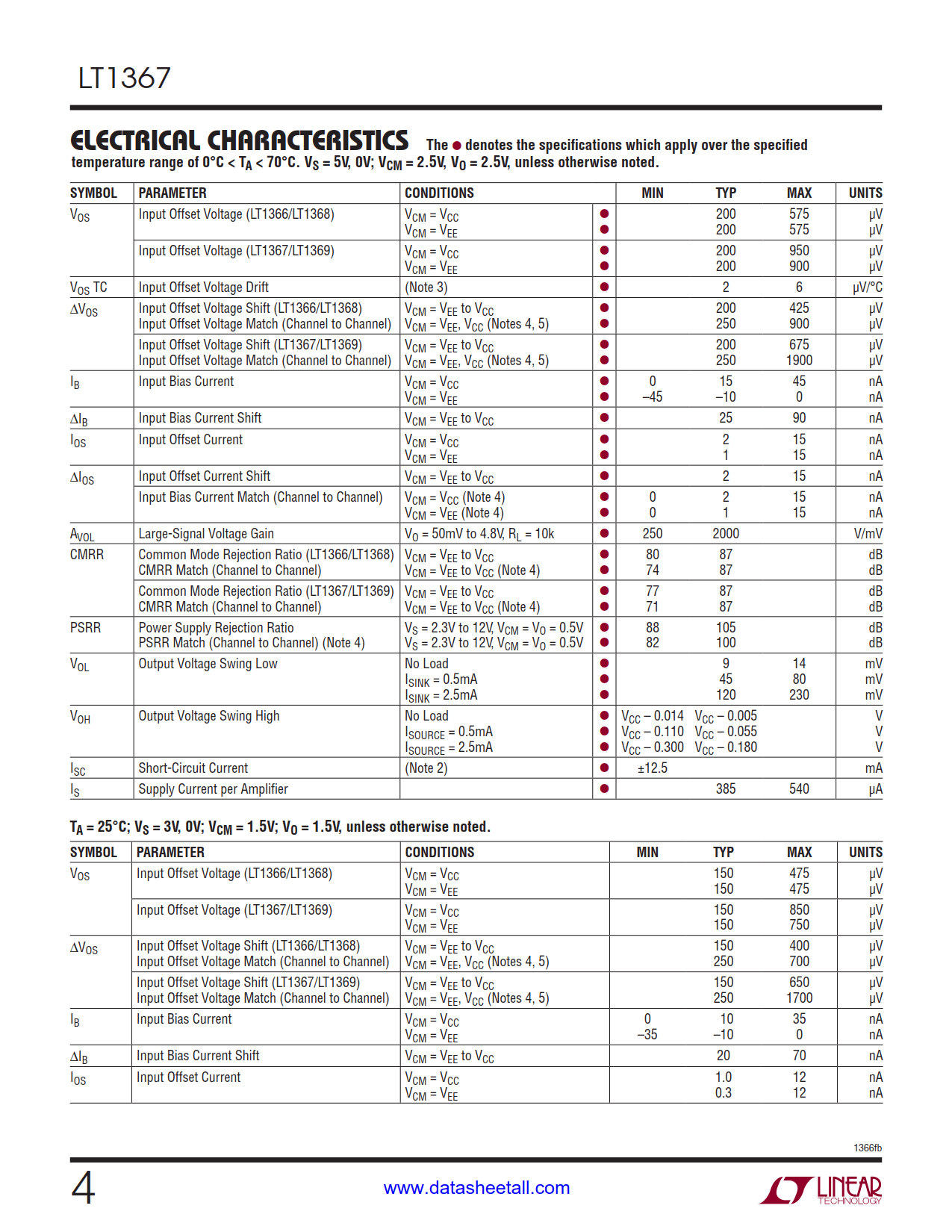

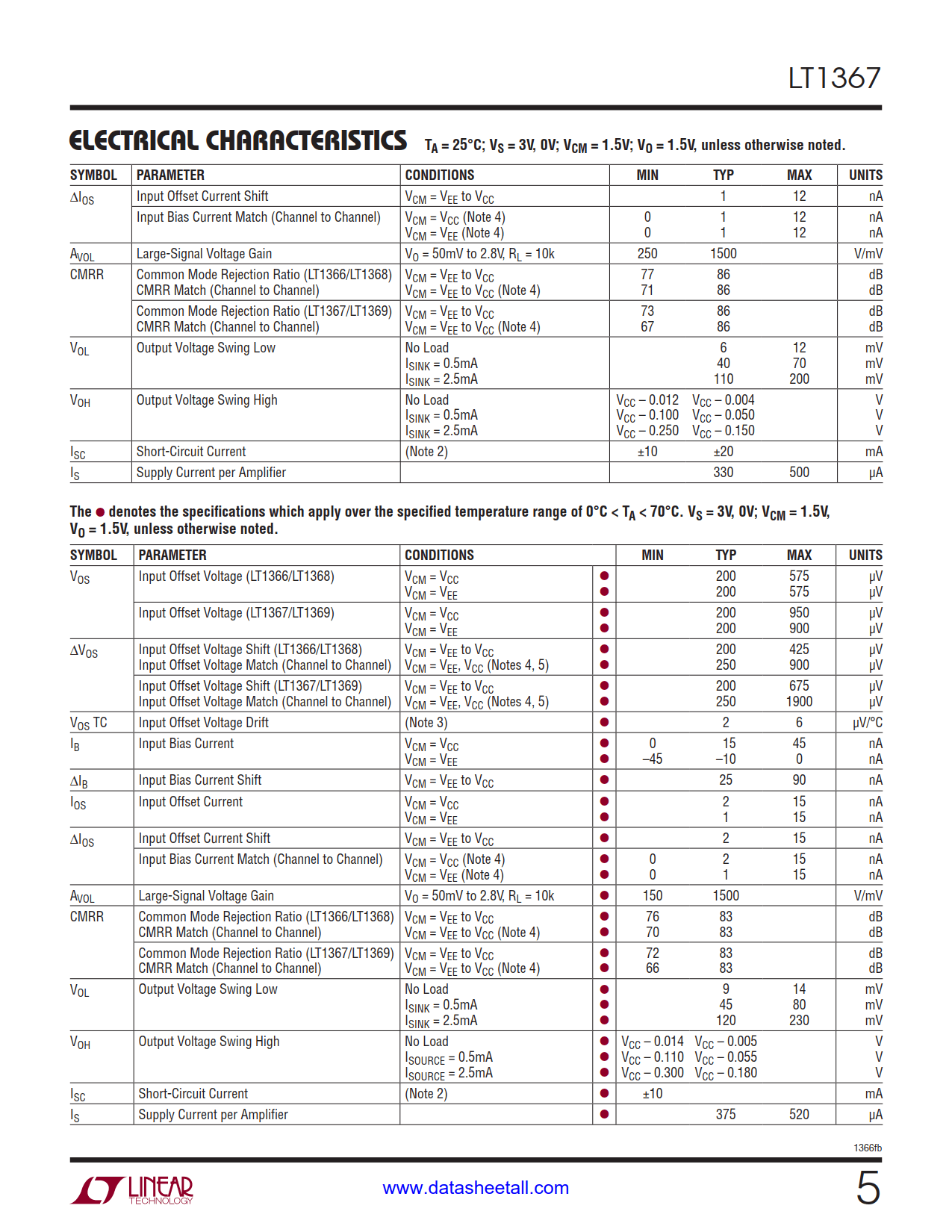

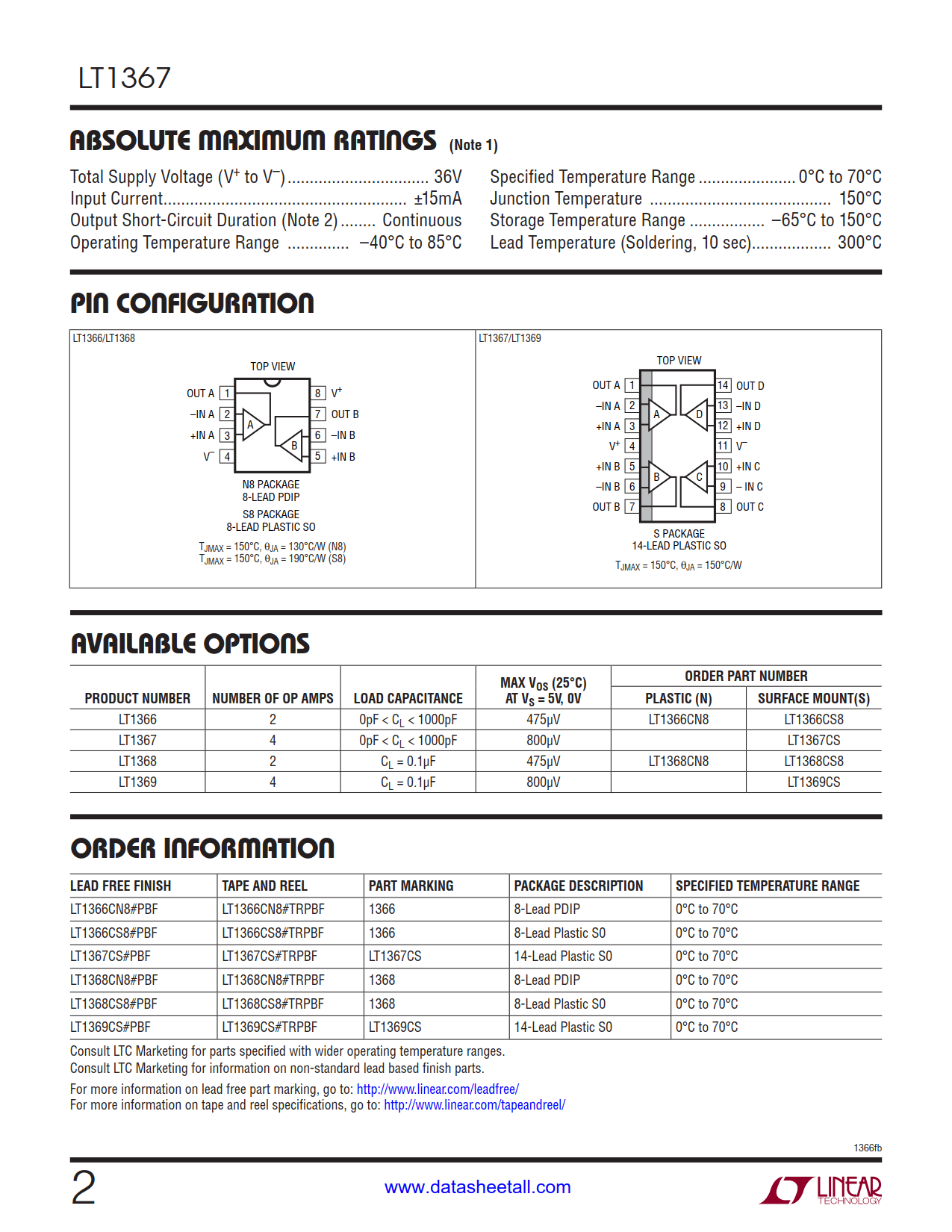

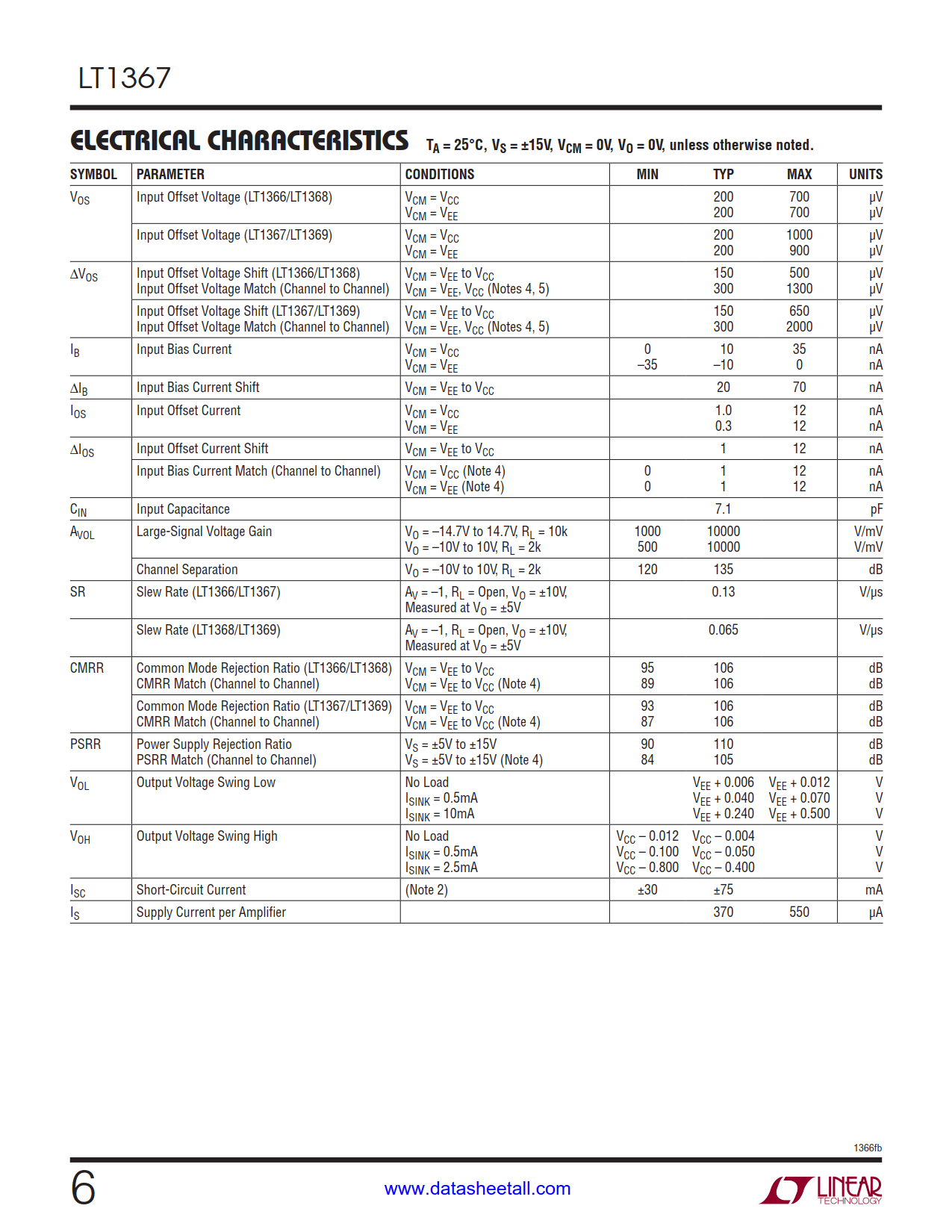

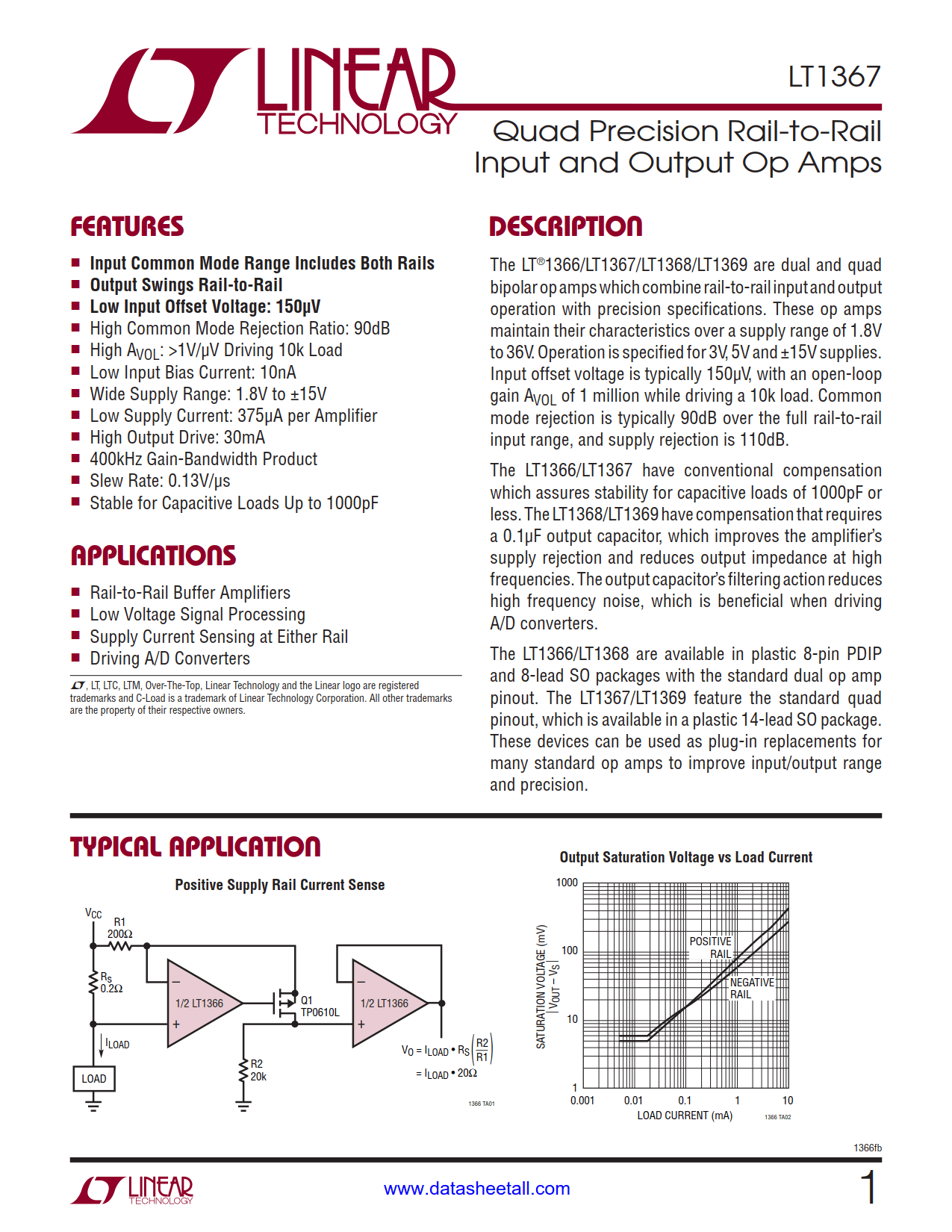

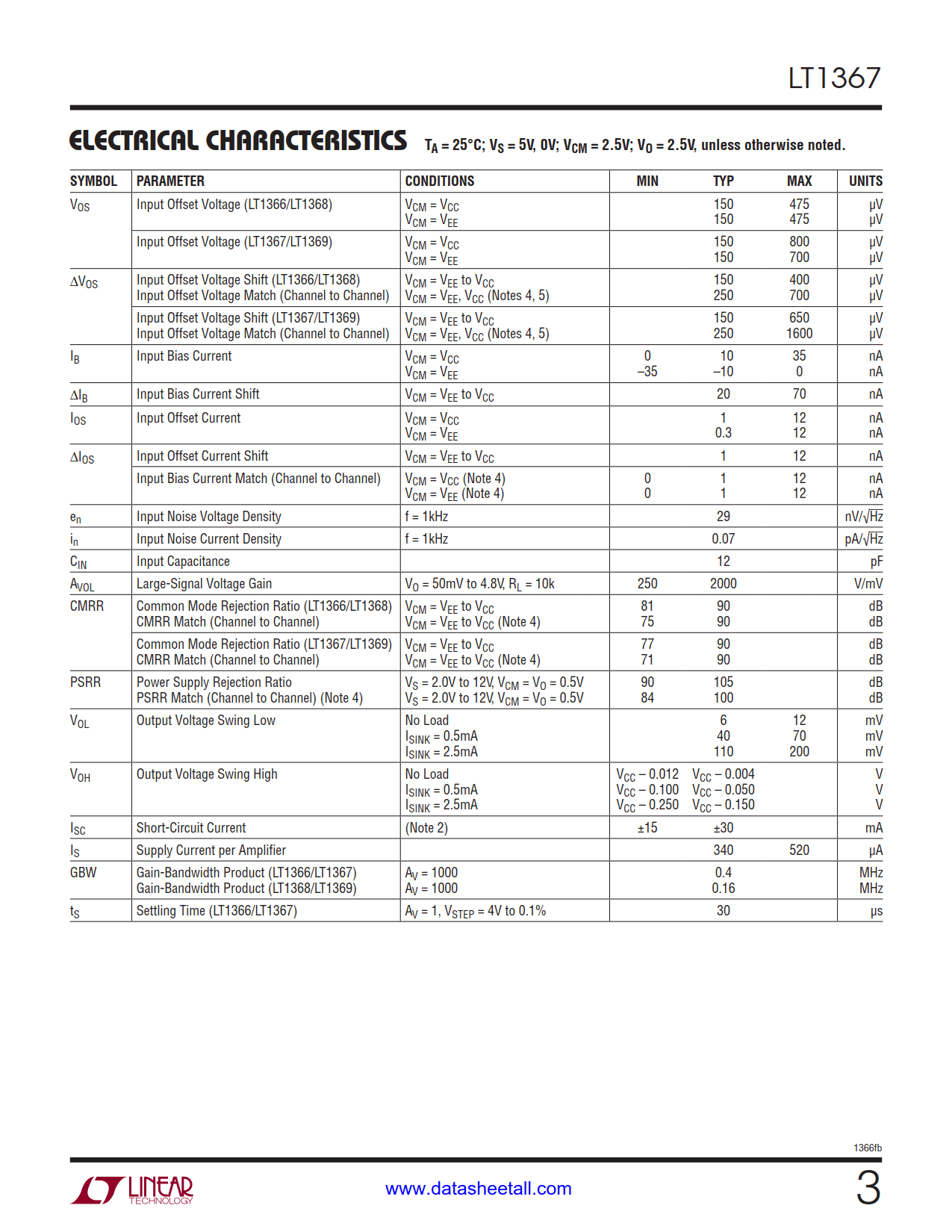

LT1367 Datasheet(Picture)

LT1367 Features

  • Input Common Mode Range Includes Both Rails
  • Output Swings Rail-to-Rail
  • Low Input Offset Voltage: 150μV
  • High Common Mode Rejection Ratio: 90dB
  • High AVOL: >1V/μV Driving 10k Load
  • Low Input Bias Current: 10nA
  • Wide Supply Range: 1.8V to ±15V
  • Low Supply Current: 375μA per Amplifier
  • High Output Drive: 30mA
  • 400kHz Gain-Bandwidth Product
  • Slew Rate: 0.13V/μs
  • Stable for Capacitive Loads Up to 1000pF

LT1367 Applications

  • Rail-to-Rail Buffer Amplifiers
  • Low Voltage Signal Processing
  • Supply Current Sensing at Either Rail
  • Driving A/D Converters

LT1367 Description

The LT1367 are quad bipolar op amps which combine rail-to-rail input and output operation with precision specifications. These op amps maintain their characteristics over a supply range of 1.8V to 36V. Operation is specified for 3V, 5V and ±15V supplies. Input offset voltage is typically 150μV, with an open-loop gain AVOL of 1 million while driving a 10k load. Common mode rejection is typically 90dB over the full rail-to-rail input range, and supply rejection is 110dB.

The LT1367 have conventional compensation which assures stability for capacitive loads of 1000pF or less. The output capacitor’s filtering action reduces high frequency noise, which is beneficial when driving A/D converters.

The LT1367 feature the standard quad pinout, which is available in a plastic 14-lead SO package. These devices can be used as plug-in replacements for many standard op amps to improve input/output range and precision.
