LT1361 Datasheet

LT1361 Datasheet

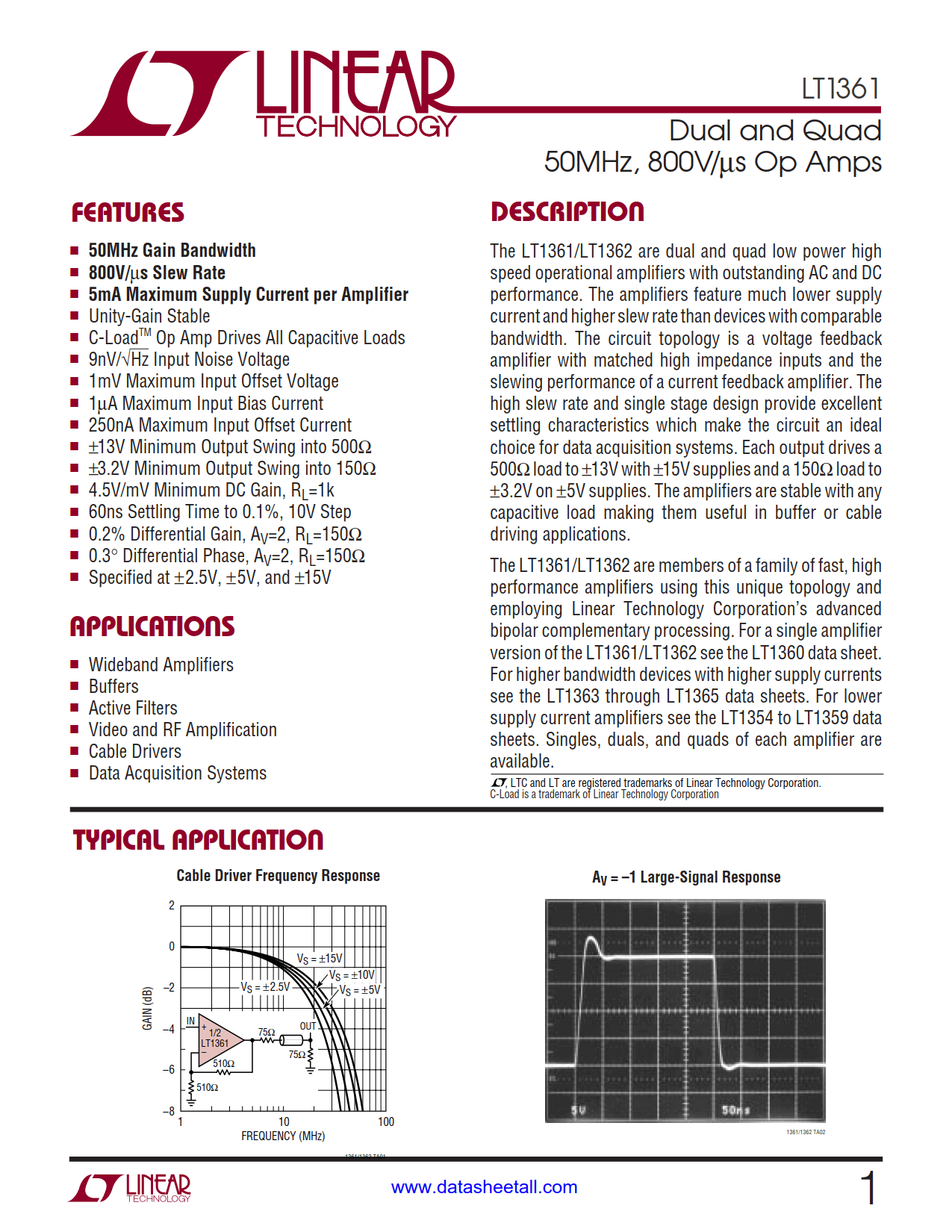

Dual and Quad 50MHz, 800V/µs Op Amps
Part No.: LT1361
Page: 12 Pages
Size: 211 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-12-03 17:17:10
DataSheet: Download

LT1361 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LT1361CN8#PBF Tube 50 LT1361CN8 1 8 0°C ~70°C 8-Lead PDIP
LT1361CN8#TRPBF Reel   LT1361CN8 1 8 0°C ~70°C 8-Lead PDIP
LT1361CN8#TRMPBF Reel   LT1361CN8 1 8 0°C ~70°C 8-Lead PDIP
LT1361CS8#PBF Tube 100 1361 1 8 0°C ~70°C 8-Lead SOIC
LT1361CS8#TRPBF Reel 2500 1361 1 8 0°C ~70°C 8-Lead SOIC
LT1361CS8#TRMPBF Reel 500 1361 1 8 0°C ~70°C 8-Lead SOIC
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LT1361 Datasheet(PDF)

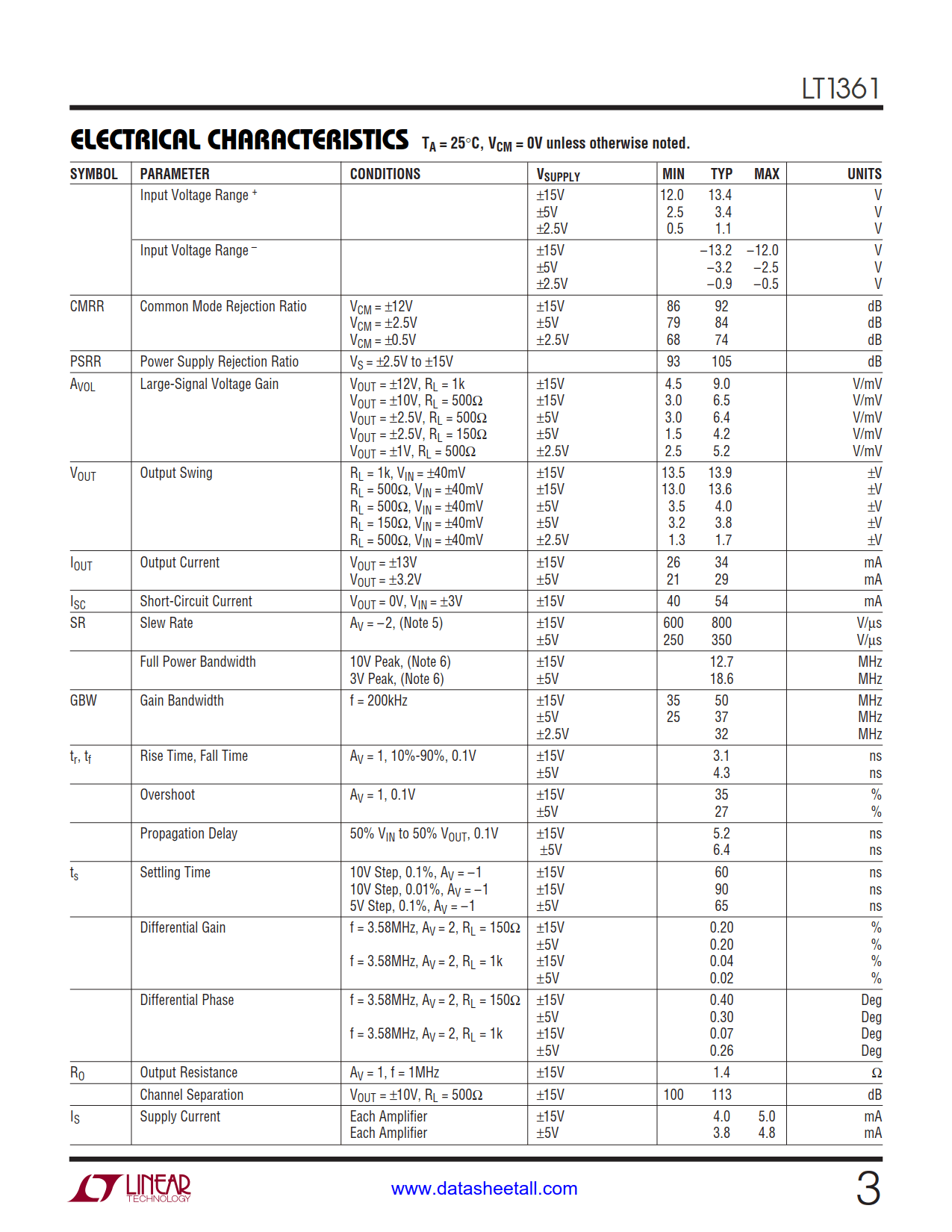

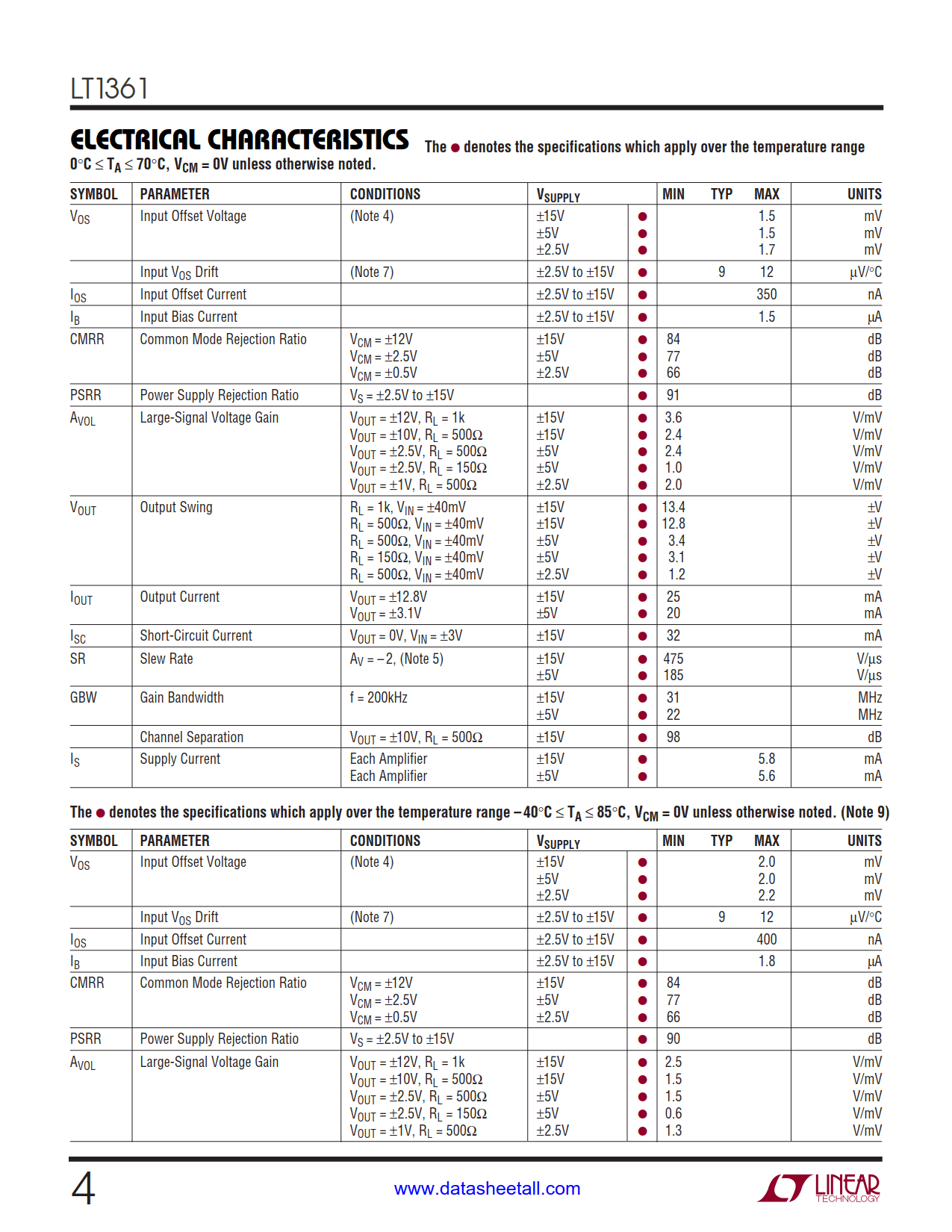

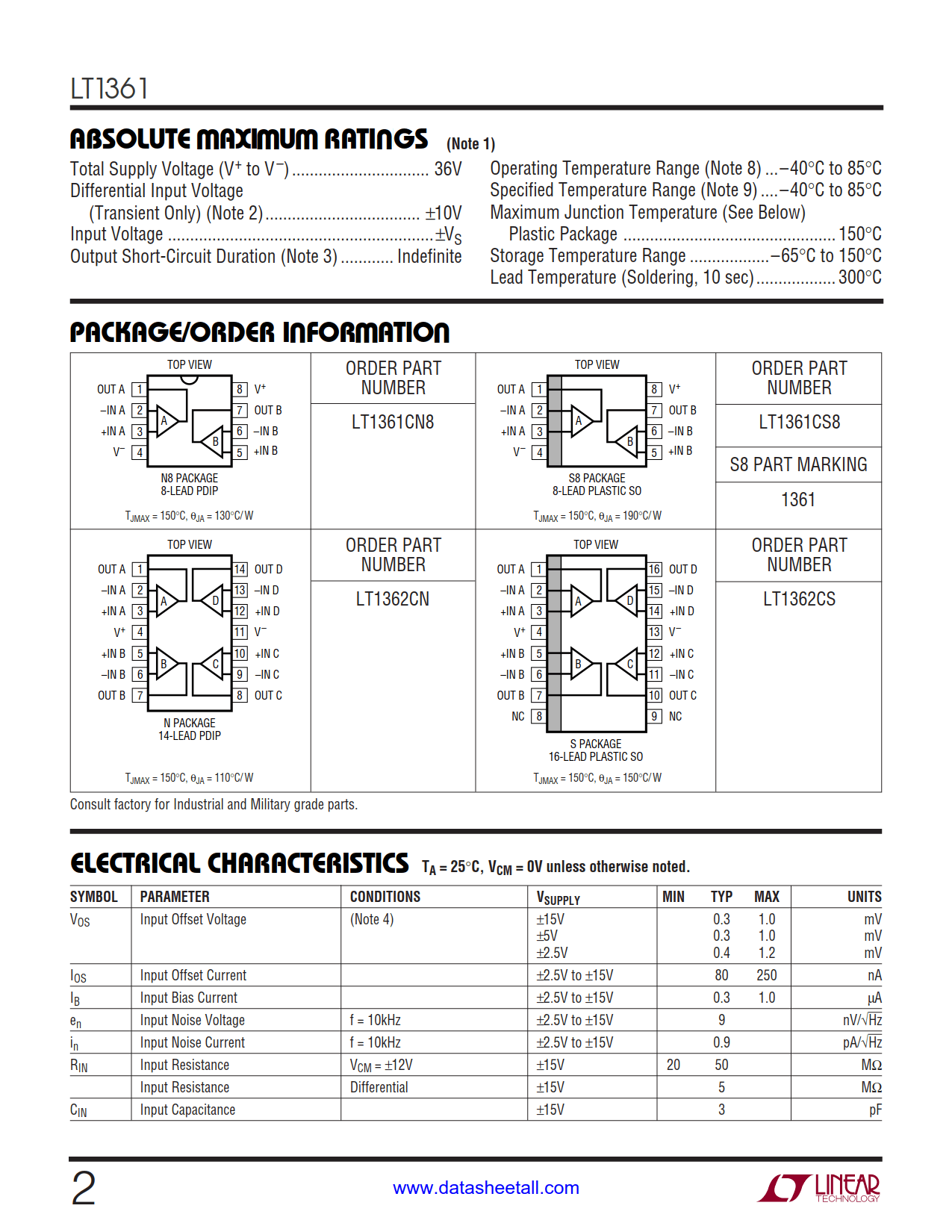

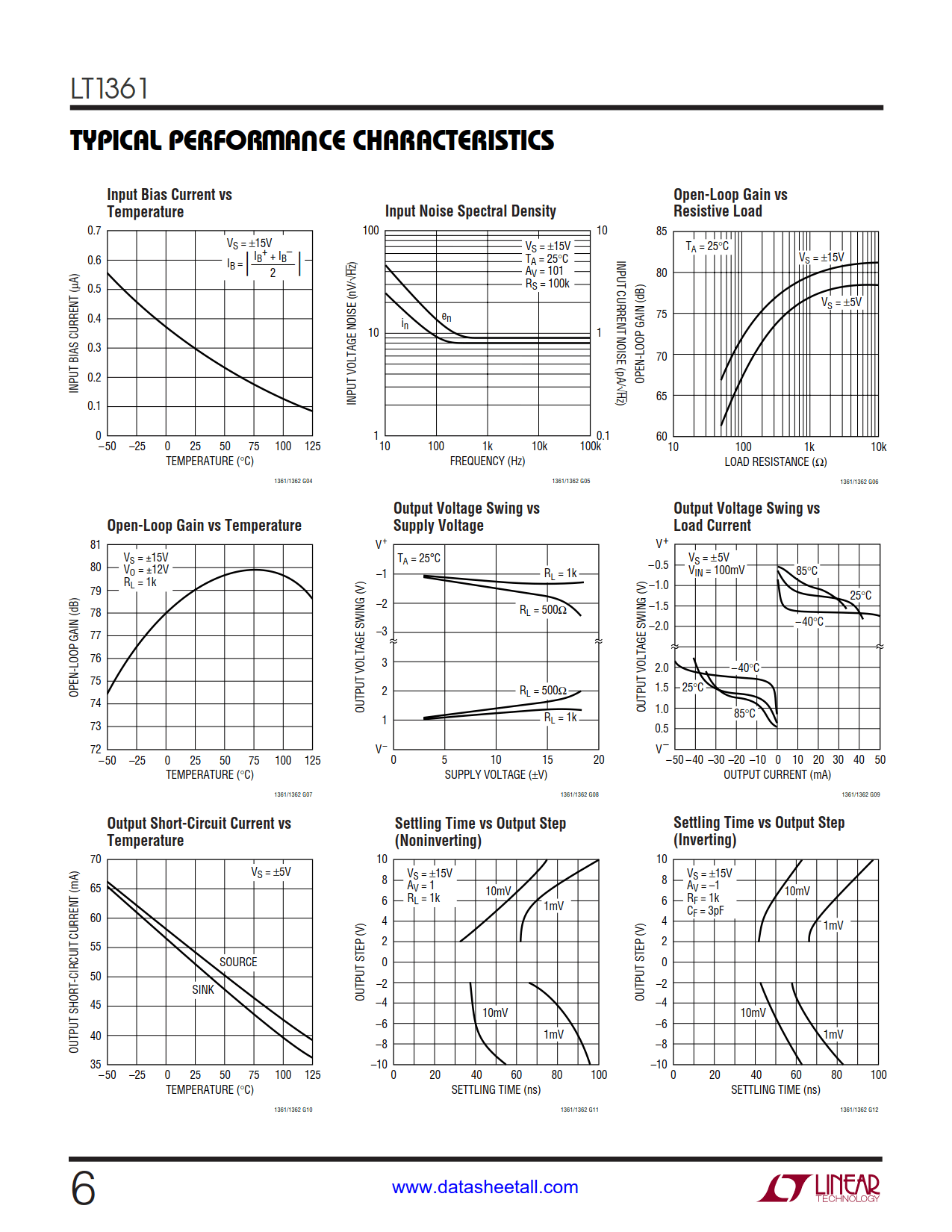

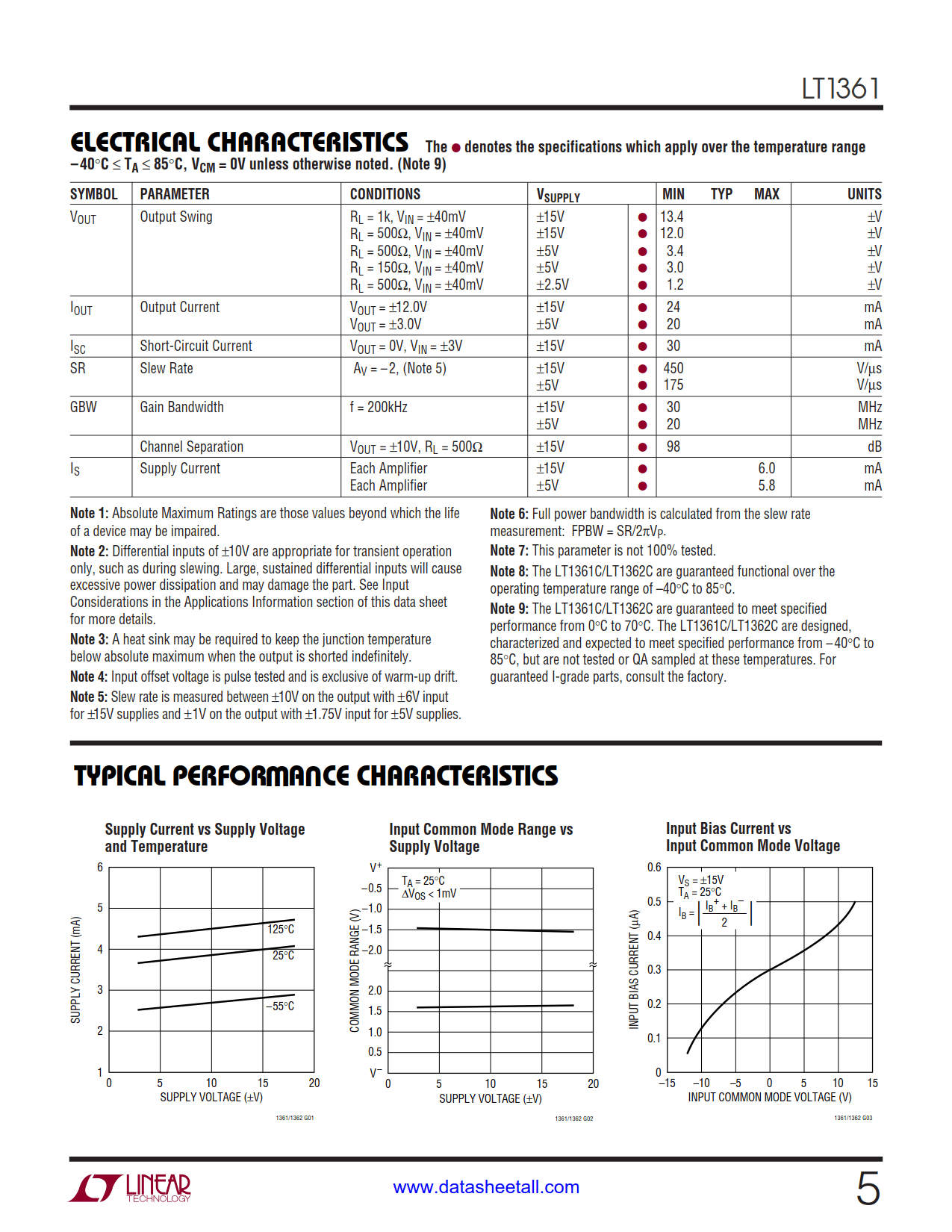

LT1361 Datasheet(Picture)

LT1361 Features

  • 50MHz Gain-Bandwidth
  • 800V/µs Slew Rate
  • 5mA Maximum Supply Current per Amplifier
  • Unity-Gain Stable
  • C-Load Op Amp Drives All Capacitive Loads
  • 9nV/√Hz Input Noise Voltage
  • 1mV Maximum Input Offset Voltage
  • 1µA Maximum Input Bias Current
  • 250nA Maximum Input Offset Current
  • ±13V Minimum Output Swing into 500Ω
  • ±3.2V Minimum Output Swing into 150Ω
  • 4.5V/mV Minimum DC Gain, RL=1k
  • 60ns Settling Time to 0.1%, 10V Step
  • 0.2% Differential Gain, AV=2, RL=150Ω
  • 0.3° Differential Phase, AV=2, RL=150Ω
  • Specified at ±2.5V, ±5V, and ±15V

LT1361 Applications

  • Wideband Amplifiers
  • Buffers
  • Active Filters
  • Video and RF Amplification
  • Cable Drivers
  • Data Acquisition Systems

LT1361 Description

The LT1361 are dual and quad low power high speed operational amplifiers with outstanding AC and DC performance. The amplifiers feature much lower supply current and higher slew rate than devices with comparable bandwidth. The circuit topology is a voltage feedback amplifier with matched high impedance inputs and the slewing performance of a current feedback amplifier. The high slew rate and single stage design provide excellent settling characteristics which make the circuit an ideal choice for data acquisition systems. Each output drives a 500Ω load to ±13V with ±15V supplies and a 150Ω load to ±3.2V on ±5V supplies. The amplifiers are stable with any capacitive load making them useful in buffer or cable driving applications.

The LT1361 are members of a family of fast, high performance amplifiers using this unique topology and employing advanced bipolar complementary processing. For a single amplifier version of the LT1361 see the LT1360 data sheet. For higher bandwidth devices with higher supply currents see the LT1363 through LT1365 data sheets. For lower supply current amplifiers see the LT1354 to LT1359 data sheets. Singles, duals, and quads of each amplifier are available.
