LT1359 Datasheet

LT1359 Datasheet

Quad 25MHz, 600V/µs Op Amps
Part No.: LT1359
Page: 16 Pages
Size: 433 KB
Manufacturer: Linear Technology
Logo:
Views: 2
Update Time: 2023-12-27 11:23:13
DataSheet: Download

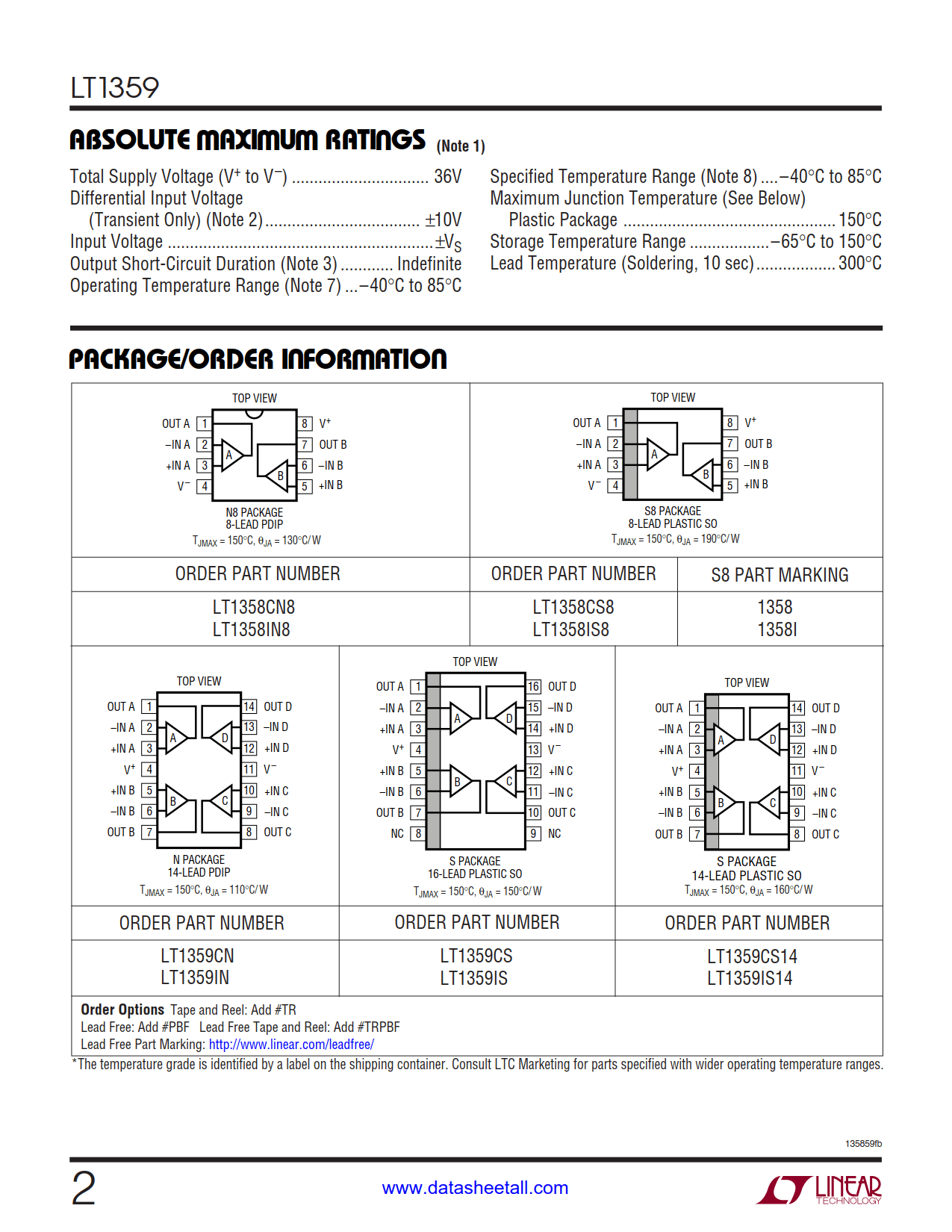

LT1359 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LT1359CN#PBF Tube 25   1 14 0°C ~ 70°C 14-Lead PDIP
LT1359CN#TRPBF Reel     1 14 0°C ~ 70°C 14-Lead PDIP
LT1359CN#TRMPBF Reel     1 14 0°C ~ 70°C 14-Lead PDIP
LT1359IN#PBF Tube 25   1 14 -40°C ~ 85°C 14-Lead PDIP
LT1359IN#TRPBF Reel     1 14 -40°C ~ 85°C 14-Lead PDIP
LT1359IN#TRMPBF Reel     1 14 -40°C ~ 85°C 14-Lead PDIP
LT1359CS#PBF Tube 50   1 16 0°C ~ 70°C 16-Lead SOIC
LT1359CS#TRPBF Reel 2500   1 16 0°C ~ 70°C 16-Lead SOIC
LT1359CS#TRMPBF Reel 500   1 16 0°C ~ 70°C 16-Lead SOIC
LT1359IS#PBF Tube 50   1 16 -40°C ~ 85°C 16-Lead SOIC
LT1359IS#TRPBF Reel 2500   1 16 -40°C ~ 85°C 16-Lead SOIC
LT1359IS#TRMPBF Reel 500   1 16 -40°C ~ 85°C 16-Lead SOIC
LT1359CS14#PBF Tube 55   1 14 0°C ~ 70°C 14-Lead SOIC
LT1359CS14#TRPBF Reel 2500   1 14 0°C ~ 70°C 14-Lead SOIC
LT1359CS14#TRMPBF Reel 500   1 14 0°C ~ 70°C 14-Lead SOIC
LT1359IS14#PBF Tube 55   1 14 -40°C ~ 85°C 14-Lead SOIC
LT1359IS14#TRPBF Reel 2500   1 14 -40°C ~ 85°C 14-Lead SOIC
LT1359IS14#TRMPBF Reel 500   1 14 -40°C ~ 85°C 14-Lead SOIC
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LT1359 Datasheet(PDF)

LT1359 Datasheet(Picture)

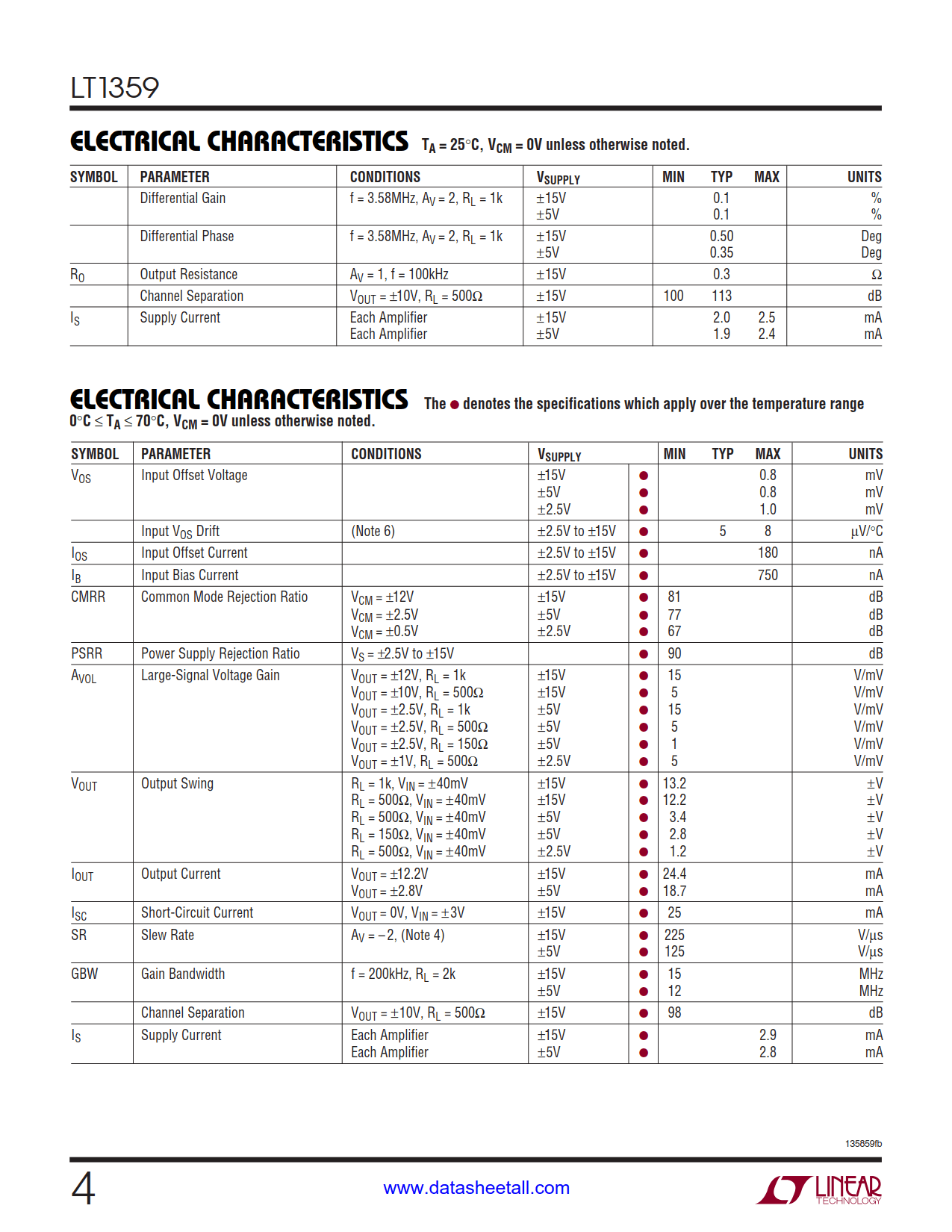

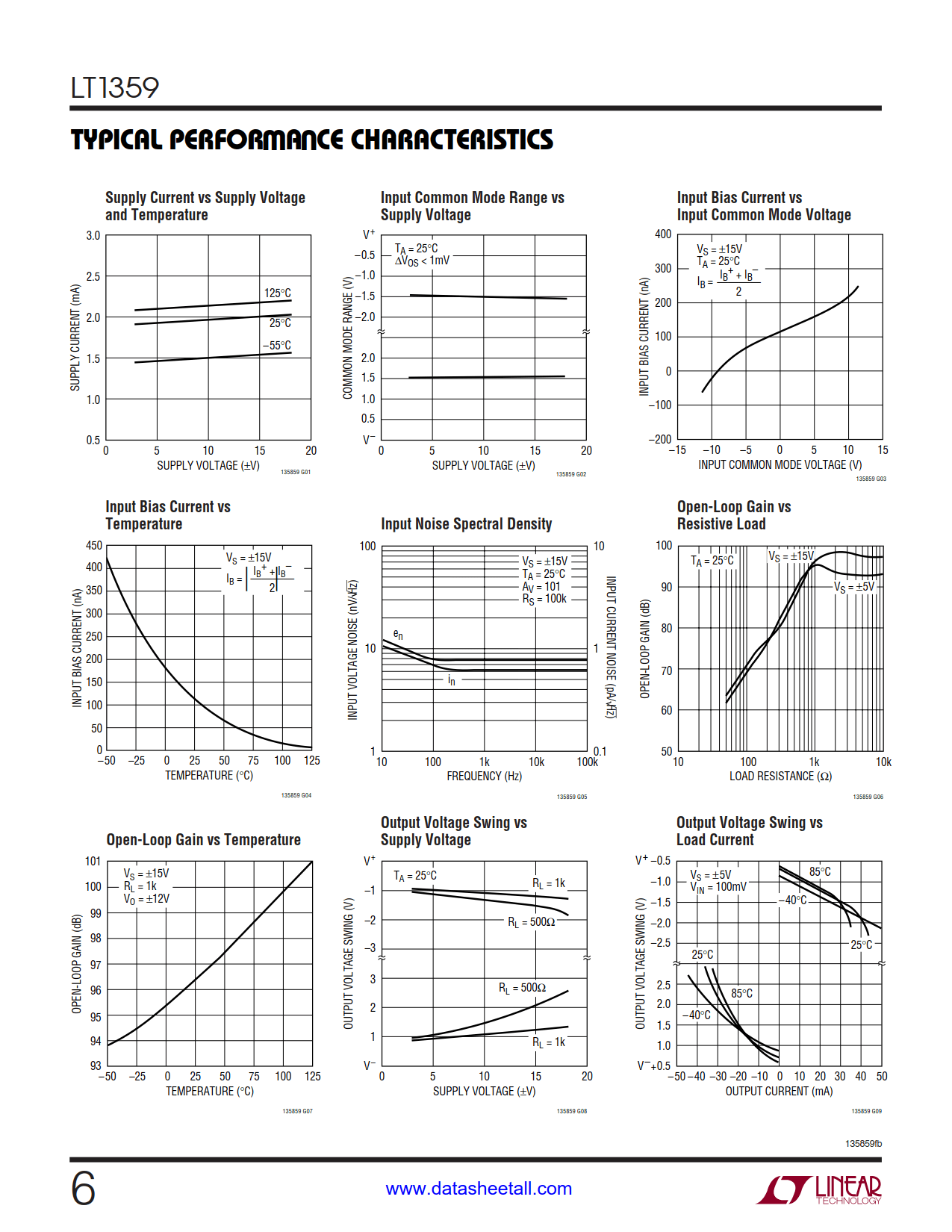

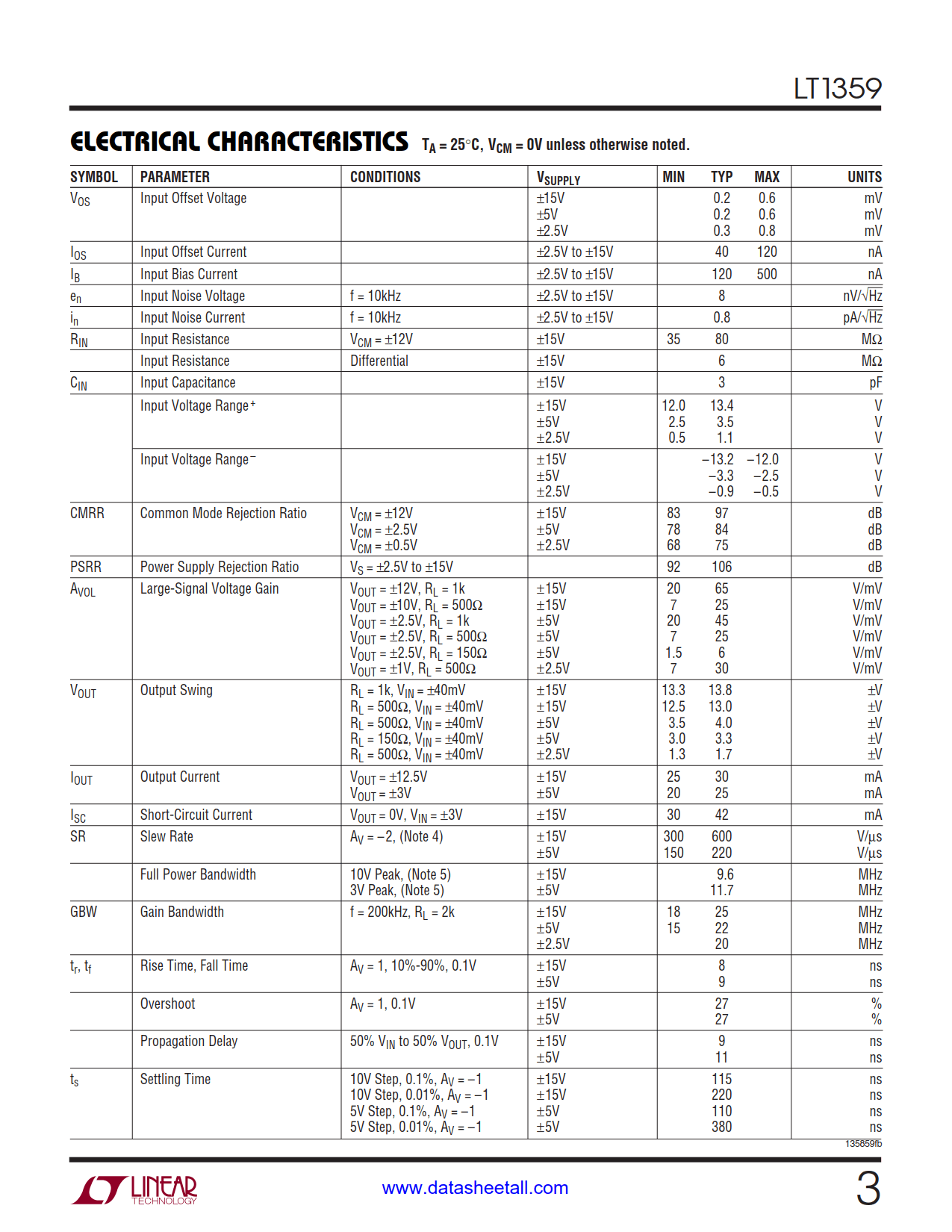

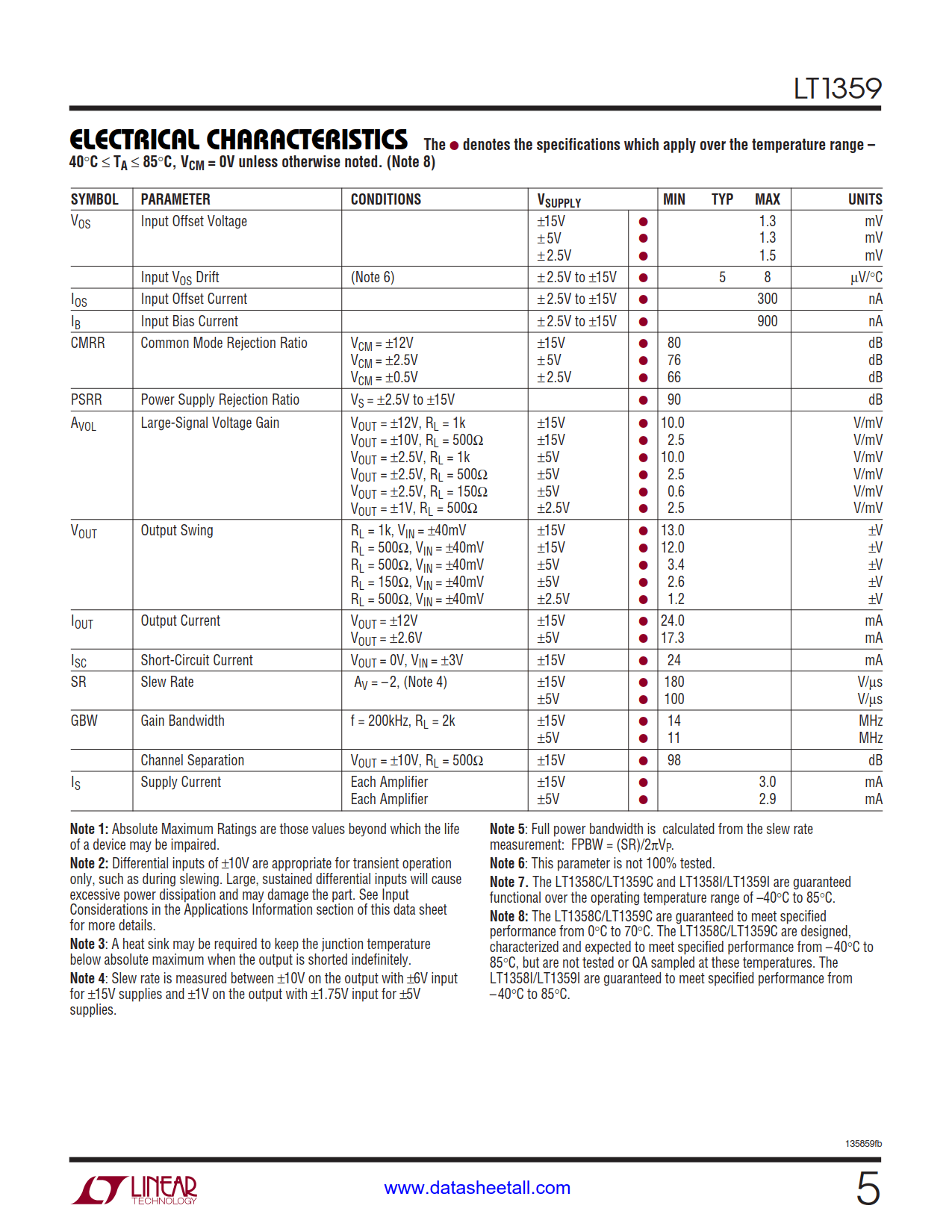

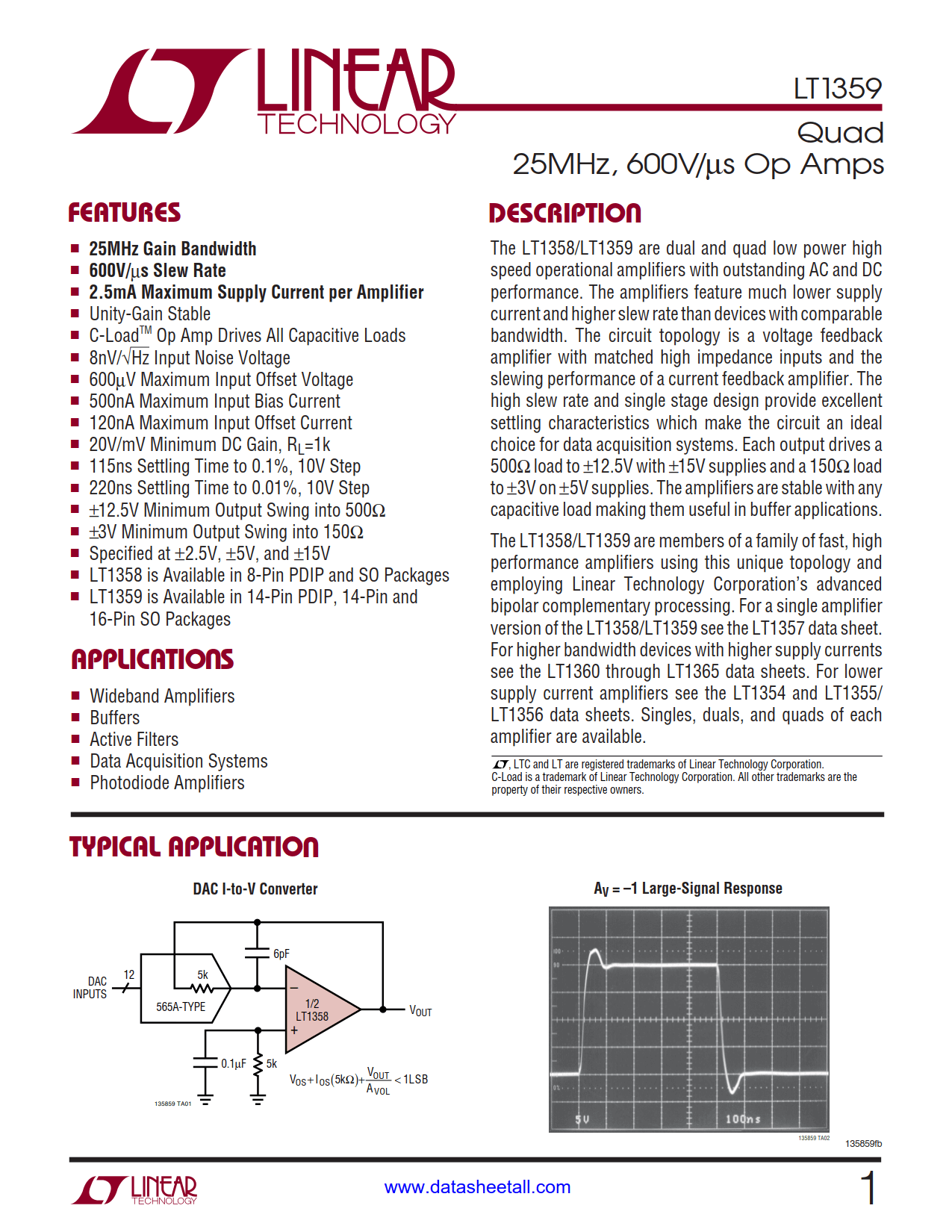

LT1359 Features

  • 25MHz Gain-Bandwidth
  • 600V/µs Slew Rate
  • 2.5mA Maximum Supply Current per Amplifier
  • Unity Gain Stable
  • C-Load Op Amp Drives All Capacitive Loads
  • 8nV/√Hz Input Noise Voltage
  • 600µV Maximum Input Offset Voltage
  • 500nA Maximum Input Bias Current
  • 120nA Maximum Input Offset Current
  • 20V/mV Minimum DC Gain, RL =1k
  • 115ns Settling Time to 0.1%, 10V Step
  • 220ns Settling Time to 0.01%, 10V Step
  • ±12.5V Minimum Output Swing into 500Ω
  • ±3V Minimum Output Swing into 150Ω
  • Specified at ±2.5V, ±5V, and ±15V
  • LT1359 is Available in 14-Pin PDIP, 14-Pin and 16-Pin SO Packages

LT1359 Applications

  • Wideband Amplifiers
  • Buffers
  • Active Filters
  • Data Acquisition Systems
  • Photodiode Amplifiers

LT1359 Description

The LT1359 are quad low power high speed operational amplifiers with outstanding AC and DC performance. The amplifiers feature much lower supply current and higher slew rate than devices with comparable bandwidth. The circuit topology is a voltage feedback amplifier with matched high impedance inputs and the slewing performance of a current feedback amplifier. The high slew rate and single stage design provide excellent settling characteristics which make the circuit an ideal choice for data acquisition systems. Each output drives a 500Ω load to ±12.5V with ±15V supplies and a 150Ω load to ±3V on ±5V supplies. The amplifiers are stable with any capacitive load making them useful in buffer applications.

The LT1359 are members of a family of fast, high performance amplifiers using this unique topology and employing advanced bipolar complementary processing.
