| Part No.： | LT1357 |
| Page： | 12 Pages |
| Size： | 236 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2023-12-26 10:44:21 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LT1357CS8#PBF | Tube | 100 | 1357 | 1 | 8 | 0°C ~ 70°C | 8-Lead SOIC | |
| LT1357CS8#TRPBF | Reel | 2500 | 1357 | 1 | 8 | 0°C ~ 70°C | 8-Lead SOIC | |
| LT1357CS8#TRMPBF | Reel | 500 | 1357 | 1 | 8 | 0°C ~ 70°C | 8-Lead SOIC | |
| LT1357CN8#PBF | Tube | 50 | 1 | 8 | 0°C ~ 70°C | 8-Lead PDIP | ||
| LT1357CN8#TRPBF | Reel | 1 | 8 | 0°C ~ 70°C | 8-Lead PDIP | |||
| LT1357CN8#TRMPBF | Reel | 1 | 8 | 0°C ~ 70°C | 8-Lead PDIP |

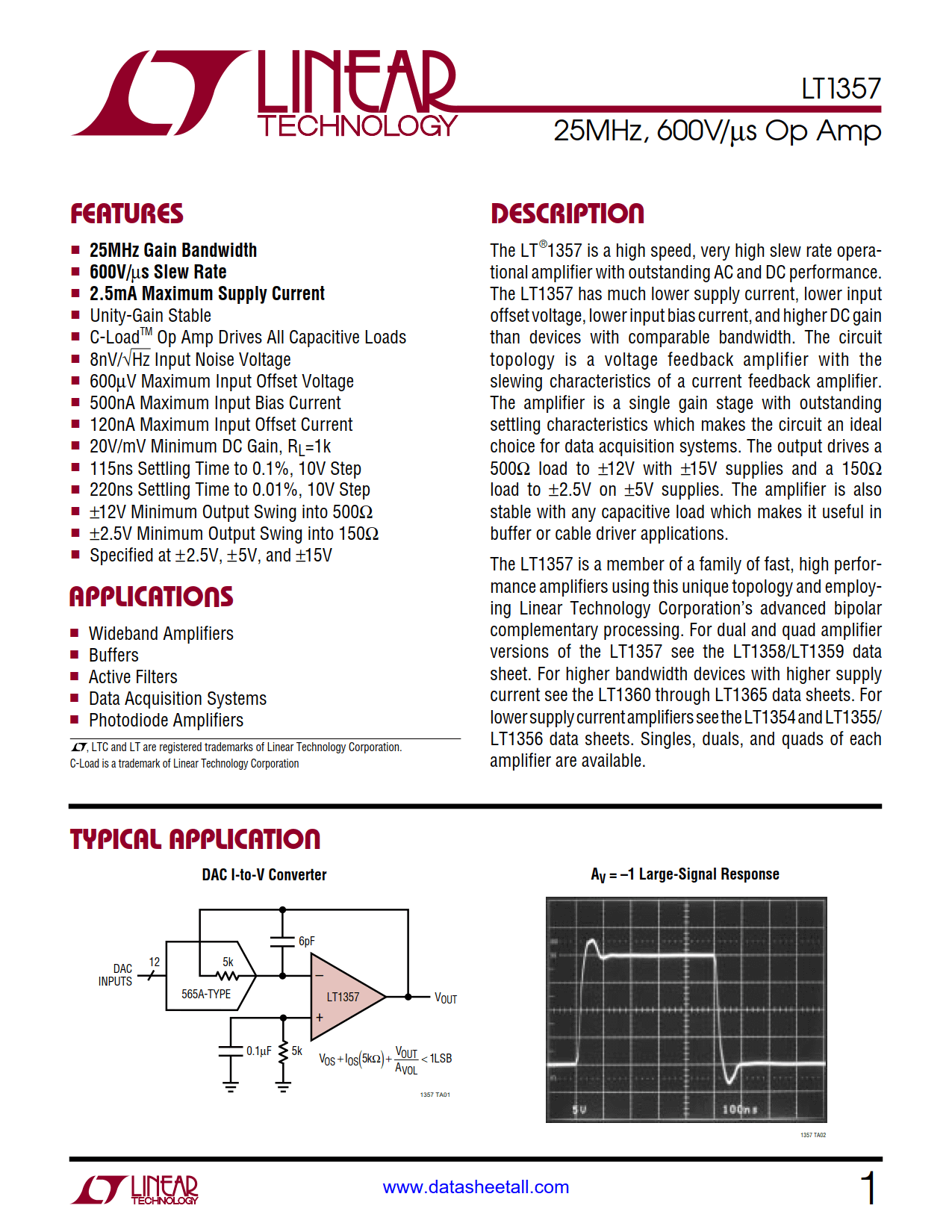

The LT1357 is a high speed, very high slew rate operational amplifier with outstanding AC and DC performance. The LT1357 has much lower supply current, lower input offset voltage, lower input bias current, and higher DC gain than devices with comparable bandwidth. The circuit topology is a voltage feedback amplifier with the slewing characteristics of a current feedback amplifier. The amplifier is a single gain stage with outstanding settling characteristics which makes the circuit an ideal choice for data acquisition systems. The output drives a 500 ohms load to ±12V with ±15V supplies and a 150 ohms load to ±2.5V on ±5V supplies. The amplifier is also stable with any capacitive load which makes it useful in buffer or cable driver applications.
The LT1357 is a member of a family of fast, high performance amplifiers using this unique topology and employing our advanced bipolar complementary processing.
