| Part No.： | LT1356 |
| Page： | 16 Pages |
| Size： | 622 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2023-12-28 10:16:46 |
| DataSheet： | Download |

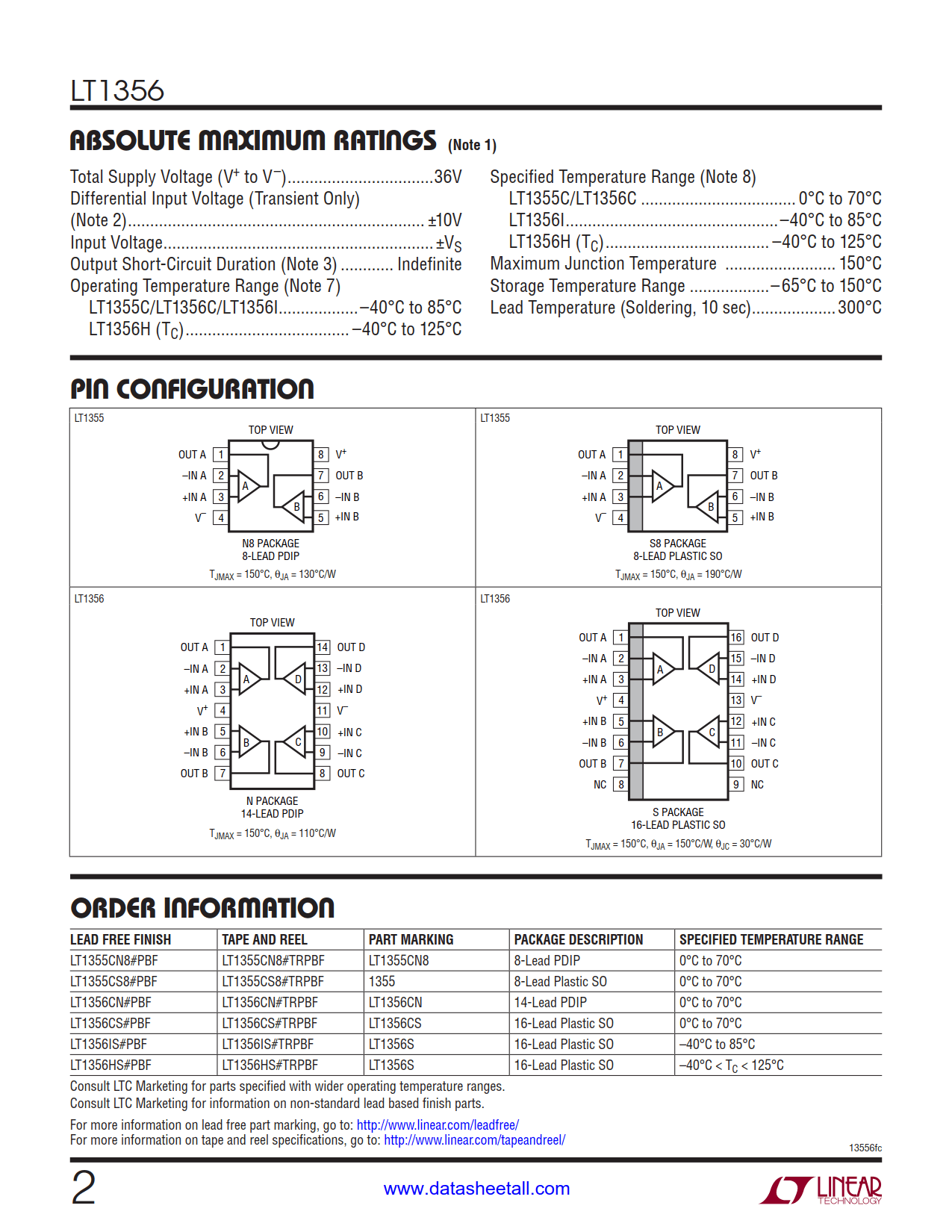

| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LT1356CN#PBF | Tube | 25 | LT1356CN | 1 | 14 | 0°C ~ 70°C | 14-Lead PDIP | |
| LT1356CN#TRPBF | Reel | LT1356CN | 1 | 14 | 0°C ~ 70°C | 14-Lead PDIP | ||
| LT1356CN#TRMPBF | Reel | LT1356CN | 1 | 14 | 0°C ~ 70°C | 14-Lead PDIP | ||
| LT1356CS#PBF | Tube | 50 | LT1356CS | 1 | 16 | 0°C ~ 70°C | 16-Lead Plastic SO | |
| LT1356CS#TRPBF | Reel | 2500 | LT1356CS | 1 | 16 | 0°C ~ 70°C | 16-Lead Plastic SO | |
| LT1356CS#TRMPBF | Reel | 500 | LT1356CS | 1 | 16 | 0°C ~ 70°C | 16-Lead Plastic SO | |
| LT1356IS#PBF | Tube | 50 | LT1356S | 1 | 16 | -40°C ~ 85°C | 16-Lead Plastic SO | |
| LT1356IS#TRPBF | Reel | 2500 | LT1356S | 1 | 16 | -40°C ~ 85°C | 16-Lead Plastic SO | |
| LT1356IS#TRMPBF | Reel | 500 | LT1356S | 1 | 16 | -40°C ~ 85°C | 16-Lead Plastic SO | |
| LT1356HS#PBF | Tube | 50 | LT1356S | 1 | 16 | -40°C ~ 125°C | 16-Lead Plastic SO | |
| LT1356HS#TRPBF | Reel | 2500 | LT1356S | 1 | 16 | -40°C ~ 125°C | 16-Lead Plastic SO | |
| LT1356HS#TRMPBF | Reel | 500 | LT1356S | 1 | 16 | -40°C ~ 125°C | 16-Lead Plastic SO |

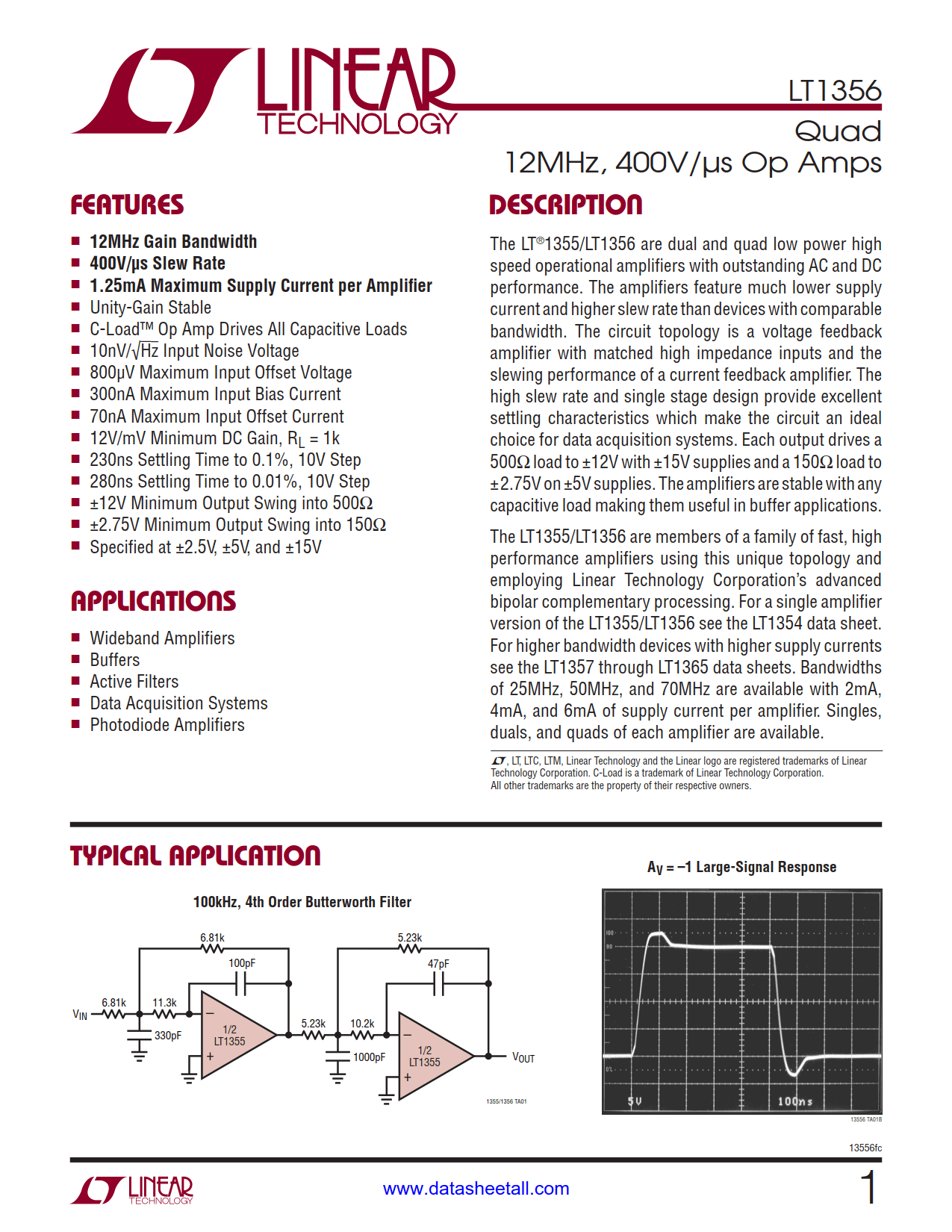

The LT1356 are quad low power high speed operational amplifiers with outstanding AC and DC performance. The amplifiers feature much lower supply current and higher slew rate than devices with comparable bandwidth. The circuit topology is a voltage feedback amplifier with matched high impedance inputs and the slewing performance of a current feedback amplifier. The high slew rate and single stage design provide excellent settling characteristics which make the circuit an ideal choice for data acquisition systems. Each output drives a 500Ω load to ±12V with ±15V supplies and a 150Ω load to ±2.75V on ±5V supplies. The amplifiers are stable with any capacitive load making them useful in buffer applications.
The LT1356 are members of a family of fast, high performance amplifiers using this unique topology and employing advanced bipolar complementary processing.
