| Part No.： | LT1354 |
| Page： | 12 Pages |
| Size： | 240 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 2 |
| Update Time： | 2023-12-28 10:06:49 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LT1354CN8#PBF | Tube | 50 | 1 | 8 | 0°C ~ 70°C | 8-Lead PDIP | ||
| LT1354CN8#TRPBF | Reel | 1 | 8 | 0°C ~ 70°C | 8-Lead PDIP | |||
| LT1354CN8#TRMPBF | Reel | 1 | 8 | 0°C ~ 70°C | 8-Lead PDIP | |||
| LT1354CS8#PBF | Tube | 100 | 1354 | 1 | 8 | 0°C ~ 70°C | 8-Lead SOIC | |
| LT1354CS8#TRPBF | Reel | 2500 | 1354 | 1 | 8 | 0°C ~ 70°C | 8-Lead SOIC | |
| LT1354CS8#TRMPBF | Reel | 500 | 1354 | 1 | 8 | 0°C ~ 70°C | 8-Lead SOIC |

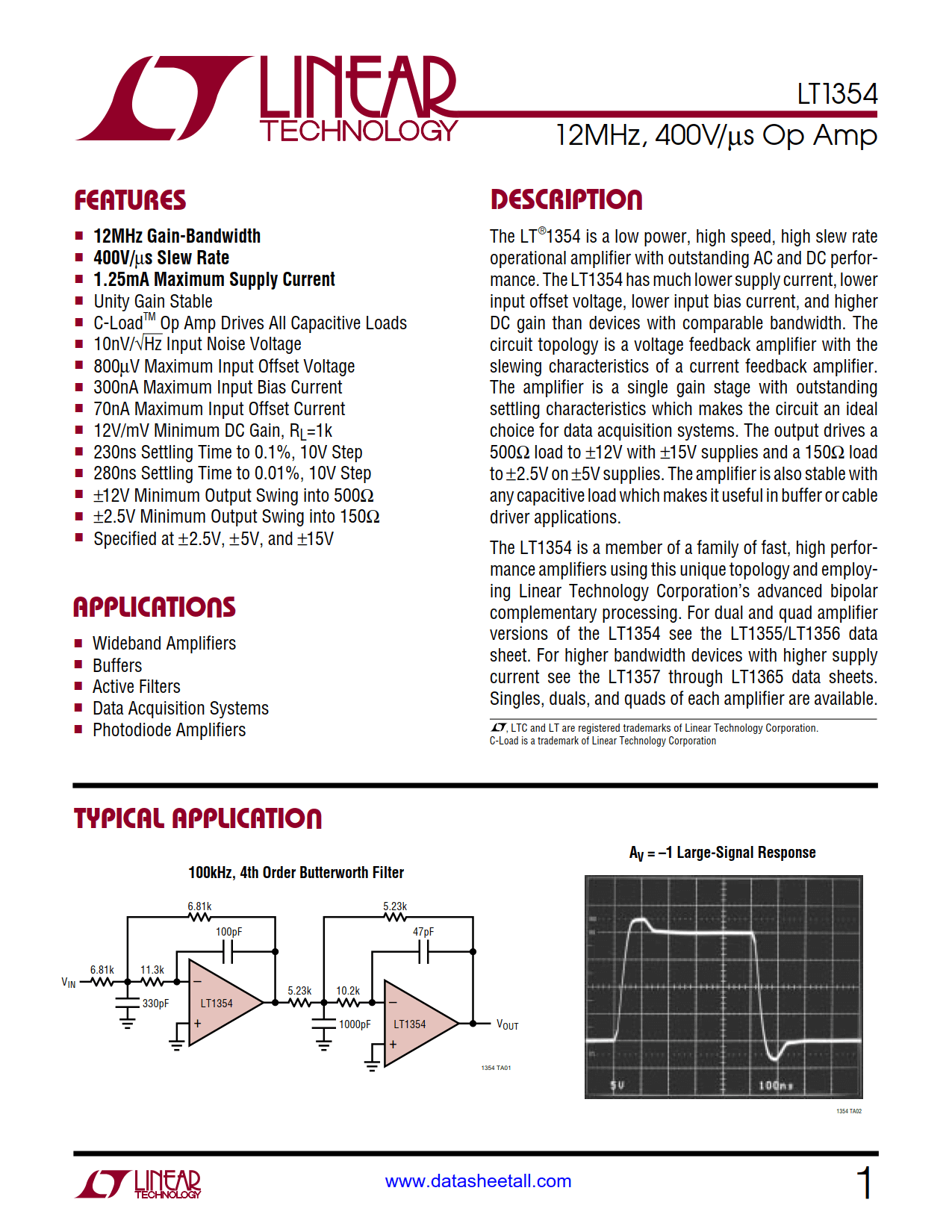

The LT1354 is a low power, high speed, high slew rate operational amplifier with outstanding AC and DC performance. The LT1354 has much lower supply current, lower input offset voltage, lower input bias current, and higher DC gain than devices with comparable bandwidth. The circuit topology is a voltage feedback amplifier with the slewing characteristics of a current feedback amplifier. The amplifier is a single gain stage with outstanding settling characteristics which makes the circuit an ideal choice for data acquisition systems. The output drives a 500Ω load to ±12V with ±15V supplies and a 150Ω load to ±2.5V on ±5V supplies. The amplifier is also stable with any capacitive load which makes it useful in buffer or cable driver applications.
The LT1354 is a member of a family of fast, high performance amplifiers using this unique topology and employing advanced bipolar complementary processing.
