LT1171 Datasheet

LT1171 Datasheet

100kHz, 5A, 2.5A and 1.25A High Efficiency Switching Regulators
Part No.: LT1171
Page: 24 Pages
Size: 283 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2023-12-06 15:01:16
DataSheet: Download

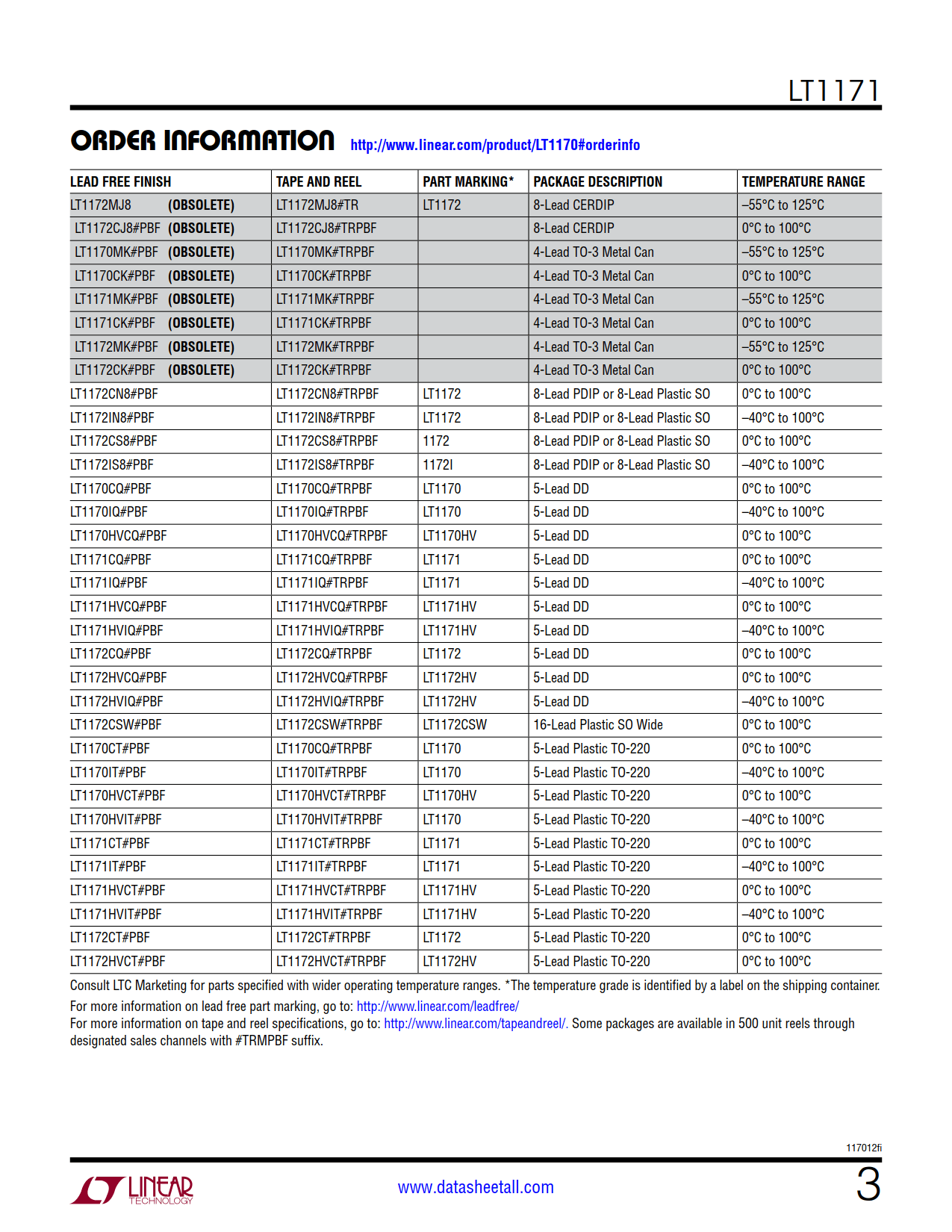

LT1171 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LT1171CQ#PBF Tube 50 LT1171 1 5 0°C ~ 70°C 5-Lead DD
LT1171CQ#TRPBF Reel 750 LT1171 1 5 0°C ~ 70°C 5-Lead DD
LT1171CQ#TRMPBF Reel 500 LT1171 1 5 0°C ~ 70°C 5-Lead DD
LT1171IQ#PBF Tube 50 LT1171 1 5 -40°C ~ 125°C 5-Lead DD
LT1171IQ#TRPBF Reel 750 LT1171 1 5 -40°C ~ 125°C 5-Lead DD
LT1171IQ#TRMPBF Reel 500 LT1171 1 5 -40°C ~ 125°C 5-Lead DD
LT1171HVCQ#PBF Tube 50 LT1171HV 1 5 0°C ~ 100°C 5-Lead DD
LT1171HVCQ#TRPBF Reel 750 LT1171HV 1 5 0°C ~ 100°C 5-Lead DD
LT1171HVCQ#TRMPBF Reel 500 LT1171HV 1 5 0°C ~ 100°C 5-Lead DD
LT1171HVIQ#PBF Tube 50 LT1171HV 1 5 -40°C ~ 100°C 5-Lead DD
LT1171HVIQ#TRPBF Reel 750 LT1171HV 1 5 -40°C ~ 125°C 5-Lead DD
LT1171HVIQ#TRMPBF Reel 500 LT1171HV 1 5 -40°C ~ 125°C 5-Lead DD
LT1171CT#PBF Tube 50 LT1171 1 5 0°C ~ 70°C 5-Lead Plastic TO-220
LT1171CT#TRPBF Reel   LT1171 1 5 0°C ~ 70°C 5-Lead Plastic TO-220
LT1171CT#TRMPBF Reel   LT1171 1 5 0°C ~ 70°C 5-Lead Plastic TO-220
LT1171IT#PBF Tube 50 LT1171 1 5 -40°C ~ 125°C 5-Lead Plastic TO-220
LT1171IT#TRPBF Reel   LT1171 1 5 -40°C ~ 125°C 5-Lead Plastic TO-220
LT1171IT#TRMPBF Reel   LT1171 1 5 -40°C ~ 125°C 5-Lead Plastic TO-220
LT1171HVCT#PBF Tube 50 LT1171HV 1 5 0°C ~ 70°C 5-Lead Plastic TO-220
LT1171HVCT#TRPBF Reel   LT1171HV 1 5 0°C ~ 70°C 5-Lead Plastic TO-220
LT1171HVCT#TRMPBF Reel   LT1171HV 1 5 0°C ~ 70°C 5-Lead Plastic TO-220
LT1171HVIT#PBF Tube 50 LT1171HV 1 5 -40°C ~ 125°C 5-Lead Plastic TO-220
LT1171HVIT#TRPBF Reel   LT1171HV 1 5 -40°C ~ 125°C 5-Lead Plastic TO-220
LT1171HVIT#TRMPBF Reel   LT1171HV 1 5 -40°C ~ 125°C 5-Lead Plastic TO-220
LT1171CT#06PBF Tube 50   1 5 0°C ~ 70°C 5-Lead TO-220
LT1171HVCT#30PBF Tube 50   1 5 0°C ~ 70°C 5-Lead TO-220
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

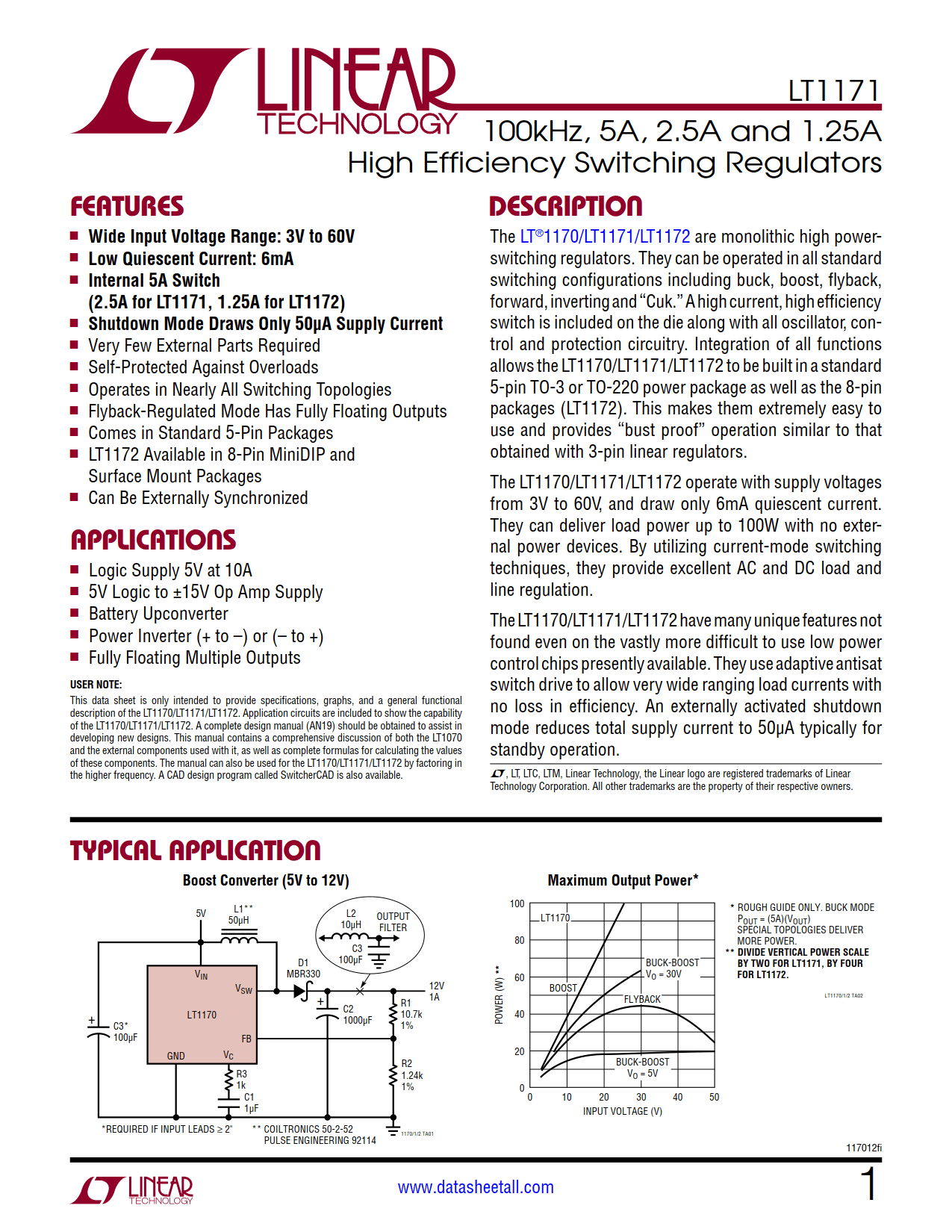

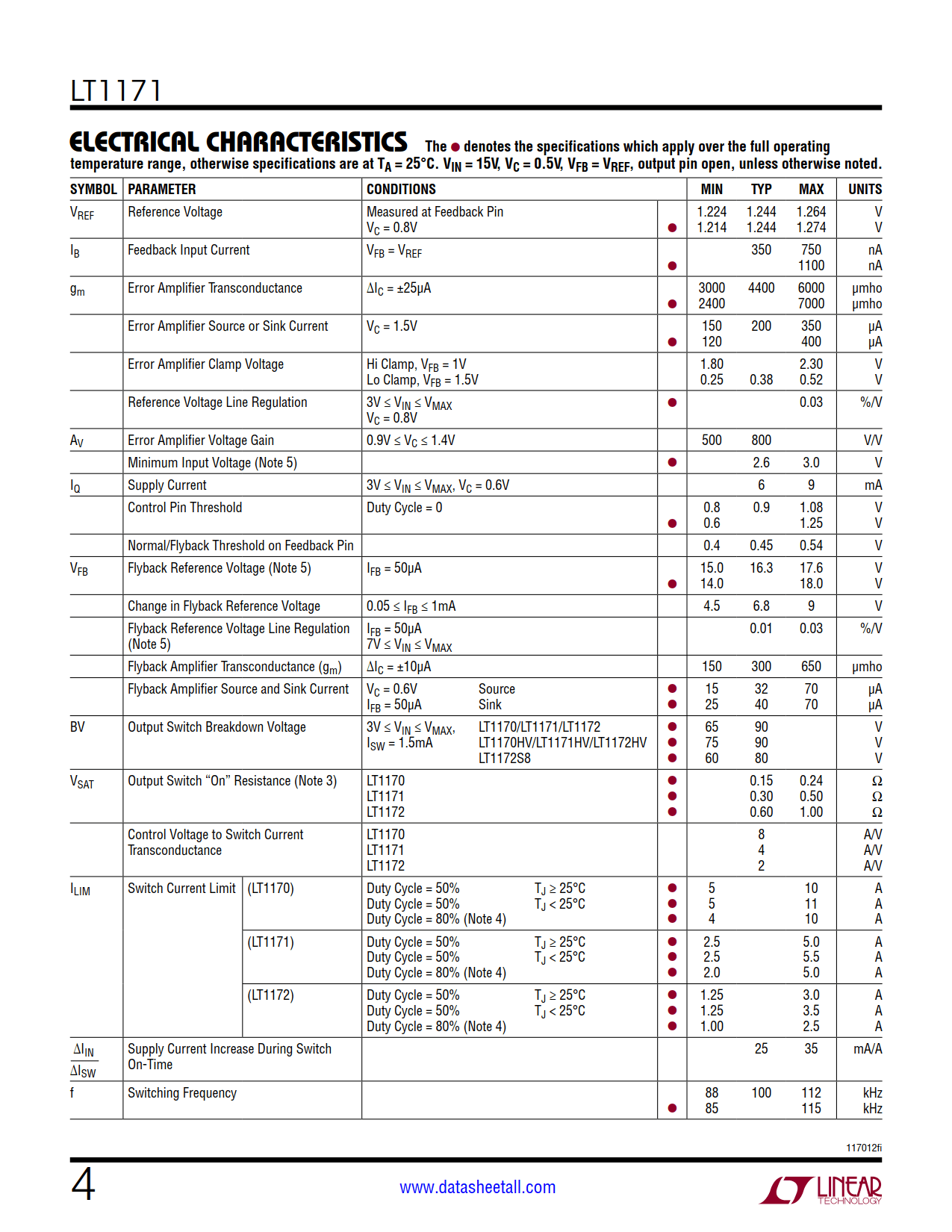

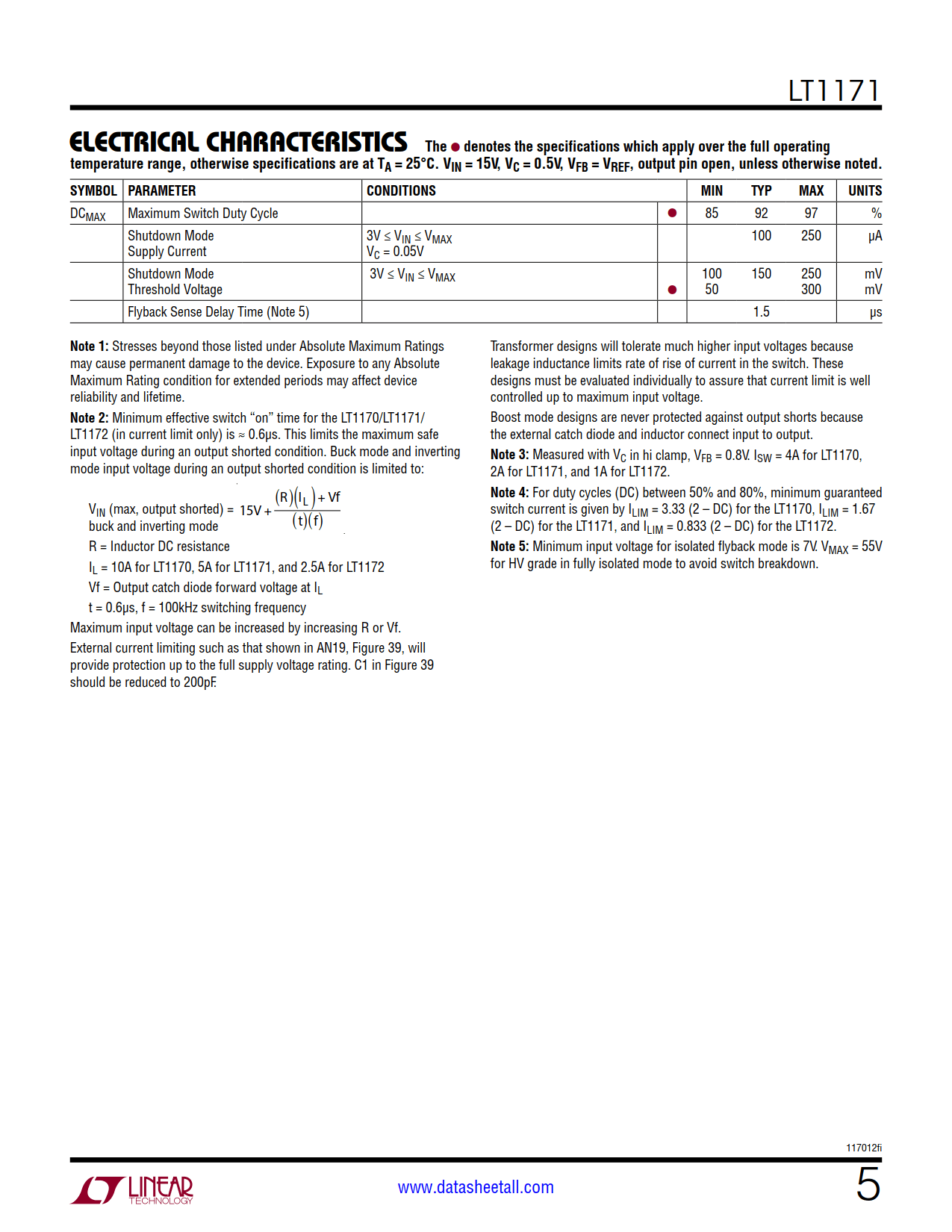

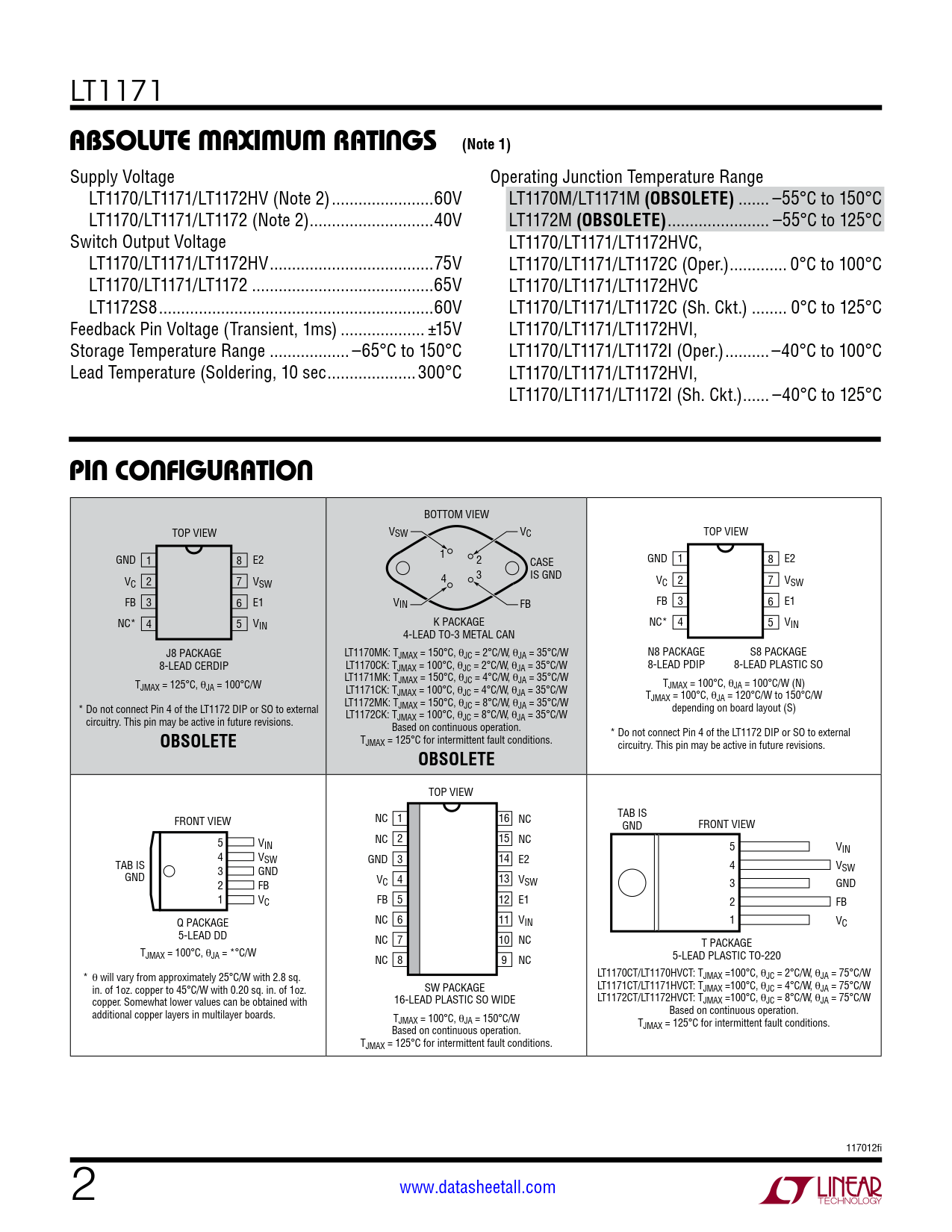

LT1171 Datasheet(PDF)

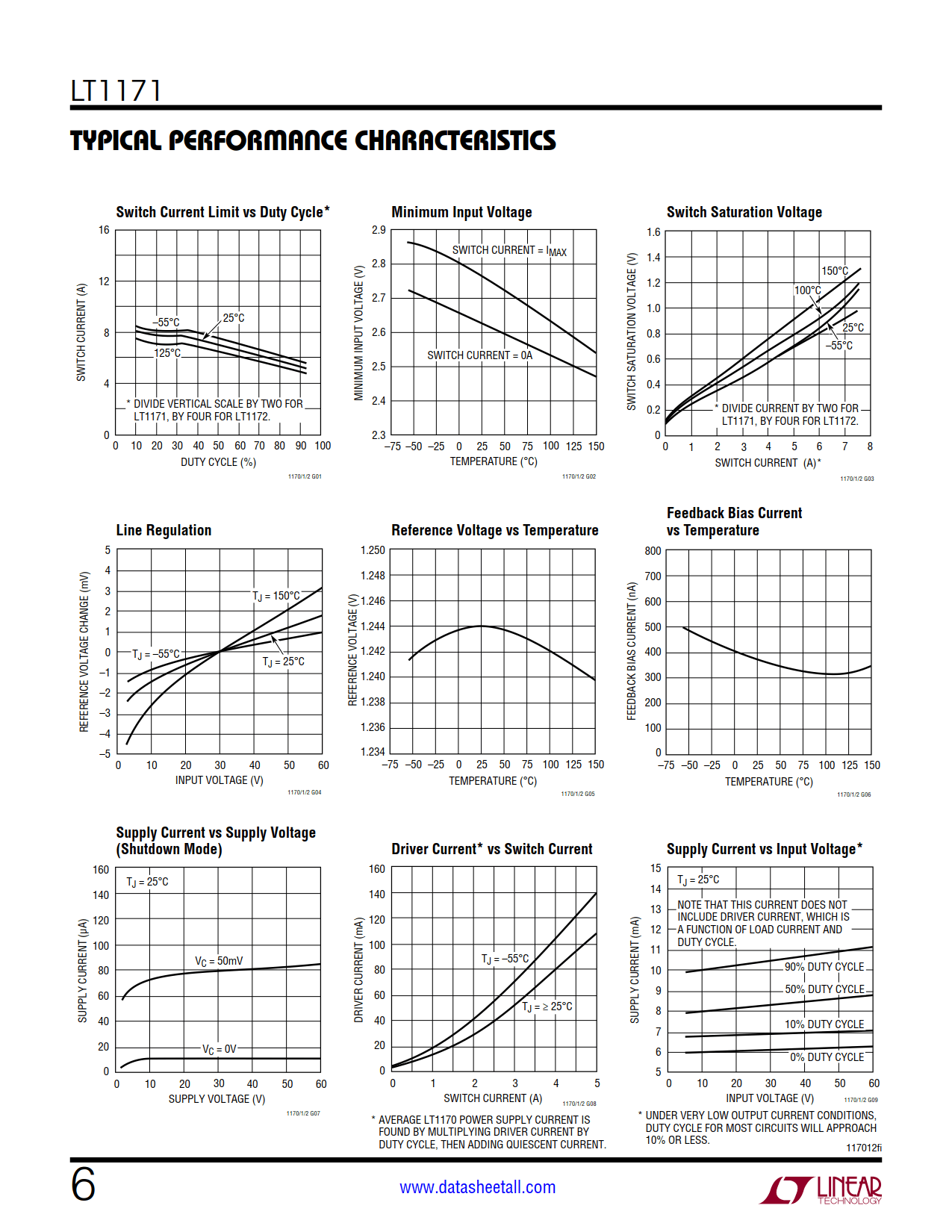

LT1171 Datasheet(Picture)

LT1171 Features

  • Wide Input Voltage Range: 3V to 60V
  • Low Quiescent Current: 6mA
  • Internal 5A Switch (2.5A for LT1171, 1.25A for LT1172)
  • Shutdown Mode Draws Only 50μA Supply Current
  • Very Few External Parts Required
  • Self-Protected Against Overloads
  • Operates in Nearly All Switching Topologies
  • Flyback-Regulated Mode Has Fully Floating Outputs
  • Comes in Standard 5-Pin Packages
  • LT1172 Available in 8-Pin MiniDIP and Surface Mount Packages
  • Can Be Externally Synchronized

LT1171 Applications

  • Logic Supply 5V at 10A
  • 5V Logic to ±15V Op Amp Supply
  • Battery Upconverter
  • Power Inverter (+ to –) or (– to +)
  • Fully Floating Multiple Outputs

LT1171 Description

The LT1171 are monolithic high power switching regulators. They can be operated in all standard switching configurations including buck, boost, flyback, forward, inverting and “Cuk.” A high current, high efficiency switch is included on the die along with all oscillator, control and protection circuitry. Integration of all functions allows the LT1171 to be built in a standard 5-pin TO-3 or TO-220 power package as well as the 8-pin packages (LT1172). This makes them extremely easy to use and provides “bust proof” operation similar to that obtained with 3-pin linear regulators.

The LT1171 operate with supply voltages from 3V to 60V, and draw only 6mA quiescent current. They can deliver load power up to 100W with no external power devices. By utilizing current-mode switching techniques, they provide excellent AC and DC load and line regulation.

The LT1171 have many unique features not found even on the vastly more difficult to use low power control chips presently available. They use adaptive antisat switch drive to allow very wide ranging load currents with no loss in efficiency. An externally activated shutdown mode reduces total supply current to 50μA typically for standby operation.
