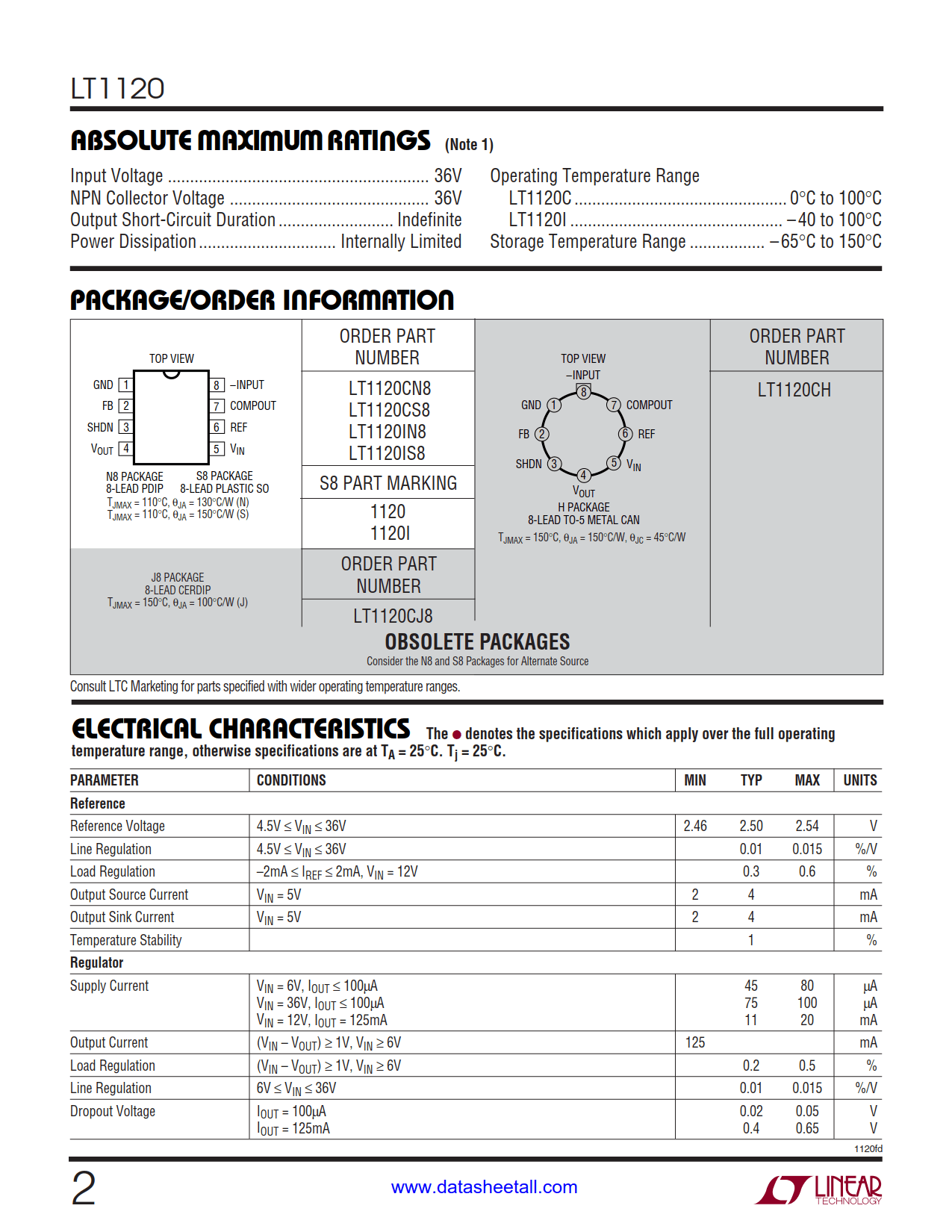

| Part No.： | LT1120 |
| Page： | 12 Pages |
| Size： | 123 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 3 |
| Update Time： | 2024-12-04 22:22:00 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LT1120CN8#PBF | Tube | 50 | 1 | 8 | 0°C ~70°C | 8-Lead PDIP | ||
| LT1120CN8#TRPBF | Reel | 1 | 8 | 0°C ~70°C | 8-Lead PDIP | |||
| LT1120CN8#TRMPBF | Reel | 1 | 8 | 0°C ~70°C | 8-Lead PDIP | |||
| LT1120IN8#PBF | Tube | 50 | 1 | 8 | -40°C ~125°C | 8-Lead PDIP | ||
| LT1120IN8#TRPBF | Reel | 1 | 8 | -40°C ~125°C | 8-Lead PDIP | |||
| LT1120IN8#TRMPBF | Reel | 1 | 8 | -40°C ~125°C | 8-Lead PDIP | |||
| LT1120CS8#PBF | Tube | 100 | 1120 | 1 | 8 | 0°C ~70°C | 8-Lead SOIC | |
| LT1120CS8#TRPBF | Reel | 2500 | 1120 | 1 | 8 | 0°C ~70°C | 8-Lead SOIC | |
| LT1120CS8#TRMPBF | Reel | 500 | 1120 | 1 | 8 | 0°C ~70°C | 8-Lead SOIC | |
| LT1120IS8#PBF | Tube | 100 | 1120I | 1 | 8 | -40°C ~125°C | 8-Lead SOIC | |
| LT1120IS8#TRPBF | Reel | 2500 | 1120I | 1 | 8 | -40°C ~125°C | 8-Lead SOIC | |
| LT1120IS8#TRMPBF | Reel | 500 | 1120I | 1 | 8 | -40°C ~125°C | 8-Lead SOIC | |
| LT1120CH | ||||||||
| LT1120CJ8 |
The LT1120 is a combination micropower positive regulator and free collector comparator on a single monolithic chip. With only 40µA supply current, the LT1120 can supply over 125mA of output current. Input voltage range is from 4.5V to 36V and dropout voltage is 0.6V at 125mA. Dropout voltage decreases with lower load currents. Also included on the chip is a class B output 2.5V reference that can either source or sink current. A shutdown pin allows logic shutdown of the output.
The comparator can be used for system or battery monitoring. For example, the comparator can be used to warn of low system voltage. Frequency compensation of the comparator for amplifier applications can be obtained by adding external output capacitance.
The 2.5V reference will source or sink current. This allows it to be used as a supply splitter or auxiliary output.
