| Part No.： | LT1114 |
| Page： | 16 Pages |
| Size： | 323 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2023-09-21 10:16:22 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LT1114ACN#PBF | Tube | 25 | 1 | 14 | 0°C ~ 70°C | 14-Lead PDIP | ||
| LT1114CN#PBF | Tube | 25 | 1 | 14 | 0°C ~ 70°C | 14-Lead PDIP | ||
| LT1114IN#PBF | Tube | 25 | 1 | 14 | -40°C ~ 85°C | 14-Lead PDIP | ||
| LT1114S#PBF | Tube | 50 | 1 | 16 | 0°C ~ 70°C | 16-Lead SOIC | ||
| LT1114S#TRPBF | Reel | 2500 | 1 | 16 | 0°C ~ 70°C | 16-Lead SOIC | ||
| LT1114S#TRMPBF | Reel | 500 | 1 | 16 | 0°C ~ 70°C | 16-Lead SOIC | ||
| LT1114IS#PBF | Tube | 50 | 1 | 16 | -40°C ~ 85°C | 16-Lead SOIC | ||
| LT1114IS#TRPBF | Reel | 2500 | 1 | 16 | -40°C ~ 85°C | 16-Lead SOIC | ||
| LT1114IS#TRMPBF | Reel | 500 | 1 | 16 | -40°C ~ 85°C | 16-Lead SOIC |

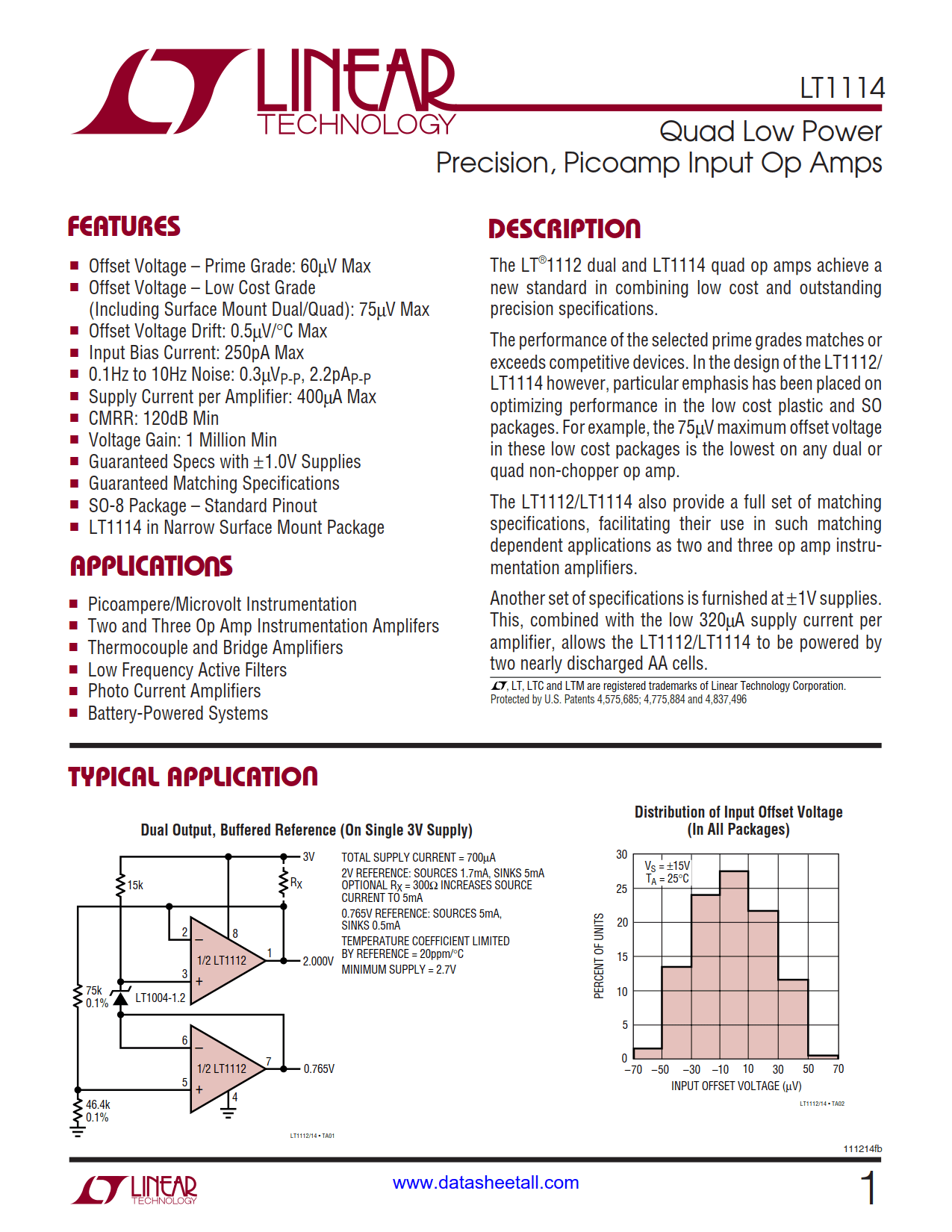

The LT1114 quad op amps achieve a new standard in combining low cost and outstanding precision specifications.
The performance of the selected prime grades matches or exceeds competitive devices. In the design of the LT1114 however, particular emphasis has been placed on optimizing performance in the low cost plastic and SO packages. For example, the 75µV maximum offset voltage in these low cost packages is the lowest on any dual or quad non-chopper op amp.
The LT1114 also provide a full set of matching specifications, facilitating their use in such matching dependent applications as two and three op amp instrumentation amplifiers.
Another set of specifications is furnished at ±1V supplies. This, combined with the low 320µA supply current per amplifier, allows the LT1114 to be powered by two nearly discharged AA cells.
