LT1027 Datasheet

LT1027 Datasheet

Precision 5 Volt Reference
Part No.: LT1027
Page: 8 Pages
Size: 194 KB
Manufacturer: Linear Technology
Logo:
Views: 2
Update Time: 2024-01-23 15:24:18
DataSheet: Download

LT1027 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LT1027BCN8-5#PBF Tube 50   1 8 0°C ~70°C 8-Lead PDIP
LT1027CCN8-5#PBF Tube 50   1 8 0°C ~70°C 8-Lead PDIP
LT1027DCN8-5#PBF Tube 50   1 8 0°C ~70°C 8-Lead PDIP
LT1027ECN8-5#PBF Tube 50   1 8 0°C ~70°C 8-Lead PDIP
LT1027CCS8-5#PBF Tube 100 1027C5 1 8 0°C ~70°C 8-Lead SOIC
LT1027CCS8-5#TRPBF Reel 2500 1027C5 1 8 0°C ~70°C 8-Lead SOIC
LT1027CCS8-5#TRMPBF Reel 500 1027C5 1 8 0°C ~70°C 8-Lead SOIC
LT1027DCS8-5#PBF Tube 100 1027D5 1 8 0°C ~70°C 8-Lead SOIC
LT1027DCS8-5#TRPBF Reel 2500 1027D5 1 8 0°C ~70°C 8-Lead SOIC
LT1027DCS8-5#TRMPBF Reel 500 1027D5 1 8 0°C ~70°C 8-Lead SOIC
LT1027ECS8-5#PBF Tube 100 1027E5 1 8 0°C ~70°C 8-Lead SOIC
LT1027ECS8-5#TRPBF Reel 2500 1027E5 1 8 0°C ~70°C 8-Lead SOIC
LT1027ECS8-5#TRMPBF Reel 500 1027E5 1 8 0°C ~70°C 8-Lead SOIC
LT1027ACH-5#PBF Tube
LT1027BCH-5#PBF Tube
LT1027CCH-5#PBF Tube
LT1027DCH-5#PBF Tube
LT1027ECH-5#PBF Tube
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LT1027 Datasheet(PDF)

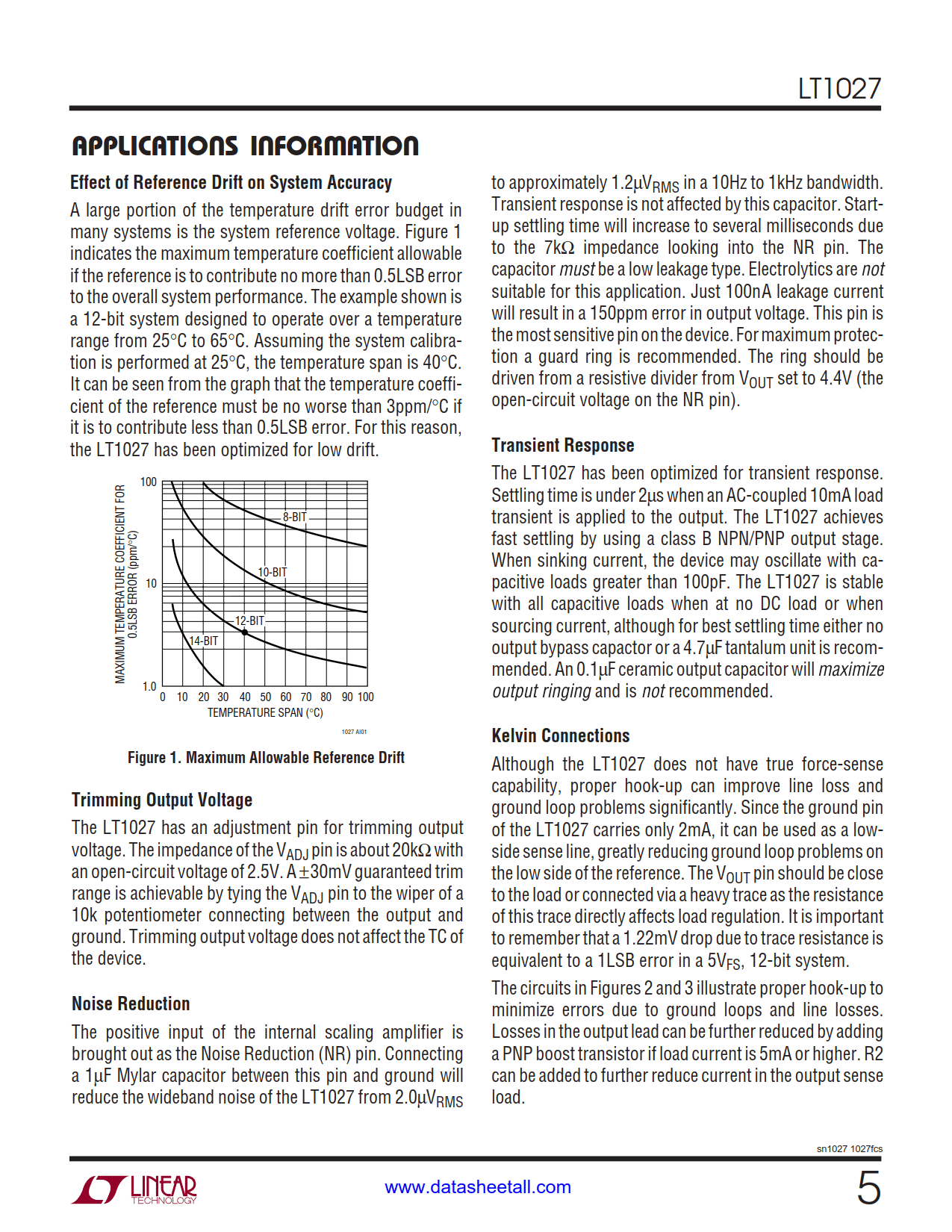

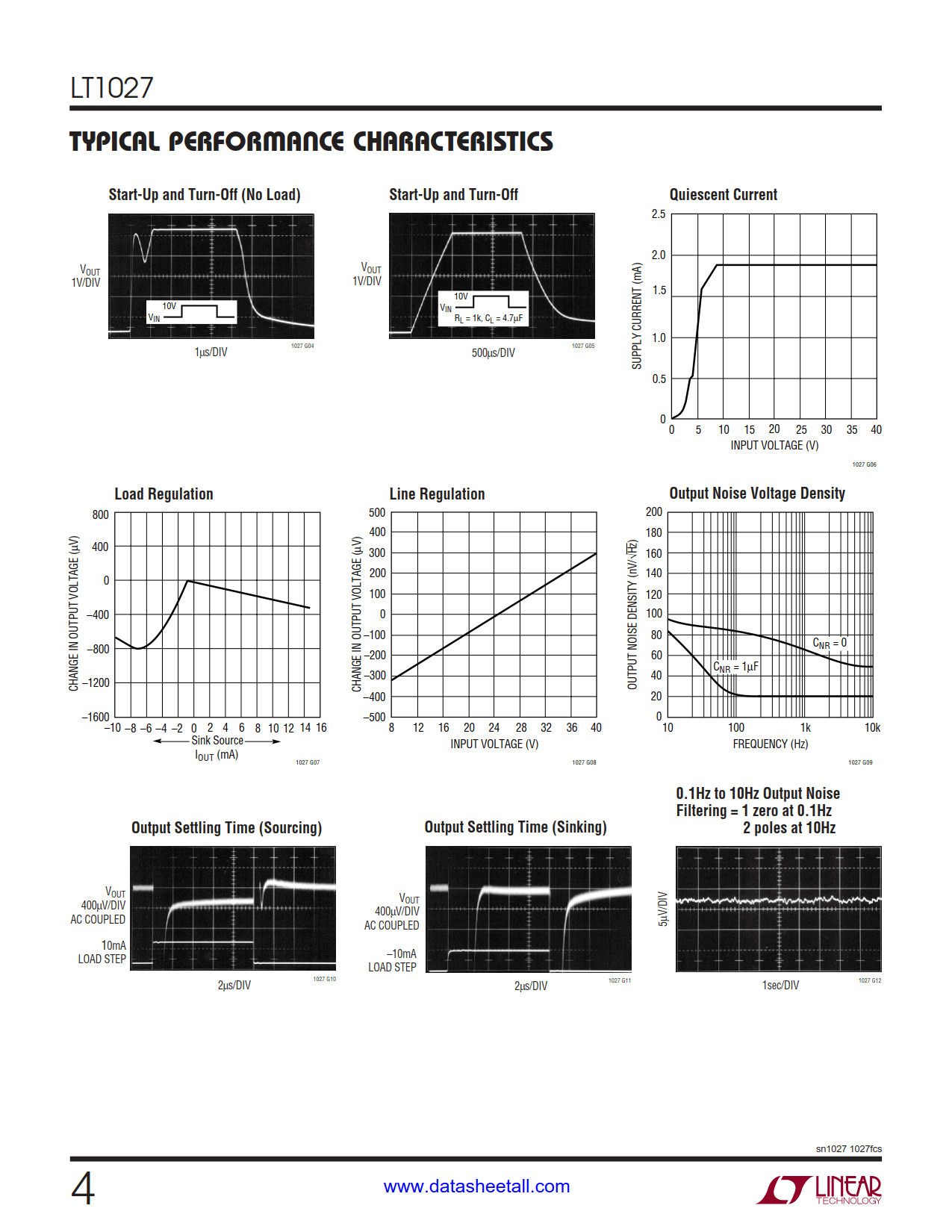

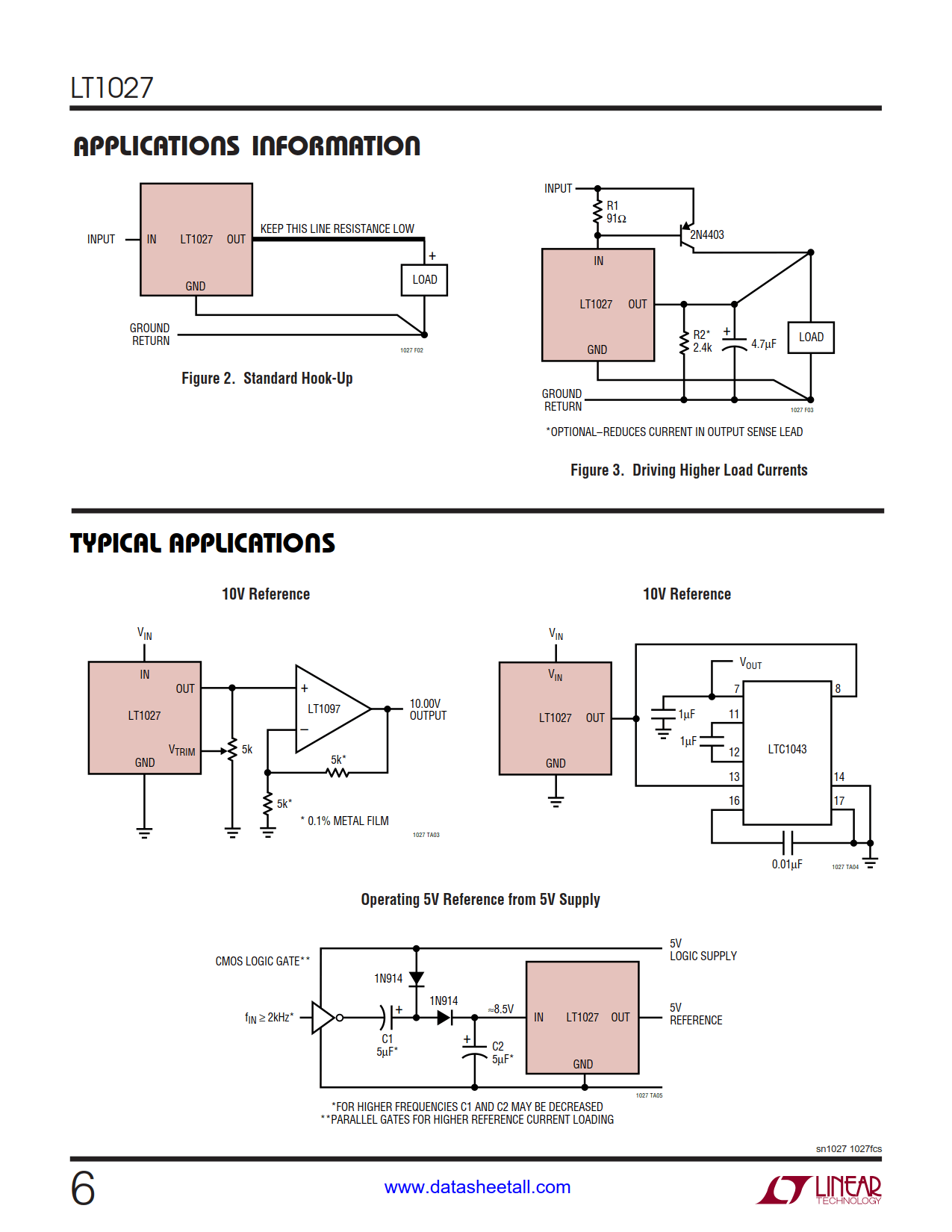

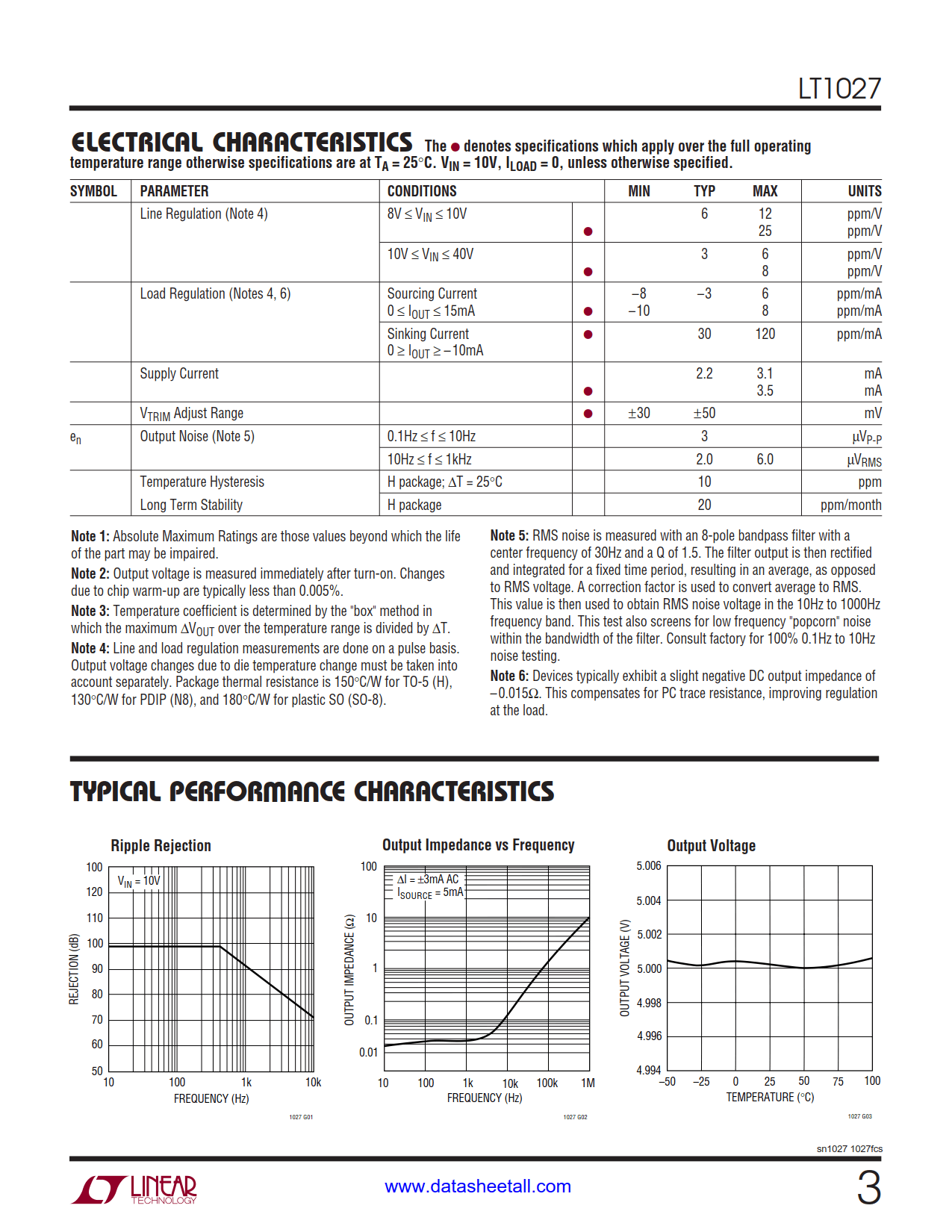

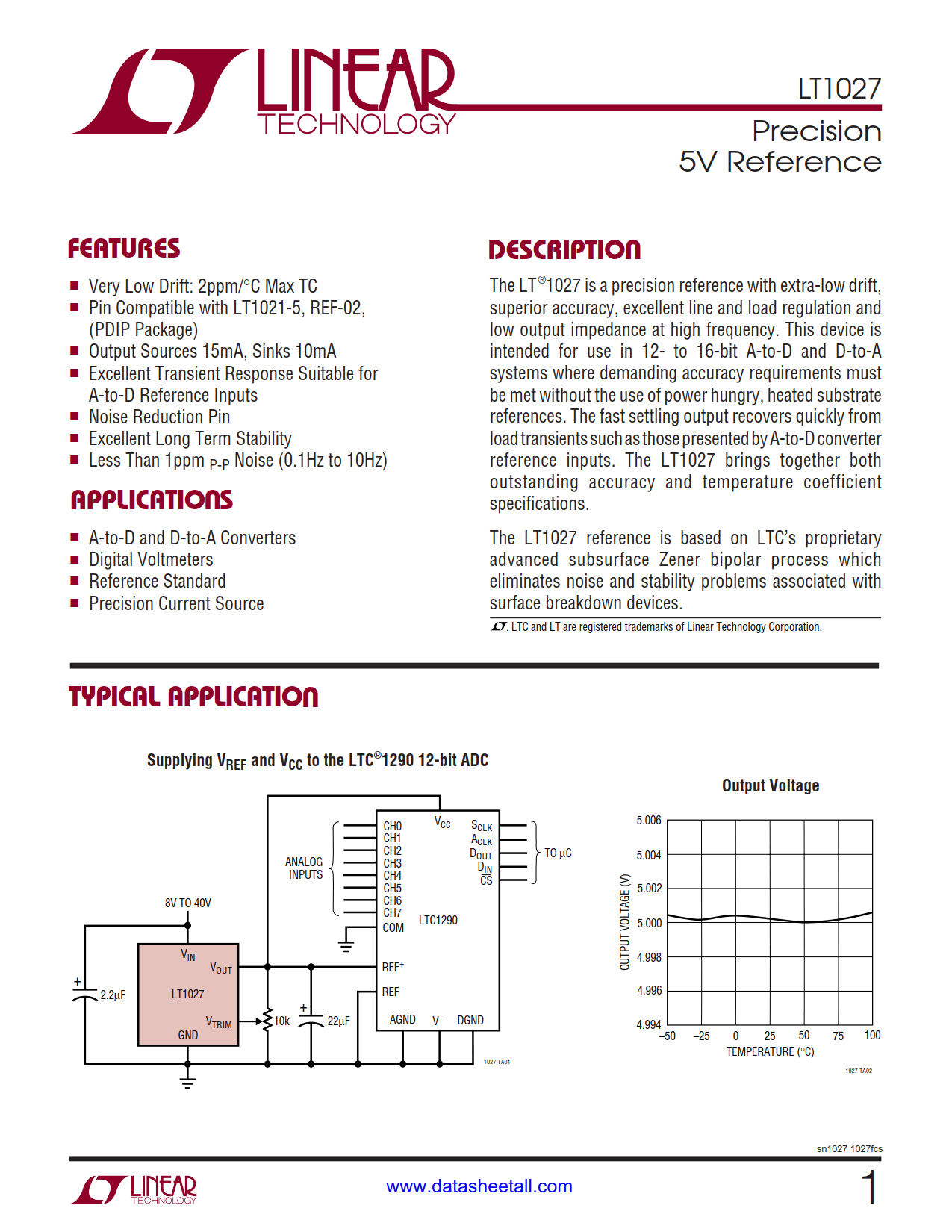

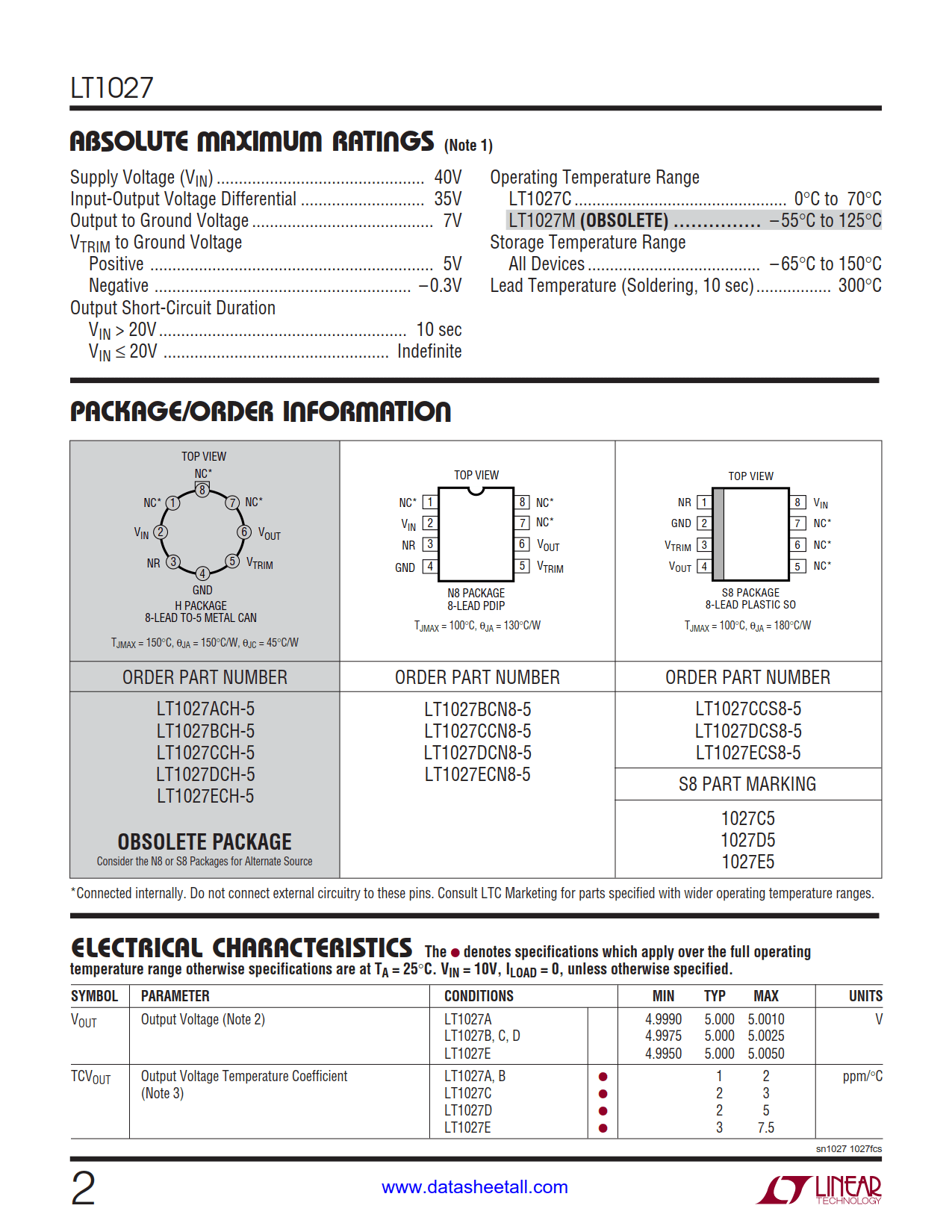

LT1027 Datasheet(Picture)

LT1027 Features

  • Very Low Drift: 2ppm/°C Max TC
  • Pin Compatible with LT1021-5, REF-02, (PDIP Packages)
  • Output Sources 15mA, Sinks 10mA
  • Excellent Transient Response Suitable for A-to-D Reference Inputs
  • Noise Reduction Pin
  • Excellent Long Term Stability
  • Less Than 1ppm P-P Noise (0.1Hz to 10Hz)

LT1027 Applications

  • A-to-D and D-to-A Converters
  • Digital Voltmeters
  • Reference Standard
  • Precision Current Source

LT1027 Description

The LT1027 is a precision reference with extra-low drift, superior accuracy, excellent line and load regulation and low output impedance at high frequency. This device is intended for use in 12- to 16-bit A-to-D and D-to-A systems where demanding accuracy requirements must be met without the use of power hungry, heated substrate references. The fast settling output recovers quickly from load transients such as those presented by A-to-D converter reference inputs. The LT1027 brings together both outstanding accuracy and temperature coefficient specifications.

The LT1027 reference is based on LTC’s proprietary advanced subsurface Zener bipolar process which eliminates noise and stability problems associated with surface breakdown devices.
