LT1021 Datasheet

LT1021 Datasheet

Precision Reference
Part No.: LT1021
Page: 16 Pages
Size: 193 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-01-11 16:15:36
DataSheet: Download

LT1021 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LT1021BCH-5 Tray 20   1 8 0°C ~ 70°C 8-Lead TO-5
LT1021BMH-5 Tray 20   1 8 -55°C ~ 125°C 8-Lead TO-5
LT1021CCH-5 Tray 20   1 8 0°C ~ 70°C 8-Lead TO-5
LT1021CMH-5 Tray 20   1 8 -55°C ~ 125°C 8-Lead TO-5
LT1021BMH-10 Tray 20   1 8 -55°C ~ 125°C 8-Lead TO-5
LT1021BCN8-5#PBF Tube 50   1 8 0°C ~ 70°C 8-Lead PDIP
LT1021CCN8-5#PBF Tube 50   1 8 0°C ~ 70°C 8-Lead PDIP
LT1021CIN8-5#PBF Tube 50   1 8 -40°C ~ 85°C 8-Lead PDIP
LT1021DCN8-5#PBF Tube 50   1 8 0°C ~ 70°C 8-Lead PDIP
LT1021DIN8-5#PBF Tube 50   1 8 -40°C ~ 85°C 8-Lead PDIP
LT1021BCN8-7#PBF Tube 50   1 8 0°C ~ 70°C 8-Lead PDIP
LT1021DCN8-7#PBF Tube 50   1 8 0°C ~ 70°C 8-Lead PDIP
LT1021BCN8-10#PBF Tube 50   1 8 0°C ~ 70°C 8-Lead PDIP
LT1021CCN8-10#PBF Tube 50   1 8 0°C ~ 70°C 8-Lead PDIP
LT1021CIN8-10#PBF Tube 50   1 8 -40°C ~ 85°C 8-Lead PDIP
LT1021DCN8-10#PBF Tube 50   1 8 0°C ~ 70°C 8-Lead PDIP
LT1021DIN8-10#PBF Tube 50   1 8 -40°C ~ 85°C 8-Lead PDIP
LT1021DCS8-5#PBF Tube 100 2105 1 8 0°C ~ 70°C 8-Lead SOIC
LT1021DCS8-5#TRPBF Reel 2500 2105 1 8 0°C ~ 70°C 8-Lead SOIC
LT1021DCS8-5#TRMPBF Reel 500 2105 1 8 0°C ~ 70°C 8-Lead SOIC
LT1021DCS8-7#PBF Tube 100 2107 1 8 0°C ~ 70°C 8-Lead SOIC
LT1021DCS8-7#TRPBF Reel 2500 2107 1 8 0°C ~ 70°C 8-Lead SOIC
LT1021DCS8-7#TRMPBF Reel 500 2107 1 8 0°C ~ 70°C 8-Lead SOIC
LT1021DCS8-10#PBF Tube 100 2110 1 8 0°C ~ 70°C 8-Lead SOIC
LT1021DCS8-10#TRPBF Reel 2500 2110 1 8 0°C ~ 70°C 8-Lead SOIC
LT1021DCS8-10#TRMPBF Reel 500 2110 1 8 0°C ~ 70°C 8-Lead SOIC
5962-8860001GA Tray 20   1 8   8-Lead TO-5
5962-8876201GA Tray 20   1 8   8-Lead TO-5
5962-8876202GA Tray 20   1 8   8-Lead TO-5
LT1021CC-10DICE WafflePack 3542   1 0 0°C ~ 70°C CHIPS OR DIE
LT1021CC-5DICE WafflePack 154   1 0 0°C ~ 70°C CHIPS OR DIE
LT1021CC-5DICE#MILDICE WafflePack 154   1 0 0°C ~ 70°C CHIPS OR DIE
LT1021DC-5DICE WafflePack 3542   1 0 0°C ~ 70°C CHIPS OR DIE
LT1021DCH-5
LT1021DMH-5
LT1021BCH-7
LT1021BMH-7
LT1021DCH-7
LT1021DMH-7
LT1021BCH-10
LT1021CMH-10
LT1021DCH-10
LT1021DMH-10
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LT1021 Datasheet(PDF)

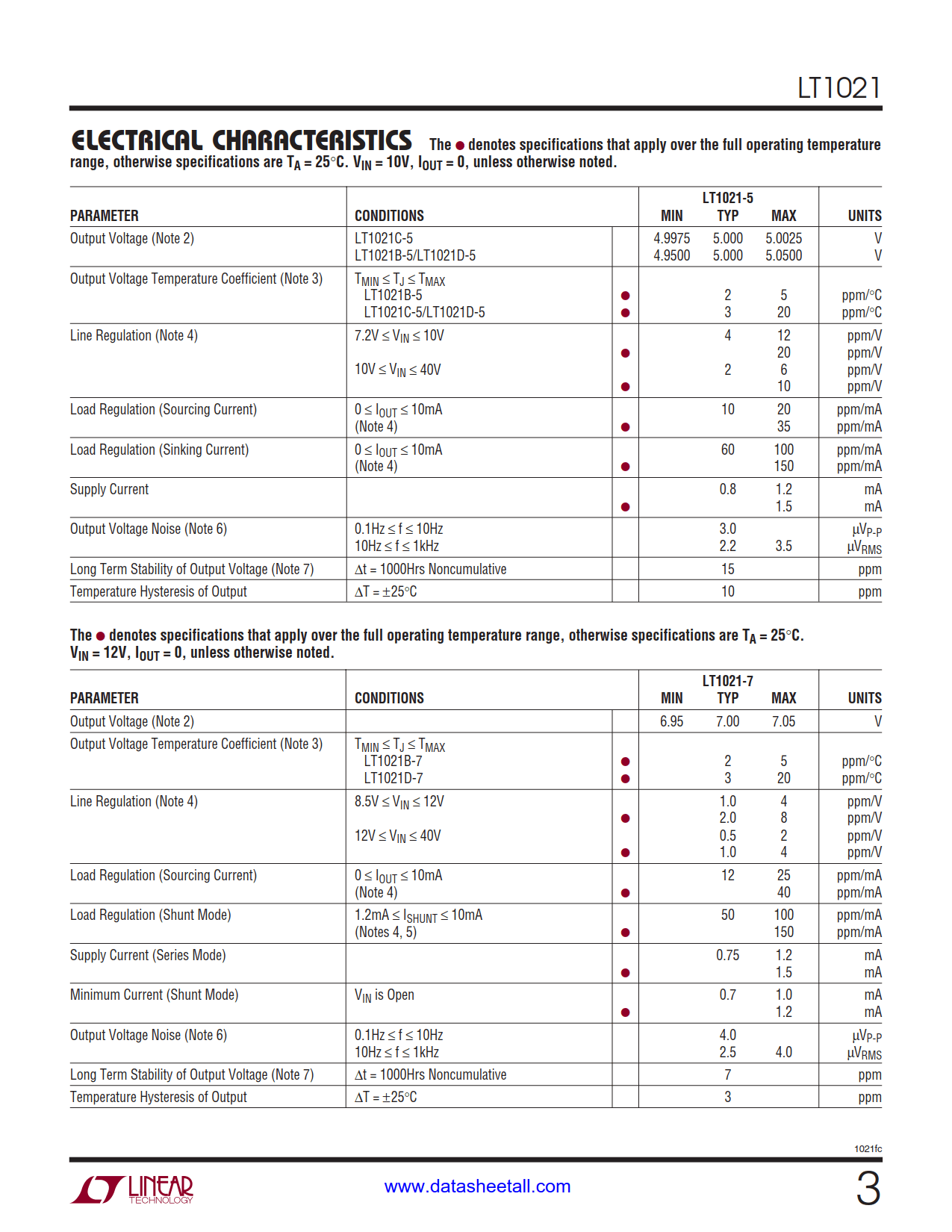

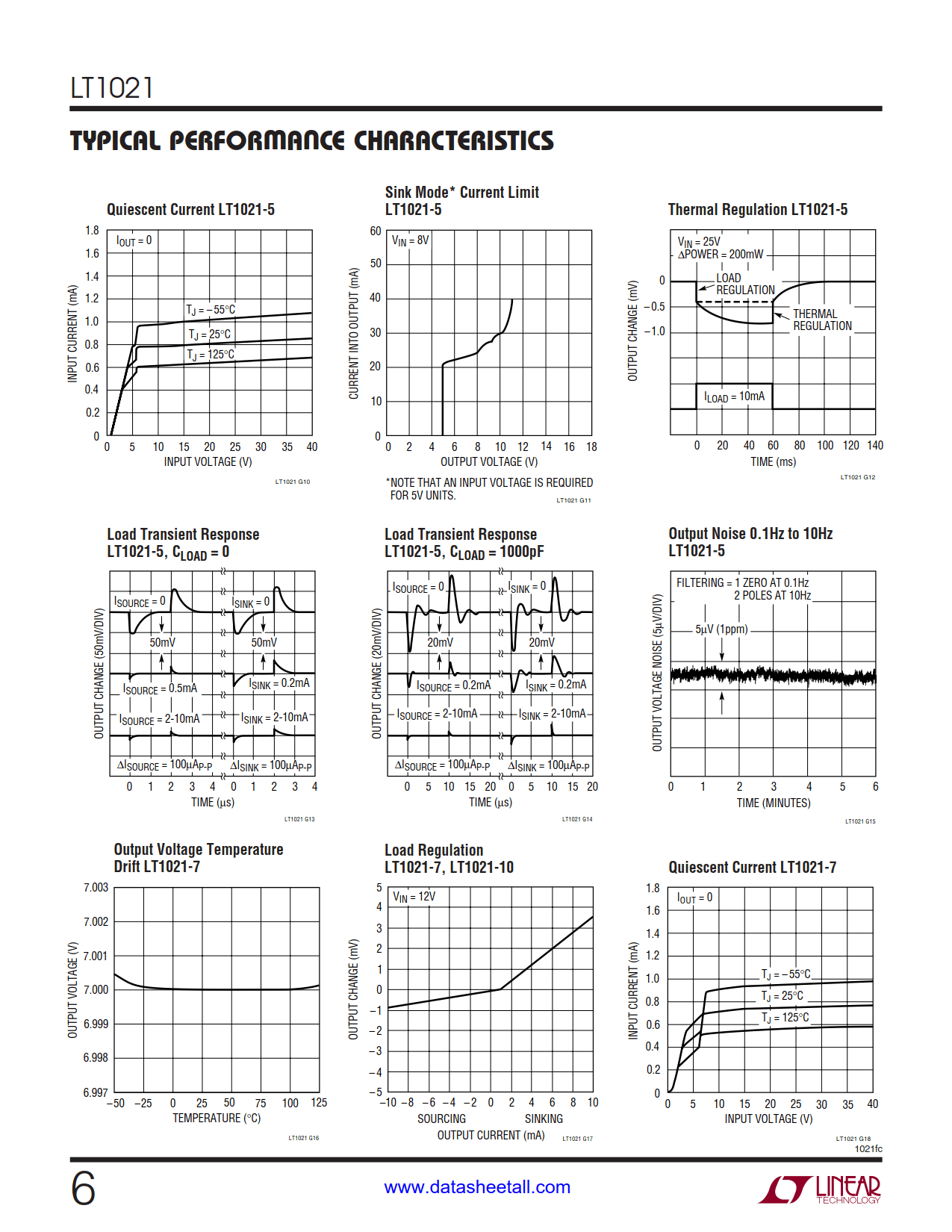

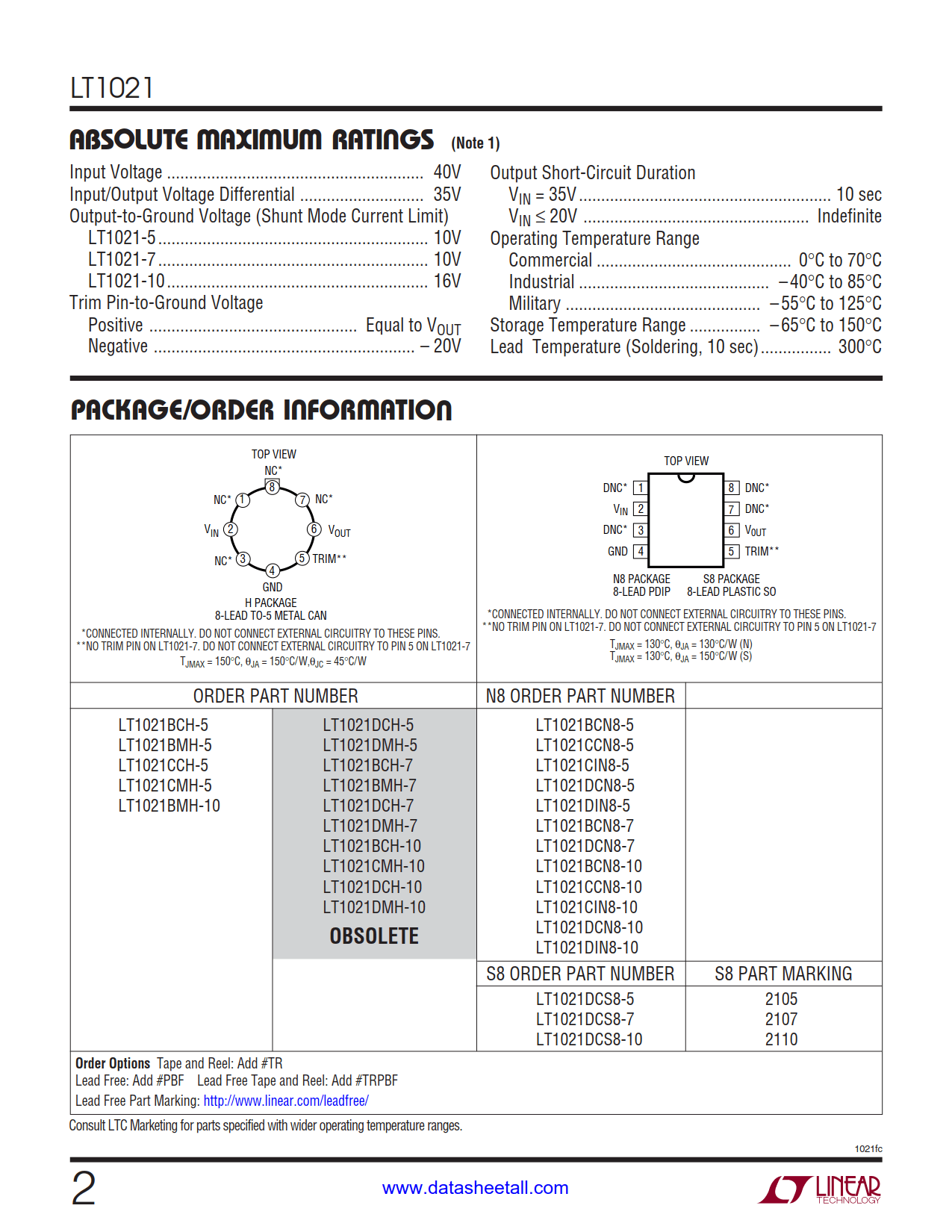

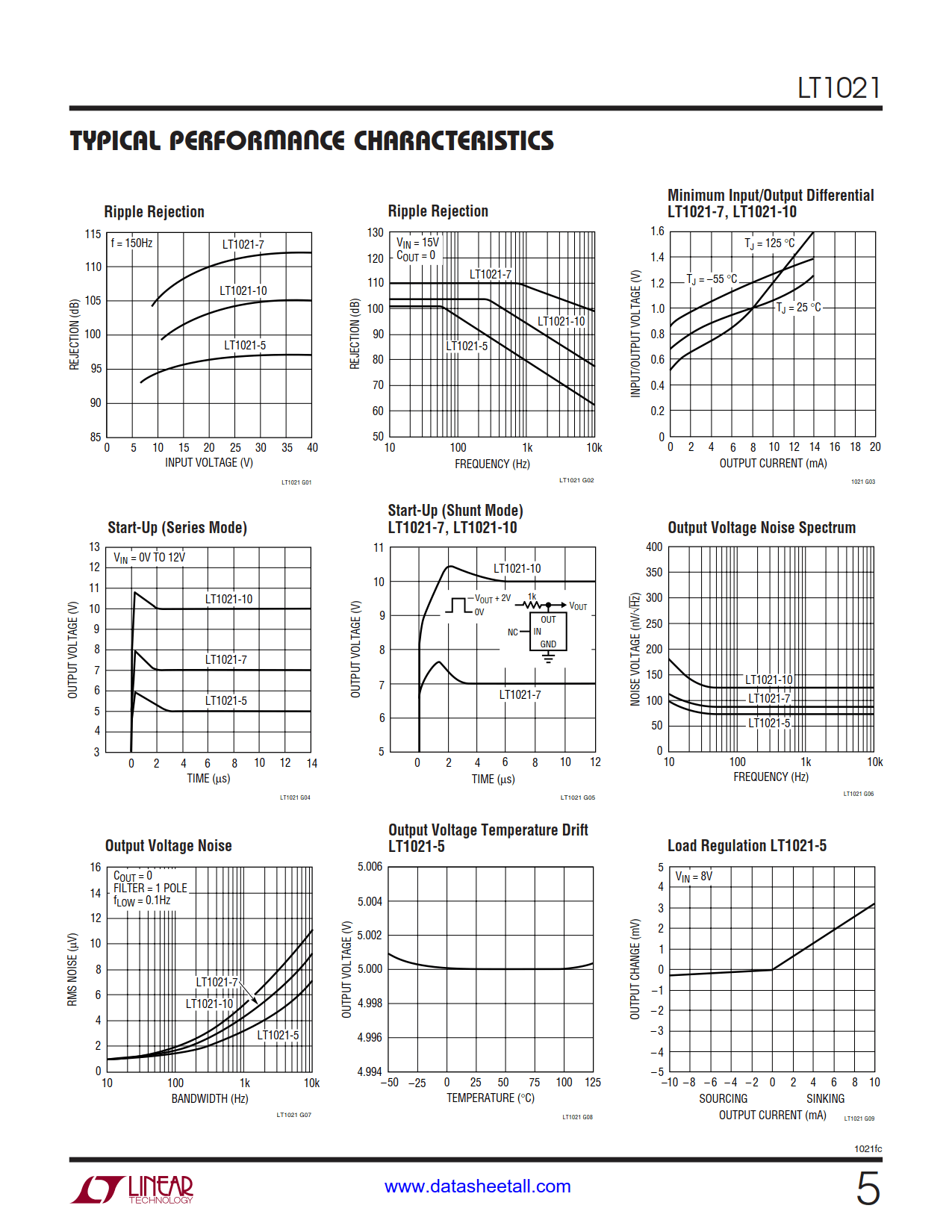

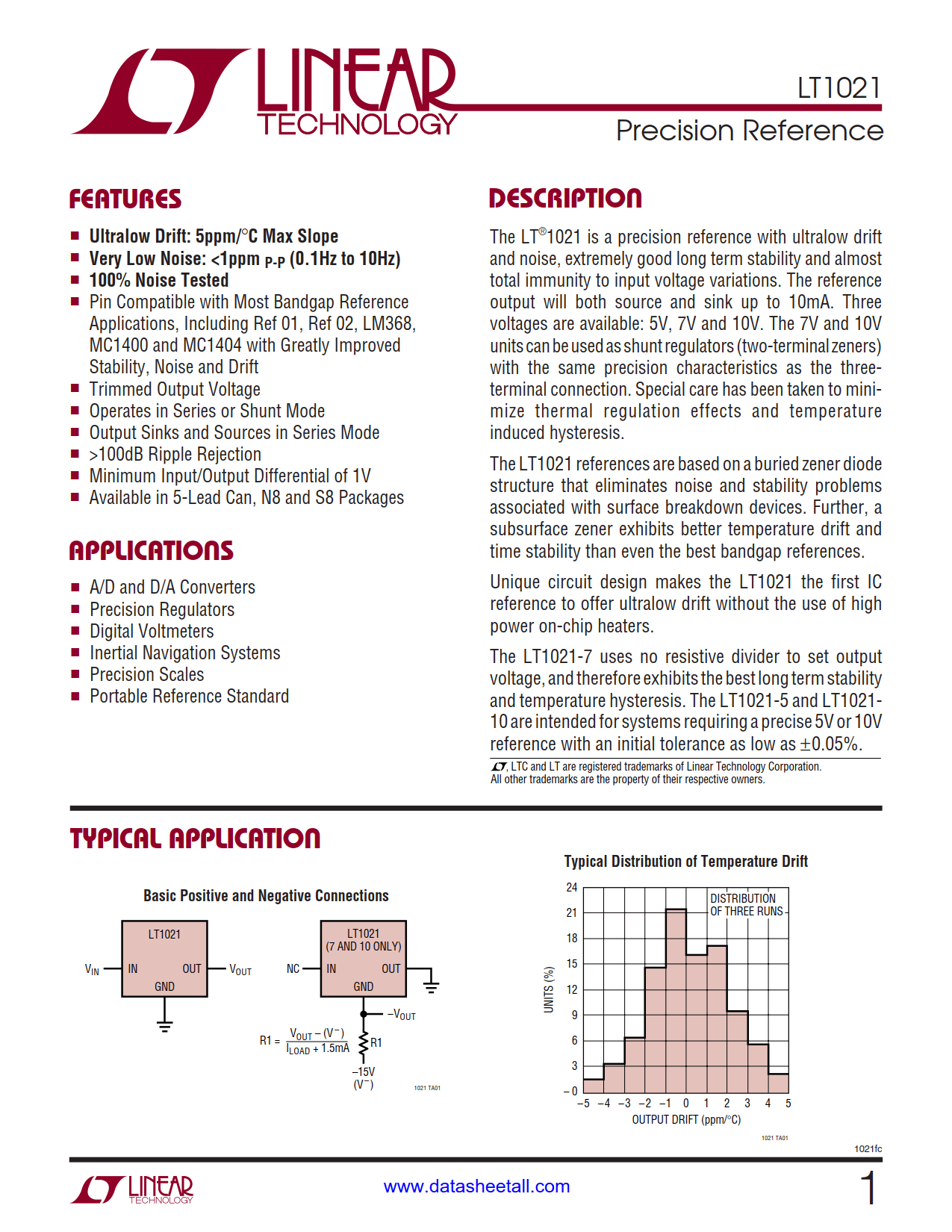

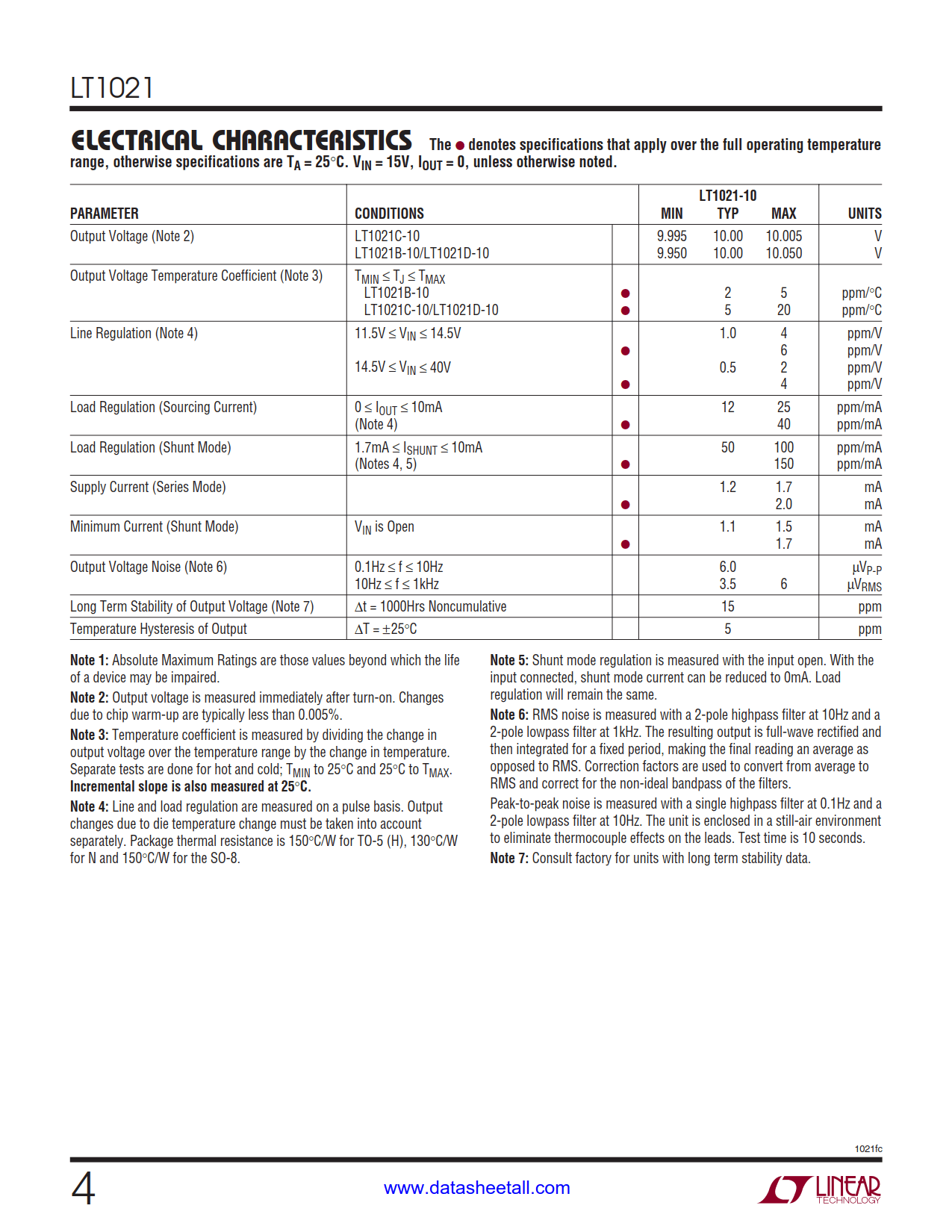

LT1021 Datasheet(Picture)

LT1021 Features

  • Ultralow Drift: 5ppm/°C Max Slope
  • Very Low Noise: P-P (0.1Hz to 10Hz)
  • 100% Noise Tested
  • Pin Compatible with Most Bandgap Reference Applications, Including REF01, REF02, LM368, MC1400 and MC1404 with Greatly Improved Stability, Noise and Drift
  • Trimmed Output Voltage
  • Operates in Series or Shunt Mode
  • Output Sinks and Sources in Series Mode
  • >100dB Ripple Rejection
  • Minimum Input/Output Differential of 1V
  • Available in 5-Lead Can, N8 and S8 Packages

LT1021 Applications

  • A/D and D/A Converters
  • Precision Regulators
  • Digital Voltmeters
  • Inertial Navigation Systems
  • Precision Scales
  • Portable Reference Standard

LT1021 Description

The LT1021 is a precision reference with ultralow drift and noise, extremely good long term stability and almost total immunity to input voltage variations. The reference output will both source and sink up to 10mA. Three voltages are available: 5V, 7V and 10V. The 7V and 10V units can be used as shunt regulators (two-terminal zeners) with the same precision characteristics as the three terminal connection. Special care has been taken to minimize thermal regulation effects and temperature induced hysteresis.

The LT1021 references are based on a buried zener diode structure that eliminates noise and stability problems associated with surface breakdown devices. Further, a subsurface zener exhibits better temperature drift and time stability than even the best bandgap references.

Unique circuit design makes the LT1021 the first IC reference to offer ultralow drift without the use of high power on-chip heaters.

The LT1021-7 uses no resistive divider to set output voltage, and therefore exhibits the best long term stability and temperature hysteresis. The LT1021-5 and LT1021- 10 are intended for systems requiring a precise 5V or 10V reference with an initial tolerance as low as ±0.05%.
