| Part No.： | REF196 |
| Page： | 28 Pages |
| Size： | 457 KB |
| Manufacturer： | Analog Devices, Inc. |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2024-01-05 10:59:16 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| REF196GRUZ-REEL7 | Reel | 1000 | 3 | 8 | -40°C ~ 85°C | 8-Lead TSSOP | ||
| REF196GSZ | Tube | 98 | 3 | 8 | -40°C ~ 85°C | 8-Lead SOIC_N | ||
| REF196GSZ-REEL | Reel | 2500 | 3 | 8 | -40°C ~ 85°C | 8-Lead SOIC_N | ||
| REF196GSZ-REEL7 | Reel | 1000 | 3 | 8 | -40°C ~ 85°C | 8-Lead SOIC_N |

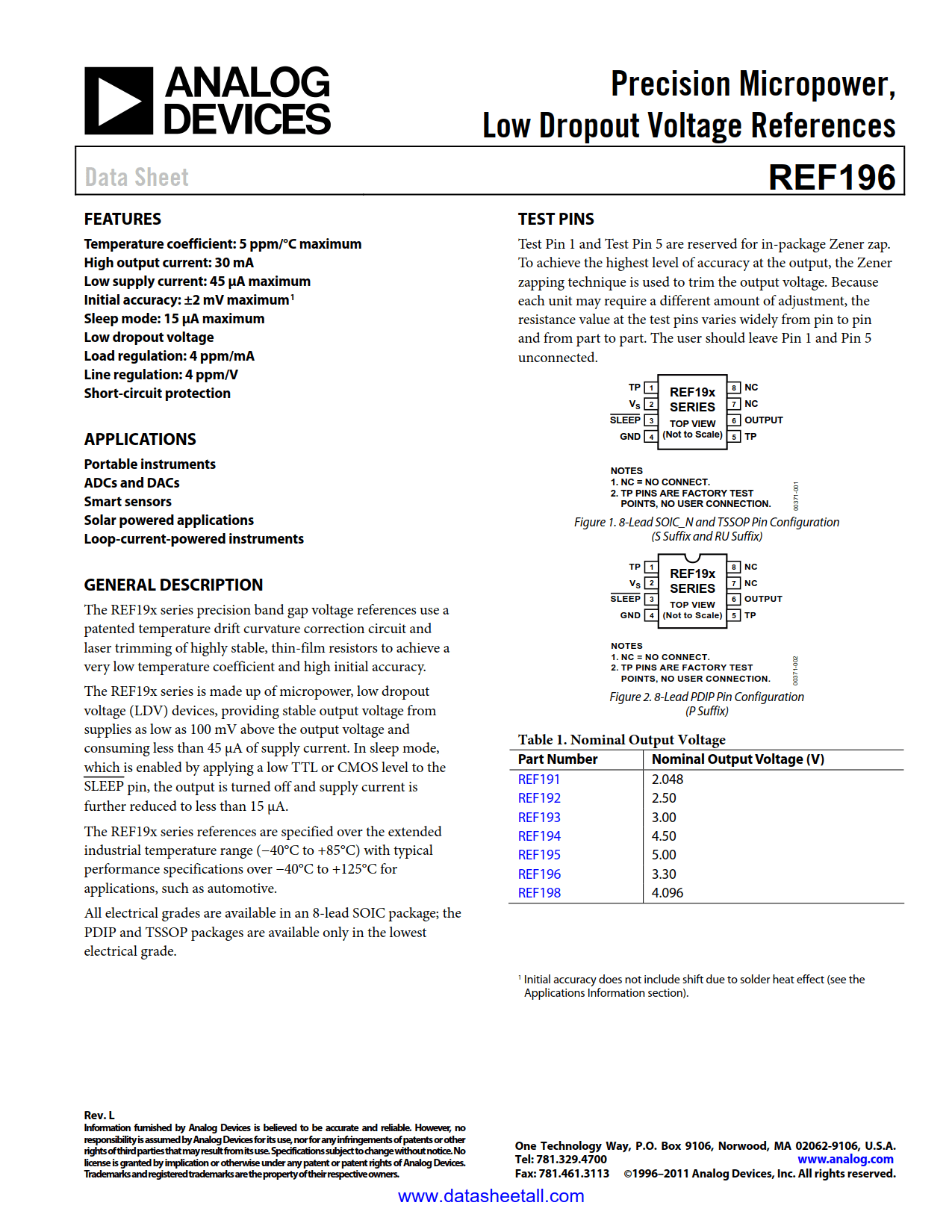

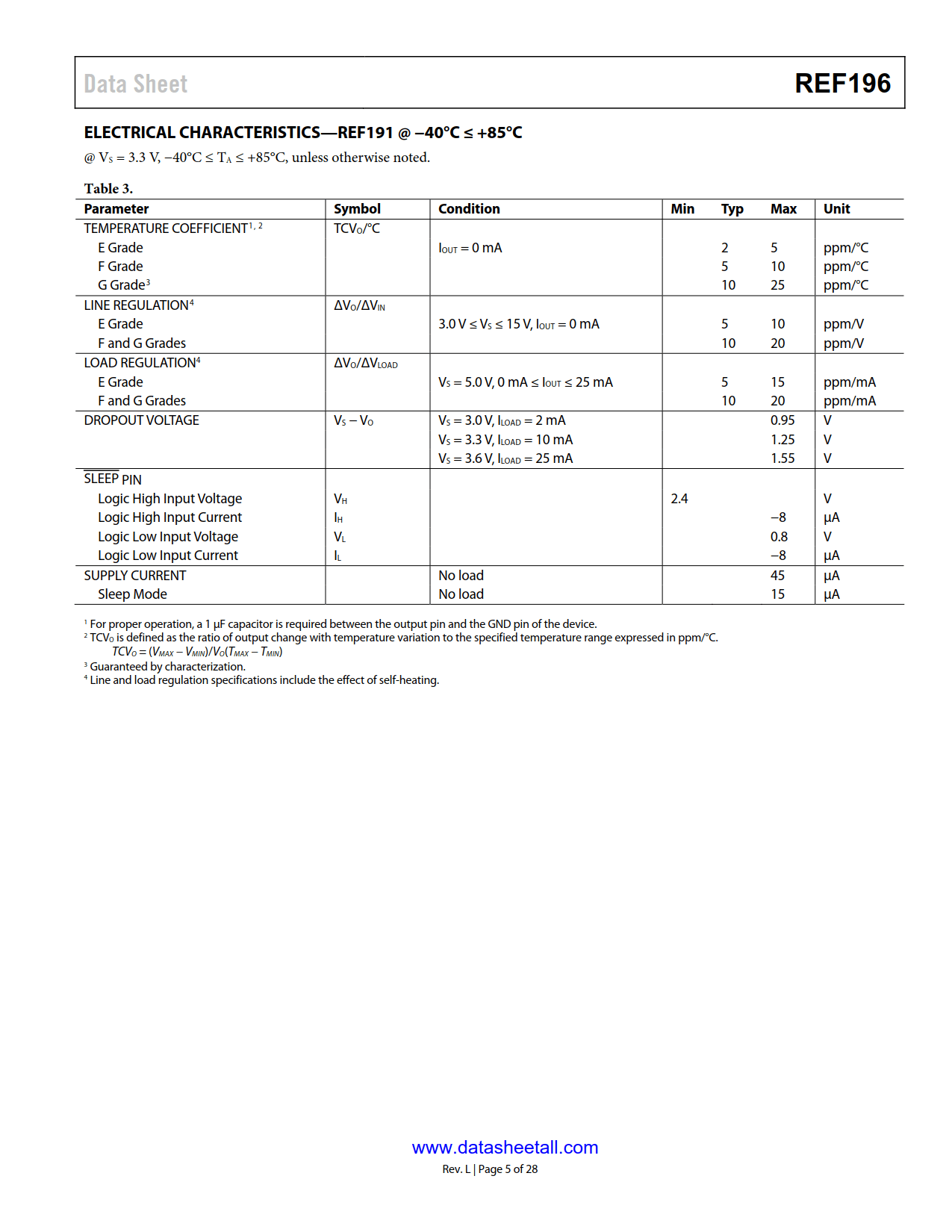

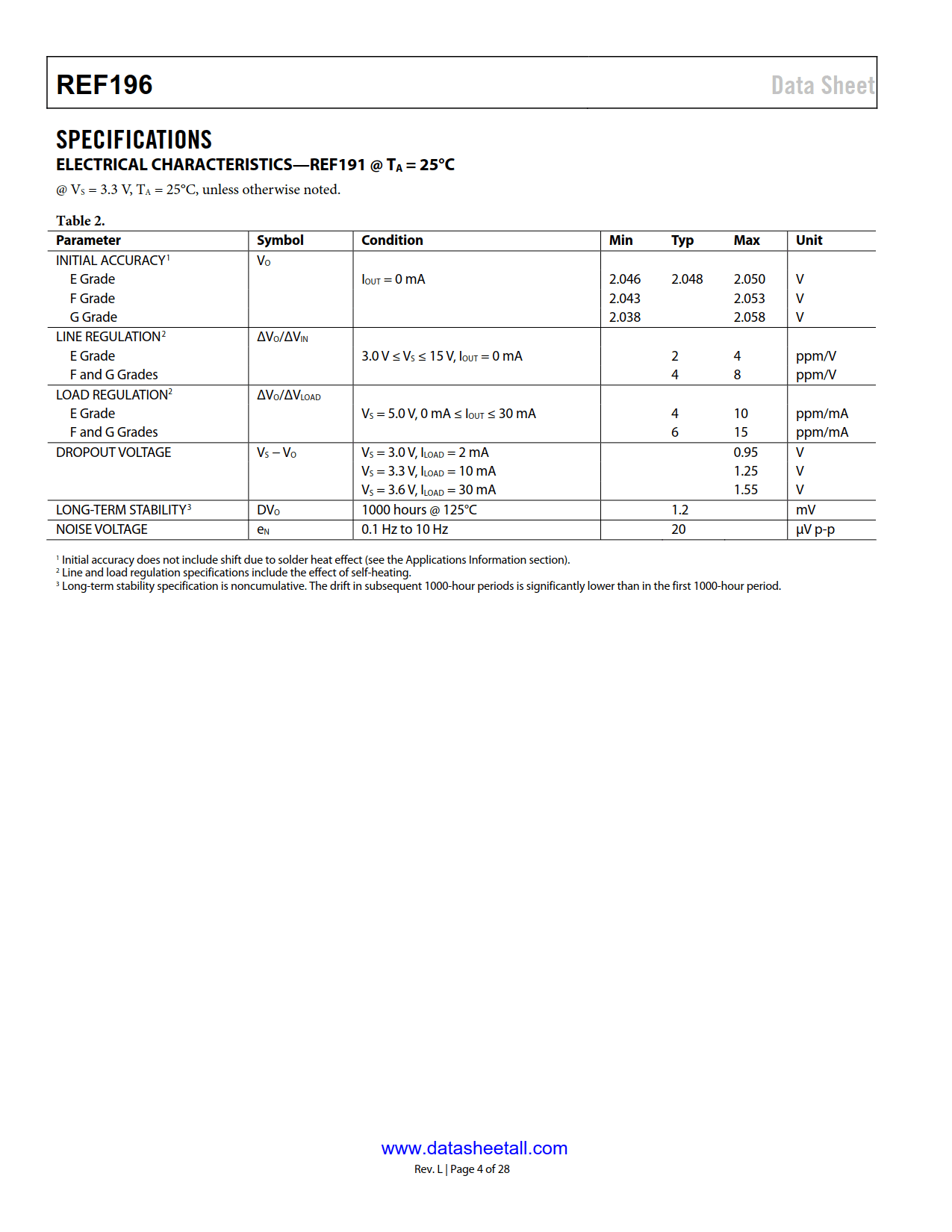

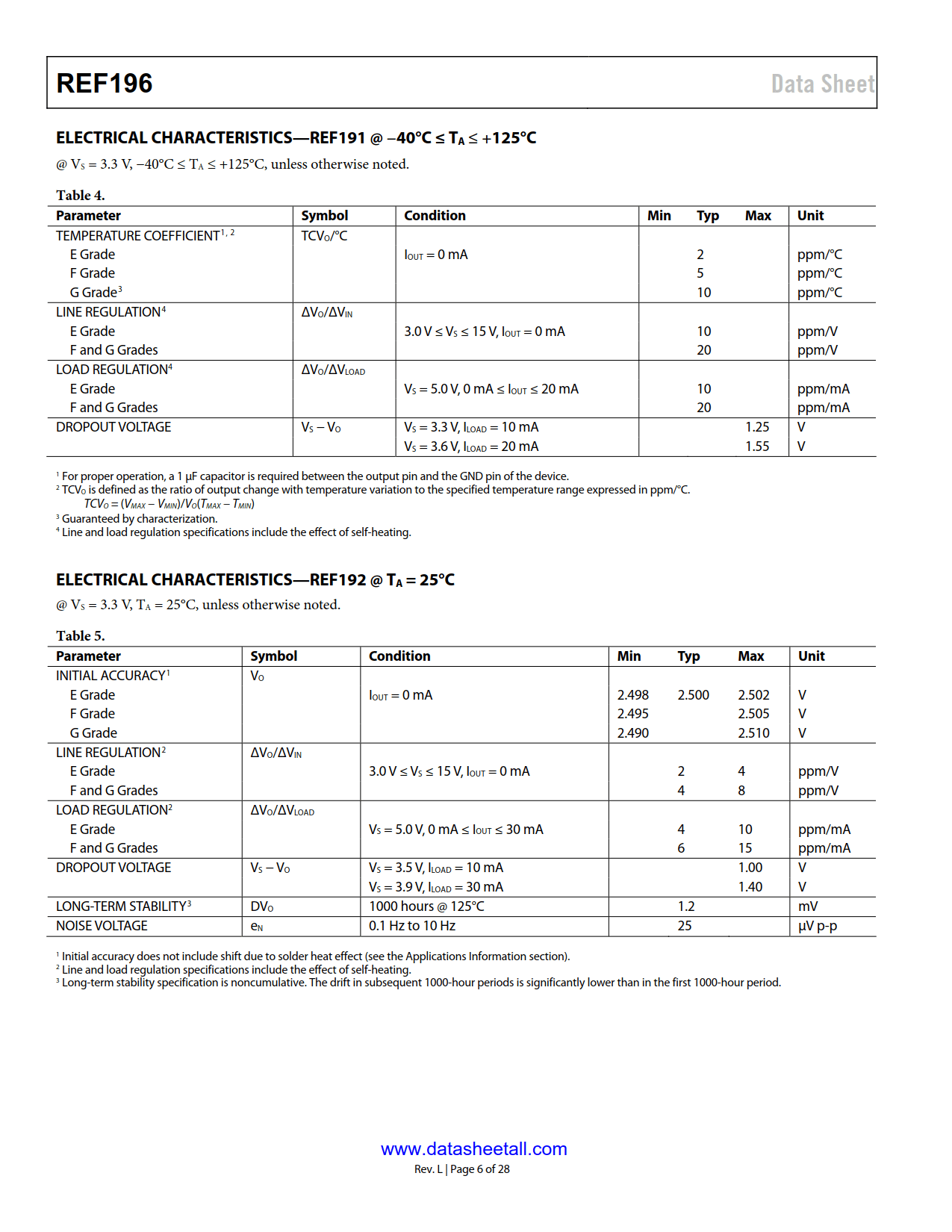

The REF196 precision band gap voltage references use a patented temperature drift curvature correction circuit and laser trimming of highly stable, thin-film resistors to achieve a very low temperature coefficient and high initial accuracy.
The REF196 is made up of micropower, low dropout voltage (LDV) devices, providing stable output voltage from supplies as low as 100 mV above the output voltage and consuming less than 45 μA of supply current. In sleep mode, which is enabled by applying a low TTL or CMOS level to the SLEEP pin, the output is turned off and supply current is further reduced to less than 15 μA.
The REF196 references are specified over the extended industrial temperature range (−40°C to +85°C) with typical performance specifications over −40°C to +125°C for applications, such as automotive.
All electrical grades are available in an 8-lead SOIC package; the PDIP and TSSOP packages are available only in the lowest electrical grade.
