| Part No.： | ADV7393 |
| Page： | 107 Pages |
| Size： | 1775 KB |
| Manufacturer： | Analog Devices, Inc. |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2024-01-05 10:51:52 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| ADV7393BCPZ | Tray | 490 | 3 | 40 | -40°C ~ 85°C | 40-Lead Lead Frame Chip Scale Package [LFCSP] | ||
| ADV7393BCPZ-REEL | Reel | 2500 | 3 | 40 | -40°C ~ 85°C | 40-Lead Lead Frame Chip Scale Package [LFCSP] | ||
| ADV7393WBCPZ | Tray | 490 | 3 | 40 | -40°C ~ 105°C | 40-Lead Lead Frame Chip Scale Package [LFCSP] | ||
| ADV7393WBCPZ-REEL | Reel | 2500 | 3 | 40 | -40°C ~ 105°C | 40-Lead Lead Frame Chip Scale Package [LFCSP] |

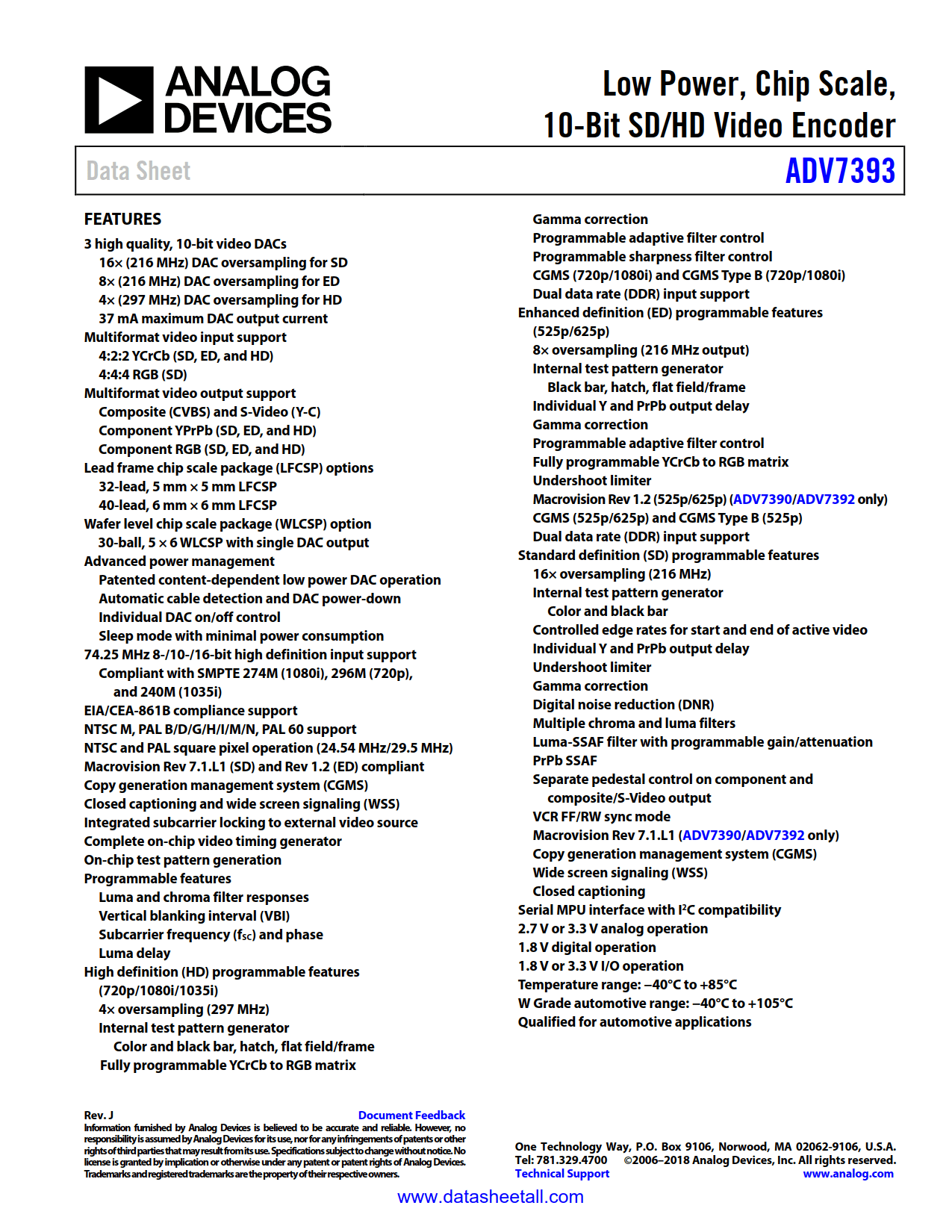

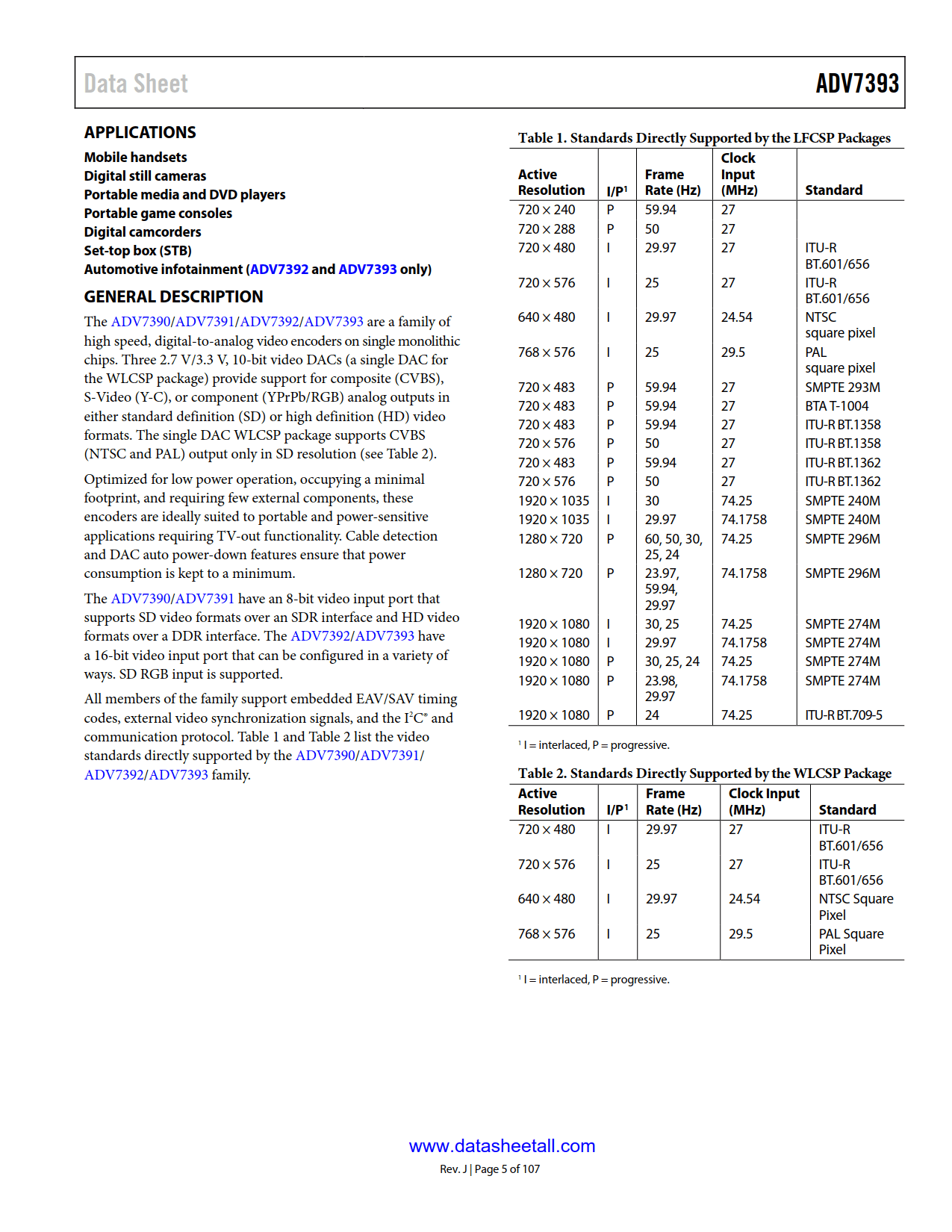

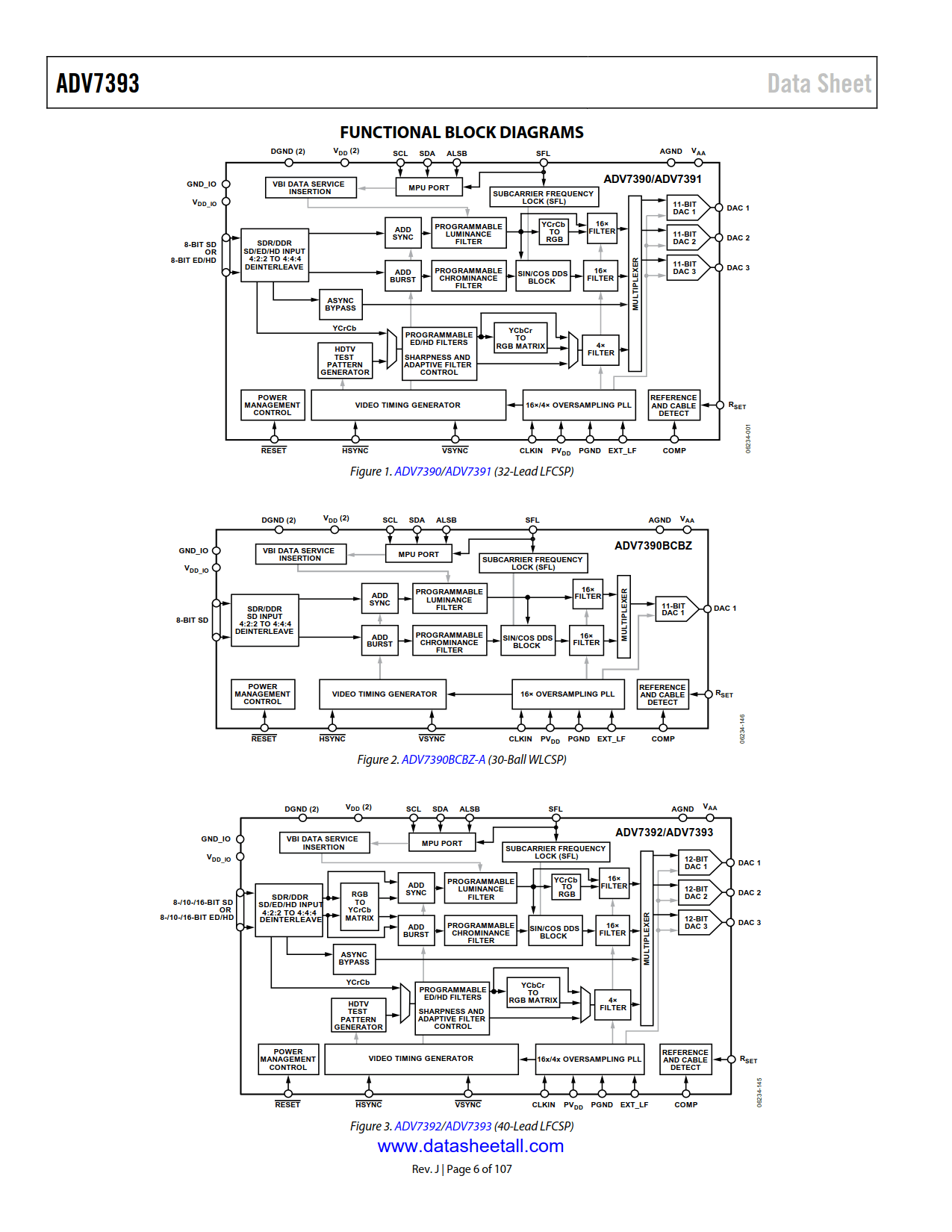

The ADV7393 are a family of high speed, digital-to-analog video encoders on single monolithic chips. Three 2.7 V/3.3 V, 10-bit video DACs (a single DAC for the WLCSP package) provide support for composite (CVBS), S-Video (Y-C), or component (YPrPb/RGB) analog outputs in either standard definition (SD) or high definition (HD) video formats. The single DAC WLCSP package supports CVBS (NTSC and PAL) output only in SD resolution (see Table 2).
Optimized for low power operation, occupying a minimal footprint, and requiring few external components, these encoders are ideally suited to portable and power-sensitive applications requiring TV-out functionality. Cable detection and DAC auto power-down features ensure that power consumption is kept to a minimum.
The ADV7393 have a 16-bit video input port that can be configured in a variety of ways. SD RGB input is supported.
