ADV7390 Datasheet(Analog Devices; Inc.)

ADV7390 Datasheet Applicable Part

Part No.	Packing	SPQ	Marking	MSL	Pins	Temp Range	Package Description	Buy
ADV7390BCPZ	Tray	490		1	32	-40°C ~ 85°C	32-Lead Lead Frame Chip Scale Package [LFCSP]
ADV7390BCPZ-REEL	Reel	5000		1	32	-40°C ~ 85°C	32-Lead Lead Frame Chip Scale Package [LFCSP]
ADV7390WBCPZ	Tray	490		1	32	-40°C ~ 105°C	32-Lead Lead Frame Chip Scale Package [LFCSP]
ADV7390WBCPZ-RL	Reel	5000		1	32	-40°C ~ 105°C	32-Lead Lead Frame Chip Scale Package [LFCSP]
ADV7390BCBZ-A-RL	Reel	5000		1	30	-40°C ~ 85°C	30-Ball Wafer Level Chip Scale Package [WLCSP]

SPQ：Standard Pack Quantity；MSL：Moisture Sensitivity Level

ADV7390 Datasheet(PDF)

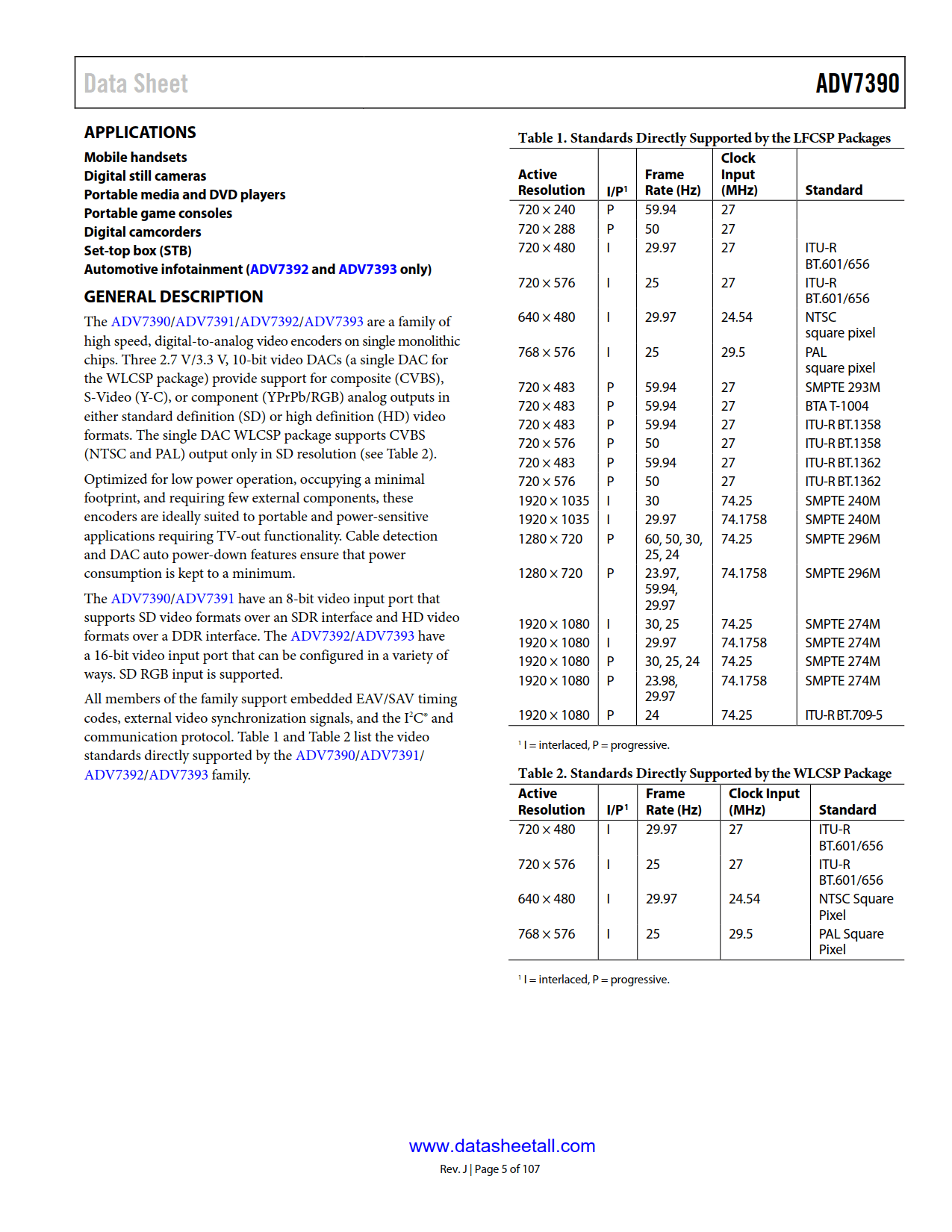

ADV7390 Datasheet(Picture)

ADV7390 Features

3 high quality, 10-bit video DACs
- 16× (216 MHz) DAC oversampling for SD
- 8× (216 MHz) DAC oversampling for ED
- 4× (297 MHz) DAC oversampling for HD
- 37 mA maximum DAC output current
Multiformat video input support
- 4:2:2 YCrCb (SD, ED, and HD)
- 4:4:4 RGB (SD)
Multiformat video output support
- Composite (CVBS) and S-Video (Y-C)
- Component YPrPb (SD, ED, and HD)
- Component RGB (SD, ED, and HD)
Lead frame chip scale package (LFCSP) options
- 32-lead, 5 mm × 5 mm LFCSP
- 40-lead, 6 mm × 6 mm LFCSP
Wafer level chip scale package (WLCSP) option
- 30-ball, 5 × 6 WLCSP with single DAC output
Advanced power management
- Patented content-dependent low power DAC operation
- Automatic cable detection and DAC power-down
- Individual DAC on/off control
- Sleep mode with minimal power consumption
74.25 MHz 8-/10-/16-bit high definition input support
- Compliant with SMPTE 274M (1080i), 296M (720p),
  and 240M (1035i)
EIA/CEA-861B compliance support
NTSC M, PAL B/D/G/H/I/M/N, PAL 60 support
NTSC and PAL square pixel operation (24.54 MHz/29.5 MHz)
Macrovision Rev 7.1.L1 (SD) and Rev 1.2 (ED) compliant
Copy generation management system (CGMS)
Closed captioning and wide screen signaling (WSS)
Integrated subcarrier locking to external video source
Complete on-chip video timing generator
On-chip test pattern generation
Programmable features
- Luma and chroma filter responses
- Vertical blanking interval (VBI)
- Subcarrier frequency (fSC) and phase
- Luma delay
High definition (HD) programmable features
- (720p/1080i/1035i)
- 4× oversampling (297 MHz)
- Internal test pattern generator
  - Color and black bar, hatch, flat field/frame
- Fully programmable YCrCb to RGB matrix
- Gamma correction
- Programmable adaptive filter control
- Programmable sharpness filter control
- CGMS (720p/1080i) and CGMS Type B (720p/1080i)
- Dual data rate (DDR) input support
Enhanced definition (ED) programmable features
- (525p/625p)
- 8× oversampling (216 MHz output)
- Internal test pattern generator
  - Black bar, hatch, flat field/frame
- Individual Y and PrPb output delay
- Gamma correction
- Programmable adaptive filter control
- Fully programmable YCrCb to RGB matrix
- Undershoot limiter
- Macrovision Rev 1.2 (525p) (ADV7390 only)
- CGMS (525p/625p) and CGMS Type B (525p)
- Dual data rate (DDR) input support
Standard definition (SD) programmable features
- 16× oversampling (216 MHz)
- Internal test pattern generator
  - Color and black bar
- Controlled edge rates for start and end of active video
- Individual Y and PrPb output delay
- Undershoot limiter
- Gamma correction
- Digital noise reduction (DNR)
- Multiple chroma and luma filters
- Luma-SSAF filter with programmable gain/attenuation
- PrPb SSAF
- Separate pedestal control on component and
  - composite/S-Video output
- VCR FF/RW sync mode
- Macrovision Rev 7.1.L1 (ADV7390 only)
- Copy generation management system (CGMS)
- Wide screen signaling (WSS)
- Closed captioning
Serial MPU interface with I2C compatibility
2.7 V or 3.3 V analog operation
1.8 V digital operation
1.8 V or 3.3 V I/O operation
Temperature range: −40°C to +85°C
W Grade automotive range: −40°C to +105°C
Qualified for automotive applications

ADV7390 Applications

Mobile handsets
Digital still cameras
Portable media and DVD players
Portable game consoles
Digital camcorders
Set-top box (STB)

ADV7390 Description

The ADV7390are a family of high speed, digital-to-analog video encoders on single monolithic chips. Three 2.7 V/3.3 V 10-bit video digital-to-analog converters (DACs) provide support for composite (CVBS), S-Video (Y-C), or component (YPrPb/RGB) analog outputs in either standard definition (SD) or high definition (HD) video formats.

Optimized for low power operation, occupying a minimal footprint and requiring few external components, these encoders are ideally suited to portable and power sensitive applications requiring TV-out functionality. Cable detection and DAC automatic power-down features ensure that power consumption is kept to a minimum.

The ADV7390 have an 8-bit video input port that supports SD video formats over a software defined radio (SDR) interface and HD video formats over a double data rate (DDR) interface.

SD RGB input is supported. All members of the family support embedded EAV/SAV timing codes, external video synchronization signals, and the I²C communication protocol.

Part No.：	ADV7390
Page：	107 Pages
Size：	1775 KB
Manufacturer：	Analog Devices, Inc.
Logo：
Views：	1
Update Time：	2024-01-04 11:43:58
DataSheet：	Download
