| Part No.： | ADV7127 |
| Page： | 18 Pages |
| Size： | 360 KB |
| Manufacturer： | Analog Devices, Inc. |
| Logo： |  |
| Views： | 2 |
| Update Time： | 2023-10-17 13:44:17 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| ADV7127JRUZ240 | Tube | 62 | 3 | 24 | 0°C ~ 70°C | 24-Lead Thin Shrink Small Outline Package [TSSOP] | ||
| ADV7127KRUZ50 | 3 | 24 | -40°C ~ 85°C | 24-Lead Thin Shrink Small Outline Package [TSSOP] | ||||
| ADV7127KRUZ50-REEL | 3 | 24 | -40°C ~ 85°C | 24-Lead Thin Shrink Small Outline Package [TSSOP] | ||||
| ADV7127KRUZ140 | Tube | 62 | 3 | 24 | -40°C ~ 85°C | 24-Lead Thin Shrink Small Outline Package [TSSOP] | ||
| ADV7127KRU50 | Tube | 62 | 3 | 24 | -40°C ~ 85°C | 24-Lead Thin Shrink Small Outline Package [TSSOP] | ||
| ADV7127KRU50-REEL | Reel | 2500 | 3 | 24 | -40°C ~ 85°C | 24-Lead Thin Shrink Small Outline Package [TSSOP] | ||
| ADV7127KRU140 | 3 | 24 | -40°C ~ 85°C | 24-Lead Thin Shrink Small Outline Package [TSSOP] |

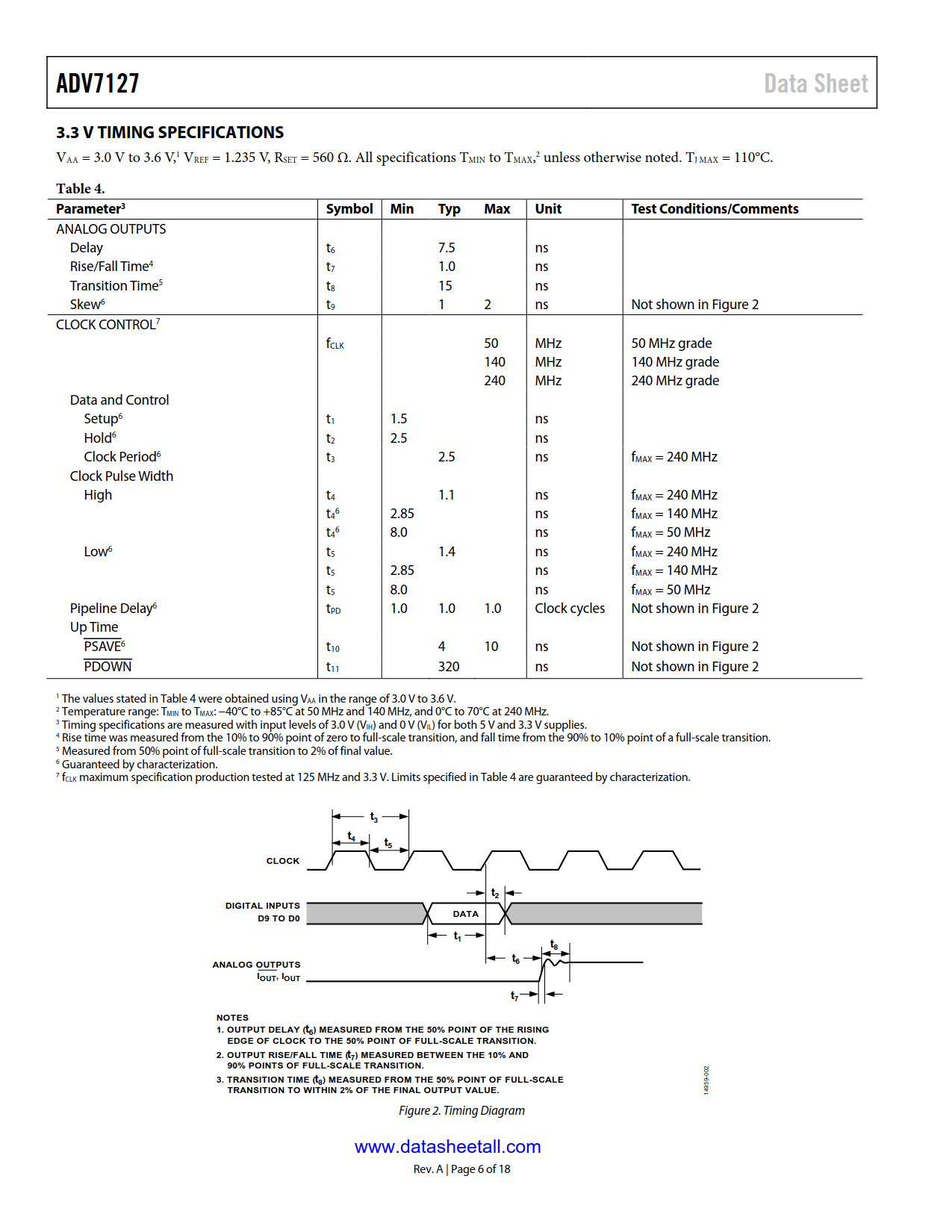

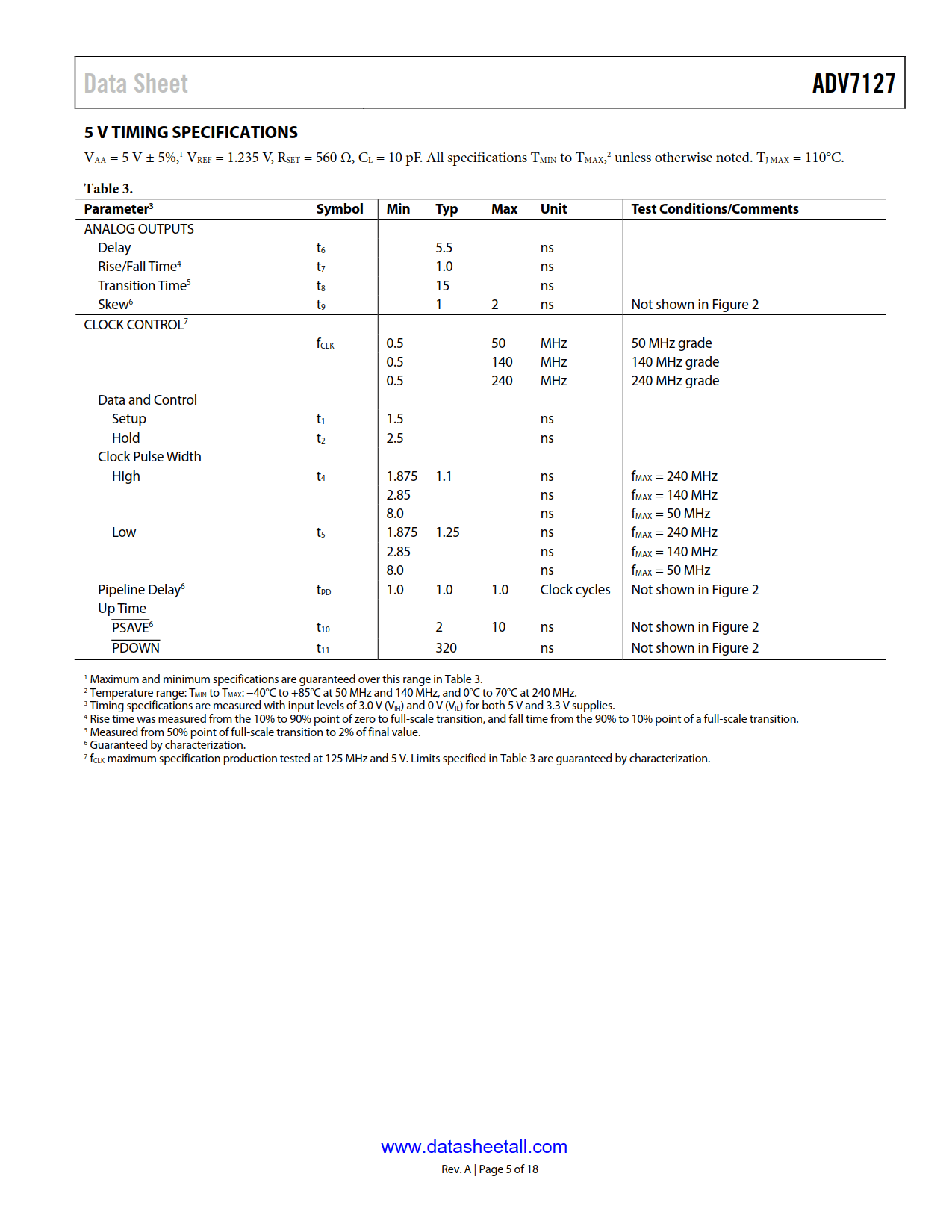

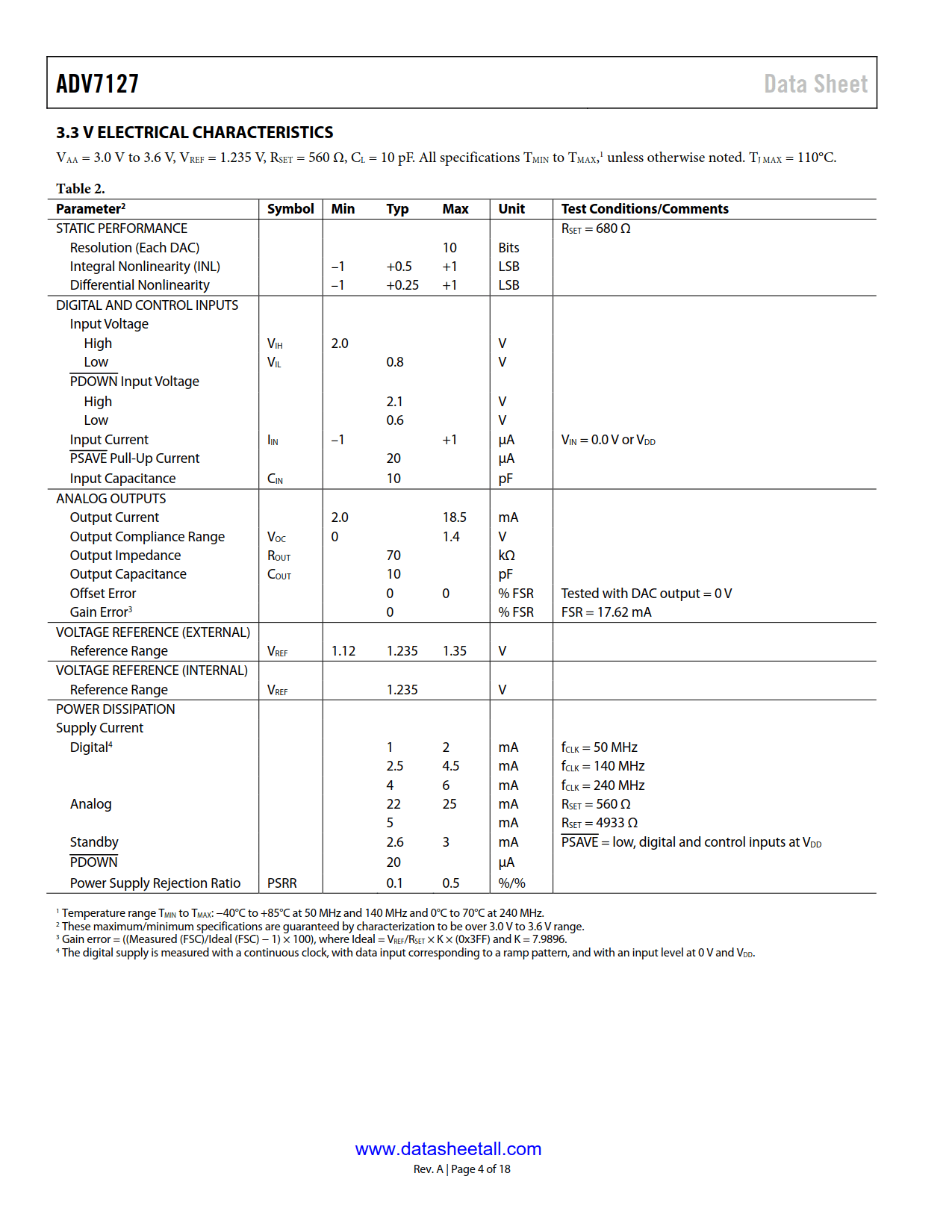

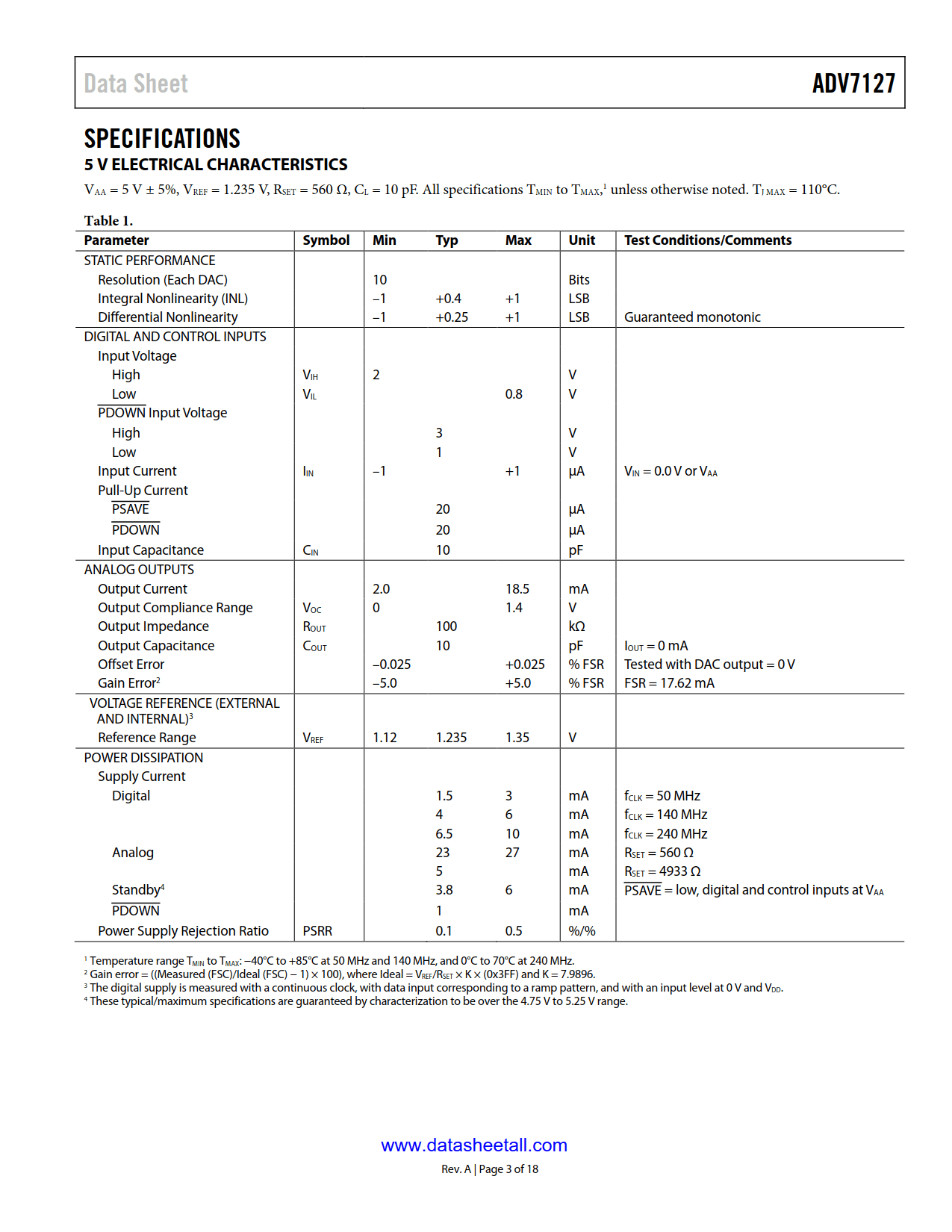

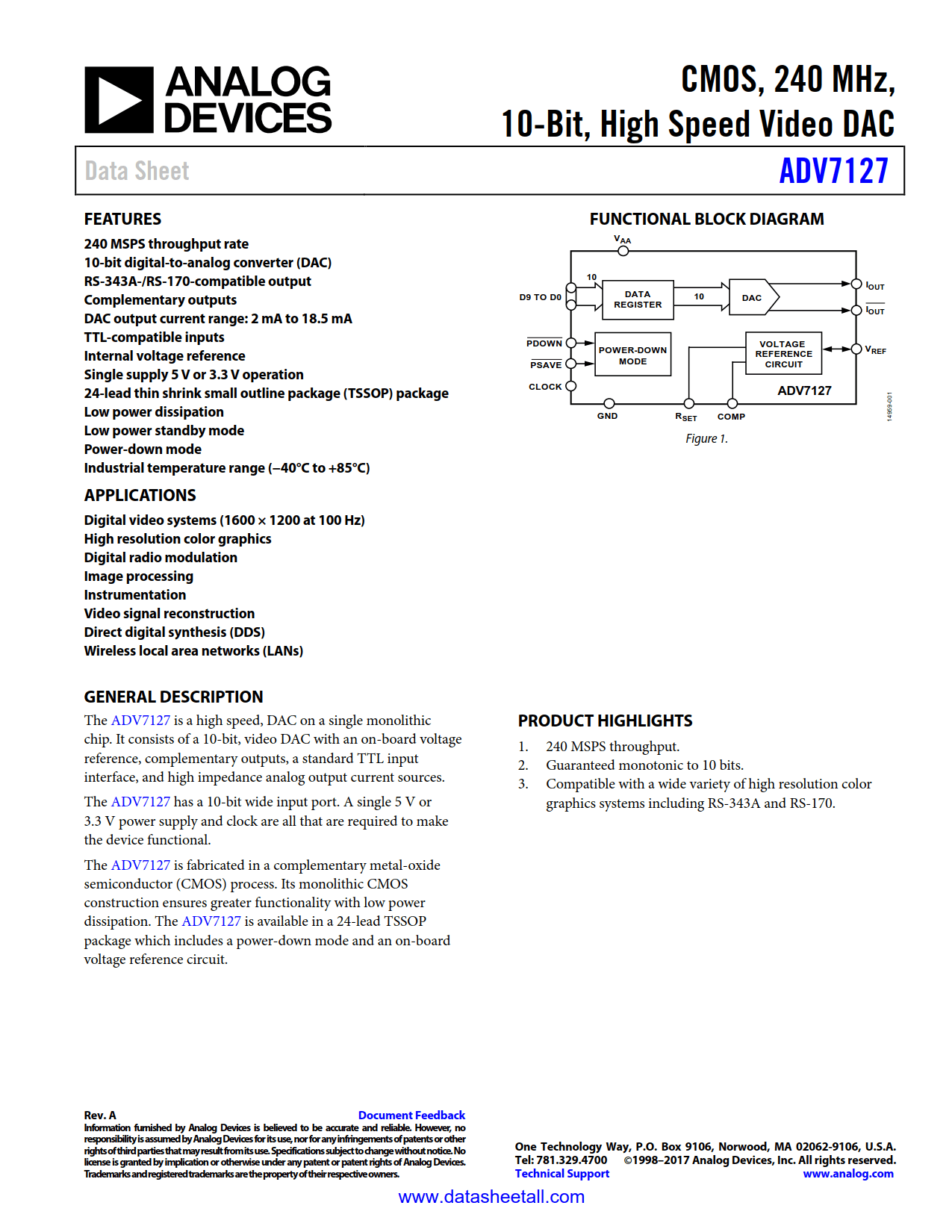

The ADV7127 is a high speed, DAC on a single monolithic chip. It consists of a 10-bit, video DAC with an on-board voltage reference, complementary outputs, a standard TTL input interface, and high impedance analog output current sources.
The ADV7127 has a 10-bit wide input port. A single 5 V or 3.3 V power supply and clock are all that are required to make the device functional.
The ADV7127 is fabricated in a complementary metal-oxide semiconductor (CMOS) process. Its monolithic CMOS construction ensures greater functionality with low power dissipation. The ADV7127 is available in a 24-lead TSSOP package which includes a power-down mode and an on-board voltage reference circuit.
