ADuM2402 Datasheet

ADuM2402 Datasheet

Quad-Channel Digital Isolator
Part No.: ADuM2402
Page: 24 Pages
Size: 421 KB
Manufacturer: Analog Devices, Inc.
Logo:
Views: 1
Update Time: 2023-10-17 11:54:01
DataSheet: Download

ADuM2402 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
ADUM2402ARIZ Tube 37   3 16 -40°C ~ 105°C 16-Lead SOIC (Increased Creepage)
ADUM2402ARIZ-RL Reel 1000   3 16 -40°C ~ 105°C 16-Lead SOIC (Increased Creepage)
ADUM2402ARWZ Tube 47   3 16 -40°C ~ 105°C 16-Lead SOIC Wide
ADUM2402ARWZ-RL Reel 1000   3 16 -40°C ~ 105°C 16-Lead SOIC Wide
ADUM2402BRIZ Tube 37   3 16 -40°C ~ 105°C 16-Lead SOIC (Increased Creepage)
ADUM2402BRIZ-RL Reel 1000   3 16 -40°C ~ 105°C 16-Lead SOIC (Increased Creepage)
ADUM2402BRWZ Tube 47   3 16 -40°C ~ 105°C 16-Lead SOIC Wide
ADUM2402BRWZ-RL Reel 1000   3 16 -40°C ~ 105°C 16-Lead SOIC Wide
ADUM2402CRIZ Tube 37   3 16 -40°C ~ 105°C 16-Lead SOIC (Increased Creepage)
ADUM2402CRIZ-RL Reel 1000   3 16 -40°C ~ 105°C 16-Lead SOIC (Increased Creepage)
ADUM2402CRWZ Tube 47   3 16 -40°C ~ 105°C 16-Lead SOIC Wide
ADUM2402CRWZ-RL Reel 1000   3 16 -40°C ~ 105°C 16-Lead SOIC Wide
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

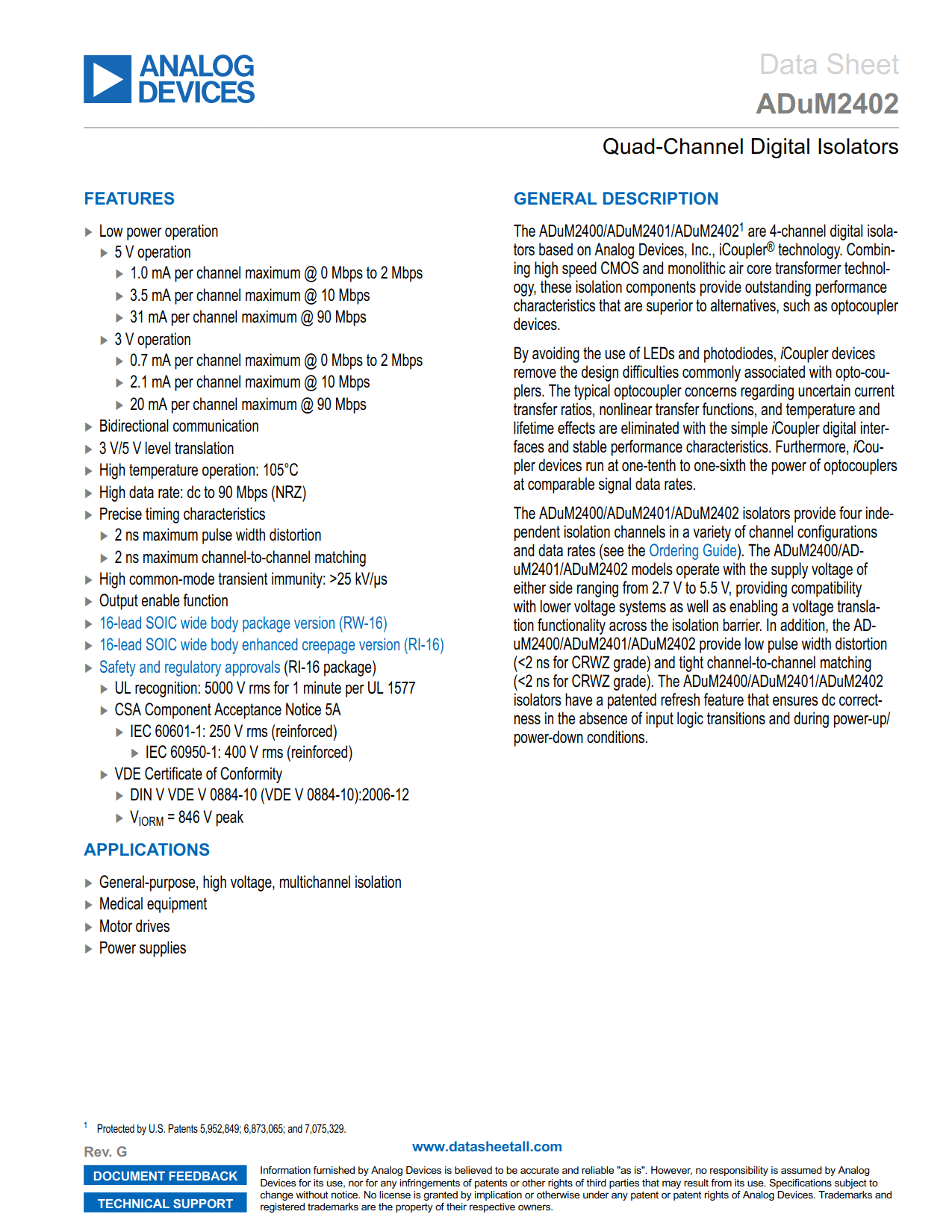

ADuM2402 Datasheet(PDF)

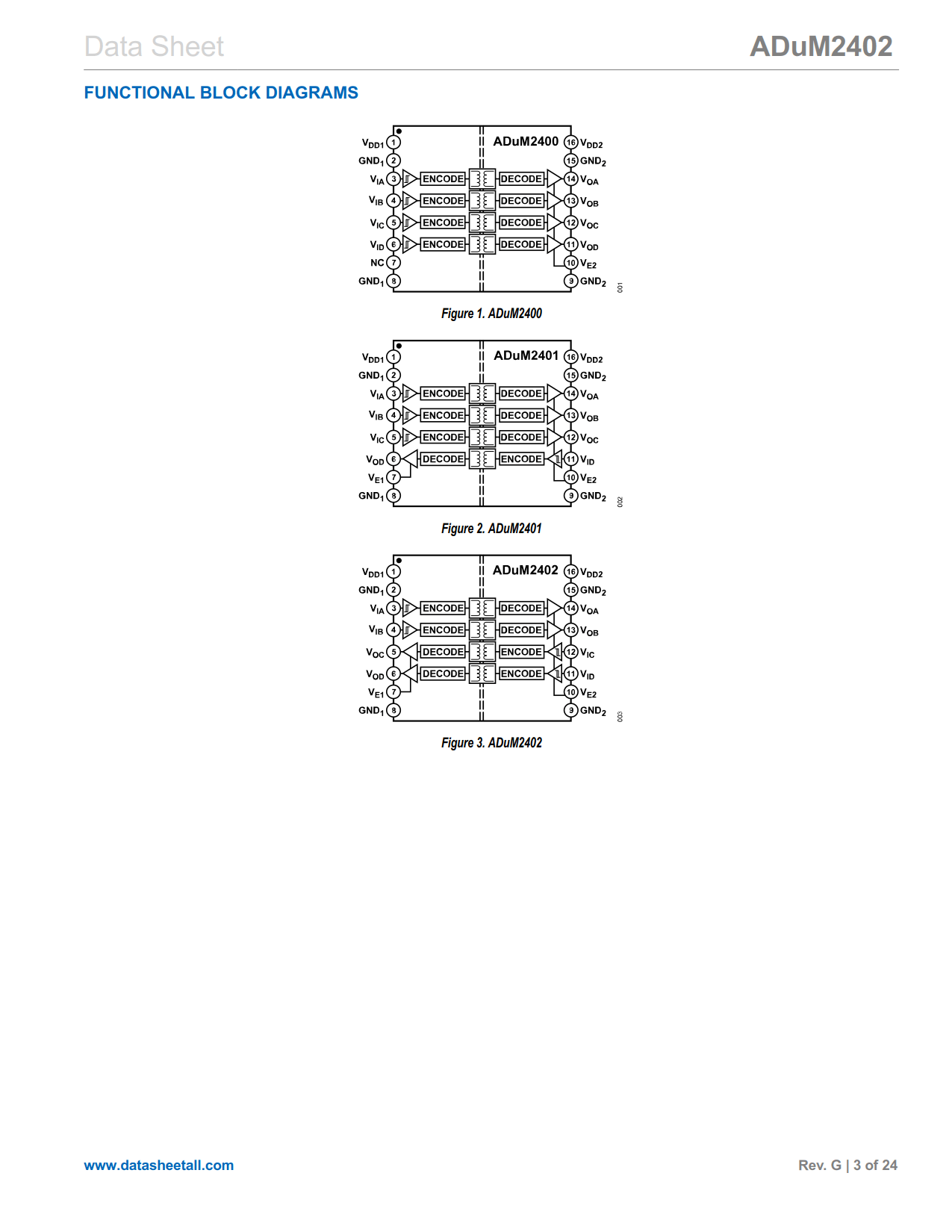

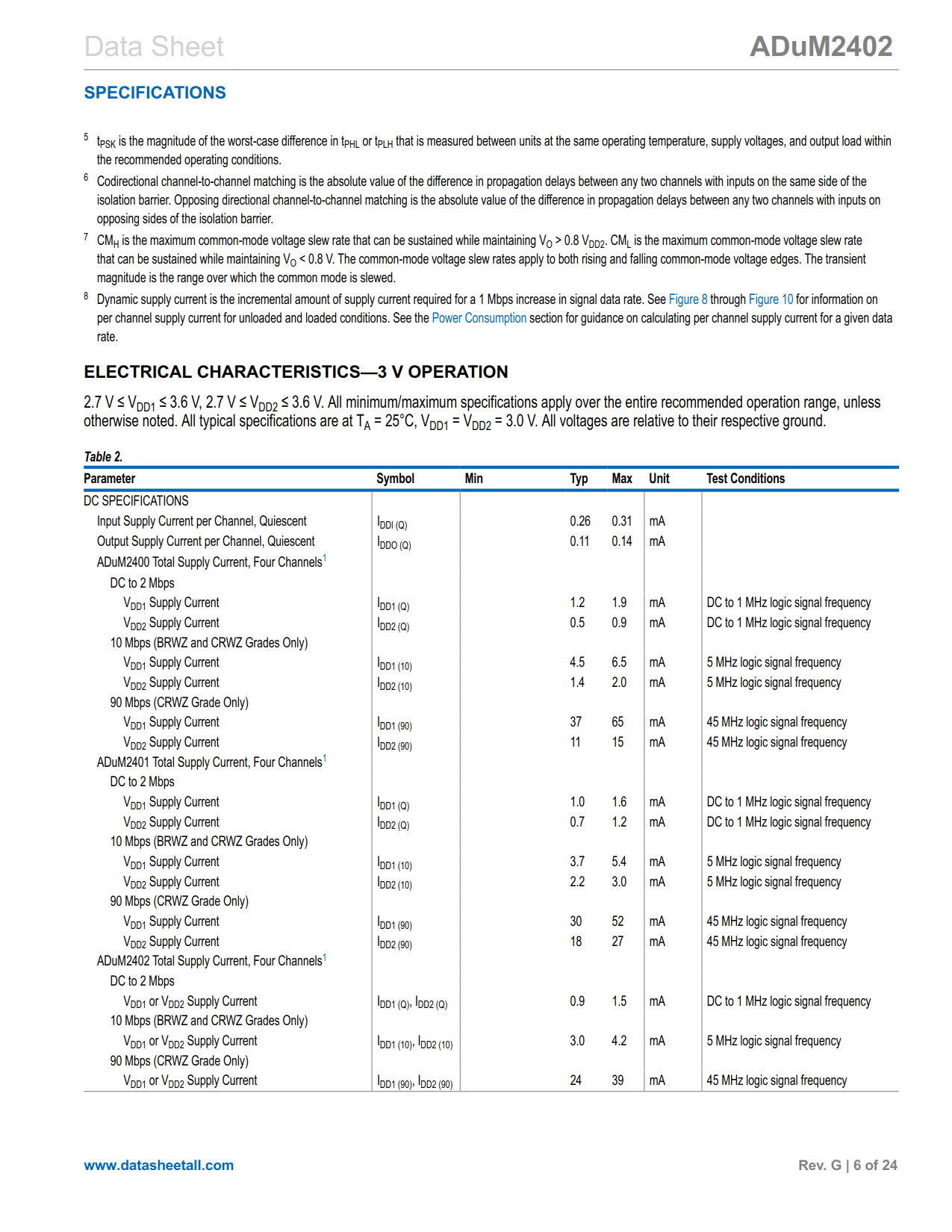

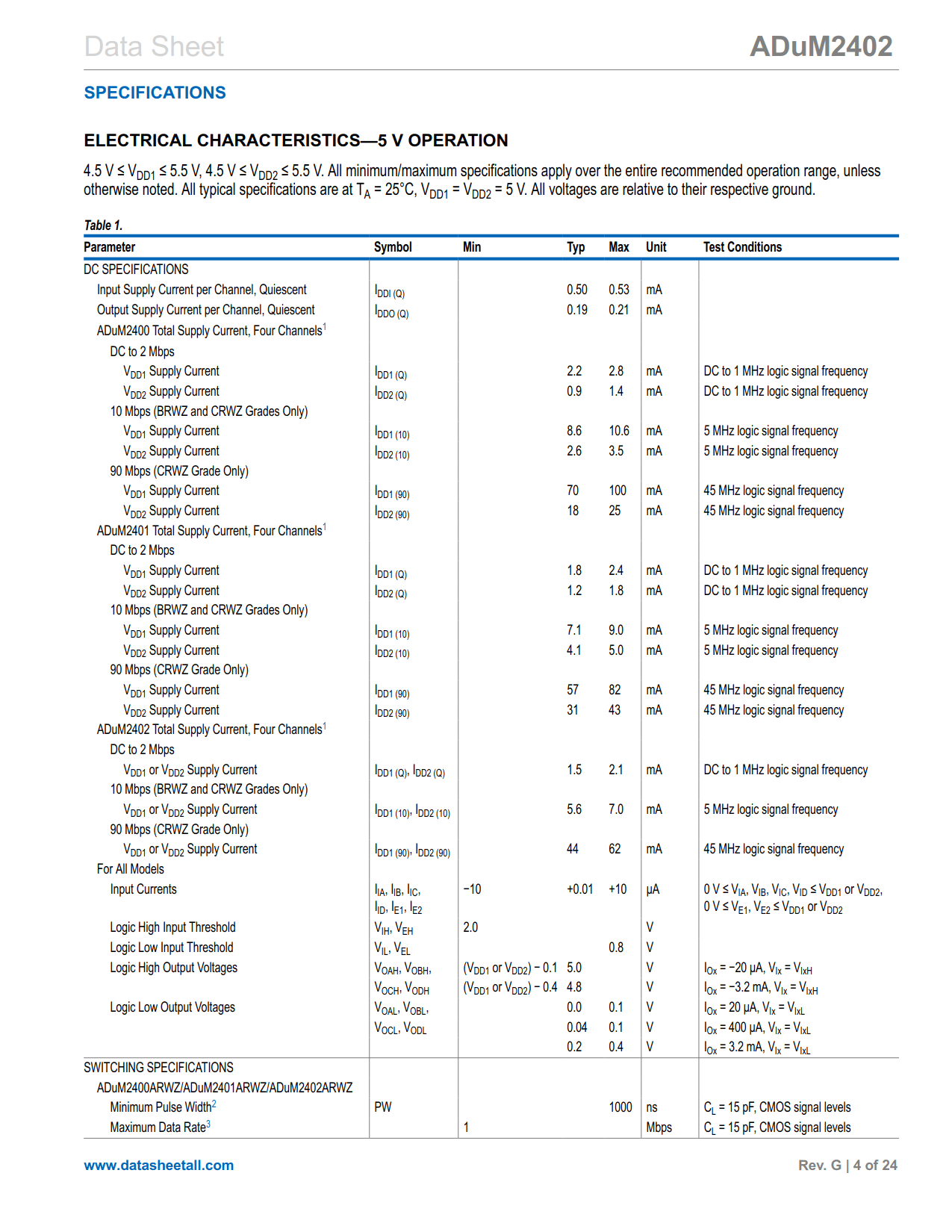

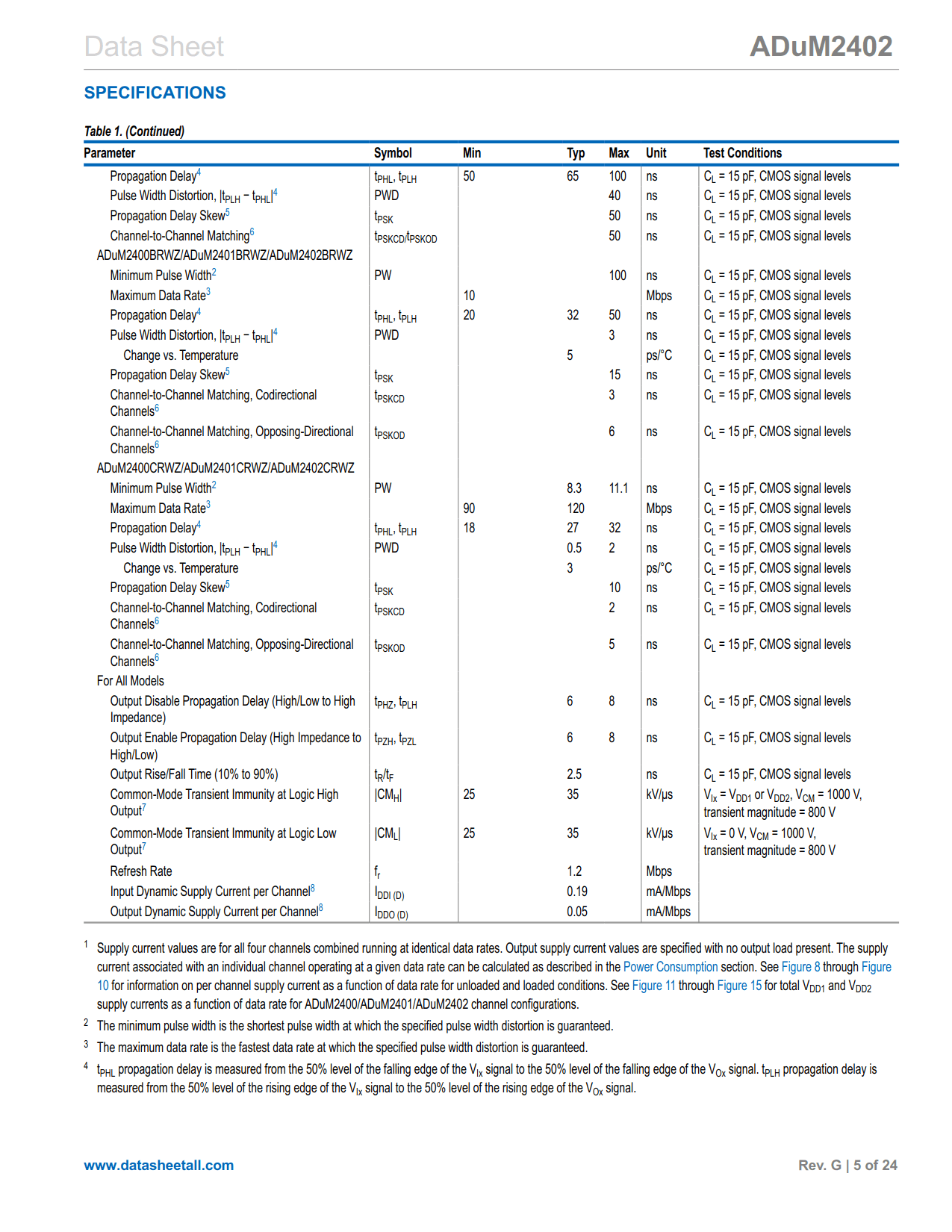

ADuM2402 Datasheet(Picture)

ADuM2402 Features

  • Low power operation
    • 5 V operation (see data sheet)
      • 1.0 mA per channel maximum @ 0 Mbps to 2 Mbps
      • 3.5 mA per channel maximum @ 10 Mbps
      • 31 mA per channel maximum @ 90 Mbps
    • 3 V operation (see data sheet)
      • 0.7 mA per channel maximum @ 0 Mbps to 2 Mbps
      • 2.1 mA per channel maximum @ 10 Mbps
      • 20 mA per channel maximum @ 90 Mbps
  • Bidirectional communication
  • 3 V/5 V level translation
  • High temperature operation: 105°C
  • High data rate: dc to 90 Mbps (NRZ)
  • Precise timing characteristics
    • 2 ns maximum pulse width distortion
    • 2 ns maximum channel-to-channel matching
  • High common-mode transient immunity: >25 kV/μs
  • Output enable function
  • See data sheet for additional features

ADuM2402 Applications

  • General-purpose, high voltage, multichannel isolation
  • Medical equipment
  • Motor drives
  • Power supplies

ADuM2402 Description

The ADuM2402 are 4-channel digital isolators based on Analog Devices, Inc., iCoupler® technology. Combining high speed CMOS and monolithic air core transformer technology, these isolation components provide outstanding performance characteristics that are superior to alternatives, such as optocoupler devices.

By avoiding the use of LEDs and photodiodes, iCoupler devices remove the design difficulties commonly associated with opto-couplers. The typical optocoupler concerns regarding uncertain current transfer ratios, nonlinear transfer functions, and temperature and lifetime effects are eliminated with the simple iCoupler digital interfaces and stable performance characteristics. Furthermore, iCoupler devices run at one-tenth to one-sixth the power of optocouplers at comparable signal data rates.

The ADuM2402 isolators provide four independent isolation channels in a variety of channel configurations and data rates (see the Ordering Guide). The ADuM2402 models operate with the supply voltage of either side ranging from 2.7 V to 5.5 V, providing compatibility with lower voltage systems as well as enabling a voltage translation functionality across the isolation barrier. In addition, the ADuM2402 provide low pulse width distortion (<2 ns for CRWZ grade) and tight channel-to-channel matching (<2 ns for CRWZ grade). The ADuM2402 isolators have a patented refresh feature that ensures dc correctness in the absence of input logic transitions and during power-up/power-down conditions.
