ADuM1250 Datasheet

ADuM1250 Datasheet

Hot Swappable Dual I2C Isolator
Part No.: ADuM1250
Page: 14 Pages
Size: 350 KB
Manufacturer: Analog Devices, Inc.
Logo:
Views: 1
Update Time: 2023-11-24 10:52:14
DataSheet: Download

ADuM1250 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
ADUM1250ARZ Tube 98   3 8 -40°C ~ 105°C 8-Lead SOIC
ADUM1250ARZ-RL7 Reel 1000   3 8 -40°C ~ 105°C 8-Lead SOIC
ADUM1250SRZ Tube 98   3 8 -40°C ~ 125°C 8-Lead SOIC
ADUM1250SRZ-RL7 Reel 1000   3 8 -40°C ~ 125°C 8-Lead SOIC
ADUM1250WSRZ Tube 98   3 8 -40°C ~ 125°C 8-Lead SOIC
ADUM1250WSRZ-RL7 Reel 1000   3 8 -40°C ~ 125°C 8-Lead SOIC
SB3UM1250ARZ-RL7 Reel 1000   3 8 -40°C ~ 125°C 8-Lead SOIC
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

ADuM1250 Datasheet(PDF)

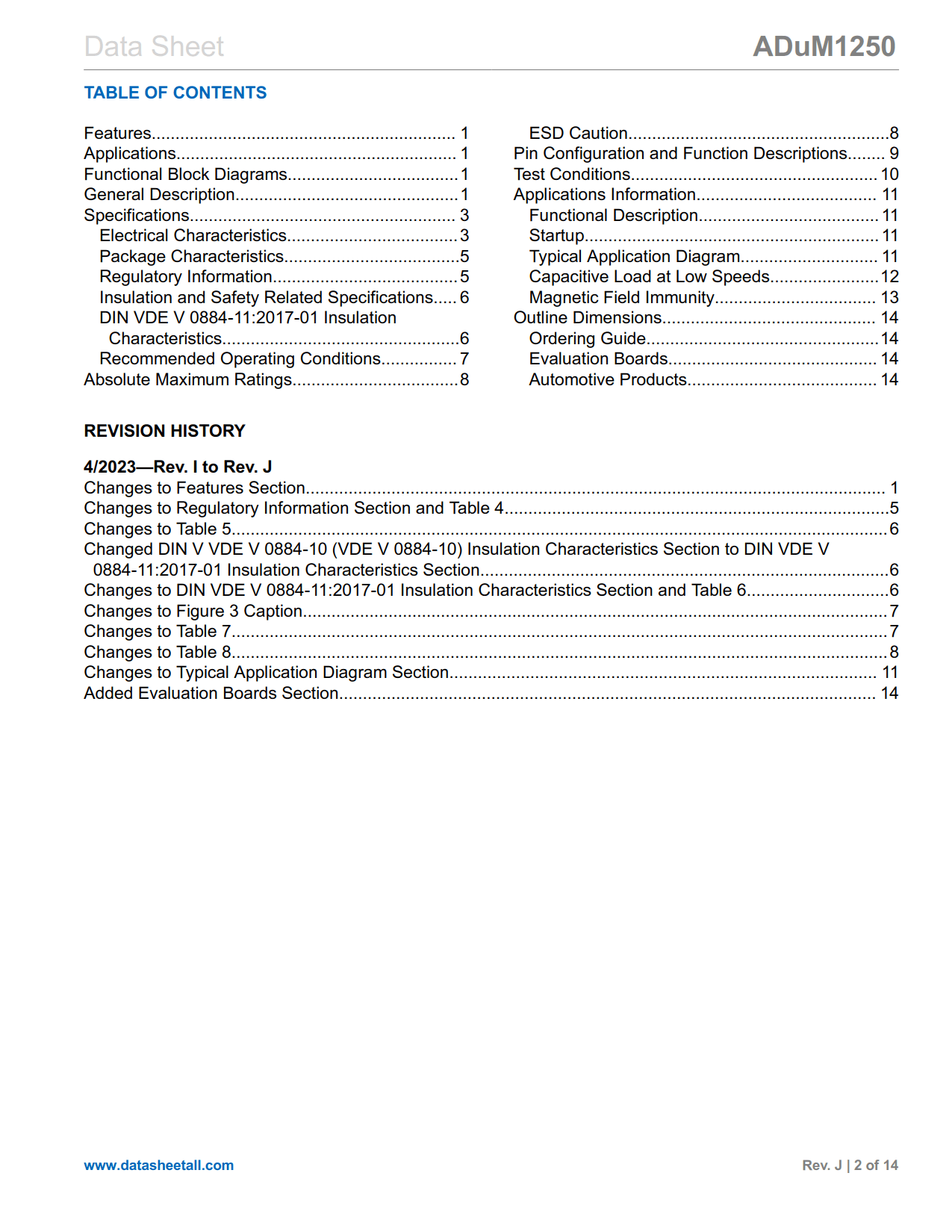

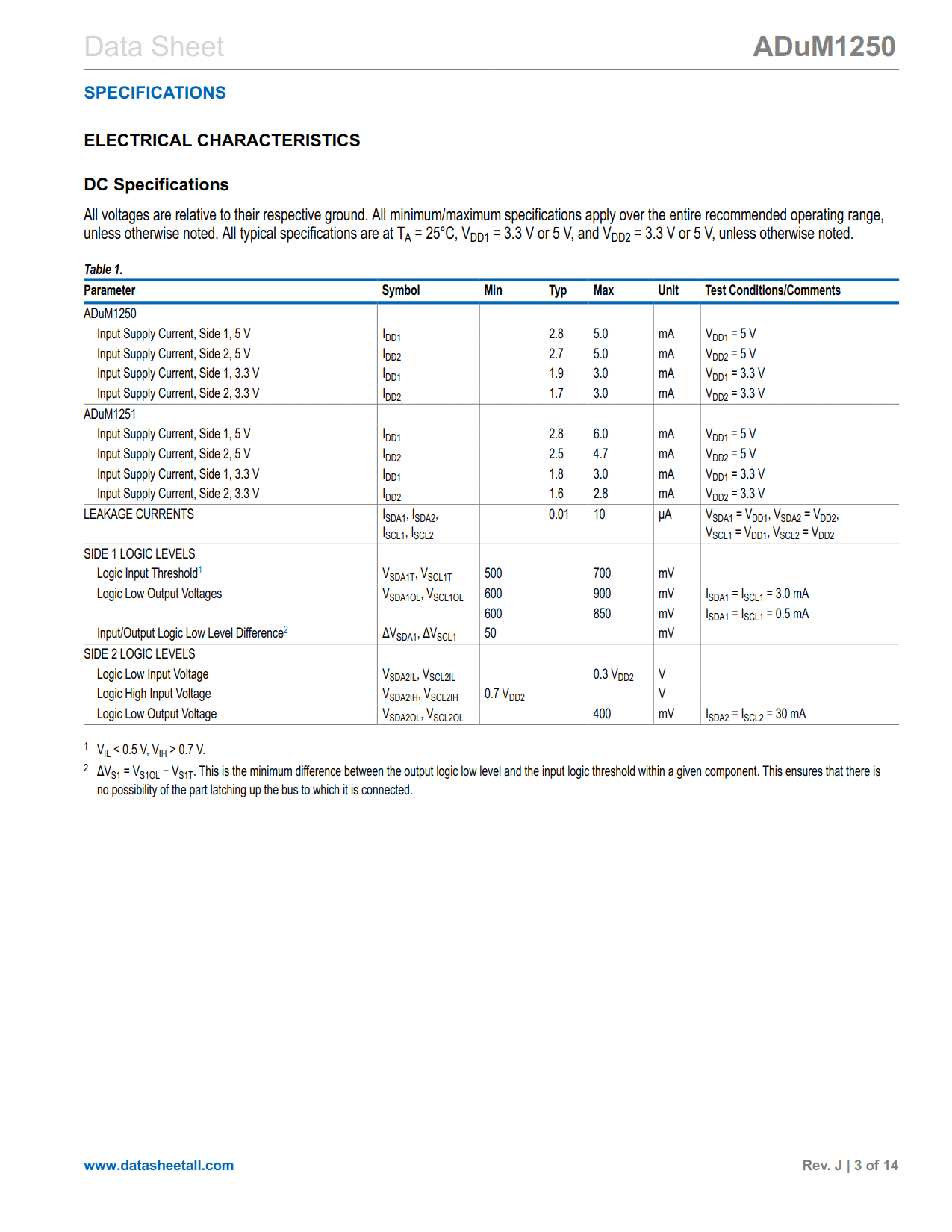

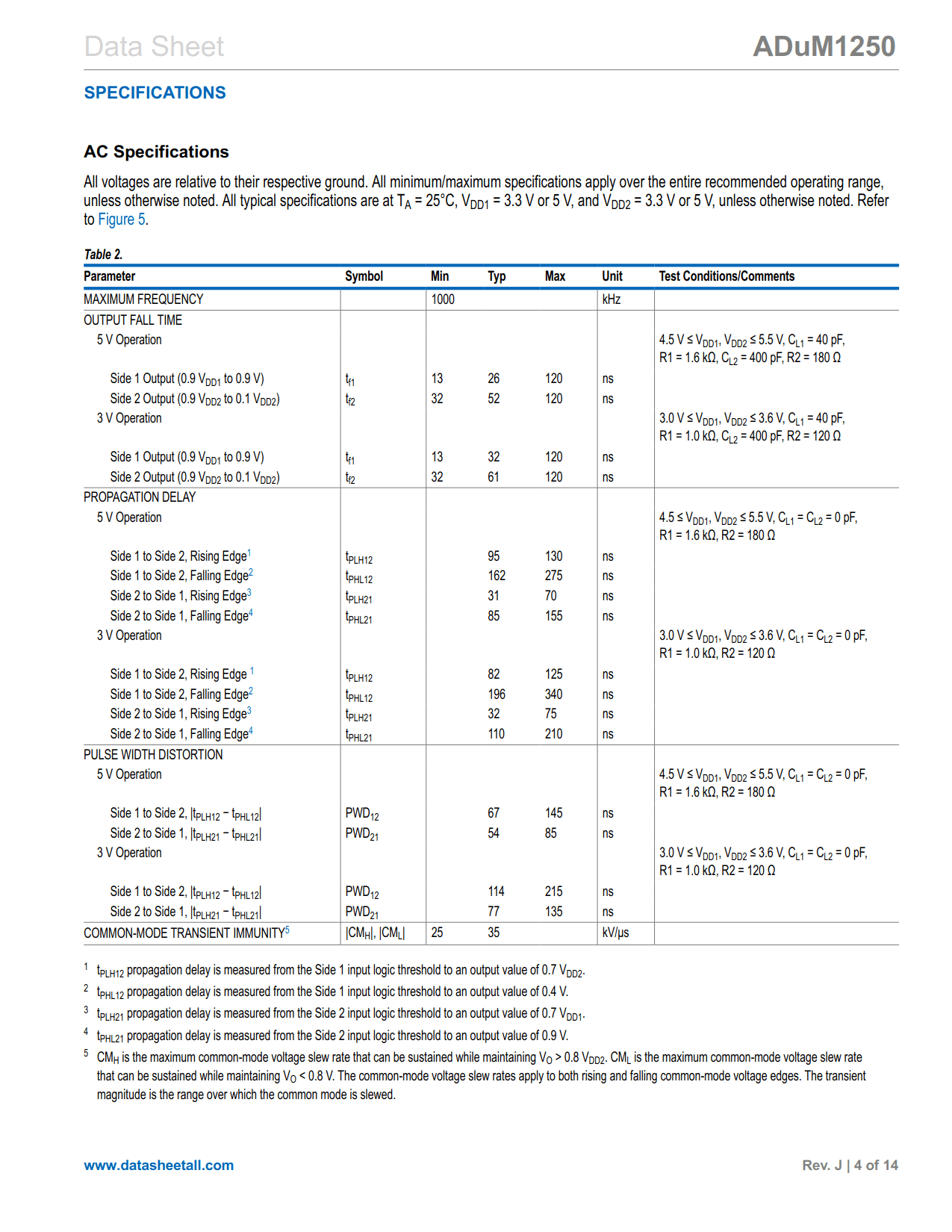

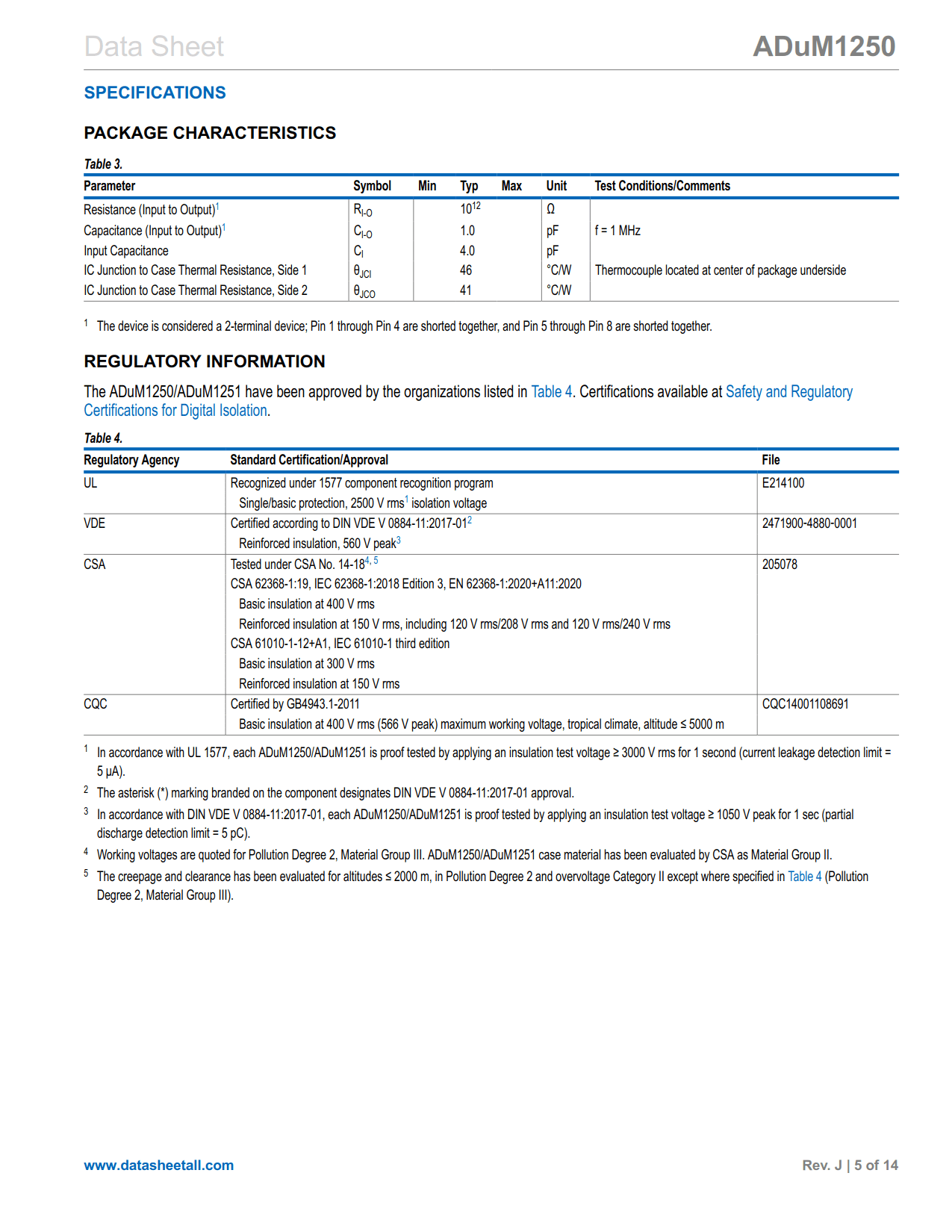

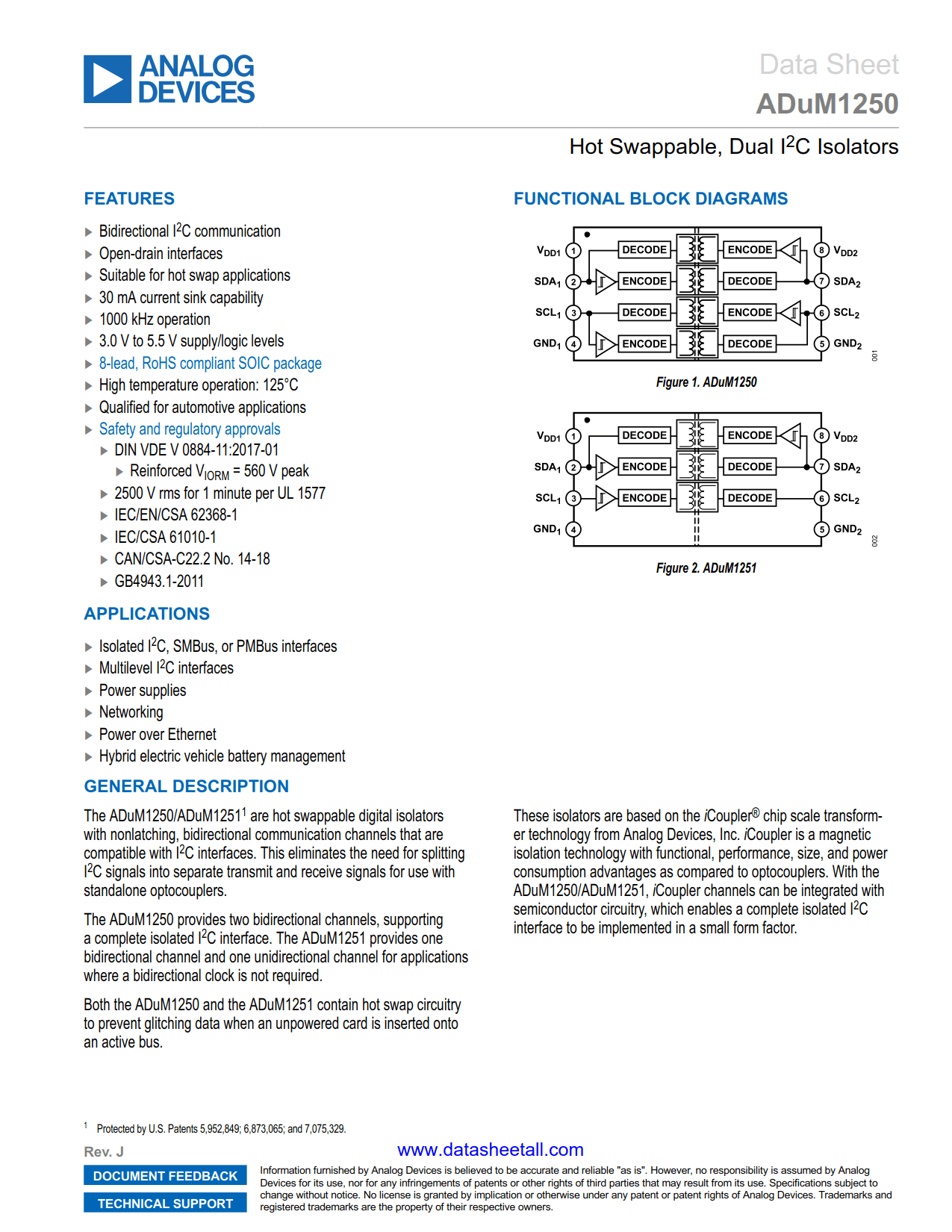

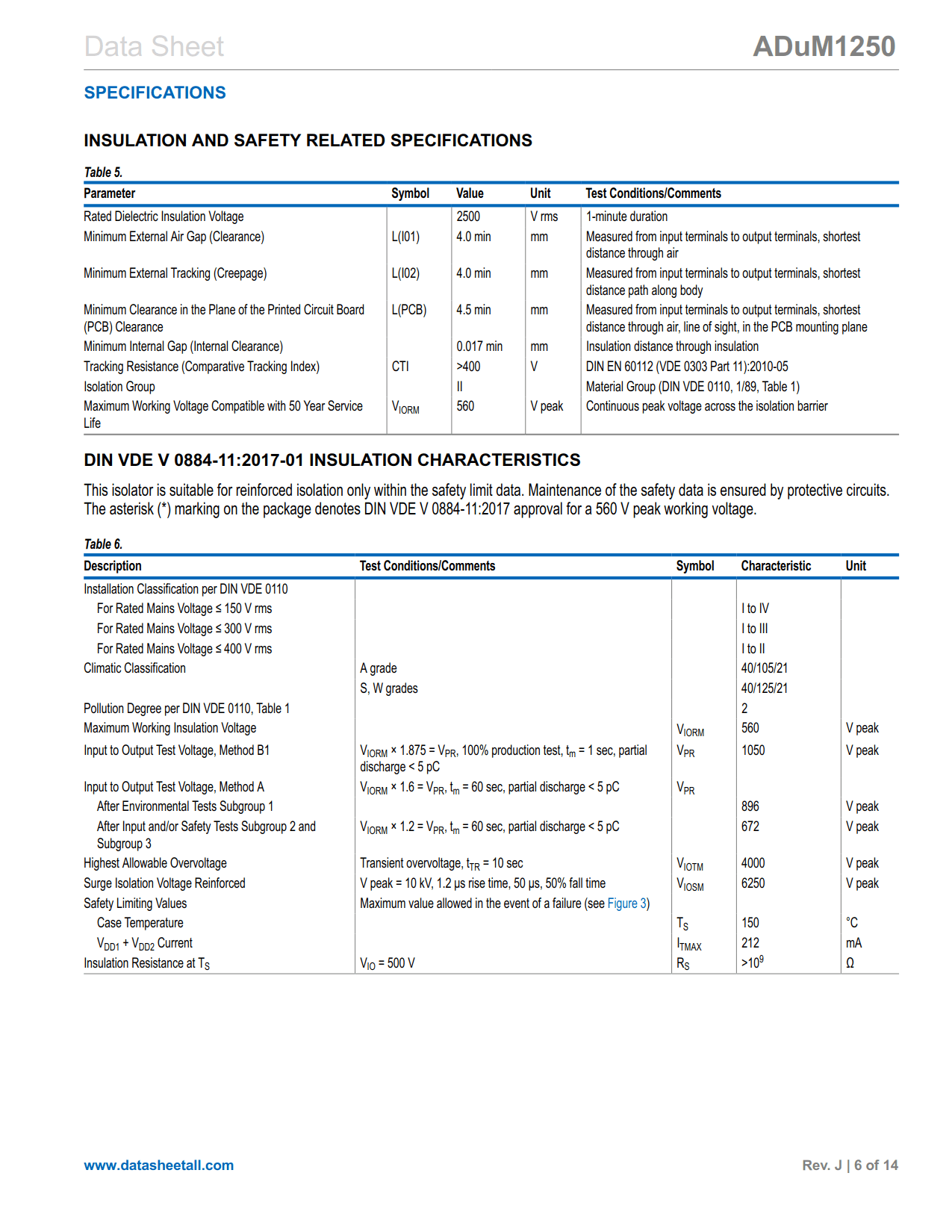

ADuM1250 Datasheet(Picture)

ADuM1250 Features

  • Bidirectional I2C communication
  • Open-drain interfaces
  • Suitable for hot swap applications
  • 30 mA current sink capability
  • 1000 kHz operation
  • 3.0 V to 5.5 V supply/logic levels
  • 8-lead, RoHS compliant SOIC package
  • High temperature operation: 125°C
  • Qualified for automotive applications
  • Safety and regulatory approvals
    • DIN VDE V 0884-11:2017-01
      • Reinforced VIORM = 560 V peak
    • 2500 V rms for 1 minute per UL 1577
    • IEC/EN/CSA 62368-1
    • IEC/CSA 61010-1
    • CAN/CSA-C22.2 No. 14-18
    • GB4943.1-2011

ADuM1250 Applications

  • Isolated I2C, SMBus, or PMBus interfaces
  • Multilevel I2C interfaces
  • Power supplies
  • Networking
  • Power over Ethernet
  • Hybrid electric vehicle battery management

ADuM1250 Description

The ADuM1250 are hot swappable digital isolators with non-latching, bidirectional communication channels compatible with I2C interfaces. This eliminates the need for splitting I2C signals into separate transmit and receive signals for use with standalone optocouplers.

The ADuM1250 provides two bidirectional channels, supporting a complete isolated I2C interface.

Both the ADuM1250 contain hot swap circuitry to prevent glitching data when an unpowered card is inserted onto an active bus.

These isolators are based on iCoupler® chip scale transformer technology from Analog Devices, Inc. iCoupler is a magnetic isolation technology with functional, performance, size, and power consumption advantages as compared to optocouplers. With the ADuM1250, iCoupler channels can be integrated with semiconductor circuitry, which enables a complete isolated I2C interface to be implemented in a small form factor.
