ADuC843 Datasheet Applicable Part

Part No.	Packing	SPQ	Marking	MSL	Pins	Temp Range	Package Description	Buy
ADUC843BSZ62-5	Tray	96		3	52	-40°C ~ 85°C	52-Lead Plastic Quad Flat Package [MQFP]
ADuC843BSZ62-3	Tray	96		3	52	-40°C ~ 85°C	52-Lead Plastic Quad Flat Package [MQFP]
ADuC843BCP62Z-5	Tray	260		3	65	-40°C ~ 85°C	56-Lead Lead Frame Chip Scale Package [LFCSP]
ADuC843BCPZ62-3	Tray	260		3	56	-40°C ~ 85°C	56-Lead Lead Frame Chip Scale Package [LFCSP]
ADuC843BCP32Z-5	Tray	260		3	65	-40°C ~ 85°C	56-Lead Lead Frame Chip Scale Package [LFCSP]
ADuC843BCPZ32-3	Tray	260		3	56	-40°C ~ 85°C	56-Lead Lead Frame Chip Scale Package [LFCSP]
ADuC843BCPZ8-5	Tray	260		3	56	-40°C ~ 85°C	56-Lead Lead Frame Chip Scale Package [LFCSP]
ADuC843BCPZ8-3	Tray	260		3	56	-40°C ~ 85°C	56-Lead Lead Frame Chip Scale Package [LFCSP]

SPQ：Standard Pack Quantity；MSL：Moisture Sensitivity Level

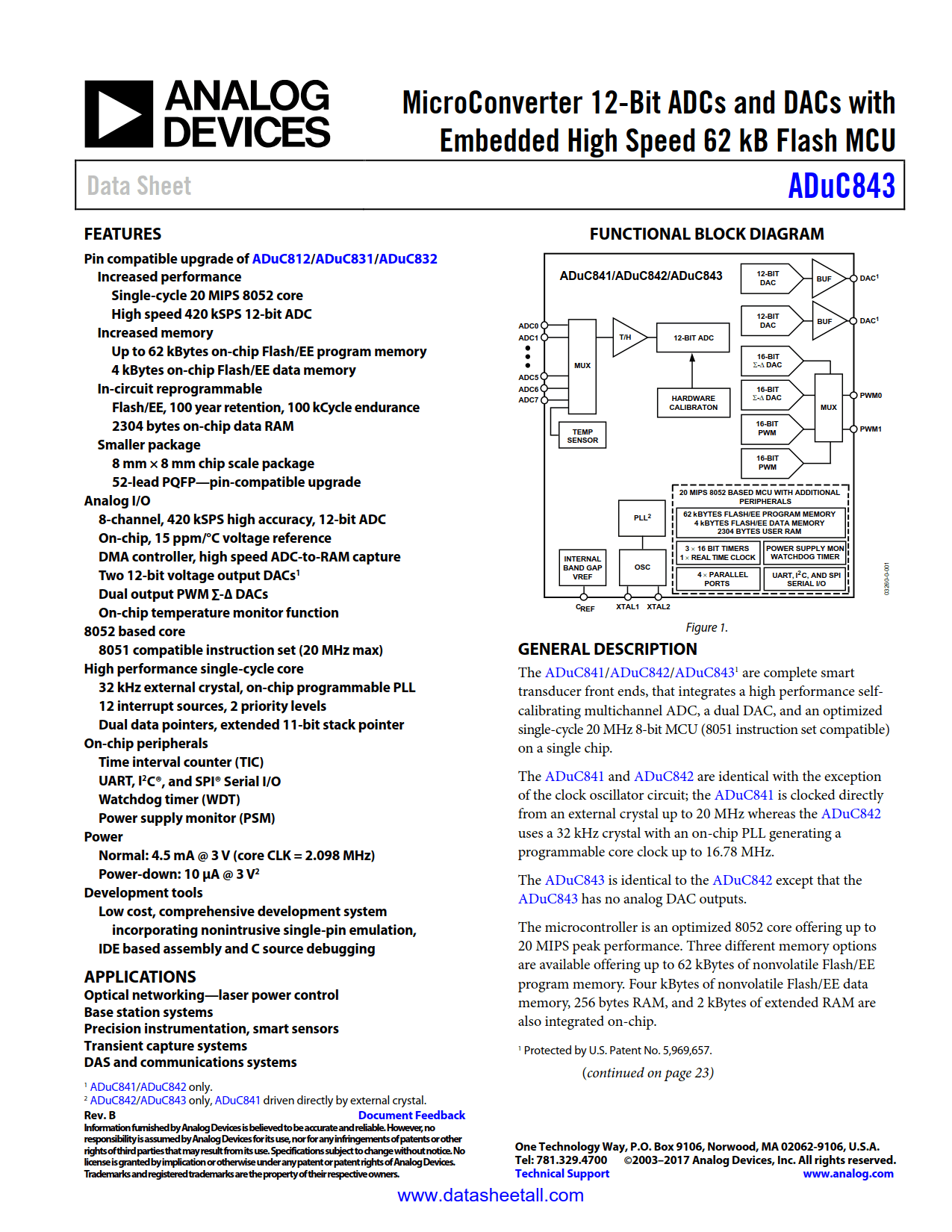

ADuC843 Features

Pin compatible upgrade of ADuC812/ADuC831/ADuC832
- Increased performance
  - Single-cycle 20 MIPS 8052 core
  - High speed 420 kSPS 12-bit ADC
- Increased memory
  - Up to 62 kBytes on-chip Flash/EE program memory
  - 4 kBytes on-chip Flash/EE data memory
- In-circuit reprogrammable
  - Flash/EE, 100 year retention, 100 kCycle endurance
  - 2304 bytes on-chip data RAM
- Smaller package
  - 8 mm × 8 mm chip scale package
  - 52-lead PQFP—pin-compatible upgrade

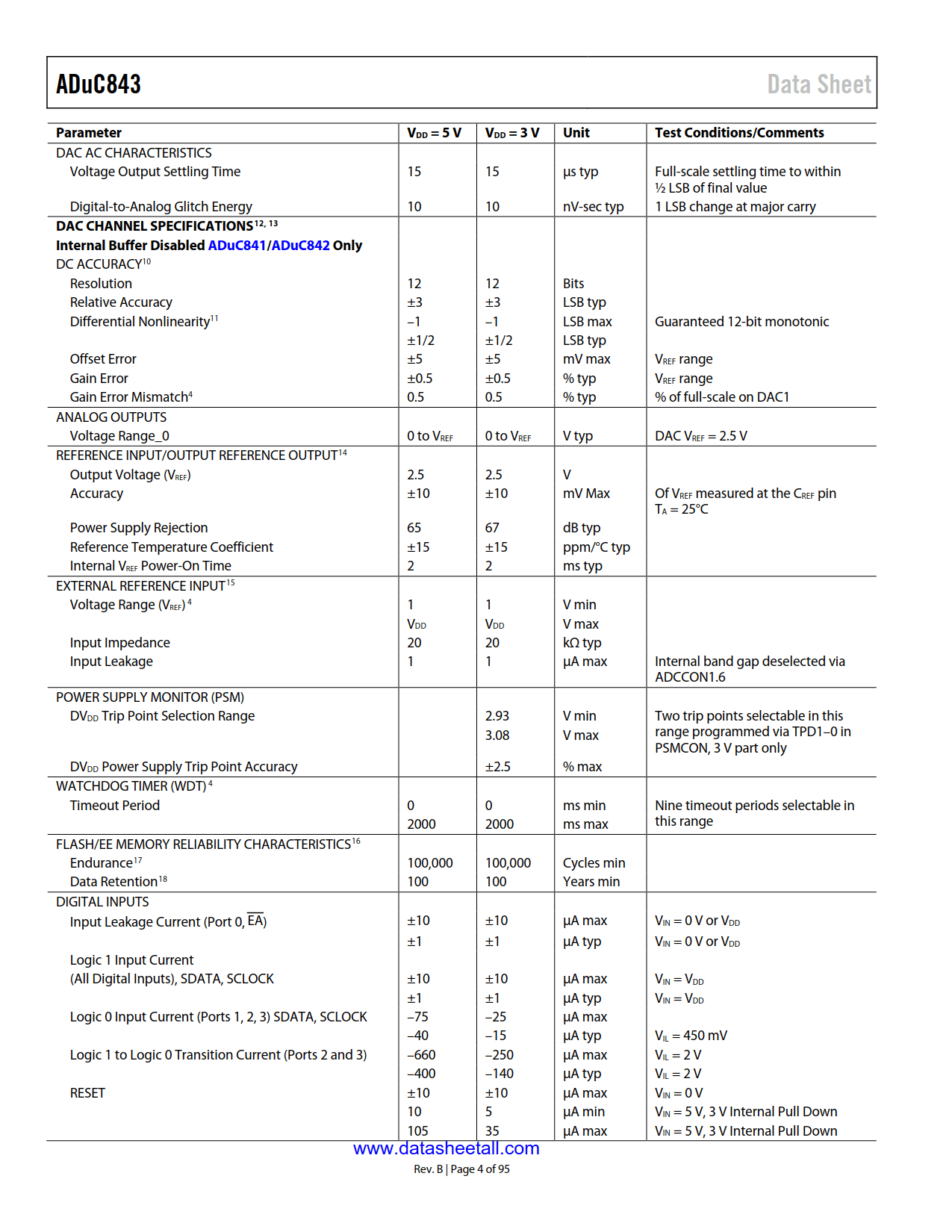

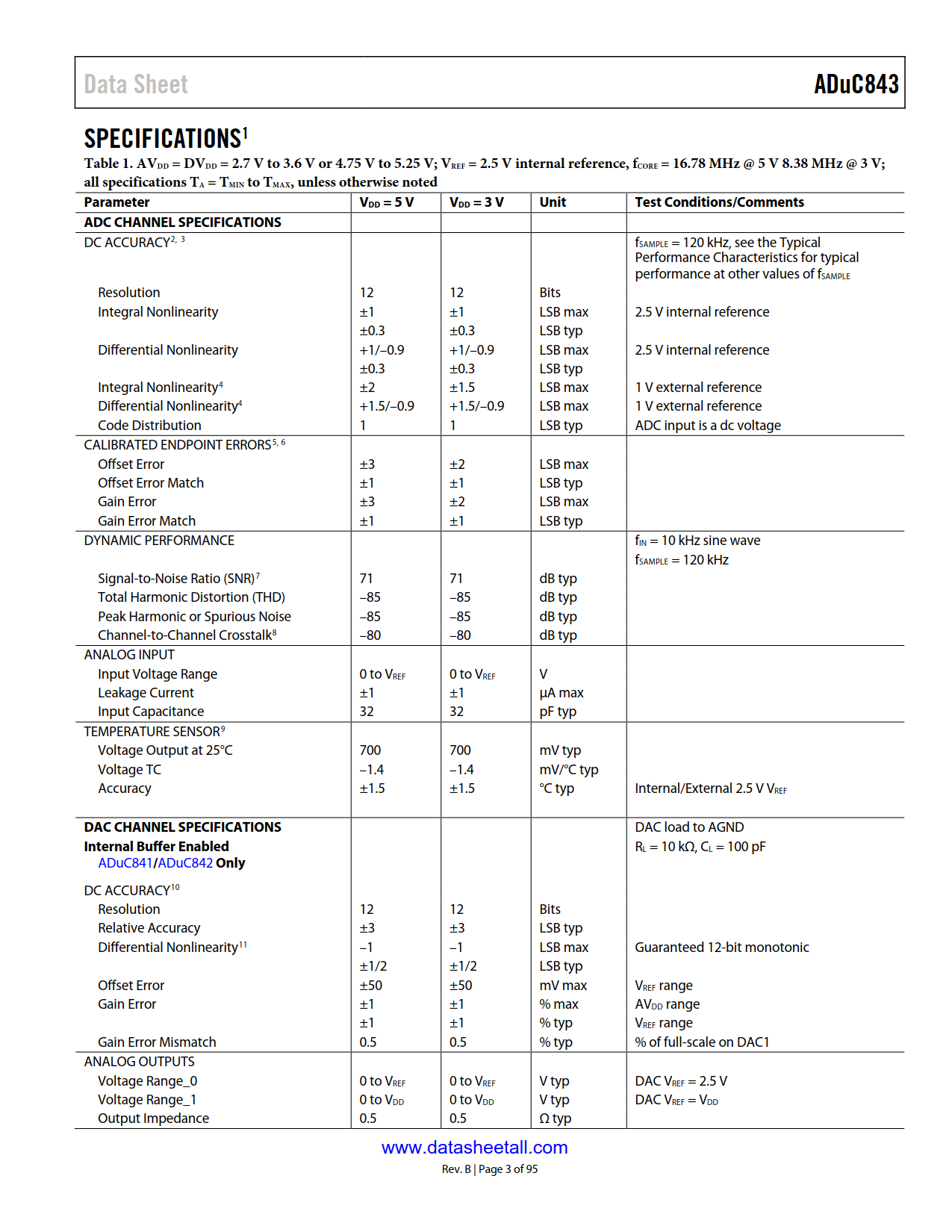

Analog I/O
- 8-channel, 420 kSPS high accuracy, 12-bit ADC
- On-chip, 15 ppm/°C voltage reference
- DMA controller, high speed ADC-to-RAM capture
- Dual output PWM Σ-Δ DACs
- On-chip temperature monitor function

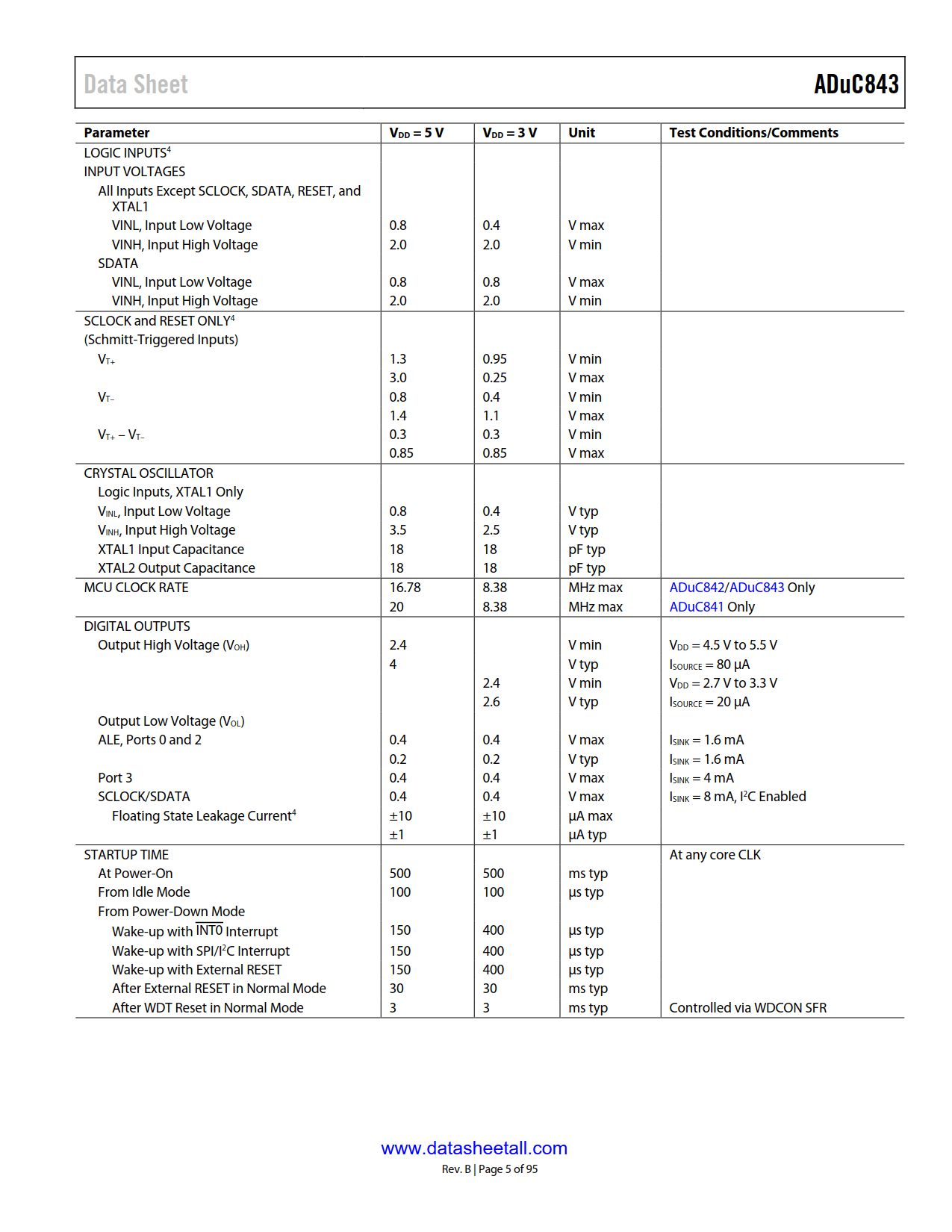

8052 based core
- 8051 compatible instruction set (20 MHz max)
High performance single-cycle core
- 32 kHz external crystal, on-chip programmable PLL
- 12 interrupt sources, 2 priority levels
- Dual data pointers, extended 11-bit stack pointer
On-chip peripherals
- Time interval counter (TIC)
- UART, I²C^®, and SPI^® Serial I/O
- Watchdog timer (WDT)
- Power supply monitor (PSM)

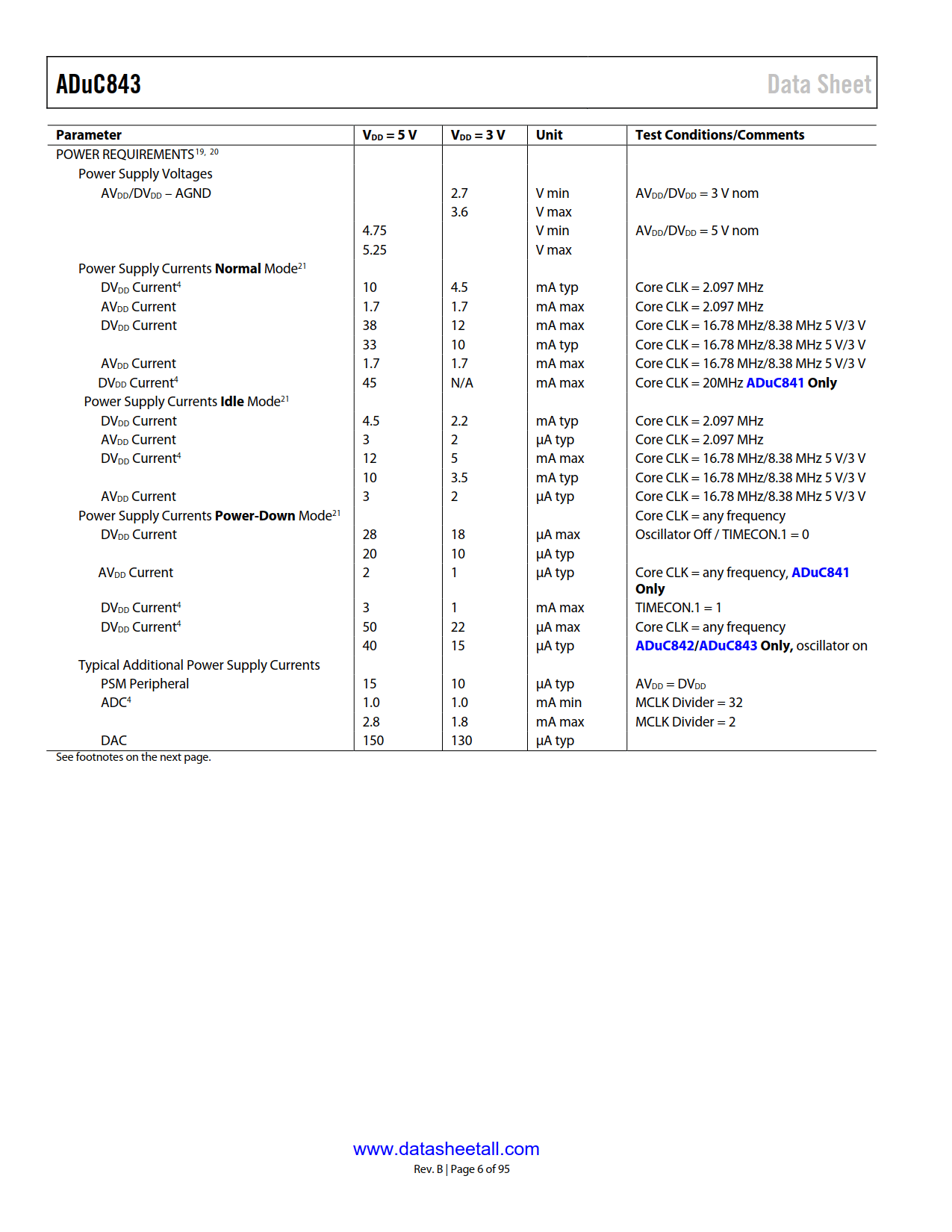

Power
- Normal: 4.5 mA @ 3 V (core CLK = 2.098 MHz)
- Power-down: 10 μA @ 3 V
Development tools
- Low cost, comprehensive development system incorporating nonintrusive single-pin emulation,
- IDE based assembly and C source debugging

ADuC843 Applications

Optical networking—laser power control
Base station systems
Precision instrumentation, smart sensors
Transient capture systems
DAS and communications systems

ADuC843 Description

The ADuC843 are complete smart transducer front ends, that integrates a high performance self-calibrating multichannel ADC, a dual DAC, and an optimized single-cycle 20 MHz 8-bit MCU (8051 instruction set compatible) on a single chip.

The ADuC843 is identical to the ADuC842 except that the ADuC843 has no analog DAC outputs.

The microcontroller is an optimized 8052 core offering up to 20 MIPS peak performance. Three different memory options are available offering up to 62 kBytes of nonvolatile Flash/EE program memory. Four kBytes of nonvolatile Flash/EE data memory, 256 bytes RAM, and 2 kBytes of extended RAM are also integrated on-chip.

Part No.：	ADuC843
Page：	95 Pages
Size：	1237 KB
Manufacturer：	Analog Devices, Inc.
Logo：
Views：	1
Update Time：	2023-10-17 14:17:23
DataSheet：	Download
