Part No.: | ADuC832 |
Page: | 92 Pages |
Size: | 1000 KB |
Manufacturer: | Analog Devices, Inc. |
Logo: | |
Views: | 1 |
Update Time: | 2023-12-08 11:49:55 |
DataSheet: | Download |
Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
ADuC832BCPZ | Tray | 260 | 3 | 56 | -40°C ~ 85°C | 56-Lead Lead Frame Chip Scale Package [LFCSP] | ||
ADuC832BCPZ-REEL | Reel | 2500 | 3 | 56 | -40°C ~ 85°C | 56-Lead Lead Frame Chip Scale Package [LFCSP] | ||
ADuC832BSZ | Tray | 96 | 3 | 52 | -40°C ~ 125°C | 52-Lead Metric Quad Flat Pack age [MQFP] | ||
ADuC832BSZ-REEL | Reel | 800 | 3 | 52 | -40°C ~ 125°C | 52-Lead Metric Quad Flat Pack age [MQFP] |

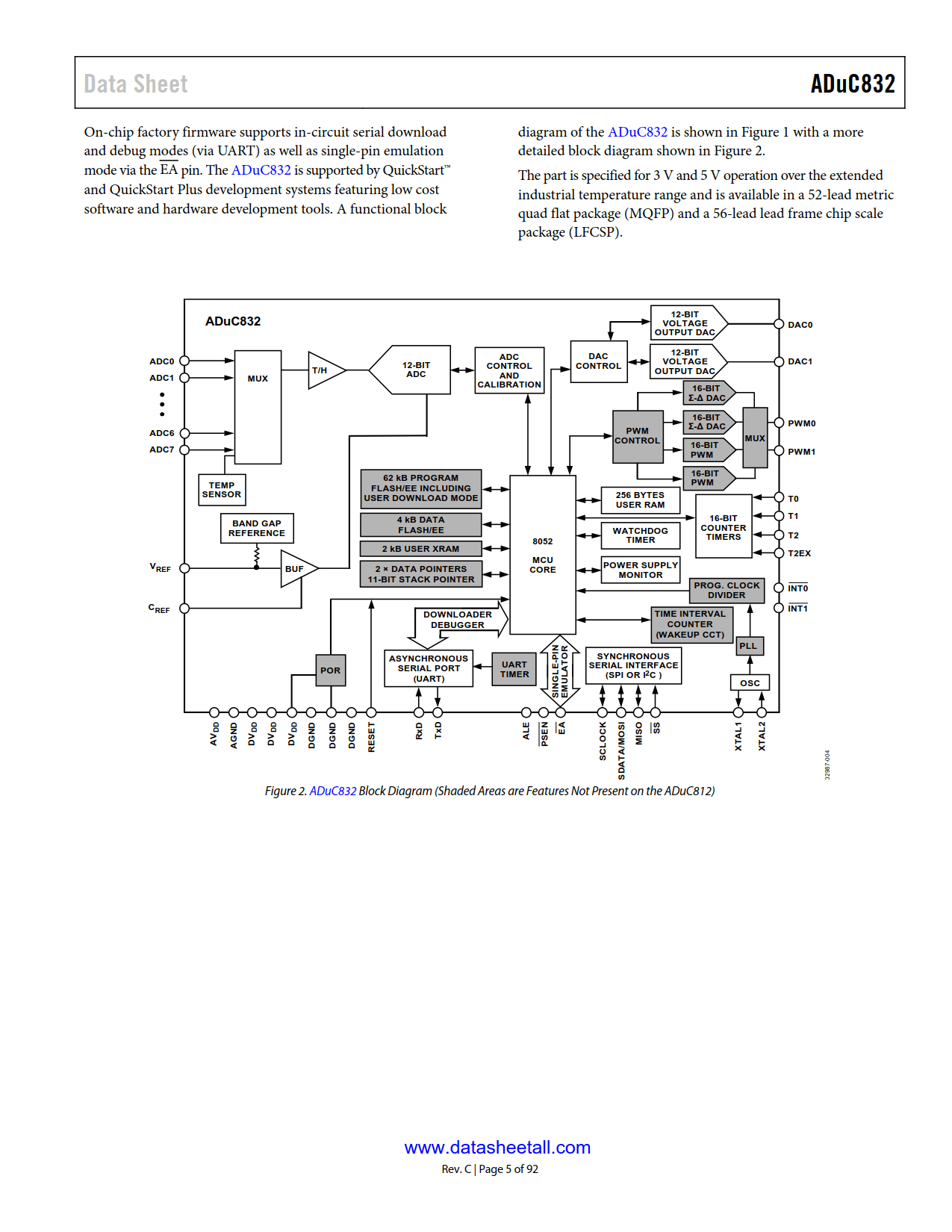

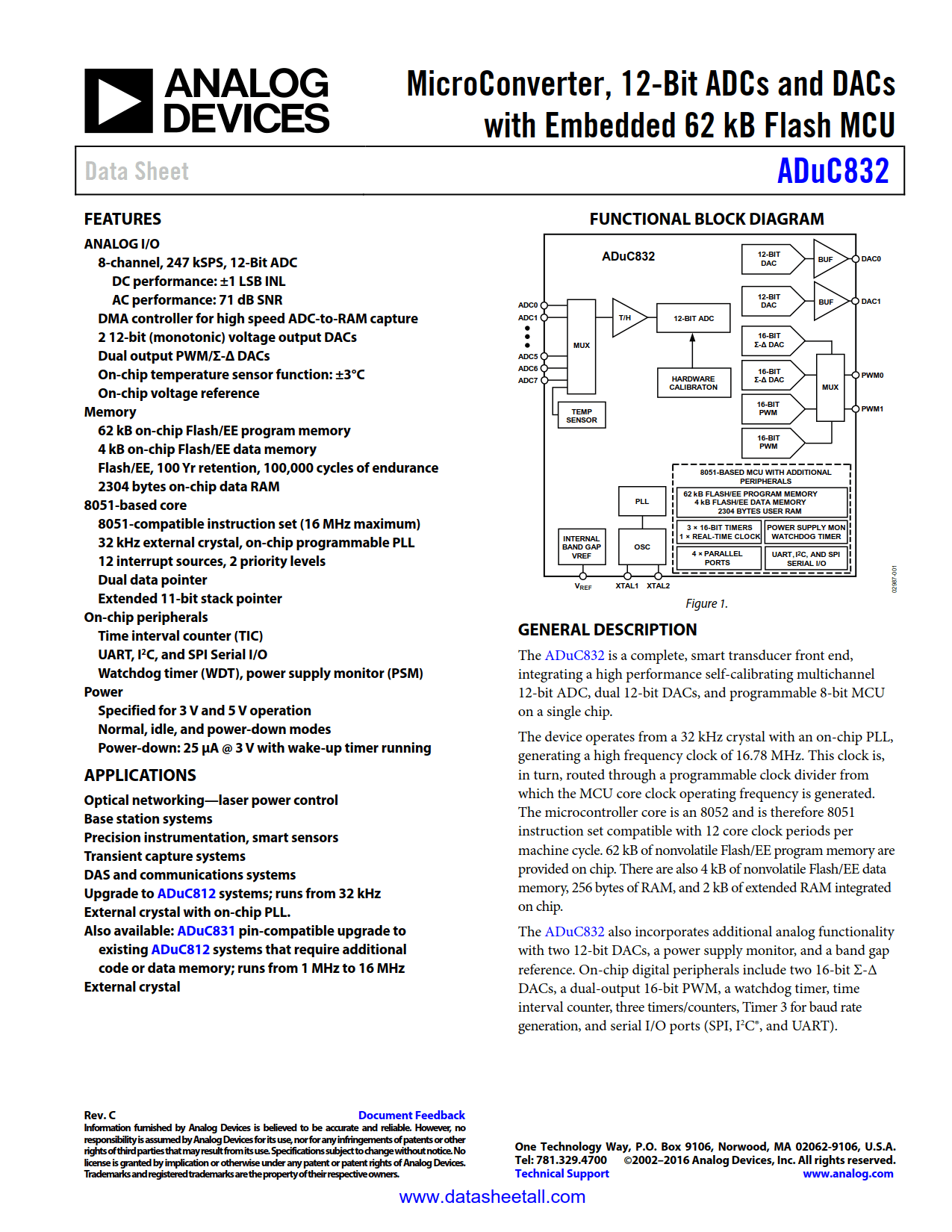

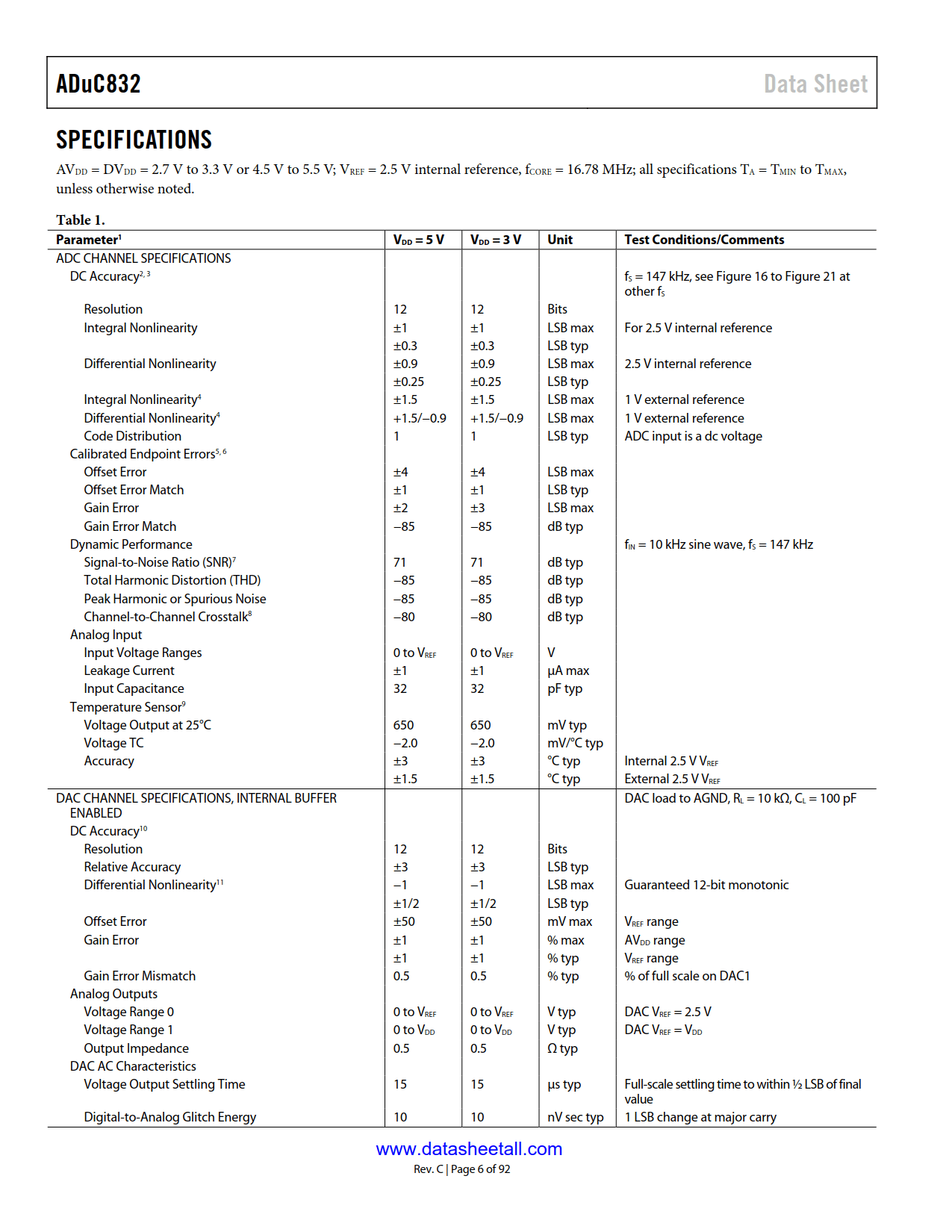

The ADuC832 is a complete, smart transducer front end, integrating a high performance self-calibrating multichannel 12-bit ADC, dual 12-bit DACs, and programmable 8-bit MCU on a single chip.
The device operates from a 32 kHz crystal with an on-chip PLL, generating a high frequency clock of 16.78 MHz. This clock is, in turn, routed through a programmable clock divider from which the MCU core clock operating frequency is generated. The microcontroller core is an 8052 and is therefore 8051 instruction set compatible with 12 core clock periods per machine cycle. 62 kB of nonvolatile Flash/EE program memory are provided on chip. There are also 4 kB of nonvolatile Flash/EE data memory, 256 bytes of RAM, and 2 kB of extended RAM integrated on chip.
The ADuC832 also incorporates additional analog functionality with two 12-bit DACs, a power supply monitor, and a band gap reference. On-chip digital peripherals include two 16-bit Σ-Δ DACs, a dual-output 16-bit PWM, a watchdog timer, time interval counter, three timers/counters, Timer 3 for baud rate generation, and serial I/O ports (SPI, I2C®, and UART).
