| Part No.： | ADR4533 |
| Page： | 41 Pages |
| Size： | 5811 KB |
| Manufacturer： | Analog Devices, Inc. |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2023-12-13 16:09:26 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| ADR4533ARZ | Tube | 98 | 3 | 8 | -40°C ~ 125°C | 8-Lead SOIC | ||
| ADR4533ARZ-R7 | Reel | 1000 | 3 | 8 | -40°C ~ 125°C | 8-Lead SOIC | ||
| ADR4533BRZ | Tube | 98 | 3 | 8 | -40°C ~ 125°C | 8-Lead SOIC | ||
| ADR4533BRZ-R7 | Reel | 1000 | 3 | 8 | -40°C ~ 125°C | 8-Lead SOIC |

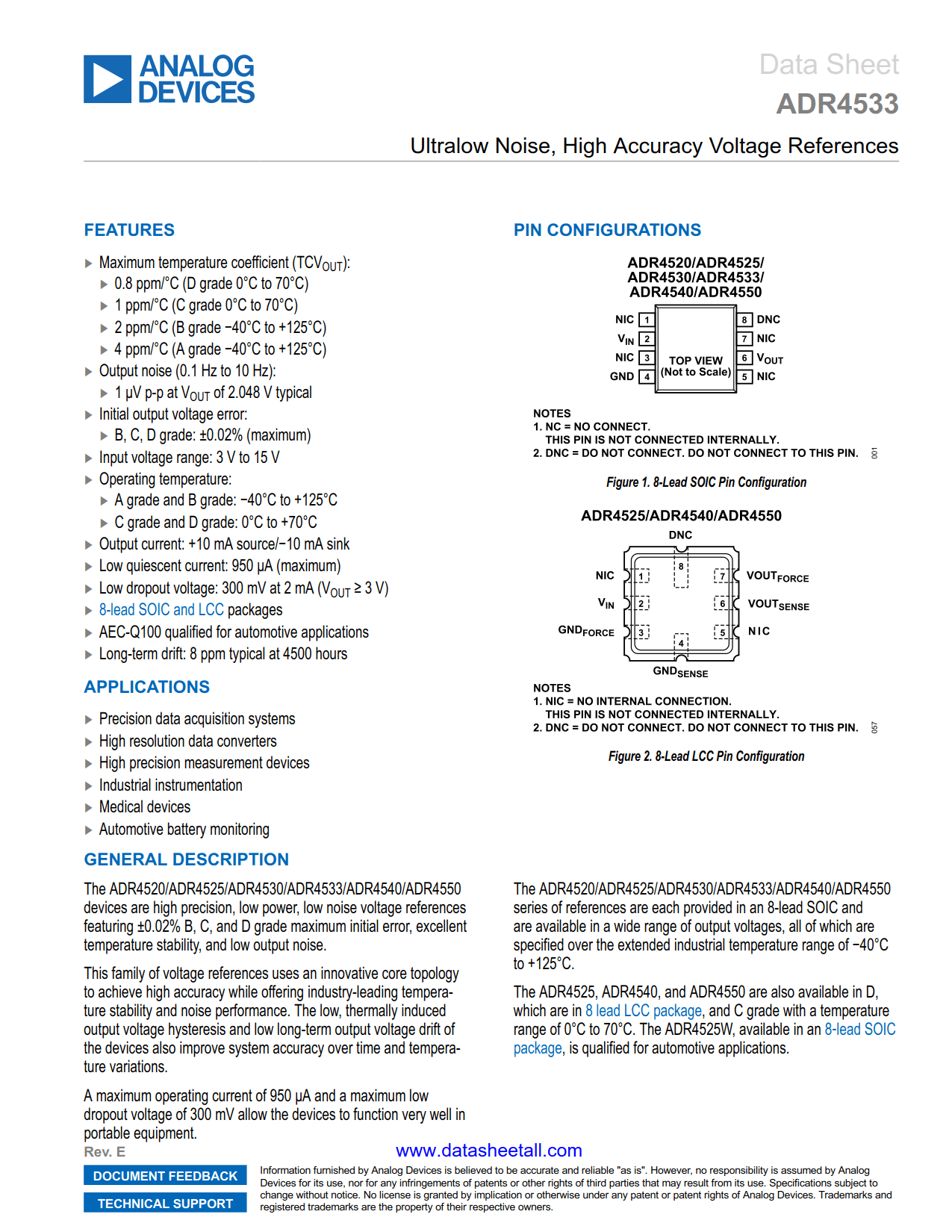

The ADR4533 devices are high precision, low power, low noise voltage references featuring ±0.02% B, C, and D grade maximum initial error, excellent temperature stability, and low output noise.
This family of voltage references uses an innovative core topology to achieve high accuracy while offering industry-leading temperature stability and noise performance. The low, thermally induced output voltage hysteresis and low long-term output voltage drift of the devices also improve system accuracy over time and temperature variations.
A maximum operating current of 950 μA and a maximum low dropout voltage of 300 mV allow the devices to function very well in portable equipment.
The ADR4533 series of references are each provided in an 8-lead SOIC and are available in a wide range of output voltages, all of which are specified over the extended industrial temperature range of −40°C to +125°C.
