ADP196 Datasheet

ADP196 Datasheet

5 V, 3 A Logic Controlled High-Side Power Switch
Part No.: ADP196
Page: 12 Pages
Size: 350 KB
Manufacturer: Analog Devices, Inc.
Logo:
Views: 3
Update Time: 2023-10-17 15:48:50
DataSheet: Download

ADP196 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
ADP196ACBZ-R7 Reel 3000   3 6 -40°C ~ 85°C 6-Ball WLCSP
ADP196ACPZN-R7 Reel 3000   3 6 -40°C ~ 85°C 6-Lead LFCSP
ADP196ACBZ-01-R7 Reel 3000   3 6 -40°C ~ 85°C 6-Ball WLCSP
ADP196ACPZN-01-R7 Reel 3000   3 6 -40°C ~ 85°C 6-Lead LFCSP
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

ADP196 Datasheet(PDF)

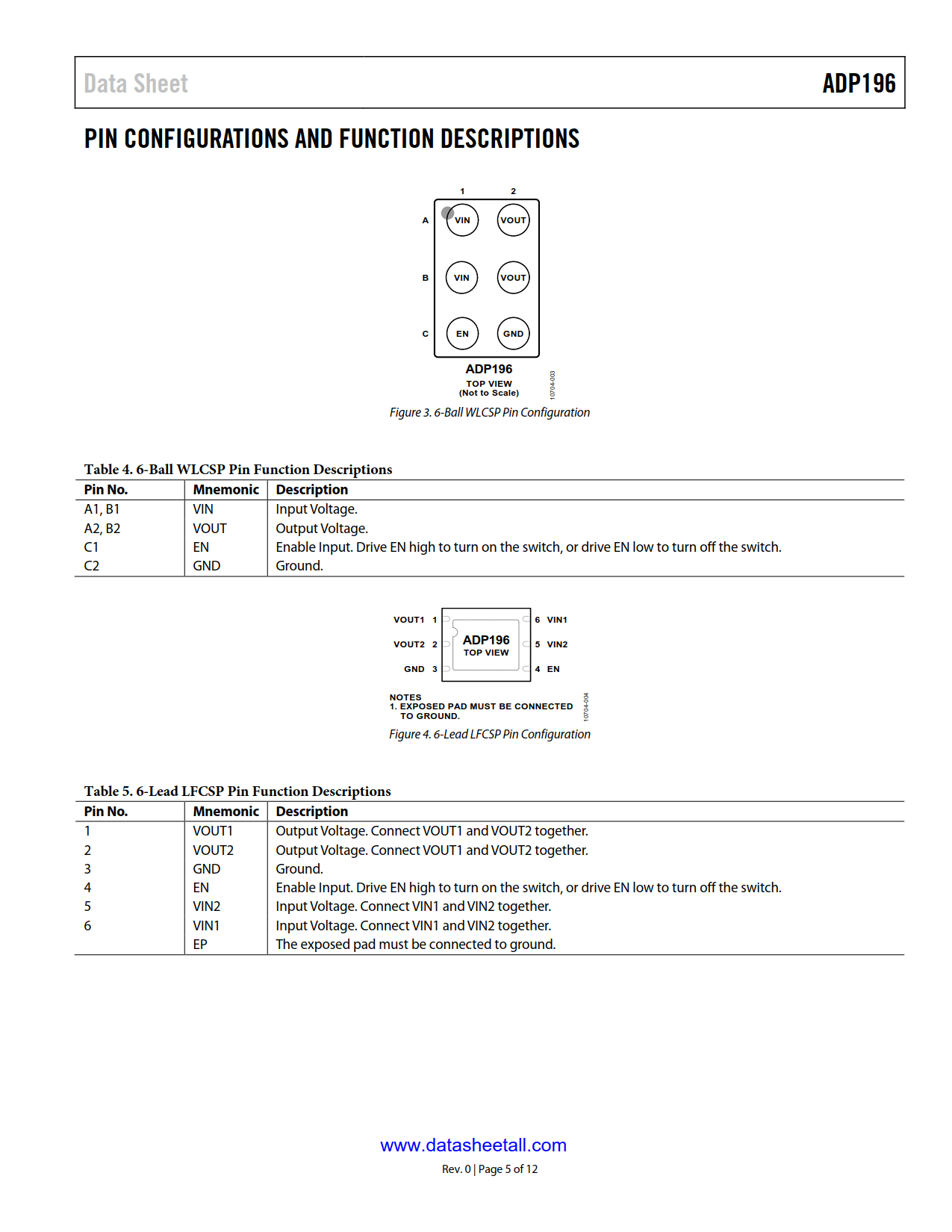

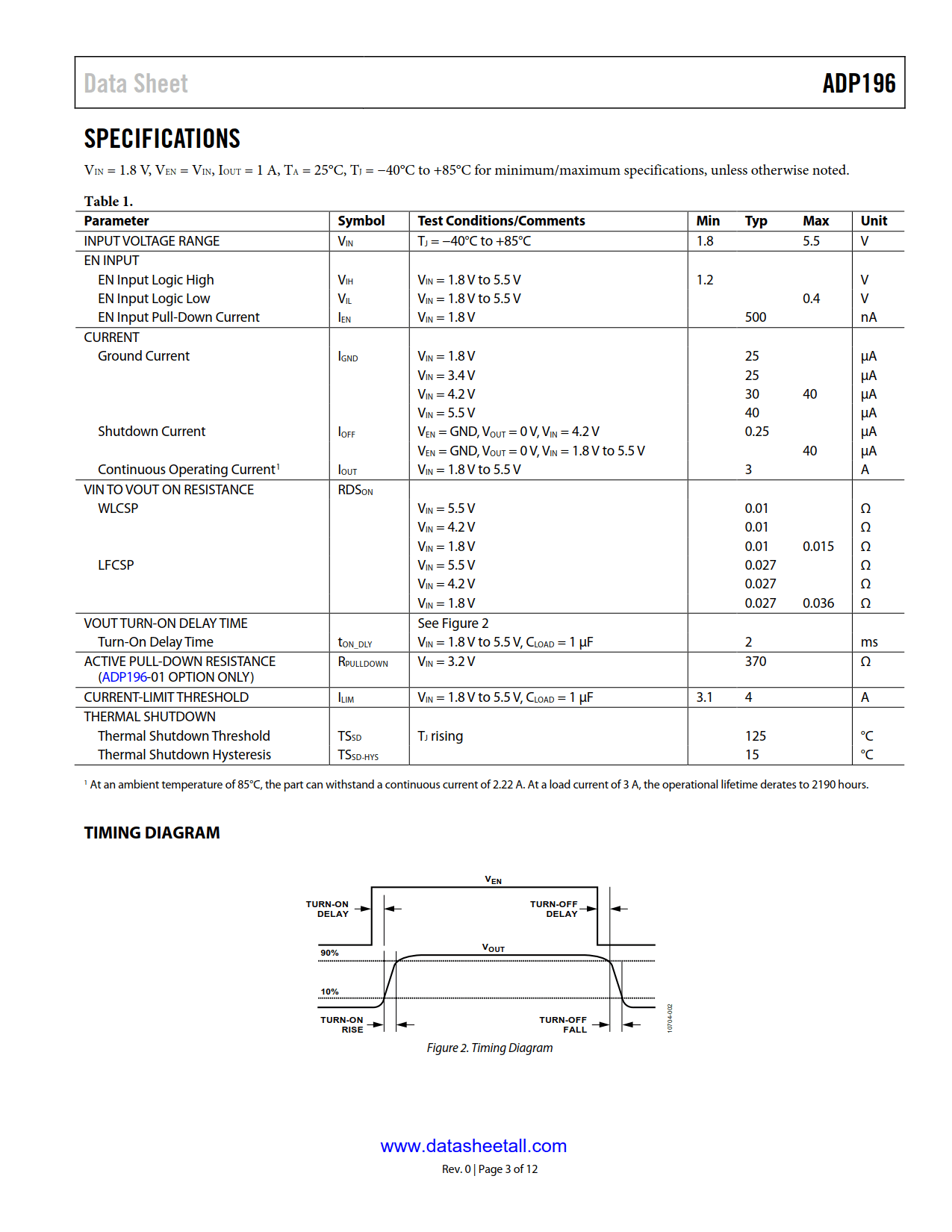

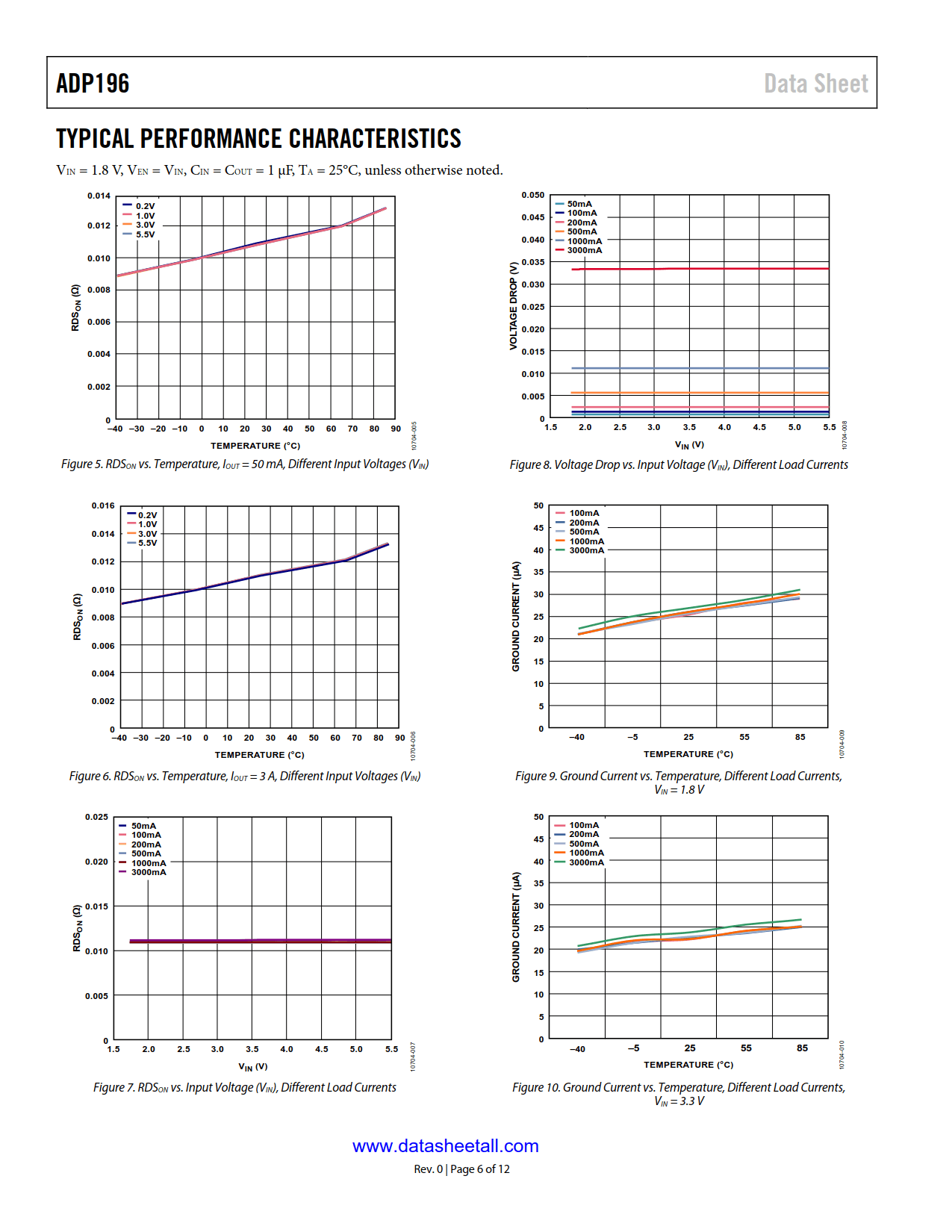

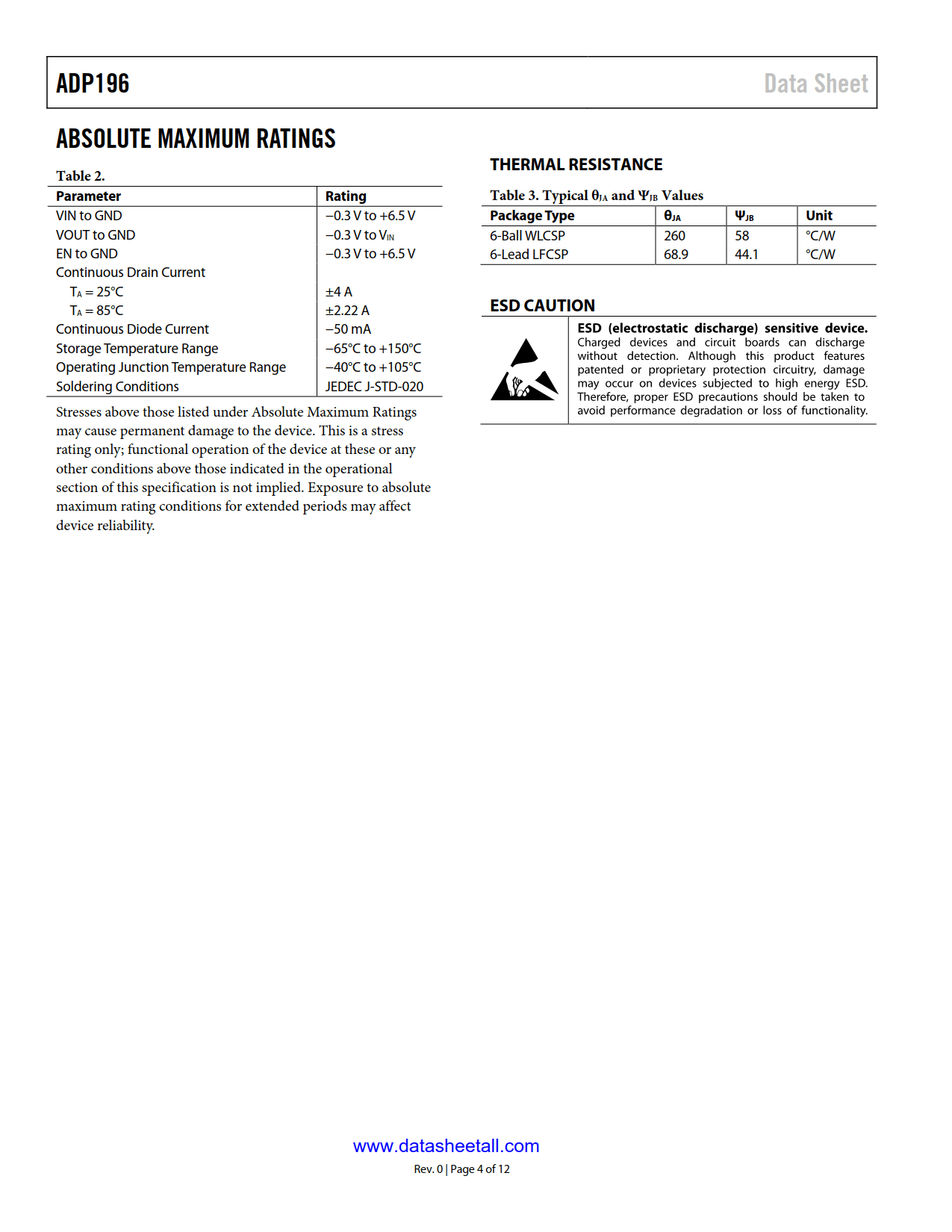

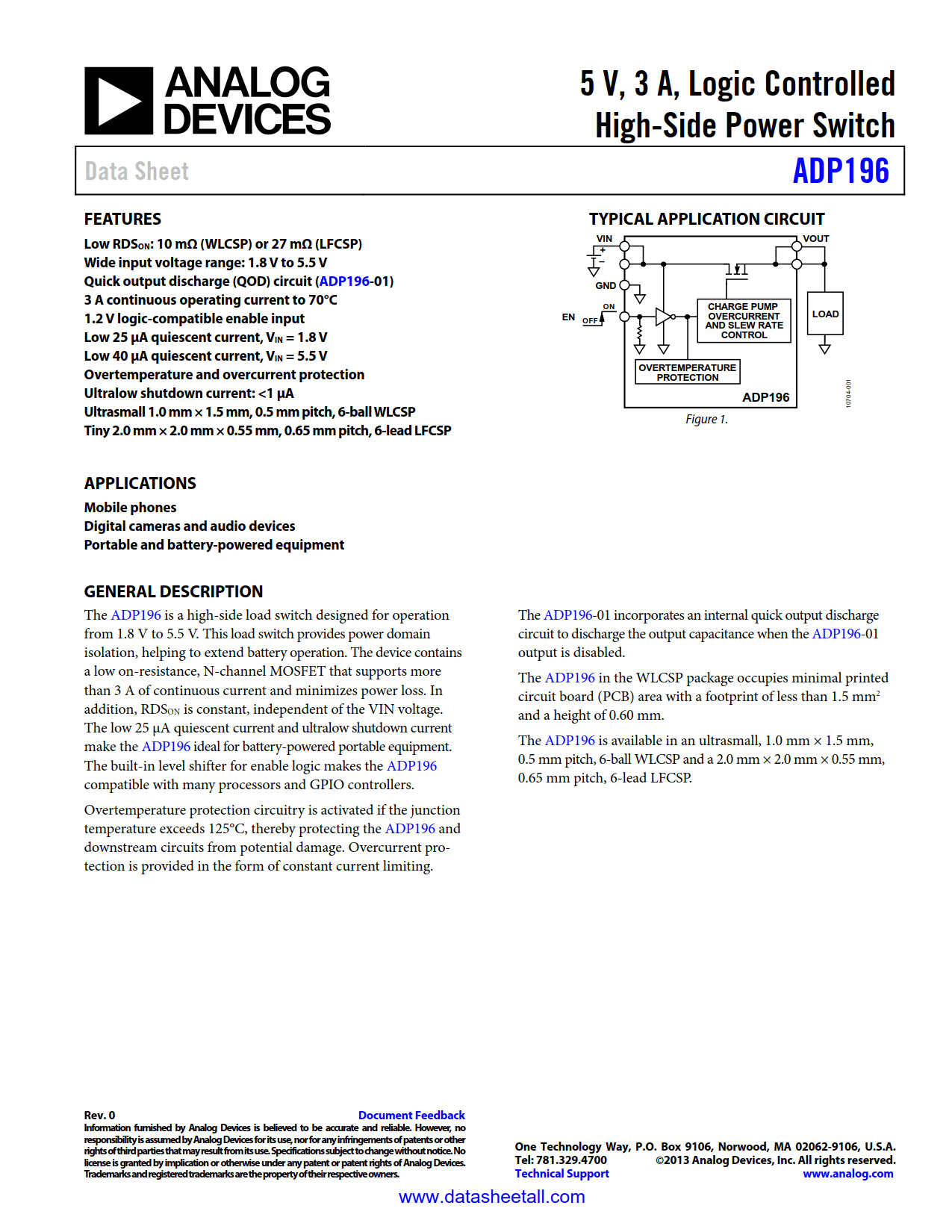

ADP196 Datasheet(Picture)

ADP196 Features

  • Low RDSON: 10 mΩ (WLCSP) or 27 mΩ (LFCSP)
  • Wide input voltage range: 1.8 V to 5.5 V
  • Quick output discharge (QOD) circuit (ADP196-01)
  • 3 A continuous operating current at 70°C
  • 1.2 V logic compatible enable input
  • Low 25 μA quiescent current, VIN 1.8 V
  • Low 40 μA quiescent current, VIN = 5.5 V
  • Overtemperature and overcurrent protection
  • Ultralow shutdown current: <1 μA
  • Ultrasmall 1.0 mm × 1.5 mm, 0.5 mm pitch, 6-ball WLCSP
  • Tiny 2.0 mm × 2.0 mm × 0.55 mm, 0.65 mm pitch, 6-lead LFCSP

ADP196 Applications

  • Mobile phones
  • Digital cameras and audio devices
  • Portable and battery-powered equipment
  • In-Rush Control of Optical Network Modules
    SFP, SFP+, XFP, CFP

ADP196 Description

The ADP196 is a high-side load switch designed for operation from 1.8 V to 5.5 V. This load switch provides power domain isolation, helping to extend battery operation. The device contains a low on-resistance, N-channel MOSFET that supports more than 3 A of continuous current and minimizes power loss. In addition, RDSON is constant, independent of the VIN voltage. The low 25 μA quiescent current and ultralow shutdown current make the ADP196 ideal for battery-powered portable equipment. The built-in level shifter for enable logic makes the ADP196 compatible with many processors and GPIO controllers.

Overtemperature protection circuitry is activated if the junction temperature exceeds 125°C, thereby protecting the ADP196 and downstream circuits from potential damage. Overcurrent pro- tection is provided in the form of constant current limiting.

The ADP196-01 incorporates an internal quick output discharge circuit to discharge the output capacitance when the ADP196-01 output is disabled.

The ADP196 in the WLCSP package occupies minimal printed circuit board (PCB) area with a footprint of less than 1.5 mm2 and a height of 0.60 mm.

The ADP196 is available in an ultrasmall, 1.0 mm × 1.5 mm, 0.5 mm pitch, 6-ball WLCSP and a 2.0 mm × 2.0 mm × 0.55 mm, 0.65 mm pitch, 6-lead LFCSP.
