5V, 16 Mbps, ESD Protected, Full-Duplex RS-485 Transceiver (with Driver/Receiver Enable)
Part No.: ADM1491E
Page: 16 Pages
Size: 322 KB
Manufacturer: Analog Devices, Inc.
Logo:
Views: 1
Update Time: 2023-12-07 16:07:52
DataSheet: Download

ADM1491E Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
ADM1491EBRZ Tube 56   3 14 -40°C ~ 85°C 14-Lead Standard Small Outline Package, Narrow Body [SOIC_N]
ADM1491EBRZ-REEL7 Reel 1000   3 14 -40°C ~ 85°C 14-Lead Standard Small Outline Package, Narrow Body [SOIC_N]
ADM1491EBRMZ Tube 50   3 10 -40°C ~ 85°C 10-Lead Mini Small Outline Package [MSOP]
ADM1491EBRMZ-REEL7 Reel 1000   3 10 -40°C ~ 85°C 10-Lead Mini Small Outline Package [MSOP]
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

ADM1491E Datasheet(PDF)

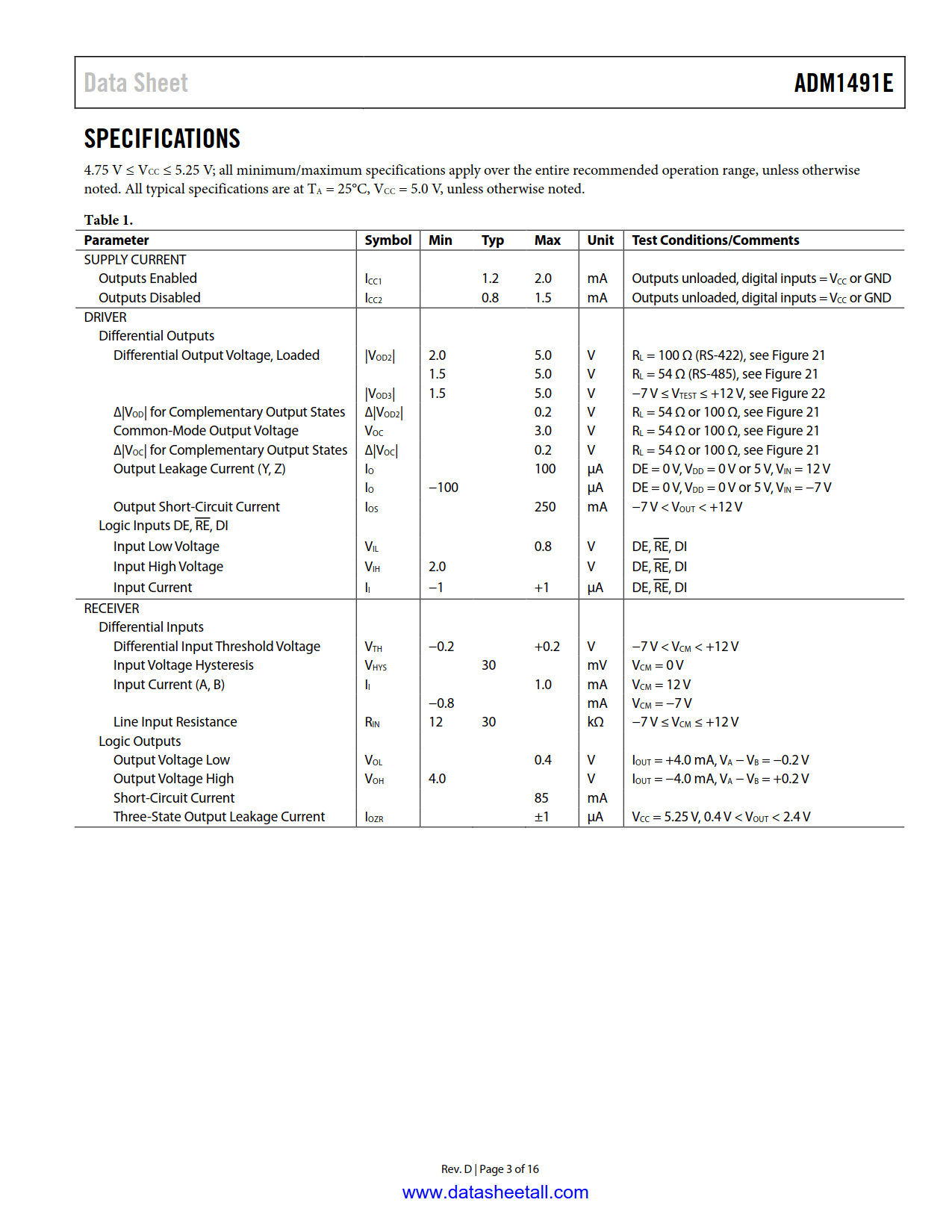

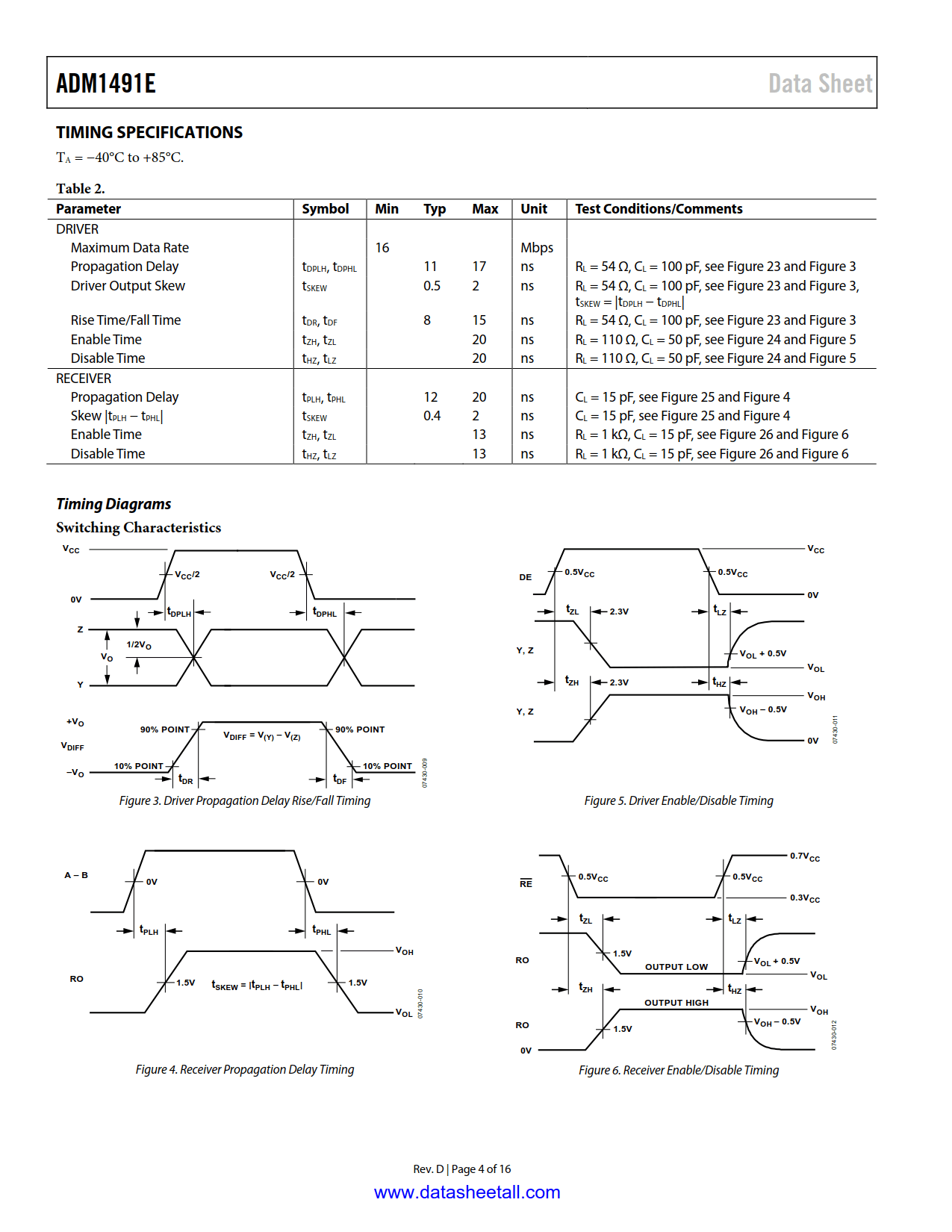

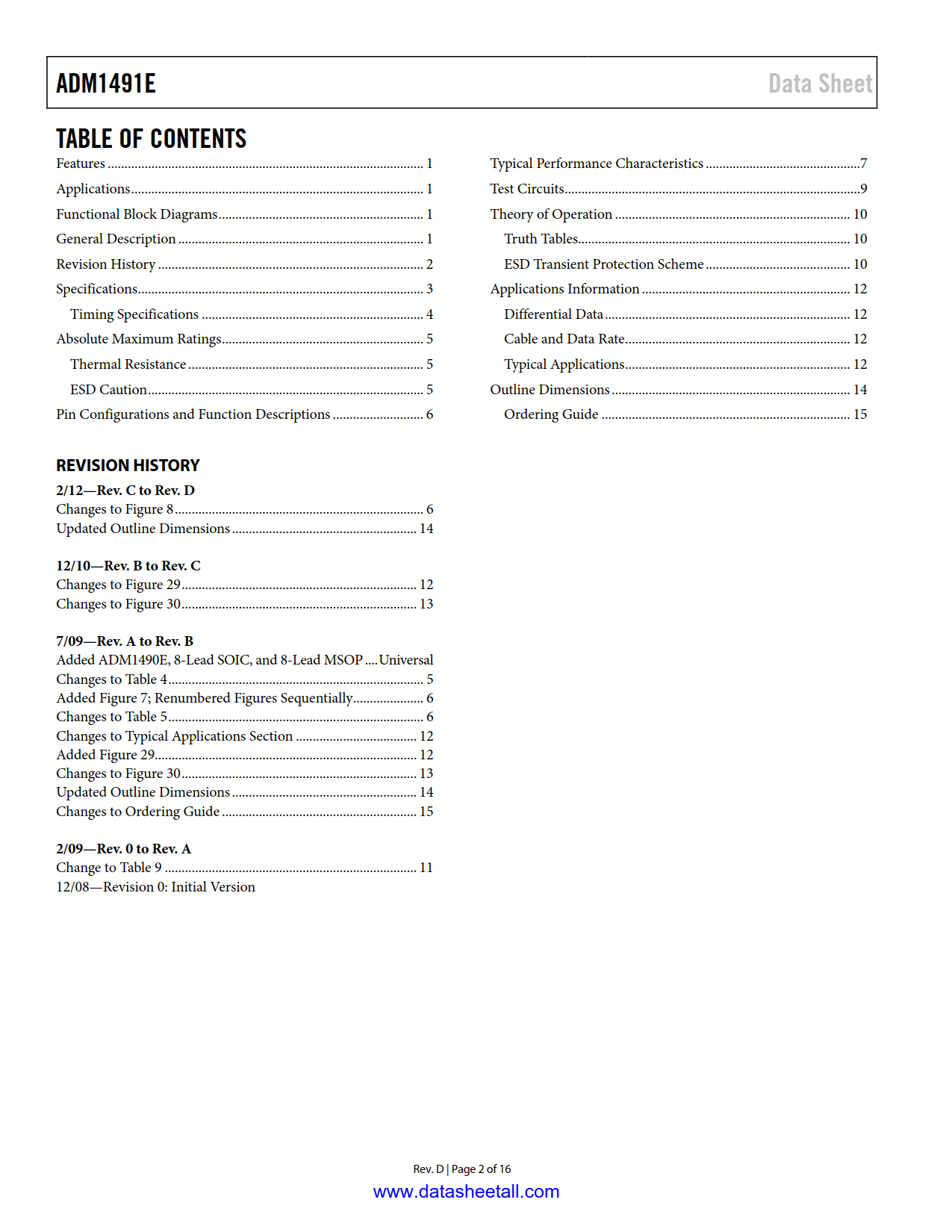

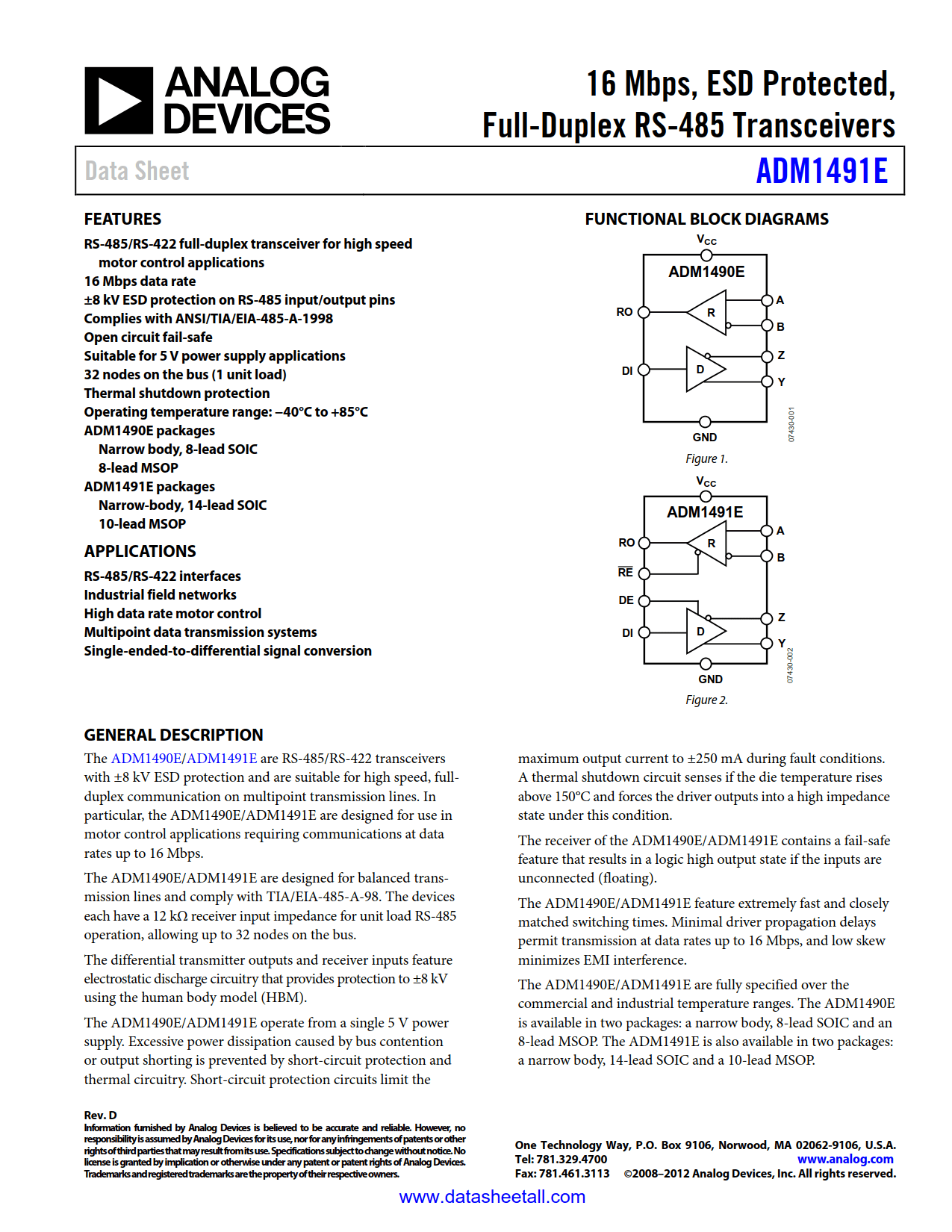

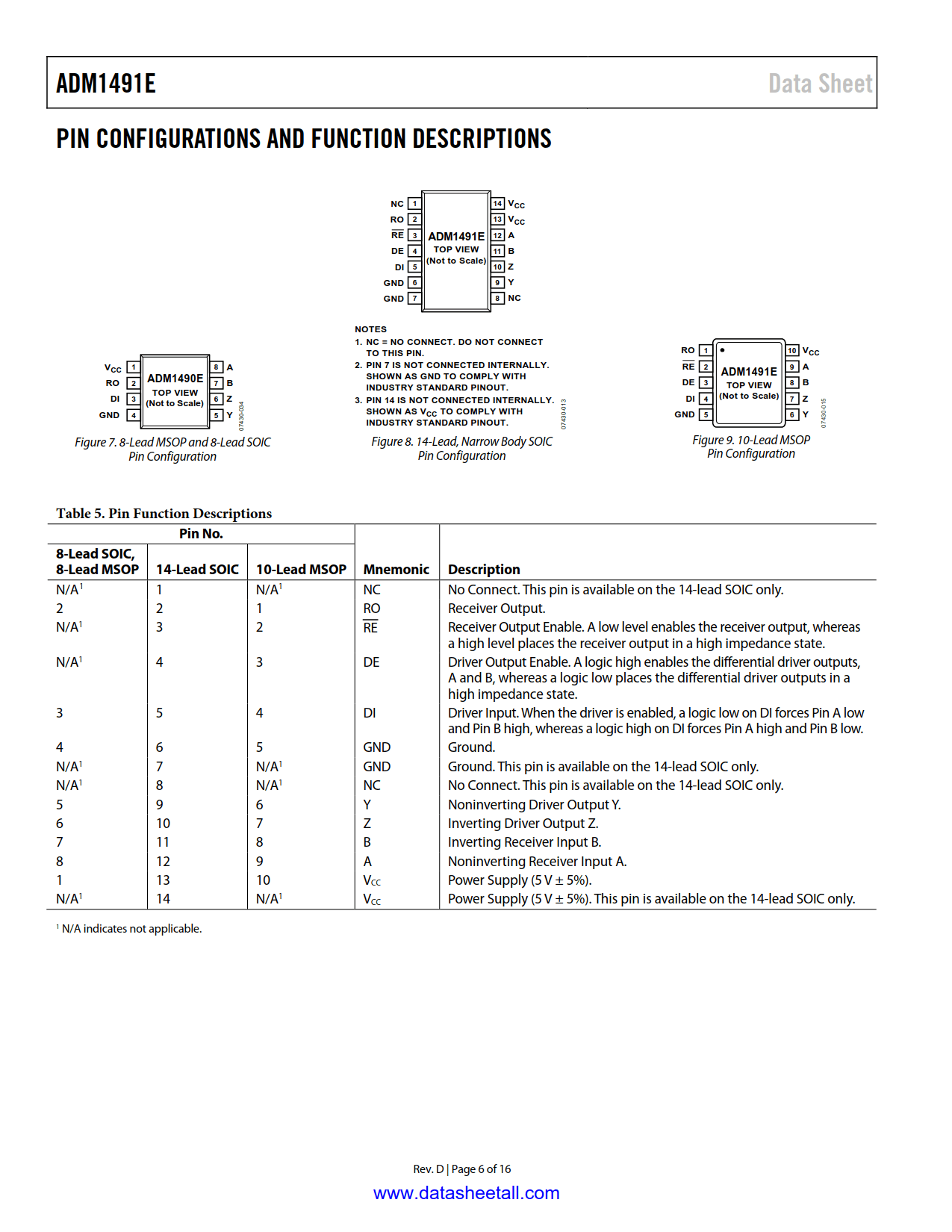

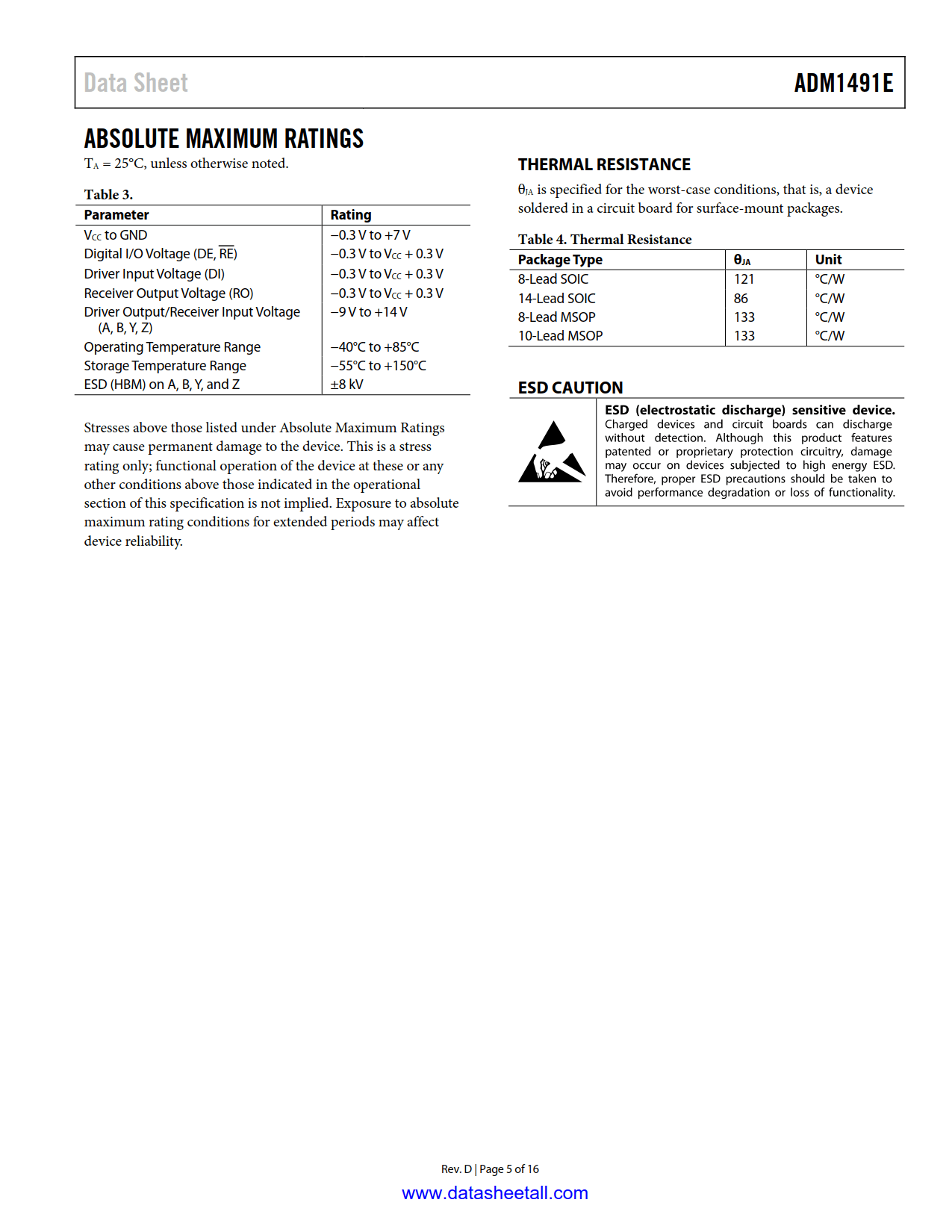

ADM1491E Datasheet(Picture)

ADM1491E Features

  • RS-485/RS-422 full duplex transceiver, for high speed motor control applications
  • 16 Mbps data rate
  • ±8 kV ESD protection on RS-485 input/output pins
  • Open circuit fail-safe
  • Suitable for 5 V power supply applications
  • 32 nodes on the bus (1 unit load)
  • See datasheet for additional features

ADM1491E Applications

  • RS-485/RS-422 interfaces
  • Industrial field networks
  • High data rate motor control
  • Multipoint data transmission systems
  • Single-ended to differential signal conversion

ADM1491E Description

The ADM1491E are RS-485 transceivers with ±8 kV ESD protection and is suitable for high speed, full-duplex communication on multipoint transmission lines. In particular, the ADM1491E is designed for use in motor control applications requiring communications at data rates up to 16 Mbps.

The ADM1491E is designed for balanced transmission lines and complies with TIA/EIA-485-A-98. The device has a 12 kΩ receiver input impedance for unit load RS-485 operation allowing up to 32 nodes on the bus.

The differential transmitter outputs and receiver inputs feature electrostatic discharge circuitry that provides protection to ±8 kV using the human body model (HBM).

The ADM1491E operates from a single 5 V power supply. Excessive power dissipation caused by bus contention or output shorting is prevented by short-circuit protection and thermal circuitry.

Short-circuit protection circuits limit the maximum output current to ±250 mA during fault conditions. A thermal shutdown circuit senses if the die temperature rises above 150°C and forces the driver outputs into a high impedance state under this condition.

The receiver of the ADM1491E contains a fail-safe feature that results in a logic high output state if the inputs are unconnected (floating).

The ADM1491E features extremely fast and closely matched switching times. Minimal driver propagation delays permit transmission at data rates up to 16 Mbps while low skew minimizes EMI interference.

The ADM1491E is fully specified over the commercial and industrial temperature ranges and is available in two packages: a narrow-body 14-lead SOIC and a 10-lead MSOP.
