ADG715 Datasheet

ADG715 Datasheet

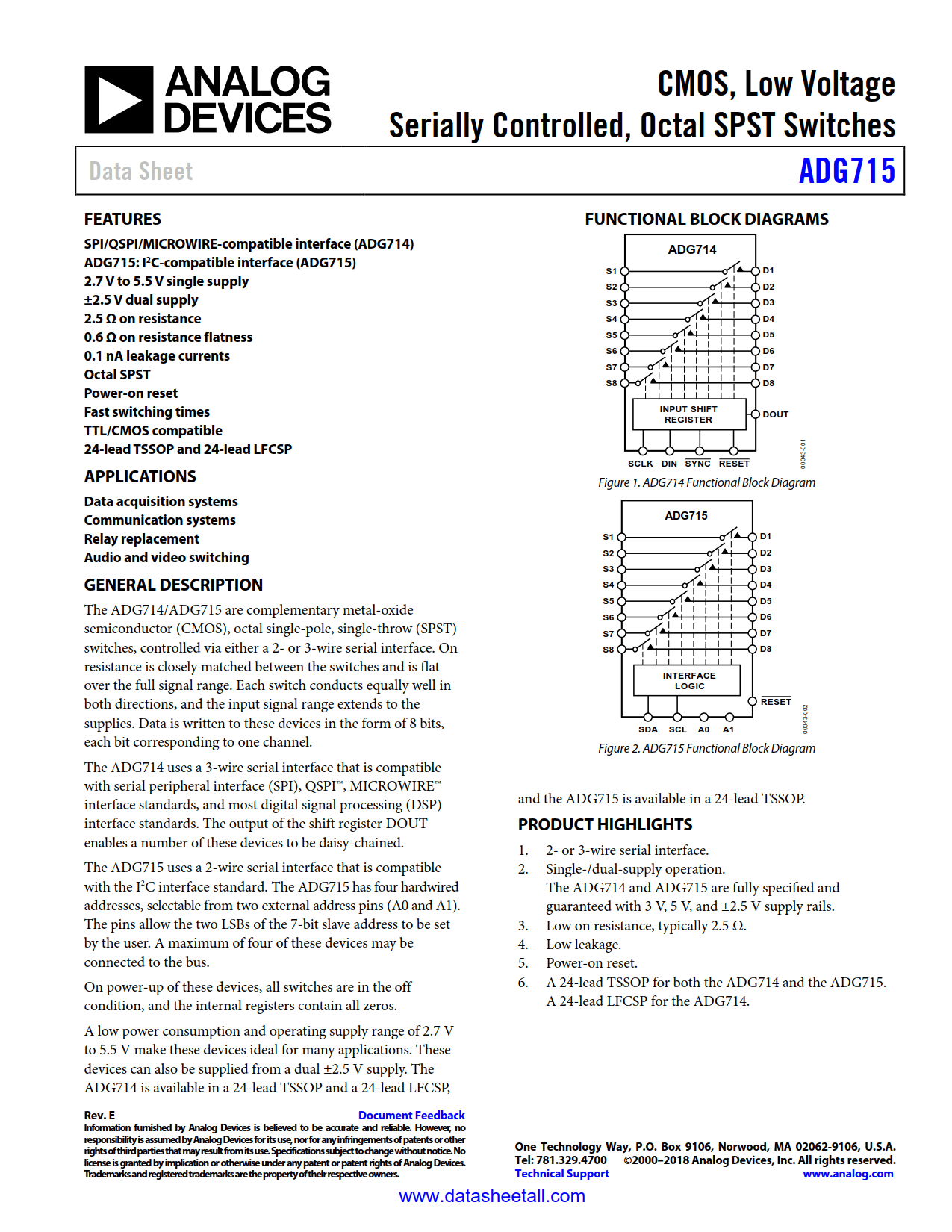

CMOS, Low Voltage, I2C Compatible Interface, Serially Controlled, Octal SPST Switches
Part No.: ADG715
Page: 21 Pages
Size: 325 KB
Manufacturer: Analog Devices, Inc.
Logo:
Views: 2
Update Time: 2023-12-08 14:49:18
DataSheet: Download

ADG715 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
ADG715BRUZ Tube 62   3 24 -40°C ~ 85°C 24-Lead Thin Shrink Small Outline Package [TSSOP]
ADG715BRUZ-REEL Reel 2500   3 24 -40°C ~ 85°C 24-Lead Thin Shrink Small Outline Package [TSSOP]
ADG715BRUZ-REEL7 Reel 1000   3 24 -40°C ~ 85°C 24-Lead Thin Shrink Small Outline Package [TSSOP]
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

ADG715 Datasheet(PDF)

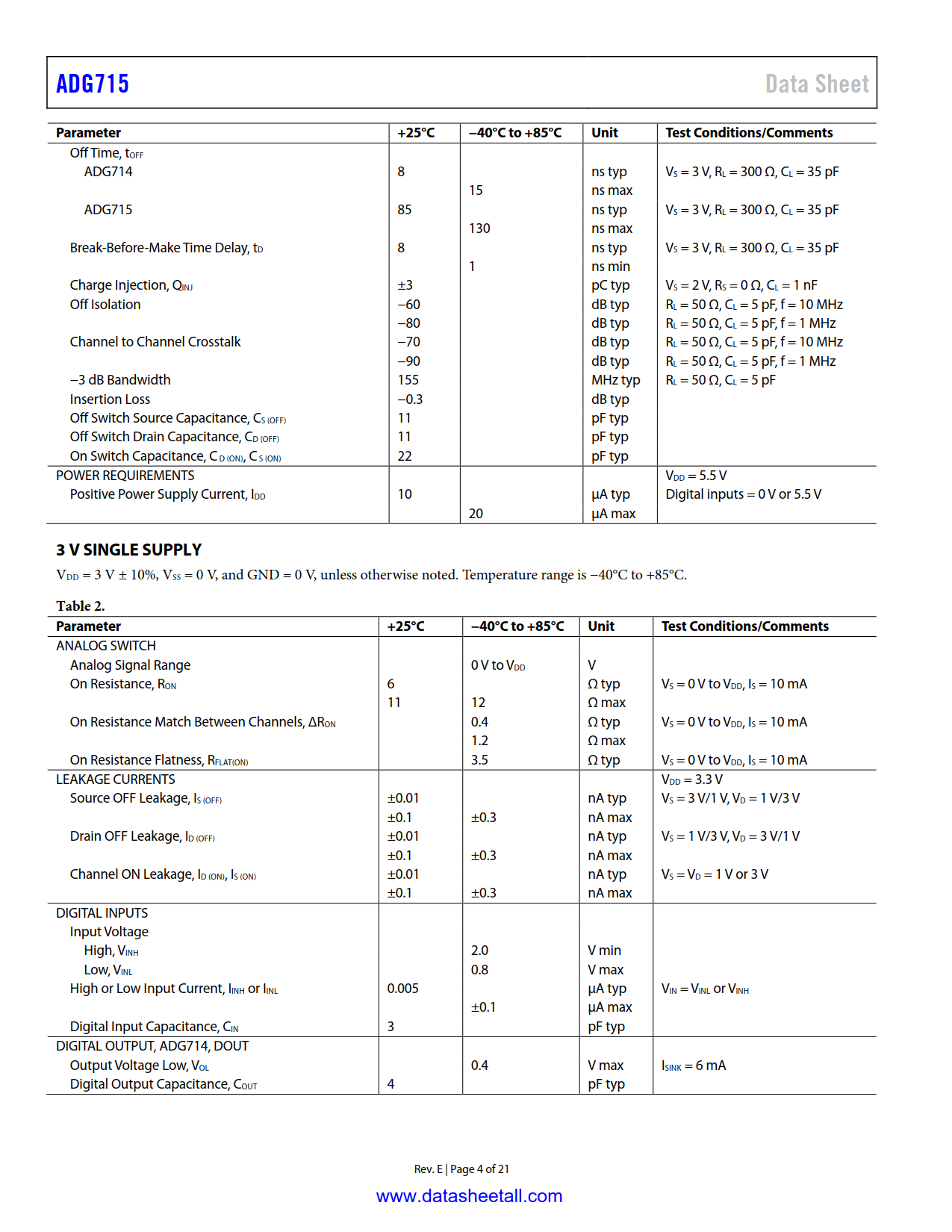

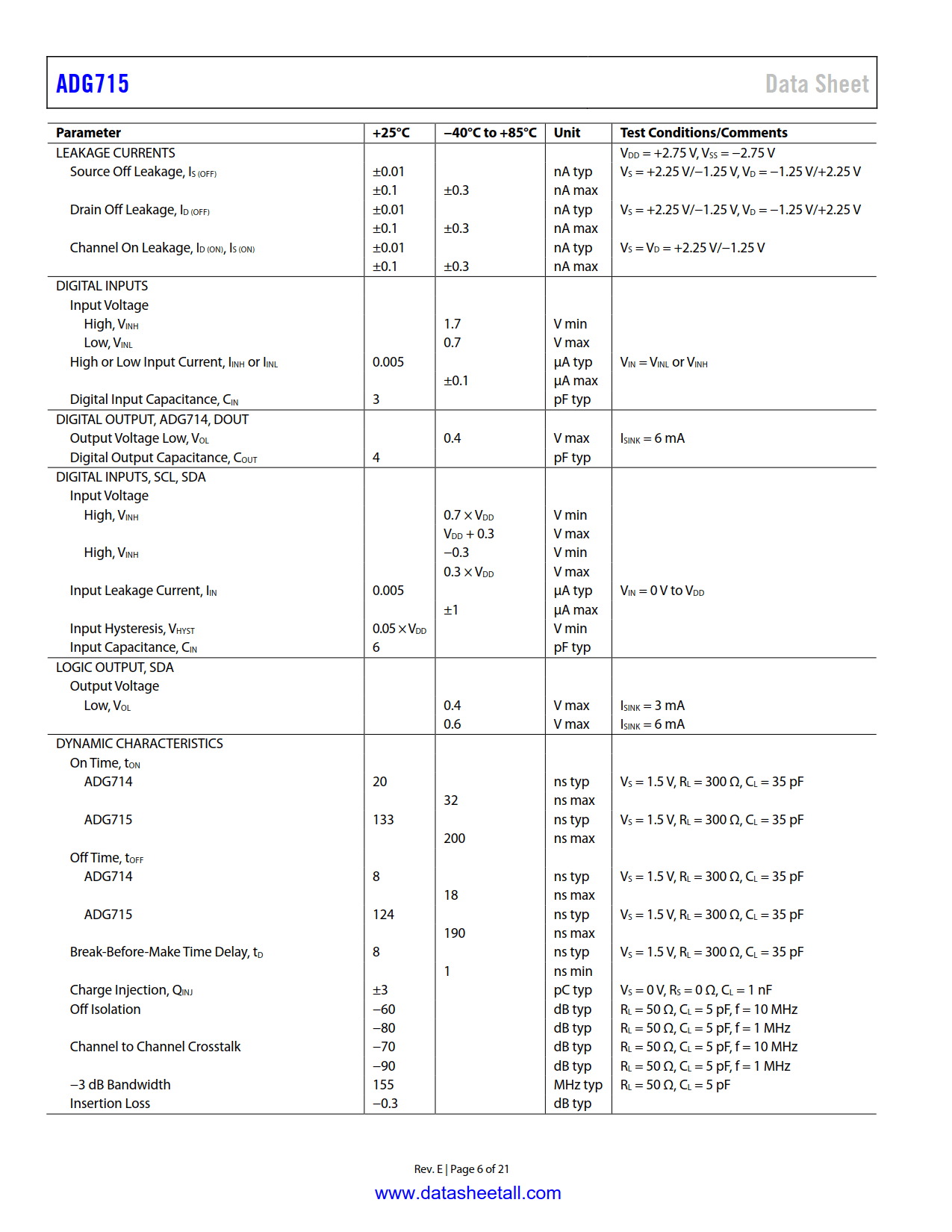

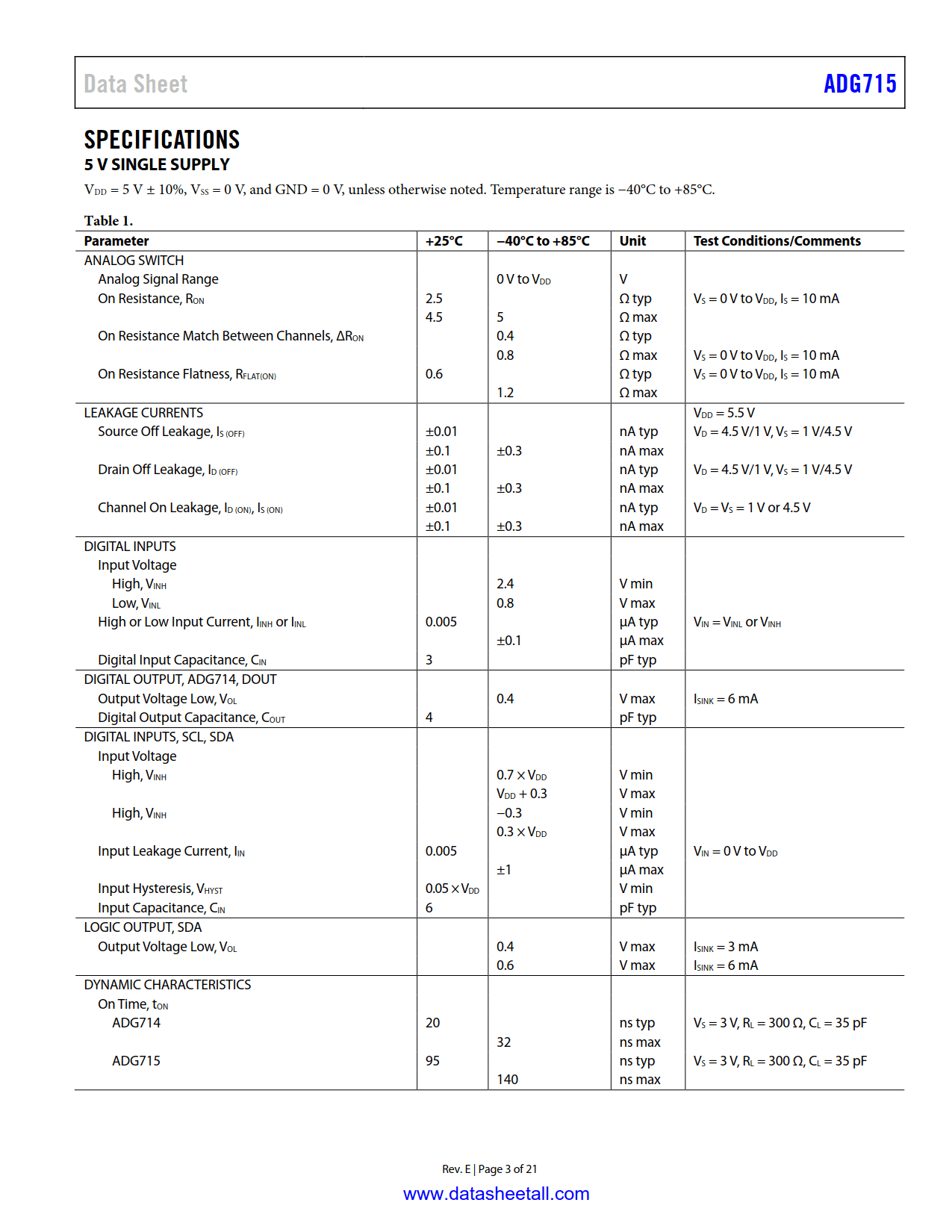

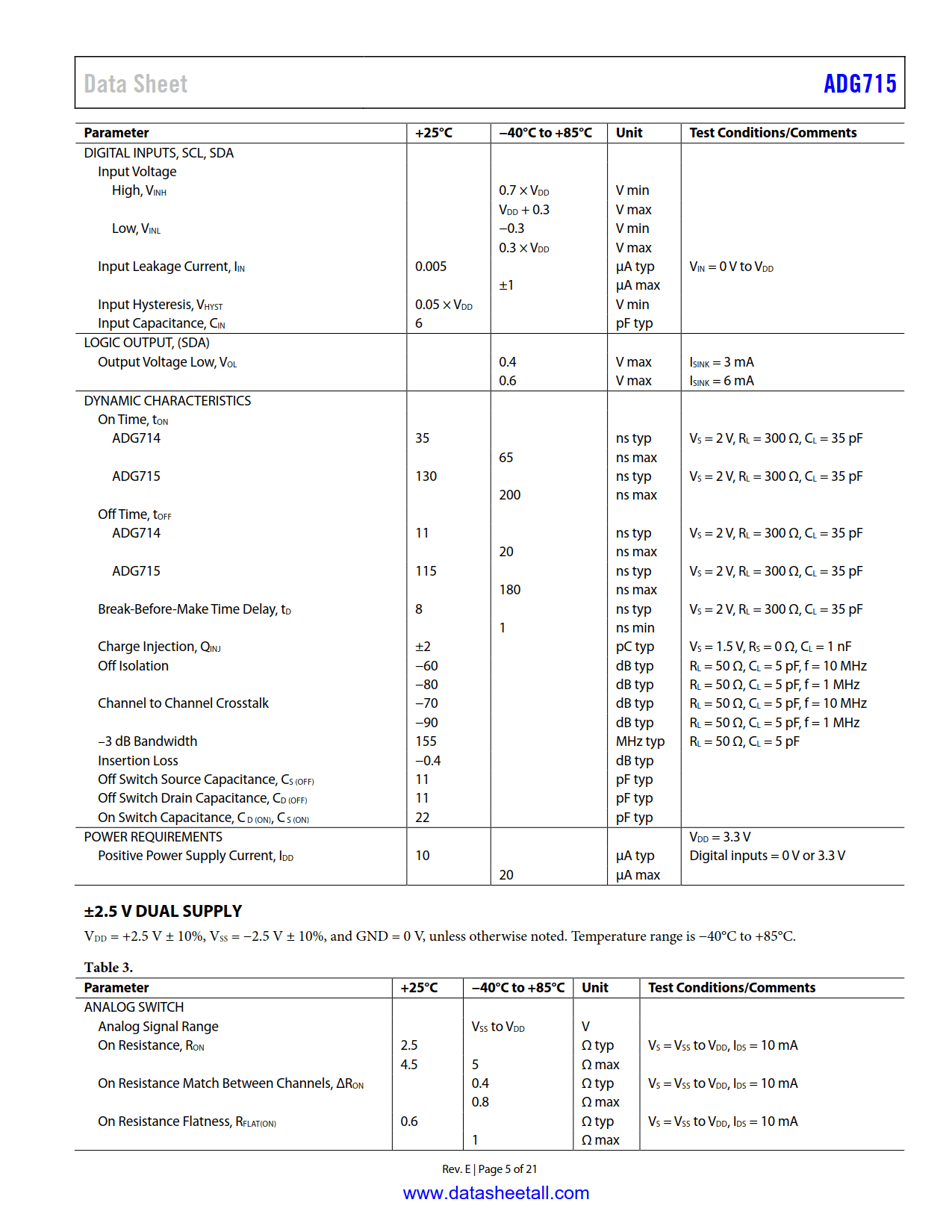

ADG715 Datasheet(Picture)

ADG715 Features

  • I²C-compatible interface
  • 2.7 V to 5.5 V single supply
  • ±2.5 V dual supply
  • 2.5 Ω on resistance
  • 0.6 Ω on resistance fatness
  • 0.1 nA leakage currents
  • Octal SPST
  • Power-on reset
  • Fast switching times
  • TTL/CMOS compatible
  • 24-lead TSSOP and 24-lead LFCSP

ADG715 Applications

  • Data acquisition systems
  • Communication systems
  • Relay replacement
  • Audio and video switching

ADG715 Description

The ADG715 is a complementary metal-oxide semiconductor (CMOS), octal single-pole, single-throw (SPST) switch controlled via a 2- wire serial interface. On resistance is closely matched between switches and is flat over the full signal range. Each switch conducts equally well in both directions and the input signal range extends to the supplies. Data is written to these devices in the form of 8 bits, each bit corresponding to one channel.

The ADG715 uses a 2-wire serial interface that is compatible with the I2C interface standard. The ADG715 has four hardwired addresses, selectable from two external address pins (A0 and A1). The pins allow the two LSBs of the 7-bit slave address to be set by the user. A maximum of four of these devices may be connected to the bus.

On power-up, all switches are in the OFF condition, and the internal registers contain all zeros.

A low power consumption and operating supply range of 2.7 V to 5.5 V makes this part ideal for many applications. The ADG715 may also be supplied from a dual ±2.5 V supply. The ADG715 is available in a 24-lead TSSOP.
